Manufacturer
Samsung
Model Number
NSG6DB830012AA
Description
Mwo : Microwaveoven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DG94-03558B | ASSEMBLY BRACKET BAKE;NX60T8711**,T-PJT GAS |
|
|
ASSEMBLY BRACKET LATCH;NE63T**,NX60T**,NY63T |
|
|
ASSEMBLY BRACKET LATCH;NX60T8711**, NE63T871 |
|
|
ASSEMBLY BRACKET SUB;NE58F9710WS,SLIDE-IN PJ |
| DG94-03659A | ASSEMBLY BRACKET SUB;NX60T8***,T-PJT GAS MOD |
| DG94-03689C | ASSEMBLY BRACKET SUPPORTER;T-PJT S/I ALL,REA |
| DG90-01024B | ASSEMBLY BURNER BROIL-MODULE;NX60T8711**,T-P |
| DG90-01079A | ASSEMBLY BURNER;NX9000T,ALDC12,GIANT, 10K BT |
| DG94-03713A | ASSEMBLY CAVITY FLOOR-COATING;NX60T8***,DARK |
| DG94-05997D | ASSEMBLY CONTROL PANEL SUB;NSG6D*8300**AA,GA |
| DG94-06248B | ASSEMBLY COOKTOP FRAME;NSG6DG8300SRAA,3 SERI |
| DG94-03530G | ASSEMBLY COVER ADIABATIC-TOP;NX9100D,GAS |
| DG94-03461F | ASSEMBLY COVER BACK;NX9100D,GI-SGCC,T0.4,NX9 |
| DG94-03561A | ASSEMBLY COVER CASING;NX60T8711**, NE63T8711 |
| DG94-06030C | ASSEMBLY DOOR SUB;NE/NX9100D,WHT,5 SERIES, W |
| DG94-05954C | ASSEMBLY DOOR;NE/NX9100D,WHT,5 SERIES |
| DG90-01484C | ASSEMBLY DRAWER MAIN;NSG6DB850012AA,5,3,1 SE |
| DG94-06033A | ASSEMBLY DRAWER;NE/NX9100D,WHITE,SLIDER |
|
|

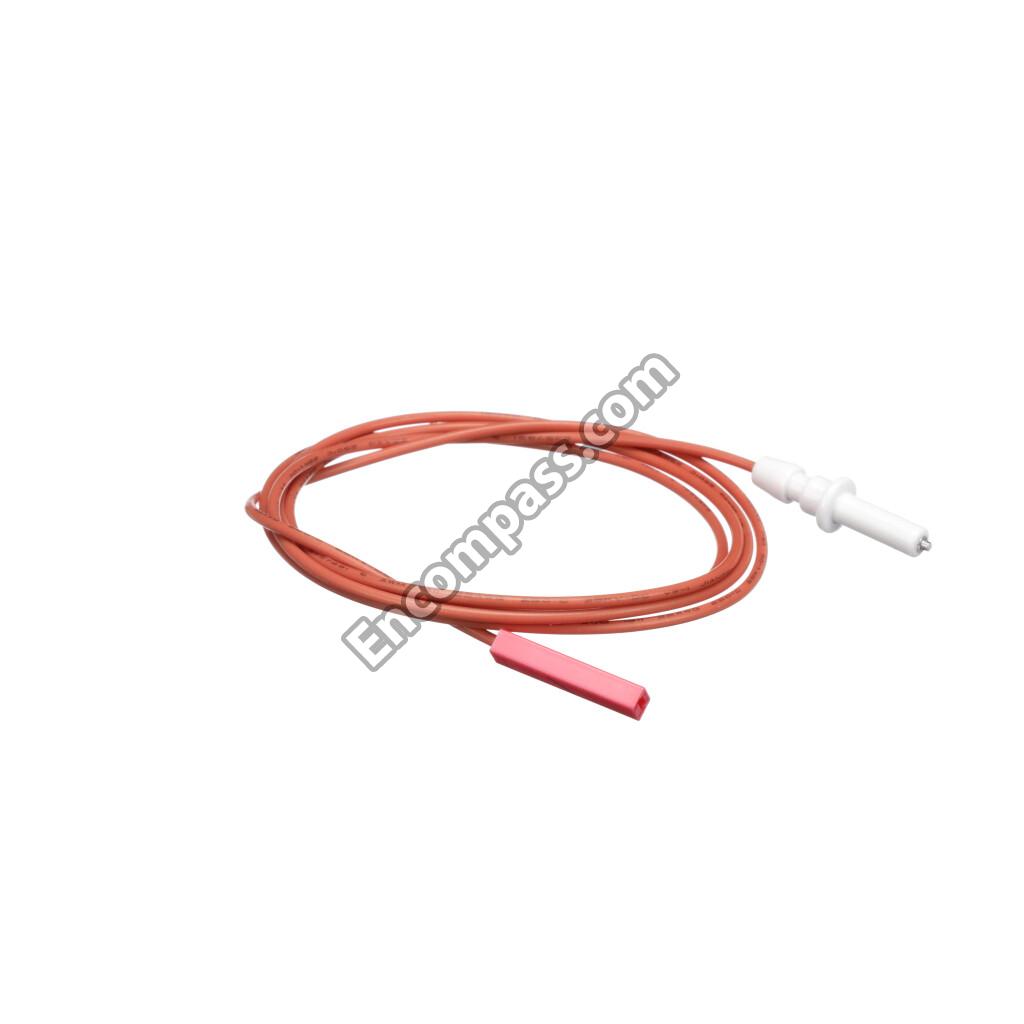

ASSEMBLY ELECTRODE;FX710BGS/XAA,AC18KV,930MM |
|
|
ASSEMBLY ELECTRODE;NX9000T,AC18KV,,,1100MM,S |
| DG96-00790A | ASSEMBLY ELECTRODE;NX9000T,AC18KV,1150MM,SIN |
| DG96-00788A | ASSEMBLY ELECTRODE;NX9000T,AC18KV,650MM,SING |
| DG96-00791A | ASSEMBLY ELECTRODE;NX9000T,AC18KV,900MM,FISH |
| DG98-02112A | ASSEMBLY GRATE PACKING;NX60T8311,EMBEDDED GR |
|
|
ASSEMBLY GRATE SIDE-LEFT;NX60T****, GAS OVEN |
| DG94-03453A | ASSEMBLY GRATE SIDE-RIGHT;NX60T****, GAS OVE |
| DG94-05951C | ASSEMBLY HANDLE;NE/NX9100D,WHT |
| DG94-00358E | ASSEMBLY HINGE;30-INCH SINGLE |
|
|
ASSEMBLY HOLDER NOZZLE-BROIL;GAS OVEN SLIDEI |

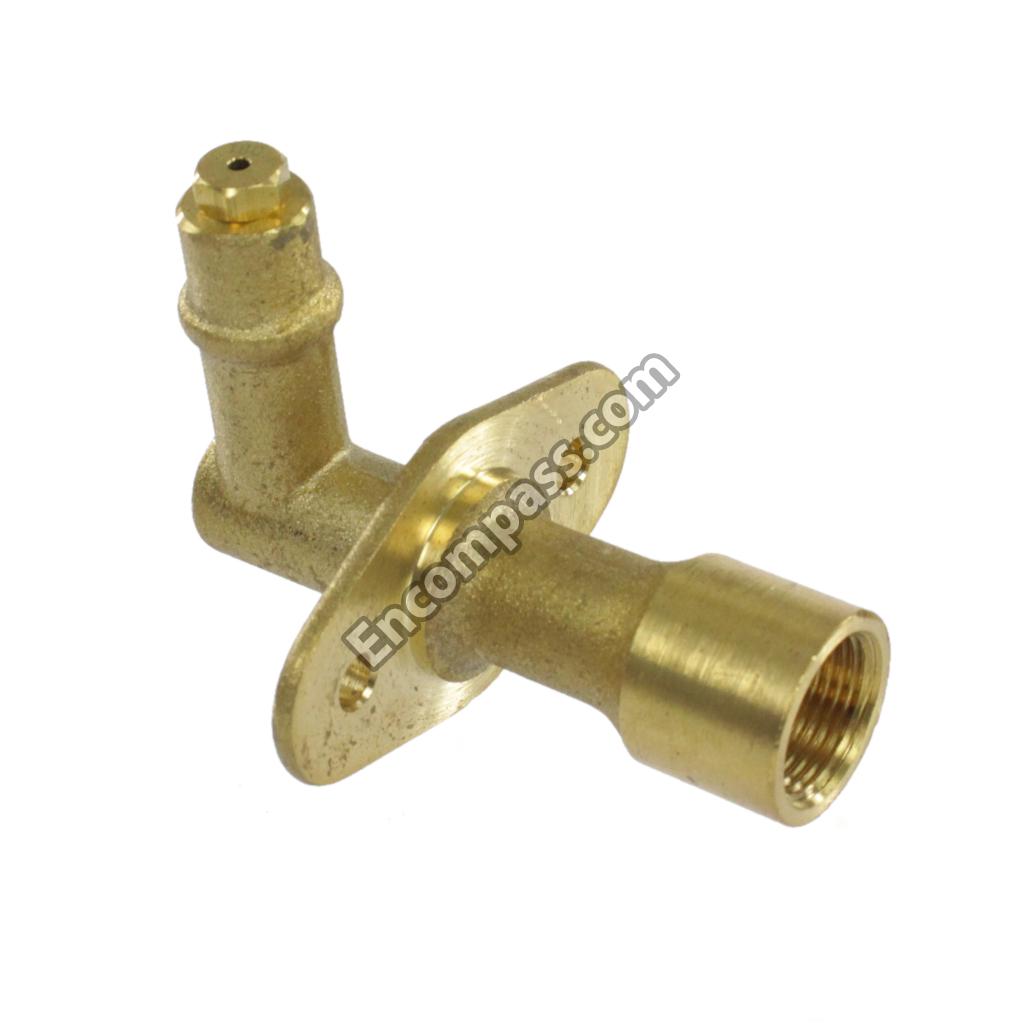

| DG94-03511B | ASSEMBLY HOLDER NOZZLE;NX60T8751**,GAS ALL, |
| DG94-05990A | ASSEMBLY KNOB;NSY6DG8750SRAA,NSG6D*******AA, |
|
|
ASSEMBLY LAMP BULB;NE58K9500SG/AA,LH-01,120V |
|
|
ASSEMBLY MODULE SPARK;NX583G0VBSR,AC110/240V |
| DG96-00779C | ASSEMBLY MOTOR;NX9100D,GAS |
| DG96-01113A | ASSEMBLY NOZZLE KIT;NSG6DG8500MTAA,LP KIT_5S |
| DG94-06038A | ASSEMBLY PANEL DRAWER;NE/NX9100D,GLASS,T3.2, |
| DG94-03472A | ASSEMBLY PANEL OUTER-COATING;NE63T9***,NX90T |
| DG94-03647A | ASSEMBLY PANEL OUTER;NX63T****,NE63T****,GI- |
| DG94-06058A | ASSEMBLY PCB EEPROM;1,NE/NX9100D,ASSEMBLY PCB SU |
| DG92-01425A | ASSEMBLY PCB MAIN;MAIN,NE/NX9100D,135X242MM, |
| DG94-06036B | ASSEMBLY PEDESTAL;NSG6DG8100SRAA,5,3,1 SERIE |
| DG97-00213A | ASSEMBLY SCREW;N*6*A****,T-PJT,M3X14 |
| DG97-00215A | ASSEMBLY SCREW;N*6*A****,T-PJT,M3X7 |
| DG97-00214A | ASSEMBLY SCREW;N*6*A****,T-PJT,M4X6 |
|
|
ASSEMBLY SENSOR;NE63T**,NX60T**,NY63T**,T-PJ |
| DG94-00362B | ASSEMBLY SUPPORT HINGE;NE/NX9100D,SPHC T1.6, |
| DG96-00819A | ASSEMBLY SWITCH IGNITION;NX60T8511ST/AA,AC12 |
| DG98-02152A | ASSEMBLY TRAY PACKING;NX9850,TRAY RACK PACKI |
| DG94-05910A | ASSEMBLY TUBE BURNER-CENTER;NX9100D,7.94,0.4 |
| DG94-05911A | ASSEMBLY TUBE BURNER-LEFT FRONT;NX9100D,7.94 |
| DG94-05917A | ASSEMBLY TUBE BURNER-LEFT REAR;NX9100D,7.94, |
| DG94-05909A | ASSEMBLY TUBE BURNER-RIGHT FRONT;NX9100D,7.9 |
| DG94-05912A | ASSEMBLY TUBE BURNER-RIGHT REAR;NX9100D,7.94 |
| DG94-03512A | ASSEMBLY TUBE-BAKE;NX60T8***,INNER 7.485 PI, |
| DG94-05872A | ASSEMBLY TUBE-BROIL;NX60T8751**,INNER 7.485 |
| DG94-03750A | ASSEMBLY TUBE;NX60T****, GAS OVEN,FLEXIBLE T |
| DG94-05873A | ASSEMBLY TUBE;NX60T8751**,ID9.07, OD11.11I,R |
| DG94-05874A | ASSEMBLY TUBE;NX60T8751**,INNER 7.485 PI, OU |
| DG94-05914A | ASSEMBLY VALVE MANIFOLD-LEFT;NX9100D,GAS OVE |
| DG94-05915A | ASSEMBLY VALVE MANIFOLD-RIGHT;NX9100D,GAS OV |
| DG94-03445C | ASSEMBLY VALVE-REGULATOR;NX9000T,GPR,2OUTLET |
|
|
ASSEMBLY VALVE-SAFETY;NX9000T,SAFETY VALVE S |
| DG94-03450A | ASSEMBLY VALVE;NX9000T,AL,BLUE, 72-80, SPRIN |
| DG94-03449A | ASSEMBLY VALVE;NX9000T,AL,GREEN, 45-49, SPRI |
|
|
ASSEMBLY VALVE;NX9000T,AL,PINK, 26-28, SPRIN |
|
|
ASSEMBLY VALVE;NX9000T,AL,VIOLET, 42-46, SPR |
| DG94-03448A | ASSEMBLY VALVE;NX9000T,AL,YELLOW, 43-45, SPR |
| DG96-00804A | ASSEMBLY WIRE HARNESS-DC SIGNAL;NX60T8751SS/ |
| DG96-01103A | ASSEMBLY WIRE HARNESS-MAIN;NSG6DB8300,120VAC |
| DG96-01107A | ASSEMBLY WIRE HARNESS-SUB;NSG6DB8300,120VAC, |
|
|
ASSEMBLY-BURNER HEAD FISH(G);FX710BGS,CR-SPE |
| 6902-000336 | BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO |
|
|
BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA |
| DG61-01912A | BRACKET BROIL;NX60T8***,ALCOAT-SA1C,T0.8 |
| DG61-01915A | BRACKET COVER-BOTTOM;NX60T8***,ALCOAT-SA |
| DG61-00661A | BRACKET-LATCH REAR;NX583G0VBSR,GI-SGCC,T |
| DG61-00732A | BRACKET-LATCH SUB;NX583G0VBSR,GI-SGCC,T1 |
| DG61-00660B | BRACKET-LATCH;TPJT,GI-SGCC,T1,W50.6,L92, |
|
|
BRACKET-SPRING ELECTRODE;FX710BGS,STS430 |
| DG62-00056E | BURNER BROIL;NX9000T,ALCOAT-SA1C,16.5K, |
|
|

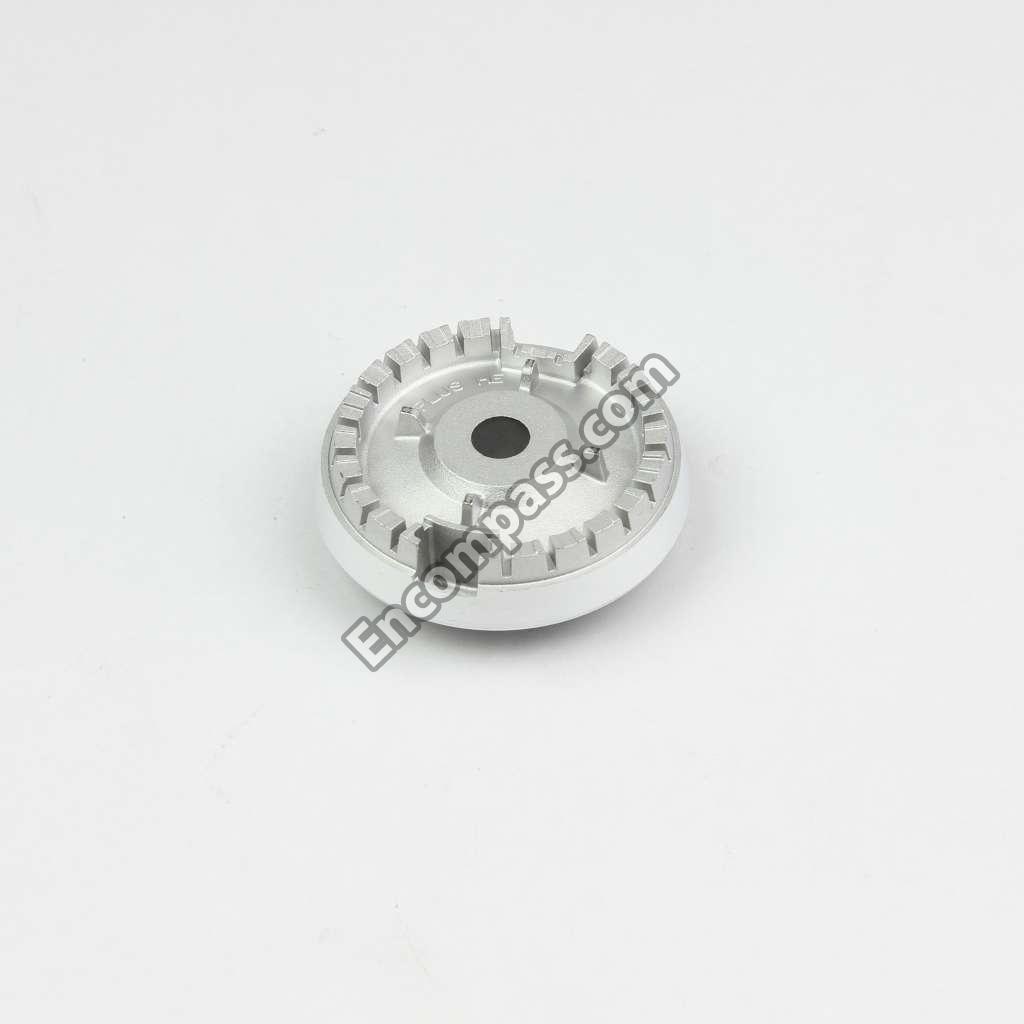

BURNER CUP;NX9000T,ALDC12,AUX, 5K BTU, 1 |
| DG62-00059D | BURNER CUP;NX9000T,ALDC12,M13 INLET SEMI |
| DG62-00058D | BURNER CUP;NX9000T,ALDC12,RAPID, 16K BTU |
|
|
BURNER HEAD RIGHT;NX58F5300SS,ALCD12,POW |
| DG62-00066E | BURNER-BAKE;NX9000T,ALCOAT-SA1C,18K BTU, |
|
|
BURNER-CAP(R);NX58H5650WS,CR-SPE,PI94.5, |
|
|
BURNER-CAP(SR);NX58H5650WS,CR-SPE,PI68.5 |
|
|

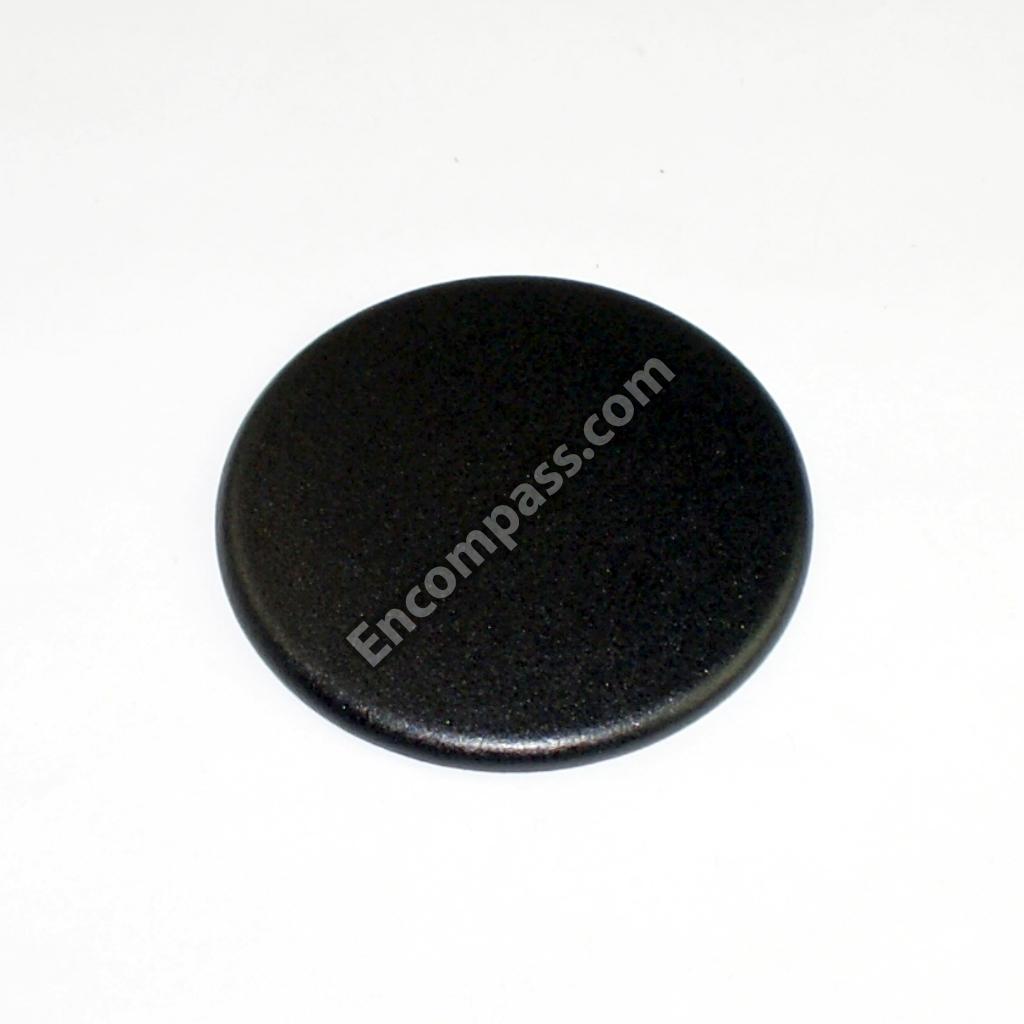

BURNER-CAP;NX583G0VBSR,CR-SPE,PI42.4,MAT |
|
|
BURNER-CUP POWER;NX583G0VBSR,ALDC12,PI22 |
|
|
BURNER-HEAD(AUX);NX583G0VBSR,ALDC12,PI44 |
|
|
BURNER-HEAD;NX583G0VBSR,ALDC12,PI68.35,S |
| 3002-001139 | BUZZER-PIEZO;80DB,9V,2KHZ,BK |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001254 | C-AL,SMD;10UF,20%,50V,WT,TP,6.3X5.2MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 6502-001117 | CABLE CLAMP;DALF-94-2,SI,150C TEMP |
|
|
CAM-DOOR LATCH;FX710BGS,PA66+GF30%,-,BLA |
| DG61-01916A | CAVITY FLOOR;NX60T8***,CR-SPE,T1,W414.8, |
| DG63-00970A | COVER AIR;NX9100D,CR-SPE,T0.8,-,-,-,-,GA |
| DG63-00697A | COVER PCB-LED;NX60T8311,8111,NE63T8311,8 |
| DG63-00257A | COVER-HSI WIRE;FX710BGS,STS430,T0.4,-,-, |
| DG63-00260A | COVER-POWER CORD;FX710BGS,GI-SGCC,T1,W10 |
|
|
DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP |
| 0404-001595 | DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.6V,5.32/5.88V,50 |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
|
|
FAN CONVECTION-MAIN;FSE1310AST,ALCOAT-SA |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
| DG63-00720B | GASKET;NE/NX9100D,GLASS FIBER,-,T12,-,-, |
| DG64-00948A | GLASS DOOR-IN;NX9000T,GLASS,T4,W526,L341 |
| DG64-00092B | GLASS-INNER;NX583G0VBSR,GLASS,T4,W526.0, |
| DG61-02849A | GUIDE AIR-B;NX9100D,CR-SPE,T1,W185.3,L30 |
| 3711-000315 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-001154 | HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,ST |
|
|
HEATER IGNITER;AC120V,430W,SUS310S,48.6M |
| DG61-02805A | HOLDER HANDLE-LEFT;NE/NX9100D,PET+GF30%, |
| DG61-02806A | HOLDER HANDLE-RIGHT;NE/NX9100D,PET+GF30% |
| DG61-02798A | HOLDER PCB-LED;NS*6D*8*00**AA,PP,T3.2,NA |
| DG61-01945A | HOLDER PCB-MAIN;NE,NX(8511*,8311*,8111*) |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 1201-001125 | IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-000294 | IC-POSI.FIXED REG.;7808,TO-220,3P,PLASTI |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1202-001090 | IC-VOLTAGE COMP.;KIA75S393F,5P,TSV,TP,2. |
| 2702-001123 | INDUCTOR-RADIAL;4.7UH,10%,6.5X7.5MM,5MM, |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM |
| DG68-00102B | LABEL CAUTION;30 OVEN,SECA,TETRON SILVER |
| DG68-00373A | LABEL INSTRUCTION;NK30CB700W33AA,SEA,PET |
|
|
LEG LEVELING;NE59N6630SS/AA,PA66+GF30%,H |
| DG61-01956A | LEG LEVELING;T-PJT NE63T****,NX60T****,N |
|
|
MOTOR AC CONVECTION;30-INCH OVEN,SMC-U590D, |
| DG31-00025B | MOTOR AC DRIVE;8POLE,120V,60HZ,35MA,3W,2 |
| DG62-00098A | NOZZLE-AUX LP;FX710BGS,BRASS,-,-,C3604BD |
|
|
NOZZLE-BAKE LP;FX710BGS,BRASS,-,-,C3604B |
|
|
NOZZLE-BROIL LP;FX710BGS,BRASS,-,-,C3604 |
| DG62-00096A | NOZZLE-RAPID LP;FX710BGS,BRASS,-,-,C3604 |
|
|
NOZZLE-SEMI RAPID LP;FX710BGS,BRASS,-,-, |

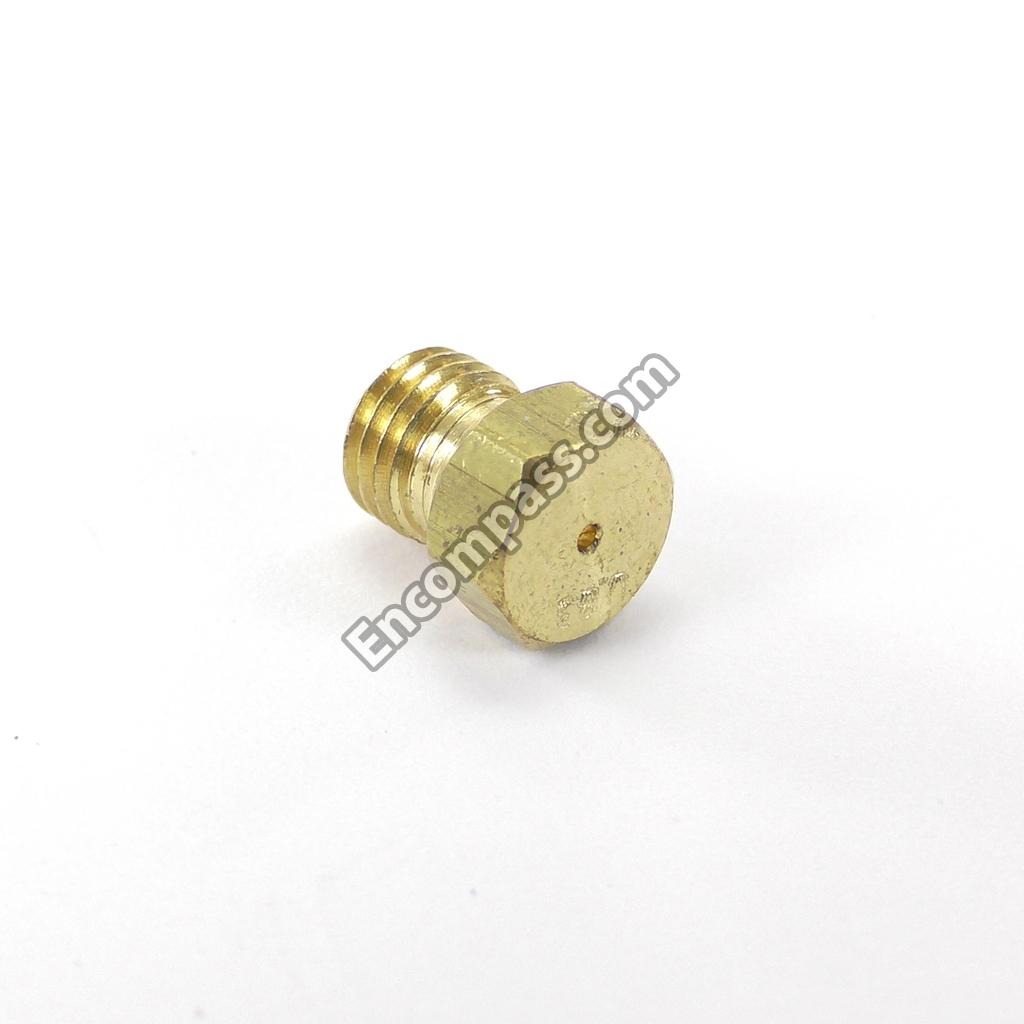

| DG62-00277A | NOZZLE;NX36R9960PS,BRASS,-,-,-,-,-,D1.40 |
|
|
NUT FLANGE;MSWR |
|
|
NUT-HEXAGON CAP;SWRCH10A,NI PLT,M4,LEFT |
| DE60-60030A | PIN-STAPLE;NE5000A,MSWR,-,-,-,- |
|
|

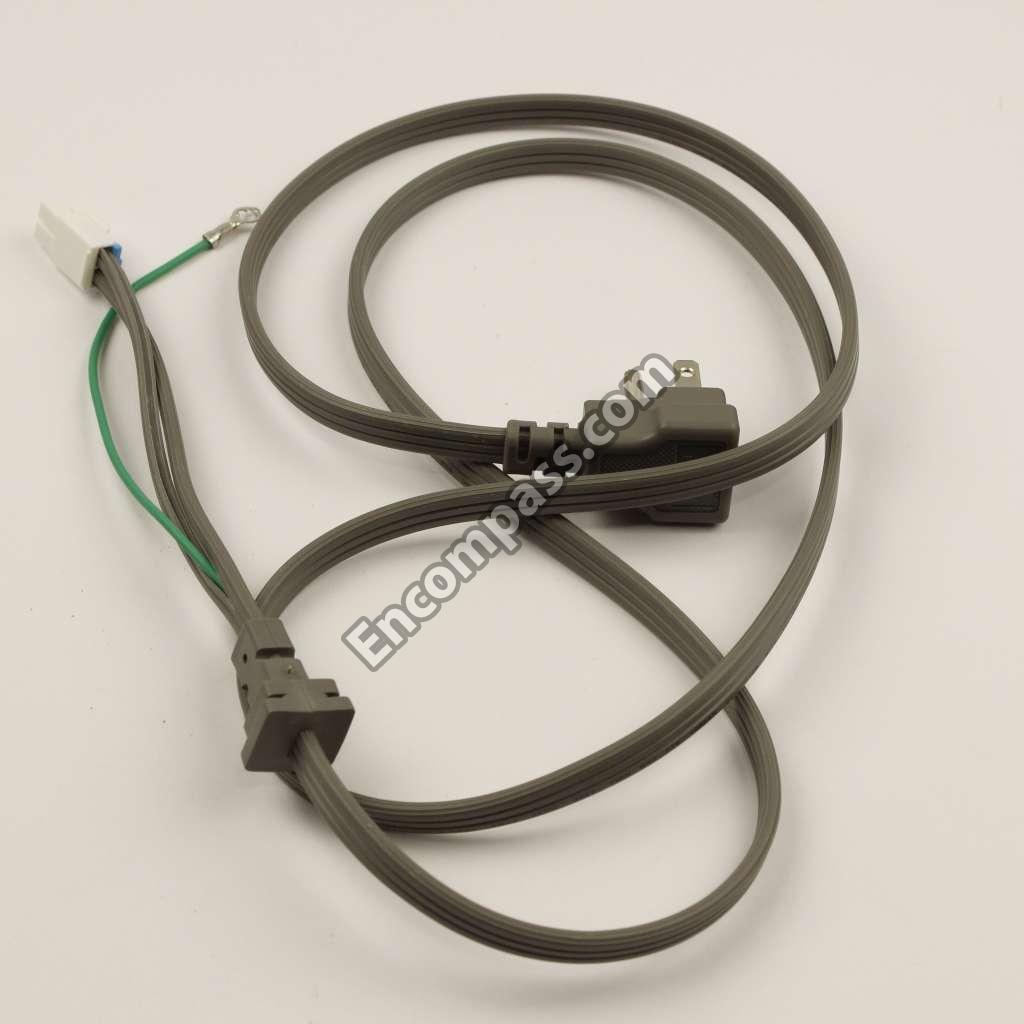

POWER CORD-AT;SPT-2 3X16AWG 105C,GRY,US3 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000286 | R-CHIP;100OHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000297 | R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000394 | R-CHIP;150KOHM,1%,1/4W,TP,3216 |
| 2007-000467 | R-CHIP;1KOHM,1%,1/4W,TP,3216 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000490 | R-CHIP;2.2KOHM,1%,1/8W,TP,2012 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000670 | R-CHIP;2KOHM,1%,1/4W,TP,3216 |
| 2007-000762 | R-CHIP;330OHM,1%,1/8W,TP,2012 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
| DG75-01057A | RACK PROTECT;NX58H9500WS,NX9000HA,STS304 |
|
|
RACK WIRE;NE59N6630SS,NE5000N,MSWR,-,W62 |
|
|
RACK WIRE;NX9850,T-PJT,MSWR,-,W418,L629, |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
|
|
RUBBER-CUSHION;FTQ386LWUX,SILICON RUBBER |
| 6001-000033 | SCREW-MACHINE;STS304,PASS,L10,M4,TH,+ |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(BLK),L10,M4,P |
| 6001-003299 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L16,M5,T |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M5,P |
|
|
SCREW-SPECIAL;TH,+,WP,M5,L10,ZPC(BLK),SW |
|
|
SCREW-TAPPING;STS410,NI PLT,L10,M4,TH,+, |
| DE60-10065A | SCREW-TAPPING;SWRCH18A,NI PLT,L6,M4,TH,+ |
| 6002-001425 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,T |
| 6002-000440 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M3,PW |
| 6002-000413 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
| 6002-000432 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SENSOR-THERMISTOR;PT1000-SOV9,12V,PLATIU |
|
|
SLIDER-INNER;FCQ321HTUX,PBT,BLACK,KP211, |
|
|
SLIDER-OUTER;FCQ321HTUX,PBT,T1.2,BLACK,B |
| DG98-02600C | SMG PART |
| DG98-02597A | SMG PART |
| DG98-02589B | SMG PART |
| DG98-02581A | SMG PART |
| DG98-02578B | SMG PART |
| DG98-02578A | SMG PART |
| DG98-02576B | SMG PART |
| DG98-02576A | SMG PART |
| DG98-02316B | SMG PART |
| DG98-02126C | SMG PART |
| DG98-02091A | SMG PART |
| DG97-00165A | SMG PART |
| DG97-00154A | SMG PART |
| DG96-01138A | SMG PART |
| DG94-06295A | SMG PART |
| DG94-06294A | SMG PART |
| DG94-06272C | SMG PART |
| DG94-06271C | SMG PART |
| DG94-06252C | SMG PART |
| DG94-06251C | SMG PART |
| DG94-06247B | SMG PART |
| DG94-06246B | SMG PART |
| DG94-06226A | SMG PART |
| DG94-06224A | SMG PART |
| DG94-06035A | SMG PART |
| DG94-06024A | SMG PART |
| DG94-06022A | SMG PART |
| DG94-06018A | SMG PART |
| DG94-05998A | SMG PART |
| DG94-05994A | SMG PART |
| DG94-05972A | SMG PART |
| DG94-05957A | SMG PART |
| DG94-05950A | SMG PART |
| DG94-05947C | SMG PART |
| DG94-05944A | SMG PART |
| DG94-05942A | SMG PART |
| DG94-05940A | SMG PART |
| DG94-05939A | SMG PART |
| DG94-05938B | SMG PART |
| DG94-05929D | SMG PART |
| DG94-05916A | SMG PART |
| DG94-03585A | SMG PART |
| DG94-03541A | SMG PART |
| DG94-03540A | SMG PART |
| DG94-03529J | SMG PART |
| DG94-03526J | SMG PART |
| DG94-03525F | SMG PART |
| DG94-03522B | SMG PART |
| DG94-03520B | SMG PART |
| DG94-03509D | SMG PART |
| DG94-03469A | SMG PART |
| DG94-00549A | SMG PART |
| DG92-01423A | SMG PART |
| DG92-01422A | SMG PART |
| DG90-01516C | SMG PART |
| DG90-01497C | SMG PART |
| DG90-01496C | SMG PART |
| DG90-01494A | SMG PART |
| DG90-01485C | SMG PART |
| DG90-01025A | SMG PART |
| DG90-01014P | SMG PART |
| DG81-00480A | SMG PART |
| DG69-00791A | SMG PART |
| DG69-00784B | SMG PART |
| DG69-00784A | SMG PART |
| DG69-00782B | SMG PART |
| DG69-00782A | SMG PART |
| DG69-00773D | SMG PART |
| DG69-00618A | SMG PART |
| DG69-00518A | SMG PART |
| DG69-00516A | SMG PART |
| DG69-00515A | SMG PART |
| DG69-00509A | SMG PART |
| DG69-00508A | SMG PART |
| DG69-00507B | SMG PART |
| DG69-00506A | SMG PART |
| DG69-00500A | SMG PART |
| DG69-00493A | SMG PART |
| DG69-00492B | SMG PART |
| DG69-00491A | SMG PART |
| DG69-00376A | SMG PART |
| DG69-00195A | SMG PART |
| DG69-00188A | SMG PART |
| DG69-00166H | SMG PART |
| DG69-00166D | SMG PART |
| DG69-00102A | SMG PART |
| DG69-00063A | SMG PART |
| DG69-00054A | SMG PART |
| DG68-01625A | SMG PART |
| DG68-01609A | SMG PART |
| DG68-01605A | SMG PART |
| DG68-01602A | SMG PART |
| DG68-01601A | SMG PART |
| DG68-01600A | SMG PART |
| DG68-01526A | SMG PART |
| DG68-01281A | SMG PART |
| DG68-01206A | SMG PART |
| DG68-01085A | SMG PART |
| DG68-01040A | SMG PART |
| DG68-00867A | SMG PART |
| DG68-00863A | SMG PART |
| DG68-00848A | SMG PART |
| DG68-00785A | SMG PART |
| DG68-00493A | SMG PART |
| DG68-00424A | SMG PART |
| DG68-00377C | SMG PART |
| DG68-00101B | SMG PART |
| DG68-00100B | SMG PART |
| DG67-00313A | SMG PART |
| DG67-00312A | SMG PART |
| DG67-00311C | SMG PART |
| DG67-00310C | SMG PART |
| DG66-00071B | SMG PART |
| DG66-00067A | SMG PART |
| DG64-01311A | SMG PART |
| DG64-01296A | SMG PART |
| DG64-01294A | SMG PART |
| DG64-01288C | SMG PART |
| DG64-01287A | SMG PART |
| DG64-01283A | SMG PART |
| DG64-01282A | SMG PART |
| DG64-01280A | SMG PART |
| DG64-01271A | SMG PART |
| DG64-01270A | SMG PART |
| DG64-01268A | SMG PART |
| DG64-01038B | SMG PART |
| DG64-01037B | SMG PART |
| DG64-00983D | SMG PART |
| DG64-00924C | SMG PART |
| DG64-00915A | SMG PART |
| DG63-00956A | SMG PART |
| DG63-00955A | SMG PART |
| DG63-00946A | SMG PART |
| DG63-00944A | SMG PART |
| DG63-00725A | SMG PART |
| DG63-00721A | SMG PART |
| DG63-00698A | SMG PART |
| DG63-00696A | SMG PART |
| DG63-00695A | SMG PART |
| DG63-00694B | SMG PART |
| DG63-00686A | SMG PART |
| DG63-00685A | SMG PART |
| DG63-00683A | SMG PART |
| DG63-00680D | SMG PART |
| DG63-00663A | SMG PART |
| DG63-00241A | SMG PART |
| DG63-00077C | SMG PART |
| DG62-00384A | SMG PART |
| DG62-00305A | SMG PART |
| DG62-00303A | SMG PART |
| DG62-00302B | SMG PART |
| DG62-00300A | SMG PART |
| DG62-00295A | SMG PART |
| DG62-00292B | SMG PART |
| DG62-00136A | SMG PART |
| DG62-00123A | SMG PART |
| DG62-00088A | SMG PART |
| DG62-00078A | SMG PART |
| DG62-00073A | SMG PART |
| DG62-00021A | SMG PART |
| DG62-00008B | SMG PART |
| DG61-02842A | SMG PART |
| DG61-02840B | SMG PART |
| DG61-02817A | SMG PART |
| DG61-02816A | SMG PART |
| DG61-02801A | SMG PART |
| DG61-02788A | SMG PART |
| DG61-02780A | SMG PART |
| DG61-02778A | SMG PART |
| DG61-02774A | SMG PART |
| DG61-02768A | SMG PART |
| DG61-02766A | SMG PART |
| DG61-02758B | SMG PART |
| DG61-02756A | SMG PART |
| DG61-02755A | SMG PART |
| DG61-02754A | SMG PART |
| DG61-02753A | SMG PART |
| DG61-02752A | SMG PART |
| DG61-02715A | SMG PART |
| DG61-02417A | SMG PART |
| DG61-02070A | SMG PART |
| DG61-01999A | SMG PART |
| DG61-01998A | SMG PART |
| DG61-01996A | SMG PART |
| DG61-01995A | SMG PART |
| DG61-01994B | SMG PART |
| DG61-01993B | SMG PART |
| DG61-01992A | SMG PART |
| DG61-01991A | SMG PART |
| DG61-01968A | SMG PART |
| DG61-01962A | SMG PART |
| DG61-01957A | SMG PART |
| DG61-01948A | SMG PART |
| DG61-01924A | SMG PART |
| DG61-01922A | SMG PART |
| DG61-01921A | SMG PART |
| DG61-01918A | SMG PART |
| DG61-01914B | SMG PART |
| DG61-01913A | SMG PART |
| DG61-01911B | SMG PART |
| DG61-01910B | SMG PART |
| DG61-01908A | SMG PART |
| DG61-01902A | SMG PART |
| DG61-01901A | SMG PART |
| DG61-01900F | SMG PART |
| DG61-01894B | SMG PART |
| DG61-01887B | SMG PART |
| DG61-01878A | SMG PART |
| DG61-01877A | SMG PART |
| DG61-01876A | SMG PART |
| DG61-01875A | SMG PART |
| DG61-01874A | SMG PART |
| DG61-01764A | SMG PART |
| DG61-01066A | SMG PART |
| DG61-00878A | SMG PART |
| DG61-00808A | SMG PART |
| DG61-00803A | SMG PART |
| DG61-00783A | SMG PART |
| DG61-00581A | SMG PART |
| DG61-00291A | SMG PART |
| DG61-00227A | SMG PART |
| DG61-00150B | SMG PART |
| DG61-00121C | SMG PART |
| DG60-00042A | SMG PART |
| DG60-00041A | SMG PART |
| DG60-00007C | SMG PART |
| DG41-00065A | SMG PART |
| DG41-00034A | SMG PART |
| DG31-00026D | SMG PART |
| DG07-01010C | SMG PART |
| DG02-01003B | SMG PART |
| DG02-01003A | SMG PART |
| DG02-01002A | SMG PART |
| DG02-01001D | SMG PART |
| DG01-00094A | SMG PART |
| DE92-04730A | SMG PART |
| DE68-04077A | SMG PART |
| DE60-20061A | SMG PART |
| DE60-00001A | SMG PART |
| DE29-00005A | SMG PART |
| DE26-00171B | SMG PART |
| DB68-05458A | SMG PART |
| DA02-00092A | SMG PART |
| 6922-000009 | SMG PART |
| 6902-003459 | SMG PART |
| 6812-000145 | SMG PART |
| 6502-001149 | SMG PART |
| 6041-001085 | SMG PART |
| 6041-001084 | SMG PART |
| 6021-002125 | SMG PART |
| 6009-002193 | SMG PART |
| 6001-001122 | SMG PART |
| 4715-001217 | SMG PART |
| 4709-003216 | SMG PART |
| 3712-001770 | SMG PART |
| 3712-001769 | SMG PART |
| 3711-009395 | SMG PART |
| 3711-009393 | SMG PART |
| 3711-009165 | SMG PART |
| 3711-002046 | SMG PART |
| 3711-000357 | SMG PART |
| 3711-000262 | SMG PART |
| 3710-004531 | SMG PART |
| 3708-003265 | SMG PART |
| 3601-001731 | SMG PART |
| 3502-001087 | SMG PART |
| 3501-001323 | SMG PART |
| 3501-001306 | SMG PART |
| 3301-002113 | SMG PART |
| 2401-005669 | SMG PART |
| 2401-004553 | SMG PART |
| 2401-003803 | SMG PART |
| 2301-002481 | SMG PART |
| 2203-010142 | SMG PART |
| 2203-010033 | SMG PART |
| 2202-002252 | SMG PART |
| 2201-002709 | SMG PART |
| 2201-002688 | SMG PART |
| 2007-009922 | SMG PART |
| 2007-007336 | SMG PART |
| 2007-001115 | SMG PART |
| 2007-001011 | SMG PART |
| 2007-000700 | SMG PART |
| 2007-000641 | SMG PART |
| 2007-000568 | SMG PART |
| 2007-000441 | SMG PART |
| 1405-001239 | SMG PART |
| 1404-001872 | SMG PART |
| 1404-001544 | SMG PART |
| 1203-007199 | SMG PART |
| 1203-004400 | SMG PART |
| 0903-002203 | SMG PART |
| 0903-001890 | SMG PART |
| 0604-001405 | SMG PART |
| 0505-001943 | SMG PART |
| 0504-001064 | SMG PART |
| 0504-000001 | SMG PART |
| 0502-001250 | SMG PART |
| 0404-001666 | SMG PART |
| 0402-001741 | SMG PART |
| 0402-001472 | SMG PART |
| 0204-009273 | SMG PART |
| 0204-004665 | SMG PART |
| 0202-001976 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001463 | SMG PART |
| 0201-003400 | SMG PART |
| 0201-002023 | SMG PART |
| 0201-001982 | SMG PART |
| 0201-000326 | SMG PART |
| 0106-001578 | SMG PART |
| 0106-001577 | SMG PART |
| 0106-001520 | SMG PART |
| 0106-001342 | SMG PART |
| 0106-001192 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007697 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007943 | SMG PART |
| 2203-000233 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-008462 | SMG PART |
| 2703-003698 | SMG PART |
| 2802-001196 | SMG PART |
| 0202-001338 | SOLDER-BAR;LEED-FREE SOLDER BAR,W20L350H |
| DG61-02811A | STOPPER-KNOB;NS*6D*8*00**AA,POM,T1.8,W15 |
|
|
SWITCH-DOOR PLUNGER;120/240 VAC,BLACK,FT |
|
|
SWITCH-MICRO;AC250V,1A,200GF,1P,-25TO+13 |
| 0203-001815 | TAPE DOUBLE FACE;3M #4016,PU FOAM,T1.6,W |
| 0203-001816 | TAPE DOUBLE FACE;3M #4032,PU FOAM,T0.8,W |
| DE02-00029B | TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N |
| DE02-00027A | TAPE OPP;OPP,W50 |
| 0203-000444 | TAPE-AL FOIL;AL,T0.07,W50,L100M,CLEAR |
| 0203-001825 | TAPE-DOUBLE FACE;#4660,T0.4,W10,L30M,WHI |
| 0203-001109 | TAPE-SINGLE FACE;OPP,T0.075,W75,L800M,CL |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
|
|
THERMOSTAT;AC125/250V,15/16A,120C,0C,S.O |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| DG63-00700A | TRAY OVEN;NX9850,NE9850,STS304,T0.5,L490 |
| DE81-01901A | WASHER PLAIN;TRIO PLUS,FIBER-WASHER,-,P1 |
| DG67-00314A | WIRE-PROTECTOR;NZ9100D,PA66,T2,101F,-,-, |
|
|
WIRE-STEEL;T-PJT,MSWR,D2800,T1.2,-,-,-,S |
