Manufacturer
Samsung
Model Number
NSG6DG8300SRAA
Description
Mwo : Microwaveoven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-000326 | ADHESIVE-RBR;HM-3500,LIGHT CLE |
| 0201-003400 | ADHESIVE-SEALANT;DS9200,BLACK, |
| 0201-001982 | ADHESIVE-SIL;TSE3854DS-W,WHITE |
| 0201-002023 | ADHESIVE-SL;SEALANT OK,TRP,NON |
| DG62-00305A | ADIABATIC DOOR-SIDE;GLASS WOOL |
| DG62-00008B | ADIABATIC DOOR-TOP;FX710BGS,GL |
| DG62-00300A | ADIABATIC-BOTTOM;GLASS WOOL,T3 |
| DG62-00303A | ADIABATIC-MAIN;GLASS WOOL,T35. |
| DG62-00302B | ADIABATIC-REAR;GLASS WOOL,T35, |
| DG94-03469A | ASSEMBLY BASE PLATE-DRAWER;NE6 |
| DG94-03558B | ASSEMBLY BRACKET BAKE;NX60T8711**,T-PJT GAS |
|
|
ASSEMBLY BRACKET LATCH;NX60T8711**, NE63T871 |
| DG94-00761E | ASSEMBLY BRACKET LATCH;NX9100D,ASSEMBLY LATCH DO |
|
|
ASSEMBLY BRACKET SUB;NE58F9710WS,SLIDE-IN PJ |
| DG94-03659A | ASSEMBLY BRACKET SUB;NX60T8***,T-PJT GAS MOD |
| DG94-03689C | ASSEMBLY BRACKET SUPPORTER;T-PJT S/I ALL,REA |
| DG90-01025A | ASSEMBLY BURNER BAKE-MODULE;NX60T8 |
| DG90-01024B | ASSEMBLY BURNER BROIL-MODULE;NX60T8711**,T-P |
| DG90-01079A | ASSEMBLY BURNER;NX9000T,ALDC12,GIANT, 10K BT |
| DG94-03509D | ASSEMBLY CASE BURNER;NX60T8711**,H |
| DG94-03522B | ASSEMBLY CAVITY BACK;NX60T8311 |
| DG94-03713A | ASSEMBLY CAVITY FLOOR-COATING;NX60T8***,DARK |
| DG94-05997D | ASSEMBLY CONTROL PANEL SUB;NSG6D*8300**AA,GA |
| DG94-06248B | ASSEMBLY COOKTOP FRAME;NSG6DG8300SRAA,3 SERI |
| DG94-03530G | ASSEMBLY COVER ADIABATIC-TOP;NX9100D,GAS |
| DG94-03520B | ASSEMBLY COVER BACK;NX60T8711**,T- |
| DG94-03461F | ASSEMBLY COVER BACK;NX9100D,GI-SGCC,T0.4,NX9 |
| DG94-03561A | ASSEMBLY COVER CASING;NX60T8711**, NE63T8711 |
| DG98-02091A | ASSEMBLY CUSHION BOTTOM;NE/NX9 |
| DG94-06029A | ASSEMBLY DOOR SUB;NE/NX9100D,STS,3 SERIES, W |
| DG94-05955A | ASSEMBLY DOOR;NE/NX9100D,STS,3/1 SERIES |
| DG90-01484A | ASSEMBLY DRAWER MAIN;NSG6DG8500SRAA,GAS 5,3, |
| DG94-06032A | ASSEMBLY DRAWER;NE/NX9100D,SILVER,SLIDER |
|
|
ASSEMBLY ELECTRODE;FX710BGS/XAA,AC18KV,930MM |
|
|
ASSEMBLY ELECTRODE;NX9000T,AC18KV,,,1100MM,S |
| DG96-00790A | ASSEMBLY ELECTRODE;NX9000T,AC18KV,1150MM,SIN |
| DG96-00788A | ASSEMBLY ELECTRODE;NX9000T,AC18KV,650MM,SING |
| DG96-00791A | ASSEMBLY ELECTRODE;NX9000T,AC18KV,900MM,FISH |
| DG98-02112A | ASSEMBLY GRATE PACKING;NX60T8311,EMBEDDED GR |
|
|
ASSEMBLY GRATE SIDE-LEFT;NX60T****, GAS OVEN |

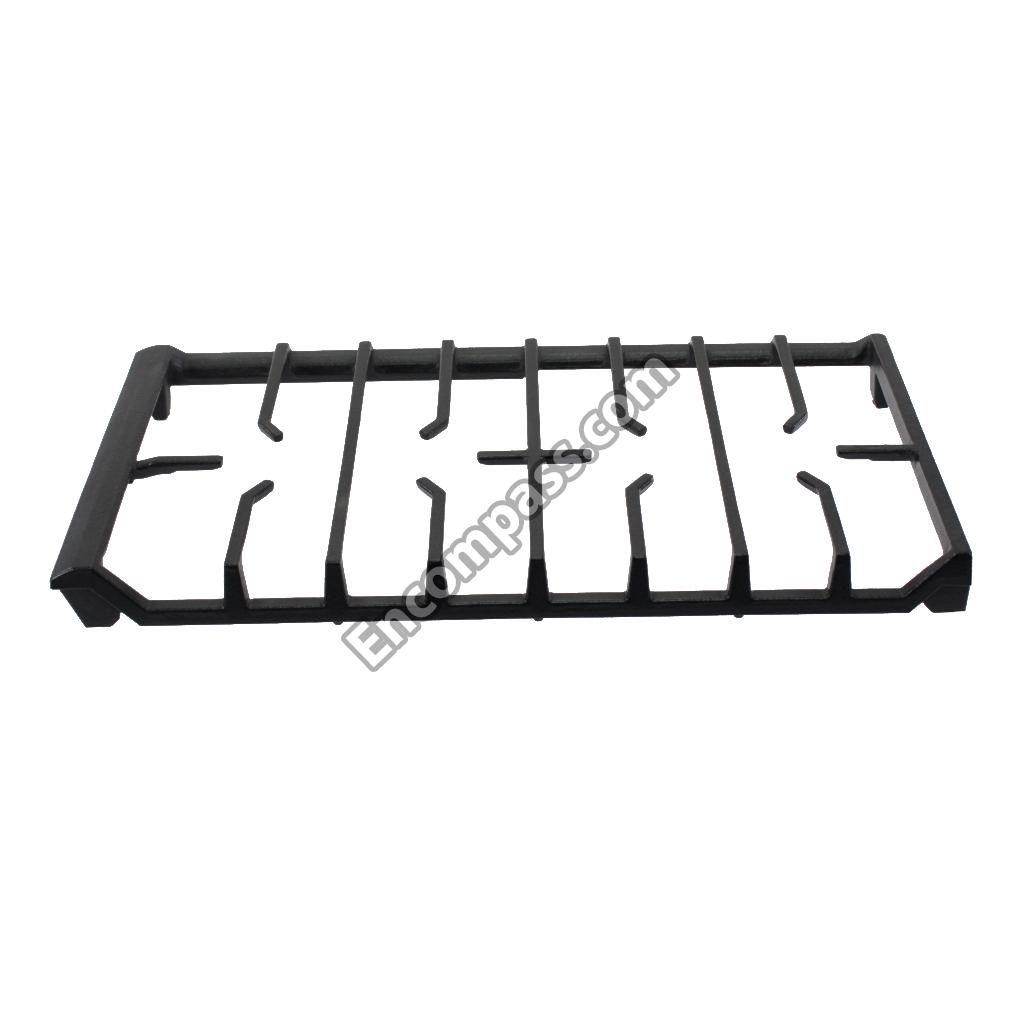

| DG94-03453A | ASSEMBLY GRATE SIDE-RIGHT;NX60T****, GAS OVE |
| DG94-05951A | ASSEMBLY HANDLE;NE/NX9100D,STS |
| DG94-00358E | ASSEMBLY HINGE;NORMAL CLOSE |
|
|
ASSEMBLY HOLDER NOZZLE-BROIL;GAS OVEN SLIDEI |
| DG94-03511B | ASSEMBLY HOLDER NOZZLE;NX60T8751**,GAS ALL, |
| DG94-03585A | ASSEMBLY HOLDER-TUBE;NX60T**,NY63T |
| DG94-05990A | ASSEMBLY KNOB;NSY6DG8750SRAA,NSG6D*******AA, |
|
|
ASSEMBLY LAMP BULB;NE58K9500SG/AA,LH-01,120V |
| DE91-00384A | ASSEMBLY MICOM-DISPLAY LED;NE9100_RANGE_3_1_ |
|
|
ASSEMBLY MODULE SPARK;NX583G0VBSR,AC110/240V |
| DG96-00779C | ASSEMBLY MOTOR;NX9100D,GAS |
| DG96-01113A | ASSEMBLY NOZZLE KIT;NSG6DG8500MTAA,LP KIT_5S |
| DG94-03472A | ASSEMBLY PANEL OUTER-COATING;NE63T9***,NX90T |
| DG94-03647A | ASSEMBLY PANEL OUTER;NX63T****,NE63T****,GI- |
| DG94-06058A | ASSEMBLY PCB EEPROM;1,NE/NX9100D,ASSEMBLY PCB SU |
| DG92-01425A | ASSEMBLY PCB MAIN;MAIN,NE/NX9100D,135X242MM, |
| DG94-06036B | ASSEMBLY PEDESTAL;NSG6DG8100SRAA,5,3,1 SERIE |
| DG97-00215A | ASSEMBLY SCREW;N*6*A****,T-PJT,M3X7 |
| DG97-00214A | ASSEMBLY SCREW;N*6*A****,T-PJT,M4X6 |
| DG97-00154A | ASSEMBLY SCREW;NA36K7750TS,SWR |
|
|
ASSEMBLY SENSOR;NE63T**,NX60T**,NY63T**,T-PJ |
| DG94-00362B | ASSEMBLY SUPPORT HINGE;NE/NX9100D,SPHC T1.6, |
| DG96-00819A | ASSEMBLY SWITCH IGNITION;NX60T8511ST/AA,AC12 |
| DG98-02152A | ASSEMBLY TRAY PACKING;NX9850,TRAY RACK PACKI |
| DG94-05910A | ASSEMBLY TUBE BURNER-CENTER;NX9100D,7.94,0.4 |
| DG94-05911A | ASSEMBLY TUBE BURNER-LEFT FRONT;NX9100D,7.94 |
| DG94-05917A | ASSEMBLY TUBE BURNER-LEFT REAR;NX9100D,7.94, |
| DG94-05909A | ASSEMBLY TUBE BURNER-RIGHT FRONT;NX9100D,7.9 |
| DG94-05912A | ASSEMBLY TUBE BURNER-RIGHT REAR;NX9100D,7.94 |
| DG94-03512A | ASSEMBLY TUBE-BAKE;NX60T8***,INNER 7.485 PI, |
| DG94-05872A | ASSEMBLY TUBE-BROIL;NX60T8751**,INNER 7.485 |
| DG94-03750A | ASSEMBLY TUBE;NX60T****, GAS OVEN,FLEXIBLE T |
| DG94-05873A | ASSEMBLY TUBE;NX60T8751**,ID9.07, OD11.11I,R |
| DG94-05874A | ASSEMBLY TUBE;NX60T8751**,INNER 7.485 PI, OU |
| DG94-05914A | ASSEMBLY VALVE MANIFOLD-LEFT;NX9100D,GAS OVE |
| DG94-05915A | ASSEMBLY VALVE MANIFOLD-RIGHT;NX9100D,GAS OV |
| DG94-03445C | ASSEMBLY VALVE-REGULATOR;NX9000T,GPR,2OUTLET |
|
|
ASSEMBLY VALVE-SAFETY;NX9000T,SAFETY VALVE S |
| DG94-03450A | ASSEMBLY VALVE;NX9000T,AL,BLUE, 72-80, SPRIN |
| DG94-03449A | ASSEMBLY VALVE;NX9000T,AL,GREEN, 45-49, SPRI |
|
|
ASSEMBLY VALVE;NX9000T,AL,PINK, 26-28, SPRIN |
|
|
ASSEMBLY VALVE;NX9000T,AL,VIOLET, 42-46, SPR |
| DG94-03448A | ASSEMBLY VALVE;NX9000T,AL,YELLOW, 43-45, SPR |
| DG94-03540A | ASSEMBLY VENT COATING;NX60T8751**, |
| DG94-03541A | ASSEMBLY VENT WELDING;NX60T8751**, |
| DG96-00804A | ASSEMBLY WIRE HARNESS-DC SIGNAL;NX60T8751SS/ |
| DG96-01103A | ASSEMBLY WIRE HARNESS-MAIN;NSG6DB8300,120VAC |
| DG96-01107A | ASSEMBLY WIRE HARNESS-SUB;NSG6DB8300,120VAC, |
| DG94-00549A | ASSEMBLY-BURNER CAP FISH(G);FX710B |
|
|
ASSEMBLY-BURNER HEAD FISH(G);FX710BGS,CR-SPE |
| DG62-00292B | BAFFLE DOOR;NX9000T,GI-SGCC,EM |
| DG69-00376A | BAG ACCESSORY;NE58K9850WS,LDPE |
| 6902-003459 | BAG PE;HDPE,MAKER : G WORLD,T0 |
| DG81-00480A | BAG PE;LDPE,T0.03,W150,L200,TR |
| 6902-000336 | BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO |
| 6922-000009 | BAND PP |
| DG61-01876A | BASE DRAWER-LEFT;NE63T****,NX6 |
| DG61-01877A | BASE DRAWER-REAR;NE63T****,NX6 |
| DG61-01875A | BASE DRAWER-RIGHT;NE63T****,NX |
| DG61-02070A | BASE DRAWER;NE63T****,NX60T*** |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OH |
|
|
BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA |
| DG61-01968A | BRACKET BARRIER-REAR;NE63T**** |
| DG61-00803A | BRACKET BOTTOM-LEFT;NE58F9710W |
| DG61-00808A | BRACKET BOTTOM-RIGHT;NE58F9710 |
| DG61-01912B | BRACKET BROIL;NX9100D,ALCOAT-SA1C,T0.8,W |
| DG61-01915A | BRACKET COVER-BOTTOM;NX60T8***,ALCOAT-SA |
| DG61-01994B | BRACKET COVER;NX9000T,NY9000T, |
| DG61-00150B | BRACKET DOOR-MIDDLE;NE/NX9000T |
| DG61-01887B | BRACKET FRAME;NX60T****, GAS O |
| DG61-01991A | BRACKET GUIDE-LOW;NX60T**,NY63 |
| DG61-01996A | BRACKET GUIDE-LOW;T PJT GAS,GI |
| DG61-01999A | BRACKET GUIDE-LOW;T PJT GAS,GI |
| DG61-01992A | BRACKET GUIDE-UP;NX60T**,NY63T |
| DG61-01764A | BRACKET MANIFOLD;NX36N9960PS,G |
| DG61-01924A | BRACKET MOTOR-SUB;NE63T**,NX60 |
| DG61-01995A | BRACKET SHIELD;NX60T8***,ALCOA |
| DG61-00783A | BRACKET STOPPER;NE58F9710WS,GI |
| DG61-00878A | BRACKET SUB;NX58H9500WS,CR-SPE |
| DG61-01921A | BRACKET SUPPORTER-LEFT;NE63T** |
| DG61-01922A | BRACKET SUPPORTER-RIGHT;NE63T* |
| DG61-01901A | BRACKET VENT-UP;NX60T8751**,CR |
| DG61-01913A | BRACKET-BAKE SPREADER;NX60T8** |
| DG61-00732C | BRACKET-LATCH SUB;NX9100D,GI-SGCC,T1,W-, |
| DG61-00660B | BRACKET-LATCH;TPJT,GI-SGCC,T1,W-,-,-,-,I |
| DG61-01878A | BRACKET-LEG;NE63T****, NY60T** |
| DG61-00291A | BRACKET-SLIDER;FCQ321HSUX,GI-S |
|
|
BRACKET-SPRING ELECTRODE;FX710BGS,STS430 |
| DG61-00581A | BRACKET-STUD;FX710BGS,SK5,W- |
| DG61-00227A | BRACKET-SUPPORT HINGE;FTQ386LW |
| DG62-00056E | BURNER BROIL;NX9000T,ALCOAT-SA1C,16.5K, |
| DG62-00295A | BURNER CUP;NX60T****, GAS OVEN |
|
|
BURNER CUP;NX9000T,ALDC12,AUX, 5K BTU, 1 |
| DG62-00059D | BURNER CUP;NX9000T,ALDC12,M13 INLET SEMI |
| DG62-00058D | BURNER CUP;NX9000T,ALDC12,RAPID, 16K BTU |
|
|
BURNER HEAD RIGHT;NX58F5300SS,ALCD12,POW |
| DG62-00066E | BURNER-BAKE;NX9000T,ALCOAT-SA1C,18K BTU, |
| DG62-00088A | BURNER-CAP FISH(G);FX710BGS,CR |
|
|
BURNER-CAP(R);NX58H5650WS,CR-SPE,PI94.5, |
|
|
BURNER-CAP(SR);NX58H5650WS,CR-SPE,PI68.5 |
|
|
BURNER-CAP;NX583G0VBSR,CR-SPE,PI42.4,MAT |
|
|
BURNER-CUP POWER;NX583G0VBSR,ALDC12,PI22 |
| DG62-00073A | BURNER-HEAD FISH(G);FX710BGS,A |
|
|
BURNER-HEAD(AUX);NX583G0VBSR,ALDC12,PI44 |
|
|
BURNER-HEAD;NX583G0VBSR,ALDC12,PI68.35,S |
| 3002-001139 | BUZZER-PIEZO;80DB,9V,2KHZ,BK |
| 2401-003803 | C-AL |
| 2401-005669 | C-AL |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001254 | C-AL,SMD;10UF,20%,50V,WT,TP,6.3X5.2MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2401-004553 | C-AL;820UF,20%,25V,TP,10X20MM, |
| 2203-010142 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-010038 | C-CER,CHIP;100NF,10%,25V,X7R,T |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,T |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VA |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,S |
| 2202-002252 | C-CERAMIC,MLC-RADIAL;1NF,10%,1 |
| 2301-002481 | C-FILM,LEAD-MPPF |
| 6502-001117 | CABLE CLAMP;DALF-94-2,SI,150C TEMP |
|
|
CAM-DOOR LATCH;FX710BGS,PA66+GF30%,-,BLA |
| DG61-01894B | CAVITY BACK;NX60T8311**,CR-SPE |
| DG61-01916A | CAVITY FLOOR;NX60T8***,CR-SPE,T1,W-,L-,- |
| DG61-01910B | CAVITY MAIN;NX60T8711**,CR-SPE |
| DG61-01911B | CAVITY UP;NX60T8511**,CR-SPE,T |
| 0204-009273 | COATING AGENT;DS8802FL,50~60%, |
| DE29-00005A | COIL CHOKE;LF-NERO,28MH,1.8OHM |
| 3708-003265 | CONNECTOR-FPC/FFC/PIC;20P,1MM, |
| 3711-000262 | CONNECTOR-HEADER |
| 3711-000357 | CONNECTOR-HEADER |
| 3712-001769 | CONNECTOR-TERMINAL;TAB,MALE,12 |
| 3712-001770 | CONNECTOR-TERMINAL;TAB,MALE,12 |
| DG63-00685A | COVER AIR;NE63T**,NX60T**,NY63 |
| DG63-00970A | COVER AIR;NX9100D,CR-SPE,T0.8,-,-,-,-,GA |
| DG63-00695A | COVER BACK-MAIN;NX60T8751**,GI |
| DG63-00686A | COVER CASING;NX60T8711**, NE63 |
| DG63-00698A | COVER CONNECTOR;NX9850,GI-SGCC |
| DG63-00694B | COVER HEATER-BAKE;NX60T8711**, |
| DG63-00696A | COVER HEATER-BOTTOM;NX60T8751* |
| DG63-00697A | COVER PCB-LED;NX60T8311,8111,NE63T8311,8 |
| DG63-00077C | COVER-FRAME INNER GLASS;FER300 |
| DG63-00257A | COVER-HSI WIRE;FX710BGS,STS430,T0.4,-,-, |
| DG63-00663A | COVER-PLATE |
| DG63-00260A | COVER-POWER CORD;FX710BGS,GI-SGCC,T1,-,- |
| 2801-000258 | CRYSTAL-SMD;0.032768MHZ,20PPM,SMD,12.5PF |
| DG69-00491A | CUSHION BOTTOM;NX/NE9000T,EPS, |
| DG69-00063A | CUSHION DOOR;FTQ386LWUX,EPS,W4 |
| DG69-00493A | CUSHION DRAWER;NX/NE9000T,EPS, |
|
|
DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP |
| 0402-001472 | DIODE-RECTIFIER |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,S |
| 0404-001595 | DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A |
| 0404-001666 | DIODE-SCHOTTKY;MBRF10200CT,200 |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.6V,5.32/5.88V,50 |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
|
|
FAN CONVECTION-MAIN;FSE1310AST,ALCOAT-SA |
|
|
FASTENER-RIVET;RT34,RT37,RB7300 RR19,RR2 |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0 |
| DG01-00094A | FILM-TOUCH;PET,T1.09,W256.4,L8 |
| DG60-00042A | FLANGE COVER REAR;NE63T**,NX60 |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX |
| DG61-00121C | FRAME-INNER GLASS;FER300**,GL- |
| 3601-001731 | FUSE-AXIAL LEAD |
| DG63-00720B | GASKET;NE/NX9100D,GLASS FIBER,-,T12,-,-, |
| DG64-00948A | GLASS DOOR-IN;NX9000T,GLASS,T4,W526,L341 |
| DG64-00092B | GLASS-INNER;NX583G0VBSR,GLASS,T4,W526.0, |
| DG61-01902A | GUIDE AIR VENT-SUB;NX60T8751** |
| DG61-02849A | GUIDE AIR-B;NX9100D,CR-SPE,T1,-,-,-,-,-, |
| 3711-002046 | HEADER-BOARD TO CABLE |
| 3711-000315 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-009393 | HEADER-BOARD TO CABLE;BOX,24P, |
| 3711-009395 | HEADER-BOARD TO CABLE;BOX,28P, |
| 3711-009166 | HEADER-BOARD TO CABLE;BOX,5P,1 |
| 3711-001154 | HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,ST |
|
|
HEATER IGNITER;AC120V,430W,SUS310S,48.6M |
| DG61-02805A | HOLDER HANDLE-LEFT;NE/NX9100D,PET+GF30%, |
| DG61-02806A | HOLDER HANDLE-RIGHT;NE/NX9100D,PET+GF30% |
| DG61-02788A | HOLDER KNOB;NSG6DG8500MTAA,PC,T1.9,EBONY |
| DG61-01066A | HOLDER NOZZLE-BROIL;GAS OVEN A |
| DG61-01914B | HOLDER NOZZLE;NX60T8751**,AL,G |
| DG61-02798A | HOLDER PCB-LED;NS*6D*8*00**AA,PP,T3.2,NA |
| DG61-01945A | HOLDER PCB-MAIN;NE,NX(8511*,8311*,8111*) |
| DG61-01998A | HOLDER TUBE;NX60T**,NY63T**,BR |
| DG61-01918A | HOLDER TUBE;NX60T8***,PC,DARK |
| DG61-01948A | HOLDER-CABLE;NX60T8***,PC,DARK |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,M |
| 1201-001125 | IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252) |
| 1203-000294 | IC-POSI.FIXED REG.;7808,TO-220,3P,PLASTI |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1202-001090 | IC-VOLTAGE COMP.;KIA75S393F,5P,TSV,TP,2. |
| 2702-001123 | INDUCTOR-RADIAL;4.7UH,10%,6.5X7.5MM,5MM, |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM |
| DB68-05458A | LABEL BAR CODE;AM9000H,PAPER,W |
| DE68-04077A | LABEL BOX;ALL SAMSUNG-KS,PRACT |
| DG68-01526A | LABEL CAUTION |
| DG68-00101B | LABEL CAUTION-DOOR;30 OVEN,SEA |
| DG68-00102B | LABEL CAUTION;30 OVEN,SECA,PET,W215,L11 |
| DG68-00848A | LABEL INSTRUCTION;NA30K7750TS, |
| DG68-00863A | LABEL INSTRUCTION;NA30K7750TS, |
| DG68-00373A | LABEL INSTRUCTION;NK30CB700W33AA,SEA,PET |
| DG68-00785A | LABEL INSTRUCTION;NX58K7850SS, |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMIN |
| DG68-01040A | LABEL RATING;NX58M9960P*,BESTB |
| DG68-00100B | LABEL WARNING;30 OVEN,SEA,SECA |
| DG68-00867A | LABEL WARNING;NA30K7750TS,BEST |
| DG68-01281A | LABEL WARNING;NX60T8751SS,BEST |
| DG68-00424A | LABEL-DOOR;30 OVEN,PAPER,W200, |
| DG66-00067A | LATCH DOOR;NX60*8*****,CR-SPCC |
| DG66-00071B | LATCH-ROD;T-SI / T-FS,SWMGH-3,-,-,-,-,- |
|
|
LEG LEVELING;NE59N6630SS/AA,PA66+GF30%,H |
| DG61-01956A | LEG LEVELING;T-PJT NE63T****,NX60T****,N |
| DG68-00493A | MANUAL INSTALL;FE*,NE*,FX*,NX* |
| DG68-01085A | MANUAL INSTRUCTION;NE5000N,USA |
| DG68-01206A | MANUAL USERS;NX58K9850SS,BESTB |
|
|
MOTOR AC CONVECTION;30" OVEN,SMC-U590D, |
| DG31-00025B | MOTOR AC DRIVE;8POLE,120V,60HZ,35MA,3W,2 |
| DG31-00026D | MOTOR AC FAN-BLOWER;SMB-U485F, |
| DG62-00136A | NOZZLE BROIL;NX58H9500WS,BRASS |
| DG62-00123A | NOZZLE DUAL;FX710BGS, C3604BD, |
| DG62-00098A | NOZZLE-AUX LP;FX710BGS,BRASS,-,-,C3604BD |
|
|
NOZZLE-BAKE LP;FX710BGS,BRASS,-,-,C3604B |
| DG62-00078A | NOZZLE-BAKE;FX710BGS,BRASS,C36 |
|
|
NOZZLE-BROIL LP;FX710BGS,BRASS,-,-,C3604 |
| DG62-00096A | NOZZLE-RAPID LP;FX710BGS,BRASS,-,-,C3604 |
|
|
NOZZLE-SEMI RAPID LP;FX710BGS,BRASS,-,-, |
| DG62-00277A | NOZZLE;NX36R9960PS,BRASS,-,-,-,-,-,D1.40 |
|
|
NUT FLANGE;MSWR |
|
|
NUT-HEXAGON CAP;SWRCH10A,NI PLT,M4,LEFT |
| DG69-00054A | PACKING ANGLE-FRONT;NE59J76**, |
| DG69-00508A | PACKING ANGLE;NE/NX9000T,PAPER |
| DG69-00166D | PACKING ANGLE;NX7000J,PAPER,T8 |
| DG69-00166H | PACKING ANGLE;NX9000T,PAPER,T7 |
| DG69-00509A | PACKING CASE ACCESSORY;NE/NX90 |
| DG69-00506A | PACKING CASE BOTTOM;NE/NX9000T |
| DG69-00188A | PACKING CASE;NE-F900A-PJT,CB,D |
| DG69-00518A | PAD CUSHION;NX9000T,EPS,W157,L |
| DG69-00516A | PAD PACKING-ACCESSORY;NX9000T, |
| DG69-00618A | PAD PACKING;NX/NE9000T,CB,SW1, |
| DG63-00241A | PAD SHEET;NX583G0VBSR,LDPE,T0. |
| DG69-00500A | PAD SHEET;NX60T8511S*,PAPER,T0 |
| DG69-00102A | PAD-RACK FLAT;FTQ**, FCQ**,PAP |
| DG64-00915A | PANEL-SIDE;NE63T****,NX60T**** |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200M |
| DE60-60030A | PIN-STAPLE;NE5000A,MSWR,-,-,-,- |
| DG61-01962A | PLATE GRIDDLE;NX60T****, GAS OVEN,GC250, |
| 0106-001520 | POWDER-CERAMIC;ATAG,ENAMEL,BLA |
| DG02-01003B | POWDER-CERAMIC;ATAG,ENAMEL,DAR |
| DG02-01002A | POWDER-CERAMIC;FTQ386L,ENAMEL, |
| 0106-001342 | POWDER-CERAMIC;RTU 4136(MATT B |
| 0106-001192 | POWDER-EPOXY;H-BK0605-S9,POLIE |
|
|
POWER CORD-AT;SPT-2 3X16AWG 105C,GRY,US3 |
| 2007-000441 | R-CHIP |
| 2007-000568 | R-CHIP |
| 2007-000700 | R-CHIP |
| 2007-001011 | R-CHIP |
| 2007-007306 | R-CHIP |
| 2007-007336 | R-CHIP |
| 2007-009922 | R-CHIP |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000286 | R-CHIP;100OHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000297 | R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000308 | R-CHIP;10OHM,5%,1/8W,TP,2012,T0.5 |
| 2007-000394 | R-CHIP;150KOHM,1%,1/4W,TP,3216,T0.55 |
| 2007-000467 | R-CHIP;1KOHM,1%,1/4W,TP,3216,T0.55 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000490 | R-CHIP;2.2KOHM,1%,1/8W,TP,2012,T0.55 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005,T0.45 |
| 2007-000641 | R-CHIP;270OHM,1%,1/4W,TP,3216 |
| 2007-000670 | R-CHIP;2KOHM,1%,1/4W,TP,3216 |
| 2007-000764 | R-CHIP;330OHM,1%,1/4W,TP,3216 |
| 2007-000762 | R-CHIP;330OHM,1%,1/8W,TP,2012 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216,T6 |
| 2007-001115 | R-CHIP;680KOHM,5%,1/4W,TP,3216 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
| DG75-01057A | RACK PROTECT;NX58H9500WS,NX9000HA,STS304 |
|
|
RACK WIRE;NE59N6630SS,NE5000N,MSWR,-,W62 |
|
|
RACK WIRE;NX9850,T-PJT,MSWR,-,W418,L629, |
| 3501-001306 | RELAY-MINIATURE;12VDC,3000MA,1 |
| 3501-001323 | RELAY-POWER;12V,30000MA,1FORMA |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
|
|
RUBBER-CUSHION;FTQ386LWUX,SILICON RUBBER |
| 6502-001149 | SADDLE;TIC-WSD21.5,W30.5,H33.3 |
|
|
SCREW-HEX;PWH,+,WT,M5,L10,ZPC(WHT),SWRCH |
| 6001-001122 | SCREW-MACHINE |
| 6001-000033 | SCREW-MACHINE;STS304,PASS,L10,M4,TH,+ |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(BLK),L10,M4,P |
| 6001-003299 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L16,M5,T |
| 6009-002193 | SCREW-SPECIAL;HH,+,M5,L25,ZPC( |
|
|
SCREW-SPECIAL;TH,+,WP,M5,L10,ZPC(BLK),SW |
| DE60-00001A | SCREW-STAR |
|
|
SCREW-TAPPING;STS410,NI PLT,L10,M4,TH,+, |
| DE60-10065A | SCREW-TAPPING;SWRCH18A,NI PLT,L6,M4,TH,+ |
| 6002-001425 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,T |
| 6002-000440 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M3,PW |
| 6002-000413 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH |
| 6002-000432 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M3,P |
|
|
SENSOR-THERMISTOR;PT1000-SOV9,12V,PLATIU |
| DG63-00683A | SHIELD CAVITY UPPER;NX60T8751* |
| DG63-00721A | SHIELD DRAWER;NX60T5***,NE63T5 |
|
|
SLIDER-INNER;FCQ321HTUX,PBT,BLACK,KP211, |
|
|
SLIDER-OUTER;FCQ321HTUX,PBT,T1.2,BLACK,B |
| 0106-001577 | SMG PART |
| 0106-001605 | SMG PART |
| 1203-005230 | SMG PART |
| 1205-006575 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007405 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007697 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007946 | SMG PART |
| 2007-008263 | SMG PART |
| 2203-000233 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-006842 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-008462 | SMG PART |
| 2703-003698 | SMG PART |
| 4709-003216 | SMG PART |
| 6021-002125 | SMG PART |
| 6041-001084 | SMG PART |
| 6041-001085 | SMG PART |
| DE26-00171B | SMG PART |
| DE60-20061A | SMG PART |
| DG07-01010C | SMG PART |
| DG41-00065A | SMG PART |
| DG41-00072A | SMG PART |
| DG61-01900F | SMG PART |
| DG61-01993B | SMG PART |
| DG61-02417A | SMG PART |
| DG61-02715A | SMG PART |
| DG61-02752A | SMG PART |
| DG61-02753A | SMG PART |
| DG61-02754A | SMG PART |
| DG61-02755A | SMG PART |
| DG61-02756A | SMG PART |
| DG61-02758B | SMG PART |
| DG61-02766A | SMG PART |
| DG61-02768A | SMG PART |
| DG61-02774A | SMG PART |
| DG61-02778A | SMG PART |
| DG61-02780A | SMG PART |
| DG61-02801B | SMG PART |
| DG61-02816A | SMG PART |
| DG61-02817A | SMG PART |
| DG61-02840B | SMG PART |
| DG61-02842A | SMG PART |
| DG62-00384A | SMG PART |
| DG63-00680D | SMG PART |
| DG63-00725C | SMG PART |
| DG63-00944A | SMG PART |
| DG63-00946A | SMG PART |
| DG63-00955A | SMG PART |
| DG63-00956A | SMG PART |
| DG64-00924C | SMG PART |
| DG64-01038B | SMG PART |
| DG64-01265A | SMG PART |
| DG64-01266A | SMG PART |
| DG64-01267A | SMG PART |
| DG64-01272A | SMG PART |
| DG64-01281A | SMG PART |
| DG64-01282A | SMG PART |
| DG64-01283A | SMG PART |
| DG64-01286A | SMG PART |
| DG64-01288A | SMG PART |
| DG64-01294A | SMG PART |
| DG64-01296A | SMG PART |
| DG64-01311A | SMG PART |
| DG67-00310A | SMG PART |
| DG67-00311A | SMG PART |
| DG67-00312A | SMG PART |
| DG67-00313A | SMG PART |
| DG68-00377C | SMG PART |
| DG68-01600A | SMG PART |
| DG68-01601A | SMG PART |
| DG68-01602A | SMG PART |
| DG68-01605A | SMG PART |
| DG68-01609A | SMG PART |
| DG68-01625A | SMG PART |
| DG69-00492B | SMG PART |
| DG69-00507C | SMG PART |
| DG69-00515A | SMG PART |
| DG69-00773D | SMG PART |
| DG69-00782A | SMG PART |
| DG69-00782B | SMG PART |
| DG69-00784A | SMG PART |
| DG69-00784B | SMG PART |
| DG69-00791A | SMG PART |
| DG90-01014P | SMG PART |
| DG90-01485C | SMG PART |
| DG90-01494A | SMG PART |
| DG90-01496C | SMG PART |
| DG90-01497C | SMG PART |
| DG90-01516C | SMG PART |
| DG92-01465A | SMG PART |
| DG92-01466A | SMG PART |
| DG94-03525F | SMG PART |
| DG94-03526J | SMG PART |
| DG94-03529J | SMG PART |
| DG94-05916A | SMG PART |
| DG94-05929D | SMG PART |
| DG94-05938B | SMG PART |
| DG94-05939A | SMG PART |
| DG94-05940A | SMG PART |
| DG94-05942A | SMG PART |
| DG94-05948A | SMG PART |
| DG94-05950A | SMG PART |
| DG94-05957A | SMG PART |
| DG94-05972A | SMG PART |
| DG94-05994A | SMG PART |
| DG94-05998A | SMG PART |
| DG94-06022A | SMG PART |
| DG94-06024A | SMG PART |
| DG94-06034A | SMG PART |
| DG94-06034B | SMG PART |
| DG94-06224A | SMG PART |
| DG94-06226A | SMG PART |
| DG94-06246B | SMG PART |
| DG94-06247B | SMG PART |
| DG94-06251C | SMG PART |
| DG94-06252C | SMG PART |
| DG94-06271C | SMG PART |
| DG94-06272C | SMG PART |
| DG94-06294A | SMG PART |
| DG94-06295A | SMG PART |
| DG94-06380A | SMG PART |
| DG96-01138A | SMG PART |
| DG97-00165B | SMG PART |
| DG98-02126C | SMG PART |
| DG98-02316B | SMG PART |
| DG98-02576A | SMG PART |
| DG98-02576B | SMG PART |
| DG98-02578A | SMG PART |
| DG98-02578B | SMG PART |
| DG98-02581A | SMG PART |
| DG98-02589B | SMG PART |
| DG98-02597A | SMG PART |
| DG98-02600C | SMG PART |
| 3710-004531 | SOCKET-BOARD TO BOARD;9P,2R,2. |
| 0202-001338 | SOLDER-BAR;LEED-FREE SOLDER BAR,W20L350H |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM |
| 0202-001463 | SOLDER-WIRE |
| 0202-001608 | SOLDER-WIRE FLUX |
| DG60-00007C | SPACER PANEL;NX/NE9100D,PBT+GF15%,BLACK, |
| DG60-00041A | SPACER;NE63T**,NX60T**,NY63T** |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,-30TO+80 |
| DG61-02811A | STOPPER-KNOB;NS*6D*8*00**AA,POM,T1.8,W15 |
| DG61-01874A | SUPPORT CAVITY-LEFT;NE63T**,NX |
| DG61-01908A | SUPPORT CAVITY-RIGHT;NE63T**,N |
| DG61-01957A | SUPPORT FRAME;T-PJT NE63T****, |
| 4715-001217 | SURGE ABSORBER;3600V,20%,3000A |
|
|
SWITCH-DOOR PLUNGER;120/240 VAC,BLACK,FT |
|
|
SWITCH-MICRO;AC250V,1A,200GF,1P,-25TO+13 |
| 0203-001816 | TAPE DOUBLE FACE;3M #4032,PU FOAM,T0.8,W |
| DA02-00092A | TAPE ETC-OPP;BLUE,OPP,T0.08,W4 |
| DE02-00029B | TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N |
| DE02-00027A | TAPE OPP;OPP,W50 |
| 0203-000444 | TAPE-AL FOIL;AL,T0.07,W50,L100M,CLEAR |
| 0203-001825 | TAPE-DOUBLE FACE;ACRYL,T0.4,W10,L30M,WHI |
| 0203-001109 | TAPE-SINGLE FACE;OPP,T0.075,W75,L800M,CL |
| 1404-001544 | THERMISTOR-NTC;10KOHM,1%,3435K |
| 1404-001872 | THERMISTOR-PTC |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
|
|
THERMOSTAT;AC125/250V,15/16A,120C,0C,S.O |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-000001 | TR-DIGITAL |
| 0504-001064 | TR-DIGITAL |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0502-001250 | TR-POWER |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| DG63-00700A | TRAY OVEN;NX9850,NE9850,STS304,T0.5,L490 |
| DG64-00983A | TRIM-PEDESTAL;NX60T5***,NE63T5 |
| DG62-00021A | TUBE-GLASS;FTQ386,GLASS FIBER, |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X |
| DE81-01901A | WASHER PLAIN;TRIO PLUS,TEFLON,T0.8,-,-,- |
| DG67-00314A | WIRE-PROTECTOR;NZ9100D,PA66,T2,101F,-,-, |
|
|
WIRE-STEEL;T-PJT,MSWR,D2800,T1.2,-,-,-,S |
