Manufacturer
Samsung
Model Number
NX60BB871112AA
Description
Bespoke Smart Slide-in Gas Range 6.0 Cu. Ft.
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-001970 | ADHESIVE-RBR;TK-1080N,TRANSPARENT YELLOW |
| 0201-003400 | ADHESIVE-SEALANT;DS9200,BLACK,1.5MPA.S,N |
| 0201-002023 | ADHESIVE-SL;SEALANT OK,TRP,NON-ACETIC |
| DG62-00305A | ADIABATIC DOOR-SIDE;GLASS WOOL,T38,W350, |
| DG62-00008B | ADIABATIC DOOR-TOP;FX710BGS,GLASS WOOL,T |
| DG62-00300A | ADIABATIC-BOTTOM;GLASS WOOL,T35,W70,L520 |
| DG62-00303A | ADIABATIC-MAIN;GLASS WOOL,T35.1,W520,L19 |
| DG62-00302B | ADIABATIC-REAR;GLASS WOOL,T35,W678.4,L67 |
| DG90-01085C | ASSY ACCESSORY PARTS;NX60T8711*,T PJT GA |
| DG94-03469A | ASSY BASE PLATE-DRAWER;NE63T9***, NX60T9 |
| DG94-03558B | ASSY BRACKET BAKE;NX60T8711**,T-PJT GAS |
|
|
ASSY BRACKET LATCH;NE63T**,NX60T**,NY63T |
|
|
ASSY BRACKET LATCH;NX60T8711**, NE63T871 |
|
|
ASSY BRACKET SUB;NE58F9710WS,SLIDE-IN PJ |
| DG94-03659A | ASSY BRACKET SUB;NX60T8***,T-PJT GAS MOD |
| DG94-03689B | ASSY BRACKET SUPPORTER;GAS MODEL,EGI-SGC |
| DG90-01025A | ASSY BURNER BAKE-MODULE;NX60T8751**,GAS |
| DG90-01024B | ASSY BURNER BROIL-MODULE;NX60T8711**,T-P |
| DG90-01079A | ASSY BURNER;NX9000T,ALDC12,GIANT, 10K BT |
| DG94-03509D | ASSY CASE BURNER;NX60T8711**,HOLDER NOZZ |
| DG90-01014B | ASSY CAVITY ADIABATIC MAIN;NX60T8711**,T |
| DG94-03522A | ASSY CAVITY BACK;NX60T8711**,T-PJT GAS S |
| DG94-03610B | ASSY CAVITY BURNER;NX60T8711**,T-PJT GAS |
| DG94-03713A | ASSY CAVITY FLOOR-COATING;NX60T8***,DARK |
| DG94-03525B | ASSY CAVITY FRONT;NX60T8711**, NE63T8711 |
| DG90-01021B | ASSY CAVITY PARTS;NX60T8711**,T-PJT |
| DG94-03526B | ASSY CAVITY-COATING;NX60T8711**,T-PJT GA |
| DG94-03648B | ASSY CAVITY-MODULE;NX60T8711**,T-PJT GAS |
| DG94-03611B | ASSY CAVITY-SUB;NX60T8711**,T-PJT GAS SI |
| DG94-03529B | ASSY CAVITY-WELDING;NX60T8711**,T-PJT GA |
| DG94-03549N | ASSY CONTROL BOX-MODULE;NX60BB871112,CLE |
| DG94-03551K | ASSY CONTROL PANEL SUB;NX60BB871112,T-S/ |
| DG94-03729C | ASSY COOKTOP FRAME-MODULE;NX60T8***,BEST |
| DG94-03627A | ASSY COOKTOP FRAME;NX63T8***,NY63T8****, |
| DG90-01248A | ASSY COOKTOP PARTS;NX60BB871112,CLEAN WH |
| DG94-03484C | ASSY COOKTOP;NX63T8711,BEST SINGLE |
| DG94-03530A | ASSY COVER ADIABATIC-TOP;NX60*8*, NE63*8 |
| DG94-03747A | ASSY COVER AIR-LEFT;NX60T****, GAS OVEN, |
| DG94-03748A | ASSY COVER AIR-RIGHT;NX60T****, GAS OVEN |
| DG94-03785B | ASSY COVER AIR;NX60T8***,NY60T8***,CAST |
| DG94-03785A | ASSY COVER AIR;NX60T8***,NY60T8***,CAST |
| DG94-03518B | ASSY COVER BACK-MAIN;NX60T8711**,T-PJT G |
| DG94-03461A | ASSY COVER BACK;NX60T****,GI-SGCC,T0.5,G |
| DG94-03520B | ASSY COVER BACK;NX60T8711**,T-PJT GAS SI |
| DG94-03561A | ASSY COVER CASING;NX60T8711**, NE63T8711 |
| DG98-02091A | ASSY CUSHION BOTTOM;NE/NX9000T,GAS / ELE |
| DG94-03605A | ASSY DOOR E-COATING;NE/NX9000T,SINGLE |
| DG94-03599A | ASSY DOOR E-WELDING;NE/NX9000T,SINGLE |
| DG94-03598C | ASSY DOOR E;NE63BB871112, NX60BB871112,C |
| DG94-04292A | ASSY DOOR SUB;NE63BB871112, NX60BB871112 |
| DG94-04291A | ASSY DOOR SUB;NE63BB871112, NX60BB871112 |
| DG94-04293A | ASSY DOOR-MODULE;NE63BB871112, NX60BB871 |
| DG90-01240B | ASSY DRAWER MAIN-MODULE;NX60BB871112,GLA |
| DG94-04278A | ASSY DRAWER;NE63BB871112,NX60BB87112,CL |
| DG90-01084G | ASSY ELECTRICAL PARTS;NX60T8711,BEST,SIN |
|
|

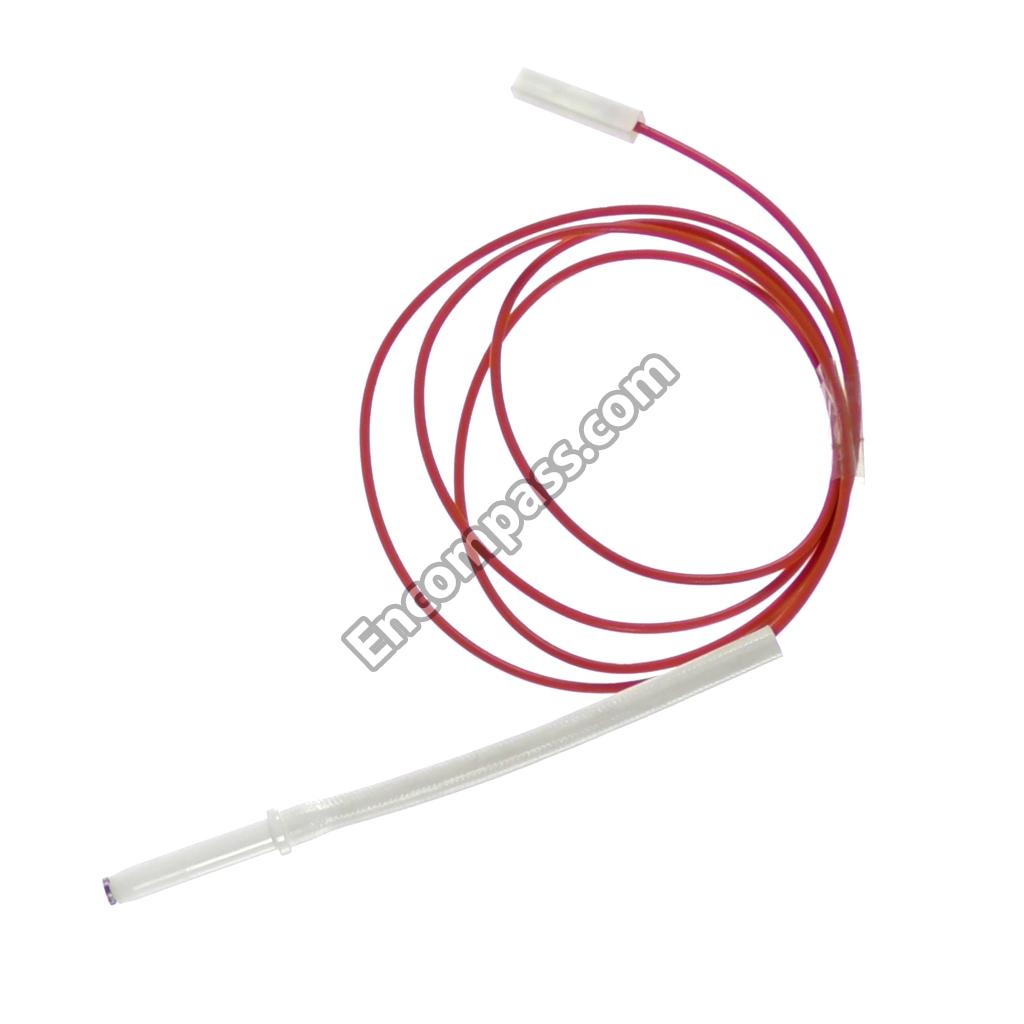

ASSY ELECTRODE;FX710BGS/XAA,AC18KV,930 |
|
|
ASSY ELECTRODE;NX9000T,AC18KV,1100MM,S |
|
|
ASSY ELECTRODE;NX9000T,AC18KV,1150MM,D |
| DG96-00788A | ASSY ELECTRODE;NX9000T,AC18KV,650MM,SI |
| DG96-00791A | ASSY ELECTRODE;NX9000T,AC18KV,900MM,FI |
| DG94-04290A | ASSY FRAME DOOR-MAIN;NE63BB871112, NX60B |
| DG94-03441A | ASSY GRATE CENTER;NX60T****, GAS OVEN,CA |
|
|
ASSY GRATE SIDE-LEFT;NX60T****, GAS OVEN |
| DG94-03453A | ASSY GRATE SIDE-RIGHT;NX60T****, GAS OVE |
|
|
ASSY GRATE;NX58H5650WS,CAST IRON,MATT BL |
|
|
ASSY HANDLE;NV51R5510,AL6063,STSS |
| DG94-00358D | ASSY HINGE;NX5000H,30" DOOR |
|
|
ASSY HOLDER NOZZLE-BROIL;GAS OVEN SLIDEI |
| DG94-03511B | ASSY HOLDER NOZZLE;NX60T8751**,GAS ALL, |
| DG94-03583B | ASSY HOLDER PCB;NX60T8711,GAS SINGLE BES |
| DG94-03614A | ASSY HOLDER-KNOB;BEST,ELECT,KNOB BACK LI |
| DG94-03585A | ASSY HOLDER-TUBE;NX60T**,NY63T** |
| DG94-03624A | ASSY HOLDER-TUBE;NX63T8711,BARRIER SINGL |
| DG94-03581A | ASSY KNOB SELECT;BEST,STSS,CENTER KNOB |
|
|
ASSY KNOB;BEST MODEL,PC+ABS,BLACK,CENTER |
| DG94-03797A | ASSY KNOB;NX60T8751SS,PC+ABS,STSS,GAS BE |
|
|
ASSY LAMP BULB;NE58K9500SG/AA,LH-01,120V |
| DG98-02148A | ASSY MANUAL;NX60T8711SS |
| DG90-01069B | ASSY MECHANICAL PARTS;NX63T8711,NX63T851 |
| DG92-01204A | ASSY MICOM-TOUCH;NE63T8751, NE63T8711, N |
| DE92-04342A | ASSY MICOM;NE63T9850SS/MAIN,HART-M320,10 |
| DE92-04341A | ASSY MICOM;NE63T9850SS/PANEL,HART-M320,1 |
| DE92-04340A | ASSY MICOM;NE63T9850SS/SUB_LCD,MB9F416R, |
|
|
ASSY MODULE SPARK;NX583G0VBSR,AC110/240V |
| DG92-01088A | ASSY MODULE;ASSY KNOB LIGHT,NE5000N,NE50 |
| DG96-00779A | ASSY MOTOR;NX60T**,NY63T**,GAS, DUAL FUE |
|
|

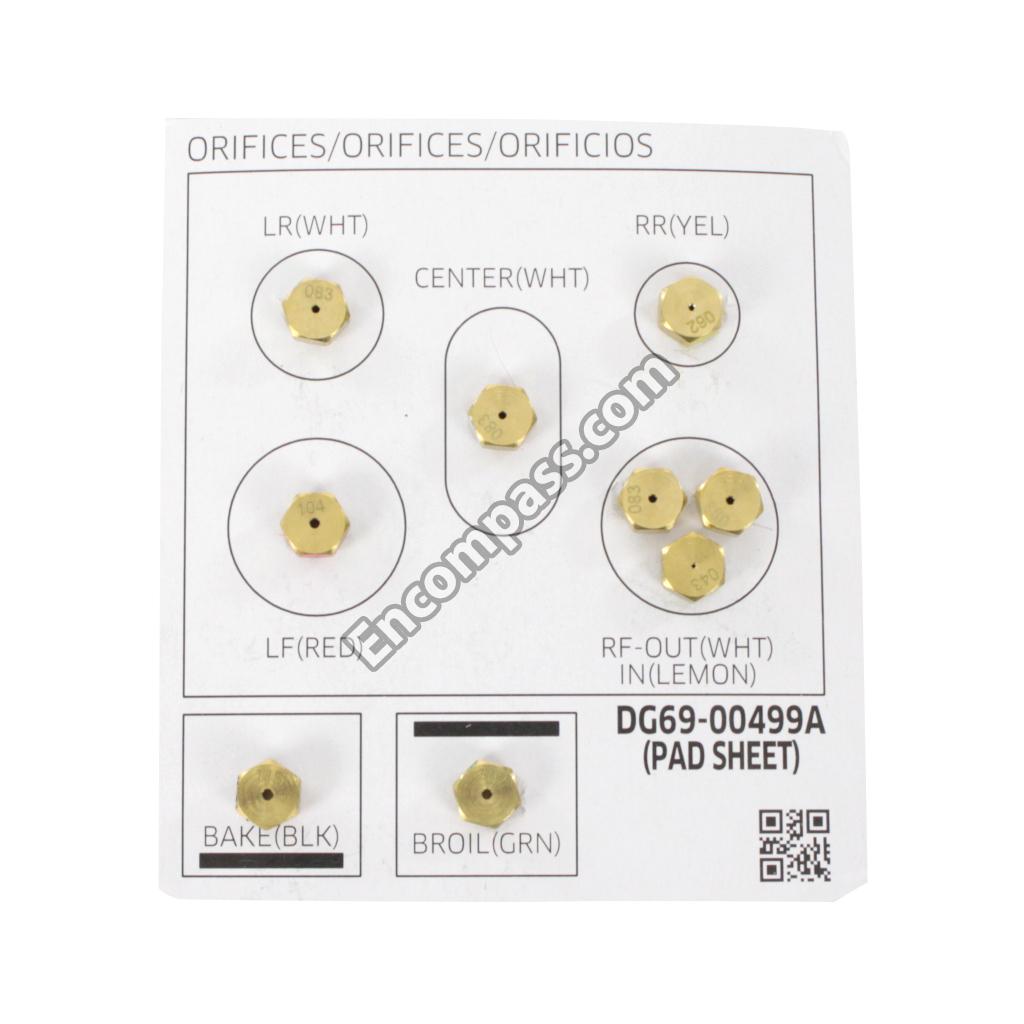

ASSY NOZZLE KIT;NX60T8711SS |
| DG98-02110A | ASSY PACKING ACCESSORY-GRATE MODULE;NX60 |

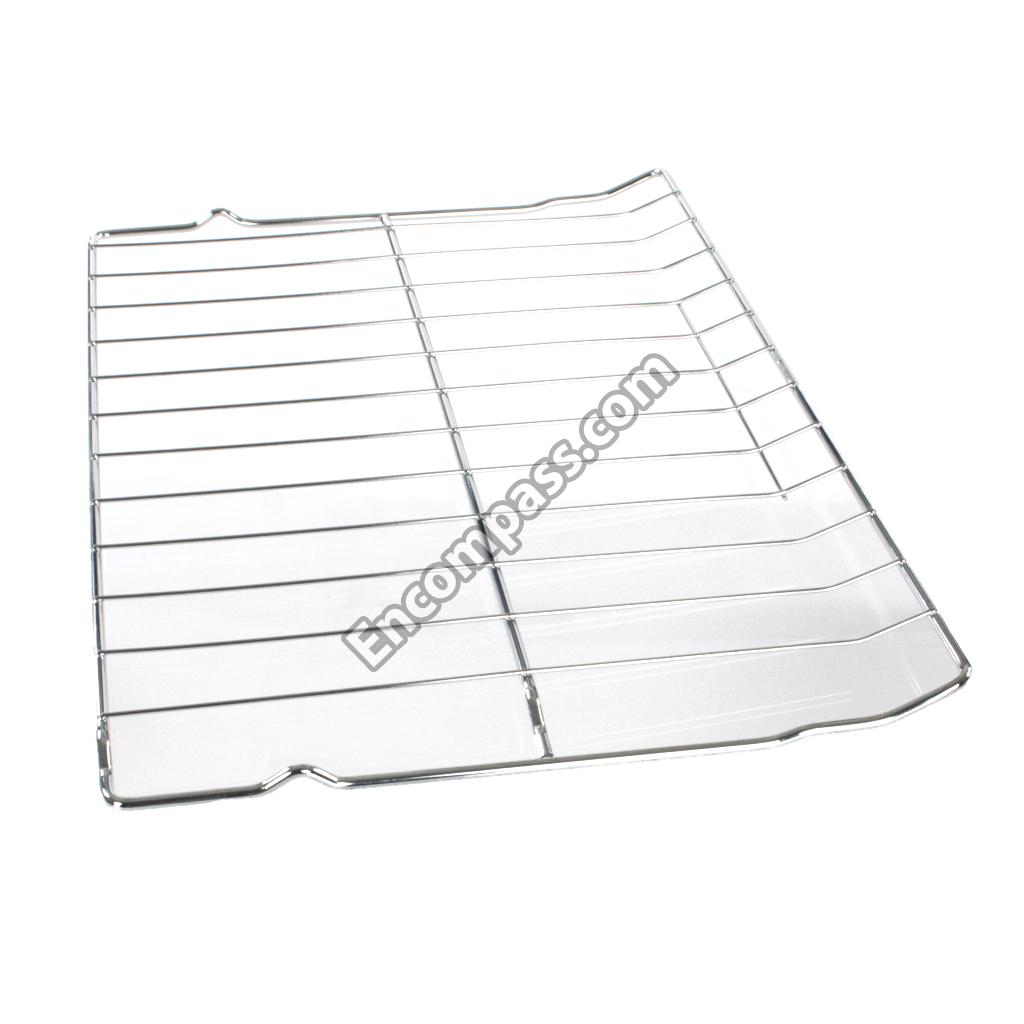

| DG98-02121A | ASSY PACKING ACCESSORY;NX9000T,RACK ASSY |
| DG98-02131A | ASSY PACKING ACCESSORY;NX9000T,WOK + PAD |

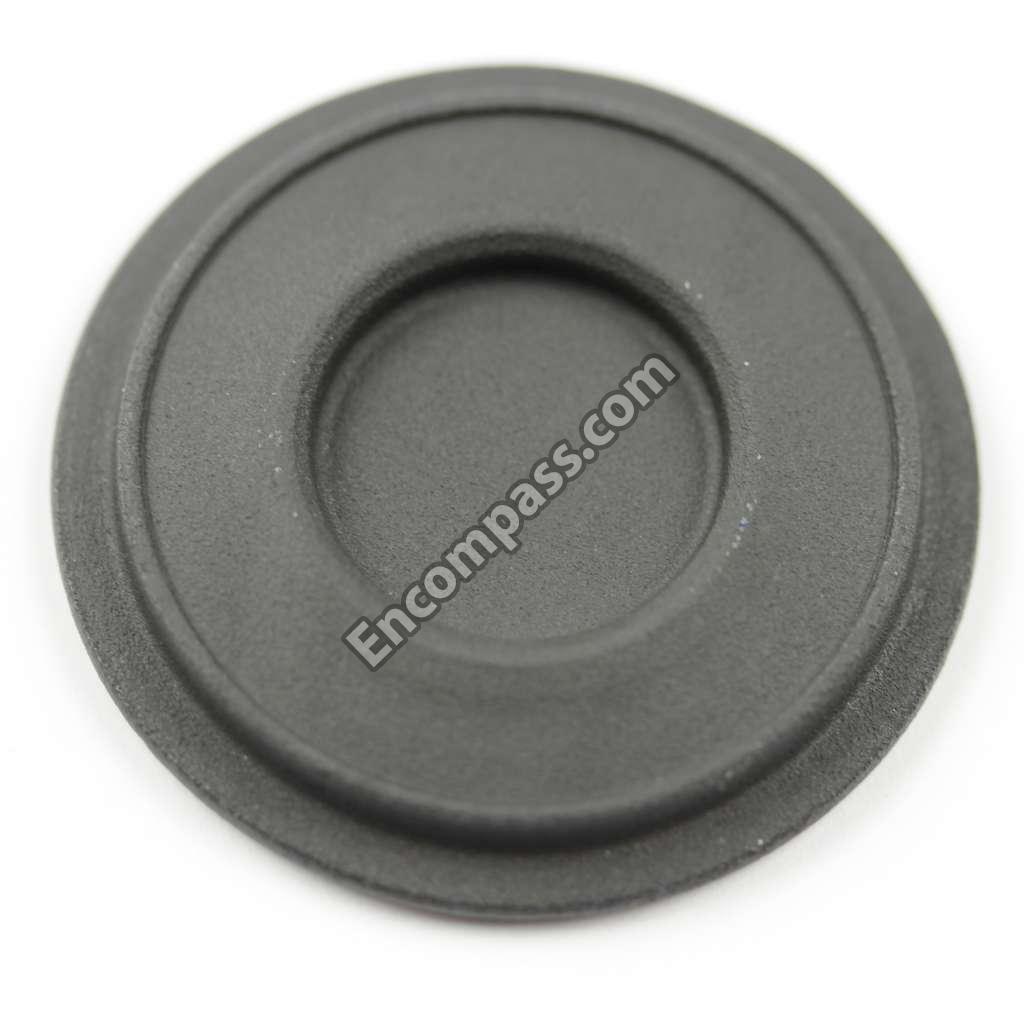

| DG98-02127A | ASSY PACKING BURNER CAP;NX9000T,BEST FLE |
| DG98-02126A | ASSY PACKING BURNER HEAD;NX9000T,BEST FL |
| DG98-02092A | ASSY PACKING BURNER HEAD;NX9000T,CUSHION |
| DG98-02084A | ASSY PACKING CORNER-LEFT;NE/NX9000T,FRON |
| DG98-02086A | ASSY PACKING CORNER-LEFT;NE/NX9000T,REAR |
| DG98-02083A | ASSY PACKING CORNER-RIGHT;NE/NX9000T,FRO |
| DG98-02085A | ASSY PACKING CORNER-RIGHT;NE/NX9000T,REA |
| DG98-02133C | ASSY PACKING PARTS;NX60T8711*,T PJT GAS |
| DG98-02152A | ASSY PACKING TRAY;NX9850,TRAY RACK PACKI |
| DG94-04296A | ASSY PANEL DRAWER-COATING;NX60BB871112, |
| DG94-04295A | ASSY PANEL DRAWER-COATING;NX60BB871112, |
| DG94-04294A | ASSY PANEL DRAWER-COATING;NX60BB871112, |
| DG94-04297A | ASSY PANEL DRAWER;NX60BB871112, NE63BB87 |
| DG94-03647A | ASSY PANEL OUTER;NX63T****,NE63T****,GI- |
| DG94-03669A | ASSY PCB AUTO;OVEN PF2,NX9000T,135X242MM |
| DG92-01201D | ASSY PCB DISPLAY;T-BEST SUB,NX9000T,290X |
| DG94-03671E | ASSY PCB EEPROM;EEP_05,DG92-01201B,NX900 |
|
|
ASSY PCB MAIN;OVEN PF2,NX9000T,135X242MM |
| DG94-03670A | ASSY PCB SMD;OVEN PF2,NX9000T,135X242MM, |
| DG94-03766A | ASSY PCB SMD;T-BEST SUB,NX9000T,290X80,T |
| DG94-04107A | ASSY PEDESTAL;NE63A67**, NX60A67**,RAIL |
| DG90-01087J | ASSY PRINTING PARTS;NX60B871112/AA |
| DG97-00171A | ASSY SCREW;NX60T****,T-PJT,ASSY COVER AI |
| DG97-00165A | ASSY SCREW;NY9900R,SCREW(1/4-20 UNC COAT |
|
|
ASSY SENSOR;NE63T**,NX60T**,NY63T**,T-PJ |
| DG94-03764A | ASSY SLIDER;NE63T8751SS/AA |
| DG94-04289A | ASSY SUPPORT GLASS-LOW;NE63BB871112, NX6 |
| DG94-04288A | ASSY SUPPORT GLASS-UP;NE63BB871112, NX60 |
|
|
ASSY SUPPORT-HINGE;FER300**,SPHC T1.6, P |
|
|
ASSY SWITCH IGNITION;NX60T8751SS/AA,AC12 |
| DG96-00773L | ASSY TOUCH;NX60BB871112,CLEAN WHITE,T-S/ |
| DG94-04126A | ASSY TRIM PEDESTAL;NE63T8***, NX60T8**** |
| DG94-03491A | ASSY TUBE BURNER-CENTER;NX60T9850, GAS O |
| DG94-03492A | ASSY TUBE BURNER-LEFT FRONT;NX60T9850, G |
| DG94-03490A | ASSY TUBE BURNER-LEFT REAR;NX60T9850, GA |
| DG94-03494A | ASSY TUBE BURNER-RIGHT FRONT;NX60T9850, |
| DG94-03493A | ASSY TUBE BURNER-RIGHT FRONT;NX60T9850, |
| DG94-03495A | ASSY TUBE BURNER-RIGHT REAR;NX60T9850, G |
| DG94-03753A | ASSY TUBE MANIFOLD-CENTER;NX60T****, GAS |
| DG94-03512A | ASSY TUBE-BAKE;NX60T8***,INNER 7.525 PI, |
| DG94-03514A | ASSY TUBE-BROIL;NX60T8751**,INNER 7.525 |
| DG94-03750A | ASSY TUBE;NX60T****, GAS OVEN,FLEXIBLE T |
|
|
ASSY TUBE;NX60T8751**,INNER 10.3 PI, OUT |
| DG94-03516A | ASSY TUBE;NX60T8751**,INNER 7.525 PI, OU |
|
|
ASSY VALVE DUAL;NX9000T,DUAL, EXTERNAL S |
| DG94-03759A | ASSY VALVE MANIFOLD-LEFT;NX60T****, GAS |
| DG94-03502A | ASSY VALVE MANIFOLD-RIGHT;NX60T****, GAS |
|
|

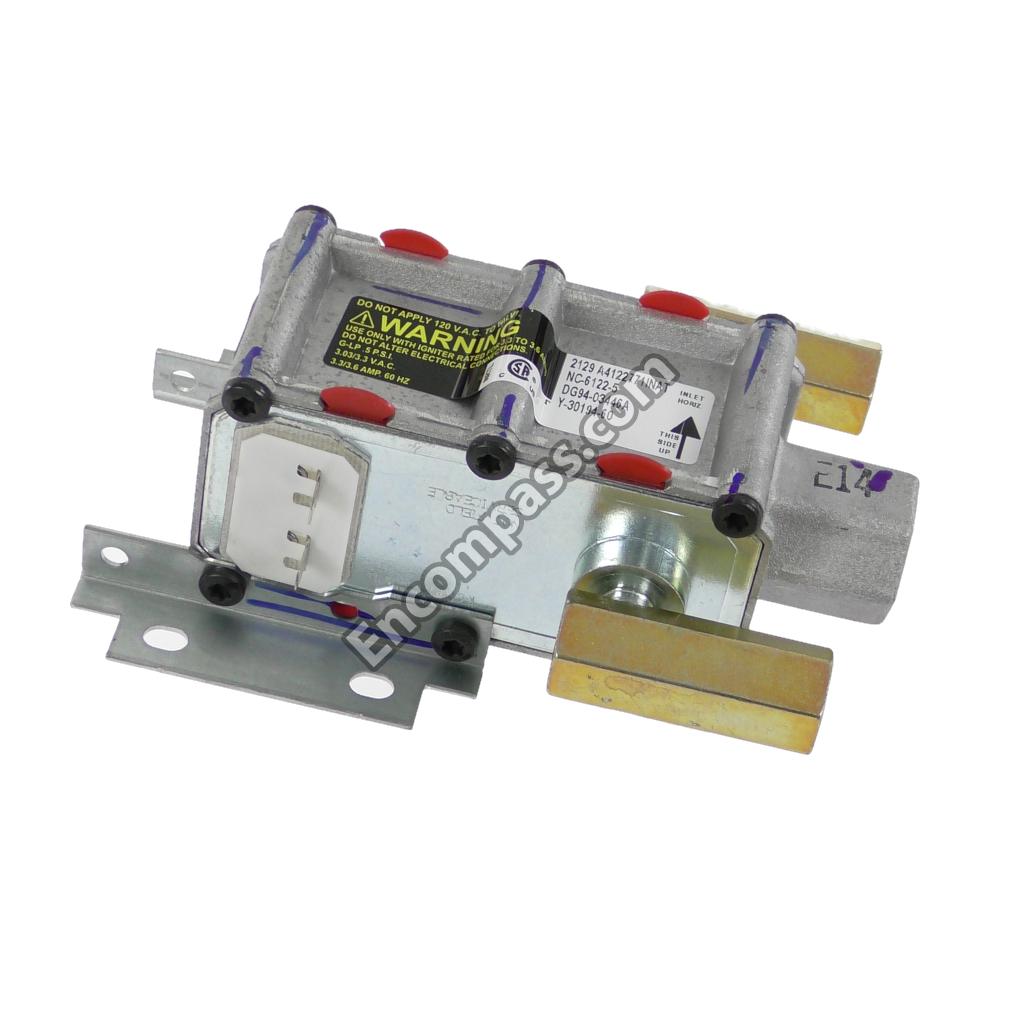

ASSY VALVE-REGULATOR;NX9000T,REGULATOR, |
|
|
ASSY VALVE-SAFETY;NX9000T,SAFETY VALVE S |

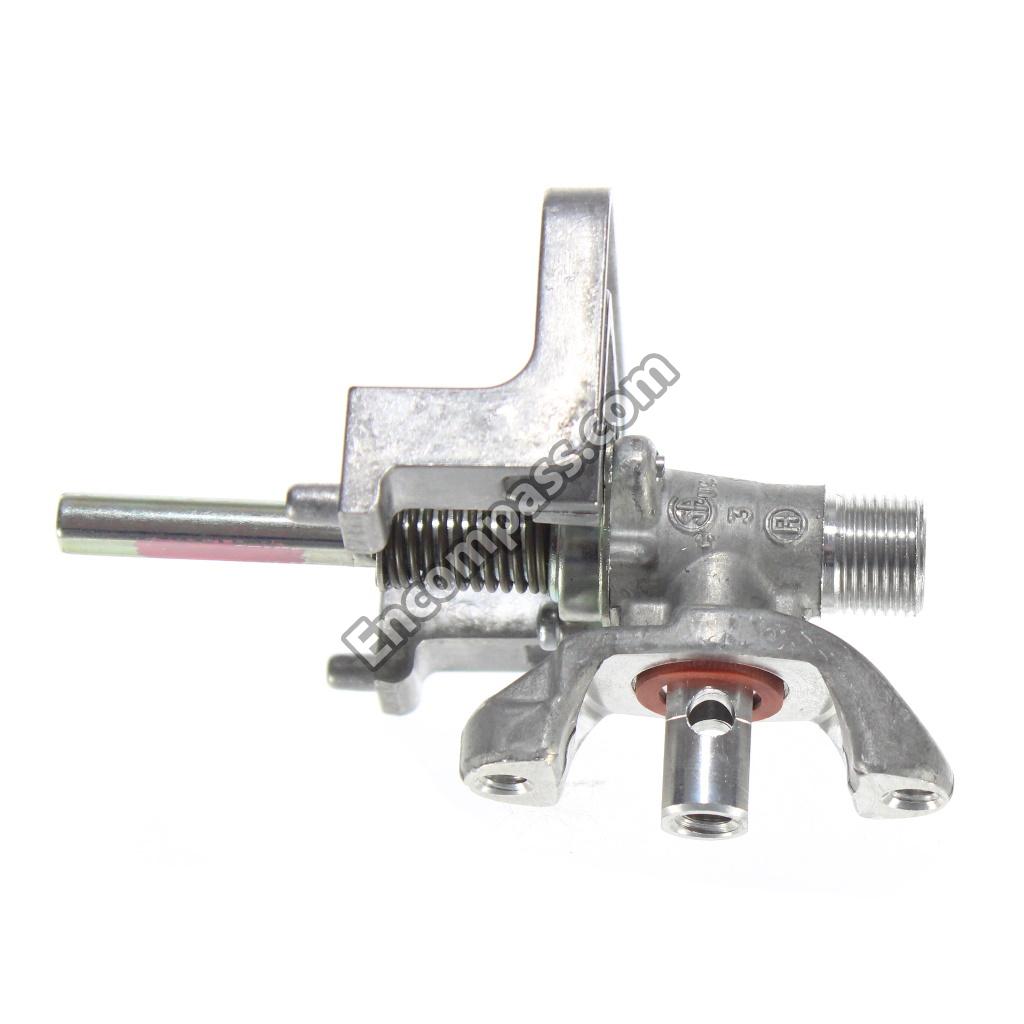

| DG94-03450A | ASSY VALVE;NX9000T,AL,BLUE, 72-80, SPRIN |
| DG94-03449A | ASSY VALVE;NX9000T,AL,GREEN, 45-49, SPRI |
|
|
ASSY VALVE;NX9000T,AL,PINK, 26-28, SPRIN |
|
|
ASSY VALVE;NX9000T,AL,VIOLET, 42-46, SPR |
| DG94-03540A | ASSY VENT COATING;NX60T8751**,T-PJT GAS |
| DG94-03541A | ASSY VENT WELDING;NX60T8751**,T-PJT GAS |
| DG96-00804A | ASSY WIRE HARNESS-DC SIGNAL;NX60T8751SS/ |
| DG96-00802A | ASSY WIRE HARNESS-DC SIGNAL;NX60T8751SS/ |
|
|
ASSY WIRE HARNESS-DC SIGNAL;NZ9300K, BLU |
| DG96-00796B | ASSY WIRE HARNESS-MAIN;NX60T8711SG/AA,12 |
| DG96-00800C | ASSY WIRE HARNESS-SUB;NX60T8711SG/AA,120 |
| DG94-00549A | ASSY-BURNER CAP FISH(G);FX710BGS,CR-SPE, |
|
|
ASSY-BURNER HEAD FISH(G);FX710BGS,CR-SPE |
|
|
ASSY-PROBE;NE58F9710WS,MEAT PROBE |
| DG62-00292A | BAFFLE DOOR-SUB;NX9850, NE9850,GI-SGCC,D |
| DG62-00293A | BAFFLE DOOR;NX9000T,GI-SGCC,SINGLE DOOR |
| DG69-00376A | BAG ACCESSORY;NE58K9850WS,LDPE,T0.08,L83 |
| DG69-00195A | BAG ENVELOPE;NE-F900A-PJT,HDPE,T0.015,L1 |
| 6902-003459 | BAG PE;HDPE,MAKER : G WORLD,T0.015,W250, |
| DG81-00480A | BAG PE;LDPE,T0.03,W150,L200,TRP,RECYCL |
| 6922-000009 | BAND;PP,T1,W15,TRP,AA63-10007E,ECO. N |
| DG61-01876A | BASE DRAWER-LEFT;NE63T****,NX60T****,NY6 |
| DG61-01877A | BASE DRAWER-REAR;NE63T****,NX60T****,NY6 |
| DG61-01875A | BASE DRAWER-RIGHT;NE63T****,NX60T****,NY |
| DG61-02070A | BASE DRAWER;NE63T****,NX60T****,NY60T*** |
| 3301-002069 | BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,26OHM |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2 |
|
|
BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA |
| DG61-01968A | BRACKET BARRIER-REAR;NE63T****,NX60T**** |
| DG61-01930A | BRACKET BARRIER;NX60T****, GAS OVEN,GI-S |
| DG61-01981A | BRACKET BARRIER;NX60T8711SS,GI-SGCC,T0.5 |
| DG61-00803A | BRACKET BOTTOM-LEFT;NE58F9710WS,GI-SGCC, |
| DG61-00808A | BRACKET BOTTOM-RIGHT;NE58F9710WS,GI-SGCC |
| DG61-01933A | BRACKET BOTTOM;OVEN NE63T****,T PJT , EL |
| DG61-01912A | BRACKET BROIL;NX60T8***,ALCOAT-SA1C,T0.8 |
| DG61-01952A | BRACKET COOK TOP;OVEN NE63T****,T PJT , |
| DG61-01915A | BRACKET COVER-BOTTOM;NX60T8***,ALCOAT-SA |
| DG61-01994B | BRACKET COVER;NX9000T,NY9000T,EGI-SECC,T |
| DG61-00150B | BRACKET DOOR-MIDDLE;NE/NX9000T,CR-SPE,T0 |
| DG61-01887A | BRACKET FRAME;NX60T****,GI-SGCC,T1.2,W75 |
| DG61-01991A | BRACKET GUIDE-LOW;NX60T**,NY63T**,GI-SGC |
| DG61-01999A | BRACKET GUIDE-LOW;T PJT GAS,GI-SGCC,T2,W |
| DG61-01996A | BRACKET GUIDE-LOW;T PJT GAS,GI-SGCC,T2,W |
| DG61-01992A | BRACKET GUIDE-UP;NX60T**,NY63T**,GI-SGCC |
| DG61-01955A | BRACKET GUIDE;T-PJT NE63T****,NX60T****, |
|
|
BRACKET HEATER-CONVECTION;FTQ386LWUX,STA |
| DG61-02002B | BRACKET HOLDER;NX60T****,GI-SGCC,T1.6,W5 |
| DG61-02001B | BRACKET HOLDER;NX60T****,GI-SGCC,T1.6,W5 |
| DG61-01764A | BRACKET MANIFOLD;NX36N9960PS,GI-SGCC,T1, |
| DG61-01886A | BRACKET MANIFOLD;NX60T****, GAS OVEN,GI- |
| DG61-01924A | BRACKET MOTOR-SUB;NE63T**,NX60T**,NY63T* |
| DG61-01923A | BRACKET MOTOR-UP;NE63T**,NX60T**,NY63T** |
| DG61-01951A | BRACKET PANEL-LEFT;NY63T8751,NX60T8751,8 |
| DG61-01873A | BRACKET PANEL-RIGHT;NY63T8751,NX60T8751, |
| DG61-01950A | BRACKET PANEL;BEST/BETTER GAS,GI-SGCC,T0 |
| DG61-01940A | BRACKET PIPE;NX60T8751**,GI-SGCC,T1.2,W6 |
| DG61-01995A | BRACKET SHIELD;NX60T8***,ALCOAT-SA1C,T0. |
| DG61-00783A | BRACKET STOPPER;NE58F9710WS,GI-SGCC,T1,W |
| DG61-00878A | BRACKET SUB;NX58H9500WS,CR-SPE,T0.8,W10, |
| DG61-01921A | BRACKET SUPPORTER-LEFT;NE63T**,NX60T**,N |
| DG61-01922A | BRACKET SUPPORTER-RIGHT;NE63T**,NX60T**, |
| DG61-01901A | BRACKET VENT-UP;NX60T8751**,CR-SPE,T0.7, |
| DG61-01913A | BRACKET-BAKE SPREADER;NX60T8***,ALCOAT-S |
| DG61-00732A | BRACKET-LATCH SUB;NX583G0VBSR,GI-SGCC,T1 |
| DG61-01878A | BRACKET-LEG;NE63T****, NY60T****, NX90T* |
|
|
BRACKET-SPRING ELECTRODE;FX710BGS,STS430 |
| DG61-00581A | BRACKET-STUD;FX710BGS,SK5,W- |
| DG61-00227A | BRACKET-SUPPORT HINGE;FTQ386LWUX,CR-SPE, |
| DG62-00056E | BURNER BROIL;NX9000T,ALCOAT-SA1C,16.5K, |
|
|
BURNER CAP AUX;NX58H9500WS,CR-SPE,DIA.50 |
|
|
BURNER CAP DUAL;FX710BGS,CR-SPE,DOUBLE-R |
| DG62-00295A | BURNER CUP;NX60T****, GAS OVEN,ALDC12,8P |
| DG62-00297A | BURNER CUP;NX9000T,ALDC12,AFB, DUAL, 22K |
|
|
BURNER CUP;NX9000T,ALDC12,AUX, 5K BTU, 1 |
| DG62-00059D | BURNER CUP;NX9000T,ALDC12,M13 INLET SEMI |
| DG62-00058D | BURNER CUP;NX9000T,ALDC12,RAPID, 16K BTU |
|
|
BURNER HEAD RIGHT;NX58F5300SS,ALCD12,POW |
| DG62-00299A | BURNER HEAD;NX9000T,BRASS,23K BTU, DUAL, |
| DG62-00066E | BURNER-BAKE;NX9000T,ALCOAT-SA1C,18K BTU, |
| DG62-00088A | BURNER-CAP FISH(G);FX710BGS,CR-SPE,L240 |
|
|
BURNER-CAP(R);NX58H5650WS,CR-SPE,PI94.5, |
|
|
BURNER-CAP(SR);NX58H5650WS,CR-SPE,PI68.5 |
| DG62-00073A | BURNER-HEAD FISH(G);FX710BGS,ALDC12 |
|
|
BURNER-HEAD(AUX);NX583G0VBSR,ALDC12,PI44 |
|
|
BURNER-HEAD;NX583G0VBSR,ALDC12,PI68.35,S |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-003503 | C-AL;100UF,20%,25V,TP,6.3X11MM,5MM,-40TO |
| 2401-003607 | C-AL;10UF,20%,50V,HR,TP,5X11MM,5MM |
| 2401-004519 | C-AL;2200UF,20%,25V,TP,12.5X25MM,5MM,-40 |
| 2401-001548 | C-AL;47UF,20%,25V,TP,5X11MM,5MM,-55TO+10 |
| 2401-005038 | C-AL;68UF,20%,450V,BK,22X25MM,10MM |
| 2401-004553 | C-AL;820UF,20%,25V,TP,10X20MM,5MM,-40TO+ |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,TP,1 |
| 2201-002711 | C-CERAMIC,DISC;470PF,10%,400VAC,Y5P,TP,1 |
| 2201-002335 | C-CERAMIC,DISC;68PF,10%,2000V,SL,TP,8X5M |
| 2202-002252 | C-CERAMIC,MLC-RADIAL;1NF,10%,1000V,R,TP, |
| 6502-001117 | CABLE CLAMP;DALF-94-2,SI,150C TEMP |
|
|
CAM-DOOR LATCH;FX710BGS,PA66+GF30%,BLACK |
| DG67-00207A | CAP HANDLE;NV51R5510,PC+ABS,HB,MC1300, |
| DG67-00229A | CAP-LEFT;T-PJT,BEST,BETTER,PC,T3,3025N |
| DG67-00228A | CAP-RIGHT;T-PJT,BEST,BETTER,PC,T3,3025 |
| DG61-01894A | CAVITY BACK;NX60T8711**, NE63T8711**,CR- |
| DG61-02022A | CAVITY DRAWER;NX60T5***,NE63T5***,GI-SGC |
| DG61-01900B | CAVITY FRONT;NX60T8711**, NE63T8711**,CR |
| DG61-01910B | CAVITY MAIN;NX60T8711**,CR-SPE,T0.7,W673 |
| DG61-01911A | CAVITY UP;NX60T87**,CR-SPE,T0.7,W794,L11 |
| DG64-00923A | CHASSIS PANEL-LOW;BEST/BETTER MODEL,STS4 |
| DG64-00922A | CHASSIS PANEL-UP;BEST/BETTER MODEL,STS43 |
| 0204-008356 | COATING AGENT;PAS-7900,99%,80~250CPS,TRA |
| DB27-00011A | COIL CHOKE;20MH,1.5A,13X10MM,MN-ZN,4P,DI |
| 3708-003344 | CONNECTOR-FPC/FFC/PIC;15P,1.0MM,SMD-A,SN |
| 3708-003265 | CONNECTOR-FPC/FFC/PIC;20P,1MM,SMD-A,SN,Y |
| 3712-001769 | CONNECTOR-TERMINAL;TAB,MALE,12,12.8MM/15 |
| 3712-001972 | CONNECTOR-TERMINAL;TAB,MALE,12,12.8MM/5M |
| DG63-00684A | COVER ADIABATIC-TOP;NE63T**,NX60T**,NY63 |
| DG63-00685A | COVER AIR;NE63T**,NX60T**,NY63T**,GI-SGC |
| DG63-00695A | COVER BACK-MAIN;NX60T8751**,GI-SGCD,T0.6 |
| DG63-00680A | COVER BACK;NX63T****,GI-SGCC,T0.4, |
| DG63-00686A | COVER CASING;NX60T8711**, NE63T8711**,CR |
| DG63-00698A | COVER CONNECTOR;NX9850,GI-SGCC,T0.4,GAS |
| DG63-00694B | COVER HEATER-BAKE;NX60T8711**,ALCOAT-SA1 |
| DG63-00696A | COVER HEATER-BOTTOM;NX60T8751**,ALCOAT-S |
| DG63-00725A | COVER HEATER-TOP;NX60T5***,NE63T5***,ALC |
| DG63-00077C | COVER-FRAME INNER GLASS;FER300**,GL-SGLC |
| DG63-00260A | COVER-POWER CORD;FX710BGS,GI-SGCC,T1,W10 |
| DG69-00492A | CUSHION ACCESSORY;NX9000T,EPS,W595,L150, |
| DG69-00491A | CUSHION BOTTOM;NX/NE9000T,EPS,W827,L749, |
| DG69-00488A | CUSHION CORNER-FRONT;NX/NE9000T,EPS,W97, |
| DG69-00487A | CUSHION CORNER-FRONT;NX/NE9000T,EPS,W97, |
| DG69-00490A | CUSHION CORNER-REAR;NX/NE9000T,EPS,W45,L |
| DG69-00489A | CUSHION CORNER-REAR;NX/NE9000T,EPS,W45,L |
| DG69-00063A | CUSHION DOOR;FTQ386LWUX,EPS,W43.5,L50,H2 |
| DG69-00493A | CUSHION DRAWER;NX/NE9000T,EPS,W234,L52,H |
| 0402-000324 | DIODE-BRIDGE;D3SB60,600V,4A,SIP-4,ST,120 |
| 0402-001192 | DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,SMA,TP |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0404-001241 | DIODE-SCHOTTKY;MBR20100CT,100V,20000MA,T |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0406-001689 | DIODE-TVS;SMH14A,15.6V,17.9V,1MAV,40A,TP |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.6V,5.32/5.88V,50 |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
| DG64-00924A | DOOR E;NX9000T,CR-SPE,T0.7,W800,L680,- |
|
|
FAN CONVECTION-MAIN;FSE1310AST,ALCOAT-SA |
| 0505-000110 | FET-SILICON;2N7002,N,60V,0.115A,7.5OHM,0 |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0.08OHM,0.5 |
| DG01-00079A | FILM DIFFUSION;PET,T0.15,W14.7,L65.58,BE |
| DG01-00078A | FILM DIFFUSION;PET,T0.15,W58.34,L21.28,B |
| DG01-00077B | FILM DIFFUSION;PET,T0.15,W62.3,L99,BEST, |
| DG01-00095A | FILM-TOUCH;PET,T0.45,W172.87,L76.61,T-BE |
| DG60-00042A | FLANGE COVER REAR;NE63T**,NX60T**,NY63T* |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
| DG61-01880A | FRAME COOK TOP;NX60T9850, GVN,STS304,T0. |
| DG61-02166A | FRAME DOOR-MAIN;NE63BB871112, NX60BB8711 |
| DG61-00121C | FRAME-INNER GLASS;FER300**,GL-SGLCC,T0.4 |
| 3601-001288 | FUSE-AXIAL LEAD;250V,2.5A,TIME-LAG,CERAM |
| DG63-00701A | GASKET-RUBBER;T-PJT NE63T****,NX60T****, |
| DG63-00720A | GASKET;NE63T8***, NX60T8****,GLASS FIBER |
| DG64-01047A | GLASS DOOR-OUT;NE63BB871112, NX60BB87111 |
| DG64-01037A | GLASS PANEL-DRAWER;NE63BB871112,NX60BB87 |
| DG64-00941K | GLASS PANEL;NX60BB871112,GLASS,T3.2,W98. |
| DG64-00092B | GLASS-INNER;NX583G0VBSR,GLASS,T4,W526.0, |
| DG61-01902A | GUIDE AIR VENT-SUB;NX60T8751**,CR-SPE,T0 |
| DG61-01949A | GUIDE AIR-SUB;NE63T**,NX60T**,NY63T**,GI |
| DG64-00864A | HANDLE DOOR;NV51R5510,AL,W722,L29.9,AL60 |
| 3711-000262 | HEADER-BOARD TO CABLE;1WALL,3P,1R,7.92MM |
| 3711-000261 | HEADER-BOARD TO CABLE;1WALL,3P,1R,7.92MM |
| 3711-000315 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-009393 | HEADER-BOARD TO CABLE;BOX,24P,2R,2.0MM,S |
| 3711-009395 | HEADER-BOARD TO CABLE;BOX,28P,2R,2.0MM,S |
| 3711-009169 | HEADER-BOARD TO CABLE;BOX,5P,1R,2.0MM,SM |
| 3711-009166 | HEADER-BOARD TO CABLE;BOX,5P,1R,2.0MM,SM |
| 3711-009165 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.0MM,SM |
| 3711-008881 | HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,PI |
| 3711-008909 | HEADER-BOARD TO CABLE;TP,SMD-S,1R,12P,2. |
|
|
HEATER IGNITER,AC120V,SU |
|
|
HEATER SHEATH-CONVECTION;AC120V,BKT + CO |
| DG61-02168A | HOLDER HANDLE-LEFT;NE63BB871112, NX60BB8 |
| DG61-02169A | HOLDER HANDLE-RIGHT;NE63BB871112, NX60BB |
| DG61-01898A | HOLDER KNOB-LIGHT;BEST,GAS,PC,T2,NATURAL |
| DG61-01867A | HOLDER KNOB-REAR;BEST,PC,T2,DARK GLASS,- |
| DG61-01897G | HOLDER KNOB;NX60T8711SS,PC+ABS,T2,NATURA |
| DG61-01066A | HOLDER NOZZLE-BROIL;GAS OVEN ALL,BRASS,A |
| DG61-01914B | HOLDER NOZZLE;NX60T8751**,AL,GAS ALL, AL |
| DG61-01939A | HOLDER PCB-LCD;NX60T8711,NE63T8711,PC,T2 |
| DG61-01919A | HOLDER PCB-MAIN;NE,NX(8751**,8711**),NY8 |
| DG61-01889A | HOLDER TUBE;NX60T****, GAS OVEN,GI-SGCC, |
| DG61-01998A | HOLDER TUBE;NX60T**,NY63T**,BRASS,T-PJT |
| DG61-01918A | HOLDER TUBE;NX60T8***,PC,DARK GLASS, |
| DG61-01948A | HOLDER-CABLE;NX60T8***,PC,DARK GLASS,- |
|
|
HOLDER;NX58F5700WS,BRASS,HOLDER ELECTROD |
| 1205-004505 | IC-BUS SWITCH;TSSOP,14P,7V,180MW,-40TO+8 |
| 1203-008919 | IC-DC/DC CONVERTER;SYD104AADC,TSOT23,6P, |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 1003-002158 | IC-LED DRIVER;TLC59116,TSSOP,28P,9.80MM, |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,MQFP,100P,2 |
| 1201-001125 | IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252) |
| 1203-000294 | IC-POSI.FIXED REG.;7808,TO-220,3P,PLASTI |
| 1203-009027 | IC-PWM CONTROLLER;TOP267V,DIP,12P,10.16X |
| 0903-001890 | IC-TOUCH;ATMEGA32A,TQFP,44P,7X7MM,PLASTI |
| 1203-001211 | IC-VOL. DETECTOR;7027,SOT-89,3P,PLASTIC, |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM |
| DG64-00973A | KNOB-MAIN;NX60T8751/8711,PC+ABS,NATURAL |
| DG64-00974A | KNOB-WEIGHT;NX60T8711, NE63T8711,STS430, |
| DB68-05458A | LABEL BAR CODE;AM9000H,PAPER,W17.5,L18 |
| DE68-04077A | LABEL BOX;ALL SAMSUNG-KS,PRACTI,MGP,PAPE |
| DG68-00101B | LABEL CAUTION-DOOR;30 OVEN,SEA,TETRON SI |
| DG68-00102B | LABEL CAUTION-DOOR;30 OVEN,SECA,TETRON S |
| DG68-00863A | LABEL INSTRUCTION;NA30K7750TS,BESTBUY,PA |
| DG68-00848A | LABEL INSTRUCTION;NA30K7750TS,BESTBUY,PE |
| DG68-00785A | LABEL INSTRUCTION;NX58K7850SS,PET,80,18, |
| DG68-00377B | LABEL INSTRUCTION;NX60T8751SS,BEST BUY,P |
| DE68-04705A | LABEL INSTRUCTION;WIFI,GLOBAL,PET,W90,L2 |
| DG68-01040A | LABEL RATING;NX58M9960P*,BESTBUY,PET,W15 |
| DG68-00100B | LABEL WARNING;30 OVEN,SEA,SECA,PET,W150, |
| DG68-00867A | LABEL WARNING;NA30K7750TS,BESTBUY,PET,W8 |
| DG68-01281A | LABEL WARNING;NX60T8751SS,BEST BUY,PAPER |
| DG68-00424A | LABEL-DOOR;30 OVEN,PAPER,W200,L120,200*1 |
| DG66-00067A | LATCH DOOR;NX60*8*****,CR-SPCC,SINGLE DO |
| DG66-00071A | LATCH-ROD;NE63T**,NX60T**,NY63T**,HSWR,T |
| DG07-01012A | LCD;57.09X30.1MM,-20TO+85C,3.3V,-30TO+85 |
| 0601-001986 | LED |
|
|
LEG LEVELING;NE59N6630SS/AA,PA66+GF30%,H |
| DG61-01956A | LEG LEVELING;T-PJT NE63T****,NX60T****,N |
| DG68-01232A | MANUAL GUIDE;NX60T8711S*,SEA,SECA,EN+SP+ |
| DG68-00493A | MANUAL INSTALL;FE*,NE*,FX*,NX*,ENGLISH,S |
| DG68-01243A | MANUAL INSTALL;NX60T8751S*,SEA,SECA,EN+S |
| DG68-01085A | MANUAL INSTRUCTION;NE5000N,USA/CANADA,EN |
| DG68-01248A | MANUAL INSTRUCTION;NX60T8***S*,SEA,SECA, |
| DG68-01226A | MANUAL INSTRUCTION;NX60T8711,SEA,SECA,EN |
| DG68-01238A | MANUAL INSTRUCTION;NX60T8711S*,SEA,SECA, |
| DG68-01206A | MANUAL USERS;NX58K9850SS,BESTBUY,EN+CFR, |
|
|
MOTOR AC CONVECTION;30" OVEN,SMC-U590D,2 |
| DG31-00025B | MOTOR AC DRIVE;8POLE,120V,60HZ,35MA,3W,2 |
| DG31-00026D | MOTOR AC FAN-BLOWER;SMB-U485F,2POLE,120V |
| DG62-00136A | NOZZLE BROIL;NX58H9500WS,BRASS,SLIDE IN |
| DG62-00098A | NOZZLE-AUX LP;FX710BGS,BRASS,C3604BD |
|
|
NOZZLE-BAKE LP;FX710BGS,BRASS,C3604BD |
| DG62-00078A | NOZZLE-BAKE;FX710BGS,BRASS,C3604BD |
|
|
NOZZLE-BROIL LP;FX710BGS,BRASS,C3604BD |
|
|
NOZZLE-SEMI RAPID LP;FX710BGS,BRASS,C360 |
| DG62-00308A | NOZZLE;NX9000T,BRASS,STRAIGHT, 0.43MM |
|
|
NUT FLANGE;MSWR |
|
|
NUT-HEXAGON CAP;M4,NI PLT,SWRCH10A,LEFT |
| DG69-00054A | PACKING ANGLE-FRONT;NE59J76**,PAPER,T7,W |
| DG69-00508B | PACKING ANGLE;NE/NX9000T,PAPER,T7,W50,L1 |
| DG69-00508A | PACKING ANGLE;NE/NX9000T,PAPER,W45,L10 |
| DG69-00166D | PACKING ANGLE;NX7000J,PAPER,T7,W65,L749 |
| DG69-00166H | PACKING ANGLE;NX9000T,PAPER,T7,W50,L740, |
| DG69-00509A | PACKING CASE ACCESSORY;NE/NX9000T,CB,SW1 |
| DG69-00507A | PACKING CASE ACCESSORY;NE/NX9000T,CB,SW2 |
| DG69-00506A | PACKING CASE BOTTOM;NE/NX9000T,CB,SW2,L8 |
| DG69-00188A | PACKING CASE;NE-F900A-PJT,CB,DW3,L769,W8 |
| DG69-00133A | PACKING-BURNER CAP;FX710BGS/XAA,CB,SW3-A |
| DG69-00518A | PAD CUSHION;NX9000T,EPS,W157,L250,H40, |
| DG69-00184A | PAD PACKING ACCESSORY;NX58F5700WS,CB,SW- |
| DG69-00514A | PAD PACKING-ACCESSORY;NX9000T,CB,W1106,L |
| DG69-00517A | PAD PACKING-ACCESSORY;NX9000T,CB,W250,L6 |
| DG69-00516A | PAD PACKING-ACCESSORY;NX9000T,CB,W306,L6 |
| DG69-00545B | PAD PACKING;NX9000T,CB,W753,L102,SW1,T P |
| DG63-00241A | PAD SHEET;NX583G0VBSR,LDPE,T0.05,W200,L1 |
| DG69-00499A | PAD SHEET;NX60T8711,PAPER,T0.5,W80,H90 |
| DG69-00102A | PAD-RACK FLAT;FTQ**, FCQ**,PAPER,W70,L44 |
| DG64-01039A | PANEL DRAWER-LOW;NE63BB871112,NX60BB8711 |
| DG64-01041A | PANEL DRAWER-SUB;NE63BB871112,NX60BB8711 |
| DG64-01040A | PANEL DRAWER-UP;NE63BB871112,NX60BB87112 |
| DG64-01038A | PANEL DRAWER;NE63BB871112,NX60BB87112,GI |
| DG64-00915A | PANEL-SIDE;NE63T****,NX60T****,NY60T**** |
| DG41-00032A | PCB DISPLAY;FR-4,2L,T1.6,290X80MM,2,T-BE |
| DG41-00030A | PCB MAIN;FR-4,2L,T1.6,135MMX242MM,2,PF2, |
| 0604-001002 | PHOTO-COUPLER;TR,100-600%,170MW,SOP,TP |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200MW,SOP,TP |
| DE60-60030A | PIN-STAPLE;MSW |
| DG61-01929A | PLATE GRIDDLE;NX60T****, GAS OVEN,GC250, |
| DG02-01003B | POWDER-CERAMIC;ATAG,ENAMEL,DARK BLUE GRA |
| DG02-01003A | POWDER-CERAMIC;ATAG,ENAMEL,DARK BLUE GRA |
| DG02-01001D | POWDER-CERAMIC;ESP PD650,ENAMEL,BLUE/WHI |
| DG02-01002A | POWDER-CERAMIC;FTQ386L,ENAMEL,BLACK FRIT |
| 0106-001342 | POWDER-CERAMIC;RTU 4136(MATT BLACK),FRIT |
| 0106-001547 | POWDER-EPOXY;DAC-SV1607S,RT-SILVER |
| 0106-001548 | POWDER-EPOXY;DAC-SV1902TS,PLUS SILVER CH |
| 0106-001192 | POWDER-EPOXY;H-BK0605-S9,POLIESTER RESIN |
|
|
POWER CORD-AT;SPT-2 3X16AWG 105C,GRY,US3 |
| 2007-008485 | R-CHIP |
| 2007-001190 | R-CHIP |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000238 | R-CHIP;1.5KOHM,1%,1/8W,TP,2012 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-000297 | R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5,GENER |
| 2007-000394 | R-CHIP;150KOHM,1%,1/4W,TP,3216 |
| 2007-000441 | R-CHIP;180KOHM,1%,1/8W,TP,2012 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000508 | R-CHIP;2.4KOHM,1%,1/8W,TP,2012 |
| 2007-000530 | R-CHIP;200KOHM,1%,1/8W,TP,2012,T0.5,GENE |
| 2007-000537 | R-CHIP;200OHM,1%,1/4W,TP,3216 |
| 2007-000641 | R-CHIP;270OHM,1%,1/4W,TP,3216 |
| 2007-000670 | R-CHIP;2KOHM,1%,1/4W,TP,3216 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005 |
| 2007-000764 | R-CHIP;330OHM,1%,1/4W,TP,3216 |
| 2007-000762 | R-CHIP;330OHM,1%,1/8W,TP,2012 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-000945 | R-CHIP;47OHM,1%,1/8W,TP,2012 |
| 2007-001011 | R-CHIP;51KOHM,5%,1/4W,TP,3216 |
| 2007-001015 | R-CHIP;51OHM,5%,1/4W,TP,3216 |
| 2007-009149 | R-CHIP;6.8OHM,1%,1/16W,TP,1005 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|
RACK WIRE;NE59N6630SS,NE5000N,MSWR,W629, |
|
|
RACK WIRE;NX9850,T-PJT,MSWR,W418,L629,- |
| 3501-001306 | RELAY-MINIATURE;12VDC,3000MA,1FORMA,10MS |
| 3501-001323 | RELAY-POWER;12V,30000MA,1FORMA,10MS,5MS, |
| DG67-00227A | RUBBER RING;BEST MODEL,SILICON RUBBER,T1 |
|
|
RUBBER-CUSHION;FTQ386LWUX,SILICON RUBBER |
| DG67-00253A | RUBBER;NX9000T,SILICON RUBBER,D0,25X8X3M |
| 6001-001122 | SCREW-MACHINE;PH,+,M4,L10,ZPC(WHT),SWR |
|
|
SCREW-MACHINE;PWH,+,M4,L10,ZPC(BLK),SWRC |
|
|
SCREW-MACHINE;PWH,+,WT,M5,L10,ZPC(WHT),S |
| 6001-000033 | SCREW-MACHINE;TH,+,M4,L10,PASS,STS304 |
| 6001-003299 | SCREW-MACHINE;TH,+,WP,M5,L16,ZPC(BLK),SW |
| 6001-002267 | SCREW-MACHINE;TH,+,WP,M5,L57,ZPC(BLK),SW |
| 6009-002193 | SCREW-SPECIAL;HH,+,M5,L25,ZPC(WHT),SWRCH |
|
|
SCREW-SPECIAL;TH,+,WP,M5,L10,ZPC(BLK),SW |
| 6002-000440 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR |
| 6002-000432 | SCREW-TAPPING;TH,+,2,M4,L10,ZPC(WHT),SWR |
|
|
SCREW-TAPPING;TH,+,2,M4,L8,NI PLT,STS304 |
|
|
SCREW-TAPPING;TH,+,2S,M4,L10,NI PLT,STS4 |
| DE60-10065A | SCREW-TAPPING;TH,+,2S,M4,L6,NI PLT,SWRCH |
| 6002-000413 | SCREW-TAPPING;TH,+,2S,M4,L8,ZPC(BLK),SWR |
|
|
SCREW-TAPPING;TH,+,WT,2,M4,L10,ZPC(WHT), |
|
|
SENSOR TEMP;10.42KOHM |
|
|
SENSOR-THERMISTOR;PT1000-SOV9,12V,PLATIU |
| DG63-00683A | SHIELD CAVITY UPPER;NX60T8751**,ALCOAT-S |
| DG63-00721A | SHIELD DRAWER;NX60T5***,NE63T5***,GI-SGC |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001608 | SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3SN/0. |
| 0202-001463 | SOLDER-WIRE;LFC2-W3.0,D3,99.79SN/0.2CU/0 |
|
|
SPACER-SIDE PANEL;FTQ386**, FTQ352**, FC |
| DG60-00041A | SPACER;NE63T**,NX60T**,NY63T**,GI-SGCC,T |
| DG60-00043A | SPACER;NX60BB871112, NE63BB871112,SILICO |
| DG61-00821A | SPRING ETC;NX58F5700WS,STS301,ID6,OD7.1, |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,-30TO+80C,0.028A,A |
| DG61-01874A | SUPPORT CAVITY-LEFT;NE63T**,NX60T**,NY63 |
| DG61-01908A | SUPPORT CAVITY-RIGHT;NE63T**,NX60T**,NY6 |
| DG61-01993A | SUPPORT FRAME-BOTTOM;T PJT ALL,PBT+GF15% |
| DG61-01957A | SUPPORT FRAME;T-PJT NE63T****,NX60T****, |
| DG61-02165A | SUPPORT GLASS-LOW;NE63BB871112, NX60BB87 |
| DG61-02152A | SUPPORT GLASS-UP;NE63BB871112, NX60BB871 |
| DG61-02170A | SUPPORT HANDLE;NE63BB871112, NX60BB87111 |
| DG61-01954A | SUPPORT MANIFOLD;NX60T****, GAS OVEN,CR- |
| DG61-01920B | SUPPORT REGULATOR;NX5000A/NX9000T,GI-SGC |
| 4715-001217 | SURGE ABSORBER;3600V,20%,3000A,AXIAL |
|
|
SWITCH-DOOR PLUNGER;120/240 VAC,BLACK,FT |
|
|
SWITCH-MICRO;AC250V,1A,200GF,1P,-25TO+13 |
| DG34-00046A | SWITCH;DC5V,0.5MA,32 POSITIONS, 16 PULSE |
| 0203-001815 | TAPE DOUBLE FACE;3M #4016,PU FOAM,T1.6,W |
| DA02-00092A | TAPE ETC-OPP;BLUE,OPP,T0.08,W45,L50M,COL |
| 0203-001607 | TAPE-OPP MASKING;OPP,T0.08,W20,L50M,BLUE |
| 1404-001544 | THERMISTOR-NTC;10KOHM,1%,3435K,3.7MWC,TP |
| 1404-001413 | THERMISTOR-NTC;18OHM,3A,3200K,19MWC,15MM |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-000001 | TR-DIGITAL;DTA114EKA,PNP,200MW,10K/10K,S |
| 0504-001064 | TR-DIGITAL;DTC114EKA,NPN,200MW,10K/10K,S |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0502-001250 | TR-POWER;PBSS5540Z,1,SOT-223,TP,6.5X3.5X |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| DB26-00130A | TRANS SWITCHING;AC230V,300MA,1.99A,110MA |
| DG64-00983B | TRIM-PEDESTAL;NX60T5***,NE63T5***,EGI-SE |
| DG62-00021A | TUBE-GLASS;FTQ386,GLASS FIBER,4.1,60MM,3 |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X10MM,TP,11 |
| 4709-003006 | W-LAN MODULE;CCAR210R,SDA8700CSM,IEEE802 |
| DG64-00957A | WINDOW DISPLAY;NX60T8711,NE60T8711,ACRYL |
|
|
WIRE-STEEL;A-1 PROJECT,MSWR-SWRM,1.2,2,8 |
