Manufacturer
Samsung
Model Number
PN59D530A3FXZA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-13325L | 51 PIN LVDS CABLE |
|
|
ASSY BRACKET P-WALL;PD450/490,SECC |
| BN96-19944A | ASSY COVER P-FRONT;PD530 59,PMMA+ABS,HB, |
| BN96-16784H | ASSY COVER P-REAR;PD530 59,PCM,T0.45,BKN |
| BN96-19644B | ASSY SPEAKER P;6OHM,4PIN,10W,LOW_PDP MOD |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
|
|
CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320 |
| BN63-07800A | COVER-BOTTOM;PD550 58",HIPS,HB,BLK |
| BN96-16532A | E-BUFFER BOARD PCB |
| BN96-16533A | F-BUFFER BOARD PCB |
| BN96-16534A | G-BUFFER BOARD PCB |
| BN96-16885A | GLASS STAND BASE |
| 3711-007336 | HEADER-BOARD TO CABLE;B0X,4P,1R,2.5MM,SM |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| BP62-00017A | HEAT SINK-ES;SP-50L2HX,A6063S,T2.0,26.2, |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
|

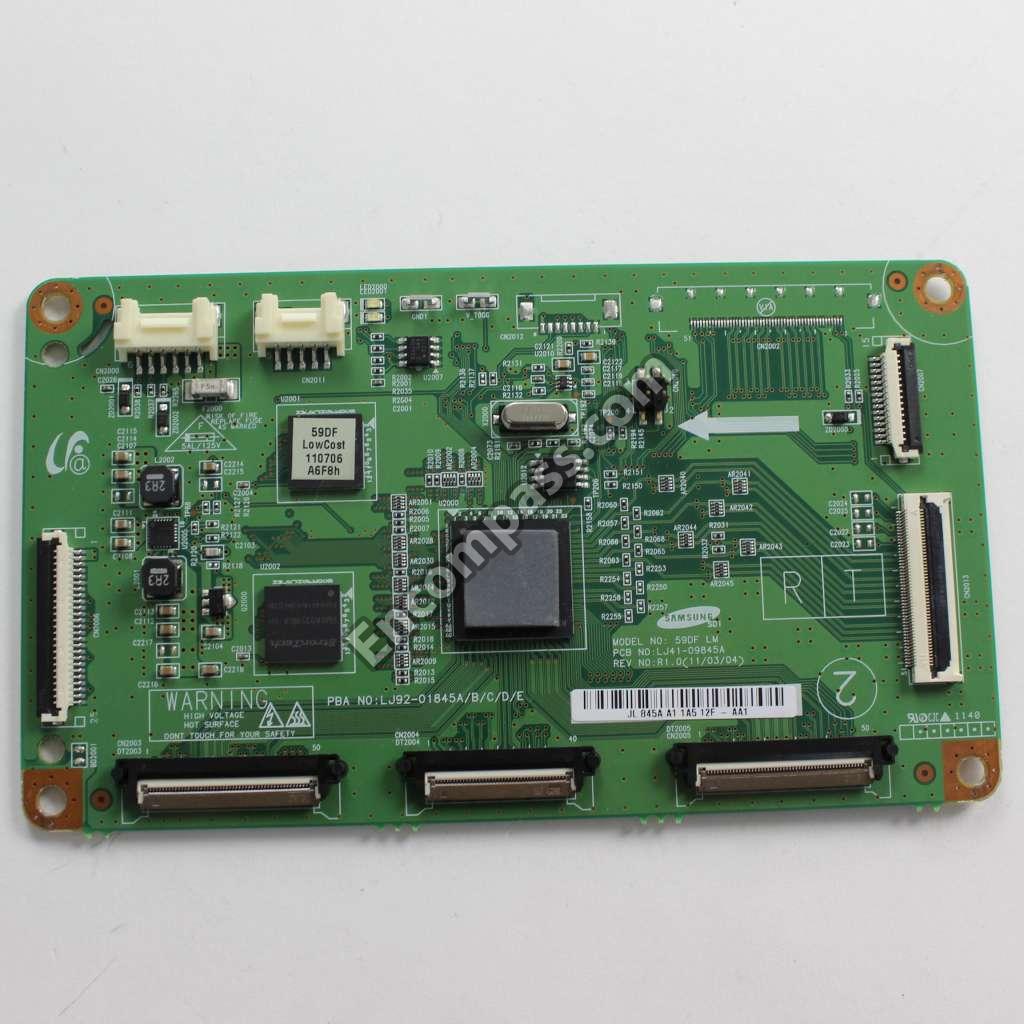

LOGIC MAIN BOARD PCB |
|
|

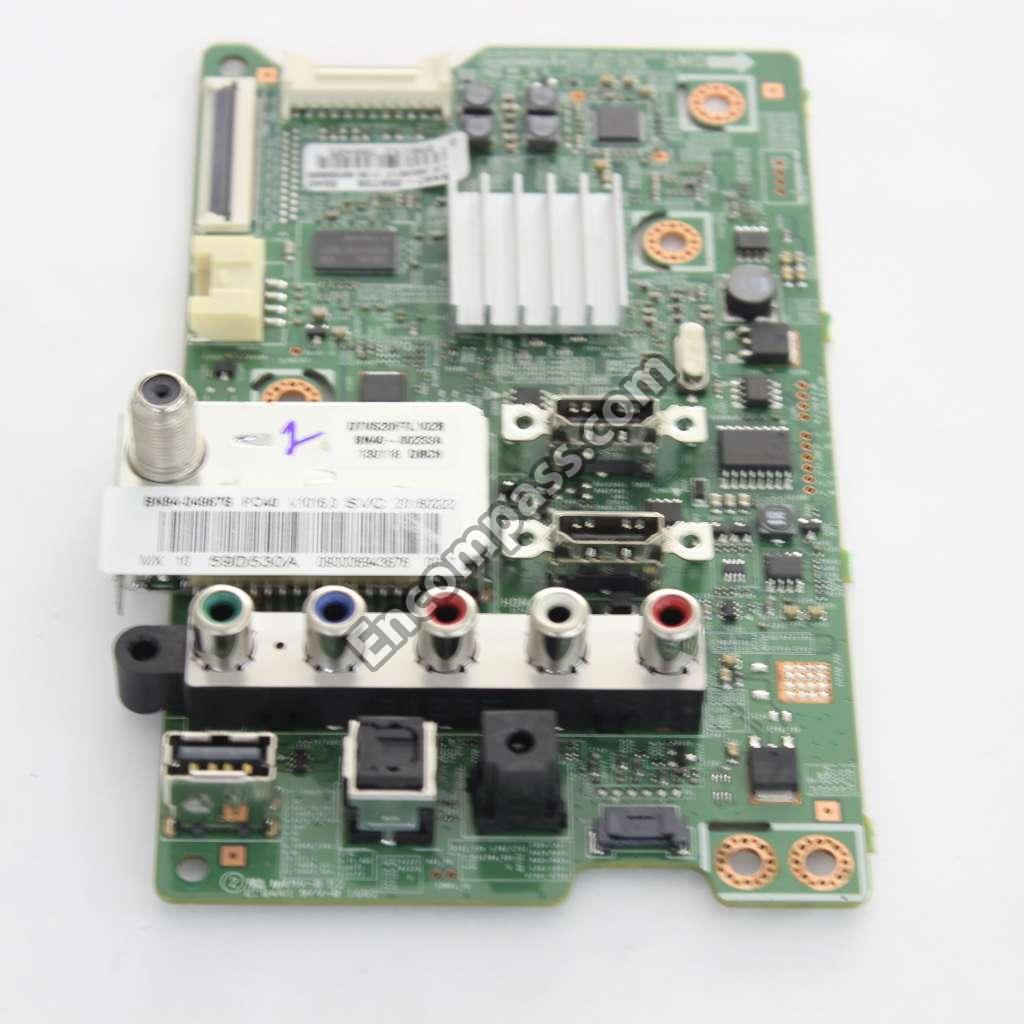

MAIN BOARD PCB |
|
|
PLASMA DISPLAY |
|
|
PLASTIC STAND BASE |
|
|
REMOTE CONTROL |
| BN73-00052C | RUBBER-FOOT;LCD TV,SILICONE RUBBER,T2.0 |
|
|
SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
|
|
STAND NECK |
| BN96-19881C | TOUCH FUNCTION&IR PCB |
| BN40-00233A | TUNER;DTVS20FTL102B,DTVS20FTL102B,VSB HA |
|
|
TUNER;TDAU4-K01A,TDAU4-K01A,VSB(NTSC/ATS |
|
|

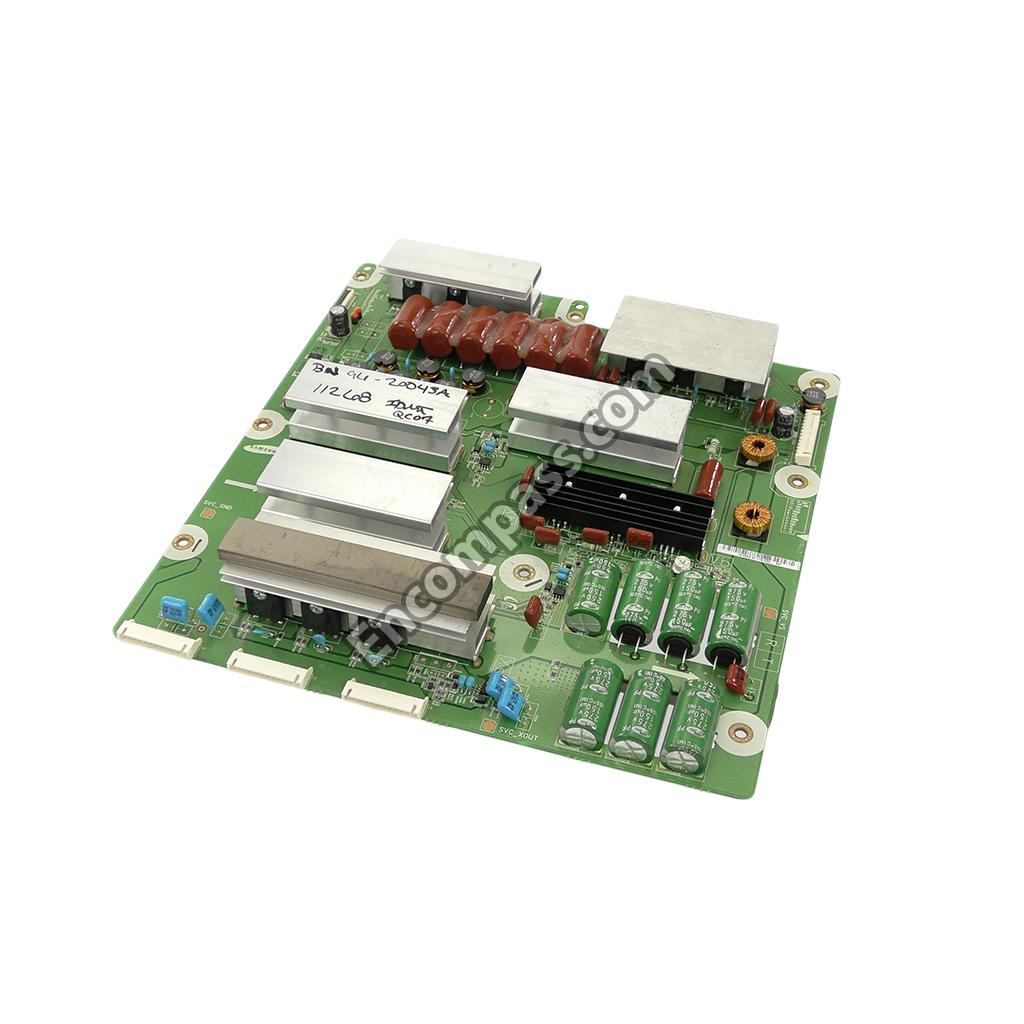

X- MAIN BOARD PCB |
| BN96-16537A | X-BUFFER BOARD PCB |
|
|
Y SCAN LOWER BOARD PCB |
|
|
Y SCAN UPPER BOARD PCB |
| BN96-20044A | Y- MAIN BOARD PCB |
