Manufacturer
Encompass
Model Number
PN59D8000FFXZA
Description
59 - Inch 1080p Plasma Smart 3d Hdtv With Skype
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
40"-70" LED CD PL STAND |
| BN81-06831A | A/S-BATTERY TRAY;RMC-QTD1AP2,BLK,BATTERY |
|
|
A/S-COVER-BATTERY;RMC-QTD1AP2,BLK,BATTER |
|
|
ASSY BOARD P-RF MODULE;BLUETOOTH MODULE, |
| BN96-18260E | ASSY BOARD P-TOUCH FUNCTION&IR;PN59D7000 |
| BN96-16830A | ASSY BRACKET P-WALL;PD6500 51,SECC,T0.2 |
|
|
ASSY CABLE P-FPCB LVDS CABLE;PDP U/SLIM, |
| BN96-16814A | ASSY COVER P-FRONT;PD8000 59,MABS(CLEAR) |
| BN96-16826B | ASSY COVER P-REAR;PD8000 59,AMERICA,PCM, |
|
|

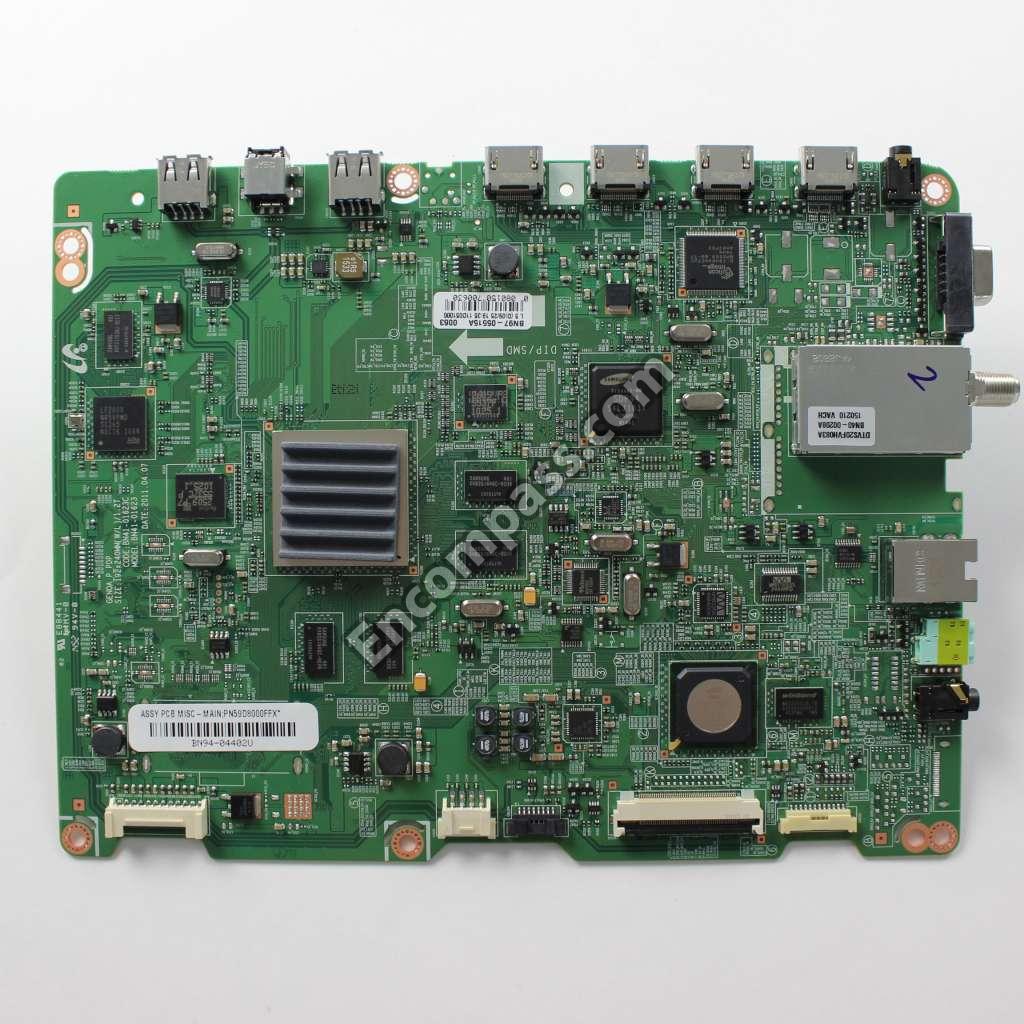

ASSY PCB MISC-MAIN;PN59D8000FFX* |
|
|
ASSY PDP MODULE P;S58FH-YB06,PL58FF042A, |
| BN96-16532A | ASSY PDP P-E-BUFFER BOARD;S58FH-YB06,PL5 |
| BN96-16533A | ASSY PDP P-F-BUFFER BOARD;S58FH-YB06,PL5 |
| BN96-16534A | ASSY PDP P-G-BUFFER BOARD;S58FH-YB06,PL5 |
|
|
ASSY PDP P-LOGIC BOARD;S58FH-YB06,PL58FF |
| BN96-16537A | ASSY PDP P-X-BUFFER BOARD;S58FH-YB06,PL5 |
|
|
ASSY PDP P-X-MAIN BOARD;S58FH-YB06,PL58F |
|
|
ASSY PDP P-Y SCAN LOWER BOARD;S58FH-YB06 |
|
|
ASSY PDP P-Y SCAN UPPER BOARD;S58FH-YB06 |
| BN96-16536A | ASSY PDP P-Y-MAIN BOARD;S58FH-YB06,PL58F |
|
|
ASSY POWER CORD;10A/125V, UL/CSA,LP031LR |
|
|
ASSY SPEAKER P;6OHM,4PIN,15W,PDP SLIM 59 |
|
|

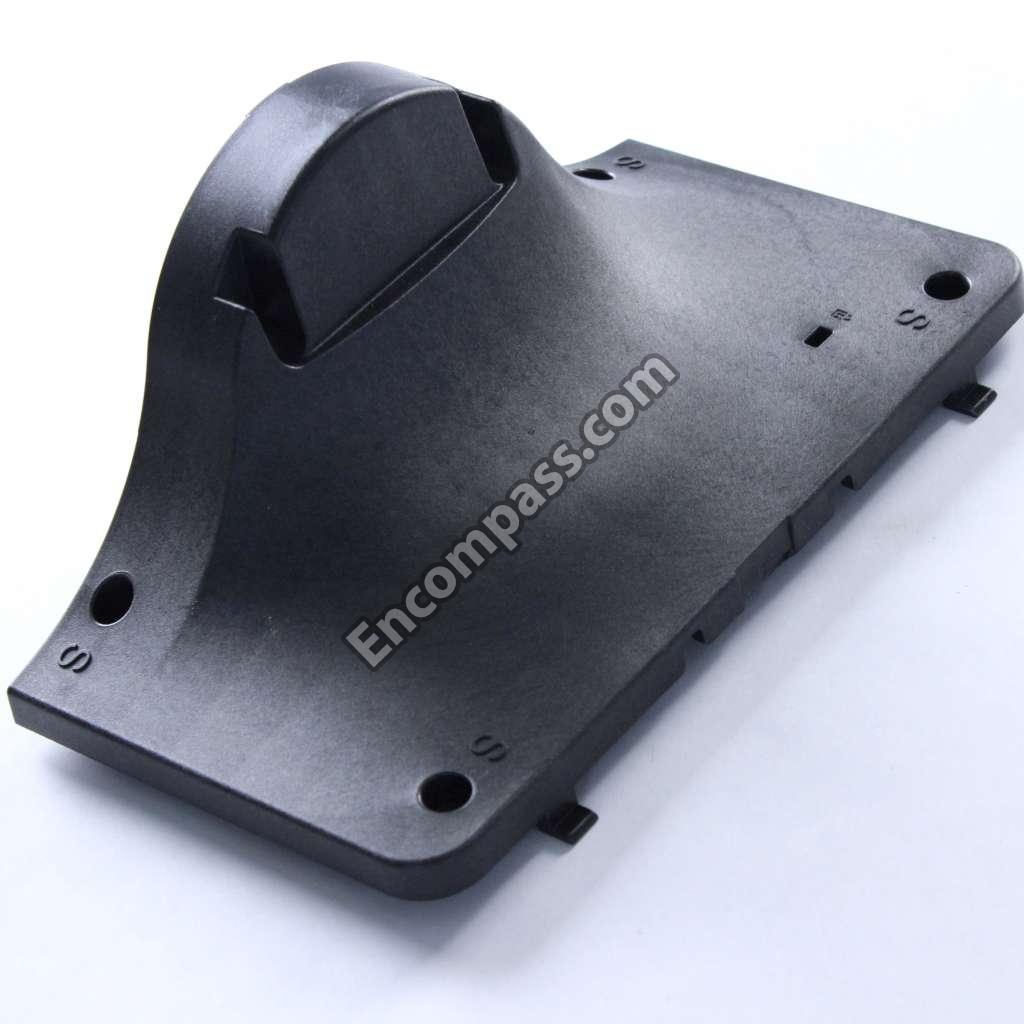

ASSY STAND P-BASE;PD8000 59,QUAD,HIPS,HB |
|
|
ASSY STAND P-GUIDE;PD6500 59,PC G/F 20% |
|
|
BEAD-SMD;26OHM,1608,TP |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
| 2203-001851 | C-CER,CHIP;0.016NF,5%,50V,NP0,TP,1608 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
|
|
C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-005221 | C-CER,CHIP;15NF,10%,50V,X7R,TP,1608 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
| 2203-001414 | C-CER,CHIP;330NF,10%,50V,X7R,TP,2012 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| 2409-001118 | C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2 |
|
|
CBF SIGNAL;COMPONENT GENDER / UD8000,2P, |
| 3701-001724 | CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI |
| 3708-002909 | CONNECTOR-FPC/FFC/PIC;82P,0.5MM,SMD-S,AU |
| 3701-001293 | CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| 3707-001104 | CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI |
|
|
COVER-BOTTOM;58PC6500,HIPS,HB,BLK(BK-500 |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004868 | CRYSTAL-SMD;12MHZ,50PPM,8PF,100OHM,TP |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
|
|
DC VSS-PDP;PB6FA,AC/DC,AC100~240V,50/60H |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0505-002386 | FET-SILICON;AO3415AL,P,-20V,-4A,0.045OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O |
| 2901-001652 | FILTER-EMI AC LINE;250V,6A,0.1UF/1000PF, |
| 2901-001632 | FILTER-EMI SMD;5V,0.130A,0PF,2.0X1.0X0.5 |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| 3711-005471 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
| 3711-007319 | HEADER-BOARD TO CABLE;SMD,4P,1R,2.50MM,S |
| BN62-00042A | HEAT SINK-ES;30*30*5,A6063,T1.5,TAPE,NTR |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
|
HOLDER-CORD;LB7000 46,ABS,V0,BLK |
| BN61-06644A | HOLDER-PCB;LC750,NYNOL66,V0 |
| BN13-00042A | IC ASIC;SDP1005,PARMA,404P,3.3V,-25TO+85 |
| 1002-001483 | IC-A/D CONVERTER;WM8775SEDS/R,24BIT,SSOP |
| 1001-001686 | IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP, |
| 1205-003840 | IC-CODEC;WM8595GEFL/RS,QFN,48P,7X7X0.9MM |
| 1203-006619 | IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 |
| 1203-005988 | IC-DC/DC CONVERTER;TPS54620RGY,QFN,14Q,3 |
| 1105-002127 | IC-DDR2 SDRAM;K4T51163QI-HCE7,512MBIT,32 |
| 1105-002268 | IC-DDR2 SDRAM;K4T51163QJ-BCE7,512MBIT,32 |
| 1105-002191 | IC-DDR2 SDRAM;W9725G6JB-18,DDR2 SDRAM,25 |
| 1105-002161 | IC-DDR3 SDRAM;K4B2G1646C-HCH9,1333 DDR3 |
| 1204-003212 | IC-DECODER;SDP1002,FCBGA,937P,35X35MM,PL |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001500 | IC-EEPROM;AT24C02C-SSHM-T,2KBIT,256X8,SO |
| 1103-001506 | IC-EEPROM;M24512-RMN6TP,512KBIT,64KX8,SO |
|
|
IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q |
| 0903-001705 | IC-MICROCOMPUTER;NXC1000,BGA,232P,14MM X |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1107-001983 | IC-NAND FLASH |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-002519 | IC-POSI.FIXED REG.;KIA7809AF,DPAK,3P,240 |
| 1203-006167 | IC-POSI.FIXED REG.;S-1172B12-U5T1G,SOT-8 |
| 1203-006118 | IC-POSI.FIXED REG.;S-1172B18-U5T1G,SOT-8 |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006141 | IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
|
|
IC-POWER AMP;TAS5725,PQFP,48P,7X7MM,DUAL |
| 1203-006067 | IC-POWER SUPERVISOR;TPS2553DBVR,SOT-23,6 |
| 1205-004184 | IC-SWITCH;G548A1F51U,SOP-8,8P,3.0X4.9MM, |
| 1205-003479 | IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9X1.6 |
| 0904-002631 | IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
| 1204-003101 | IC-VIDEO PROCESS;SDP94,PBGA,345P,19X19MM |
| 1001-001683 | IC-VIDEO SWITCH;SII9489ACTUC,QFP,128P,14 |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-000125 | INDUCTOR-SMD;10UH,10%,2012,1.25T,1.15OHM |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003199 | JACK-MODULAR;8P/8C,ANGLE,AU,1P |
|
|
JACK-PHONE;1/6P,NI,BLK,ANGLE |
| 3722-003216 | JACK-PHONE;1P/7C,P-BRONZE,BLACK,SMD-A(DI |
| 3722-003207 | JACK-PHONE;2P/9C,AU,LIMEGRN,SMD-A(DIP) |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE |
|
|
LEAD CONNECTOR;PN59D7000,FALT CONNECTOR, |
| BN39-01447B | LEAD CONNECTOR;PS59D550,FALT CONNECTOR,U |
|
|
NETWORK;WIDT-10,BCM43236,INTERNAL WIFI,U |
| 2007-000231 | R-CHIP;1.3KOHM,1%,1/10W,TP,1608 |
| 2007-009853 | R-CHIP;1.6KOHM,1%,1/16W,TP,1005 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-007525 | R-CHIP;3.4KOHM,1%,1/10W,TP,1608 |
| 2007-007008 | R-CHIP;300OHM,5%,1/16W,TP,1005 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005 |
| 2007-007947 | R-CHIP;36OHM,1%,1/10W,TP,1608 |
| 2007-007724 | R-CHIP;40.2OHM,1%,1/10W,TP,1608 |
| 2007-008391 | R-CHIP;6.34KOHM,1%,1/16W,TP,1005 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP-V,4P,TP,1 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001586 | R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,4P,TP, |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001585 | R-NETWORK;47OHM,5%,1/16W,L,CHIP-V,4P,TP, |
|
|
REMOCON-QWERTY RMC;113,3V,TM1190,USA,REM |
| 6001-002283 | SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 0504-000152 | TR-DIGITAL;KSR2101,PNP,200MW,4.7K/4.7KOH |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER;DTVS20FVH083A,DTVS20FVH083A,VSB HA |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1.6X0.8X0.8MM,TP,1 |
