Manufacturer
Samsung
Model Number
QN43Q60TAFXZA
Description
43-inch Qled 4k Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-18775A | Samsung A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33 |
| BN96-50324B | Samsung ASSEMBLY CHASSIS FRONT P;43QTQ60F,PC+ABS+ED1 |
| BN96-50344D | Samsung ASSEMBLY COVER P-DECORATION;43QTQ60F,PC+ABS+ |
| BN96-50732A | Samsung ASSEMBLY COVER P-REAR;43QTQ60F,PC+ABS+ED20%, |
| BN96-50340A | Samsung ASSEMBLY FRAME P-MIDDLE;43QTQ60F,PC+GF10%,V- |
| BN96-50381A | Samsung ASSEMBLY LED BAR P;20Y_Q60T_43INCH_EDGE_LED |
| BN96-50279A | Samsung ASSEMBLY OPEN CELL;CSOT,43INCH,Y20 NEW,ST425 |
| BN94-15736U | Samsung ASSEMBLY PCB MAIN;QTQ60F |
| BN96-51294U | Samsung ASSEMBLY PCB P;BOTTOM,FR-1,BN97-16938X |
| BN96-30337P | Samsung ASSEMBLY SPEAKER P-FRONT;TV-SPK,43UTU8500,2C |
| BN96-50839B | Samsung ASSEMBLY STAND P-COVER TOP LEFT;43QTQ60F,PP+ |
| BN96-50840B | Samsung ASSEMBLY STAND P-COVER TOP RIGHT;43QTQ60F,PP |
| 6922-000001 | Samsung BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | Samsung BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
Samsung BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | Samsung BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557L | Samsung BRACKET-WIRE;40KU6400,SW-C,T1,NATURAL,ZI |
| BN61-13557E | Samsung BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI |
| 2402-001268 | Samsung C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006158 | Samsung C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | Samsung C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | Samsung C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | Samsung C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | Samsung C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | Samsung C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | Samsung C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | Samsung C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | Samsung C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | Samsung C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | Samsung C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | Samsung C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | Samsung C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | Samsung C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | Samsung C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | Samsung C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | Samsung C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
Samsung CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001856 | Samsung CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001967 | Samsung CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | Samsung CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001133 | Samsung CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| BN63-18718A | Samsung COVER-TERMINAL SIDE;65QTQ60F,PC+ABS,V-0, |
| 2801-004021 | Samsung CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01057A | Samsung DC VSS-PD BOARD;L43E7_TDY,AC/DC,125W,AC1 |
| 0404-001404 | Samsung DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | Samsung DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | Samsung DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | Samsung DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | Samsung DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001786 | Samsung DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001718 | Samsung DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0403-002067 | Samsung DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | Samsung FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | Samsung FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | Samsung FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | Samsung FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | Samsung FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | Samsung FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | Samsung FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | Samsung FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|
Samsung FFC;40NU7100,FOLD,L350,96P,- |
| BN63-00520A | Samsung GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008859 | Samsung HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008098 | Samsung HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-008131 | Samsung HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN62-00895A | Samsung HEAT SINK-PS;QN65Q60T,A1050,T1.5,W90,L10 |
| BN61-16080A | Samsung HOLDER-STAND CABLE;65QRQ60T,ABS,BK0007,H |
| 1201-004117 | Samsung IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU |
| 1203-009368 | Samsung IC-DC/DC CONVERTER;G5334DQT1U,QFN4X4-23, |
| 1203-008777 | Samsung IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | Samsung IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009196 | Samsung IC-DC/DC CONVERTER;TPS565201,SOT-23-THIN |
| 1203-009371 | Samsung IC-DC/DC CONVERTER;VPMS2GMB,QFN,72P,8X8X |
| 1105-002853 | Samsung IC-DDR3 SDRAM;K4B4G1646E-BCNB,DDR3 2133, |
| 1105-002751 | Samsung IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR |
| 1204-003798 | Samsung IC-DECODER;SDP19403,FCPBGA,793P,27X27X1. |
| 1107-002688 | Samsung IC-EMMC;THGBMJG6C1LBAIL,8GBIT,64GBX1,BGA |
| 1107-002226 | Samsung IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004258 | Samsung IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA |
| 1203-009186 | Samsung IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | Samsung IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | Samsung IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | Samsung IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | Samsung INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | Samsung INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | Samsung INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | Samsung INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005193 | Samsung INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | Samsung INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-004724 | Samsung INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003229 | Samsung JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-004195 | Samsung JACK-PIN;3P,NI/SN,RED/WHT/YEL,STRAIGHT |
|
|
Samsung JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
|
|

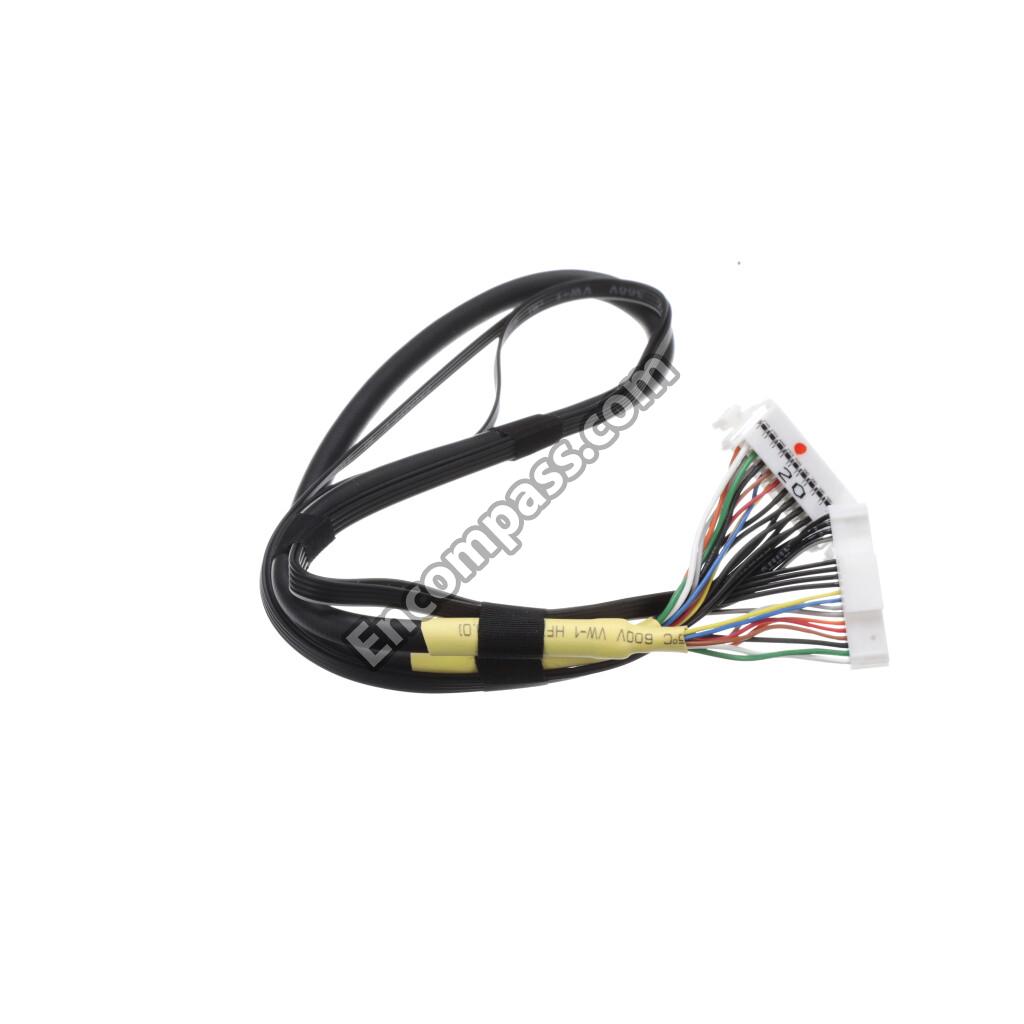

Samsung LEAD CONNECTOR-SUB ASSEMBLY;Q60/TU8500/TU800 |
|
|
Samsung LEAD CONNECTOR-SUB ASSEMBLY;UN50KU6000,UL210 |
| BN61-17007A | Samsung LGP;20Y_43INCH_Q60_LGP,PMMA,T2.5 |
|
|
Samsung NETWORK-WLAN CLIENT;WCT734,27X24X5MM,Q60 |
| BN61-17008A | Samsung OPTICAL SHEET-REFLECTOR;20Y_43INCH_Q60_R |
|
|
Samsung POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000101 | Samsung PRIMARY BATTERY ALKALINE;1.5V,1650MAH,LR |
| BN95-06350D | Samsung PRODUCT LCD-CSOT;CY-RT043HGHV4H/V,QTQ60F |
| 2007-008596 | Samsung R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | Samsung R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-009322 | Samsung R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-002899 | Samsung R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | Samsung R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-007992 | Samsung R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | Samsung R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | Samsung R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | Samsung R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | Samsung R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | Samsung R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | Samsung R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000929 | Samsung R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | Samsung R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | Samsung R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | Samsung R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | Samsung R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | Samsung R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001448 | Samsung R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | Samsung R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01330E | Samsung REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21 |
| 3601-001374 | Samsung SMG PART |
| 2703-002269 | Samsung SMG PART |
| 2703-000213 | Samsung SMG PART |
| 2203-007795 | Samsung SMG PART |
| 2203-007393 | Samsung SMG PART |
| 2203-007271 | Samsung SMG PART |
| 2203-007269 | Samsung SMG PART |
| 2203-007240 | Samsung SMG PART |
| 2203-006562 | Samsung SMG PART |
| 2203-005057 | Samsung SMG PART |
| 2203-000940 | Samsung SMG PART |
| 2203-000812 | Samsung SMG PART |
| 2203-000489 | Samsung SMG PART |
| 2203-000438 | Samsung SMG PART |
| 2203-000425 | Samsung SMG PART |
| 2203-000359 | Samsung SMG PART |
| 2203-000233 | Samsung SMG PART |
| 2007-007766 | Samsung SMG PART |
| 2007-007588 | Samsung SMG PART |
| 2007-007528 | Samsung SMG PART |
| 2007-007517 | Samsung SMG PART |
| 2007-007318 | Samsung SMG PART |
| 2007-007316 | Samsung SMG PART |
| 2007-007313 | Samsung SMG PART |
| 2007-007312 | Samsung SMG PART |
| 2007-007311 | Samsung SMG PART |
| 2007-007310 | Samsung SMG PART |
| 2007-007309 | Samsung SMG PART |
| 2007-007306 | Samsung SMG PART |
| 2007-007142 | Samsung SMG PART |
| 2007-007139 | Samsung SMG PART |
| 2007-007138 | Samsung SMG PART |
| 2007-007137 | Samsung SMG PART |
| 2007-007136 | Samsung SMG PART |
| 2007-007132 | Samsung SMG PART |
| 2007-007131 | Samsung SMG PART |
| 2007-007107 | Samsung SMG PART |
| 2007-003010 | Samsung SMG PART |
| 2007-001298 | Samsung SMG PART |
| 2007-001288 | Samsung SMG PART |
| 2007-000932 | Samsung SMG PART |
| 2007-000744 | Samsung SMG PART |
| 2007-000539 | Samsung SMG PART |
| 2007-000171 | Samsung SMG PART |
| 2007-000168 | Samsung SMG PART |
| 2007-000146 | Samsung SMG PART |
| 2007-000140 | Samsung SMG PART |
| 2007-000070 | Samsung SMG PART |
| 0406-001200 | Samsung SMG PART |
| 0202-001976 | Samsung SMG PART |
| 0203-007064 | Samsung SMG PART |
| 0203-007085 | Samsung SMG PART |
| 0204-006855 | Samsung SMG PART |
| 0403-001783 | Samsung SMG PART |
| 0403-002014 | Samsung SMG PART |
| 1103-001584 | Samsung SMG PART |
| 1107-002339 | Samsung SMG PART |
| 1404-001731 | Samsung SMG PART |
| 2703-005715 | Samsung SMG PART |
| 6302-001376 | Samsung SMG PART |
| 6902-001612 | Samsung SMG PART |
| 6902-003068 | Samsung SMG PART |
| 6902-003297 | Samsung SMG PART |
| BH68-00697A | Samsung SMG PART |
| BH69-00418A | Samsung SMG PART |
| BN02-00102B | Samsung SMG PART |
| BN02-00102K | Samsung SMG PART |
| BN02-00319B | Samsung SMG PART |
| BN02-00352E | Samsung SMG PART |
| BN02-00611A | Samsung SMG PART |
| BN39-02541A | Samsung SMG PART |
| BN41-02756C | Samsung SMG PART |
| BN46-00109H | Samsung SMG PART |
| BN46-00110P | Samsung SMG PART |
| BN46-01158A | Samsung SMG PART |
| BN46-01171A | Samsung SMG PART |
| BN46-01182A | Samsung SMG PART |
| BN46-01240A | Samsung SMG PART |
| BN46-01253A | Samsung SMG PART |
| BN60-01655A | Samsung SMG PART |
| BN60-01661A | Samsung SMG PART |
| BN60-01666A | Samsung SMG PART |
| BN61-11982B | Samsung SMG PART |
| BN61-13520D | Samsung SMG PART |
| BN61-14506A | Samsung SMG PART |
| BN61-14574A | Samsung SMG PART |
| BN61-15482B | Samsung SMG PART |
| BN61-15857B | Samsung SMG PART |
| BN61-15858B | Samsung SMG PART |
| BN61-16230A | Samsung SMG PART |
| BN61-16231A | Samsung SMG PART |
| BN61-16759A | Samsung SMG PART |
| BN61-16805A | Samsung SMG PART |
| BN61-17006A | Samsung SMG PART |
| BN61-17067A | Samsung SMG PART |
| BN63-17418A | Samsung SMG PART |
| BN63-17418G | Samsung SMG PART |
| BN63-17418N | Samsung SMG PART |
| BN63-18559C | Samsung SMG PART |
| BN63-18715B | Samsung SMG PART |
| BN63-18716B | Samsung SMG PART |
| BN63-18717A | Samsung SMG PART |
| BN63-18823A | Samsung SMG PART |
| BN64-03995J | Samsung SMG PART |
| BN64-04307B | Samsung SMG PART |
| BN64-04337A | Samsung SMG PART |
| BN68-00513A | Samsung SMG PART |
| BN68-02422B | Samsung SMG PART |
| BN68-04746A | Samsung SMG PART |
| BN68-05595A | Samsung SMG PART |
| BN68-06708G | Samsung SMG PART |
| BN68-08112A | Samsung SMG PART |
| BN68-08792C | Samsung SMG PART |
| BN68-09371A | Samsung SMG PART |
| BN68-09772A | Samsung SMG PART |
| BN68-10056A | Samsung SMG PART |
| BN68-10110B | Samsung SMG PART |
| BN68-10118G | Samsung SMG PART |
| BN68-10185A | Samsung SMG PART |
| BN68-10628A | Samsung SMG PART |
| BN69-13935A | Samsung SMG PART |
| BN69-17053S | Samsung SMG PART |
| BN69-20611A | Samsung SMG PART |
| BN69-21044A | Samsung SMG PART |
| BN74-00053G | Samsung SMG PART |
| BN81-08159Z | Samsung SMG PART |
| BN81-17117M | Samsung SMG PART |
| BN81-18776A | Samsung SMG PART |
| BN81-18777A | Samsung SMG PART |
| BN81-18778A | Samsung SMG PART |
| BN81-18779A | Samsung SMG PART |
| BN90-11315A | Samsung SMG PART |
| BN90-11389D | Samsung SMG PART |
| BN90-11390G | Samsung SMG PART |
| BN90-11395K | Samsung SMG PART |
| BN91-21765G | Samsung SMG PART |
| BN91-22210S | Samsung SMG PART |
| BN92-27038E | Samsung SMG PART |
| BN92-27040A | Samsung SMG PART |
| BN92-27041H | Samsung SMG PART |
| BN92-27175D | Samsung SMG PART |
| BN96-42126A | Samsung SMG PART |
| BN96-49093C | Samsung SMG PART |
| BN96-50330A | Samsung SMG PART |
| BN96-50637C | Samsung SMG PART |
| BN97-16667A | Samsung SMG PART |
| BN97-16688A | Samsung SMG PART |
| BN97-16699A | Samsung SMG PART |
| BN97-17665A | Samsung SMG PART |
| BN97-17666A | Samsung SMG PART |
| BN97-18019A | Samsung SMG PART |
| 0203-001598 | Samsung TAPE-SINGLE FACE;PP,T0.15,W12,N/A,CLEAR |
| 0502-001346 | Samsung TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000462 | Samsung TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
Samsung TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001381 | Samsung VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001306 | Samsung VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001452 | Samsung VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | Samsung VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
Samsung VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | Samsung VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
