Model Image
Manufacturer

Samsung

Model Number

QN50LS03BAFXZA

Description

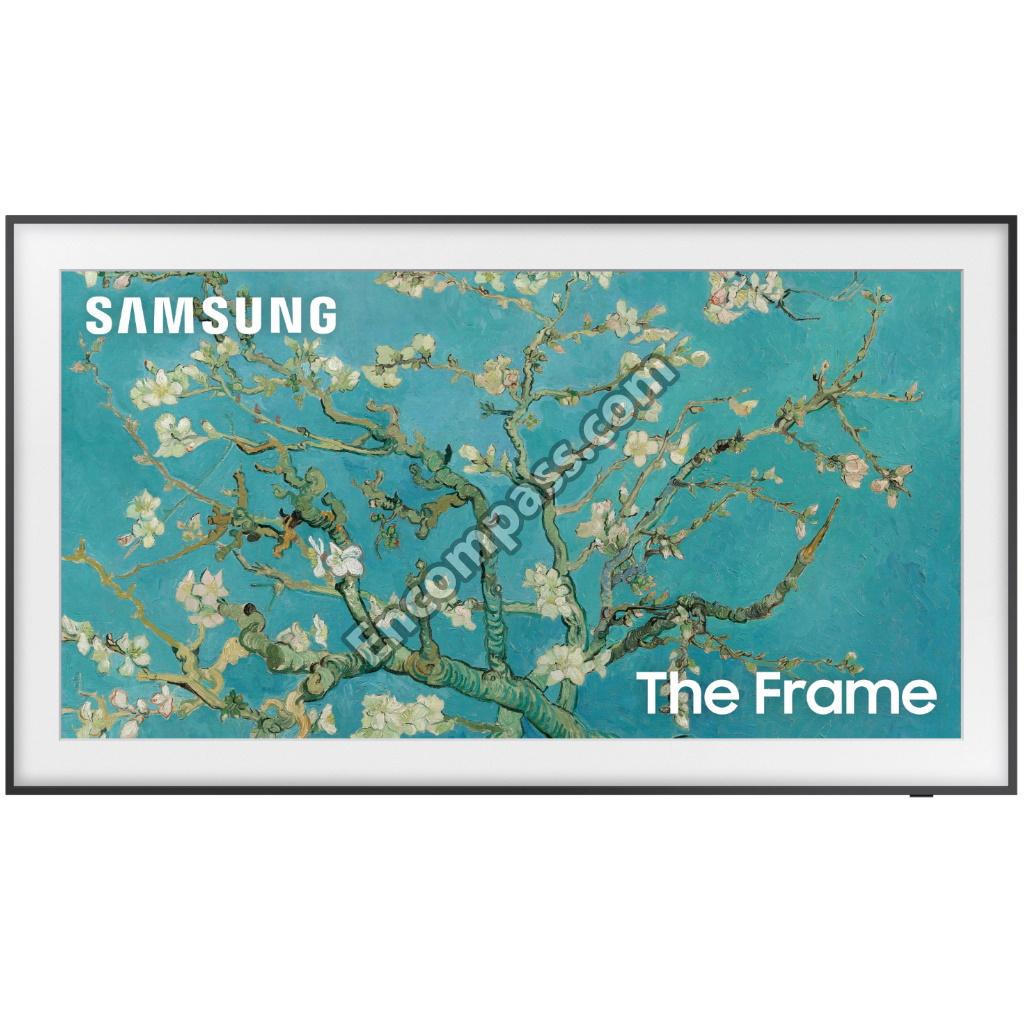

50 Inch Class Ls03b Samsung The Frame Smart Tv

Interactive Exploded View

Parts List

Part Number Description
BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC SPEC-C
BN81-20473V A/S PART SET-MECH W/I;QBLS03M,Q50BJ
BN81-20662A A/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F (CELL
BN81-20661A A/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F (PCB S
BN81-22239A A/S-AL CAP_SVC;AL-CAP,SAMWHA, LZ1E827M10
BN81-20698A A/S-ASSY PCB-SOURCE(R);ASSY PCB-SOURCE(R
BN81-20696A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46
BN81-23100A A/S-POLARIZER-C/F;POLARIZER-C/F,66.C4U11
BN81-23101A A/S-POLARIZER-TFT;POLARIZER-TFT,66.T4U07
0201-003279 ADHESIVE-AA;UPUV,CLEAR
BN96-47008F ASSY ACCESSORY MANUAL CABLE;QBLS03M
BN96-53227A ASSY ACCESSORY-ANCHOR BOLT;65QALS03M,W/W
BN96-53417A ASSY ACCESSORY-HOLDER;65QAQN900A,W/W,W/W
BN96-54909A ASSY ACCESSORY-HOLDER;QBLS03M,W/W,W/W
BN96-55181B ASSY ACCESSORY-WALL MOUNT;QBLS03M,NORTH
BN92-30998L ASSY ACCESSORY;QBLS03M
BN90-12348L ASSY BACK LIGHT UNIT;QBLS03M
BN92-30995H ASSY BOX;QBLS03M
BN96-53224C ASSY BRACKET P-LEFT;65QALS03M,HGI,BLACK,
BN96-53223D ASSY BRACKET P-RIGHT;65QALS03M,HGI,BLACK
BN96-53225C ASSY BRACKET P-WALL REAR LEFT;65QN900CA,
BN96-53226C ASSY BRACKET P-WALL REAR RIGHT;65QN900CA
BN96-52909B ASSY CHASSIS FRONT P;50QBLS03M,PC+ABS+ED
BN96-52841H ASSY CHASSIS REAR P;50QBLS03M,EGI-SECC,P
BN91-23949E ASSY CHASSIS;QBLS03M
BN96-55024B ASSY COVER P-OC BOTTOM;50QBLS03M,PC+ABS+
BN96-50999P ASSY COVER P-OC TOP;65QBLS03M,PC,V-0,TP0
BN96-53250H ASSY COVER P-REAR;50QBLS03M,PC+ABS+ED20%
BN90-12442K ASSY COVER REAR;QBLS03M
BN97-19765A ASSY DRM;PONTUS-M,ATSC,NAGSAM, MAC, HDCP
BN96-52908B ASSY FRAME P-MIDDLE BOTTOM;50QALS03M,PC+
BN96-52906A ASSY FRAME P-MIDDLE LEFT RIGHT;50QALS03M
BN96-49931K ASSY HOLDER P-OC CABLE;65QBLS03M,PC,TP00
BN92-30992J ASSY LABEL;QBLS03M
BN96-54490A ASSY LED BAR P;22Y Q60B 50",ALUMINUM
BN97-00063J ASSY MICOM-T-PTMAKUC;T-PTMAKUC,LS03B,QBL
BN97-00063N ASSY MICOM;LS03B,QBLS03M,1107-002226
BN97-00063Q ASSY MICOM;PMMICOM_FRJP,LS03B,QBLS03M,11
BN97-00063P ASSY MICOM;PM_22Y,PM_COMMON
BN97-00063M ASSY MICOM;PTMMICOM_FRTV,LS03B,QBLS03M,1
BN91-23992H ASSY ONE CONNECT;QBLS03M
BN96-54613B ASSY OPEN CELL;AUO,50INCH,Y22 EC,T500QVN
BN92-30996R ASSY P/MATERIAL;QBLS03M

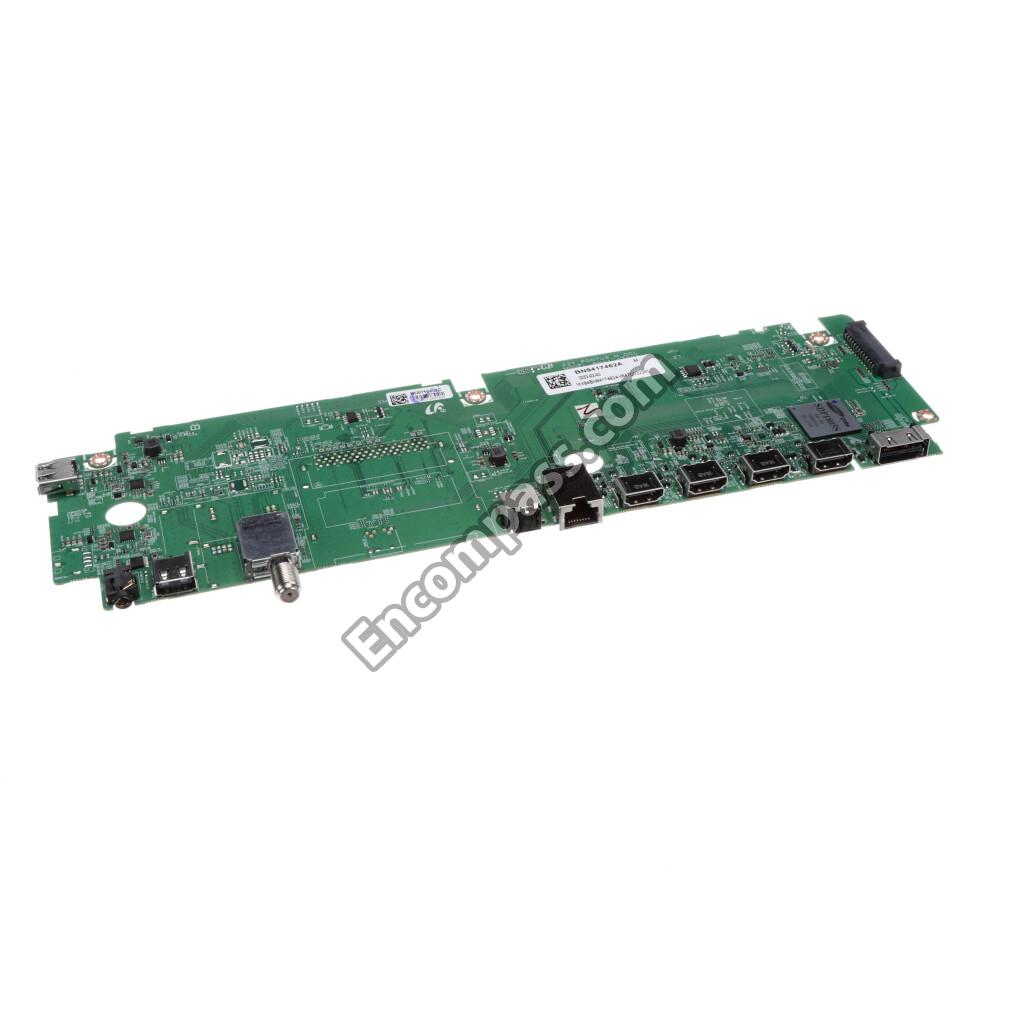

BN94-17843B ASSY PCB MAIN;QBLS03M
BN94-17462A BN94-17462A ASSY PCB OC;QBLS03M
BN91-23951W ASSY SHIELD;QBLS03M
BN97-19791A ASSY SMD;QBLS03M
BN97-19407C ASSY SMD;QBLS03M
BN96-52717B ASSY SPEAKER P-FRONT;TV-SPK,QALS03M,2 CH
BN96-53276A BN96-53276A ASSY STAND P-COVER TOP;55QALS03M,PP+GF40

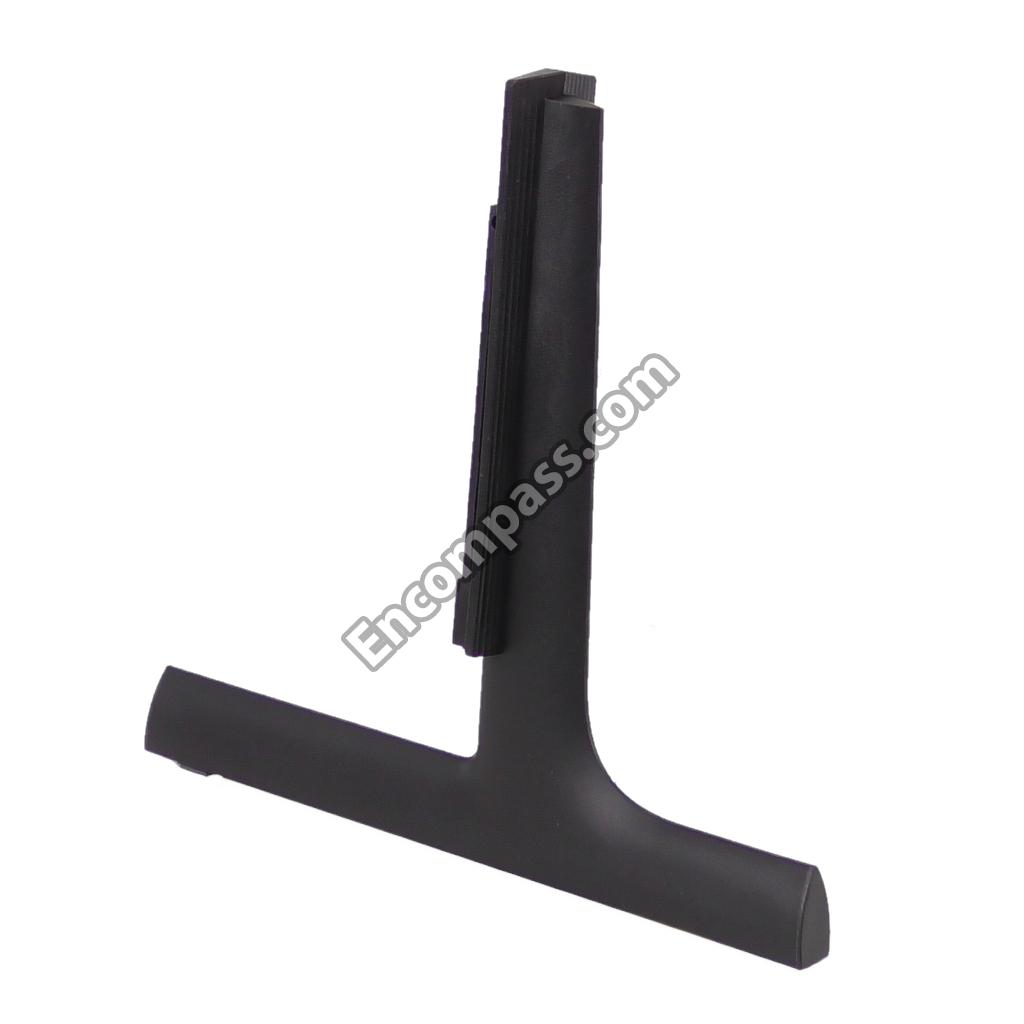

BN90-12121B ASSY STAND;QALS03M
BN90-12423C ASSY W/I;QBLS03M
6902-003859 BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W
6902-003573 BAG ACCESSORY;LDPE,T0.06,W140,L160,TRP,R
6902-003572 BAG ACCESSORY;LDPE,T0.06,W140,L350,TRP,R
6902-003527 BAG ACCESSORY;LDPE,T0.06,W250,L300,TRP,R
6902-003574 BAG ACCESSORY;LDPE,T0.06,W70,L140,TRP,RE
6902-003625 BAG ACCESSORY;LDPE,T0.06,W80,L80,TRP,REC
6902-003503 BAG ACCESSORY;LDPE,T0.07,W480,L300,TRP,R
6902-003718 BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W1500,
6922-000001 BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50%
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
6011-008215 BOLT-ETC;M5,L55,ZPC(BLK),HH,+,SWRCH18A,W
BN69-20743A BOX ACCESSORY;65Q95T,CB,SW-E,NON STANDAR
BN69-23822A BOX ACCESSORY;65QBLS03M,CB,SW-B,NON STAN
BN69-23622A BOX UNIT;50QBLS03M,CB,SW2,F1,L1236,W159,
BN61-17491A BRACKET-LED PCB;50QAQ60G,AL,T1.2,NATURAL
BN61-18350A BRACKET-MAGNET;QALS03M,STS304,T0.2,NATUR
BN61-18349A BRACKET-MAGNET;QALS03M,STS304,T0.2,NATUR
BN61-13312B BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3,
BN61-17734A BRACKET-WALL CLIP;65QAQN900A,STS304,T0.6
BN61-17731A BRACKET-WALL LINK;65QAQN900A,STS304,T4,N
BN61-17732B BRACKET-WALL REAR LEFT;65QN900CA,HGI,T1,
BN61-17733B BRACKET-WALL REAR RIGHT;65QN900CA,HGI,T1
BN61-17751A BRACKET-WALL SUPPORT LEFT;65QAQN900A,HGI
BN61-17750A BRACKET-WALL SUPPORT RIGHT;65QAQN900A,HG
BN61-11982B BRACKET-WALL;65MU8000,CR-SPCC,NATURAL,M8
BN61-17284A BRACKET-WALL;65QAQN900A,CR-SPCC,BLACK,M8
BN61-13557E BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI
BN61-13557P BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,55
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T
2203-007176 C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007423 C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-006960 C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,55TO
2203-008096 C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1.
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-000627 C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5,
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-001640 C-CER,CHIP;390PF,10%,50V,X7R,TP,1608,55
2203-006377 C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,55
2203-008412 C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1.
2203-001428 C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,55
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343
BN64-04566B CHASSIS-FRONT;50QBLS03M,PC+ABS+ED18%,V-0
BN64-04514C CHASSIS-REAR;50QBLS03M,EGI-SECC,T0.6,NAT
3708-003241 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU
3708-003355 3708-003355 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM
3701-002024 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007975 3711-007975 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3711-009106 CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN
3707-001123 3707-001123 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI
3710-004374 CONNECTOR-SOCKET;34P,1R,0.8MM,SMD-A,AU,B
3710-004375 CONNECTOR-SOCKET;34P,2R,0.8MM,SMD-A,AU,B
BN63-18805Y COVER-OC BOTTOM;50QBLS03M,PC+ABS+GF15%,V
BN63-18808K COVER-OC TOP;65QBLS03M,PC,V-0,TP0116,POW
BN63-20054A COVER-REAR;50QBLS03M,PC+ABS+ED20%,V-0,BK
BN63-19495A COVER-STAND TOP;55QALS03M,PP+GF40%,HB,BK
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
BN69-22008A CUSHION-ACCESSORY;65QAQN900A,EPS,16.7G/L
BN69-21945A CUSHION-SET;50QALS03M,EPS,16.7G/L,WHITE
BN44-01118B DC VSS-DRIVER BOARD;L50F7_BHS,DC/DC,133W
BN44-01066C DC VSS-POWER BOARD;P230NQ_TPN,AC/DC,230W
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0404-001976 DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T
0407-000112 DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T
0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO
0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD
0403-000489 DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW
0403-001779 DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M
0403-001797 DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD
0204-006855 ETHANOL;CS-E-14,GRAVITY 0.8,DENSITY 1.59
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-003620 FET-SILICON;AOD4286,N,100V,14A,55.5MOHM,
0505-003752 FET-SILICON;AONR21321,P,30V,50A,0.035OHM
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-003732 FET-SILICON;MMFTN123K,N,100V,0.19A,10OHM
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
BN96-54960A FFC;LS03B,FOLD,L690,24P,MAIN ~ FUNCTION
BN96-54937A FFC;LS03B,STRAIGHT,L240,96P,MAIN ~ SOURC
BN61-13520D FOOT-RUBBER;40K5500,SI,GRAY,T3
BN67-00327J FOOT-RUBBER;PE400,SI,GRAY,T2.5
BN61-17567A FRAME-MIDDLE BOTTOM;50QALS03M,PC+GF10%,V
BN61-17568A FRAME-MIDDLE LEFT RIGHT;50QALS03M,PC+GF1
BN61-17569B FRAME-MIDDLE TOP;50QBLS03M,PC+GF10%,V-2,
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN63-00520A GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L
AA63-01071A GASKET-EMI;EMI SHIELDING,FABRIC,T2,W15,L
BN63-02627A GASKET-EMI;OXFORD,FABRIC,T8,W13,L30,GRAY
BN63-02627B GASKET-EMI;OXFORD,FABRIC,T8,W13,L90,GRAY
BN63-19242A GASKET-EMI;T35/T45 27",POLYESTER,T1,W10,
BN63-20369A GASKET-SMD;SMT GASKET,SI,T5,W4,L3,SILVER
6302-001290 GASKET;SI,SMR-TS-4-4.5-3
3711-008492 HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,ANG
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN62-00894A HEAT SINK-PS;65QTQ95P,A1050,W126,L326,NA
BN62-00967A HEAT SINK-PS;LS03B,A1050,W130,L170,BLACK
BN62-00972A HEAT SINK-PS;LS03B,A1050,W160,L118,BLACK
BN61-17904A HOLDER-BOLT;65QAQ80E,PA66,T1,GRAY,V-2,WA
BN61-17752A HOLDER-BOLT;65QAQN900A,SWRCH18A,T2.5,BLA
BN61-17735A HOLDER-BOLT;65QAQN900A,SWRCH18A,T2.5,BLA
BN61-14021A HOLDER-CABLE;55KS8000,PA66,BK0007,V-2
BN61-17490A HOLDER-LGP BOTTOM LEFT;65QAQ60G,PC+ABS,B
BN61-17483A HOLDER-LGP BOTTOM RIGHT;65QAQ60G,PC+ABS,
BN61-17484B HOLDER-LGP TOP LEFT;65QAQ60G,PC+ABS,BK00
BN61-17486B HOLDER-LGP TOP RIGHT;65QAQ60G,PC+ABS,BK0
BN61-16511A HOLDER-OC CABLE JACK;55QRQ90B,PA66,BLACK
BN61-15791A HOLDER-OC CABLE;65QNQ8CB,PC,TP0003,V-2
BN61-18354A HOLDER-SHEET;65QBLS03M,STS304,T0.2,NATUR
BN61-17564B HOLDER-STAND SUPPORT;65Q60CJ,ABS,WT0130,
BN61-17180A HOLDER-WALL LOCK;65QTQ950SA,POM,T1.5,BLA
BN61-17738A HOLDER-WALL RING SPACER;65QAQN900A,ABS,T
BN61-17894A HOLDER-WIFI;65QALS03M,PC+ABS,BLACK,V-0
1201-004380 IC-AUDIO AMP;WA20-6829B,TP,6X6X0.9MM,25
1203-009719 IC-DC/DC CONVERTER;AP62300TWU-7,6P,TSOT2
1203-009194 IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6
1203-009312 IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T
1203-009727 IC-DC/DC CONVERTER;TMI3256,6P,DFN,TP,2X2
1203-009369 IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4
1203-009648 IC-DC/DC CONVERTER;VPMS3BSM,72P,QFN,TP,8
1105-002989 IC-DDR4 SDRAM;MT53E384M32D2DS-053 WT:E,L
1204-003841 IC-DECODER;QUANTUM PROCESSOR 4K NEURAL,T
1204-003778 IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5
1006-001595 IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1
1103-001584 IC-EEPROM;M24512-DFMN6TP,512KBIT,64K X 8
1107-002587 IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-004368 IC-OP AMP;LV358G-S08-R,SOP-8,8P,TP,3.95X
1203-009643 IC-POSI.ADJUST REG.;ET5A0ADJY2B,6P,DFN6,
1203-009186 IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-006382 IC-SWITCH;G2898KD1U,14P,TDFN,TP,2X3X0.75
1205-006555 IC-SWITCH;SYU234DUC,14P,TDFN2X3-14,TP,2X
0904-003200 IC-USC;GL850G-34,QFN,24P,5X5X0.75MM,12MH
1203-009590 IC-VOL. DETECTOR;G623AF11U,8P,TP,TP,4.9X
1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-005780 INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-000158 INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-005781 INDUCTOR-SMD;220NH,20%,7876,T2.9,0.00176
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
BN63-19186A INSULATOR-SHEET;PC,BLACK,L54,W42,T0.43
BN63-19576A INSULATOR-SMPS;50QALS03M,PC,BLACK,L257,W
BN63-18852A INSULATOR-SMPS;65QTQ95P,PC,BLACK,L329,W1
BN63-18851A INSULATOR-SMPS;65QTQ95P,PC,BLACK,L339.6,
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003216 JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
3722-004237 JACK-USB;TP,16P/2C,BRASS,9.6X9X3.4MM,WAV
BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL
BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2)
BN46-01861A KEY CODE;22Y_PONTUS-M,PONTUS-M_1-ATSC,AT
BH68-00697A LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9
BN68-04746A LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER,
BN68-05595A LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W
BN68-02422B LABEL WARNING;ALL,ART,T0.05,W240,L100,WH
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W
BN68-08730A LABEL-E PASS;QTV,WW,ART,T0.161,W60,L15,P
BN68-13533A LABEL-ENERGY;QN50LS03BAFXZA,ZA,PET,T0.1,
BN68-13480A LABEL-RATING;ALL,WW,PP,T0.1,W150,L48,DAR
BN68-07104D LABEL-RATING;ALL,WW,PP,T0.1,W90,L50,DARK
BN68-00970C LABEL-SECURITY;ALL,PET,T0.038,W60,L60,SE
BN68-08112A LABEL-SECURITY;ALL,PET,T0.05,W55,L52,GLO
BN68-00970A LABEL-SECURITY;ALL,PET,T0.05,W60,L60,SEA
BN68-05381A LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI
BN68-08822B LABEL;55LS003,PET,T0.05,W120,L58,7008NHK
BN68-09671M LABEL;LS03,ART,W15,L50,WHITE/BLUE
BN39-02671A BN39-02671A LEAD CONNECTOR-BLU;50Q60A,UL21016,12P,L8
BN39-02703A LEAD CONNECTOR-POWER;LS03A,UL21516,20P,L
BN39-02689A LEAD CONNECTOR-POWER;LS03A,UL21516,20P,L
BN39-02692A LEAD CONNECTOR-SUB ASSY;LS03A,UL21451,10
BN68-12570A LEAFLET-INSTALL GUIDE;65QALS03M,ART,450M
BN68-12570B LEAFLET-INSTALL GUIDE;65QALS03M,ART,980M
BN68-14624A LEAFLET-PROMOTION;2022 FRAME TV,NA SA MA
BN68-13936A LEAFLET-QUICK SETUP GUIDE;LS03B (43 50),
BN68-09371B LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-13897A LEAFLET-REMOTE CONTROL;Y22 QLED, FRAME,
BN68-11941J LEAFLET-WALL MOUNT;2022 FRAME TV, QD TV,
BN68-11940A LEAFLET-WALL MOUNT;21Y FRAME TV,W/W,MOJO
BN68-11939B LEAFLET-WALL MOUNT;21Y FRAME TV,ZD,BRAZI
BN68-10628A LEAFLET-WARRANTY;QT/UT,ZA,MOJO,1 COLOR,1
0601-003620 0601-003620 LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940
BN61-18477A LGP;22Y_BU8K_50INCH_LGP,MS,T2
BN61-17209A MAGNET NEODYMIUM;32QTLS03M,ND,T2,W8,L20
BN61-17788A MAGNET NEODYMIUM;43QALS03M,ND,T2,W8,L12
BN61-16909A MAGNET NEODYMIUM;65QTQ950SA,ND,T3,W10,L5
BN68-13710C MANUAL USERS;LS03B,ZA,NORTH AMERICA,MOJO
BN59-01415A NETWORK-WLAN CLIENT;MDRBI303,39.3X30X8.4
BN59-01333A BN59-01333A NETWORK-WLAN CLIENT;WCP730M,,,"WCP730M,7
BN39-02470A BN39-02470A ONECONNECT CABLE;QN65Q90RAFXZA,31P/31P,L
BN61-17818A OPTICAL SHEET-COMPLEX;21Y_LS03A_50INCH_D
BN61-18484A OPTICAL SHEET-HIGH COLOR;22Y_LS03B_50INC
BN61-17755A OPTICAL SHEET-REFLECTOR;Y21_Q70A60A_50IN
BN69-17053P PACKING ANGLE;ALL,PAPER,T3,W2200,L50,YEL
BN62-00900A PAD GAP-THERMAL;QN75LS03TAFXZA,SI,T7,L40
BN69-20848A PAD-EPE;65Q95T,EPE,T20,W45,L340,WHITE
BN41-03001B PCB-MAIN;LS03B_MAIN,FR-4,4L,T1.2,1,B,175
BN41-03009A PCB-OC;LS03B_OC,FR-4,4L,T1.2,1,330X142MM
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-08403C PRODUCT LCD-AUO;CY-QB050HHAV2H/V,QBLS03M
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-008779 R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-000501 R-CHIP;2.2OHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-007587 R-CHIP;3.6KOHM,1%,1/16W,TP,1005
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-000946 R-CHIP;47OHM,1%,1/10W,TP,1608
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-001007 R-CHIP;51KOHM,1%,1/10W,TP,1608
2007-001058 R-CHIP;6.2OHM,1%,1/10W,TP,1608
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2011-001589 R-NETWORK;0OHM,5%,1/16W,L,CHIP,4P,TP,1.0
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
2011-001590 R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1
BN59-01391A REMOCON-ECO SMART CONTROL;2022 TV,SAMSUN
BN46-01896A S/W-MODEL;LS03B,PONTUS-M,QBLS03M
BN46-01895A S/W;PM_COMMON,PONTUS
6003-000275 6003-000275 SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR
6003-001010 6003-001010 SCREW-TAPTYPE;FH,+,B,M3,L6,ZPC(WHT),SWRC
BN63-19617A SHEET-EVA;65QALS03M,EVA,T4,W50,L25,BLACK
BN63-19639A SHEET-EVA;65QALS03M,EVA,T8,W50,L25,BLACK
BN63-19633A SHEET-PET;65QAQN900A,PET,T0.1,W173,L155,
BN63-16149A SHEET-PROTECTION COVER;32K5500,PO,T0.068
BN63-19568J SHEET-PROTECTION COVER;QALS03M,PO,T0.05,
BN63-19568E SHEET-PROTECTION COVER;QALS03M,PO,T0.05,
BN63-19568D SHEET-PROTECTION COVER;QALS03M,PO,T0.05,
BN63-18806A SHIELD-OC BOTTOM;65QTQ95P,EGI-SECC,T0.5
BN63-18807A SHIELD-OC TOP;65QTQ95P,EGI-SECC,T0.8
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
BN60-01656A SPACER-CONDUCTIVE;CONDUCTIVE FABRIC/PU F
BN60-01661A SPACER-FABRIC;CONDUCTIVE FABRIC,L20,GRAY
BN60-01661C SPACER-FABRIC;QALS03M,CONDUCTIVE FABRIC,
BN60-01668B SPACER-FOAM;65QAQ60G,HR FOAM,L1000,GRAY,
BN60-01670A SPACER-FOAM;Q950,PU FOAM,L1000,BLACK,T1.
BN61-16805B STUD-PEM;65QAQ60G,SUM24L,L11.7,BLACK
0203-007142 TAPE-DOUBLE FACE;ACRYL,T0.2,W4.5,N/A,WHI
BN61-03261Z TAPE-DOUBLE FACE;ACRYL,T1.1,W16,ROLL,GRA
BN02-00102K TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL
BN02-00319B TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE
BN02-00102B TAPE-SINGLE FACE;OPP,T0.15,W25,L100M,WHI
BN74-00053G TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10,
0203-007306 TAPE-SINGLE FACE;PET,T0.05,W25,L50M,BLAC
0203-007086 TAPE-SINGLE FACE;PET,T0.05,W6,L50M,BLACK
1404-001731 THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
BN40-00329B BN40-00329B TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4
1405-001452 VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001185 VARISTOR;500V,24VDC,1608,TP,150V,0.055PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
BH69-00418A WRAP;762,1828M,SAMEX FACTORY
Main Menu x
