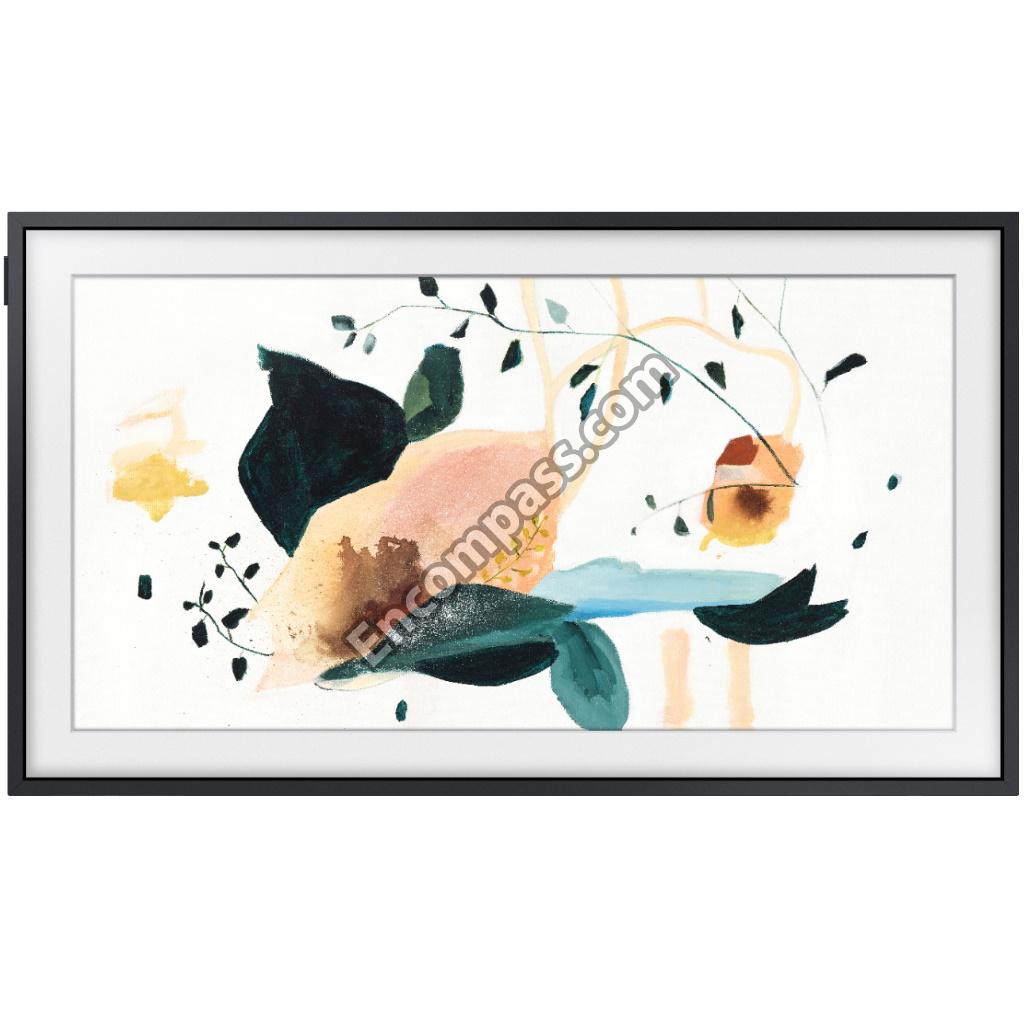

Model Image
Manufacturer

Samsung

Model Number

QN55LS03TAFXZA

Description

55-inch Class The Frame Qled 4k Uhd Hdr Smart Tv

Interactive Exploded View

Parts List

Part Number Description
BN81-12752A A/S OPEN CELL-SPCB SIDE;T430QVN02.2,47.2
BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC SPEC-C
BN81-18747G A/S PART SET-MECH W/I;QTLS03M,Q55TM*
BN81-16230A A/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F,47.COF
BN81-18975A A/S-ASSY PCB-SOURCE(L);ASSY PCB-SOURCE(L
BN81-18974A A/S-ASSY PCB-SOURCE(R);ASSY PCB-SOURCE(R
BN81-18973A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46
BN81-19043A A/S-POLARIZER-C/F;POLARIZER-C/F,66.C4U73
BN81-19044A A/S-POLARIZER-TFT;POLARIZER-C/F,66.T4U69
BN61-10258A ADHESIVE-STRL;LOTITE 401,COLORLESS,S9000
BN61-09308A ADHESIVE-TP;F8K,GREEN,ACRYL
BN96-51575V ASSY ACCESSORY MANUAL CABLE;QTLS03M
BN96-44287A ASSY ACCESSORY-ANCHOR BOLT;UA55LS003AKXX
BN96-44261A ASSY ACCESSORY-ANCHOR BOLT;UA55LS003ARXU
BN96-50678A ASSY ACCESSORY-HOLDER;65QTLS03S,W/W,W/W,
BN96-44503A ASSY ACCESSORY-HOLDER;88Q9F,W/W,ENG,7T E
BN96-44265A ASSY ACCESSORY-HOLDER;UE65LS003AUXZT,ITA
BN96-36262A ASSY ACCESSORY-SCREW;JU7000 75",6001-000
BN96-50670A ASSY ACCESSORY-WALL MOUNT;65QTLS03S,NA,N
BN92-27427T ASSY ACCESSORY;QTLS03M
BN90-11394A ASSY BACK LIGHT UNIT;QTLS03M,55
BN96-53065A ASSY BOARD P-FUNCTION;MDRTI301,CT80SL02A
BN92-27169F ASSY BOX;QTLS03M
BN96-44291C ASSY BRACKET P-WALL REAR;55QRLS03V,CR-SP
BN96-44269C ASSY BRACKET P-WALL;55QRLS03V,CR-SPCC,BL
BN96-50533A ASSY CHASSIS FRONT P;55QTLS03M,AL,CHARCO
BN96-50527A ASSY CHASSIS REAR P;55QTLS03M,EGI-SECC,N
BN91-21821B ASSY CHASSIS;QTLS03M
BN96-50996A ASSY COVER P-OC BOTTOM;65QTLS03M,PC+ABS+
BN96-50999A ASSY COVER P-OC TOP;65QTQ95P,PC,V-0,TP01
BN96-51002A ASSY COVER P-REAR;55QTLS03M,PC+ABS+ED20%
BN90-11468C ASSY COVER REAR;QTLS03M
BN97-16606A ASSY DRM;NIKE-M BUILT_IN,ATSC,NAGSAM, MA
BN96-50537A ASSY FRAME P-MIDDLE BOTTOM;55QTLS03M,PC+
BN96-49931B ASSY HOLDER P-OC CABLE;65QRQ900Z,PC,TP00
BN96-46480C ASSY HOLDER P-RING;75QRQ900Z,ABS,BLACK,H
BN96-42126A ASSY HOLDER P-SHEET;55Q7F,PC+GF10%,BLACK
BN92-27168E ASSY LABEL;QTLS03M
BN96-50383A ASSY LED BAR P;20Y_Q70T_55INCH_EDGE_LED
BN97-16804A ASSY MICOM;55L1AU0QT,55INCH AUO LS03
BN97-16807A ASSY MICOM;NIKE-M 4K OC TCON FW
BN97-16786A ASSY MICOM;NMMICOM_FRTV,QTLS03M,1107-002
BN97-16808A ASSY MICOM;NMMICOM_OC_JP,LS03T/Q95T,1107
BN97-16783A ASSY MICOM;T-NKMAKUC,ASSY MICOM_MAIN,QTL
BN91-21828F ASSY ONE CONNECT;QTLS03M
BN96-50246A ASSY OPEN CELL;AUO,55INCH,Y20 NEW,T550QV
BN92-27170X ASSY P/MATERIAL;QTLS03M
BN96-49869A ASSY PACKING P-CUSHION SET;Y19
BN94-15309B BN94-15309B ASSY PCB MAIN;QTLS03M
BN94-15310A ASSY PCB OC;QTLS03M
BN91-21822N ASSY SHIELD;QTLS03M
BN97-16742C ASSY SMD;QTLS03M
BN97-16742B ASSY SMD;QTLS03M
BN96-43066C ASSY SPEAKER P-FRONT;TV-SPK,55QTLS03M,2.
BN96-51043A ASSY STAND P-COVER TOP LEFT;55QTLS03S,PP
BN96-51044A ASSY STAND P-COVER TOP RIGHT;55QTLS03S,P
BN96-50986A ASSY STAND P-HOLDER CABLE;65QTLS03S,ABS,
BN90-11467B ASSY STAND;QTLS03M
BN90-11466C ASSY W/I;QTLS03M
6902-003297 BAG ACCESSORY;LDPE,T0.06,W250,L250,TRP,R
BN69-13935A BAG ACCESSORY;LDPE,T0.07,W700,L350,TRP,R
6902-003336 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W450,L30
6902-003068 BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO
6902-003048 BAG PE;LDPE,T0.05,W80,L100,TRP,RECYCLE,H
6902-001611 BAG ROLL;HDPE/PE FOAM,T0.5/T0.015,W1500,
6902-002477 BAG SCREW;LDPE,T0.05,W70,L90,TRP,RECYCLE
6902-003049 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,RECYCL
6922-000013 BAND;PP,T0.8,W18,L2300,TRP,ECO. N
6922-000421 BAND;PP,T0.8,W18,L2300,TRP,RECYCLED PIR_
6922-000001 BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50%
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
BN69-20743A BOX ACCESSORY;65Q95T,CB,SW-E,NON STANDAR
BN69-20833A BOX UNIT-IN;55QRLS03M,CB,DW1,C1,L1706,W5
BN69-20832A BOX UNIT-OUT;55QTLS03M,CB,DW3,F3,L1377,W
BN69-16123M BOX UNIT;65Q7C,CB,SW2,PIZZA BOX,L890,W87
BN61-15358A BRACKET-CORNER;55LS003,STS430,T0.5,NATUR
BN61-16904A BRACKET-LED PCB;55QTLS03M,AL,T1.5,NATURA
BN61-13312B BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3,
BN61-13921A BRACKET-TOP;55PMF,EGI-SECC,T0.5,BLACK,PC
BN61-13521A BRACKET-WALL;32K5500,CR-SPCC,T1.2,NATURA
BN61-11982B BRACKET-WALL;65MU8000,CR-SPCC,NATURAL,M8
BN61-13557D BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557C BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557B BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557P BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,55
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T
2203-007176 C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007423 C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-008096 C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1.
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-000627 C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5,
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-006377 C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,55
2203-008412 C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1.
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55
2203-001428 C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,55
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343
BN64-04341A CHASSIS-FRONT BOTTOM;55QTLS03M,AL,CHARCO
BN64-04398A CHASSIS-FRONT;55QTLS03M,AL,CHARCOAL BLAC
BN64-03887C CHASSIS-REAR;55QTLS03M,EGI-SECC,T0.8,NAT
3708-003241 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU
3701-002024 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007975 3711-007975 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3711-009106 CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN
3711-007776 CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A,
3707-001123 3707-001123 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI
3710-004374 CONNECTOR-SOCKET;34P,1R,0.8MM,SMD-A,AU,B
3710-004375 CONNECTOR-SOCKET;34P,2R,0.8MM,SMD-A,AU,B
BN63-18805A COVER-OC BOTTOM;QTLS03M,PC+ABS+GF15%,T2.
BN63-18808A COVER-OC TOP;QTLS03M,PC,V-0,TP0116
BN63-18834A COVER-REAR;55QTLS03M,PC+ABS+ED20%,T2.3,V
BN63-18842A COVER-STAND TOP;55QTLS03S,PP+GF40%,HB,BK
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
BN69-15817A CUSHION-SET;55Q7F,EPS,20G/L,WHITE,17Y SL
BN69-20776A CUSHION-SET;55QTLS03M,EPS,16.7G/L,WHITE,
BN44-01079A BN44-01079A DC VSS-DRIVER BOARD;L55F7_THS,DC/DC,175.

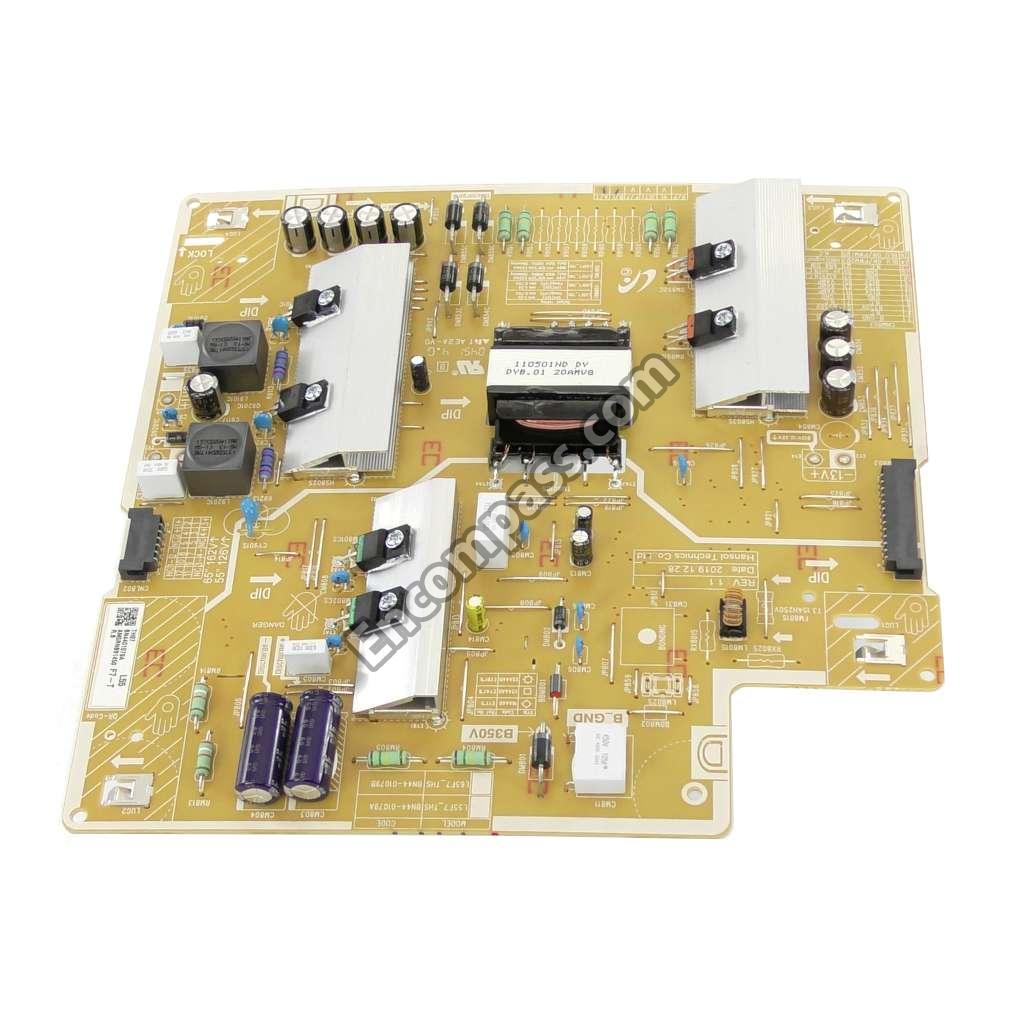

BN44-01066B BN44-01066B DC VSS-POWER BOARD;P230NQ_TPN,AC/DC,230W
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0404-001976 DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001786 DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V
0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO
0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD
0403-000489 DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW
0403-001779 DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M
0403-001797 DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD
0403-001785 DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-002560 FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1
0505-003620 FET-SILICON;AOD4286,N,100V,14A,55.5MOHM,
0505-003752 FET-SILICON;AONR21321,P,30V,50A,0.035OHM
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,7.3A,1.
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
BN96-42166A BN96-42166A FFC;Q9F,STRAIGHT,L101,96P,+3
BN61-13520G FOOT-RUBBER;65Q9,SI,BLACK,T3
BN67-00327J FOOT-RUBBER;PE400,SI,GRAY,T2.5
BN61-16894A FRAME-MIDDLE BOTTOM;55QTLS03M,PC+GF10%,V
BN61-16895A FRAME-MIDDLE LEFT RIGHT;55QTLS03M,PC+GF1
BN61-16893A FRAME-MIDDLE TOP;55QTLS03M,PC+GF10%,V-2,
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN63-00520A GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L
AA63-01387A GASKET-EMI;EMI SHIELDING,FABRIC,T2,W10,L
AA63-01071A GASKET-EMI;EMI SHIELDING,FABRIC,T2,W15,L
BN63-02627A GASKET-EMI;OXFORD,FABRIC,T8,W13,L30,GRAY
BN63-02627B GASKET-EMI;OXFORD,FABRIC,T8,W13,L90,GRAY
6302-001376 GASKET-SMD;SMT GASKET,SI,T6,W4.5,L2.5,SI
3711-008488 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
3711-008098 HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM,
3711-008492 HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,ANG
BN62-00894A HEAT SINK-PS;65QTQ95P,A1050,W126,L326,NA
BN62-00877A HEAT SINK-PS;QN65Q90RAFXZA,A1050,W160,L8
BN62-00876A HEAT SINK-PS;QN65Q90RAFXZA,A1050,W200,L1
BN61-14021A HOLDER-CABLE;55KS8000,PA66,BK0007,V-2
BN61-08235A HOLDER-LGP;SNB,SWRCH10A,BLACK,M3.5*L4.75
BN61-16511A HOLDER-OC CABLE JACK;55QRQ90B,PA66,BLACK
BN61-15791A HOLDER-OC CABLE;65QNQ8CB,PC,TP0003,V-2
BN61-14574A HOLDER-SHEET FRONT;55Q7F,STS430J1L,T0.2,
BN61-13327A HOLDER-SHEET;55KS7500,ABS,BK0007,HB,COMM
BN61-14506A HOLDER-SHEET;55Q7F,PC+GF10%,BK0048,V-2
BN61-16984A HOLDER-STAND CABLE;65QTLS03S,ABS,T2,BK00
BN61-15782A HOLDER-WALL RING;55QNQ9FA,ABS,T2,BK0007,
BN61-17202A HOLDER-WIFI;55QTLS03M,PC+ABS,T1.2,BK0008
1201-004170 IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6
1203-009194 IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6
1203-009193 IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6
1203-009369 IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4
1203-009367 IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X
1203-009372 IC-DC/DC CONVERTER;VPMS2RT,QFN,72P,8X8X0
1105-002751 IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR
1105-002882 IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR
1105-002992 IC-DDR4 SDRAM;MT53E256M32D2DS-053 WT:B,L
1105-002989 IC-DDR4 SDRAM;MT53E384M32D2DS-053 WT:E,L
1204-003799 IC-DECODER;QUANTUM PROCESSOR II,FCPBGA,9
1204-003778 IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5
1006-001595 IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1
1103-001584 IC-EEPROM;M24512-DFMN6TP,512KBIT,64K X 8
1107-002688 IC-EMMC;THGBMJG6C1LBAIL,8GBIT,64GBX1,BGA
1209-002688 1209-002688 IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P
1107-002587 IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1107-002339 IC-NOR FLASH;W25Q80DV,8MBIT,SOP,5.28X5.2
1201-004258 IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA
1203-009186 IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
0904-002882 IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ,
1203-009188 IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1.
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-005780 INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-000158 INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT
2703-003937 INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-005781 INDUCTOR-SMD;220NH,20%,7876,T2.9,0.00176
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
BN63-19186A INSULATOR-SHEET;PC,BLACK,L54,W42,T0.43
BN63-18959A INSULATOR-SMPS;55QTLS03M,PC,BLACK,L255,W
BN63-18852A INSULATOR-SMPS;65QTQ95P,PC,BLACK,L329,W1
BN63-18851A INSULATOR-SMPS;65QTQ95P,PC,BLACK,L339.6,
BN63-19004A INSULATOR-SOURCE PCB;65UTU7000K,PC,BLACK
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003216 JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL
BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2)
BN46-01116A KEY CODE;NIKE-M BUILT_IN,NAGRA CSC DATA,
BH68-00697A LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9
BN68-08810A LABEL ETC;55MU9000,ART,W50,L27,ACCESSORY
BN68-04746A LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER,
BN68-05595A LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W
BN68-02422B LABEL WARNING;ALL,ART,T0.05,W240,L100,WH
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W
BN68-08730A LABEL-E PASS;QTV,WW,ART,T0.161,W60,L15,P
BN68-10365A LABEL-ENERGY;QN55LS03TAFXZA,ZA,PET,T0.1,
BN68-07104D LABEL-RATING;ALL,WW,PP,T0.1,W90,L50,DARK
BN68-06708G LABEL-RATING;ALL,WW,PP,T0.1,W93,L73,DARK
BN68-00970C LABEL-SECURITY;ALL,PET,T0.038,W60,L60,SE
BN68-08112A LABEL-SECURITY;ALL,PET,T0.05,W55,L52,GLO
BN68-00970A LABEL-SECURITY;ALL,PET,T0.05,W60,L60,SEA
BN68-05381A LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI
BN68-08822B LABEL;55LS003,PET,T0.05,W120,L58,7008NHK
BN39-02543A LEAD CONNECTOR-BLU;55FRAME(LS03),UL21016
BN39-02403A LEAD CONNECTOR-POWER;65/75Q7F/Q8C,UL2151
BN39-02583A BN39-02583A LEAD CONNECTOR-POWER;75LS03T,UL10368,26P
BN39-02465B BN39-02465B LEAD CONNECTOR-SUB ASSY;65 75 82 Q70,UL2
BN68-10529A LEAFLET-ACCESSORY KIT;QN43LS03TAF,ZA&ZC&
BN68-10348F LEAFLET-PROMOTION;2020 FRAME TV,ZA&ZC,SN
BN68-09273E LEAFLET-PROMOTION;LS03NA,ZA,NORTH AMERIC
BN68-10310A LEAFLET-PROMOTION;QLED TV, TU8500, TU800
BN68-12980A LEAFLET-PROMOTION;Y21 SOUNDBAR (A,S SERI
BN68-10461A LEAFLET-QUICK SETUP GUIDE;LS03TAF,ZA,NOR
BN68-09371B LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-09371A LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-10124A LEAFLET-WALL MOUNT;65QTLS03S,W/W,W/W,MOJ
BN68-09266A LEAFLET-WALL MOUNT;FRAME NOGAP WALLMOUNT
BN68-10184C LEAFLET-WALL MOUNT;THE FRAME(LS03T),SA &
BN68-10181D LEAFLET-WALL MOUNT;THE FRAME(LS03T),ZA Z
BN68-10628A LEAFLET-WARRANTY;QT/UT,ZA,MOJO,1 COLOR,1
BN68-08792C LEAFLET;2020 TV-ACCESSIBILITY,ZA,USA,ART
0601-003620 0601-003620 LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940
BN61-17190A LGP;20Y_FRAME TV_55INCH_LGP,PMMA,T2.5
BN61-15057A MAGNET NEODYMIUM;55LS003,ND,T1,W10,L20
BN61-15056A MAGNET NEODYMIUM;55LS003,ND,T2,W10,L20
BN61-15033A MAGNET NEODYMIUM;65Q9F,ND,5,10,50,W10 L5
BN68-10619C MANUAL USERS;QTLS03M,ZA,USA,MOJO,0,1 COL
BN59-01333A BN59-01333A NETWORK-WLAN CLIENT;WCP730M,"WCP730M,7
BN39-02470A BN39-02470A ONECONNECT CABLE;QN65Q90RAFXZA,31P/31P,L
BN61-17214A OPTICAL SHEET-COMPLEX;20Y_FRAME TV_55INC
BN61-17194A OPTICAL SHEET-HIGH COLOR;20Y_FRAME TV_55
BN61-17187A OPTICAL SHEET-REFLECTOR;20Y_FRAME TV_55I
BN69-17053S PACKING ANGLE;ALL,PAPER,T3,W2440,L50,YEL
BN62-00872A PAD GAP-THERMAL;Q900R,RUBBER,T2,L40,H20,
BN62-00900A PAD GAP-THERMAL;QN75LS03TAFXZA,SI,T7,L40
BN69-20848A PAD-EPE;65Q95T,EPE,T20,W45,L340,WHITE
BN41-02754B PCB-MAIN;85Q95,FR-4,T1.6,4,241X168MM
BN41-02757A PCB-OC;Q95,LS03,FR-4,4L,T1.2,1,330X142MM
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-06431A PRODUCT LCD-AUO;CY-RT055FGAV1V,QTLS03M,B
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-008779 R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-008661 R-CHIP;2.1KOHM,1%,1/10W,TP,1608
2007-000501 R-CHIP;2.2OHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-007520 R-CHIP;20OHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2011-001589 R-NETWORK;0OHM,5%,1/16W,L,CHIP,4P,TP,1.0
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
2011-001590 R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1
BN59-01330H BN59-01330H REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21
6041-001068 RIVET-PH;6SR000032004301_CR3+WH,SWRCH10A
BN46-01226A S/W MICOM;55L1AU0QT,NIKE-M 4K OC,QTLS03M
BN46-01259A S/W MICOM;T-NKMAKUC,THGBMJG6C1LBAIL,4K_O
BN46-01236A S/W MICOM;TCON FW,NIKE-M 4K OC
BN46-01240A S/W;FACTORY_PEQ,NIKE-M/L,PEQ
6001-002685 SCREW-MACHINE;CH,+,M3,L2,CR3+RED,SWRCH18
6001-002759 6001-002759 SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1
6001-003010 SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH1
6001-000706 6001-000706 SCREW-MACHINE;PH,+,M4,L16,ZPC(WHT),SWR
6003-000275 6003-000275 SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR
BN63-16149A SHEET-PROTECTION COVER;32K5500,PO,T0.068
BN63-17244B SHEET-PROTECTION COVER;55LS003,PO,T0.06,
BN63-17244A SHEET-PROTECTION COVER;55LS003,PO,T0.06,
BN63-18853A SHEET-THERMAL;65QTQ95P,GRAPHITE,T1,W120,
BN63-18806A SHIELD-OC BOTTOM;65QTQ95P,EGI-SECC,T0.5
BN63-18807A SHIELD-OC TOP;65QTQ95P,EGI-SECC,T0.8
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
BN60-01656A SPACER-CONDUCTIVE;CONDUCTIVE FABRIC/PU F
BN60-01664A SPACER-CONDUCTIVE;THE FRAME,CONDUCTIVE F
BN60-01666A SPACER-FOAM;THE FRAME,PU FOAM,L1000,DARK
BN60-00988T SPACER-SILICONE;55KS9000,SI,L10,BLACK,T2
BN60-00988V SPACER-SILICONE;55KU6400,SI,L10,GRAY,T3.
BN61-16805B STUD-PEM;65QAQ60G,SUM24L,L11.7,BLACK
BN61-16805A STUD-PEM;65UTU7000K,SUM24L,L11.7,WHITESI
BN02-00586A TAPE DOUBLE FACE;UNU7100X,ACRYL,T0.3,W3,
BN02-00173N TAPE SINGLE FACE;55UMLS003B,PET,T0.05,W1
BN02-00529A TAPE SINGLE FACE;65KS7000,PET,T0.05,W50,
BN02-00074F TAPE SINGLE FACE;65QRQ80C,PET,T0.05,W10,
BN02-00638A TAPE SINGLE FACE;JS9000,PET,T0.05,W15,L3
BN02-00352K TAPE SINGLE FACE;JS9000,PET,T0.05,W20,L3
BN02-00438A TAPE SINGLE FACE;PET,T0.1,W40,L50,BLACK
BN02-00074E TAPE SINGLE FACE;U7201,PET,T0.05,W10,L20
0203-007064 TAPE-DOUBLE FACE;ACRYL,T0.2,W6,N/A,WHITE
BN61-07463B TAPE-DOUBLE FACE;ACRYL,T0.25,W7,CLEAR
BN02-00102K TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL
BN02-00319B TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE
BN02-00102B TAPE-SINGLE FACE;OPP,T0.15,W25,L100M,WHI
BN74-00053G TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10,
BN02-00352E TAPE-SINGLE FACE;PET,T0.05,W15,L50M,BLAC
0203-007085 TAPE-SINGLE FACE;PET,T0.05,W20,L100M,CLE
BN02-00352D TAPE-SINGLE FACE;PET,T0.05,W20,L50M,BLAC
1404-001731 THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
0501-000467 TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2
BN40-00329B BN40-00329B TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4
1405-001381 VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF
1405-001452 VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001185 VARISTOR;500V,24VDC,1608,TP,150V,0.055PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
BH69-00418A WRAP;762,1828M,SAMEX FACTORY
Main Menu x
