Manufacturer
Samsung
Model Number
QN65Q800TAFXZA
Description
65-inch Class Q800t Qled 8k Uhd Hdr Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-16791A | A/S-IC DRIVER SOURCE- EVEN;IC DRIVER SOU |
| BN81-16790A | A/S-IC DRIVER SOURCE-ODD;IC DRIVER SOURC |
| BN96-50951A | ASSY BOARD P-FUNCTION;Y20 Q800T BLACK,CT |
| BN96-50972A | ASSY COVER P-REAR;65QTQ800B,PC+ABS+ED20% |
|
|

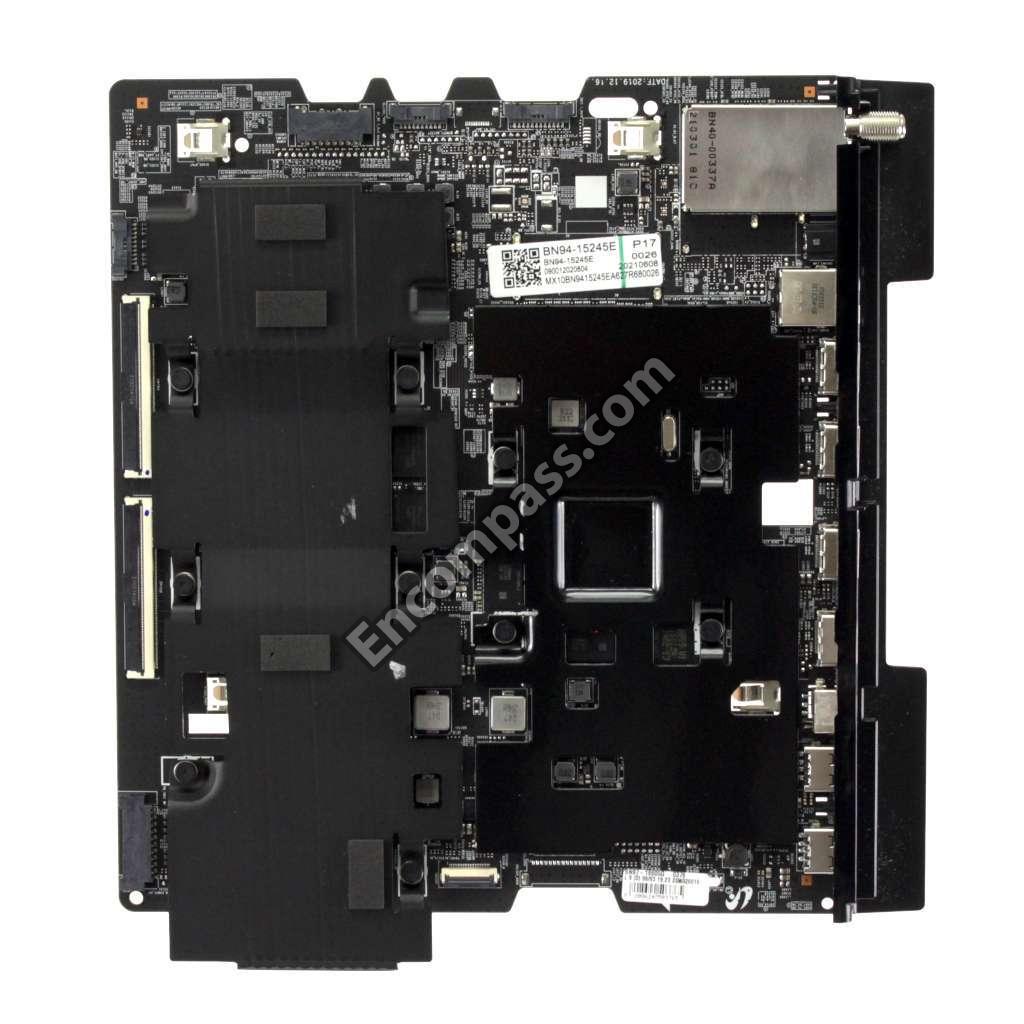

ASSY PCB MAIN;QTQ800B |
| BN96-50974B | ASSY SPEAKER P-FRONT;TV-SPK,65QTQ900SU,6 |
| BN96-50974A | ASSY SPEAKER P-FRONT;TV-SPK,65QTQ900SU,6 |
| BN96-50777A | ASSY STAND P-COVER NECK;65QTQ800B,PP+GF4 |
| BN96-49070D | ASSY STAND P-COVER TOP;65QTQ800B,HGI,TIT |
| BN95-06565A | ASSY T CON;Q800T SDC 65",20Y_LUXE-T_6CNT |
| 6922-000001 | BAND;PP,T0.8,W18,YEL |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13557D | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557W | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608,-55 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 3708-003062 | CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD-A,AU |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
|
|
CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-18492A | COVER-TERMINAL SIDE;65QTQ800B,PC+ABS,V-0 |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-004938 | CRYSTAL-SMD;24MHZ,20PPM,12PF,60OHM,20PPM |
| BN44-01068A | DC VSS-DRIVER BOARD;L65S8SNC_THS,DC/DC,3 |
|
|

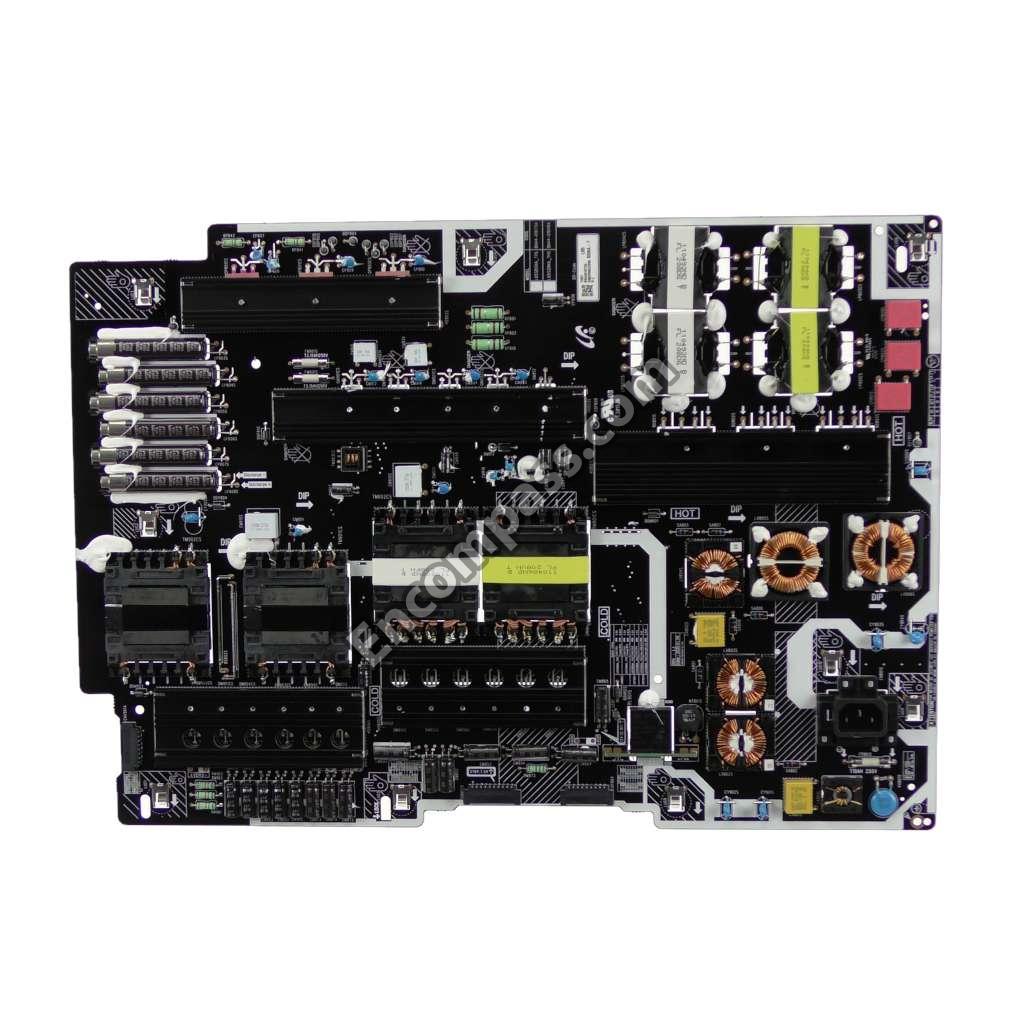

DC VSS-POWER BOARD;L65S8SNA_THS,AC/DC,45 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001691 | DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5 |
| 0406-001438 | DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94~5.2V,500MW,SOD- |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.0/8.2V,300MW,S |
| 0403-001900 | DIODE-ZENER;SMFZ6.2V,6.5~7V,1000MW,SOD-1 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |

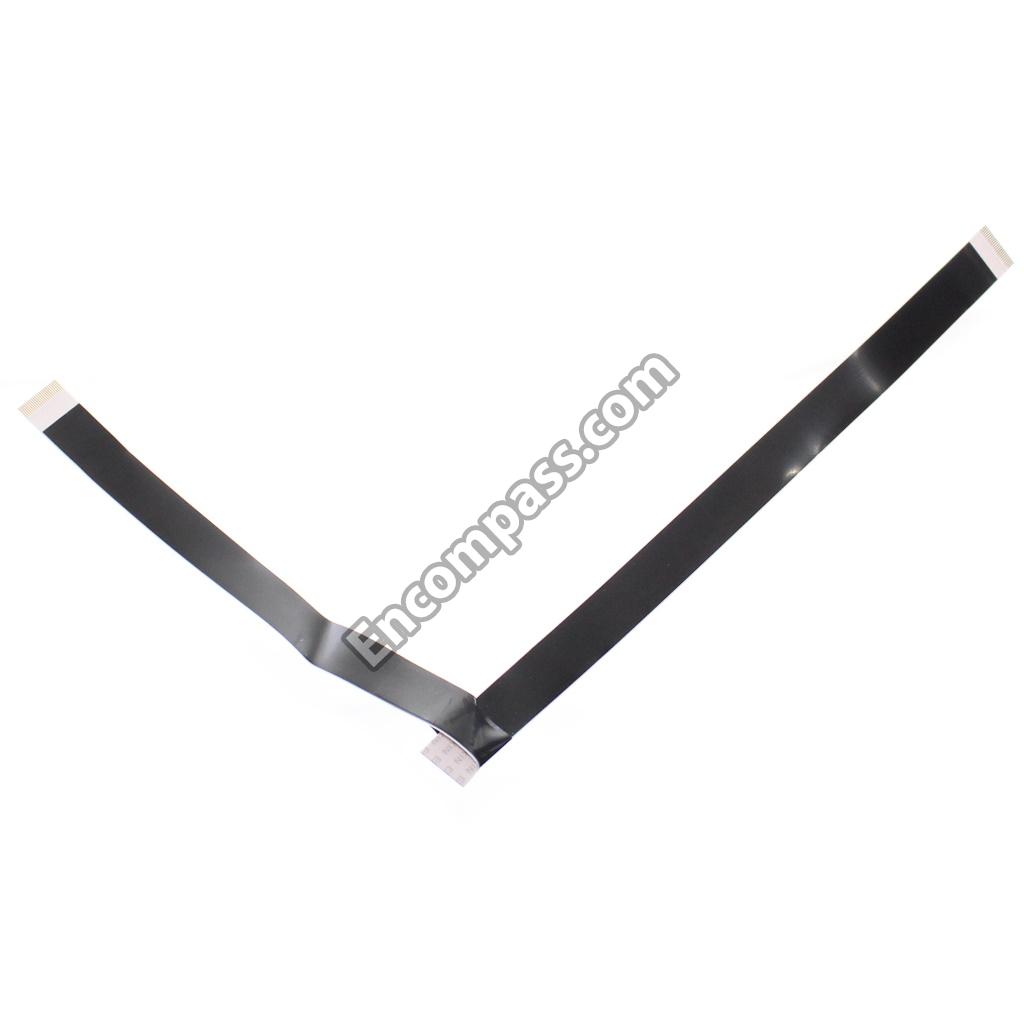

| BN96-51307A | FFC CABLE;Q800 65,FOLD,L360,68P,LED #2 |
| BN96-50711A | FFC CABLE;Q800 65,FOLD,L380,68P,LED #3 |
| BN96-51308A | FFC CABLE;Q800 65,FOLD,L390,68P,LED #1 |
| BN96-50712A | FFC CABLE;Q800 65,FOLD,L410,68P,LED #4 |
| BN96-50714A | FFC CABLE;Q800 65,FOLD,L550,68P,LED #6 |
| BN96-50713A | FFC CABLE;Q800 65,FOLD,L580,68P,LED #5 |
| BN96-51345A | FFC CABLE;Q800,FOLD,L360,68P |
| BN96-51344A | FFC CABLE;Q800,FOLD,L360,68P |
| BN96-51336A | FFC CABLE;Q800,STRAIGHT,L65,96P |
| BN96-50771A | FFC CABLE;Q900 65,FOLD,L540,68P,LED #8 |
| BN96-50770A | FFC CABLE;Q900 65,FOLD,L610,68P,LED #7 |
|
|
FFC CABLE;QN65Q800TAFXZA,FOLD,L350,24P |

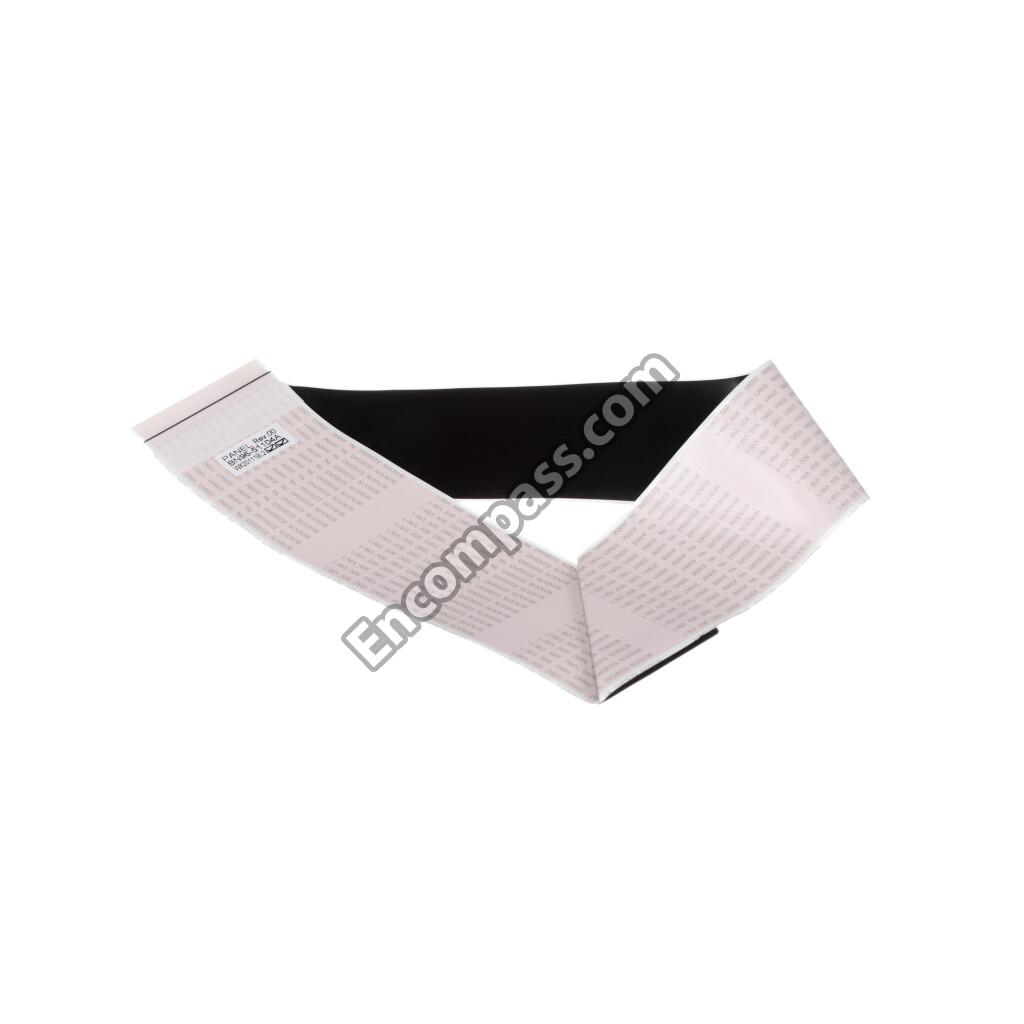

| BN96-51105A | FFC CABLE;QN65Q800TAFXZA,FOLD,L400,96P |
|
|
FFC CABLE;QN65Q800TAFXZA,FOLD,L500,96P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| 6302-001232 | GASKET-EMI;SMT GASKET,SN/CU PLATED PI-FI |
| 3711-007803 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 0801-003580 | IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3 |
| 1203-009164 | IC-DC/DC CONVERTER;CSD95378BQ5M,SON,13P, |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,TSOT23-6,6P,2 |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-009369 | IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4 |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009367 | IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X |
| 1203-009377 | IC-DC/DC CONVERTER;TPS56C230,VQFN,20P,3X |
| 1105-002926 | IC-DDR4 SDRAM;H9HCNNN4KUMLHR,LPDDR4-SDRA |
| 1105-002751 | IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR |
| 1204-003770 | IC-DECODER;SDP1802,FCBGA,672P,27X27X2.4M |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
|
|
IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P |
| 1107-002566 | IC-NOR FLASH;W25Q32JVSSIQ,32MBIT,16384X2 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1203-009166 | IC-PWM CONTROLLER;TPS40428RHAR,VQFN,40P, |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 1203-006288 | IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003488 | INDUCTOR-SMD;10UH,20%,6965,T2.8,0.071OHM |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005700 | INDUCTOR-SMD;470NH,20%,11X10MM,T3.8,0.00 |
| 2703-004226 | INDUCTOR-SMD;8.2UH,20%,10.7X10MM,T3.8,0. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003813 | JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02593A | LEAD CONNECTOR-DIMMING;QN65Q800TAFXZA,UL |
| BN39-02585A | LEAD CONNECTOR-POWER;QN65Q800TAFXZA,UL21 |
| BN39-02584A | LEAD CONNECTOR-POWER;QN65Q800TAFXZA,UL21 |
| BN39-02591A | LEAD CONNECTOR-POWER;QN75Q800TAFXZA,UL21 |
| BN39-02587A | LEAD CONNECTOR-SUB ASSY;QN65Q800TAFXZA,U |
| BN39-02586A | LEAD CONNECTOR-SUB ASSY;QN65Q800TAFXZA,U |
|
|
NETWORK-WLAN CLIENT;WCP730M,75X26X4.7MM |
|
|
POWER CORD-DT;USA,3P-F,125V,10A,BLK,L150 |
| BN95-06473A | PRODUCT LCD-SDC;CY-TT065JMLV1V/H,Q800T,4 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005,T0.05,GENER |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-000516 | R-CHIP;2.7KOHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-002437 | R-CHIP;2OHM,5%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|

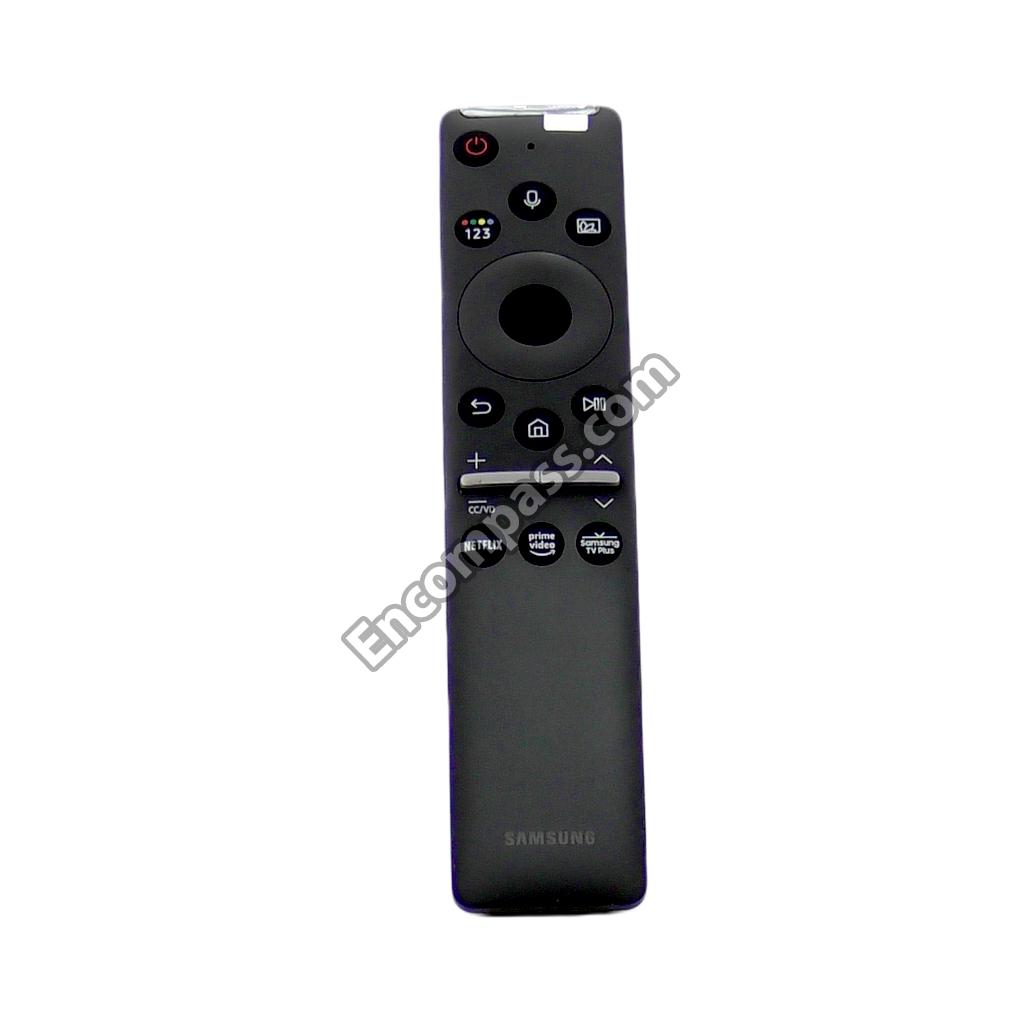

REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21 |
| 6001-002789 | SCREW-MACHINE;BH,+,M4,L6,ZPC(WHT),SWRCH1 |
| 6001-002343 | SCREW-MACHINE;CH,+,M3,L12,ZPC(BLK),SWRCH |
| 6001-003388 | SCREW-MACHINE;CH,+,M3,L2,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;CH,+,B,M3,L6,ZPC(BLK),SWRC |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-002080 | TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN40-00337A | TUNER-DTV AIR CABLE;GVX-8C81,ATSC 3.0,45 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
