Manufacturer
Samsung
Model Number
QN65QN85AAFXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-20518A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,47 |
| BN96-53151A | ASSEMBLY COVER P-REAR;65QAQ90D,PC+ABS+ED20%, |
| BN96-52917A | ASSEMBLY FRAME P-MIDDLE BOTTOM;65QAQN85K,PC+ |
| BN95-07301A | ASSEMBLY LED BAR;21Y_65Q85A,400*220UM,65,864 |
| BN91-23237C | ASSEMBLY OPEN CELL-DECORATION;BN63-18524A,Y2 |
| BN96-52495A | ASSEMBLY OPEN CELL;BOE,65INCH,Y21 NEW,HV650Q |
| BN94-16803Z | ASSEMBLY PCB MAIN;QAQN85K |
| BN96-53043A | ASSEMBLY SPEAKER P-FRONT;TV-SPK,65QAQN85K,2. |
| BN96-53140A | ASSEMBLY STAND P-COVER NECK;65QAQN85K,PP+GF4 |
| BN96-50573L | ASSEMBLY STAND P-COVER TOP;65QAQ80E,HGI,NATU |
| 6902-003680 | BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W1700, |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557K | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007370 | C-CER,CHIP;10UF,10%,10V,X7R,TP,2012,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-001607 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1608,-55T |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2203-000998 | C-CER,CHIP;47PF,5%,50V,C0G,TP,1608,T0.8, |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001143 | CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2 |
| BN63-18524A | COVER-DECORATION;65QTQ80D,STS304,T0.15,B |
| BN63-19384A | COVER-TERMINAL SIDE;65QAQ70F,PC+ABS,V-0, |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01134A | DC VSS-DRIVER BOARD;L65SA9NC_ADY,DC/DC,1 |
|
|

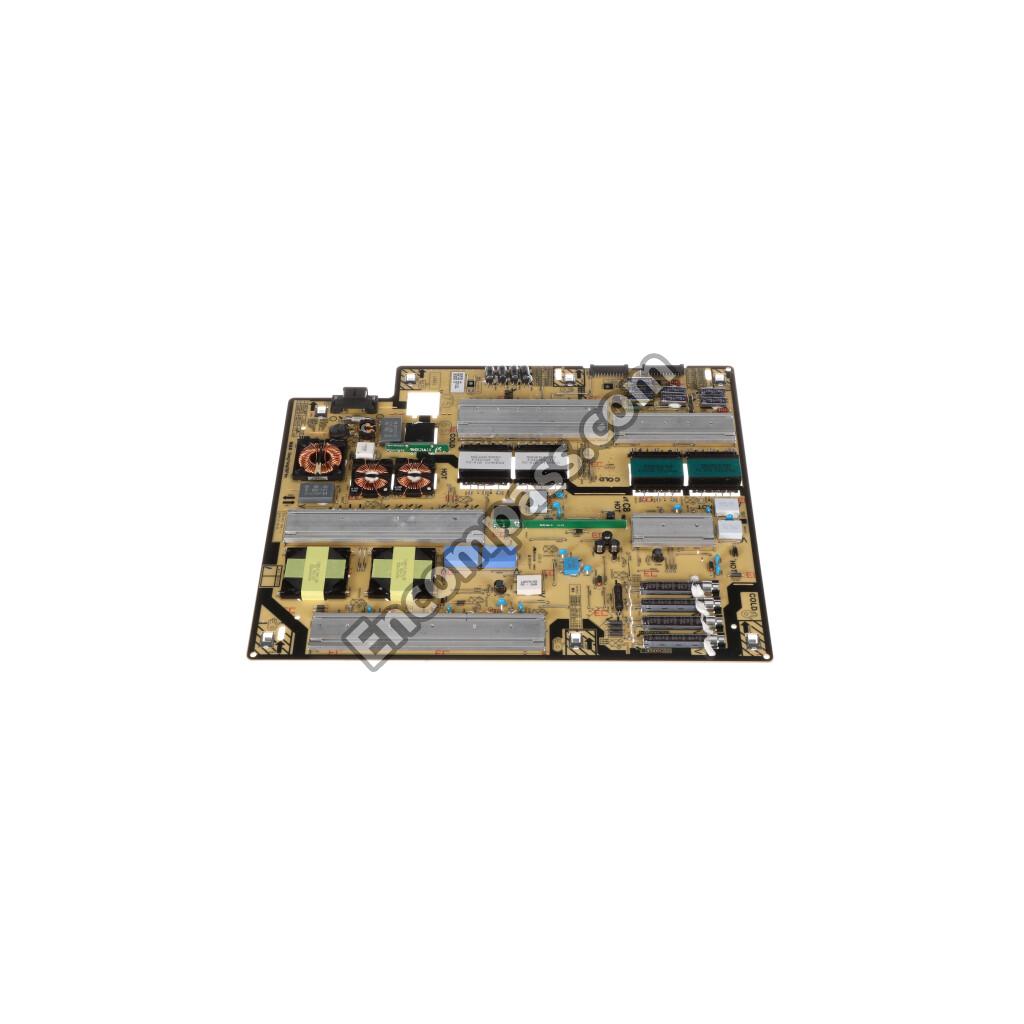

DC VSS-POWER BOARD;L65SA8NA_ADY,AC/DC,25 |
| BN61-17852A | DIFFUSER PLATE;21Y_Q90A_65INCH_DP,PS,PS+ |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001823 | DIODE-TVS;PJUSB208,85V,0.1MAV,0.715VPA,2 |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-52900A | FFC;4K 8K 65 #1,FOLD,L470,51P |
| BN96-52899A | FFC;4K 8K 65 #2,FOLD,L410,51P |
| BN96-52898A | FFC;4K 8K 65 #3,FOLD,L370,51P |
| BN96-52897A | FFC;4K 8K 65 #4,FOLD,L470,51P |
| BN96-52896A | FFC;4K 8K 65 #5,FOLD,L670,51P |
| BN96-52895A | FFC;4K 8K 65 #6,FOLD,L570,51P |
| BN96-52894A | FFC;4K 8K 65 #7,FOLD,L520,51P |
| BN96-52893A | FFC;4K 8K 65 #8,FOLD,L620,51P |
| BN96-53181A | FFC;QN65QN85AAFXZA,FOLD,L400,24P |
|
|

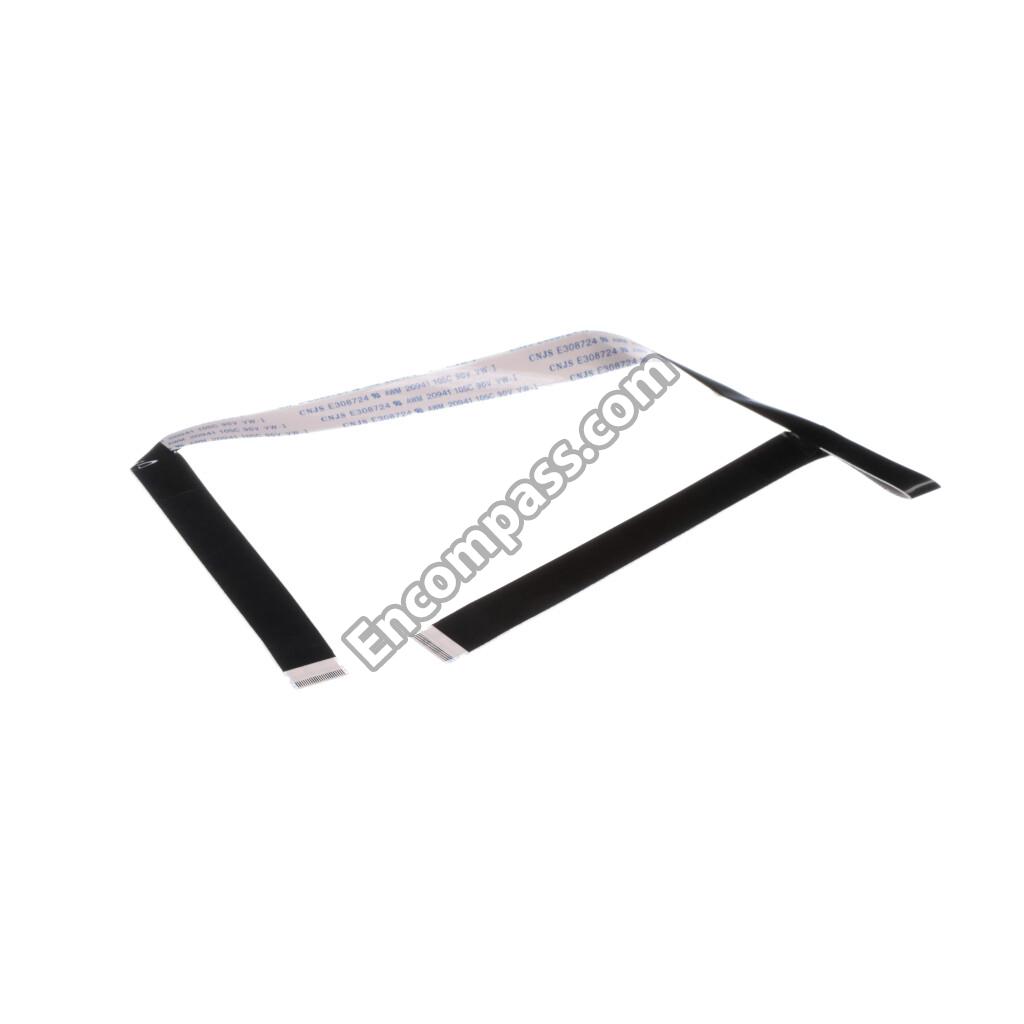

FFC;QN65QN85AAFXZA,FOLD,L500,96P |
|
|
FFC;QN65QN85AAFXZA,FOLD,L550,24P |
| BN67-00398L | FOOT-RUBBER;UH6K,SI,GRAY,T2 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN62-00874A | HEAT SINK-PS;QN65Q70RAFXZA,A1050,T1.5,W1 |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-009369 | IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4 |
| 1203-009367 | IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X |
| 1203-009496 | IC-DC/DC CONVERTER;VPMS3RT,72P,QFN,TP,8X |
| 1105-002925 | IC-DDR4 SDRAM;H9HCNNN8KUMLHR,LPDDR4-SDRA |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1204-003823 | IC-DECODER;QUANTUM PROCESSOR III,TR,31X3 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003813 | JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02474E | LEAD CONNECTOR-DIMMING;QN65QN85AAFXZA,UL |
| BN39-02207N | LEAD CONNECTOR-POWER;QN65QN85AAFXZA,UL21 |
|
|

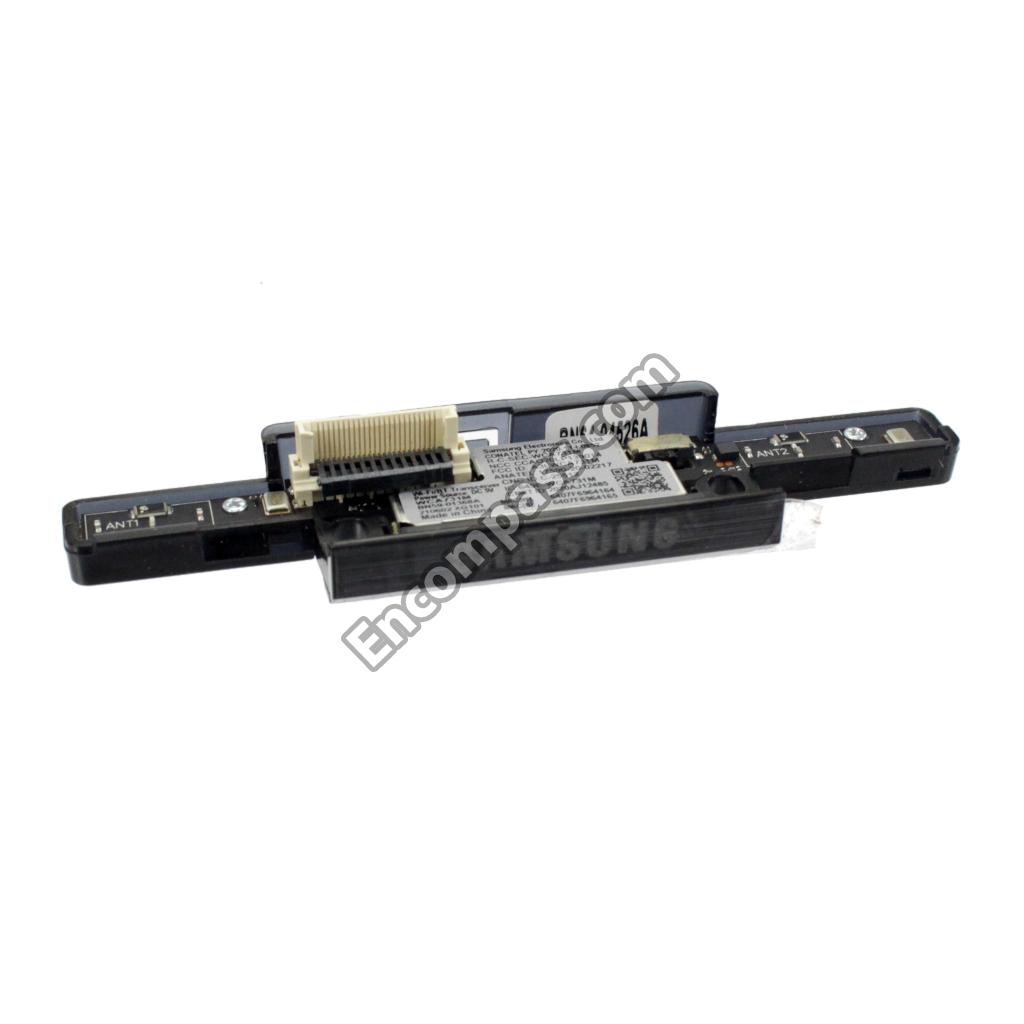

NETWORK-WLAN CLIENT;WCA731M,91.2X22.54X1 |
| BN61-17822A | OPTICAL SHEET-COMPLEX;21Y_Q85A_65INCH_CO |
| BN61-17847A | OPTICAL SHEET-REFLECTOR;21Y_Q90A_65INCH_ |
| BN61-17996A | OPTICAL SHEET-REFLECTOR;21Y_Q90A_65INCH_ |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| BN95-07325A | PRODUCT LCD-BOE;CY-TA065FMEV1H,QAQN85K,B |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-000946 | R-CHIP;47OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOCON-ECO SMART CONTROL;2021 TV,SAMSUN |
| 6001-002912 | SCREW-MACHINE;CH,+,M3,L3,ZPC(BLK),SWRCH1 |
| 6001-002903 | SCREW-MACHINE;CH,+,M3,L8,ZPC(BLK),SWRCH1 |
| 6001-003424 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L2,M3,CH |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;CH,+,B,M3,L6,ZPC(BLK),SWRC |
| 3601-001374 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-005057 | SMG PART |
| 2203-002687 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000236 | SMG PART |
| 2203-000233 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007538 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007134 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003164 | SMG PART |
| 0201-003279 | SMG PART |
| 0201-003554 | SMG PART |
| 0201-003555 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001976 | SMG PART |
| 0202-002133 | SMG PART |
| 0203-001085 | SMG PART |
| 0203-006894 | SMG PART |
| 0203-007085 | SMG PART |
| 0203-007235 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 0601-003898 | SMG PART |
| 1003-003201 | SMG PART |
| 1103-001584 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005781 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003394 | SMG PART |
| 6902-003503 | SMG PART |
| 6902-003608 | SMG PART |
| 6902-003624 | SMG PART |
| 6922-000421 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00074G | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00595A | SMG PART |
| BN41-02838B | SMG PART |
| BN41-02839B | SMG PART |
| BN41-02855A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01531A | SMG PART |
| BN46-01551A | SMG PART |
| BN60-01459A | SMG PART |
| BN60-01661A | SMG PART |
| BN60-01662A | SMG PART |
| BN60-01684A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13557X | SMG PART |
| BN61-15737C | SMG PART |
| BN61-17168A | SMG PART |
| BN61-17594A | SMG PART |
| BN61-17595A | SMG PART |
| BN61-17596A | SMG PART |
| BN61-17604A | SMG PART |
| BN61-17740A | SMG PART |
| BN61-17823A | SMG PART |
| BN61-17865A | SMG PART |
| BN61-17922A | SMG PART |
| BN63-17244E | SMG PART |
| BN63-18587E | SMG PART |
| BN63-19298A | SMG PART |
| BN63-19301A | SMG PART |
| BN63-19329A | SMG PART |
| BN63-19610A | SMG PART |
| BN63-19618A | SMG PART |
| BN63-19619A | SMG PART |
| BN63-19677A | SMG PART |
| BN64-04532A | SMG PART |
| BN64-04535A | SMG PART |
| BN64-04552A | SMG PART |
| BN67-00459A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-08112A | SMG PART |
| BN68-09258B | SMG PART |
| BN68-09371B | SMG PART |
| BN68-10628A | SMG PART |
| BN68-11568A | SMG PART |
| BN68-11588A | SMG PART |
| BN68-11638A | SMG PART |
| BN68-12940A | SMG PART |
| BN68-12979A | SMG PART |
| BN69-17053Q | SMG PART |
| BN69-21890A | SMG PART |
| BN69-21901A | SMG PART |
| BN69-21904A | SMG PART |
| BN69-22118A | SMG PART |
| BN69-22119A | SMG PART |
| BN69-22276D | SMG PART |
| BN74-00053G | SMG PART |
| BN81-01918A | SMG PART |
| BN81-08159Z | SMG PART |
| BN81-20467C | SMG PART |
| BN81-20519A | SMG PART |
| BN81-20521A | SMG PART |
| BN81-20725A | SMG PART |
| BN81-20726A | SMG PART |
| BN81-21023A | SMG PART |
| BN90-12017B | SMG PART |
| BN90-12059K | SMG PART |
| BN90-12060C | SMG PART |
| BN90-12091M | SMG PART |
| BN91-23178V | SMG PART |
| BN91-23268D | SMG PART |
| BN92-29910Q | SMG PART |
| BN92-29911B | SMG PART |
| BN92-29913G | SMG PART |
| BN92-30159W | SMG PART |
| BN96-49315B | SMG PART |
| BN96-51422A | SMG PART |
| BN96-52914A | SMG PART |
| BN96-52919A | SMG PART |
| BN96-53503Y | SMG PART |
| BN97-00048P | SMG PART |
| BN97-18043A | SMG PART |
| BN97-18044A | SMG PART |
| BN97-18127A | SMG PART |
| BN97-18249A | SMG PART |
| BN97-18268A | SMG PART |
| BN97-18269A | SMG PART |
| BN97-18291A | SMG PART |
| BN97-18870A | SMG PART |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
