Model Image
Manufacturer

Samsung

Model Number

QN75Q7DAAFXZA

Description

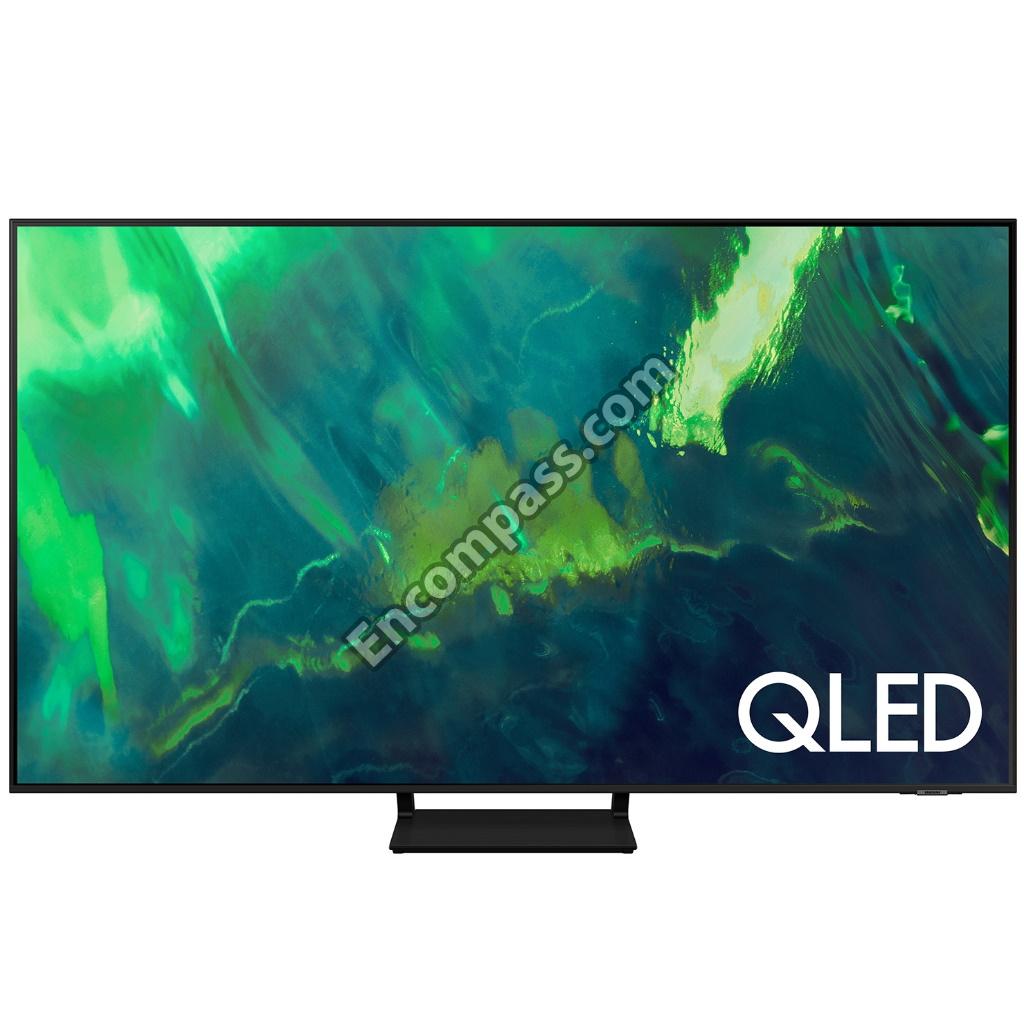

75 Inch Q7da Qled 4k Smart Tv

Interactive Exploded View

Parts List

Part Number Description
BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC SPEC-C
BN81-20467N A/S PART SET-MECH W/I;QAQ70F,Q75AF*
BN81-21651A A/S-FPC;FPC,39TL200000002F,ST7461D01-D,S
BN81-18885A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33
BN81-21652A A/S-POLARIZER-C/F;POLARIZER-C/F,3130703Z
BN81-19961A A/S-POLARIZER-TFT;POLARIZER-TFT,31307040
BN96-53566D ASSY ACCESSORY MANUAL CABLE;QAQ70F
BN96-49315B ASSY ACCESSORY-SCREW;65QAQN90D,ALL,W/W,R
BN92-30183M ASSY ACCESSORY;QAQ70F
BN90-12004K ASSY BACK LIGHT UNIT;QAQ70F
BN92-30128R ASSY BOX;QAQ70F
BN96-52849A ASSY CHASSIS FRONT P-BOTTOM;75QAQ60G,PC+
BN96-52784A ASSY CHASSIS FRONT P;75QAQ70F,PC+ABS+ED1
BN96-52842C ASSY CHASSIS REAR P;75QAQ70F,EGI-SECC
BN91-23205M ASSY CHASSIS;QAQ70F
BN96-52862A ASSY COVER P-DECORATION;75QAQ60G,PC+ABS+
BN96-53051L ASSY COVER P-REAR;75QAQ60G,PC+ABS+ED20%,
BN90-12086J ASSY COVER REAR;QAQ70F
BN97-18249A ASSY DRM;NIKE-M2 BUILT-IN,ATSC,NAGSAM, M
BN92-29955G ASSY LABEL;QAQ70F
BN96-52601A ASSY LED BAR P;21Y Q70A,ALUMINUM
BN97-18269A ASSY MICOM;NIKE-M2 BUILT-IN TCON FW
BN97-18268A ASSY MICOM;NMMICOM_INTV,QAQN85K,1107-002
BN97-18298A ASSY MICOM;Q70A,A_NKM2_BNCOMMNAA_COMMON
BN97-18868A ASSY MICOM;T-NKM2AKUC,1107-002590(IC701)
BN92-29959D ASSY P/MATERIAL;QAQ70F
BN96-49889Z ASSY PACKING P-CUSHION SET;Y20
BN96-51422Z ASSY PACKING P-PAD;Y20
BN94-16842N BN94-16842N ASSY PCB MAIN;QAQ70F
BN91-23208D ASSY SHIELD;QAQ70F
BN97-18193T ASSY SMD;QAQ70F
BN96-52483D BN96-52483D ASSY SPEAKER P-FRONT;TV-SPK,75Q60A,2CH,6
BN96-53111A ASSY STAND P-COVER DECORATION;75QAQ60G,A
BN96-53108A ASSY STAND P-COVER TOP LEFT;75AU9000A,PP
BN96-53109A ASSY STAND P-COVER TOP RIGHT;75AU9000A,P
BN90-12085M ASSY STAND;QAQ70F
BN90-12083L ASSY W/I;QAQ70F
6902-003549 BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W
6902-003516 BAG ACCESSORY;LDPE,T0.06,W400,L350,TRP,R
6902-003503 BAG ACCESSORY;LDPE,T0.07,W480,L300,TRP,R
6902-003608 BAG SCREW;LDPE,T0.06,W60,L80,TRP,RECYCLE
6922-000421 BAND;PP,T0.8,W18,L2300,TRP,RECYCLED PIR_
6922-000001 BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50%
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
BN69-21881C BOX UNIT-IN;75AU9000,CB,DW1,C1,L2148,W50
BN69-22252E BOX UNIT-OUT;75QAQ70F,CB,DW4,F3,L1819,W1
BN61-17499A BRACKET-LED PCB;75QAQ70F,AL,T3,NATURAL,E
BN61-13312B BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3,
BN61-17715A BRACKET-STAND BOTTOM;75AU9000A,HGI,T2,NA
BN61-13521A BRACKET-WALL;32K5500,CR-SPCC,T1.2,NATURA
BN61-11982B BRACKET-WALL;65MU8000,CR-SPCC,NATURAL,M8
BN61-13557E BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI
BN61-13557R BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L25
BN61-13557M BRACKET-WIRE;75QM7000,SW-C,T1,SILVER,ZIN
BN61-13557P BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T
2203-007176 C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007423 C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-008096 C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1.
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-005642 C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-008412 C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1.
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343
BN64-04504A CHASSIS-FRONT BOTTOM;75QAQ60G,PC+GF10%,V
BN64-04524A CHASSIS-FRONT;75QAQ70F,PC+ABS+ED18%,V-0,
BN64-04516A CHASSIS-REAR;75QAQ60G,EGI-SECC,T1,NATURA
3708-003241 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU
3708-003355 3708-003355 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM
3701-002024 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3707-001143 CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2
BN63-19290A COVER-DECORATION;75QAQ60G,PC+ABS+ED18%,V
BN63-19280F COVER-REAR;75QAQ60G,PC+ABS+ED20%,V-0,BK0
BN63-19407A COVER-STAND DECORATION;75QAQ60G,ABS,HB,B
BN63-19415A COVER-STAND TOP LEFT;75AU9000A,PP+GF40%,
BN63-19402A COVER-STAND TOP RIGHT;75AU9000A,PP+GF40%
BN63-19384A COVER-TERMINAL SIDE;65QAQ70F,PC+ABS,V-0,
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
BN69-21926A CUSHION-SET SIDE;75QAQ70F,EPS,16.7G/L,WH
BN69-21914A CUSHION-SET;75QAQ70F,EPS,16.7G/L,WHITE,S

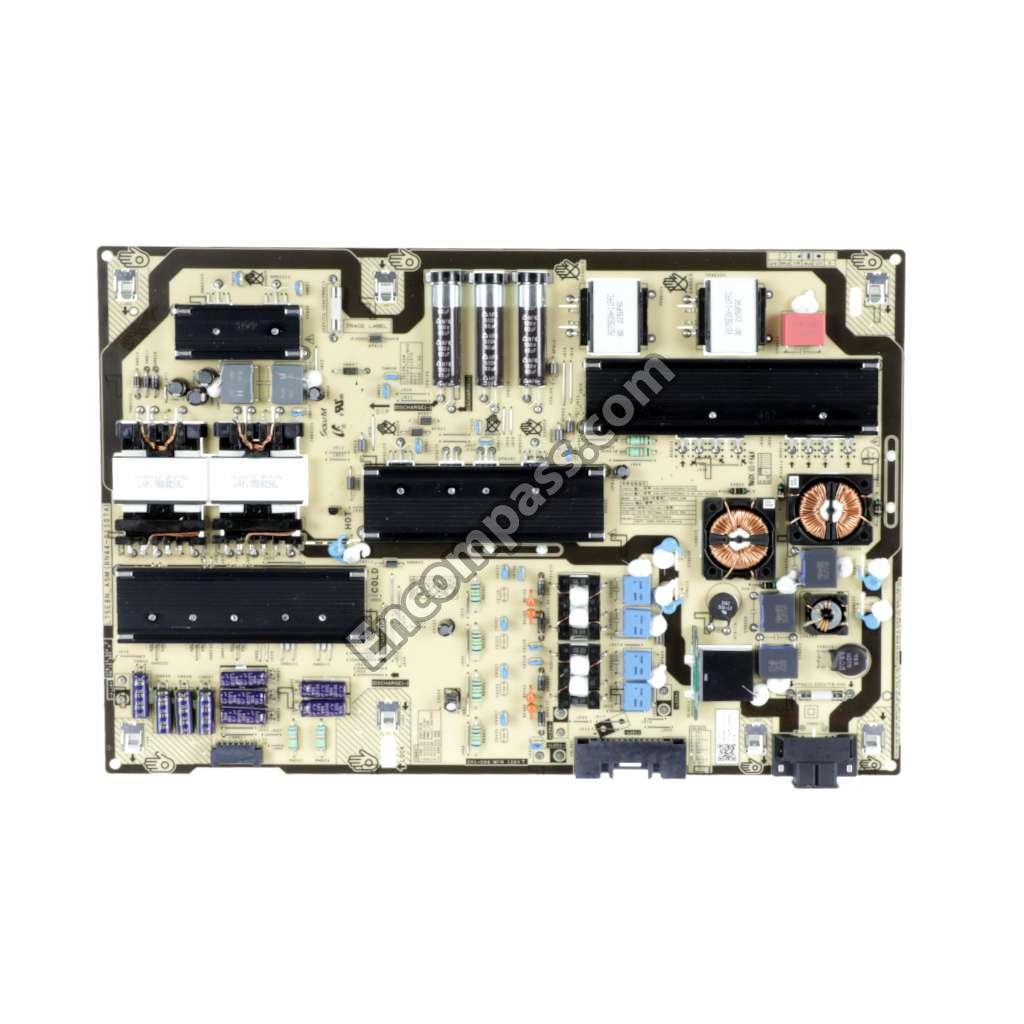

BN44-01107A BN44-01107A DC VSS-PD BOARD;L75E8N_ASM,AC/DC,319.4W,
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001976 DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO
0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD
0403-001779 DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M
0403-002067 DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30
0204-006855 ETHANOL;CS-E-14,GRAVITY 0.8,DENSITY 1.59
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1
0505-003620 FET-SILICON;AOD4286,N,100V,14A,55.5MOHM,
0505-003752 FET-SILICON;AONR21321,P,30V,50A,0.035OHM
0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
BN96-52806A FFC;75Q60A,FOLD,L750,24P

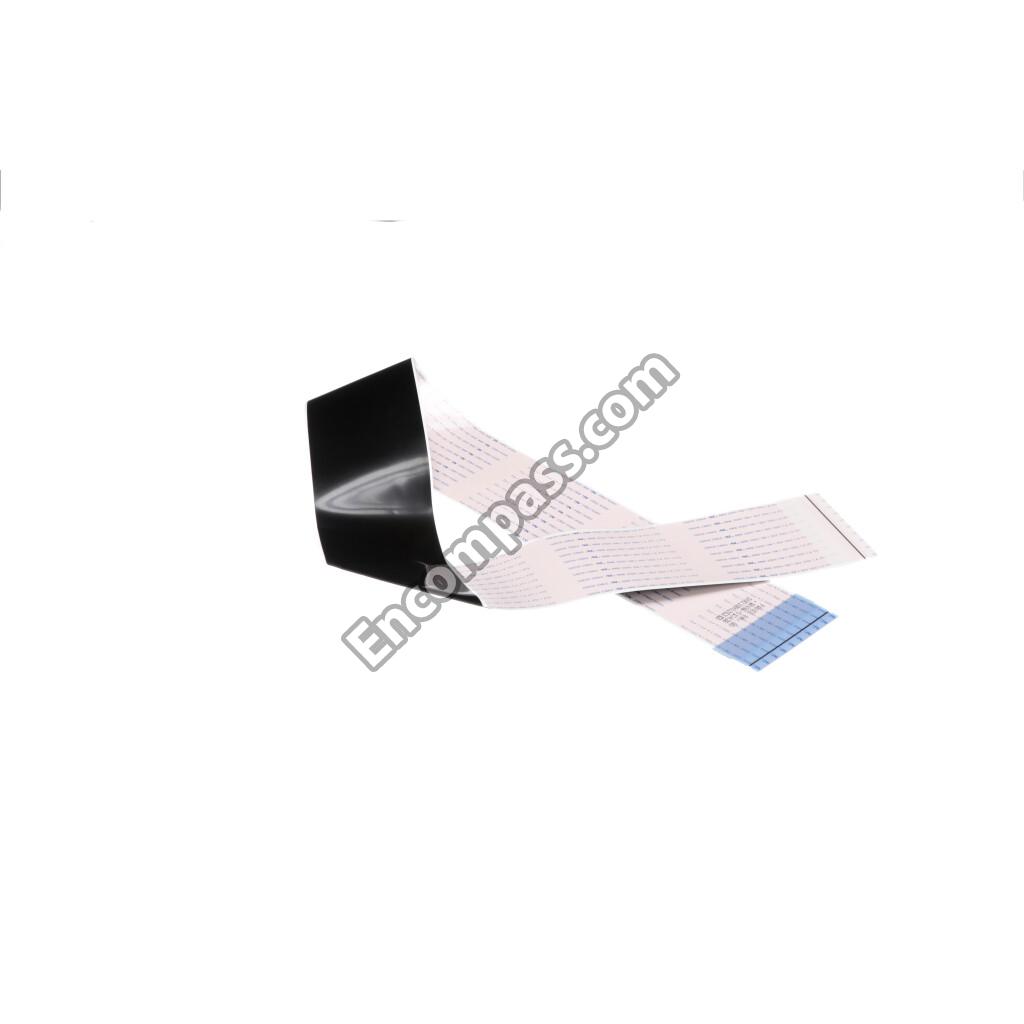

BN96-51342B BN96-51342B FFC;QN75Q70AAFXZA,FOLD,L600,96P
BN61-13520D FOOT-RUBBER;40K5500,SI,GRAY,T3
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN63-00520A GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L
6302-001376 GASKET-SMD;SMT GASKET,SI,T6,W4.5,L2.5,SI
3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN62-00874A HEAT SINK-PS;QN65Q70RAFXZA,A1050,T1.5,W1
BN61-17485A HOLDER-LGP BOTTOM LEFT;70QAQ60G,PC+ABS,G
BN61-17487A HOLDER-LGP BOTTOM RIGHT;70QAQ60G,PC+ABS,
BN61-17488B HOLDER-LGP TOP LEFT;70QAQ60G,PC+ABS,GY02
BN61-17489B HOLDER-LGP TOP RIGHT;70QAQ60G,PC+ABS,GY0
BN61-17922A HOLDER-REAR;65QAQ60G,PC+GF10%,BLACK,V-2,
BN61-17482A HOLDER-SHEET;65QAQ60G,STS304,T0.2,NATURA
1201-004170 IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6
1203-009312 IC-DC/DC CONVERTER;SYD105I,TSOT23-6,6P,2
1203-009193 IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6
1203-009369 IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4
1203-009367 IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X
1105-002925 IC-DDR4 SDRAM;H9HCNNN8KUMLHR,LPDDR4-SDRA
1105-003132 IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P
1204-003823 IC-DECODER;QUANTUM PROCESSOR III,TR,31X3
1006-001595 IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1
1103-001584 IC-EEPROM;M24512-DFMN6TP,512KBIT,64K X 8
1107-002590 IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-004258 IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA
1203-009186 IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1203-009188 IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1.
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-005780 INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937 INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-005781 INDUCTOR-SMD;220NH,20%,7876,T2.9,0.00176
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
BN63-19570A INSULATOR-SMPS;75QAQ60G,PC,BLACK,L257,W3
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003813 JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL
BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2)
BN46-01531A KEY CODE;NIKE-M2,NAGRA CSC DATA,T-NKM2AK
BH68-00697A LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9
BN68-04746A LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER,
BN68-05595A LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W
BN68-02422B LABEL WARNING;ALL,ART,T0.05,W240,L100,WH
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W
BN68-12168A LABEL-ENERGY;QN75Q7DAAFXZA,ZA,PET,T0.1,W
BN68-06708G LABEL-RATING;ALL,WW,PP,T0.1,W93,L73,DARK
BN68-08112A LABEL-SECURITY;ALL,PET,T0.05,W55,L52,GLO
BN68-05381A LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI
BN68-09671A LABEL;Q70,ART,W15,L50,GREEN
BN39-02676A LEAD CONNECTOR-BLU;75Q60A,UL21016,12P,L1
BN39-02217L LEAD CONNECTOR-POWER;QN65Q70AAFXZA,UL210
BN68-12816A LEAFLET-PROMOTION;Y21 USA TV (CLUB),ZA,S
BN68-12880B LEAFLET-QUICK SETUP GUIDE;QAQ70F_75 85,Z
BN68-09371B LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-11568A LEAFLET-REMOTE CONTROL;QLED, LS03,ZA,MOJ
BN68-10628A LEAFLET-WARRANTY;QT/UT,ZA,MOJO,1 COLOR,1
BN61-17766A LGP;21Y_Q70Q60A_75INCH_LGP,PMMA,T2.5
BN68-12940A MANUAL USERS;QN90A (98),ZA,NORTH AMERICA
BN59-01362A BN59-01362A NETWORK-WLAN CLIENT;WCA731M,90.83X20.94X
BN61-17764A OPTICAL SHEET-COMPLEX;21Y_Q70Q60A_75INCH
BN61-18291A OPTICAL SHEET-HIGH COLOR;21Y_Q70Q60A_75I
BN61-17767A OPTICAL SHEET-REFLECTOR;21Y_Q70Q60A_75IN
BN69-17053P PACKING ANGLE;ALL,PAPER,T3,W2200,L50,YEL
BN69-22256A PAD-AIR CUSHION;75QAQ60G,LDPE,T0.2,W840,
BN69-22276F PAD-SHEET;75QAQ60G,PET,T3.2,W70,L936,WHI
BN41-02855A PCB-MAIN;NIKE-M2 BUILT-IN,FR-4,4L,T1.6,1
3903-001295 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L2400
BN95-07295K PRODUCT LCD-CSOT;CY-QA075FGHV7H/V,QAQ70F
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-008779 R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-007520 R-CHIP;20OHM,1%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000929 R-CHIP;470OHM,1%,1/10W,TP,1608
2007-000946 R-CHIP;47OHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-001007 R-CHIP;51KOHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
BN59-01357F BN59-01357F REMOCON-ECO SMART CONTROL;2021 TV,SAMSUN
BN46-01558A S/W;Q70A_A_NKM2_COMMON,Q70A,Q70A
6003-001907 6003-001907 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR
6003-001001 6003-001001 SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SW
6003-001347 SCREW-TAPTYPE;FH,+,B,M4,L16,ZPC(WHT),SWR
BN63-19568C SHEET-PROTECTION COVER;65QAQ60G,PO,T0.05
BN63-19568B SHEET-PROTECTION COVER;65QAQ60G,PO,T0.05
BN63-19568A SHEET-PROTECTION COVER;Y21-Q60A,PO,T0.05
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
BN60-01656A SPACER-CONDUCTIVE;CONDUCTIVE FABRIC/PU F
BN60-01661A SPACER-FABRIC;CONDUCTIVE FABRIC,L20,GRAY
BN60-01671C SPACER-FOAM;70QAQ60G,HR FOAM,L1000,GRAY,
BN60-00162X SPACER-FOAM;PE FOAM,L50M,GRAY,T1,W15
0203-007142 TAPE-DOUBLE FACE;ACRYL,T0.2,W4.5,N/A,WHI
0203-007235 TAPE-DOUBLE FACE;PU FOAM,T1.4,W3.2,N/A,B
BN02-00102K TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL
BN02-00319B TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE
BN02-00102B TAPE-SINGLE FACE;OPP,T0.15,W25,L50M,WHIT
BN74-00053G TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10,
0203-007085 TAPE-SINGLE FACE;PET,T0.05,W20,L100M,CLE
0203-007086 TAPE-SINGLE FACE;PET,T0.05,W6,L50M,BLACK
1404-001731 THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
BN40-00329A BN40-00329A TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF,
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001185 VARISTOR;500V,24VDC,1608,TP,150V,0.055PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
BH69-00418A WRAP;762,1828M,SAMEX FACTORY
Main Menu x
