Manufacturer
Samsung
Model Number
QN75QN800BFXZA
Description
75-inch Class Qn800b Neo Qled 8k Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-08159Z | A/S PART SET-ELEC W/I;LED TV ELEC SPEC-C |
| BN81-20474C | A/S PART SET-MECH W/I;QN800BB,Q75BL* |
| BN81-22365A | A/S-AL CAP_SVC;AL-CAP,277404775CHF, SAMY |
| BN81-21246A | A/S-ASSY PCB-SOURCE(B-L);ASSY PCB-SOURCE |
| BN81-21247A | A/S-ASSY PCB-SOURCE(B-R);ASSY PCB-SOURCE |
| BN81-21244A | A/S-ASSY PCB-SOURCE(F-L);ASSY PCB-SOURCE |
| BN81-21245A | A/S-ASSY PCB-SOURCE(F-R);ASSY PCB-SOURCE |
| BN81-20624A | A/S-FPC;FPC,39TL200000002N,ST7461E03-1,S |
| BN81-20619A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33 |
| BN81-20625A | A/S-POLARIZER-C/F;POLARIZER-C/F,313070Q3 |
| BN81-20626A | A/S-POLARIZER-TFT;POLARIZER-TFT,313070GD |
| 0201-003279 | ADHESIVE-AA;UPUV,CLEAR |
| 0201-003555 | ADHESIVE-SILICON;A,CLEAR |
| 0201-003554 | ADHESIVE-SILICON;B,CLEAR |
| 0201-003543 | ADHESIVE-STR;FH7028,GREEN,30,000~60,000M |
| 0201-003745 | ADHESIVE-STR;T9100,GREEN,30,000~60,000MP |
| 0201-003164 | ADHESIVE-UV;190024,CLEAR,UV, ACRYLIC |
| BN96-55496V | ASSY ACCESSORY MANUAL CABLE;QN800BB |
| BN96-49314B | ASSY ACCESSORY-SCREW;65QAQN900A,ALL,W/W, |
| BN92-30977S | ASSY ACCESSORY;QN800BB |
| BN90-12343X | ASSY BACK LIGHT UNIT;QN800BB |
| BN92-30970M | ASSY BOX;QN800BB |
| BN96-54643A | ASSY CHASSIS FRONT P;75QN800BB,STS430 |
| BN96-54636G | ASSY CHASSIS REAR P;75QN800BB,EGI-SECC,C |
| BN91-23936V | ASSY CHASSIS;QN800BB |
| BN96-54897B | ASSY COVER P-OC BOTTOM;65QN900BA,PC,V-0, |
| BN96-54898A | ASSY COVER P-OC CABLE;65QN900BA,PC+ABS,V |
| BN96-54896A | ASSY COVER P-OC TOP;65QN900BA,PC+ABS,V-0 |
| BN96-54425F | ASSY COVER P-REAR;75QN800BB,PC+GF30%,V-0 |
| BN90-12419Q | ASSY COVER REAR;QN800BB |
| BN97-19472A | ASSY DRM;OSCAR-P OC,ATSC3.0(US),NAGSAM, |
| BN96-52760A | ASSY FRAME P-MIDDLE BOTTOM;75QAQN800B,PC |
| BN96-52767A | ASSY FRAME P-MIDDLE LEFT RIGHT;75QAQN800 |
| BN96-52766A | ASSY FRAME P-MIDDLE TOP;75QAQN800B,PC+GF |
| BN96-53284F | ASSY HOLDER P-OC CABLE;65QN900BA,ABS,TP0 |
| BN96-53283A | ASSY HOLDER P-RING;65QAQN900A,ABS,BK0007 |
| BN92-30973K | ASSY LABEL;QN800BB |
| BN95-09225A | ASSY LED BAR-Q900B 75 P-IC S.LSI FAB;QT |
| BN97-19434A | ASSY MICOM;75S1ZE8TB,75Q800 CSOT |
| BN97-19480A | ASSY MICOM;HDMI SW,1107-002226(IC902) |
| BN97-19477A | ASSY MICOM;OPBMICOM_OCJP,QNQ800BB,1107-0 |
| BN97-19427A | ASSY MICOM;OPBMICOM_OCTV,QNQ800BB,1107-0 |
| BN97-19374B | ASSY MICOM;Q900B,Q800B,1107-002779,BN94- |
| BN97-19428A | ASSY MICOM;T-OCPAKUC,ASSY MICOM_MAIN,QNQ |
| BN91-23939K | ASSY ONE CONNECT;QN800BB |
| BN91-23123C | ASSY OPEN CELL-DECORATION;BN63-18505B,Y2 |
| BN92-30976K | ASSY P/MATERIAL;QN800BB |
| BN96-53633E | ASSY PACKING P-CUSHION SET;Y21 |
| BN94-17422E | ASSY PCB MAIN SUBCON;Q900B,Q800B,8K 75"8 |
| BN94-17446B | ASSY PCB MAIN;QN800BB |
| BN94-17444M | ASSY PCB MAIN;QN800BB |
| BN94-17445D | ASSY PCB OC;QN800BB |
| BN91-23940B | ASSY SHIELD;QN800BB |
| BN97-19970A | ASSY SMD BIN-Q900B 75 P-IC S.LSI FAB;QT |
| BN97-19395P | ASSY SMD BOTTOM;QN800BB |
| BN97-19395D | ASSY SMD BOTTOM;QN800BB |
| BN97-19395B | ASSY SMD BOTTOM;QN800BB |
| BN97-19664C | ASSY SMD TOP;QN800BB |
| BN97-19397X | ASSY SMD TOP;QN800BB |
| BN97-19397A | ASSY SMD TOP;QN800BB |
| BN97-20146A | ASSY SMD;Q900B,Q800B,Y22_8K_75_AM_LED_7A |
|
|
ASSY SPEAKER P-FRONT;TV-SPK,75QN95BC,4.2 |
| BN96-54895A | ASSY STAND P-COVER NECK;75QN900BA,HGI,NA |
| BN96-53203J | ASSY STAND P-COVER TOP;75QN800BB,HGI,SAN |
| BN96-53200C | ASSY STAND P-GUIDE;65QN900BA,PP+GF40%,BK |
| BN90-12416A | ASSY STAND;QN800BB |
| BN90-12415B | ASSY W/I;QN800BB |
| 6902-003817 | BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W |
| 6902-003816 | BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W |
| 6902-003798 | BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W |
| 6902-003557 | BAG ACCESSORY;LDPE,T0.06,W180,L240,TRP,R |
| 6902-003625 | BAG ACCESSORY;LDPE,T0.06,W80,L80,TRP,REC |
| 6902-003541 | BAG ACCESSORY;LDPE,T0.07,W400,L500,TRP,R |
| 6902-003503 | BAG ACCESSORY;LDPE,T0.07,W480,L300,TRP,R |
| 6902-003876 | BAG ROLL;HDPE/PE FOAM,HDPE/PE FOAM/HDPE, |
| 6902-003626 | BAG SCREW;LDPE,T0.06,W60,L80,TRP,RECYCLE |
| 6922-000421 | BAND;PP,T0.8,W18,L2300,TRP,RECYCLED PIR_ |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN69-22163B | BOX UNIT-IN;75QAQN800B,CB,DW1,C1,L2194,W |
| BN69-23497A | BOX UNIT-OUT;75QN800BB,CB,DW4,F3,L1857,W |
| BN61-16777A | BRACKET-PUSH PIN GUIDE;65QTQ950SA,SK5,T0 |
| BN61-17656A | BRACKET-STAND LINK;65QAQN900A,SUM24L,BLA |
| BN61-17543A | BRACKET-STAND NECK LEFT;65QAQN900A,HGI,T |
| BN61-17540A | BRACKET-STAND NECK RIGHT;65QAQN900A,HGI, |
| BN61-18352A | BRACKET-STAND NECK;75QN900BA,HGI,T4,NATU |
| BN61-17284A | BRACKET-WALL;65QAQN900A,CR-SPCC,BLACK,M8 |
| BN61-15737B | BRACKET-WALL;65QAQN900A,CR-SPCC,T1,BLACK |
| BN61-13557Z | BRACKET-WIRE;27ST77Q,SW-C,T1,SILVER,L162 |
| BN61-13557X | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006399 | C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5 |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,55 |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006378 | C-CER,CHIP;4.7UF,10%,6.3V,X5R,TP,1608,5 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001213 | C-ORGANIC,SMD;150UF,20%,6.3V,TP,3.5X2.8X |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| BN64-04545B | CHASSIS-FRONT;75QN800BB,STS430,T0.8,STAI |
| BN64-04557A | CHASSIS-REAR;75QAQN900A,EGI-SECC,T1,NATU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3708-003356 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,30P,0.5MM |
| 3708-003217 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009538 | CONNECTOR-HEADER;BOX,16P,2R,2MM,ANGLE,SN |
| 3707-001143 | CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2 |
| 3710-004473 | CONNECTOR-SOCKET;34P,2R,0.8MM,SMD-A,AU,B |
| 3710-004474 | CONNECTOR-SOCKET;35P,1R,0.8MM,SMD-A,AU,B |
| BN63-18505B | COVER-DECORATION;75QAQN800B,STS430J1L,T0 |
| BN63-19973B | COVER-OC BOTTOM;65QN900BA,PC,V-0,TP0116, |
| BN63-19974A | COVER-OC CABLE;65QN900BA,PC+ABS,V-0,BK00 |
| BN63-19972A | COVER-OC TOP;65QN900BA,PC+ABS,V-0,BK0008 |
| BN63-19362G | COVER-REAR;75QN800BB,PC+GF30%,T0.8,V-0,B |
| BN63-19962A | COVER-STAND NECK FRONT;65QN900BA,ABS,HB, |
| BN63-19963A | COVER-STAND NECK REAR;65QN900BA,ABS,HB,B |
| BN63-19326E | COVER-STAND TOP;75QN800BB,HGI,T5,NATURAL |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-005372 | CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12PF |
| 2801-004938 | CRYSTAL-SMD;24MHZ,20PPM,12PF,60OHM,20PPM |
| 2801-004678 | CRYSTAL-SMD;25MHZ,30PPM,18PF,25OHM,TP |
| 2801-005504 | CRYSTAL-SMD;26MHZ,7PPM,SMD,11.1PF,30OHM, |
| BN63-19070A | CUSHION RUBBER;Q950ST,SI,T5,W10,L25,LIGH |
| BN69-23020A | CUSHION-SET SIDE;75QN800BB,EPS,16.7G/L,W |
| BN69-23023A | CUSHION-SET;75QN800BB,EPS,16.7G/L,WHITE |
| BN44-01173A | DC VSS-DRIVER BOARD;L75SB9NB_BHS,DC/DC,1 |
| BN44-01176A | DC VSS-POWER BOARD;P65SB9N_BHS,AC/DC,479 |
| BN61-17835A | DIFFUSER PLATE;21Y_Q800A_75INCH_DP,PMMA, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0407-000112 | DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T |
| 0406-001886 | DIODE-TVS;AZ1123-04F,5V,DFN2510,65W,TR |
| 0406-001823 | DIODE-TVS;PJUSB208,85V,0.1MAV,0.715VPA,2 |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001317 | DIODE-TVS;SMAJ14A,15.6V,17.2V,1MAV,6.5VP |
| 0406-001438 | DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001783 | DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO |
| 0403-002014 | DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD |
| 0403-000489 | DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-001089 | FET-SILICON;AO3409L,P,30V,2.6A,0.097/0 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8 |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-003732 | FET-SILICON;MMFTN123K,N,100V,0.19A,10OHM |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|

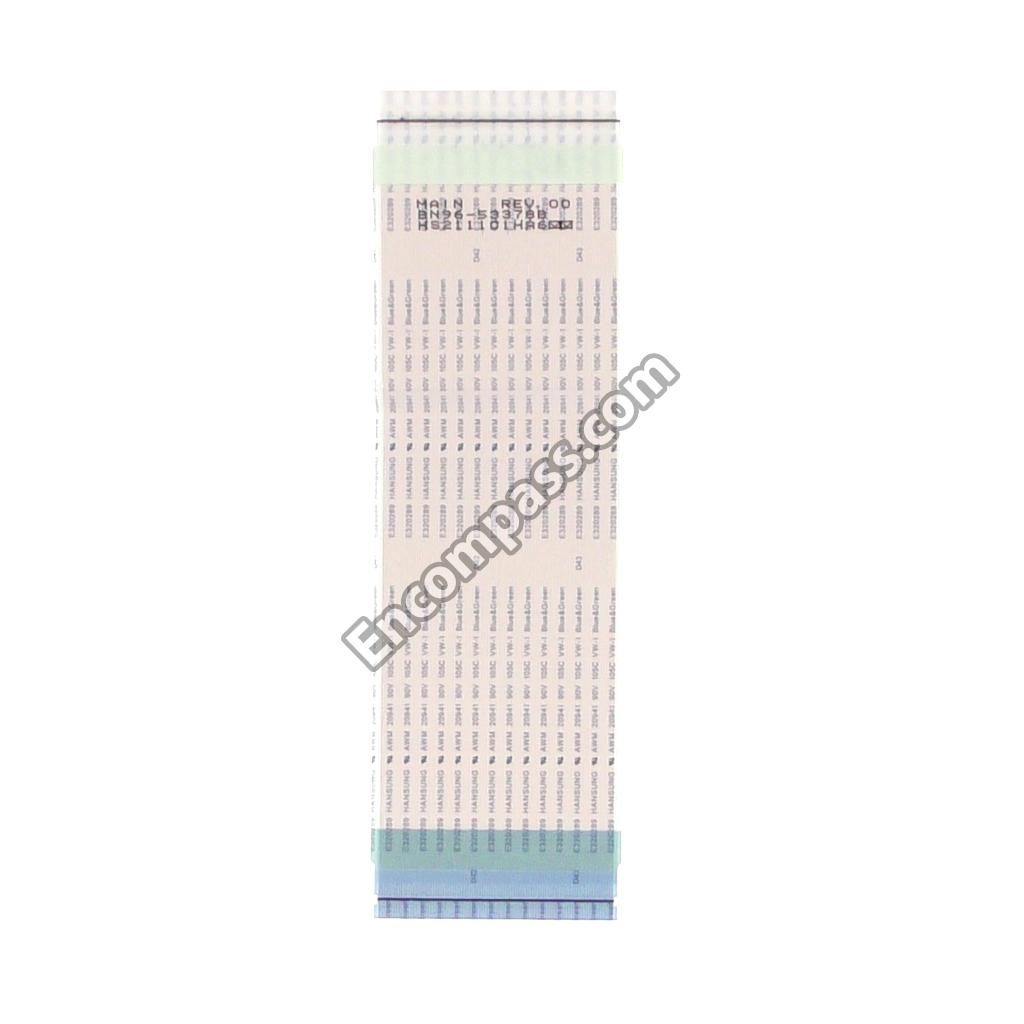

FFC;65QN800A, 75QN800A,WRINKLE,L170,96P, |
| BN96-54900A | FFC;QE75QN800BTXXH,FOLD,L275,24P,MAIN ~ |
| BN96-55506A | FFC;QN800B 75,STRAIGHT,L150,68P,DCDC TO |
|
|

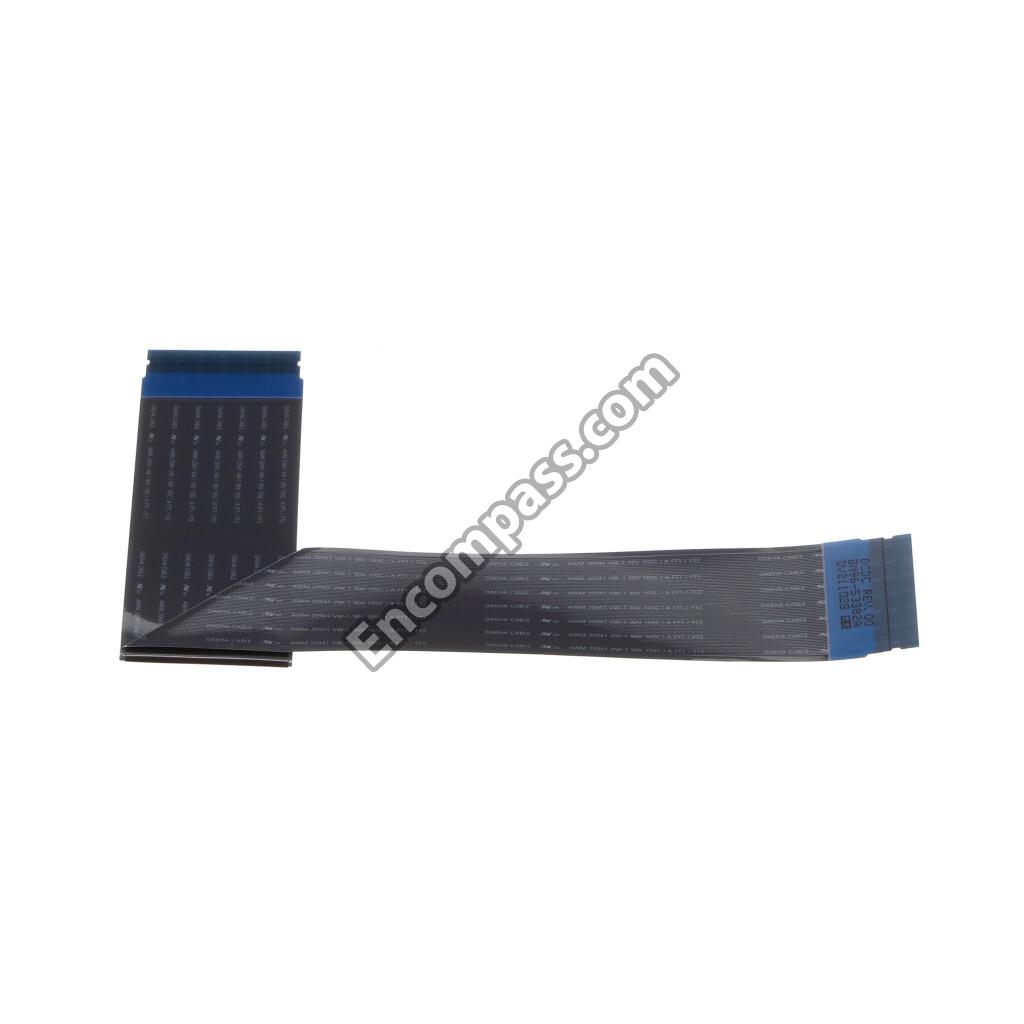

FFC;QN900A/800A,FOLD,L300,68P,BLACK FFC |
| BN96-53274A | FFC;QN900A/800A,FOLD,L440,68P |
| BN96-53377A | FFC;QN900A/800A,FOLD,L950,30P |
| BN96-54765A | FFC;QN900B 75,FOLD,L310,68P,LED- DRIVER |
| BN96-54766A | FFC;QN900B 75,FOLD,L450,68P,LED- DRIVER |
| BN96-54781A | FFC;QN900B 75,FOLD,L510,68P,LED- DRIVER |
| BN96-54771A | FFC;QN900B 75,FOLD,L510,68P,LED- DRIVER |
| BN96-54769A | FFC;QN900B 75,FOLD,L570,68P,LED- DRIVER |
| BN96-54767A | FFC;QN900B 75,FOLD,L730,68P,LED- DRIVER |
| BN96-54780A | FFC;QN900B 75,FOLD,L800,68P,LED- DRIVER |
| BN96-54772A | FFC;QN900B 75,FOLD,L800,68P,LED- DRIVER |
| BN96-54768A | FFC;QN900B 75,FOLD,L860,68P,LED- DRIVER |
| BN96-54770A | FFC;QN900B 75,FOLD,L990,68P,LED- DRIVER |
| BN67-00459A | FOOT-RUBBER;STAND,RUBBER,GRAY,T2 |
| BN61-17686A | FRAME-CHASSIS REAR BOTTOM;75QAQN800B,PC+ |
| BN61-17688A | FRAME-CHASSIS REAR LEFT RIGHT;75QAQN800B |
| BN61-17685A | FRAME-CHASSIS REAR TOP;75QAQN800B,PC+GF1 |
| BN61-17689A | FRAME-MIDDLE BOTTOM;75QAQN800B,PC+GF10%, |
| BN61-17690A | FRAME-MIDDLE LEFT RIGHT;75QAQN800B,PC+GF |
| BN61-17687A | FRAME-MIDDLE TOP;75QAQN800B,PC+GF10%,V-2 |
| BN61-17610B | FRAME-REAR BOTTOM;75QAQN800B,PC+GF10%,V- |
| BN61-17619A | FRAME-REAR CENTER LEFT;75QAQN900A,PC+GF1 |
| BN61-17627A | FRAME-REAR CENTER RIGHT;75QAQN900A,PC+GF |
| BN61-17613B | FRAME-REAR LEFT;75QAQN800B,PC+GF10%,V-2, |
| BN61-17623A | FRAME-REAR MIDDLE LEFT;75QAQN900A,PC+GF1 |
| BN61-17629A | FRAME-REAR MIDDLE RIGHT;75QAQN900A,PC+GF |
| BN61-18353A | FRAME-REAR OC;65QN900BA,PC+GF10%,V-2,BK0 |
| BN61-17617B | FRAME-REAR RIGHT;75QAQN800B,PC+GF10%,V-2 |
| BN61-17608B | FRAME-REAR TOP;75QAQN800B,PC+GF10%,V-2,B |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| BN63-19161A | GASKET-EMI;QN65Q950STPVZA,FABRIC,T0.13,W |
| BN63-20221A | GASKET-EMI;QN800B,FABRIC,T11,W10,L135,GR |
| BN63-20263A | GASKET-EMI;QN800B,FABRIC,T4,W8,L8,BLACK, |
| 6302-001232 | GASKET-EMI;SMT GASKET,FABRIC,T3.5,W4,L3, |
| BN61-17542B | GUIDE-STAND;65QN900BA,PP+GF40%,HB,BK0020 |
| 3711-009653 | HEADER-BOARD TO CABLE;TP,STRAIGHT,2R,24P |
| BN62-00969A | HEAT SINK-HEAT PIPE MODULE;QN900B/QN800B |
| BN62-00928A | HEAT SINK-PS;QN900A/800A,AL,W100,L110,BL |
| BN61-17814A | HOLDER-BOLT;65QAQN900A,SWRCH18A,BLACK,FH |
| BN61-14713B | HOLDER-COVER;65QAQN900A,SI,BLACK,HS80-> |
| BN61-16910A | HOLDER-OC CABLE JACK;65QTQ950SA,PA66,BLA |
| BN61-17632A | HOLDER-OC CABLE;65QAQN900A,ABS,BK0007,HB |
| BN61-17730A | HOLDER-SOURCE PCB;65QAQN800B,PC+GF10%,WT |
| BN61-17813A | HOLDER-WALL RING;65QAQN900A,ABS,BK0007,H |
| 1001-002118 | IC-ANALOG MULTIPLEX;TMUX1308QDYYRQ1,16P, |
| 1201-004306 | IC-AUDIO AMP;SN005826M,TP,9.7X4.4X1.2MM, |
| 0801-003580 | IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3 |
| 1203-009652 | IC-DC/DC CONVERTER;MP8795HGLE-Z,21P,QFN- |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,TSOT23-6,6P,2 |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-009377 | IC-DC/DC CONVERTER;TPS56C230,VQFN,20P,3X |
| 1203-009063 | IC-DC/DC CONVERTER;VPM2SM,QFN,56P,7X7X0. |
| 1203-009648 | IC-DC/DC CONVERTER;VPMS3BSM,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1204-003821 | IC-DECODER;QUANTUM PROCESSOR 8K III,TR,3 |
| 1204-003778 | IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5 |
| 1204-003822 | IC-DECODER;SDP20813,TR,27X27X1.78MM,10T |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1103-001584 | IC-EEPROM;M24512-DFMN6TP,512KBIT,64K X 8 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1301-002316 | IC-FPGA;XC7A50T-1CSG324C,BGA,324P,TR,15X |
| 1003-003247 | IC-LED DRIVER;SDP21823,100P,QFP,TP,14X14 |
| 1003-003282 | IC-LED DRIVER;SDP21824,18P,WLP,TP,1.85X1 |
| 1003-003207 | IC-LEVEL DRIVER;TPS2490DGSR,TP,5.0X3.0X1 |
| 1107-002587 | IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7 |
| 1107-002779 | IC-NOR FLASH;EN25QH32B,SOP,8P,TR,5.28X5. |
| 1107-002547 | IC-NOR FLASH;W25Q16JVSSIQ,SOP,8P,TR,7.90 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004368 | IC-OP AMP;LV358G-S08-R,SOP-8,8P,TP,3.95X |
| 1203-009643 | IC-POSI.ADJUST REG.;ET5A0ADJY2B,6P,DFN6, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-006555 | IC-SWITCH;SYU234DUC,14P,TDFN2X3-14,TP,2X |
| 0904-002882 | IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ, |
| 1001-002117 | IC-VIDEO SWITCH;AD55/066Z-0RL,QFN,108P,T |
| 1203-009590 | IC-VOL. DETECTOR;G623AF11U,8P,TP,TP,4.9X |
| 1203-006288 | IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 |
| 2703-005782 | INDUCTOR-SMD;1.5UH,20%,6060,T2.8,0.017OH |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003488 | INDUCTOR-SMD;10UH,20%,6965,T2.8,0.071OHM |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005783 | INDUCTOR-SMD;2.2UH,20%,6060,T2.8,0.026OH |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-005781 | INDUCTOR-SMD;220NH,20%,7876,T2.9,0.00176 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003637 | INDUCTOR-SMD;22UH,20%,7070,0.18OHM,2000M |
| 2703-005786 | INDUCTOR-SMD;3.3UH,20%,6060,T2.6,0.033OH |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 2703-004226 | INDUCTOR-SMD;8.2UH,20%,10.7X10MM,T3.8,0. |
| BN64-04639A | INLAY-TERMINAL SIDE;65QN900BA,PET,T0.125 |
| BN63-19563A | INSULATOR-LD;Q900/800A,PC,BLACK,L354,W30 |
| BN63-19842B | INSULATOR-LED PCB;75QN95BC,OPP,WHITE,L69 |
| BN63-19556B | INSULATOR-LED PCB;75QN95BC,OPP,WHITE,L94 |
| BN63-20101A | INSULATOR-SMPS;65QN900BA,PC,BLACK,L313.2 |
| BN63-20102A | INSULATOR-SMPS;65QN900BA,PC,BLACK,L315,W |
| BN63-20108A | INSULATOR-SMPS;PC,BLACK,L288,W235,T0.25, |
| BN63-20107A | INSULATOR-SMPS;QN900BA,PC,BLACK,L260,W14 |
| BN63-19690A | INSULATOR-SOURCE PCB;PET,BLACK,L819.62,W |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| 3722-003524 | JACK-USB;4P/2C,AU/NI,BLK,ANGLE,A,2.0,15. |
| 3722-004237 | JACK-USB;TP,16P/2C,BRASS,9.6X9X3.4MM,WAV |
| BN46-00109H | KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL |
| BN46-00110P | KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) |
| BN46-01525A | KEY CODE;Y21_OSCAR-P,NAGRA CSC DATA,T-OS |
| BN46-01850A | KEY CODE;Y22_OSCAR-P,OSCAR-P_US_22,US_AT |
| BH68-00697A | LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9 |
| BN68-09258B | LABEL ETC;ALL MODEL,PET,T0.05,W40,L40,YW |
| BN68-04746A | LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER, |
| BN68-05595A | LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W |
| BN68-02422B | LABEL WARNING;ALL,ART,T0.05,W240,L100,WH |
| BN68-00513A | LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W |
| BN68-08730A | LABEL-E PASS;QTV,WW,ART,T0.161,W60,L15,P |
| BN68-13538A | LABEL-ENERGY;QN75QN800BFXZA,ZA,PET,T0.1, |
| BN68-07104D | LABEL-RATING;ALL,WW,PP,T0.1,W90,L50,DARK |
| BN68-10927A | LABEL-RATING;QTQ950SA,WW,PP,T0.3,W150,L4 |
| BN68-08112A | LABEL-SECURITY;ALL,PET,T0.05,W55,L52,GLO |
| BN68-00970A | LABEL-SECURITY;ALL,PET,T0.05,W60,L60,SEA |
| BN68-14485B | LABEL-STICKER LICENSE;65QN900BA,W/W,PP,T |
| BN68-14904A | LABEL;QN800B,ART,T0.08,W12,L30,BLUE |
|
|
LEAD CONNECTOR-POWER;QN65QN800BFXZA,UL10 |
| BN68-13876A | LEAFLET-QUICK SETUP GUIDE;QN900B-QN800B |
| BN68-09371B | LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO, |
| BN68-13897A | LEAFLET-REMOTE CONTROL;Y22 QLED, FRAME, |
| BN68-10628A | LEAFLET-WARRANTY;QT/UT,ZA,MOJO,1 COLOR,1 |
| 0601-003964 | LED-BIN;SMD(TOP VIEW),BLU,WATER DIFF.,0X |
|
|
LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940 |
| BN61-17136C | MAGNET FERRITE;65QAQN900A,FERRITE,T0.5,W |
| BN68-15034A | MANUAL USERS;QN100B-QN95B,ZA,NORTH AMERI |
| BN68-13704B | MANUAL USERS;QN800B-QN900B (OC),ZA,NORTH |
| BN59-01395A | NETWORK-WLAN CLIENT;WCB941M,80.35X86.7X1 |
| BN39-02395C | ONECONNECT CABLE;Q700B, Q800B, Q900B, Q9 |
|
|
ONECONNECT CABLE;QAQN800B,35P/34P,L2500, |
| BN61-17838A | OPTICAL SHEET-COMPLEX;21Y_Q800A_75INCH_C |
| BN61-17828A | OPTICAL SHEET-HIGH COLOR;21Y_Q85A_75INCH |
| BN61-18553A | OPTICAL SHEET-REFLECTOR;22Y_Q900B_75INCH |
| BN61-18552A | OPTICAL SHEET-REFLECTOR;22Y_Q900B_75INCH |
| 2804-001595 | OSCILLATOR-CLOCK;27MHZ,50PPM,10TTL,15PF, |
| BN69-17053P | PACKING ANGLE;ALL,PAPER,T3,W2200,L50,YEL |
| BN62-00935B | PAD GAP-THERMAL;QN900/800/700/95A,SI,T9, |
| BN62-00970A | PAD GAP-THERMAL;QN900/800B,SI,T3,L10,H45 |
| BN62-00931A | PAD GAP-THERMAL;QN900A/800A/95A,SI,T3,L4 |
|
|
PAD GAP-THERMAL;UE32B6000VWXXC,T3,L35,H3 |
| BN69-22217A | PAD-AIR CUSHION;65QAQS900A,LDPE,T5,W370, |
| BN41-02998B | PCB-FPGA;Y22_8K_75_AM_LED_7A50,FR-4,4L,T |
| BN41-02980A | PCB-LED MODULE;Q900B 75INCH,FR-4,2L,T0.6 |
| BN41-02996B | PCB-MAIN;QN75QN900BFXZA,FR-4,6L,T1.2,1,2 |
| BN41-02996A | PCB-MAIN;QN800B,FR-4,6L,T1.2,1,22Y OSCAR |
| BN41-02997A | PCB-OC;QN900/800/700/95B,FR-4,T1.2,4,22Y |
|
|
POWER CORD-DT;USA,3P-F,125V,10A,BLK,L150 |
| BN95-08384F | PRODUCT LCD-CSOT;CY-TB075JMHV3H/V,QN800B |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-008661 | R-CHIP;2.1KOHM,1%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000633 | R-CHIP;270KOHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001058 | R-CHIP;6.2OHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| BN59-01385A | REMOCON-ECO SMART CONTROL;2022 TV,SAMSUN |
| BN46-01892A | S/W-MODEL;QBQ800,OSCAR-P,QN800BB |
| 6001-002789 | SCREW-MACHINE;BH,+,M4,L6,ZPC(WHT),SWRCH1 |
| 6001-003424 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L2,M3,CH |
| 6001-003432 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L12,M3,C |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L8,ZPC(BLK),SW |
| 6003-001906 | SCREW-TAPTYPE;BH,+,S,M4,L12,ZPC(BLK),SWR |
| 6003-001914 | SCREW-TAPTYPE;CH,+,M3,L5,ZPC(BLK),SWRCH1 |
| 6003-001844 | SCREW-TAPTYPE;FH,+,B,M3,L5,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,B,M3,L6,ZPC(WHT),S |
| BN63-19496A | SHEET-PC;65QAQ900A,PC,T0.43,W18,L111,BLA |
| BN63-19446C | SHEET-PC;75QN95BC,PC,T0.8,W960,L1680,BLA |
| BN63-12848F | SHEET-PROTECTION COVER;27CF591,PO,T0.048 |
| BN63-19569H | SHEET-PROTECTION COVER;LH75OHA,PO,T0.05, |
| BN63-20103A | SHEET-THERMAL;65QN900BA,GRAPHITE,T0.5,W3 |
| BN63-20104A | SHEET-THERMAL;65QN900BA,GRAPHITE,T0.6,W3 |
| BN63-20187A | SHEET-THERMAL;QN900BA,GRAPHITE,T0.2,W300 |
| BN63-19975A | SHIELD-OC BOTTOM;65QN900BA,EGI-SECC,T0.5 |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-002133 | SOLDER-CREAM;M705-SVD1 TYPE5,D15~25UM,96 |
| 0202-001608 | SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3SN/0. |
| BN60-01689A | SPACER-FOAM;65QAQN900A,PU FOAM,L0,BLACK, |
| BN60-01609A | SPACER-FOAM;85QMF,PU FOAM,L50,BLACK,T0.8 |
| BN60-00162V | SPACER-FOAM;PE FOAM,L50M,GRAY,T0.5,W10 |
| BN60-01459A | SPACER-SILICONE;55PMF,SI,L10,WHITE,T1.8, |
| BN61-18525A | STUD-PEM;65QN900BA,SUM24L,T1,L11.7,WHITE |
| BN61-02430S | STUD-PEM;82QTQ800B,SUM24L,L4,ZPC(SIL) |
| BN61-02428E | STUD-PEM;HAYDN,SUM24L,T0.5,L10,PRESS,ZPC |
| BN61-17866A | SUPPORT-PLATE;65QAQN900A,PA66,V-0,WHITE, |
| BN61-05914A | TAPE DOUBLE FACE;65LB650,ACRYL,T1.1,W20, |
| BN02-00554B | TAPE SINGLE FACE;QN800,PET,T0.05,W15,L35 |
| BN02-00616A | TAPE SINGLE FACE;QTQ950SA,PET,T0.2,W13,L |
| 0203-001085 | TAPE-DOUBLE FACE;ACRYL,#706BH,T0.64,W12, |
| BN61-05728D | TAPE-DOUBLE FACE;ACRYL,T0.4,W18,L33M,GRA |
| BN61-05728J | TAPE-DOUBLE FACE;ACRYL,T0.4,W6,L33M,GRAY |
| BN02-00611A | TAPE-DOUBLE FACE;PU FOAM,T0.5,W3.2,N/A,B |
| BN02-00639A | TAPE-SINGLE FACE;CONDUCTIVE FABRIC,T0.07 |
| BN02-00102K | TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL |
| 0203-006894 | TAPE-SINGLE FACE;OPP,3M, #3675,T0.05,W75 |
| BN02-00319B | TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE |
| BN02-00102B | TAPE-SINGLE FACE;OPP,T0.15,W25,L50M,WHIT |
| BN74-00053G | TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10, |
| BN74-00053E | TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W20, |
| BN02-00352E | TAPE-SINGLE FACE;PET,T0.05,W15,L50M,BLAC |
| 0203-007085 | TAPE-SINGLE FACE;PET,T0.05,W20,L100M,CLE |
| BN02-00173C | TAPE-SINGLE FACE;PET,T0.05,W40,BLACK |
| 1404-001731 | THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN40-00310A | TUNER-DTV AIR CABLE;GVX-21C81,ATSC 3.0,4 |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
| BH69-00418A | WRAP;762,1828M,SAMEX FACTORY |
