Manufacturer
Samsung
Model Number
QN85QN800BFXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-22365A | A/S-AL CAP_SVC;AL-CAP,277404775CHF, SAMY |
| BN96-54897B | ASSEMBLY COVER P-OC BOTTOM;65QN900BA,PC,V-0, |
| BN96-54898B | ASSEMBLY COVER P-OC CABLE;65QN900BA,ABS,HB,B |
| BN96-54896A | ASSEMBLY COVER P-OC TOP;65QN900BA,PC+ABS,V-0 |
| BN96-54426F | ASSEMBLY COVER P-REAR;85QN800BB,PC+GF30%,V-0 |
| BN96-53283A | ASSEMBLY HOLDER P-RING;65QAQN900A,ABS,BK0007 |
| BN94-17422E | ASSEMBLY PCB MAIN SUBCON;Q900B,Q800B,8K 75-INCH 8 |
| BN94-17447D | ASSEMBLY PCB MAIN;QN800BB |
| BN94-17445D | ASSEMBLY PCB OC;QN800BB |
| BN96-54413L | ASSEMBLY PCB P;FR-1,OC + COVER |
|
|

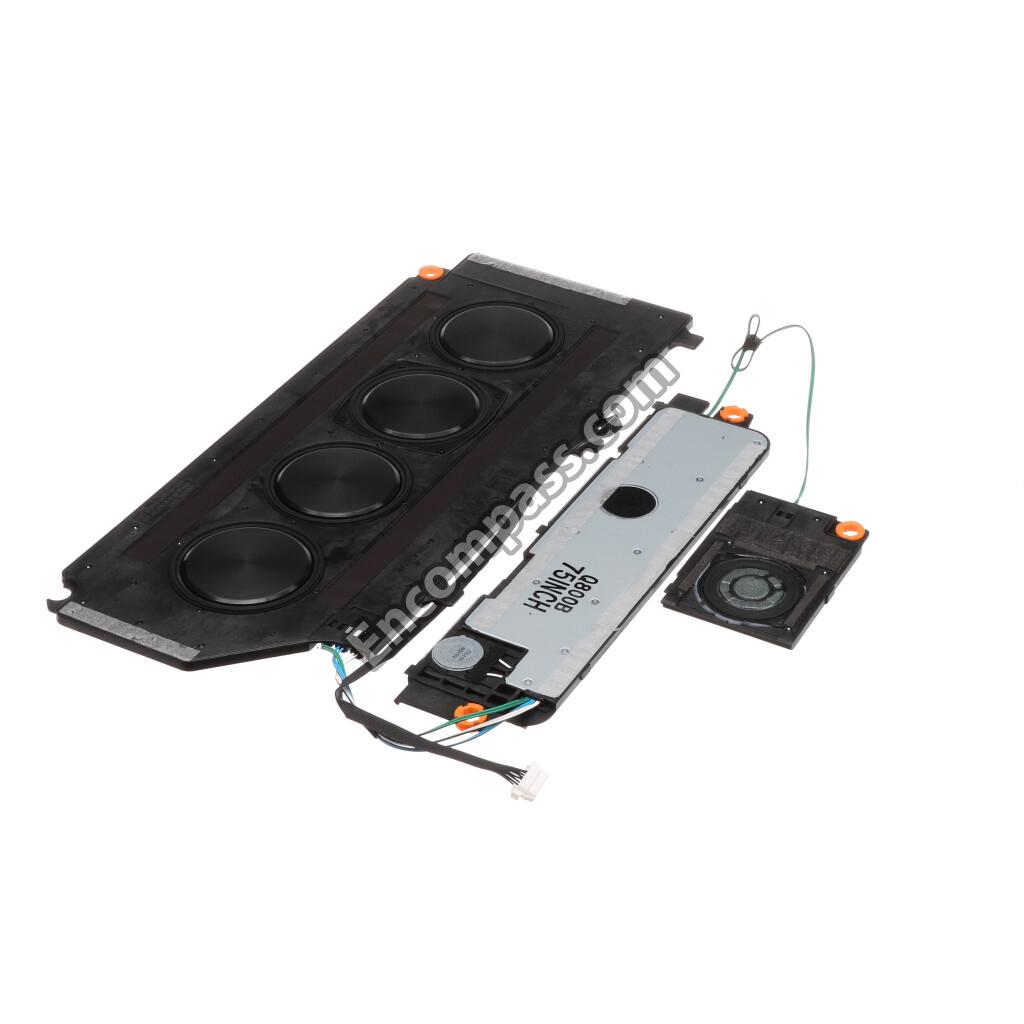

ASSEMBLY SPEAKER P-FRONT;TV-SPK,75QN95BC,4.2 |
| BN96-54895A | ASSEMBLY STAND P-COVER NECK;75QN900BA,HGI,NA |
| BN96-53204G | ASSEMBLY STAND P-COVER TOP;85QN800BB,HGI,SAN |
| BN96-53200C | ASSEMBLY STAND P-GUIDE;65QN900BA,PP+GF40%,BK |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13557R | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L25 |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006399 | C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5 |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006378 | C-CER,CHIP;4.7UF,10%,6.3V,X5R,TP,1608,-5 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3708-003356 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,30P,0.5MM |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM |
| 3708-003217 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009538 | CONNECTOR-HEADER;BOX,16P,2R,2MM,ANGLE,SN |
| 3707-001143 | CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2 |
| 3710-004473 | CONNECTOR-SOCKET;34P,2R,0.8MM,SMD-A,AU,B |
| 3710-004474 | CONNECTOR-SOCKET;35P,1R,0.8MM,SMD-A,AU,B |
| BN63-19322A | COVER-DECORATION;85QAQN800B,STS430J1L,T0 |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-005372 | CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12PF |
| 2801-004938 | CRYSTAL-SMD;24MHZ,20PPM,12PF,60OHM,20PPM |
| BN63-19070A | CUSHION RUBBER;Q950ST,SI,T5,W10,L25,LIGH |
|
|
DC VSS-DRIVER BOARD;L85SB9NB_BHS,DC/DC,1 |
| BN44-01177A | DC VSS-POWER BOARD;P75SB9N_BHS,AC/DC,529 |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0407-000112 | DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T |
| 0406-001886 | DIODE-TVS;AZ1123-04F,5V,DFN2510,65W,TR |
| 0406-001823 | DIODE-TVS;PJUSB208,85V,0.1MAV,0.715VPA,2 |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001438 | DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-000489 | DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-001089 | FET-SILICON;AO3409L,P,-30V,-2.6A,0.097/0 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-54902A | FFC;QA85QN800BKXXV,FOLD,L350,24P,MAIN ~ |
| BN96-55538A | FFC;QN800B 85,FOLD,L260,68P,DCDC TO FPGA |
|
|
FFC;QN900A, 85QN800A,WRINKLE/STRAIGHT,L1 |
| BN96-53381A | FFC;QN900A/800A,FOLD,L500,68P,BLACK FFC |
| BN96-53323A | FFC;QN900A/800A,FOLD,L650,68P |
|
|
FFC;QN900A/800A,FOLD,L980,30P |
| BN96-56183A | FFC;QN900B 85,FOLD,L1150,68P,LED- DRIVER |
| BN96-56135A | FFC;QN900B 85,FOLD,L360,68P,LED- DRIVER |
| BN96-56136A | FFC;QN900B 85,FOLD,L580,68P,LED- DRIVER |
| BN96-56185A | FFC;QN900B 85,FOLD,L580,68P,LED- DRIVER |
| BN96-56184A | FFC;QN900B 85,FOLD,L600,68P,LED- DRIVER |
| BN96-56134A | FFC;QN900B 85,FOLD,L610,68P,LED- DRIVER |
| BN96-56137A | FFC;QN900B 85,FOLD,L910,68P,LED- DRIVER |
| BN96-56186A | FFC;QN900B 85,FOLD,L910,68P,LED- DRIVER |
| BN96-56177A | FFC;QN900B 85,FOLD,L930,68P,LED- DRIVER |
| BN96-56133A | FFC;QN900B 85,FOLD,L940,68P,LED- DRIVER |
| BN67-00327S | FOOT-RUBBER;E7000,SI,GRAY,W10,L10,T3 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| BP63-00812A | GASKET-EMI;HLS5679W,FABRIC,T12,W10,L27,G |
| BN63-20221A | GASKET-EMI;QN800B,FABRIC,T11,W10,L135,GR |
| 6302-001232 | GASKET-EMI;SMT GASKET,FABRIC,T3.5,W4,L3, |
| 3711-009653 | HEADER-BOARD TO CABLE;TP,STRAIGHT,2R,24P |
| BN61-17814A | HOLDER-BOLT;65QAQN900A,SWRCH18A,BLACK,FH |
| BN61-16318B | HOLDER-BOX;ALL,PP,BLACK,HB,RECYCLED PCR_ |
| BN61-14713B | HOLDER-COVER;65QAQN900A,SI,BLACK,HS80-> |
| BN61-17813A | HOLDER-WALL RING;65QAQN900A,ABS,BK0007,H |
| 0801-003580 | IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3 |
| 1203-009652 | IC-DC/DC CONVERTER;MP8795HGLE-Z,21P,QFN- |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-009377 | IC-DC/DC CONVERTER;TPS56C230,VQFN,20P,3X |
| 1203-009063 | IC-DC/DC CONVERTER;VPM2SM,QFN,56P,7X7X0. |
| 1203-009648 | IC-DC/DC CONVERTER;VPMS3BSM,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1204-003778 | IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1003-003282 | IC-LED DRIVER;SDP21824,18P,WLP,TP,1.85X1 |
| 1107-002587 | IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7 |
| 1107-002547 | IC-NOR FLASH;W25Q16JVSSIQ,SOP,8P,TR,7.90 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 0904-002882 | IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ, |
| 1001-002117 | IC-VIDEO SWITCH;AD55/066Z-0RL,QFN,108P,T |
| 1203-006288 | IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 |
| 2703-005782 | INDUCTOR-SMD;1.5UH,20%,6060,T2.8,0.017OH |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003488 | INDUCTOR-SMD;10UH,20%,6965,T2.8,0.071OHM |
| 2703-005843 | INDUCTOR-SMD;1UH,20%,6060,T2.6,0.0156OHM |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005783 | INDUCTOR-SMD;2.2UH,20%,6060,T2.8,0.026OH |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003637 | INDUCTOR-SMD;22UH,20%,7070,0.18OHM,2000M |
| 2703-005786 | INDUCTOR-SMD;3.3UH,20%,6060,T2.6,0.033OH |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 2703-005841 | INDUCTOR-SMD;680NH,20%,4040,T1.6,0.026OH |
| 2703-004226 | INDUCTOR-SMD;8.2UH,20%,10.7X10MM,T3.8,0. |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| 3722-003524 | JACK-USB;4P/2C,AU/NI,BLK,ANGLE,A,2.0,15. |
| 3722-004237 | JACK-USB;TP,16P/2C,BRASS,9.6X9X3.4MM,WAV |
|
|
LEAD CONNECTOR-POWER;QN65QN800BFXZA,UL10 |
|
|
LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940 |
| BN59-01395A | NETWORK-WLAN CLIENT;WCB941M,80.35X86.7X1 |

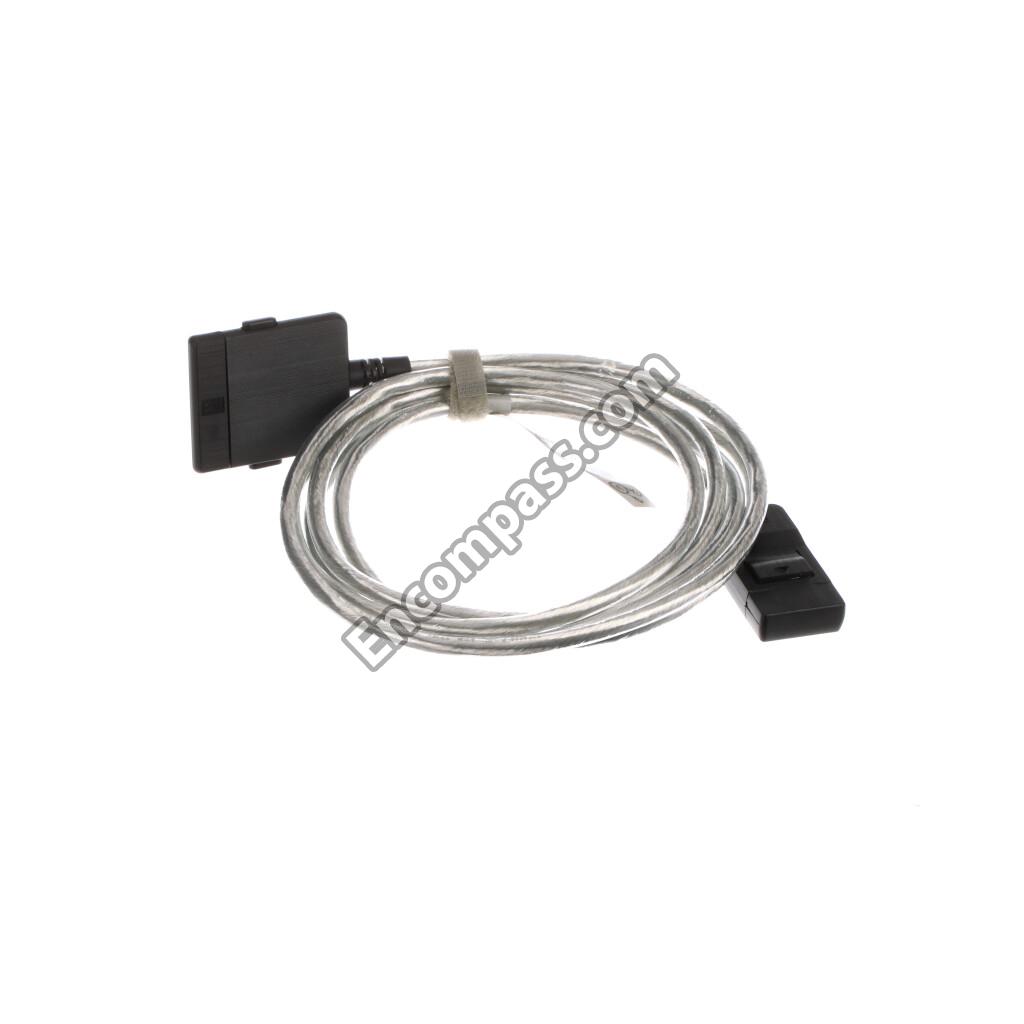

| BN39-02395C | ONECONNECT CABLE;Q700B, Q800B, Q900B, Q9 |
|
|
ONECONNECT CABLE;QAQN800B,35P/34P,L2500, |
| 2804-001595 | OSCILLATOR-CLOCK;27MHZ,50PPM,10TTL,15PF, |
| BN62-00935B | PAD GAP-THERMAL;QN900/800/700/95A,SI,T9, |
| BN62-00931A | PAD GAP-THERMAL;QN900A/800A/95A,SI,T3,L4 |
|
|
PAD GAP-THERMAL;UE32B6000VWXXC,T3,L35,H3 |
|
|
POWER CORD-DT;USA,3P-F,125V,10A,BLK,L150 |
| BN95-08390K | PRODUCT LCD-INX;CY-TB085JMNV7H/V,QN800BB |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-008661 | R-CHIP;2.1KOHM,1%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000633 | R-CHIP;270KOHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| BN59-01385A | REMOCON-ECO SMART CONTROL;2022 TV,SAMSUN |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
| 6001-003424 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L2,M3,CH |
| 6001-003431 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L4,M3,CH |
| 6001-003432 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L12,M3,C |
| 6001-002789 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L6,M4,BH |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
| 6003-001914 | SCREW-TAPTYPE;CH,+,M3,L5,ZPC(BLK),SWRCH1 |
| 6003-001844 | SCREW-TAPTYPE;FH,+,B,M3,L5,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L10,M3,B |
| 6003-001906 | SCREW-TAPTYPE;SWRCH22A,ZN-NI(BLK),L12,M4 |
| 3601-001374 | SMG PART |
| 3301-001901 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006890 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006474 | SMG PART |
| 2203-006427 | SMG PART |
| 2203-006257 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-001412 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000254 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-008672 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007538 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007405 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007134 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-002796 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001284 | SMG PART |
| 2007-001090 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001729 | SMG PART |
| 0406-001573 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003164 | SMG PART |
| 0201-003279 | SMG PART |
| 0201-003543 | SMG PART |
| 0201-003554 | SMG PART |
| 0201-003555 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001976 | SMG PART |
| 0202-002133 | SMG PART |
| 0203-001085 | SMG PART |
| 0203-006894 | SMG PART |
| 0203-007085 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 0406-001317 | SMG PART |
| 0505-003732 | SMG PART |
| 0601-003964 | SMG PART |
| 1001-002118 | SMG PART |
| 1003-003207 | SMG PART |
| 1003-003247 | SMG PART |
| 1103-001584 | SMG PART |
| 1107-002779 | SMG PART |
| 1201-004306 | SMG PART |
| 1201-004368 | SMG PART |
| 1203-009590 | SMG PART |
| 1203-009643 | SMG PART |
| 1204-003821 | SMG PART |
| 1204-003822 | SMG PART |
| 1205-006555 | SMG PART |
| 1301-002316 | SMG PART |
| 1404-001731 | SMG PART |
| 2007-001058 | SMG PART |
| 2409-001213 | SMG PART |
| 2703-005781 | SMG PART |
| 2801-004678 | SMG PART |
| 2801-005504 | SMG PART |
| 6902-003503 | SMG PART |
| 6902-003541 | SMG PART |
| 6902-003557 | SMG PART |
| 6902-003625 | SMG PART |
| 6902-003626 | SMG PART |
| 6902-003798 | SMG PART |
| 6902-003816 | SMG PART |
| 6902-003817 | SMG PART |
| 6902-003875 | SMG PART |
| 6922-000421 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00173C | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352E | SMG PART |
| BN02-00554B | SMG PART |
| BN02-00612A | SMG PART |
| BN02-00616A | SMG PART |
| BN02-00639A | SMG PART |
| BN41-02982A | SMG PART |
| BN41-02996B | SMG PART |
| BN41-02997A | SMG PART |
| BN41-02998B | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01525A | SMG PART |
| BN46-01850A | SMG PART |
| BN46-01892A | SMG PART |
| BN60-00162V | SMG PART |
| BN60-01459A | SMG PART |
| BN60-01609A | SMG PART |
| BN60-01689A | SMG PART |
| BN61-02428E | SMG PART |
| BN61-02430S | SMG PART |
| BN61-05728D | SMG PART |
| BN61-05728J | SMG PART |
| BN61-05914A | SMG PART |
| BN61-13557X | SMG PART |
| BN61-15737B | SMG PART |
| BN61-16777A | SMG PART |
| BN61-16910A | SMG PART |
| BN61-17136C | SMG PART |
| BN61-17284A | SMG PART |
| BN61-17540A | SMG PART |
| BN61-17542B | SMG PART |
| BN61-17543A | SMG PART |
| BN61-17609B | SMG PART |
| BN61-17612B | SMG PART |
| BN61-17615B | SMG PART |
| BN61-17618B | SMG PART |
| BN61-17620A | SMG PART |
| BN61-17625A | SMG PART |
| BN61-17626A | SMG PART |
| BN61-17630A | SMG PART |
| BN61-17632A | SMG PART |
| BN61-17656A | SMG PART |
| BN61-17695A | SMG PART |
| BN61-17696A | SMG PART |
| BN61-17697A | SMG PART |
| BN61-17698A | SMG PART |
| BN61-17699A | SMG PART |
| BN61-17700A | SMG PART |
| BN61-17724A | SMG PART |
| BN61-17726A | SMG PART |
| BN61-17825A | SMG PART |
| BN61-17836A | SMG PART |
| BN61-17839A | SMG PART |
| BN61-17866A | SMG PART |
| BN61-18352A | SMG PART |
| BN61-18353A | SMG PART |
| BN61-18525A | SMG PART |
| BN61-18565A | SMG PART |
| BN61-18566A | SMG PART |
| BN61-18841A | SMG PART |
| BN62-00928A | SMG PART |
| BN62-00969A | SMG PART |
| BN63-12848F | SMG PART |
| BN63-19161A | SMG PART |
| BN63-19327D | SMG PART |
| BN63-19361G | SMG PART |
| BN63-19445C | SMG PART |
| BN63-19496A | SMG PART |
| BN63-19563A | SMG PART |
| BN63-19569H | SMG PART |
| BN63-19689A | SMG PART |
| BN63-19944B | SMG PART |
| BN63-19945B | SMG PART |
| BN63-19962A | SMG PART |
| BN63-19963A | SMG PART |
| BN63-19972A | SMG PART |
| BN63-19973B | SMG PART |
| BN63-19974B | SMG PART |
| BN63-19975A | SMG PART |
| BN63-20101A | SMG PART |
| BN63-20102A | SMG PART |
| BN63-20103A | SMG PART |
| BN63-20104A | SMG PART |
| BN63-20107A | SMG PART |
| BN63-20108A | SMG PART |
| BN63-20187A | SMG PART |
| BN63-20263A | SMG PART |
| BN64-04546B | SMG PART |
| BN64-04558A | SMG PART |
| BN64-04639A | SMG PART |
| BN67-00459A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-00970A | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-07104D | SMG PART |
| BN68-08112A | SMG PART |
| BN68-08730A | SMG PART |
| BN68-09258B | SMG PART |
| BN68-09371B | SMG PART |
| BN68-10628A | SMG PART |
| BN68-10927A | SMG PART |
| BN68-13542A | SMG PART |
| BN68-13876A | SMG PART |
| BN68-13897A | SMG PART |
| BN68-14485B | SMG PART |
| BN68-14904A | SMG PART |
| BN68-15034A | SMG PART |
| BN69-17053S | SMG PART |
| BN69-21868A | SMG PART |
| BN69-21869A | SMG PART |
| BN69-22183B | SMG PART |
| BN69-22217A | SMG PART |
| BN69-22275A | SMG PART |
| BN69-22747B | SMG PART |
| BN69-23560A | SMG PART |
| BN69-23562A | SMG PART |
| BN74-00053E | SMG PART |
| BN74-00053G | SMG PART |
| BN81-08159Z | SMG PART |
| BN81-20474D | SMG PART |
| BN81-21659A | SMG PART |
| BN81-21904A | SMG PART |
| BN81-21905A | SMG PART |
| BN81-21906A | SMG PART |
| BN90-12415C | SMG PART |
| BN90-12418B | SMG PART |
| BN90-12419R | SMG PART |
| BN90-12543R | SMG PART |
| BN91-23123Q | SMG PART |
| BN91-23936L | SMG PART |
| BN91-23940D | SMG PART |
| BN91-23968E | SMG PART |
| BN92-30970V | SMG PART |
| BN92-30973L | SMG PART |
| BN92-30976H | SMG PART |
| BN92-30977S | SMG PART |
| BN95-09226A | SMG PART |
| BN96-49314B | SMG PART |
| BN96-51422V | SMG PART |
| BN96-51913A | SMG PART |
| BN96-52752A | SMG PART |
| BN96-52753A | SMG PART |
| BN96-52754A | SMG PART |
| BN96-53284F | SMG PART |
| BN96-53449A | SMG PART |
| BN96-53450A | SMG PART |
| BN96-53880A | SMG PART |
| BN96-54136G | SMG PART |
| BN96-54644A | SMG PART |
| BN96-54648R | SMG PART |
| BN96-55496V | SMG PART |
| BN97-19374B | SMG PART |
| BN97-19395B | SMG PART |
| BN97-19395J | SMG PART |
| BN97-19397X | SMG PART |
| BN97-19427A | SMG PART |
| BN97-19428A | SMG PART |
| BN97-19436A | SMG PART |
| BN97-19472A | SMG PART |
| BN97-19477A | SMG PART |
| BN97-19480A | SMG PART |
| BN97-19838G | SMG PART |
| BN97-19971A | SMG PART |
| BN97-20146A | SMG PART |
| BN60-00162E | SPACER-FOAM;PE FOAM,L50M,GRAY,T0.5,W20 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN40-00310A | TUNER-DTV AIR CABLE;GVX-21C81,ATSC 3.0,4 |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
