Manufacturer
Samsung
Model Number
RF23A967535/AA
Description
Ref : Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DA61-14455A | ANGLE SHELF-REF MIDDLE;GI-SGCC,T2.5,-,-, |
| DA99-04379E | ASSEMBLY ACCESSORY-CUSTOM PANEL;RF9000 B,GLA |
| DA99-04379S | ASSEMBLY ACCESSORY-CUSTOM PANEL;RF9000 B,GLA |
|
|
ASSEMBLY CAP-DRAIN;AW3 |
| DA97-21875A | ASSEMBLY CASE BASKET-LOW DRAWER MODULE;RF900 |
| DA97-21797D | ASSEMBLY CASE FILTER;RF9000AC,110V, NO FLOW |
|
|
ASSEMBLY CASE ICE;RF9000A,SERVICE (CUBE) |
|
|
ASSEMBLY CASE ICE;RF9000A,SERVICE (NUGGET) |
|
|
ASSEMBLY CASE INNER;RF9000A,BEVERAGE SHOW CA |
| DA97-21878B | ASSEMBLY CASE VEG-LOW;RF9000AC,CD,CRISPER+,L |
| DA97-21878C | ASSEMBLY CASE VEG-LOW;RF9000AC,CD,FLEX CRISP |
| DA97-21261K | ASSEMBLY CASE WATER FILTER;RF8000B,PCT (HEAT |
| DA97-12557M | ASSEMBLY CHASSIS COMP;RF9000A,GI-SGCC,T1.2,9 |
| DA97-22349K | ASSEMBLY COMP N CONDENSING-COND MODULE;RF900 |
| DA97-15972C | ASSEMBLY CONDENSER-MAIN;PFC,LA+CE,A1100,FIN, |
| DA97-21788A | ASSEMBLY COVER BASKET;RF9000A,BSC DISPLAY |
| DA97-12749N | ASSEMBLY COVER COMP;RF8000B/BC,GL-SAZCC,T0.2 |
| DA97-21808V | ASSEMBLY COVER CONTROL;RF9000A,ENGLISH, SAMS |
| DA97-21827D | ASSEMBLY COVER DEODORIZER;RF9000A,UV, GLOBAL |
| DA97-22322A | ASSEMBLY COVER DOOR-LEFT;RF9000A,EBONY BLACK |
|
|
ASSEMBLY COVER EVAP-FRE;RF9000JC,NON LED LIG |
| DA97-21806B | ASSEMBLY COVER EVAP-REF COVER EVAP MODULE;RF |
| DA97-16143B | ASSEMBLY COVER LAMP;RF8000MC |
| DA97-22520A | ASSEMBLY COVER PCB-MAIN;AW,NO F-HUB, TIM |
|
|
ASSEMBLY COVER-TUBE FILTER;AW4,ASSEMBLY |
| DA91-05346S | ASSEMBLY DOOR FOAM-FRE LEFT;RF9000A(B),DARK |
| DA82-03554E | ASSEMBLY DOOR FOAM-FRE RIGHT;RF9000A(B),DARK |
| DA82-03221A | ASSEMBLY DOOR FOAM-REF IN LEFT;RF9000A,DARK |
| DA91-05490M | ASSEMBLY DOOR FOAM-REF OUT LEFT;RF9000A(B),A |
| DA82-03419G | ASSEMBLY DOOR FOAM-REF RIGHT;RF9000A(B),AP(P |
| DA96-00988K | ASSEMBLY EVAP-CONV;RF9000K,FIN TUBE,120V,121 |
| DA96-01021Q | ASSEMBLY EVAP-FRE;RF9000R,FIN TUBE,120V,121W |
| DA96-01456A | ASSEMBLY EVAP-REF EVAP MODULE;RF9000A,FIN TU |
| DA97-20572A | ASSEMBLY FIXER-UP;RF9000R(B),BLACK |
| DA97-20599J | ASSEMBLY FRENCH;RF9000A,COOL WHITE, 110V, AD |
| DA97-23369A | ASSEMBLY GASKET-FRE;RF9000B |
| DA97-23368A | ASSEMBLY GASKET-REF;RF9000B |
| DA97-20057A | ASSEMBLY GASKET;RF9000R,DARK GRAY |
| DA97-19996A | ASSEMBLY GUARD-FRE;RF9000R,GPPS,TP GRAY |
| DA97-21914A | ASSEMBLY GUARD-REF LOW;RF9000A,TP GRAY,BSC S |
| DA97-21960A | ASSEMBLY GUARD-REF MIDDLE;RF9000A,SAN,T3,TP |
|
|
ASSEMBLY GUARD-REF UP;RF9000N,TP GRAY |
| DA97-21912A | ASSEMBLY GUARD-REF;RF9000A,TP GRAY,BASIC |
| DA97-23110A | ASSEMBLY HINGE-LOW LEFT;RF9000B,BLACK,AUTO C |
| DA97-21336A | ASSEMBLY HINGE-LOW LEFT;T4,OUT |
| DA97-23111A | ASSEMBLY HINGE-LOW RIGHT;RF9000B,BLACK,AUTO |
| DA97-20039C | ASSEMBLY HINGE-UP LEFT;RF9000A,T4,OUT, REMOV |
|
|
ASSEMBLY HINGE-UP LEFT;RF9000R,T3,BLACK |
|
|
ASSEMBLY HINGE-UP RIGHT;RF9000R,T3,BLACK |
|
|
ASSEMBLY LAMP LED;2,FR-4,85*10,WHITE,SMH200- |
|
|
ASSEMBLY LAMP LED;3EA,CEM-1,65*10*1.6T,WHITE |
|
|
ASSEMBLY LAMP LED;3EA,FR-4,150*12,WHITE,SMAW |
| DA97-22004A | ASSEMBLY LED LAMP;RF9000A,BEVERAGE SHOW CASE |
|
|
ASSEMBLY LEVER DISPENSER;AW FACELIFT,NO PRIN |
|
|
ASSEMBLY LEVER-AUTO CLOSE;AW4,POM,BLACK |
|
|
ASSEMBLY MAGNET;CORE-PJT,FERRITE,-,- |
|
|
ASSEMBLY MODULE;BUZZER PBA,RB6000K,STANDARD |
|
|
ASSEMBLY MODULE;PBA-FUSE BLOCK,AW3 FACELIFT, |
| DA94-05311M | ASSEMBLY PCB EEPROM;0X10,D601,D602,D603,D604 |
| DA97-21801A | ASSEMBLY PIPE WATER ICE;RF9000A,1/4, CUBE,AL |
| DA97-21876A | ASSEMBLY RAIL-MIDDLE LEFT;RF9000AC,CD |
| DA97-19988A | ASSEMBLY ROLLER;RF9000K,29 |
| DA97-21895A | ASSEMBLY SHELF QUICK SPACE;RF9000AC,LUMINOUS |
| DA97-21798D | ASSEMBLY SHELF SLIDE-FRE;RF7000AC,610,NO VIN |
| DA97-21902A | ASSEMBLY SHELF VEG-LOW;RF9000AC |
| DA97-21898A | ASSEMBLY SHELF-REF UP;RF9000AC,LUMINOUS TRIM |
| DA97-20042G | ASSEMBLY SHELF-REF;RF9000AC,SHELF FIXED LEFT |
| DA97-21798A | ASSEMBLY SHELF-SLIDE FRE SHELF MODULE;RF7000 |
|
|
ASSEMBLY SUPPORT-CIRCUIT MOTOR;C 160I |
| DA97-19977N | ASSEMBLY TOP TABLE;RF9000AC,INOX GRAY,+BUZZE |
| DA97-15978C | ASSEMBLY TRAY DRAIN WATER;RF9000A/AC,C160 |
| DA96-01170A | ASSEMBLY WIRE HARNESS-COMP;ALL,ALL,FREE VOLT |
| DA96-01471C | ASSEMBLY WIRE HARNESS-DISPENSER;ALL,DISPLAY, |
|
|
ASSEMBLY WIRE HARNESS-EARTH;EARTH,ALL,FREE V |
| DA96-00852E | ASSEMBLY WIRE HARNESS-SPI;ALL PJT, WIRE OF D |
| DA96-01466A | ASSEMBLY WIRE HARNESS-TOP;RF9000A,BUZZER,WIF |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+ |
| 6902-000336 | BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO |
| 6922-000003 | BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A, |
|
|
BOLT-ETC;M6,L20,ZPC(WHT),SWRCH18A,FH HEA |
| 6011-001694 | BOLT-ETC;M8,L14.1,ZPC(SILVER),FH,+,SCM43 |
|
|
BOLT-HEX;M6,L16,ZPC(WHT),HH,SWRCH22A,MAC |
|
|
BOLT-HEX;M6,L19,ZPC(WHT),SWRCH18A,HH HEA |
| 6011-007289 | BOLT-HEX;M6,L43.6,ZPC(SILVER),HH,SOCKET, |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001303 | C-AL,SMD;220UF,20%,35V,-,TP,8.3X8.3X10MM |
| 2402-001398 | C-AL,SMD;220UF,20%,35V,TP,8.0X8.0X10.0MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-000206 | C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-005135 | C-CER,CHIP;1NF,10%,630V,X7R,TP,3216,T1.1 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2301-001511 | C-FILM,LEAD-PEF;330NF,10%,275VAC,BK,18X1 |
| 2301-001899 | C-FILM,LEAD;100NF,5%,630V,TP,18X12X8MM,7 |
| 2301-001730 | C-FILM,MPEF;470NF,10%,275VAC,BK,11X18X18 |
|
|
CABLE TIE;DACT-100,NYLON66,NTR,T1.2,W2.5 |
| DA66-00950B | CAM AUTO CLOSE-LEFT;RF9000A,POM,-,BLACK, |
| DA66-00951B | CAM AUTO CLOSE-RIGHT;RF9000A,POM,-,BLACK |
| DA67-04504D | CAP FIXER-TUBE;RR9000A,SI,T3,DARK GRAY |
| DA67-30266K | CAP SCREW;A-TOP,PP,T1.5,HB,BJ750,COOL WH |
| DA67-30266Q | CAP SCREW;RF9000A,PP,T1.5,-,BJ750,NEO VI |
| DA67-04961A | CAP SCREW;RQ9500(B),ABS,RM-0760,DARK GRA |
|
|
CAP-CASE FRENCH MID;AW-PJT,ABS,-,-,HI121 |
|
|
CAP-DRAIN;AW4,HIPS,HB,576H,NATURAL |
| DA67-02795C | CAP-SHAFT HOLE;AW3,ABS,HG-0760GP,SNOW WH |
| DA61-13987A | CASE DISPENSER;RS5000T,STS304,T0.5,-,-,- |
| DA61-15091A | CASE FILTER;RF9000A,GPPS,T2.5,TP GRAY,G- |
|
|
CASE ICE-CUBE;RF9000AC,GPPS,T2.5,TP GRAY |
| DA61-14309A | CASE ICE-SCOOP;RF9900T,PCTG,T2,TP GRAY,J |
| DA61-07581A | CASE LAMP-LED;POLARIS,GPPS,20.4,20.4,TP |
| DA61-14797A | CASE PBA-MAIN;AW,PC,T2.5,EBONY BLACK,HN- |
|
|
CASTER-FRONT;AW-PJT,PP,BLACK |
|
|
CASTER-REAR;AW-PJT,PP,BLACK,M/B(0103-002 |
| DA02-00249A | CATALYST;T10,W35,L70,CERAMIC,BIOCIDAL_Y |
| DA02-00132A | CHEMICALS-CATALYST;-,99%,-,POLYURETHANE |
|
|
CLIP-FITTING LOCK;AW,POM,NATURAL,POM |
| DA61-15114A | CLIP;RF6000T,POM,T2,NATURAL,-,F20-03,LOC |
|
|
CMP,COMP,REFRIGERATOR,R-600A |
| DA91-05369B | COVER CAP DOOR;ABS,T1.5,DARK GRAY,RM-076 |
| DA63-09958B | COVER CAP DOOR;RF9000A,ABS,T2,5VB,EBONY |
| DA63-09639A | COVER CAP DOOR;RF9000R(B),ABS,INOX GRAY, |
| DA63-11272A | COVER DOOR-LEFT;RF9000A,ABS,T3,EBONY BLA |
| DA63-11209A | COVER FILTER;RF9000AC,GPPS,T2.5,TP GRAY, |
| DA63-11280A | COVER ICE-FRE;RF9000A,PCTG,T2,TP GRAY,JN |
| DA63-11369B | COVER ICE-FRE;RF9000A,PP,T2.5,-,COOL WHI |
|
|
COVER LAMP-LED FRONT;CULLINAN,PC,-,V-2,N |
| DA63-06505A | COVER LAMP-LED;POLARIS,MABS,HB,NATURAL,T |
|
|
COVER LOCK;RF9000R,ABS,T2.5,INOX GRAY,AB |
| DA63-06122A | COVER RELAY;MSV,MPPE,T2,BLACK,N300X,V-0 |
| DA63-11228A | COVER VEG-UP;RF9000AC,HIPS,T2,-,COOL WHI |
| DA63-11229A | COVER VEG-UP;RF9000AC,HIPS,T2,COOL WHITE |
| DA63-09539C | COVER WIRE;RF9000A,PP,T2,HB,EBONY BLACK, |
| DA63-06285A | COVER-FOOT;SUPER STAR,RT7000K,PP,T2.5,-, |
| DA63-03056C | COVER-LED;MOUTON-PJT,HIPS,HB,COOL WHITE, |
| DA63-03809A | COVER-URETHANE;AW-PJT,ABS,BLACK,VE-0858, |
| 0402-001224 | DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60 |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
|
|
DRYER;C1220T-H,L137,SINGLE MOUTH,OD15.8, |
|
|
FAN;HM12,ABS+GF10%,-,GR-4010,NATURAL,-,G |
|
|
FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3 |
| DA60-00314B | FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3 |
|
|
FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3 |
| DA60-00314D | FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3 |
|
|
FASTENER-RIVET;RT34,RT37,RB7300 RR19,RR2 |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7 |
| DA60-00371B | FITTING LOCK RING;A6061,ID5.75,SFC/PFC(4 |
| DA60-00403A | FITTING TUBE;POM,ID1/4,NATURAL,F20-03,OD |
|
|
FITTING TUBE;PP,ID1/4,1/4 - 1/4 |
| DA61-12488B | FIXER COVER;AW3,HIPS,INNER GRAY,CNTK H30 |
| DA61-13523A | FIXER SENSOR;AW-PJT,PP,T2,NATURAL,-,FH44 |
| DA61-06013B | FIXER WIRE;AW3-PJT,PP,T2,NATURAL,-,BJ750 |
|
|
FIXER-CASTER;ZPC2,SWRCH10A,-,-,-,-,OD8.0 |
|
|
FIXER-DRAIN;HAEMIL,PP,T0.6,CARMEN WINE,B |
| DA61-04235A | FIXER-EVAP;RF8500DC,ABS,-,NATURAL,-,HG-0 |
| DA61-06700A | FIXER-HEATER WIRE REF;HM/GGH/HAEMIL,PP,T |
|
|
FIXER-HINGE;RS76,RS78,PO-SPHC,T3,-,-,-,Z |
|
|
FIXER-SENSER;AW-PJT,PP,NATURAL,FH44N,V-0 |
| DK61-00464A | FIXER-STEP MOTOR;RUBY,SWRCH18A |
| DA71-20265A | FIXER-THERMO FUSE;RF9000M,PP,T2,NATURAL, |
| DA61-11032A | FIXER;RT5000K,PA66,WHITE,KN3322V0,7P RET |
| DA61-15096A | FOOT-FRONT;RF9000AC,PP,BLACK,-,-,SSPP-64 |
|
|
GASKET-FRENCH LOW;AW-PJT,SI,GRAY |
| 0205-000121 | GREASE-SILICON;SUPERLUBE DIELECTRIC |
|
|
GROMMET COMP;REF,IIR,BLACK,-,-,L21.3, OD |
| DA63-09942A | GROMMET DOOR;RF9000T,SI,BLACK,-,-,W11.4, |
| DA63-09856A | GROMMET HINGE-LOW;RF9900T,POM,BLACK,-,K3 |
| DA63-09857A | GROMMET HINGE-LOW;RF9900T,POM,BLACK,-,K3 |
|
|
GROMMET HINGE-MID;AW3,POM,BLACK,-,100P |
|
|
GROMMET HINGE-MIDDLE;FDSR,PA66+GF15%,BLA |
| DA63-09933A | GROMMET-CAP DOOR;RF9900T,SI,BLACK,-,-,T5 |
| DA63-04424A | GROMMET-COND SUB;AW,NBR,BLACK,-,- |
|
|
GROMMET-COVER SLIDE;ET05-PJT,SI,WHITE,-, |
| DA63-02750B | GROMMET-COVER SLIDE;QUEEN09,SI,BLACK,-,- |
| DA63-00991A | GROMMET-DOOR RECESS;A-TOP,SI,WHITE,- |
|
|
GROMMET-DRAIN HOSE;V2-PJT,NBR,BLACK,- |
| DA63-02761A | GROMMET-DRAIN;RS18RK,NBR,BLACK,- |
| DA63-03447A | GROMMET-FRENCH;AW-PJT,POM,NATURAL,-,F20- |
| DA63-07323A | GROMMET-IMMERSION PIPE B;ROMANEE CONTI,N |
| DA63-06042B | GROMMET-SCREW;POLARIS,PP+GLF15%,NATURAL, |
|
|
GROMMET-STOPPER;T3XW8XL8,PP+TD20%,NATURA |
|
|
GROMMET-SUCT PIPE A;NBR,-,-,-,ID4,OD20 |
| DA63-07746A | GROMMET;AW3-14,SI,NATURAL,-,- |
|
|
GROMMET;BRR9000M,NBR,-,-,-,CAPI GROMMET |
| DA63-07966E | GUARD-REF UP;RF9000N,GPPS,TP GRAY |
| DA61-10404A | GUIDE HOSE;PP,HB,BJ750,COOL WHITE,L |
| DA61-14661A | GUIDE ICE;RF9000A,PP,BJ750,NATURAL,RF900 |
|
|
GUIDE-FRENCH;OPUS1-14,PC+ABS,-,HB,HR-100 |
| DA61-13449B | HANGER-LEFT;RF9000AC,EGI-SECC,T2,-,COOL |
| DA61-13451B | HANGER-RIGHT;RF9000AC,EGI-SECC,T2,-,COOL |
| 3711-000315 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-001038 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P, |
| 3711-002001 | HEADER-BOARD TO CABLE;BOX,20P,2R,2.0MM,S |
| 3711-001084 | HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,ST |
| DA47-00318R | HEATER METAL SHEATH;AC120V,RF9000R,121W, |
|
|
HINGE FRENCH;AW4,PC,T2,COOL WHITE,HF-102 |
|
|
HINGE-MIDDLE LEFT;RF9000R,ZN,T8,-,-,-,-, |
|
|
HINGE-MIDDLE RIGHT;RF9000R,ZN,T8,-,-,-,- |
| 1001-001942 | IC-ANALOG SWITCH;SC1143DG,SO-8,8P,4.9X3. |
| 1003-000113 | IC-CURRENT DRIVER;ULN2803LW,SOP,18P,300M |
| 1203-008919 | IC-DC/DC CONVERTER;SYD104AADC,TSOT23,6P, |
| 1103-001228 | IC-EEPROM;93C66,4KBIT,256X16,SOP,8P,5X4M |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| DA68-00007D | LABEL INSTRUCTION;EGYPT,ART,W68,L20,WARR |
| DA66-01342A | LEVER;RF9000R,POM,W30,L50,SO301,CREAMY S |
|
|
MAGNET-A;HERMES,FERRITE,T5,-,-,-,1600GAU |
|
|
MAGNET;SVETA,FERRITE,-,-,-,-,1600GAUSS |
|
|

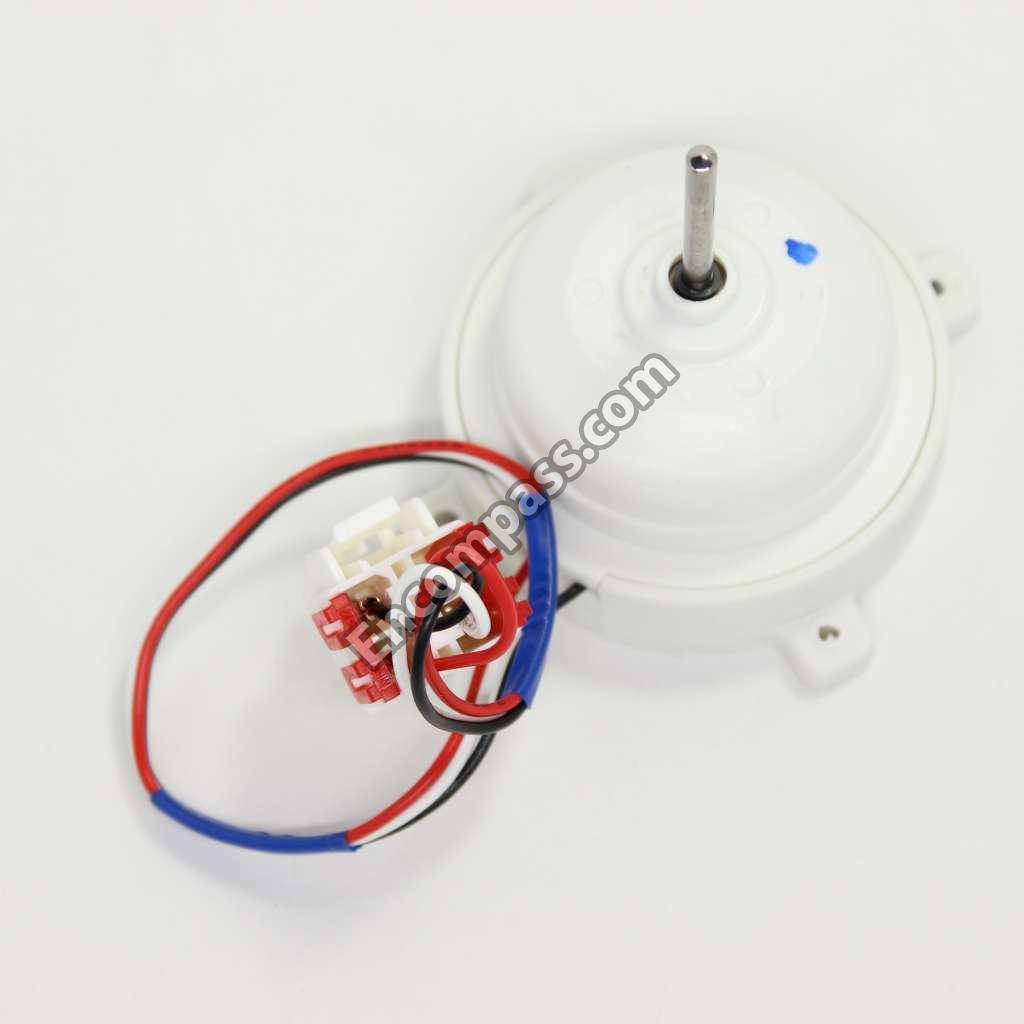

MOTOR BLDC FAN;12035GE-12M-YT,1775 7%,12 |
|
|
MOTOR BLDC FAN;12035GE-12M-YT,1775 7%,12 |
|
|
MOTOR BLDC FAN;ARCS2088LA/LT-W39001,1120 |
| DA31-00346B | MOTOR GEARED DC DAMPER;NSBY001TR1,2.5RPM |
| 6021-000258 | NUT-HEXAGON;STS304,ZPC(YEL),3C,M5 |
| 6021-000166 | NUT-HEXAGON;SWRCH10R,ZPC(WHT),2C,M6 |
| 0205-001027 | OIL-SILICON;G746 |
| 0205-000127 | OIL-SILICON;L5350 |
|
|
PIPE CONNECT-SUCTION;RF9000, AW,CU,OD6.3 |
| DA62-01368B | PIPE WATER-LINE;LLDPE,OD6.35,NATURAL,MB9 |
|
|
PIPE-CONNECT DISC,B;ALL,C1220T,CU,OD6.35 |
| DA62-03154A | PIPE-WATER LINE;AW33,LLDPE,ID4.2,OD6.35, |
| DA97-05803A | PIPE-WATER LINE;LLDPE,4.2,6.35,1000,WHIT |
| DA61-10697B | PLATE CONDENSER;FSR CD,AL,-,-,-,-,- |
| DA61-13772A | PLATE COVER-FRE;RF9000JC,GL-SGLCC,T0.25, |
| DA61-10692A | PLATE INS-FRE;T-TYPE,AL,T0.3 |
| DA61-08675A | PLATE-DRAIN EVAP FRE;ROMANEE CONTI,AL,T0 |
|
|
POWER CORD-AT;SPT-3 3X18AWG 105C,BLK,US3 |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-000297 | R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000312 | R-CHIP;10OHM,5%,1/4W,TP,3216 |
| 2007-000352 | R-CHIP;12KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000668 | R-CHIP;2KOHM,1%,1/8W,TP,2012 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-000762 | R-CHIP;330OHM,1%,1/8W,TP,2012 |
| 2007-007585 | R-CHIP;430KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000944 | R-CHIP;47KOHM,5%,1/4W,TP,3216 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| DA61-05923A | REINF-EARTH;-,HGI-SGHC,T3,-,-,- |
| DA61-14659A | REINF-REF;RF7000AC,GI-SGCC,T2,-,-,-,BSC, |
| DA61-14660A | REINF-REF;RF9000A,GI-SGCC,T1.6,BSC |
|
|
RELAY-MINIATURE;12V,200MW,3000MA,1FORMA, |
|
|
RELAY-POWER;12V,400MW,16000MA,1FORMA,15M |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| 6130-000386 | RETAINER;49547-0392,POLYAMIDE,UPPER TPA, |
| 6130-000387 | RETAINER;49548-0390,POLYAMIDE,LOWER TPA, |
|
|
ROLLER-AUTO CLOSE;AW-PJT,PA6+MD40%,BLACK |
| 6001-000516 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,P |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(WHT),L16,M5,F |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(WHT),L16,M5,T |
|
|
SCREW-SPECIAL;FH,+,M5,L25(15.5),ZPC(WHT) |
|
|
SCREW-TAPPING;STS430,PASS,L16,M4,TH,+,1 |
| 6002-001547 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,F |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
| 6002-000231 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L14,M4,F |
| 6002-000538 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L14,M4,T |
| 6002-000581 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,F |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M5,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,F |
| 6002-001669 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L20,M5,F |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L35,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
| 6002-000244 | SCREW-TAPPING;SWRCH18A,ZPC,L16,M5,TH,+,B |
| 6003-000170 | SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L12,M4,P |
| DA72-00033B | SEAL CUTT FOAM-PE;FDR,PE FOAM,T2,W20,L88 |
| DA72-60040C | SEAL CUTT-RUBBER;RF6000T,RUBBER,T4,W45,L |
| DA62-01139C | SEAL CUTT;-,PE OPEN CELL,T5,W10,L1000,-, |
| DA62-01603W | SEAL CUTT;AW-PJT,PE OPEN CELL,T7,W15 |
| DA62-01137V | SEAL CUTT;PE FOAM,T30,W20,L1000 |
| DA62-01139D | SEAL CUTT;RF5000A,PE OPEN CELL,T5,W15,L1 |
| DA72-00238B | SEAL-DRAIN HOSE;ARAM10,PU FOAM,T10,30 |
|
|
SENSOR HUMIDITY;5V,0~100%RH,REF |
|
|
SENSOR TEMP;DKST1329GW,DOUBLE_INSULATION |
| DA32-00078A | SENSOR TEMP;DOUBLE_INSULATION, TPA,L200, |
|
|
SENSOR TEMP;QUEEN,-50 ~ 80 ,5V,R SENSOR |
| DA32-00070E | SENSOR TEMP;SC41198-021A,1100MM,13.2KOHM |
| DA32-00070D | SENSOR TEMP;SC41199-021A,L900,13.2KOHM,2 |
|
|
SHAFT-CASTER;POLARIS,MSWR10,L44,OD11,-,- |
|
|
SHIM HINGE-UP;-,PVC,T1,NATURAL,-,-,LS130 |
| DA63-00015A | SHIM-DOOR PLATE;RF9000 (B),PVC,T0.5,NATU |
| 2203-007809 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-006842 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-008117 | SMG PART |
| 2007-007943 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007107 | SMG PART |
| 0101-002926 | SMG PART |
| 0103-002817 | SMG PART |
| 0201-001523 | SMG PART |
| 0201-002337 | SMG PART |
| 0201-002906 | SMG PART |
| 0201-003450 | SMG PART |
| 0201-003545 | SMG PART |
| 0202-001463 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-000338 | SMG PART |
| 0203-001060 | SMG PART |
| 0203-001151 | SMG PART |
| 0203-001308 | SMG PART |
| 0203-001367 | SMG PART |
| 0203-001481 | SMG PART |
| 0203-001523 | SMG PART |
| 0203-001810 | SMG PART |
| 0203-001811 | SMG PART |
| 0203-001812 | SMG PART |
| 0203-003411 | SMG PART |
| 0203-006329 | SMG PART |
| 0203-006381 | SMG PART |
| 0203-006407 | SMG PART |
| 0203-006442 | SMG PART |
| 0203-006455 | SMG PART |
| 0203-006491 | SMG PART |
| 0203-006521 | SMG PART |
| 0203-006630 | SMG PART |
| 0203-006795 | SMG PART |
| 0203-006797 | SMG PART |
| 0204-004665 | SMG PART |
| 0204-005065 | SMG PART |
| 0204-005794 | SMG PART |
| 0204-009079 | SMG PART |
| 0205-000131 | SMG PART |
| 0403-001003 | SMG PART |
| 0502-001250 | SMG PART |
| 0601-002345 | SMG PART |
| 0604-001405 | SMG PART |
| 0903-002197 | SMG PART |
| 0903-002203 | SMG PART |
| 0903-002266 | SMG PART |
| 1003-002899 | SMG PART |
| 1003-002900 | SMG PART |
| 1203-004967 | SMG PART |
| 1203-005773 | SMG PART |
| 1203-007526 | SMG PART |
| 1203-009218 | SMG PART |
| 1203-009219 | SMG PART |
| 1205-004722 | SMG PART |
| 1405-001239 | SMG PART |
| 2007-000571 | SMG PART |
| 2007-007336 | SMG PART |
| 2007-009922 | SMG PART |
| 2007-012276 | SMG PART |
| 2201-002335 | SMG PART |
| 2201-002429 | SMG PART |
| 2201-002709 | SMG PART |
| 2201-002711 | SMG PART |
| 2203-006967 | SMG PART |
| 2301-002011 | SMG PART |
| 2401-004553 | SMG PART |
| 2401-004721 | SMG PART |
| 3301-002113 | SMG PART |
| 3502-001087 | SMG PART |
| 3601-001927 | SMG PART |
| 3601-001978 | SMG PART |
| 3711-000262 | SMG PART |
| 3711-008032 | SMG PART |
| 3711-008034 | SMG PART |
| 3711-009393 | SMG PART |
| 3711-009394 | SMG PART |
| 3711-009395 | SMG PART |
| 3711-009460 | SMG PART |
| 4715-001217 | SMG PART |
| 4719-003624 | SMG PART |
| 6002-000555 | SMG PART |
| 6002-001521 | SMG PART |
| 6011-000129 | SMG PART |
| 6902-003053 | SMG PART |
| 6902-003099 | SMG PART |
| DA01-00949N | SMG PART |
| DA01-01370K | SMG PART |
| DA01-01515G | SMG PART |
| DA01-01515H | SMG PART |
| DA01-01705A | SMG PART |
| DA01-01705B | SMG PART |
| DA01-01705C | SMG PART |
| DA02-00038A | SMG PART |
| DA02-00202A | SMG PART |
| DA02-00202B | SMG PART |
| DA02-00202C | SMG PART |
| DA02-00202D | SMG PART |
| DA02-00202E | SMG PART |
| DA02-00202F | SMG PART |
| DA02-00202H | SMG PART |
| DA02-00203A | SMG PART |
| DA02-00210B | SMG PART |
| DA02-00235A | SMG PART |
| DA02-00250A | SMG PART |
| DA02-10004D | SMG PART |
| DA02-10004E | SMG PART |
| DA02-10004G | SMG PART |
| DA02-10004K | SMG PART |
| DA02-10005A | SMG PART |
| DA02-10007A | SMG PART |
| DA02-10008A | SMG PART |
| DA02-10010A | SMG PART |
| DA02-10011A | SMG PART |
| DA02-10011D | SMG PART |
| DA02-10012A | SMG PART |
| DA02-10013B | SMG PART |
| DA02-10015A | SMG PART |
| DA02-10150A | SMG PART |
| DA02-40003A | SMG PART |
| DA02-40012D | SMG PART |
| DA26-00058A | SMG PART |
| DA27-00051A | SMG PART |
| DA27-00061A | SMG PART |
| DA27-00062A | SMG PART |
| DA27-00063A | SMG PART |
| DA32-00063B | SMG PART |
| DA32-00075D | SMG PART |
| DA41-00867C | SMG PART |
| DA47-00442E | SMG PART |
| DA47-00519A | SMG PART |
| DA47-00537A | SMG PART |
| DA59-00392A | SMG PART |
| DA59-00551D | SMG PART |
| DA59-00561E | SMG PART |
| DA59-00628A | SMG PART |
| DA60-00086F | SMG PART |
| DA60-00163A | SMG PART |
| DA60-00366A | SMG PART |
| DA60-00367B | SMG PART |
| DA60-00368A | SMG PART |
| DA60-00395A | SMG PART |
| DA60-00404A | SMG PART |
| DA61-01376T | SMG PART |
| DA61-02609B | SMG PART |
| DA61-03206A | SMG PART |
| DA61-04397A | SMG PART |
| DA61-04910A | SMG PART |
| DA61-05523A | SMG PART |
| DA61-05524A | SMG PART |
| DA61-05525A | SMG PART |
| DA61-05526A | SMG PART |
| DA61-05570A | SMG PART |
| DA61-05780A | SMG PART |
| DA61-05781A | SMG PART |
| DA61-05782A | SMG PART |
| DA61-05783A | SMG PART |
| DA61-05921J | SMG PART |
| DA61-05924K | SMG PART |
| DA61-07130A | SMG PART |
| DA61-07370B | SMG PART |
| DA61-07554B | SMG PART |
| DA61-08177X | SMG PART |
| DA61-08658B | SMG PART |
| DA61-08675B | SMG PART |
| DA61-09100A | SMG PART |
| DA61-09179A | SMG PART |
| DA61-09533A | SMG PART |
| DA61-10293A | SMG PART |
| DA61-10358A | SMG PART |
| DA61-10359A | SMG PART |
| DA61-10371A | SMG PART |
| DA61-10395B | SMG PART |
| DA61-10587A | SMG PART |
| DA61-10693A | SMG PART |
| DA61-10696A | SMG PART |
| DA61-10700B | SMG PART |
| DA61-10712B | SMG PART |
| DA61-10758C | SMG PART |
| DA61-10849A | SMG PART |
| DA61-10995A | SMG PART |
| DA61-11296B | SMG PART |
| DA61-11735A | SMG PART |
| DA61-11737C | SMG PART |
| DA61-11871A | SMG PART |
| DA61-12072A | SMG PART |
| DA61-12074A | SMG PART |
| DA61-12195A | SMG PART |
| DA61-12807F | SMG PART |
| DA61-12990A | SMG PART |
| DA61-13315A | SMG PART |
| DA61-13386A | SMG PART |
| DA61-13394D | SMG PART |
| DA61-13395B | SMG PART |
| DA61-13411A | SMG PART |
| DA61-13412A | SMG PART |
| DA61-13413B | SMG PART |
| DA61-13440A | SMG PART |
| DA61-13450A | SMG PART |
| DA61-13459A | SMG PART |
| DA61-13460A | SMG PART |
| DA61-13467A | SMG PART |
| DA61-13492A | SMG PART |
| DA61-13493A | SMG PART |
| DA61-13524A | SMG PART |
| DA61-13565A | SMG PART |
| DA61-13582A | SMG PART |
| DA61-13653A | SMG PART |
| DA61-13691A | SMG PART |
| DA61-13691B | SMG PART |
| DA61-13692A | SMG PART |
| DA61-14019B | SMG PART |
| DA61-14020B | SMG PART |
| DA61-14021B | SMG PART |
| DA61-14022B | SMG PART |
| DA61-14149A | SMG PART |
| DA61-14163B | SMG PART |
| DA61-14174B | SMG PART |
| DA61-14181A | SMG PART |
| DA61-14209A | SMG PART |
| DA61-14213A | SMG PART |
| DA61-14217A | SMG PART |
| DA61-14218A | SMG PART |
| DA61-14219A | SMG PART |
| DA61-14359A | SMG PART |
| DA61-14440A | SMG PART |
| DA61-14441A | SMG PART |
| DA61-14451A | SMG PART |
| DA61-14453A | SMG PART |
| DA61-14461A | SMG PART |
| DA61-14462A | SMG PART |
| DA61-14468A | SMG PART |
| DA61-14469A | SMG PART |
| DA61-14470A | SMG PART |
| DA61-14473A | SMG PART |
| DA61-14474A | SMG PART |
| DA61-14475A | SMG PART |
| DA61-14476A | SMG PART |
| DA61-14477A | SMG PART |
| DA61-14479A | SMG PART |
| DA61-14500A | SMG PART |
| DA61-14503A | SMG PART |
| DA61-14507A | SMG PART |
| DA61-14522A | SMG PART |
| DA61-14523A | SMG PART |
| DA61-14524A | SMG PART |
| DA61-14527A | SMG PART |
| DA61-14528A | SMG PART |
| DA61-14539A | SMG PART |
| DA61-14552A | SMG PART |
| DA61-14563A | SMG PART |
| DA61-14591A | SMG PART |
| DA61-14663B | SMG PART |
| DA61-14677A | SMG PART |
| DA61-14736A | SMG PART |
| DA61-14972A | SMG PART |
| DA61-14987A | SMG PART |
| DA61-15106A | SMG PART |
| DA61-15112A | SMG PART |
| DA61-15181A | SMG PART |
| DA61-15234A | SMG PART |
| DA61-15235A | SMG PART |
| DA61-15295A | SMG PART |
| DA62-00091A | SMG PART |
| DA62-00110E | SMG PART |
| DA62-00232A | SMG PART |
| DA62-00232B | SMG PART |
| DA62-00302C | SMG PART |
| DA62-00495A | SMG PART |
| DA62-00608E | SMG PART |
| DA62-00959A | SMG PART |
| DA62-00980T | SMG PART |
| DA62-01097A | SMG PART |
| DA62-01128S | SMG PART |
| DA62-01129B | SMG PART |
| DA62-01130F | SMG PART |
| DA62-01134C | SMG PART |
| DA62-01134G | SMG PART |
| DA62-01134H | SMG PART |
| DA62-01135M | SMG PART |
| DA62-01135Y | SMG PART |
| DA62-01136Q | SMG PART |
| DA62-01136T | SMG PART |
| DA62-01136W | SMG PART |
| DA62-01137L | SMG PART |
| DA62-01138D | SMG PART |
| DA62-01138T | SMG PART |
| DA62-01139A | SMG PART |
| DA62-01140B | SMG PART |
| DA62-01140D | SMG PART |
| DA62-01140F | SMG PART |
| DA62-01140P | SMG PART |
| DA62-01140Z | SMG PART |
| DA62-01141B | SMG PART |
| DA62-01141D | SMG PART |
| DA62-01141E | SMG PART |
| DA62-01141F | SMG PART |
| DA62-01141H | SMG PART |
| DA62-01141K | SMG PART |
| DA62-01141M | SMG PART |
| DA62-01141Q | SMG PART |
| DA62-01141T | SMG PART |
| DA62-01141X | SMG PART |
| DA62-01141Z | SMG PART |
| DA62-01142B | SMG PART |
| DA62-01142D | SMG PART |
| DA62-01142F | SMG PART |
| DA62-01142L | SMG PART |
| DA62-01142Q | SMG PART |
| DA62-01142R | SMG PART |
| DA62-01142S | SMG PART |
| DA62-01492Z | SMG PART |
| DA62-01500A | SMG PART |
| DA62-01604A | SMG PART |
| DA62-01921A | SMG PART |
| DA62-01921L | SMG PART |
| DA62-02323A | SMG PART |
| DA62-02453A | SMG PART |
| DA62-02480B | SMG PART |
| DA62-02534B | SMG PART |
| DA62-02536A | SMG PART |
| DA62-02589H | SMG PART |
| DA62-03008B | SMG PART |
| DA62-03018A | SMG PART |
| DA62-03033R | SMG PART |
| DA62-03033Z | SMG PART |
| DA62-03171A | SMG PART |
| DA62-03254D | SMG PART |
| DA62-03254T | SMG PART |
| DA62-03262A | SMG PART |
| DA62-03272A | SMG PART |
| DA62-03420A | SMG PART |
| DA62-03449B | SMG PART |
| DA62-03527B | SMG PART |
| DA62-03641A | SMG PART |
| DA62-03768A | SMG PART |
| DA62-03903A | SMG PART |
| DA62-03914E | SMG PART |
| DA62-03921A | SMG PART |
| DA62-04030D | SMG PART |
| DA62-04122A | SMG PART |
| DA62-04159A | SMG PART |
| DA62-04261A | SMG PART |
| DA62-04264A | SMG PART |
| DA62-04299A | SMG PART |
| DA62-04311V | SMG PART |
| DA62-04311Y | SMG PART |
| DA62-04396C | SMG PART |
| DA62-04396D | SMG PART |
| DA62-04396K | SMG PART |
| DA62-04600A | SMG PART |
| DA62-04601A | SMG PART |
| DA62-04605A | SMG PART |
| DA62-04606B | SMG PART |
| DA62-04609A | SMG PART |
| DA62-04610B | SMG PART |
| DA62-04618R | SMG PART |
| DA62-04623B | SMG PART |
| DA62-04626B | SMG PART |
| DA62-04630A | SMG PART |
| DA62-04744A | SMG PART |
| DA62-04787D | SMG PART |
| DA62-04965A | SMG PART |
| DA62-04987A | SMG PART |
| DA62-05315A | SMG PART |
| DA62-05330A | SMG PART |
| DA62-05341A | SMG PART |
| DA62-05372A | SMG PART |
| DA62-05390A | SMG PART |
| DA62-05394A | SMG PART |
| DA62-05529A | SMG PART |
| DA62-05575A | SMG PART |
| DA62-05577A | SMG PART |
| DA62-05579A | SMG PART |
| DA62-05581A | SMG PART |
| DA62-05591A | SMG PART |
| DA62-05606A | SMG PART |
| DA62-05613A | SMG PART |
| DA62-05613B | SMG PART |
| DA62-05616A | SMG PART |
| DA62-05618A | SMG PART |
| DA62-05622A | SMG PART |
| DA62-05628A | SMG PART |
| DA62-05649A | SMG PART |
| DA62-05654A | SMG PART |
| DA62-05672A | SMG PART |
| DA62-05678A | SMG PART |
| DA62-05690A | SMG PART |
| DA62-05872A | SMG PART |
| DA62-05873A | SMG PART |
| DA62-05874A | SMG PART |
| DA63-03049A | SMG PART |
| DA63-04630B | SMG PART |
| DA63-05349A | SMG PART |
| DA63-05350A | SMG PART |
| DA63-05351A | SMG PART |
| DA63-05403B | SMG PART |
| DA63-05447A | SMG PART |
| DA63-06383B | SMG PART |
| DA63-06892A | SMG PART |
| DA63-06954E | SMG PART |
| DA63-07282A | SMG PART |
| DA63-07287A | SMG PART |
| DA63-07805A | SMG PART |
| DA63-08109A | SMG PART |
| DA63-08236A | SMG PART |
| DA63-08272A | SMG PART |
| DA63-08273B | SMG PART |
| DA63-08279A | SMG PART |
| DA63-08290A | SMG PART |
| DA63-08291A | SMG PART |
| DA63-08447A | SMG PART |
| DA63-08528A | SMG PART |
| DA63-08839B | SMG PART |
| DA63-08944A | SMG PART |
| DA63-09321A | SMG PART |
| DA63-09323A | SMG PART |
| DA63-09460A | SMG PART |
| DA63-09520A | SMG PART |
| DA63-09536A | SMG PART |
| DA63-09665A | SMG PART |
| DA63-09788A | SMG PART |
| DA63-09907B | SMG PART |
| DA63-09908B | SMG PART |
| DA63-09909A | SMG PART |
| DA63-09910A | SMG PART |
| DA63-09914A | SMG PART |
| DA63-11197A | SMG PART |
| DA63-11200A | SMG PART |
| DA63-11206A | SMG PART |
| DA63-11207B | SMG PART |
| DA63-11207C | SMG PART |
| DA63-11210A | SMG PART |
| DA63-11211A | SMG PART |
| DA63-11216A | SMG PART |
| DA63-11217A | SMG PART |
| DA63-11219A | SMG PART |
| DA63-11220A | SMG PART |
| DA63-11232A | SMG PART |
| DA63-11235A | SMG PART |
| DA63-11245A | SMG PART |
| DA63-11260A | SMG PART |
| DA63-11285A | SMG PART |
| DA63-11327A | SMG PART |
| DA63-11401A | SMG PART |
| DA63-11595A | SMG PART |
| DA64-02233S | SMG PART |
| DA64-04152M | SMG PART |
| DA64-04288B | SMG PART |
| DA64-04372F | SMG PART |
| DA64-04485K | SMG PART |
| DA64-04799A | SMG PART |
| DA64-04845E | SMG PART |
| DA64-04915E | SMG PART |
| DA64-04915F | SMG PART |
| DA64-05942A | SMG PART |
| DA64-05945A | SMG PART |
| DA64-05949E | SMG PART |
| DA64-05955A | SMG PART |
| DA64-05957B | SMG PART |
| DA64-05959A | SMG PART |
| DA64-05969A | SMG PART |
| DA64-05970D | SMG PART |
| DA64-06110B | SMG PART |
| DA64-06110C | SMG PART |
| DA64-06222A | SMG PART |
| DA64-06287A | SMG PART |
| DA64-06367B | SMG PART |
| DA64-06490A | SMG PART |
| DA64-06491H | SMG PART |
| DA64-06496B | SMG PART |
| DA64-06506A | SMG PART |
| DA64-06509A | SMG PART |
| DA64-06511B | SMG PART |
| DA64-06513E | SMG PART |
| DA64-06514A | SMG PART |
| DA64-06515A | SMG PART |
| DA64-06608A | SMG PART |
| DA64-07001A | SMG PART |
| DA64-07179A | SMG PART |
| DA66-00952A | SMG PART |
| DA66-00960A | SMG PART |
| DA66-01048A | SMG PART |
| DA66-01110A | SMG PART |
| DA66-01246A | SMG PART |
| DA66-01339A | SMG PART |
| DA66-01345A | SMG PART |
| DA66-01365B | SMG PART |
| DA66-01368A | SMG PART |
| DA67-00189A | SMG PART |
| DA67-03091B | SMG PART |
| DA67-03399A | SMG PART |
| DA67-03716A | SMG PART |
| DA67-03717A | SMG PART |
| DA67-04122A | SMG PART |
| DA67-04331A | SMG PART |
| DA67-04491A | SMG PART |
| DA67-04732A | SMG PART |
| DA67-04771C | SMG PART |
| DA67-04813A | SMG PART |
| DA67-04973A | SMG PART |
| DA67-04974A | SMG PART |
| DA67-04979A | SMG PART |
| DA67-04980A | SMG PART |
| DA67-05025A | SMG PART |
| DA67-05026A | SMG PART |
| DA67-05027A | SMG PART |
| DA67-05028A | SMG PART |
| DA67-05051A | SMG PART |
| DA67-05076A | SMG PART |
| DA67-05150A | SMG PART |
| DA67-05151A | SMG PART |
| DA67-05153A | SMG PART |
| DA67-05156A | SMG PART |
| DA67-05157A | SMG PART |
| DA67-05160A | SMG PART |
| DA67-05162A | SMG PART |
| DA67-05207A | SMG PART |
| DA67-05278A | SMG PART |
| DA67-05391A | SMG PART |
| DA67-90108D | SMG PART |
| DA68-00122E | SMG PART |
| DA68-00679T | SMG PART |
| DA68-01173B | SMG PART |
| DA68-01797W | SMG PART |
| DA68-02562U | SMG PART |
| DA68-02659D | SMG PART |
| DA68-02785B | SMG PART |
| DA68-02785C | SMG PART |
| DA68-02869A | SMG PART |
| DA68-02948A | SMG PART |
| DA68-02986N | SMG PART |
| DA68-04023H | SMG PART |
| DA68-04139B | SMG PART |
| DA68-04141E | SMG PART |
| DA68-04285C | SMG PART |
| DA68-10376D | SMG PART |
| DA68-11081D | SMG PART |
| DA69-00698B | SMG PART |
| DA69-01420A | SMG PART |
| DA69-01687G | SMG PART |
| DA69-01687Q | SMG PART |
| DA69-01740P | SMG PART |
| DA69-01981B | SMG PART |
| DA69-01981C | SMG PART |
| DA69-01981E | SMG PART |
| DA69-01981F | SMG PART |
| DA69-01981H | SMG PART |
| DA69-01981K | SMG PART |
| DA69-01981L | SMG PART |
| DA69-01981M | SMG PART |
| DA69-01981Q | SMG PART |
| DA69-01981R | SMG PART |
| DA69-01981S | SMG PART |
| DA69-01981T | SMG PART |
| DA69-01982F | SMG PART |
| DA69-01982K | SMG PART |
| DA69-02254A | SMG PART |
| DA69-02305K | SMG PART |
| DA69-02308A | SMG PART |
| DA69-02433A | SMG PART |
| DA69-02434A | SMG PART |
| DA69-02455A | SMG PART |
| DA69-02549M | SMG PART |
| DA69-02598A | SMG PART |
| DA69-02633A | SMG PART |
| DA69-02714A | SMG PART |
| DA69-02715A | SMG PART |
| DA71-00322A | SMG PART |
| DA71-10490C | SMG PART |
| DA72-60106V | SMG PART |
| DA72-60405Y | SMG PART |
| DA73-00235D | SMG PART |
| DA75-90006A | SMG PART |
| DA90-12812G | SMG PART |
| DA90-12885A | SMG PART |
| DA90-12886N | SMG PART |
| DA90-12887G | SMG PART |
| DA90-12888E | SMG PART |
| DA90-12891G | SMG PART |
| DA90-12892F | SMG PART |
| DA90-12893B | SMG PART |
| DA90-12894X | SMG PART |
| DA90-12898T | SMG PART |
| DA90-13063N | SMG PART |
| DA90-13064H | SMG PART |
| DA90-13065H | SMG PART |
| DA90-13078P | SMG PART |
| DA92-01371A | SMG PART |
| DA92-01372N | SMG PART |
| DA92-01376A | SMG PART |
| DA92-01381B | SMG PART |
| DA92-01420A | SMG PART |
| DA93-00733M | SMG PART |
| DA93-00923G | SMG PART |
| DA93-00924G | SMG PART |
| DA93-00925Z | SMG PART |
| DA93-00927Q | SMG PART |
| DA93-00942L | SMG PART |
| DA93-00943L | SMG PART |
| DA93-00945F | SMG PART |
| DA93-00946K | SMG PART |
| DA93-01080J | SMG PART |
| DA94-05077A | SMG PART |
| DA94-05770A | SMG PART |
| DA94-05771A | SMG PART |
| DA94-05843E | SMG PART |
| DA96-00990P | SMG PART |
| DA96-01349E | SMG PART |
| DA96-01460E | SMG PART |
| DA96-01465D | SMG PART |
| DA96-01468G | SMG PART |
| DA96-01474A | SMG PART |
| DA97-02465C | SMG PART |
| DA97-05214A | SMG PART |
| DA97-06920Y | SMG PART |
| DA97-08006L | SMG PART |
| DA97-11082C | SMG PART |
| DA97-11489B | SMG PART |
| DA97-11496B | SMG PART |
| DA97-12475A | SMG PART |
| DA97-13239B | SMG PART |
| DA97-13830B | SMG PART |
| DA97-13854D | SMG PART |
| DA97-13903X | SMG PART |
| DA97-14866C | SMG PART |
| DA97-15376X | SMG PART |
| DA97-15419A | SMG PART |
| DA97-15420A | SMG PART |
| DA97-15451B | SMG PART |
| DA97-15974A | SMG PART |
| DA97-15975A | SMG PART |
| DA97-16030A | SMG PART |
| DA97-16135B | SMG PART |
| DA97-16179A | SMG PART |
| DA97-16345B | SMG PART |
| DA97-16633A | SMG PART |
| DA97-17400A | SMG PART |
| DA97-20029F | SMG PART |
| DA97-20228A | SMG PART |
| DA97-20316Q | SMG PART |
| DA97-21155H | SMG PART |
| DA97-21156R | SMG PART |
| DA97-21157R | SMG PART |
| DA97-21158N | SMG PART |
| DA97-21276A | SMG PART |
| DA97-21398A | SMG PART |
| DA97-21789A | SMG PART |
| DA97-21793A | SMG PART |
| DA97-21793B | SMG PART |
| DA97-21804A | SMG PART |
| DA97-21832C | SMG PART |
| DA97-21902B | SMG PART |
| DA97-21908A | SMG PART |
| DA97-21910A | SMG PART |
| DA97-21919C | SMG PART |
| DA97-21952A | SMG PART |
| DA97-21953A | SMG PART |
| DA97-21970A | SMG PART |
| DA97-21971A | SMG PART |
| DA97-21972A | SMG PART |
| DA97-21973A | SMG PART |
| DA97-21998A | SMG PART |
| DA97-22003F | SMG PART |
| DA97-22006C | SMG PART |
| DA97-22011L | SMG PART |
| DA97-22028G | SMG PART |
| DA97-22125A | SMG PART |
| DA97-22126C | SMG PART |
| DA97-22257B | SMG PART |
| DA97-22588A | SMG PART |
| DA97-22969C | SMG PART |
| DA97-23059A | SMG PART |
| DA97-23059B | SMG PART |
| DA97-23308H | SMG PART |
| DA97-23375A | SMG PART |
| DA98-00165B | SMG PART |
| DA98-03199W | SMG PART |
| DA98-03212C | SMG PART |
| DA99-03258A | SMG PART |
| DA99-04201D | SMG PART |
| DB61-00206A | SMG PART |
| DB67-01334A | SMG PART |
| DB68-05458A | SMG PART |
| DB68-08862A | SMG PART |
| DC07-00149A | SMG PART |
| DK62-00129L | SMG PART |
| 0202-001338 | SOLDER-BAR;LEED-FREE SOLDER BAR,W20L350H |
| 0202-000115 | SOLDER-SILVER;BCUP-3,OD2.0,L500 |
| DA61-08315A | SPRING ETC-ETC CAP GUIDE;AW4,STS304,ID3, |
|
|
SPRING ETC-FAN;STS304,PI8.8,ID7.8,OD9.8, |
|
|
SPRING ETC-HANDLE;SVETA-PJT,STS304,ID5.4 |
| DA61-08314B | SPRING FRENCH;RFH920G,STS304 |
|
|
STOPPER DOOR-L;ROMANEE CONTI,PO-SPHC,T2. |
| DA61-14211B | STOPPER DOOR-LEFT;RF9000T/RF9900T,PO-SPH |
|
|
STOPPER DOOR-R;ROMANEE CONTI,PO-SPHC,T2. |
| DA61-13384A | STOPPER DOOR-REF LOW;RF9000R,PO-SPHC,T4, |
| DA61-14210B | STOPPER DOOR-RIGHT;RF9000T/RF9900T,PO-SP |
| DA61-15273A | SUPPORT DOOR-CLOSE;RF9000B,PK,-,M33R3A00 |
|
|
SUPPORT ICE MAKER;RF9000A,HIPS,T3,S834S1 |
|
|
SWITCH REED;UL1007 AWG 22,L100 |
| DA34-00043M | SWITCH REED;UL1007 AWG 22,L100 |
|
|
SWITCH-MICRO;125/250VAC,1A,80GF,SPST-NO |
| DA02-10014A | TAPE ETC-AL;TAPE ETC-AL,AL,T0.05,NATURAL |
| 0203-000444 | TAPE-AL FOIL;AL,T0.07,W50,L100M,CLEAR |
| 0203-006796 | TAPE-POLY;PP,T0.11,W40,N/A,WHITE,TPP(TEN |
| 0203-006800 | TAPE-SINGLE FACE;PP,T0.11,W20,N/A,WHITE, |
|
|
THERMO FUSE-ASSEMBLY;AC250V,10A,109~110 ,S.O |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
| DA64-06535A | TRIM HANDLE;RF9000A,ABS,HI121H,COOL WHIT |
| DA64-03784A | TRIM SHELF;ARAM,LDPE,MB9500,-,NATURAL,- |
| DA62-01266B | TUBE PVC;AW3,PVC,-,OD19.4,L155,-,P-1000, |
| DA62-02414A | TUBE-FITTING L;POM,-,1/4INCH,-,-,-,1/4-1 |
| DA62-05375A | TUBE;UL STANDARD,PO,-,-,L1000,ID2,-,-,-, |
| DA62-05374A | TUBE;UL STANDARD,PO,-,-,L1000,ID4.5,-,-, |
|
|
VALVE STEP;DC12V,MODULE,3WAY,LEFT/LEFT B |
|
|
VALVE-FITTING NUT;A-TOP,C3604,-,-,- |
|
|
VALVE-FITTING PU;BEST-BUY,C3604,-,- |
| 4709-002948 | W-LAN MODULE;CWAP210M,MT7686,IEEE802.11, |
