Model Image
Manufacturer

Samsung

Model Number

RF23DB9900QDAA

Description

Bespoke 23 Cu. Ft. 4-door Flex French Door Refrige

Interactive Exploded View

Parts List

Part Number Description
0201-002906 ADHESIVE-EMEL;PA-53,WHITE,4560CPS/25
0201-002337 ADHESIVE-HM;DJ-8000A,WHITE,1K,HEAT,9,375
0201-003797 ADHESIVE-SEALANT;LOCKSEAL7700,111CPS,LOK
0201-003450 ADHESIVE-SEALANT;LOCKSEAL7700,LOKPREP
0201-001523 ADHESIVE-SIL;SB-1999,SEMI CLEAN,3000CPS
0201-003079 ADHESIVE-SILICON;BLACK
DA61-14455A ANGLE SHELF-REF MIDDLE;GI-SGCC,T2.5,
RA-F18DBBQL_AA RA-F18DBBQL_AA ASSY ACCESSORY-CUSTOM PANEL;RF9000A,FRE,
RA-F18DUUQL_AA RA-F18DUUQL_AA ASSY ACCESSORY-CUSTOM PANEL;RF9000A,REF,
DA99-05319H ASSY ACCESSORY-CUSTOM PANEL;RF9000D,CLEA
DA97-22003D ASSY CABI FRAME-BOTTOM;RF7000AC,RIGHT ON
DA97-20316Q ASSY CABI FRAME-MIDDLE;RF9000A/AC, RF700
DA97-13239B ASSY CABI FRAME-MIDDLE;ROMANEE-CONTI,VER
DA97-24374D ASSY CABI FRAME-REAR;RF9000D,GL-SGLCC,T0
DA97-24886K ASSY CABI FRAME;RF9000DC,21C SILVER,D610
DA97-15376X ASSY CABI-BOTTOM FRONT;RF9000R,EXPORT, U
DA90-14692P ASSY CABINET FORM;RF9000D,CD,SILVER,SIDE
DA97-04049E DA97-04049E ASSY CAP-DRAIN;AW3
DA97-21875C ASSY CASE BASKET-LOW;RF9000AC,INDIA
DA97-08006L ASSY CASE FILTER;H920G
DA97-21797D ASSY CASE FILTER;RF9000AC,110V, NO FLOW
DA97-22162A DA97-22162A ASSY CASE ICE;RF9000A,SERVICE (CUBE)
DA97-22160A DA97-22160A ASSY CASE ICE;RF9000A,SERVICE (NUGGET)
DA97-21793L ASSY CASE ICE;RF9000DC,610, GLOBAL, SCOO
DA97-21793M ASSY CASE ICE;RF9000DC,610, GLOBAL, WITH
DA97-17399U ASSY CASE INNER;RF7000AC,BSC LED 1EA
DA97-20069H ASSY CASE PBA-MAIN;RF9000B,ICE BALL
DA97-24974A ASSY CASE PCB;RF9000D,AOD TOUCH SENSOR
DA97-24879B ASSY CASE SENSOR;RF9000D,GRAY,CAMERA MOD
DA97-21878M ASSY CASE VEG;RF9000AC,CD, INDIA
DA97-21261H ASSY CASE WATER FILTER;RF9000A,INDIA
DA97-12557T ASSY CHASSIS COMP;RF9000C,GI-SGCC,T1.4,W
DA97-22349M ASSY COMP N CONDENSING-COND MODULE;RF900
DA97-21788A ASSY COVER BASKET;RF9000A,BSC DISPLAY
DA97-24085C ASSY COVER COMP;RF9000C,GL-SGLCC,T0.25,S
DA97-23218B ASSY COVER DEODORIZER;RF9000B,UV,GLOVAL,
DA97-22322A ASSY COVER DOOR-LEFT;RF9000A,EBONY BLACK
DA97-23641A ASSY COVER EVAP-FRE;RF9000,BOX FAN
DA97-21807H ASSY COVER EVAP-REF;RF9000D,NORMAL,METAL
DA97-16143B ASSY COVER LAMP;RF8000MC
DA97-08442D DA97-08442D ASSY COVER PCB-PANEL;AW4-4D
DA97-08413B DA97-08413B ASSY COVER-TUBE FILTER;AW4,ASSY
DA98-03463A ASSY CUSHION BOTTOM;RF9000DC,FRE DOOR SU
DA98-03212C ASSY CUSHION TOP;RF9000AC(B),LOW TOP TAB
DA90-14677D ASSY CYCLE;RF9000D,110V,W1 COMP(15CC),CO
DA90-14150G ASSY DAMPER;RF9000D,CONVERTIBLE(N),METAL
DA91-05346S ASSY DOOR FOAM-FRE LEFT;RF9000A(B),DARK
DA82-03554E ASSY DOOR FOAM-FRE RIGHT;RF9000A(B),DARK
DA82-03847R ASSY DOOR FOAM-REF IN LEFT;RF9000D,DARK
DA82-03847Q ASSY DOOR FOAM-REF OUT LEFT;RF9000D,FDSR
DA82-03847P ASSY DOOR FOAM-REF RIGHT;RF9000D,"32 HUB
DA90-13540N ASSY DOOR FRE-LEFT;RF9000C(B),FIXED,REAL
DA90-13539N ASSY DOOR FRE-RIGHT;RF9000C(B),FIXED,REA
DA90-14701R ASSY DOOR REF-LEFT;RF9000D(B),FDSR,BSC,Q
DA90-14698U ASSY DOOR REF-RIGHT;RF9000D(B),F-HUB,32I
DA93-00943L ASSY DOOR SUB-FRE LEFT DOOR MODULE;RF900
DA93-01316H ASSY DOOR SUB-FRE LEFT;RF9000C,QL(STAINL
DA93-00942L ASSY DOOR SUB-FRE RIGHT DOOR MODULE;RF90
DA93-01317H ASSY DOOR SUB-FRE RIGHT;RF9000C,QL(STAIN
DA93-01617G ASSY DOOR SUB-REF IN LEFT DOOR MODULE;RF
DA93-01561R ASSY DOOR SUB-REF LEFT;RF9000D,QL(REAL S
DA93-00946N ASSY DOOR SUB-REF OUT LEFT DOOR MODULE;R
DA93-01206R ASSY DOOR SUB-REF OUT LEFT;RF9000D,QL(RE
DA93-01531E ASSY DOOR SUB-REF RIGHT DOOR MODULE;RF90
DA93-01532K ASSY DOOR SUB-REF RIGHT;RF9000D,"32 HUB,
DA97-16345B ASSY DRAIN HOSE-FRE LEFT;RF9000A/AC
DA97-16135B ASSY DRAIN HOSE-FRE RIGHT;RF9000A,HDPE,
DA97-21998A ASSY DRAIN HOSE-REF;RF9000A/AC,NATURAL
DA97-24796B ASSY EASY OPEN;RF9000D,ROLLER PUSHER, IN
DA96-01520C ASSY EVAP-CONV EVAP MODULE;RF9000B,FIN T
DA96-01515C ASSY EVAP-FRE EVAP MODULE;RF9000B,FIN TU
DA96-01519B ASSY EVAP-REF EVAP MODULE;RF9000B,FIN TU
DA97-22257B ASSY FIXER-UP;RF9000A,BLACK,RECYCLE
DA97-20572A ASSY FIXER-UP;RF9000R(B),BLACK
DA97-22978B ASSY FIXER;RF8000B,LOKRING PIPE, HOTMELT
DA97-22990F ASSY FRENCH;RF9000A,COOL WHITE, 110V, AD
DA97-23369A ASSY GASKET-FRE;RF9000B
DA97-23368A ASSY GASKET-REF;RF9000B
DA97-20057A ASSY GASKET;RF9000R,DARK GRAY
DA97-21952A ASSY GROMMET;RF9000A,FIXER PIPE HANGER
DA97-21276A ASSY GROMMET;RF9900T
DA97-23410A ASSY GUARD PACKING-DOOR BIN MODULE;RF900
DA97-19996E ASSY GUARD-FRE;RF9000A,TP GRAY,INDIA
DA97-21914A ASSY GUARD-REF LOW;RF9000A,TP GRAY,BSC S
DA97-21960A ASSY GUARD-REF MIDDLE;RF9000A,SAN,T3,TP
DA97-15186E DA97-15186E ASSY GUARD-REF UP;RF9000N,TP GRAY
DA97-21915A ASSY GUARD-REF;RF9000A,TP GRAY,HUB
DA90-14674E ASSY GUARD;RF9000D,F-HUB,L-BSC
DA97-14866C ASSY GUIDE HOSE-BOTTOM;AW3-14,FOAM PE
DA97-22006C ASSY GUIDE HOSE;RF9000AC,610 MODEL
DA97-23110A ASSY HINGE-LOW LEFT;RF9000B,BLACK,AUTO C
DA97-21336A ASSY HINGE-LOW LEFT;T4,OUT
DA97-23111A ASSY HINGE-LOW RIGHT;RF9000B,BLACK,AUTO
DA97-25013A ASSY HINGE-MIDDLE LEFT;RF9000D,GROMMET(C
DA97-25014A ASSY HINGE-MIDDLE RIGHT;RF9000D,GROMMET(
DA97-24198A ASSY HINGE-UP LEFT;RF9000C,T4,BLACK,OUT
DA97-19972D ASSY HINGE-UP LEFT;RF9000R,T3,BLACK
DA97-19973C ASSY HINGE-UP RIGHT;RF9000R,T3,BLACK
DA59-00392A ASSY ICE MAKER-ICE MODULE;SWAA,DC 12V,
DA97-21804A ASSY ICE MAKER-MECH;RF9000A,DUAL
DA90-14686A ASSY ICE MAKER;RF9000D,CD,USA,DUAL I/M
DA97-21919K ASSY INS PARTITION;RF9000DC,DEPTH 610, D
DA97-15796B ASSY INS VACUUM PANEL;AW3-14,T12,W500,L1
DA97-23491C ASSY INS VACUUM PANEL;RF9000BC,T8,675,61
DA90-14687H ASSY INSERT;RF9000D,CD,110V,BSC,DUAL I/M
DA90-14710C ASSY LABEL POP TEMP;RF9500D, RF23DB99*,A
DA99-03258A ASSY LABEL-INSTALLER CHECK LIST;AW-PJT,A
DA96-01474A ASSY LAMP LED;1,FR-1,17*17,WHITE,UNDER 8
DA96-00392G DA96-00392G ASSY LAMP LED;2,FR-4,85*10,WHITE,SMH200-
DA41-00519R DA41-00519R ASSY LAMP LED;3EA,CEM-1,65*10*1.6T,WHITE
DA97-22004A ASSY LED LAMP;RF9000A,BEVERAGE SHOW CASE
DA97-24557A ASSY LEVER AUTO CLOSE;RF9000CC,LEFT MODU
DA97-24558A ASSY LEVER AUTO CLOSE;RF9000CC,RIGHT MOD
DA97-17297F ASSY LEVER DISPENSER;RF9000A,NO PRINT, U
DA94-09095G ASSY LINER;RF9000D,CD,F-HUB,L-BSC,DUAL I
DA61-02738A DA61-02738A ASSY MAGNET;CORE-PJT,FERRITE,
DA98-03466A ASSY MANUAL;RF9000D/DC,AA
DA92-01492F ASSY MICOM-TOUCH;RF9000D,CY8C4014LQI-422
DA92-00976A ASSY MICOM;FHUB2 LCD,HDCP AND OCF KEY CO
DA92-01767A ASSY MICOM;RF9000D,FHUB LCD S/W FOR US
DA92-01761A ASSY MICOM;RF9000D,MAIN MICOM HEX CODE,
DA92-01764A ASSY MICOM;RF9000D_SUB,SUB MICOM HEX COD
DA92-01757A ASSY MICOM;STM32G431,NEW_PF1. 3SHUNT, IN
DA92-00945A DA92-00945A ASSY MODULE;PBA-FUSE BLOCK,BRZ9000M,30*5
DA90-14675H ASSY OUTER;RF9000D,SILVER,L-FDSR,SIDE CO
DA90-14679C ASSY PACKING;RF9000D(B),CD,USA,L-BSC,DUA
DA97-24624A ASSY PANEL;RF9000A,VCM, NON MOVING GUARD
DA97-21953C ASSY PARTITION-FRE V;RF9000AC,DEPTH 610,
DA92-01632A ASSY PBA MODULE-SMPS;SMPS,RF8000C HUB,12
DA92-01329C ASSY PBA MODULE-SUB;AOD SUB PBA,RF9000D,
DA92-01368B ASSY PBA MODULE-VOICE;DIGITAL MIC,RF9000
DA92-01485F ASSY PBA MODULE;TOUCH PBA,RF9000D,50*20M
DA94-08890A ASSY PCB AUTO;R_PF01_23_A34,RF9000D,165*
DA92-01743B ASSY PCB DISPLAY;A311D_32" LCD,RF9000D,2
DA94-09287M ASSY PCB EEPROM;0X1A,RF9000D,DA92-01763A
DA94-08954A ASSY PCB EEPROM;DAT8 0X01,US RF9000_D,FH
DA92-01763A ASSY PCB MAIN;R_PF01_23_A34,RF9000D,165*
DA94-08885A ASSY PCB SMD;A311D_32" LCD,RF9000D,260*8
DA94-08891A ASSY PCB SMD;R_PF01_23_A34,RF9000D,165*2
DA97-15974A ASSY PIPE CONNECT-B;PFC,
DA97-15975A ASSY PIPE CONNECT;PFC,
DA97-16030A ASSY PIPE SUCTION-SUB;RB5000J,
DA97-23184H ASSY PIPE SUCTION;RF9000C,AL SUCTION, KI
DA97-21801C DA97-21801C ASSY PIPE WATER ICE;RF9000A,SEAL 160MM,A
DA97-21156R ASSY PLATE DOOR-FRE LEFT;RF9000A(B),NO T
DA97-21157R ASSY PLATE DOOR-FRE RIGHT;RF9000A,NO TRI
DA97-21158Q ASSY PLATE DOOR-REF OUT LEFT;RF9000D,FDS
DA97-24538E ASSY PLATE DOOR-REF RIGHT;RF9000D,"32 HU
DA90-14683Q ASSY PRINTING;RF23DB9900QDAA
DA97-21973A ASSY RAIL-FRE UP LEFT;RF9000AC
DA97-21972A ASSY RAIL-FRE UP RIGHT;RF9000AC
DA97-15419A ASSY RAIL-LEFT;RF9000JC
DA97-21876B ASSY RAIL-MIDDLE LEFT;RF9000AC,DELETE RO
DA97-21971A ASSY RAIL-REF LOW LEFT;RF9000AC
DA97-21970A ASSY RAIL-REF LOW RIGHT;RF9000AC
DA97-15420A ASSY RAIL-RIGHT;RF9000JC
DA97-06920Y ASSY REINF-CABI FLANGE UP;RF9000T
DA97-05214A ASSY REINF-GUIDE FRENCH;AW-PJT,
DA97-16179A ASSY REINF-MIDDLE FRONT;RF9000K,PO-SPHC,
DA97-19988A ASSY ROLLER;RF9000K,29
DA97-22126K ASSY SEAL CABI;RF9000D,610,V/F
DA99-04201D ASSY SEAL;RF9900N,ASSY, 9900
DA97-22970A ASSY SHELF INSERT-REF FIX;RF8000BC,INSER
DA97-21895A ASSY SHELF QUICK SPACE;RF9000AC,LUMINOUS
DA97-21798D ASSY SHELF SLIDE-FRE;RF7000AC,610,NO VIN
DA97-21798B ASSY SHELF SLIDE-FRE;RF9000AC,VIO VINYL
DA97-21902L ASSY SHELF VEG-LOW;RF8000BC,WHITE PRINTI
DA97-21898A ASSY SHELF-REF UP;RF9000AC,LUMINOUS TRIM
DA97-23375B ASSY SHELF-SLIDE FRE SHELF MODULE;RF9000
DA90-14678A ASSY SHELF;RF9000D,CD,WHITE,LUMINOUS
DA97-20025A DA97-20025A ASSY SUPPORT-CIRCUIT MOTOR;NW2-FDR,C160N
DA97-13830B ASSY SUPPORT-MIDDLE;RF9000A
DA97-13854D ASSY TANK WATER-REF;RS5000RC,PP,T3.5,NAT
DA97-22125J ASSY TAPE CABI;RF9000D,610,V/F
DA97-24811H ASSY TOP TABLE;RF9000D,ABS,INOX GRAY,NO
DA97-15978N ASSY TRAY DRAIN WATER;RF9000C,T2,GEAR BO
DA97-24987C ASSY URETHANE CABI;RF9000D,CD,VIP REAR(1
DA97-02465C ASSY URETHANE DOOR-REF;REF-ALL,HOM-BA,KI
DA97-02465H ASSY URETHANE;KIMCHI-IVY,KIMCHI-CABI
DA97-17400A ASSY VALVE WATER-HOSE;RF8000MC
DA96-01638A ASSY WIRE HARNESS-CABI;RF9000D,DUAL I/M,
DA96-01170A ASSY WIRE HARNESS-COMP;ALL,ALL,FREE VOLT
DA96-01471C ASSY WIRE HARNESS-DISPENSER;ALL,DISPLAY,
DA96-01581A ASSY WIRE HARNESS-DISPLAY;RF9000C,F-HUB
DA96-01582C ASSY WIRE HARNESS-DOOR;RF9000D,AOD,T,FRE
DA96-01636C ASSY WIRE HARNESS-DOOR;RF9000D,BSC,T,100
DA96-01580K ASSY WIRE HARNESS-DOOR;RF9000D,TOUCH SEN
DA96-01349E ASSY WIRE HARNESS-DOOR;RF9500R,FAMILY HU
DA39-20389L DA39-20389L ASSY WIRE HARNESS-EARTH;EARTH,ALL,FREE V
DA96-00990P ASSY WIRE HARNESS-ETC;RF9500R,T,NA,12VDC
DA96-01637E ASSY WIRE HARNESS-MAIN;RF9000D,BSC, 32"
DA96-00852E ASSY WIRE HARNESS-SPI;ALL PJT, WIRE OF D
DA96-01639D ASSY WIRE HARNESS-TOP;RF9000D,F-HUB,AOD,
DA96-01609A ASSY WIRE HARNESS;32" FHUB IOT DONGLE,FR
DA96-01608A ASSY WIRE HARNESS;32" FHUB LCD,FREE VOLT
DA97-12475A ASSY-GROMMET FRENCH;MOUTON
DA97-11082C ASSY-GROMMET SCREW;POLARIS,FRPP
6902-002371 BAG PE;HDPE,T0.015,W200,L300,TRP,RECYCLE
6902-003050 BAG PE;HDPE,T0.03,W250,L400,TRP,RECYCLE+
6902-003053 BAG ROLL;HDPE,T0.012,W1900,L1000,TRP,REC
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
3301-002113 BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2
DA02-40003A BLOWING AGE-CP;C5H10,CYCLO-PENTANE 95%
6003-001727 6003-001727 BOLT-ETC;M6,L20,ZPC(WHT),SWRCH18A,FH HEA
6011-001694 BOLT-ETC;M8,L14.1,ZPC(SILVER),FH,+,SCM43
6011-001656 6011-001656 BOLT-HEX;M6,L16,ZPC(WHT),HH,SWRCH22A,MAC
DA60-10123E DA60-10123E BOLT-HEX;M6,L19,ZPC(WHT),SWRCH18A,HH HEA
6011-000129 BOLT-HEX;M6,L35,ZPC(SILVER),SWRCH10A
6011-007289 BOLT-HEX;M6,L43.6,ZPC(SILVER),HH,SOCKET,
DA61-15475A BRACKET CONDENSER-LOW;RF9000B,PP,BLACK
DA61-09703A BRACKET STEP VALVE;RT6500M,PP,T2,BLACK
DA71-00322A BRACKET-BOTT REAR;M,ES,ES VE,GI-SGCC,T1.
DA61-14213A BUSH;RF9000T/RF9900T,POM,BLACK,K300
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2402-001254 C-AL,SMD;10UF,20%,50V,WT,TP,6.3X5.2MM
2402-001303 C-AL,SMD;220UF,20%,35V,TP,8.3X8.3X10MM
2401-004721 C-AL;680UF,20%,250V,BK,30X30MM,10MM,25T
2401-004553 C-AL;820UF,20%,25V,TP,10X20MM,5MM,40TO+
2203-006457 C-CER,CHIP
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-005135 C-CER,CHIP;1NF,10%,630V,X7R,TP,3216,T1.1
2203-007456 C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5,
2203-007486 C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,55TO
2203-010495 C-CER,CHIP;2.2UF,10%,25V,X7R,TP,2012,T1.
2203-010033 C-CER,CHIP;220NF,10%,25V,X5R,TP,1005,T0.
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-006992 C-CER,CHIP;330PF,5%,50V,C0G,TP,1005,55T
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0.
2203-010496 C-CER,CHIP;4.7UF,10%,25V,X7R,TP,2012,T1.
2203-007717 C-CER,CHIP;82NF,10%,50V,X7R,TP,1608,T0.8
2201-002429 C-CERAMIC,DISC;10NF,+80-20%,2000V,Y5U,TP
2201-002688 C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,TP,1
2201-002709 C-CERAMIC,DISC;33PF,5%,1000V,SL,TP,6.3X5
2201-002711 C-CERAMIC,DISC;470PF,10%,400VAC,Y5P,TP,1
2201-002335 C-CERAMIC,DISC;68PF,10%,2000V,SL,TP,8X5M
2301-002483 C-FILM,LEAD-MPPF;330NF,10%,275VAC,BK,18X
2301-002484 C-FILM,LEAD-MPPF;470NF,10%,275VAC,BK,18X
2301-002011 C-FILM,LEAD-PPF;2.2NF,5%,630V,TP,13X11X6
DA01-00949W C/STEEL-CABI;RF9000JC,GI-SGCC,21 CABINET
DA01-01370P C/STEEL-DOOR;RF9000A,EGI-SECC,LIGHT DOI
DA01-01515G C/STEEL-DOOR;RF9000R,EGI-SECC,BLACK CAVI
DA01-01515H C/STEEL-DOOR;RF9000R,EGI-SECC,BLACK CAVI
DA01-02041H C/STEEL;RF9000A,STS430,REAL STS430,0.6MM
DA01-02041J C/STEEL;RF9000A,STS430,REAL STS430,0.6MM
DA64-04799A CABI FRAME-BOTTOM FRONT;RF9000JC,PP,T2,B
DA64-04485K CABI FRAME-BOTTOM REAR;RF7000AC/ RF9000A
DA64-02233S CABI FRAME-MIDDLE FRONT;RF9000K,EGI-SECC
DA64-04288B CABI FRAME-MIDDLE;ROMANEE-CONTI,EGI-SECC
DA64-07387A CABI FRAME-REAR;RF9000A,GL-SGLCC,T0.35,
DA64-07609E CABI FRAME;RF9000DC,GI-SGCC,T0.4,21 CA
DA66-01678A CAM AUTO CLOSE-LEFT;RF9000CC,POM,BLACK
DA66-01677A CAM AUTO CLOSE;RF9000CC,POM,BLACK,K3
DA66-01710A CAM RISER-LOW LEFT;RF9000D,POM,BLACK,
DA66-01711A CAM RISER-LOW RIGHT;RF9000D,POM,BLACK,
DA66-01714A CAM RISER-UP LEFT;RF9000D,PA66,BLACK,
DA66-01715A CAM RISER-UP RIGHT;RF9000D,PA66,BLACK,
DA59-00654A CAMERA MODULE;CT90SN10AA,2880X1620,1/2.7
DA67-03716A CAP DISPENSER-OUT;3050 PJT,LDPE,T1.2,HB,
DA67-03717A CAP DISPENSER;3050 PJT,LDPE,HB,MB9500,NA
DA67-05026A CAP DOOR-FRE LOW LEFT;RF9000T,ABS,T2.3,H
DA67-05028A CAP DOOR-FRE LOW RIGHT;RF9000T,ABS,T2.3,
DA67-05025A CAP DOOR-FRE UP LEFT;RF9000T,ABS,T2.3,HB
DA67-05027A CAP DOOR-FRE UP RIGHT;RF9000T,ABS,T2.3,H
DA67-05721A CAP DOOR-REF LOW LEFT;RF9000D,ABS,T2,H
DA67-05577A CAP DOOR-REF LOW RIGHT;RF9000C,ABS,T2,
DA67-05574A CAP DOOR-REF UP LEFT;RF9000C,ABS,T2,HG
DA67-05720A CAP DOOR-REF UP LEFT;RF9000D,ABS,T2,HG
DA67-05576A CAP DOOR-REF UP RIGHT;RF9000C,ABS,T2,H
DA67-04504D CAP FIXER-TUBE;RR9000A,SI,T3,DARK GRAY
DA67-05151A CAP FIXER;RF9000A,SI,T2,NEO VICTORY GRAY
DA67-04491A CAP GUIDE FRENCH;RF9000K,PA66,T2,KN3311,
DA67-05051A CAP HOLE-FRE;RF9000T,ABS,T1.5,GP-35,EBON
DA67-05076A CAP KNOB;RF9900T,POM,K300,NATURAL
DA67-30266K CAP SCREW;A-TOP,PP,T1.5,HB,BJ750,COOL WH
DA67-30266Q CAP SCREW;RF9000A,PP,T1.5,BJ750,NEO VI
DA67-04961A CAP SCREW;RQ9500(B),ABS,RM-0760,DARK GRA
DA67-04331A CAP SHAFT;RF9000K,POM,K300,NATURAL
DA67-04732A CAP TANK;RS5000RC,PP,T3.5,J370,NATURAL
DA97-04049D DA97-04049D CAP-DRAIN;AW4,HIPS,HB,576H,NATURAL
DA67-05406A CAP-FRERENCH;RF9000A,PP,T1.5,HB,BJ750,NA
DA67-00189A CAP-HOME BAR;ABS,HG-0760H,SNOW WHITE
DA67-02795C CAP-SHAFT HOLE;AW3,ABS,HG-0760GP,SNOW WH
DB67-01334A CAP-TUBE;ARX-CC103,LDPE,T0.7,MB9500,NA
DA67-03399A CAP-TUBE;HM12,PP,HB,BJ750,NATURAL
DA67-05407A CAP-URETHANE;RF9000A,PP,T2.6,HB,BJ750,CO
DA61-14440A CASE BASKET-LOW;RF9000A,HIPS,T2.5,NEO VI
DA61-14527A CASE BASKET-LOW;RF9000AC,PP,COOL WHITE,B
DA61-14149A CASE BASKET-MIDDLE;RF9900T,HIPS,T3,COOL
DA61-14441A CASE BASKET-UP;RF9000A,ABS,T3,NEO VICTOR
DA61-11735A CASE DISPENSER-IN;RF8000MC,ABS,EBONY B
DA61-13987A CASE DISPENSER;RS5000T,STS304,T0.5,
DA61-14461A CASE FILTER-LEFT;RF9000AC,HIPS,T2,NATURA
DA61-14163B CASE FILTER-OUT;RF9000A,HIPS,T2.5,NEO VI
DA61-14552A CASE FILTER-OUT;RF9000AC,HIPS,T2.5,NATUR
DA61-14462A CASE FILTER-RIGHT;RF9000AC,HIPS,T2,NATUR
DA61-15091A CASE FILTER;RF9000A,GPPS,T2.5,TP GRAY,G-
DA61-15169A CASE FRENCH-FRONT;RF9000A,ABS,T2,COOL WH
DA61-15168A CASE FRENCH;RF9000A,ABS,T2.5,COOL WHITE,
DA61-13386A CASE HEATER-FRENCH;RF9000R,ABS,NATURAL,V
DA61-14444A DA61-14444A CASE ICE-CUBE;RF9000AC,GPPS,T2.5,TP GRAY
DA61-14309A CASE ICE-SCOOP;RF9900T,PCTG,T2,TP GRAY,J
DA61-07581A CASE LAMP-LED;POLARIS,GPPS,20.4,20.4,TP
DA61-14972A CASE LAMP;RF9000A,PP,T2.5,COOL WHITE,BJ7
DA61-13653A CASE LOCK-A;RF9000R,ABS,T2.5,INOX GRAY,A
DA61-15327A CASE PBA-MAIN;RF9000B,PP,T2.5,NATURAL,
DA61-15902A CASE PCB;RF9000D,HIPS,T2,INNER WHITE,S
DA61-16177B CASE SENSOR;RF9000D,ABS,T1,INOX GRAY,H
DA61-15260A CASE SPI 2;RF9000B,HIPS,T3,COOL WHITE,
DA61-09543A CASE UNIT;OPUS1-14,MPPE,VICTORY DARK GRA
DA61-14524B CASE VEG-LOW;RF9000C,PP,COOL WHITE,P
DA61-14174B CASE WATER TANK;RF8000BC,PCT,T2,TP GRAY,
DA61-13315A CASE WATER TANK;RS5000RC,PP,T3.5,NATURAL
DA61-05524A CASE-FILTER IN;SSEDA,POM,NATURAL,
DA61-05523A CASE-FILTER OUT;SSEDA,POM,NATURAL,
DA61-15759A CASE-HUB IN;RF9000C,ABS,T2,EBONY BLACK,
DA61-14218A CASE;ABS,T1.5,DARK GRAY,HG-0760GP,FDSR
DA61-14217A CASE;RF9000T/RF9900T,ABS,T1.5,DARK GRAY,
DA61-04702A DA61-04702A CASTER-FRONT;AW-PJT,PP,BLACK
DA61-04703A DA61-04703A CASTER-REAR;AW-PJT,PP,BLACK,M/B(0103-002
DA02-00249A CATALYST;T10,W35,L70,CERAMIC,BIOCIDAL_Y
DA64-07487A CHASSIS COMP;RF9000C,GI-SGCC,T1.4,W908,
DA61-04522A DA61-04522A CLIP-FITTING LOCK;AW,POM,NATURAL,POM
DA61-15114A CLIP;RF6000T,POM,T2,NATURAL,F20-03,LOC
DA61-14591A CLIP;RF9000A,POM,NATURAL,K300
NO14C9151AKD01 CMP,COMP,REFRIGERATOR,R600A
DA02-00235A COATING-ECO PRO;ECO PRO,12.7,TRANSPARENC
DA27-00063A COIL CHOKE;150UH,6A,11MMX10MM,MN-ZN,4P,D
DA27-00062A COIL CHOKE;18MH,6A,16MMX18MM,MN-ZN,4P,DI
DA27-00061A COIL CHOKE;4.5MH,6A,15MMX10MM,MN-ZN,4P,D
3708-003073 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU
3708-003389 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,10P,0.5MM
DA63-11206A COVER BASKET-LOW;RF9000A,GPPS,TP GRAY,G-
DA63-08826B DA63-08826B COVER CAP DOOR-REF UP;RF8000MC,ABS,EBONY
DA63-11934A COVER CAP DOOR-UP;RF9000C,ABS,T1.5,DAR
DA91-05369B COVER CAP DOOR;ABS,T1.5,DARK GRAY,RM-076
DA63-09958B COVER CAP DOOR;RF9000A,ABS,T2,5VB,EBONY
DA63-12129A COVER CAP DOOR;RF9000D,ABS,T2,EBONY BL
DA63-11580A COVER CASE;RF8000B,ABS,T2.5,NATURAL,
DA63-11981C COVER COMP;GL-SGLCC,T0.25,SEAL A
DA63-11901A COVER DISPLAY-LCD;RF9000C,ABS,HB,EBONY
DA63-11902A COVER DISPLAY-REAR;RF9000C,ABS,5VB,EBO
DA63-11272A COVER DOOR-LEFT;RF9000A,ABS,T3,EBONY BLA
DA63-11741A COVER EVAP-FRE REAR;RF9000,PP,T1.5,INN
DA63-11740A COVER EVAP-FRE;RF9000,PP,T2,COOL WHITE
DA63-11595A COVER EVAP-REAR;RF9000A,PP,T1.5,INNER
DA63-11200A COVER EVAP-REF;RF9000A,HIPS,T2.5,COOL
DA63-05403B COVER FILTER;AW3,PP,T2.5,INNER GRAY,NF-6
DA63-11209A COVER FILTER;RF9000AC,GPPS,T2.5,TP GRAY,
DA63-11210A COVER FILTER;RF9000AC,HIPS,T2.5,COOL WHI
DA63-11584A COVER HINGE-LOW;RF9000A,PP,T1.5,HB,NATUR
DA63-11948A COVER HINGE-UP LEFT;RF9000C,ABS,INOX
DA63-12044A COVER HOUSING;RF9000CC,POM,BLACK,K
DA63-12047A COVER HOUSING;RF9000CC,POM,BLACK,K
DA63-11369B COVER ICE-FRE;RF9000A,PP,T2.5,COOL WHI
DA63-12133A COVER ICE-FRE;RF9000D,PCTG,T3.5,TP GRA
DA63-06849A DA63-06849A COVER LAMP-LED FRONT;CULLINAN,PC,V-2,N
DA63-06505A COVER LAMP-LED;POLARIS,MABS,HB,NATURAL,T
DA63-08272A COVER LAMP;RF9000,ABS,T2,COOL WHITE,
DA63-08273B COVER LAMP;RF9000K,GPPS,T2.5,INNER WHI
DA63-08449D COVER LOCK;RF8000B,ABS,T2.5,5VA,DARK GRA
DA63-09537A DA63-09537A COVER LOCK;RF9000R,ABS,T2.5,INOX GRAY,AB
DA63-05446C COVER PBA-REAR;GI-SGCC,T0.5,
DA63-11997A COVER PCB;RF9000D,ABS,T2,EBONY BLACK,
DA63-09536A COVER PIPE-UP;RF9000R,HIPS,T2,COOL WHITE
DA63-06122A COVER RELAY;MSV,MPPE,T2,BLACK,N300X,V-0
DA63-11197A COVER SENSOR;RF9000A,PP,T2.5,COOL WHITE,
DA63-12130A COVER SENSOR;RF9000D,ABS,T2,EBONY BLAC
DA63-12145A COVER SENSOR;RF9000D,MABS,T2.3,HB,NATURA
DA63-12142A COVER SENSOR;RF9000D,NBR,T1,BLACK,
DA63-09321A COVER SENSOR;RS8000NC,PP,T2,COOL WHITE,B
DA63-11650A COVER SPI 2;RF9000B,HIPS,T2,COOL WHITE
DA63-07680A COVER UNIT;AW3-14,PP,HB,INOX GRAY,49MK45
DA63-11207A COVER VEG-FRONT LOW;RF9000A,GPPS,TP GRAY
DA63-09907B COVER WATER TANK;RF9000A,HIPS,T2.5,NEO V
DA63-11211A COVER WINDOW;RF9000A,ABS,T3,NEO VICTOR
DA63-12138A COVER WIRE-LEFT;RF9000D,ABS,T2,INOX GR
DA63-09539C COVER WIRE;RF9000A,PP,T2,HB,EBONY BLACK,
DA63-11285A COVER-AUTOFILL;RF9000A,ABS,T2.5,NEO VICT
DA63-11217A COVER-AUTOFILL;RF9000A,HIPS,T2,NEO VICTO
DA63-06285A COVER-FOOT;SUPER STAR,RT7000K,PP,T2.5,
DA63-07287A COVER-HEATER FRENCH;ROMANEE CONTI,PC,COO
DA63-03809A COVER-URETHANE;AW-PJT,ABS,BLACK,VE-0858,
DA63-12046A COVER;RF9000CC,POM,BLACK,K300,LEFT
DA63-12045A COVER;RF9000CC,POM,BLACK,K300,RIGH
DA63-09909A COVER;RF9900T,ABS,EBONY BLACK,GP-35,LOWE
DA63-09910A COVER;RF9900T,ABS,EBONY BLACK,GP-35,UPPE
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-005554 CRYSTAL-SMD;19.2MHZ,30PPM,15PF,30PPM/CE,
2801-004938 CRYSTAL-SMD;24MHZ,20PPM,12PF,60OHM,20PPM
DA69-02847A CUSHION BOTTOM;RF9000DC,EPS,W958,L762,H1
DA69-00698B CUSHION CORNER-FRONT;REF_ALL,EPS,W95,L14
DA69-01420A CUSHION CORNER-REAR;REF_ALL,EPS,W95,L95,
DA69-02799A CUSHION DOOR-FRONT;RF9000C,EPS,W600,L48,
DA69-02714A CUSHION GUARD;RF90000A,EPS,W83.7,L329.4,
DA69-02712A CUSHION GUARD;RF9000A,EPS,W339,L697,H99,
DA69-02715A CUSHION GUARD;RF9000A,EPS,W61.8,L321.5,H
DA69-02598A CUSHION SHELF;RF9000AC,EPS,W500,L201,H69
DA69-02633A CUSHION TOP;RF9000AC(B),EPS,W960,L764,H1
0402-001224 DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60
0402-001472 DIODE-RECTIFIER;ES1J,600V,1A,SMA,TP,1.7V
0402-001795 0402-001795 DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP
0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000MA,DO-2
0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
0407-000113 DIODE-SWITCHING;BAW56,70V,200MA,SOT-23,T
0406-001925 DIODE-TVS;ASM24,27V,SOT-23,300W,TP
0406-001239 DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T
0406-001865 DIODE-TVS;SMBJ17CA,18.9V,20.9V,5MAV,100A
0406-001906 DIODE-TVS;SMF200A,224V,SOD-123FL,200W,TP
0406-001689 DIODE-TVS;SMH14A,15.6V,17.9V,1MAV,40A,TP
0403-000461 DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW
DA64-07345A DOOR-UP LEFT A;RF9000C,ABS,T2.3,W447,L94
DA67-04122A DRAIN-HOSE FRE LEFT;RF9000K,HDPE,NATURAL
DA67-05150A DRAIN-HOSE REF;RF9000A,HDPE,NATURAL,B2
DA81-06006A DA81-06006A DRYER;C1220T-H,L137,SINGLE MOUTH,OD15.8,
DA59-00638C EVAPORATOR CONV;FIN TUBE,RF9000B, BARE,
DA59-00637C EVAPORATOR-FRE;FIN TUBE,RF9000B, BARE, U
DA59-00639B EVAPORATOR-REF;FIN TUBE,RF9000B, REF,1,A
DA60-00314A DA60-00314A FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3
DA60-00314B FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3
DA99-04158A DA99-04158A FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3
DA60-00314D FASTENER-HINGE;ROMANEE CONTI,PP+(GF+KD)3
DA60-90005A DA60-90005A FASTENER-RIVET;RT34,RT37,RB7300 RR19,RR2
DA60-00455A FASTENER-STATOR;RF9000CC,POM,K300,BLACK,
0505-000110 FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.
0505-003755 FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-003775 FET-SILICON;MMBFTX3439KMP-HAF,P,20V,2A,0
0505-003938 FET-SILICON;MMD60R400RFZRH,N,650V,10A,40
DA01-01734E FILM-PET;RF9000C,PET,T0.135,W441.6,L928.
2901-001837 FILTER-EMI SMD;TP,5OHM,1.00X1.27X0.55MM,
DA63-08839B FILTER-WATER;RF8000MC,PP,COOL WHITE,CART
DA60-00371C FITTING LOCK RING;A6061,ID5.75,SILVER,
DA60-00407B FITTING LOCK RING;A6061,ID9.1,SILVER,O
DA60-00367B FITTING LOCK RING;SMF4030,ID5.2,COND OUT
DA60-00368A FITTING LOCK SLEEVE;SMF4030,BLACK,
DA60-00366A FITTING LOCK SLEEVE;SMF4030,PIPE HOT(4.2
DA60-00403A FITTING TUBE;POM,ID1/4,NATURAL,F20-03,OD
DA60-00404A FITTING TUBE;POM,ID1/4,NATURAL,F20-03,OD
DA62-03914G FITTING TUBE;POM,ID1/4,NATURAL,K300,OD1/
DA60-00258B DA60-00258B FITTING TUBE;PP,ID1/4,1/4'- 1/4'
DA60-00395A FITTING TUBE;PP,ID1/4,1/4-1/2
DA61-12488B FIXER COVER;AW3,HIPS,INNER GRAY,CNTK H30
DA61-14563A FIXER HOSE;RF9000A,POM,INNER GRAY,F20-03
DA61-14663B FIXER HOSE;RF9000A,PP,BLACK,CNTK-P101,RE
DA61-10758C FIXER LOCKER;ABS,T2.5,EBONY BLACK,HG-076
DA61-14479A FIXER SENSOR;RF9000A,PE FOAM,NATURAL,B40
DA61-12990A FIXER SENSOR;RS8000NC,PE FOAM,
DA61-13459A FIXER SHELF;FDR,POM,T2.5,NATURAL,K300,LE
DA61-13460A FIXER SHELF;FDR,POM,T2.5,NATURAL,K300,RI
DA61-06013B FIXER WIRE;AW3-PJT,PP,T2,NATURAL,BJ750
DA61-15326A FIXER WIRE;RF9000,PP,T1.5,NATURAL,BJ75
DA61-01920A DA61-01920A FIXER-CASTER;ZPC2,SWRCH10A,OD8.0
DA61-05780A FIXER-COLLAR;SSEDA,POM,NATURAL,
DA61-05781A FIXER-COLLET;SSEDA,POM,INNER GRAY,F2
DA61-05021A DA61-05021A FIXER-DRAIN;HAEMIL,PP,T0.6,CARMEN WINE,B
DA61-04235A FIXER-EVAP;RF8500DC,ABS,NATURAL,HG-0
DA61-05525A FIXER-FILTER;SSEDA,PP,COOL WHITE
DA61-06700A FIXER-HEATER WIRE REF;HM/GGH/HAEMIL,PP,T
DA61-04932B DA61-04932B FIXER-HINGE;RS76,RS78,PO-SPHC,T3,Z
DA61-03683A DA61-03683A FIXER-SENSER;AW-PJT,PP,NATURAL,FH44N,V-0
DA61-05570A FIXER-SHAFT GUIDE;SSEDA,POM,NATU
DA61-05526A FIXER-SHAFT;SSEDA,POM,NATURAL,F20-03
DK61-00464A FIXER-STEP MOTOR;RUBY,SWRCH18A
DA61-15292A FIXER-SUCTION;RF8000B,PP,T2,BLACK,SSPP
DA61-15146B FIXER-SUCTION;RF8000B,PP,T2,NATURAL,BJ
DA71-20265A FIXER-THERMO FUSE;RF9000M,PP,T2,NATURAL,
DA61-11296B FIXER;AW3,HIPS,INNER GRAY,CNTK H304,RECY
DA61-15295A FIXER;RS8000B,PC,T2.5,NATURAL,3022IR
DA61-11034A FIXER;RT5000K,PA66,WHITE,KN3322V0,5P
DA61-11032A FIXER;RT5000K,PA66,WHITE,KN3322V0,7P RET
0204-004665 FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13%
DA61-15096A FOOT-FRONT;RF9000AC,PP,BLACK,SSPP-64
3601-001978 FUSE-AXIAL LEAD;250V,10A,SLOW-BLOW,BK,5.
3601-001927 FUSE-AXIAL LEAD;250V,2A,TIME-LAG,CERAMIC
3601-001336 FUSE-AXIAL LEAD;250V,3.15A,TIME-LAG,CERA
3601-002009 FUSE-SURFACE MOUNT;32V,6A,SLOW-BLOW,TP,1
DA63-11581A GASKET FRENCH-LOW;RF9000A,SI,T0.8,
DA63-09908B GASKET-TANK;RF9000A,SI,NEO VICTORY GRAY,
DA64-07428A GLASS-DOOR;RF9000C,GLASS,T3.2,W446.4,L97
DA64-06509A GLASS-SHELF FRONT;RF9000AC,GLASS,T3.2,W3
DA64-05969A GLASS-SHELF REAR;AW4_CD,GLASS,T3.2,W375,
DA64-07027A GLASS-SHELF REF FIX;RF8000BC,GLASS,T3.2,
DA64-06513N GLASS-SHELF REF LOW;RF9000AC,GLASS,T3.2,
DA64-06511B GLASS-SHELF REF UP;RF9000AC,GLASS,T5,W82
0205-000131 GREASE-SILICON;G501,1L
DA63-09336B DA63-09336B GROMMET COMP;REF,IIR,BLACK,L21.3, OD
DA63-09942A GROMMET DOOR;RF9000T,SI,BLACK,W11.4,
DA63-07805A GROMMET DRAIN-LOW;RFH920G,NBR,BLACK,
DA63-09856A GROMMET HINGE-LOW;RF9900T,POM,BLACK,K3
DA63-09857A GROMMET HINGE-LOW;RF9900T,POM,BLACK,K3
DA63-07545B DA63-07545B GROMMET HINGE-MIDDLE;FDSR,PA66+GF15%,BLA
DA63-09914A GROMMET HINGE;RF9900T,PA66,NATURAL,130
DA63-07969A GROMMET-A;FSR,PP+GLF15%,NATURAL,PP2315
DA63-09933A GROMMET-CAP DOOR;RF9900T,SI,BLACK,T5
DA63-02750A DA63-02750A GROMMET-COVER SLIDE;ET05-PJT,SI,WHITE,
DA63-02750B GROMMET-COVER SLIDE;QUEEN09,SI,BLACK,
DA63-00951C DA63-00951C GROMMET-DRAIN HOSE;V2-PJT,NBR,BLACK,
DA63-02761A GROMMET-DRAIN;RS18RK,NBR,BLACK,
DA63-08528A GROMMET-FIXER;RB6000KC,ABS,COOL WHITE,
DA63-11235A GROMMET-FIXER;RF9000A,PP,NATURAL,BJ730
DA63-03447A GROMMET-FRENCH;AW-PJT,POM,NATURAL,F20-
DA63-03049A GROMMET-HOT PIPE;USP-PJT,NBR,OD 30,BLK
DA63-07323A GROMMET-IMMERSION PIPE B;ROMANEE CONTI,N
DA63-05349A GROMMET-RING SHAFT GUIDE;SSEDA,NBR,NATUR
DA63-05350A GROMMET-RING SHAFT;SSEDA,NBR,NATURAL,
DA63-04630B GROMMET-RING;RF9000A,NBR,NATURAL,D 1
DA63-08447A GROMMET-RING;RF9000K,EPDM,INOX GRAY,
DA63-05351A GROMMET-RING;SSEDA,NBR,NATURAL,
DA63-06042B GROMMET-SCREW;POLARIS,PP+GLF15%,NATURAL,
DA63-40294A DA63-40294A GROMMET-STOPPER;T3XW8XL8,PP+TD20%,NATURA
DA63-40171D DA63-40171D GROMMET-SUCT PIPE A;NBR,ID4,OD20
DA63-05447A GROMMET-SUCTION PIPE;AW2,NBR,BLACK,
DA63-09665A GROMMET-UP RIGHT;RF9000R(B),SI,BLACK,
DA63-09520A GUARD-FRE;RF9000R,GPPS,T3,TP GRAY
DA63-11260A GUARD-REF MIDDLE;RF9000A,SAN,T3,TP GRAY,
DA63-11220A GUARD-REF SUB;RF9000A,SAN,T3,TP GRAY,BSC
DA63-07966E GUARD-REF UP;RF9000N,GPPS,TP GRAY
DA63-11221A GUARD-REF;RF9000A,GPPS,T3,TP GRAY,HUB
DA61-14507A GUIDE AIR;RF9000A,HIPS,T2,CNTK H304,INNE
DA61-15859A GUIDE FRENCH;RF9000C,PC+ABS,T2,HR-1008
DA61-14500A GUIDE HOSE-FRONT;RF7000AC/ RF9000A AC,AB
DA61-13440A GUIDE HOSE-IN;RF9000R,PP,HB,SSPP-640,BLA
DA61-16164A GUIDE HOSE-OUT;RF9000D,PP,HB,SSPP-640,
DA61-10404A GUIDE HOSE;PP,HB,BJ750,COOL WHITE,L
DA61-15112A GUIDE HOSE;RF6000T,PP,T2,J370,NATURAL
DA61-14503A GUIDE HOSE;RF7000AC / RF9000A AC,HDPE,T1
DA61-14661A GUIDE ICE;RF9000A,PP,BJ750,NATURAL,RF900
DA61-13492A GUIDE RAIL;RF9000R,ABS,NATURAL,GP-35
DA61-14987A GUIDE-FRE;AW3-14,PP,T1.2,SSPP-640,BLACK
DA61-09100A GUIDE-TUBE C;3050,PP,J550S,NATURAL
DA64-04562A HANDLE-BOTTOM;LATOUR,PP,SSPP-640,BLACK
DA61-13449B HANGER-LEFT;RF9000AC,EGI-SECC,T2,COOL
DA61-15135A HANGER-RIGHT;RF8000BC,GI-SGCC,T2,
DA61-13451B HANGER-RIGHT;RF9000AC,EGI-SECC,T2,COOL
3711-009451 HEADER-BOARD TO BOARD;BOX,10P,2R,2.0MM,S
3711-008032 HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM
3711-008034 HEADER-BOARD TO CABLE;1WALL,3P,1R,7.92MM
3711-000315 HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM
3711-009460 HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM
3711-008895 HEADER-BOARD TO CABLE;1WALL,5P,1R,3.96MM
3711-000262 HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,3P,
3711-001038 HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P,
3711-009174 HEADER-BOARD TO CABLE;BOX,11P,1R,2.0MM,S
3711-007828 HEADER-BOARD TO CABLE;BOX,14P,1R,1.25MM,
3711-002001 HEADER-BOARD TO CABLE;BOX,20P,2R,2.0MM,S
3711-009393 HEADER-BOARD TO CABLE;BOX,24P,2R,2.0MM,S
3711-009394 HEADER-BOARD TO CABLE;BOX,26P,2R,2.0MM,S
3711-009395 HEADER-BOARD TO CABLE;BOX,28P,2R,2.0MM,S
3711-008880 HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,PI
3711-001084 HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,ST
3711-005616 HEADER-BOARD TO CABLE;TP,SMD-A,1R,10P,2.
DA62-05588A HEAT SINK;FHUB 6.0,AL,T1.5,W48,L81,H5.7
DA47-00442E HEATER CORD-WATER PIPE;DC12V,RF9000R-ICE
DA47-00571A HEATER FILM-DOOR;AC120V,11W,7507MM,L16
DA47-00519A HEATER FILM-FRENCH;AC120V,T FRENCH, 1,44
DA47-00318R HEATER METAL SHEATH;AC120V,RF9000R,121W,
DA61-08305A DA61-08305A HINGE FRENCH;AW4,PC,T2,COOL WHITE,HF-102
DA61-14219A HINGE-LOW LEFT;-,PO-SPHC,T4,OUT,
DA61-15234A HINGE-LOW LEFT;RF9000B,ZN,T8,AUT
DA61-15235A HINGE-LOW RIGHT;RF9000B,ZN,T8,AU
DA61-16173A HINGE-MIDDLE LEFT;RF9000D,ZN,T8,
DA61-16174A HINGE-MIDDLE RIGHT;RF9000D,ZN,T8,
DA61-15773A HINGE-UP LEFT;RF9000C,PO-SPHC,T4,
DA61-13411A HINGE-UP LEFT;RF9000R,PO-SPHC,T3,
DA61-13412A HINGE-UP RIGHT;RF9000R,PO-SPHC,T3,
DB61-00206A HOLDER WIRE;FDR / SBS,ZNDC,BLACK,
DA67-05207A HOSE DRAIN;RF9000A,HDPE,NATURAL,YR51
1001-001942 IC-ANALOG SWITCH;SC1143DG,SO-8,8P,4.9X3.
1201-004045 IC-AUDIO AMP;UB6470,48P,7.0X7.0X0.85MM,2
1205-006403 IC-CONTROLLER;UONE-A,QFN,8P,TP,3X3X0.75M
1003-000113 IC-CURRENT DRIVER;ULN2803LW,SOP,18P,300M
1203-009801 IC-DC/DC CONVERTER;MP2491N,13P,QFN,TP,2.
1203-008921 IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X
1203-009429 IC-DC/DC CONVERTER;SYU812C1,SOT23-6,6P,3
1203-008777 IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1.
1105-003060 IC-DDR4 SDRAM;K4A8G165WC-BCTD,FBGA,96P,T
1105-003059 IC-DDR4 SDRAM;K4AAG165WA-BCTD,FBGA,96P,T
1103-001228 IC-EEPROM;93C66,4KBIT,256X16,SOP,8P,5X4M
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP
1205-006577 IC-INTERFACE;EP172U,LQFP,64P,TP,7X7X1.6M
0903-002266 IC-MICROCONTROLLER;A34M418YLN-01,LQFP,12
0903-002203 IC-MICROCONTROLLER;HART-M320,MQFP,100P,2
0903-002279 IC-MICROCONTROLLER;STM32G431RBT3,LQFP,64
0902-003448 IC-MICROPROCESSOR;A311D,FCBGA,454P,14.3X
0902-003348 IC-MICROPROCESSOR;IA8201CQ,175MHZ,QFN,40
1203-007611 IC-MONITOR;INA219BIDCNR,SOT-23,8Z30,2.9X
1003-003175 IC-MOTOR DRIVER;6EDL04N06PT,PG-DSO,28P,1
1003-002899 IC-MOTOR DRIVER;DRV8848L,16P,HTSSOP,TP,5
1003-002900 IC-MOTOR DRIVER;DRV8848PWPR,16P,HTSSOP,T
1201-004191 IC-OP AMP;9064,TSSOP,TP,14P,5X4.4X1.2MM,
1203-008933 IC-POSI.ADJUST REG.;G942F11U,SOP,8P,4.9X
1203-009642 IC-PWM CONTROLLER;SC1551C-H084-TL,24P,SO
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1209-002491 IC-TOUCH;CY8C4014LQI-422,QFN,24P,4X4MM,P
0904-002882 IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ,
1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,PLASTIC,
1203-006245 IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1.
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-005851 INDUCTOR-SMD;10UH,20%,10.85X10MM,T4,0.03
DA27-00051A INDUCTOR-SMD;1MH,20%,12.2X12.2MM,T8,1.59
2703-003937 INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-005846 INDUCTOR-SMD;3.3UH,20%,4442,T2,0.078OHM,
2703-003362 INDUCTOR-SMD;4.7UH,20%,7070,T4.5,0.09OHM
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
DA64-07140B INLAY-REF;RF9000B,PC,T0.5,UV,
DA62-05944A INSULATION COVER EVAP-FRE;RF9000,EPS,T8,
DA62-06122A INSULATION COVER EVAP-REF;RF9000C,EPS,
DA62-05575A INSULATION DUCT-UP;RF9000A,PE FOAM,T2,
DA62-05581A INSULATION-MIDDLE;RF9000A,EPS,S-450,CD-6
DA62-04311V INSULATION;GGH,GLASS WOOL,T12,VIP,
DA62-05932C INSULATION;RF9000BC,GLASS FIBER/LAMINATE
DA02-00038A ISOBUTANE;C4H10,4N,R-600A,68L_30KG
DA02-00087A ISOCYANATE;ISOCYANATE B1001 B1001,100%,I
DA02-40012D ISOCYANATE;ISOCYANATE B1001 B1001,PAPI-1
DA68-10376D LABEL BAR CODE;ALL,ART,COATING,W50,L120,
DA68-11081D LABEL BAR CODE;ALL,ART,W30,L77
DB68-05458A LABEL BAR CODE;AM9000H,ART,W17.5,L18
DA68-01797W LABEL CAUTION;ALL USA,AA,ART,OPP, R-600A
DA68-04785B LABEL ENERGY;RF9000D/DC, RF23DB9900**,AA
DA68-02986U LABEL INSTRUCTION;A3LCCBQ730M, A3LWIC212
DA68-00007D LABEL INSTRUCTION;EGYPT,ART,W68,L20,WARR
DA68-02785B LABEL INSTRUCTION;ROMANEE CONTI,DOM,ART,
6812-000146 LABEL INTEGRATION QR;PET,LAMINATE COATED
DA68-04799C LABEL POP TEMP;RF9000D, RF23DB99*,AA,PET
DA68-00122E LABEL RATING;EXP,EXP,ART,UV P,W85*L67
DA68-04787V LABEL RATING;RF9000D/DC, RF23DB9900QD,AA
DA68-02869A LABEL TAG;ALL,AA,XAC,MOJO,200G,W140,L216
DA68-01173B LABEL-BAR CODE;ALL MODEL,EXP,YUPO,PACKIN
DA68-00679T LABEL-COLOR;AW4,ART,20,UL
DA07-00084A LCD-TFT;698.4X392.85MM,10TO+50C,12V,20
DA07-00085A LCD;698.4X392.85MM,20TO+70C,3.3V,20TO+
0601-002345 LED;SMD(TOP VIEW),RED,WATER CLEAR,1.6X0.
0601-002419 LED;SMD(TOP VIEW),YEL,WATER CLEAR,1.6X0.
DA66-01674A LEVER AUTO CLOSE;RF9000CC,ZNDC,T4.5,W42,
DA66-01675A LEVER AUTO CLOSE;RF9000CC,ZNDC,T4.5,W42,
DA66-01246A LEVER CASE DISPENSER;RF8000MC,ABS,
DA66-01696A LEVER HANDLE;RF9000D,ZNDC,T2.5,W18.5,L19
DA66-01342A LEVER;RF9000R,POM,W30,L50,SO301,CREAMY S
DA66-01345A LEVER;RF9000R,ZNDC,T6,W15,L38,ZNDC2,NATU
DA61-14539H LINER;RF9000AC,ABS,QU-0191S,COOL WHITE
DA61-03769A DA61-03769A MAGNET-A;HERMES,FERRITE,T5,1600GAU
DA61-13738A MAGNET;B-PJT,FERRITE,T5, W15, L1
DA61-03769B DA61-03769B MAGNET;SVETA,FERRITE,1600GAUSS
DA68-04139B MANUAL INSTRUCTION;ALL USA,AA,ENG/FRE,MO
DA68-03278D MANUAL INSTRUCTION;RF9000A, RF23/29A9771
DA68-02659D MANUAL INSTRUCTION;RF9000A/AC, RF29/23A*
DA68-04782A MANUAL USERS;RF9000D/DC,AA/AC,EN/MES/CFR
DA31-00334D DA31-00334D MOTOR BLDC FAN;12035GE-12M-YT,17757%,12
DA81-06013A DA81-06013A MOTOR BLDC FAN;33507%,12V,0.16A,1.92W,
DA31-00348A MOTOR BLDC FAN;Z19W12MS1A5-52K09,1080RPM
6021-000258 NUT-HEXAGON;STS304,ZPC(YEL),3C,M5
6021-000166 NUT-HEXAGON;SWRCH10R,ZPC(WHT),2C,M6
DA69-02305K PACKING CASE;RF9000AC(B),CB,DW2,L766,W96
DA69-01687G PACKING SHRINKAGE;LDPE,T0.015,24INCH,ROL
DA69-01687Q PACKING SHRINKAGE;RF9000K,LDPE,T0.03,W32
DA69-02549M PAD CUSHION;REF_ALL,EPS,T10,W15,L80,SE
DA69-01740P PAD PACKING-BOTTOM;AW2 CD,PP,T2,W958,L76
DA62-04618R PAD-FOAM;REF_ALL,EPE,T10,W20,L100,SET,
DA62-04787D PAD-FOAM;REF_ALL,EPE,T10,W35,L100,SET,
DA64-05957B PANEL DOOR;RF9000A,ABS,T1,W431,L895,QU-0
DA64-06514A PANEL-FRE;RF9000A,ABS,W,L,HB,QU-0191S,CO
DA64-06515A PANEL-FRE;RF9000A,ABS,W,L,HB,QU-0191S,CO
DA64-05958B PANEL-REF RIGHT;RF9500T (B),ABS,W,L,QU-0
DA64-07491A PANEL-REF;RF9000,ABS,W383.3,L824.7,HB,
DA67-05156A PARTITION-FRE LEFT;RF9000A,HIPS,COOL W
DA67-05157A PARTITION-FRE RIGHT;RF9000A,HIPS,COOL
DA41-00912A PCB DISPLAY;FR-4,4L,T1.2,260X80MM,2,1OZ,
DA41-00867G PCB MAIN;FR-4,2L,T1.6,165X242MM,2,1OZ,33
0604-001405 PHOTO-COUPLER;TR,200-400%,200MW,SOP,TP
DA62-05882B PIPE CAPILLARY;RF8000B,AL,OD1.9,T0.54,
DA62-05882D PIPE CAPILLARY;RF8000B,AL,OD1.9,T0.575,
DA62-04396D PIPE CAPILLARY;RF9000,CU,OD2.05,T0.615,
DA62-05882C PIPE CAPILLARY;RF9000B,AL,OD2.05,T0.615,
DA62-04396K PIPE CAPILLARY;RH9000K,CU,OD1.9,T0.575,C
DA62-05584B PIPE CLUSTER-REAR;RF7000AC,TSW,OD4.2,T0.
DA97-22217A DA97-22217A PIPE CONNECT-SUCTION;RF9000, AW,CU,OD6.3
DA62-05884C PIPE CONNECT;RF8000B,AL,OD8,T0.8,A
DA62-05906A PIPE CONNECT;RF9000B,AL,OD10,T1,A3
DA62-06007A PIPE CONNECT;RF9000B,AL,OD3.5,ID
DA62-05884G PIPE CONNECT;RF9000C,AL,OD8,T0.8,A
DA62-04744A PIPE HOT;RF9500K,TSW,OD4.2,T0.5
DA62-04609B PIPE IMMERGING-IN;RF9000B,TSW,OD4.76,T0.
DA62-04610C PIPE IMMERGING-OUT;RF9000,TSW,OD4.76,T0.
DA62-04965A PIPE WATER-FRE;BRF8000M,AL,A3003
DA62-05577A PIPE WATER-FRE;RF9000A,POM,OD13.8,T2.5,N
DA62-05613A PIPE WATER-LINE;RF9000A,LDPE,OD12.7,NATU
DA62-05613B PIPE WATER-LINE;RF9000A,LDPE,OD12.7,NATU
DA62-05883A PIPE-AL;RF8000B,AL,OD8,T0.8,A1070S
DA62-05883B PIPE-AL;RF9000B,AL,OD8.7,T0.8,A107
DA73-10190U DA73-10190U PIPE-CONNECT DISC,B;ALL,C1220T,CU,OD6.35
DA62-04605A PIPE-IN;AL,A3003
DA62-04601A PIPE-MIDDLE;AL,T1.2,A3003
DA62-04600A PIPE-SUB;AL,A3003
DA62-01604A PIPE-WATER;A-TOP06,PVC,ID15.5,250,T2.25,
DA62-04623C PIPE;ALL,CU,OD7.94,T0.4,C1220T-OL
DA61-14451B PLATE COOLING;RF9000D,AL,T0.5,IM
DA61-16184A PLATE COVER;RF9000JC,GL-SGLCC,T0.25,
DA61-16185A PLATE COVER;RF9000JC,GL-SGLCC,T0.25,
DA61-14020D PLATE DOOR-FRE LEFT;RF9000 BESPOKE,GL-SG
DA61-14021D PLATE DOOR-FRE RIGHT;RF9000 BESPOKE,GL-S
DA61-15205K PLATE DOOR-FRE;RF9000A,STS430,T0.6,REA
DA61-15755A PLATE DOOR-REF LEFT;RF9000C,GL-SGLCC,T0.
DA61-14022C PLATE DOOR-REF LEFT;RF9000D,GL-SGLCC,T0.
DA61-13395B PLATE DOOR-REF LEFT;RF9000R,EGI-SECC,T0.
DA61-13394D PLATE DOOR-REF RIGHT;RF9000A,EGI-SECC,T0
DA61-15756A PLATE DOOR-REF RIGHT;RF9000C,GL-SGLCC,T0
DA61-15205J PLATE DOOR-REF;RF9000A,STS430,T0.6,REA
DA61-08675B PLATE DRAIN-FRE;RF9000,GL-SGLCC,T0.3,
DA61-14736A PLATE HEATER;RF9000A,A1100,T1,A1100P-H14
DA61-10692A PLATE INS-FRE;T-TYPE,AL,T0.3
DA61-11737C PLATE LEVER;RF8000MC,STS304,T0.5,
DA61-10700B PLATE STEEL;AL,B10%,T0.08,W16,LA+CE A300
DA01-01705K PLATE STEEL;RF9000 BESPOKE,GL-SGLCC,L815
DA01-01705J PLATE STEEL;RF9000 BESPOKE,GL-SGLCC,L988
DA01-02446A PLATE STEEL;RF9000C,GL-SGLCC,L757,0.25MM
DA01-02447A PLATE STEEL;RF9000C,GL-SGLCC,L985,0.5MM,
DA61-08177X PLATE-BOTTOM FRONT;RF9000R,EGI-SECC,T0.4
DA61-05921J PLATE-BOTTOM REAR LEFT;AW2,GL-SGLCC,T0.2
DA61-05924L PLATE-BOTTOM REAR RIGHT;AW2,GL-SGLCC,T0.
DA61-10696A PLATE-CORNER;AL,T1.5
DA61-08675A PLATE-DRAIN EVAP FRE;ROMANEE CONTI,AL,T0
DA61-15170A PLATE-FRENCH;RF9000A,EGI-SECC,T0.5,COO
DA61-10371A PLATE-UP FRONT;ROMANEE CONTI,AL,T0.3,
DA67-90108D PLUG COMP TUBE;SILICON RUBBER,OD
0204-005065 POLYOL;KONIX DP-1950S,POLYEHER POLYOL,90
0204-009079 POLYOL;RST-530,ROH,100%
3903-001003 3903-001003 POWER CORD-AT;SPT-3 3X18AWG 105C,BLK,US3
2007-007699 R-CHIP
2007-008485 R-CHIP
2007-012276 R-CHIP;0.09OHM,1%,2W,TP,6432,T0.55,ANTI-
2007-008779 R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-007336 R-CHIP;1.5KOHM,1%,1/4W,TP,3216
2007-000279 R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6
2007-000293 R-CHIP;100OHM,5%,1/4W,TP,3216
2007-000297 R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5
2007-000312 R-CHIP;10OHM,5%,1/4W,TP,3216
2007-000308 R-CHIP;10OHM,5%,1/8W,TP,2012,T0.5
2007-008167 R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35
2007-000352 R-CHIP;12KOHM,1%,1/8W,TP,2012
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35
2007-000476 R-CHIP;1MOHM,1%,1/4W,TP,3216
2007-008791 R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-008354 R-CHIP;220KOHM,1%,1/16W,TP,1005,T0.35
2007-000571 R-CHIP;220OHM,1%,1/4W,TP,3216,T0.6
2007-008304 R-CHIP;300KOHM,1%,1/16W,TP,1005,T0.35
2007-009922 R-CHIP;300KOHM,1%,1/4W,TP,3216,T0.55
2007-000762 R-CHIP;330OHM,1%,1/8W,TP,2012
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-001297 R-CHIP;47OHM,1%,1/4W,TP,3216
2007-012479 R-CHIP;5.1OHM,1%,1/16W,TP,1005,T0.35
2007-008269 R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35
2007-008231 R-CHIP;680OHM,1%,1/16W,TP,1005
DA61-14474A RAIL-FRE UP LEFT;RF9000A,HIPS,COOL WHITE
DA61-14473A RAIL-FRE UP RIGHT;RF9000A,HIPS,COOL WHIT
DA61-10358A RAIL-LEFT;RF9000JC,HIPS,COOL WHITE,S834S
DA61-14528B RAIL-MIDDLE LEFT;RF9000AC,HIPS,COOL WH
DA61-14469A RAIL-REF LOW LEFT;RF9000A,HIPS,COOL WHIT
DA61-14468A RAIL-REF LOW RIGHT;RF9000A,HIPS,COOL WHI
DA61-10359A RAIL-RIGHT;RF9000JC,HIPS,COOL WHITE,S834
DA61-15181A REINF CABI-BOTTOM FRONT;RF9000,HGI-SGHC,
DA61-10849A REINF CABI-MIDDLE FRONT;RF9000K,PO-SPHC,
DA61-10400A REINF CABI-REAR;RF9000JC,CR-SPCC,T1
DA61-14359A REINF CABI-UP;RF9900T,PO-SPHC,T2,
DA61-13467A REINF DOOR-REF LOW;RF9000R,PO-SPHC,T2,OU
DA61-13691B REINF DOOR-REF;RF9000A,PO-SPHC,T2,L220
DA61-13691A REINF DOOR-REF;RF9000R,PO-SPHC,T2,L310
DA61-13692A REINF DOOR-REF;RF9000R,PO-SPHC,T2,L832,L
DA61-01376T REINF DOOR-REF;RH9000M,HGI-SGHC,T1.4,L69
DA61-13258A REINF DOOR-RIGHT;RQ7000N,PO-SPHC,T1.6,L7
DA61-16053A REINF DOOR;RF9000C,CR-SPCC,T1.2,"3
DA61-04910A REINF HINGE-UP RIGHT;HAEMIL-PJT,GI-SGCC,
DA61-15766A REINF HINGE-UP;RF9000C,PO-SPHC,T2,
DA61-05923A REINF-EARTH;-,HGI-SGHC,T3,
DA71-10495A REINF-FRAME;RF9000R,CR-SPCC,T1
DA61-03206A REINF-GUIDE FRENCH;AW-PJT,HGI-SGHC,T1
DA71-10490C REINF-HINGE UPP;RS8000,GI-SGCC,T3,
DA61-14209A REINF-LOW RIGHT;RF9000T/RF9900T,PO-SPHC,
DA61-14659A REINF-REF;RF7000AC,GI-SGCC,T2,BSC,
DA61-14660A REINF-REF;RF9000A,GI-SGCC,T1.6,BSC
3501-001154 3501-001154 RELAY-MINIATURE;12V,200MW,3000MA,1FORMA,
0103-002817 RESIN ABS;QU-0191S/W91527,COOL WHITE,WT0
4709-003152 RF-MODULE;WIC212S,EFR32MG21,IEEE802.15,2
DA66-01679A ROLLER;PA6+MD40%,OD14,BLACK,ID8.7,1515
DA66-01339A ROLLER;POM,OD29,NATURAL
DA73-00235D RUBBER-BUTYL;AW2,RUBBER,T3
DA67-05521A RUBBER;RF9000A,RUBBER,T4,65MM,L65,

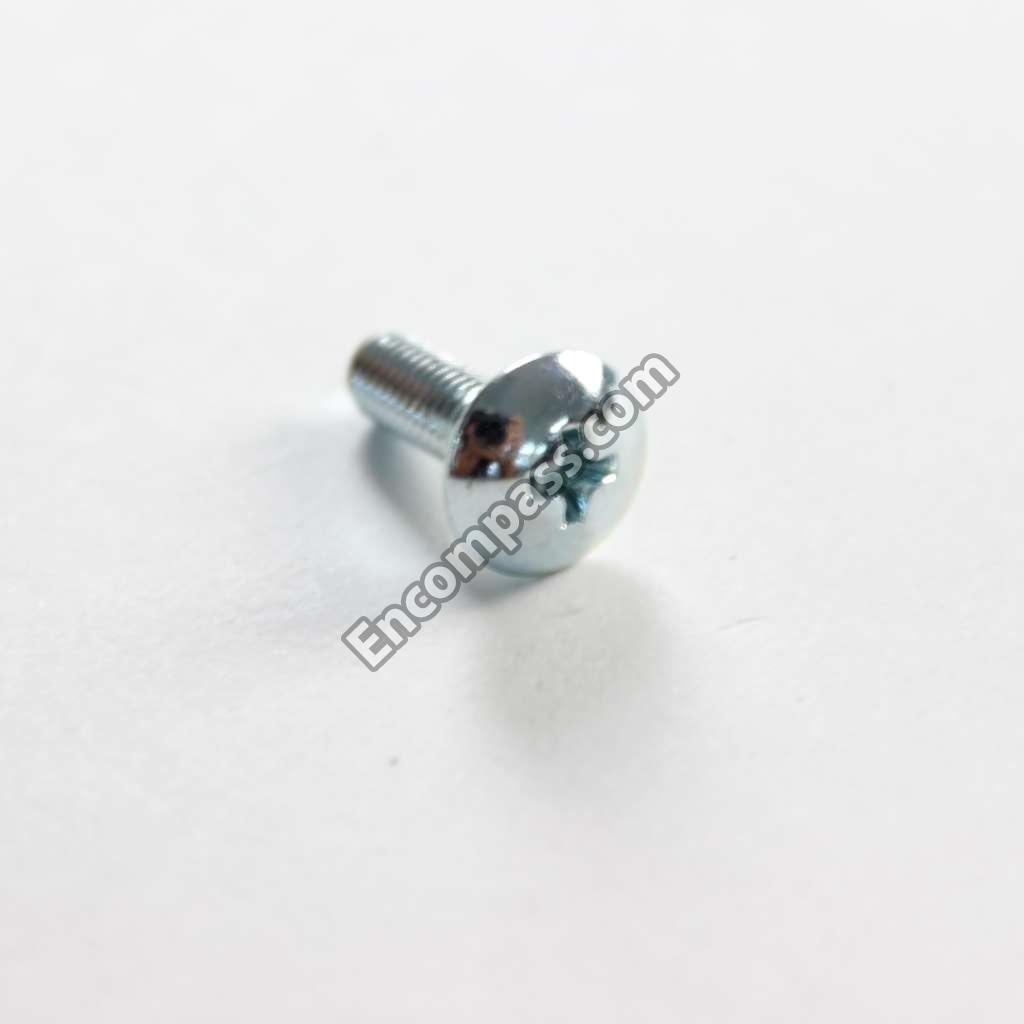

6001-000716 6001-000716 SCREW-MACHINE;MSWR10,ZPC(WHT),L16,M5,TH,
6001-000570 6001-000570 SCREW-MACHINE;SWRCH18A,ZPC(WHT),L16,M5,F
6001-000562 SCREW-MACHINE;SWRCH18A,ZPC(WHT),L6,M3,PH
6009-001475 6009-001475 SCREW-SPECIAL;FH,+,M5,L25(15.5),ZPC(WHT)
6002-001521 SCREW-TAPPING;STS304,PASS,L10,M3,TH,+,2S
6002-001547 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,F
6002-000520 6002-000520 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6002-000494 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6006-001170 6006-001170 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6002-000213 6002-000213 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
6002-001406 6002-001406 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
6002-001122 6002-001122 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L14,M4,F
6002-000538 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L14,M4,T
6002-000215 6002-000215 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T
6002-000613 6002-000613 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M5,T
6002-001120 6002-001120 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,F
6002-001669 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L20,M5,F
6002-000555 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L25,M4,P
6002-001432 6002-001432 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L35,M4,T
6002-000635 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,PH
6002-000217 6002-000217 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH
6002-000239 6002-000239 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH
6002-001397 6002-001397 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH
6002-000244 SCREW-TAPPING;SWRCH18A,ZPC,L16,M5,TH,+,B
6003-000170 SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L12,M4,P
DA62-05622A SEAL CASE-HEATER;RF9000A,PU FOAM,T5,L150
DA62-06130A SEAL COND;RF9000C,PU FOAM,W20,GRAY
DA62-00091A SEAL CORNER;RR2500MN,PU FOAM,T25,W60,NOR
DA62-04122B SEAL COVER EVAP-FRE;RF9000,PE OPEN CELL,
DA72-00033B SEAL CUTT FOAM-PE;FDR,PE FOAM,T2,W20,L88
DA62-05315A SEAL CUTT FOAM;RF9000R,PE FOAM,T2,W8,HB,
DA62-03254T SEAL CUTT SPONGE;PU FOAM,T5,W40
DA62-00110E SEAL CUTT SPONGE;ROMANEE CONTI,PU FOAM,T
DA62-01492Z SEAL CUTT-FOAM PE;AW-PJT,PE FOAM,T20,W30
DA62-03449B SEAL CUTT-FOAM PE;GUGGENHEIM,PE FOAM,T7,
DA62-03033R SEAL CUTT-FOAM PE;HAEMIL,PE FOAM,T3,W20
DA62-02159G SEAL CUTT-FOAM PE;IVY,PE FOAM,T10,W20
DA62-00608E SEAL CUTT-OJC;QUEEN,PE OPEN CELL,T5,W160
DA72-60040C SEAL CUTT-RUBBER;RF6000T,RUBBER,T4,W45,L
DA72-60267Q SEAL CUTT-SPONGE;-,PU FOAM,T20,W20,L1000
DA72-60106V SEAL CUTT-SPONGE;SPONGE,T10,W80,L40
DA62-01129B SEAL CUTT;-,PE FOAM,T4,W20,L1000,HB,GR
DA62-01139C SEAL CUTT;-,PE OPEN CELL,T5,W10,L1000,
DA62-01128S SEAL CUTT;ALL,PE FOAM,T3,L1000,BLA
DA62-01130F SEAL CUTT;ALL,PE FOAM,T5,W8,L1000
DA62-01603W SEAL CUTT;AW-PJT,PE OPEN CELL,T7,W15
DA62-01141M SEAL CUTT;ES,PU FOAM,T5,W60,L1000,BL
DA62-01921A SEAL CUTT;GUGGENHEIM,PE OPEN CELL,T5,W70
DA62-01140F SEAL CUTT;NW2,PP FOAM,T3,W15,L1000
DA62-01141X SEAL CUTT;NW2,PU FOAM,T10,W10,L1000,PU S
DA62-01136Q SEAL CUTT;PE FOAM,T10,W10,L1000
DA62-01136S SEAL CUTT;PE FOAM,T10,W15,L1000
DA62-01136T SEAL CUTT;PE FOAM,T10,W20,L1000
DA62-01138D SEAL CUTT;PE FOAM,T3,W10,L1000
DA62-01134H SEAL CUTT;PE FOAM,T3,W40
DA62-01137V SEAL CUTT;PE FOAM,T30,W20,L1000
DA62-01139A SEAL CUTT;PE OPEN CELL,T3,W10,L1000,OJC-
DA62-01142C SEAL CUTT;PU FOAM,T10,W30,L1000,INCOMBUS
DA62-01142D SEAL CUTT;PU FOAM,T10,W30,L1000MM
DA62-01142F SEAL CUTT;PU FOAM,T10,W40,L1000
DA62-01142L SEAL CUTT;PU FOAM,T10,W80,L1000
DA62-01142Q SEAL CUTT;PU FOAM,T15,W15,L1000,SPONGE
DA62-01140B SEAL CUTT;PU FOAM,T3,W10,L1000,V-0,INCOM
DA62-01141E SEAL CUTT;PU FOAM,T5,W25,L1000
DA62-01141H SEAL CUTT;PU FOAM,T5,W40,L1000
DA62-01141Q SEAL CUTT;PU FOAM,T5,W80,L1000
DA62-01141F SEAL CUTT;RB6000D,PU FOAM,T5,W30,
DA62-01140D SEAL CUTT;RB7000J,PU FOAM,T3,W10,L1000
DA62-01135M SEAL CUTT;RB7300T,PE FOAM,T5,W10,L1000
DA62-06176C SEAL CUTT;REF ALL,PU FOAM,T5,W40,L1000,
DA62-01139D SEAL CUTT;RF5000A,PE OPEN CELL,T5,W15,L1
DA62-01140P SEAL CUTT;RF6000T, OPUS, RF4500A,PU FOAM
DA62-05654A SEAL CUTT;RF7000AC,PE FOAM,T5,W200,L76.7
DA62-01137J SEAL CUTT;RF9000,PE FOAM,T15,W70,L1000,
DA62-05965A SEAL CUTT;RF9000A,PU FOAM,T15,W30,L1000,
DA62-03254D SEAL CUTT;RQ9500M,PE FOAM,T5,W25,NON-ADH
DA62-01142R SEAL CUTT;RS5300T/TC,PU FOAM,T15,W50,L10
DA62-01134L SEAL CUTT;RS8000NC,PE FOAM,T3,W50,L1000,
DA62-01135U SEAL CUTT;RS8000NC,PE FOAM,T5,W30,L1000,
DA62-01141B SEAL CUTT;RS8000NC,PU FOAM,T5,W15,L1000,
DA62-01141Z SEAL CUTT;RT4000TH,PU FOAM,T10,W15,L1000
DA62-01140Z SEAL CUTT;RT5000K,PU FOAM,T5,W10,L1000
DA62-01141D SEAL CUTT;RT5000K,PU FOAM,T5,W20,L1000,D
DA62-01141T SEAL CUTT;SPONGE,T5,W160,L1000
DA62-05649A SEAL DRAIN;RF9000A/AC, RF7000AC,PU FOAM,
DA62-02480B SEAL DRAIN;RF9000A/AC,PU FOAM,T7,W120,L7
DA62-02987A SEAL DUCT-REF;AW3-14,LEX FOAM,T3,L155.6,
DA62-00302C SEAL FOAM PE;RS8000NC,PE FOAM,T20,W40,L4
DA62-05616A SEAL GUIDE;RF9000A/AC, RF7000AC,PU FOAM,
DA62-05341A SEAL MID-FRONT;RF9000,PU FOAM,T5,W50,L99
DA62-05405A SEAL PANEL DOOR;RQ9500R(B),PU FOAM,T5,
DA62-05628A SEAL PARTITION-SIDE;RF9000AC,NONWOVEN,T5
DA62-06244A SEAL PARTITION;RF9000,PU FOAM,T10,W40,L9
DA62-05964A SEAL REINF-UP;RF9000A,PU FOAM,T5,B
DA62-04261A SEAL SUPPORT TUBE FILTER-REAR;AW4 4DOOR,
DA62-00959A SEAL SUPPORT TUBE FILTER;AW4,LEX FOAM,T1
DA62-05672A SEAL TUBE-REAR;RF9000A,PU FOAM,T10,W70,L
DA62-05330B SEAL TUBE;RF9000R,PE FOAM,T6,W30,L160,HB
DA62-00232B SEAL WATER HOSE;RF9000A,PU FOAM,T10,DINK
DA62-06283A SEAL-ABSORBER;RF9000D,PU FOAM,T12,W170,L
DA62-03641A SEAL-CABI;OPUS1-14,PU FOAM,T5,W80,L80,HB
DA62-02534B SEAL-CASE HEATER FRENCH;OPUS1,PU FOAM,T1
DA72-00238B SEAL-DRAIN HOSE;ARAM10,PU FOAM,T10,30
DA62-05678A SEAL-FIXER TUBE;RF9000A/AC, RF7000AC,PU
DA62-05606A SEAL-GROMMET FIXER;RF9000A,PU FOAM,T3,W8
DA62-03008B SEAL-GROMMET SCREW;POLARIS,PE FOAM,T3,DO
DA62-01500A SEAL-GUIDE FRENCH;AW-PJT,PE FOAM,T2,DING
DA62-03018A SEAL-HANDLE BOTT;FDR / SBS,PE FOAM,T2,L5
DA62-03921A SEAL-MID FRONT VERTICAL AL;ROMANEE,PU FO
DA62-03903A SEAL-MID FRONT VERTICAL;ROMANEE,PU FOAM,
DA62-04159A SEAL-PLATE DOOR;ROMANEE CONTI,PU FOAM,T5
DA62-02453A SEAL-REINF CABI MID FRONT;PU FOAM,T5,W45
DA62-03420A SEAL-SUPT TUBE FILTER;AW2-11,PE FOAM,T5
DA32-00088A SENSOR HUMIDITY;5V,0~100%RH,4.5%,100MM,4
DA32-10104N DA32-10104N SENSOR TEMP;DKST1329GW,DOUBLE_INSULATION
DA32-00078A SENSOR TEMP;DOUBLE_INSULATION, TPA,L200,
DA32-00011C DA32-00011C SENSOR TEMP;QUEEN,50 ~ 80 ,5V,R SENSOR
DA32-00070E SENSOR TEMP;SC41198-021A,1100MM,13.2KOHM
DA32-00075D SENSOR-CAPACITANCE;5V,NEO VICTORY GRAY,U
DA32-00063B SENSOR-ELECTRODE;5V,CLIPPING TYPE,UL1007
DA66-01048A SHAFT HINGE-A;FOOD SHOW CASE,SWRCH10A,
DA66-01640A SHAFT HINGE-LOW;RF9000C,SWRCH10A,OD6,
DA66-01110A SHAFT HINGE-MIDDLE;RF-H920G,SWRCH10A,L32
DA66-00960A SHAFT HINGE-UPP;AW4-PJT,CR-SPCC,
DA66-01255A SHAFT HINGE;RF9900M,CR-SPCC,T1.4
DA66-00649B DA66-00649B SHAFT-CASTER;POLARIS,MSWR10,L44,OD11,
DA66-01368A SHAFT;RF9000R,ZNDC,L429,D8,ZNDC2, LEFT
DA63-07282A SHEET ABS-PANEL REF;RF8000B,ABS,T1.7,QU-
DA63-09460A SHEET;RF9000JC,ABS,T3.5,SE32,COOL WHITE,
DA67-05162A SHELF FOLDER-FRONT;RF9000AC,PP,COOL WHIT
DA67-05391A SHELF FOLDER-REAR;RF8000BC,PP,COOL WHITE
DA67-05160A SHELF SLIDE-FRE;RF7000AC,GPPS,TP GRAY,
DA67-05153A SHELF VEGETABLE-LOW;RF9000AC,HIPS,COOL W
DA67-05390A SHELF-REF FIX;RF8000BC,PP,COOL WHITE,B
DA63-50192A DA63-50192A SHIM HINGE-UP;-,PVC,T1,NATURAL,LS130
DA63-00015A SHIM-DOOR PLATE;RF9000 (B),PVC,T0.5,NATU
DA63-12013A SHIM;RF9000C,PP,T1,NATURAL,BJ750
DA61-14181A SLIDER;RF9900T,POM,BLACK,500P
DG47-00087A SMT GASKET;W4.5,T6,L2.5,PI/SILICON RUBBE
DA02-00202A SOLDER RING;D6.4,91.75CU/6.25P/2.0AG,NUM
DA02-00202D SOLDER RING;D:2.1,91.75CU/6.25P/2.0AG,NU
DA02-00202H SOLDER RING;D:3.55,91.75CU/6.25P/2.0AG,N
DA02-00202C SOLDER RING;D:7.99,91.75CU/6.25P/2.0AG,N
DA02-00202F SOLDER RING;YSS26,D0.6,26AG/41CU/33ZN,NU
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
0202-001463 SOLDER-WIRE;LFC2-W3.0,D3,99.79SN/0.2CU/0
0204-005794 SOLVENT;S-1000,(CH3)2CHOH,100%,0.79
3001-002872 SPEAKER;6OHM,803DB,240,280,206.4X48.2X3
DA61-16058A SPRING AUTO CLOSE;RF9000CC,PW-2,OD12,
DA61-05366A DA61-05366A SPRING ETC-HANDLE;SVETA-PJT,STS304,ID5.4
DA61-05782A SPRING ETC-INNER;SSEDA,STS304,0.8,3.9,5.
DA61-02609B SPRING ETC-PIPE WATER;AW-PJT,STS304,OD7.
DA61-05783A SPRING ETC-SHAFT;SSEDA,STS304,0.5,5.2,6.
DA61-08314B SPRING FRENCH;RFH920G,STS304
DA61-13565A SPRING LEVER;RF9000R,STS304,ID0.8,OD8,LE
DA61-11871A SPRING;RF8000MC,STS304,ID7,OD9
3502-001087 SSR;DC12V,2A,9.6-25MV,30TO+80C,0.028A,A
0101-002926 STEEL PLATE;GI,SGCC,0.35MM,290MM,Z12,NC
DA61-08816A DA61-08816A STOPPER DOOR-L;ROMANEE CONTI,PO-SPHC,T2.
DA61-14211B STOPPER DOOR-LEFT;RF9000T/RF9900T,PO-SPH
DA61-08817A DA61-08817A STOPPER DOOR-R;ROMANEE CONTI,PO-SPHC,T2.
DA61-13384A STOPPER DOOR-REF LOW;RF9000R,PO-SPHC,T4,
DA61-14210B STOPPER DOOR-RIGHT;RF9000T/RF9900T,PO-SP
DA61-10712B STOPPER ROLLER;RF9000K,SWRCH10A,VE
DA61-15273A SUPPORT DOOR-CLOSE;RF9000B,PK,M33R3A00
DA61-14435A DA61-14435A SUPPORT ICE MAKER;RF9000A,HIPS,T3,S834S1
DA61-14470A SUPPORT RAIL;RF9000A,HIPS,S834S1,COOL WH
DA61-09179A SUPPORT TUBE;AW4 F/S,PP,MU30HP,NATURAL
DA61-16057A SUPPORT-BLOCK;RF9000CC,ZNDC,T3,
DA61-16059A SUPPORT-BLOCK;RF9000CC,ZNDC,T3,LEF
4715-001217 SURGE ABSORBER;3600V,20%,3000A,RADIAL
DA34-00043L DA34-00043L SWITCH REED;UL1007 AWG 22,L100
DA34-00043M SWITCH REED;UL1007 AWG 22,L100
3405-001117 3405-001117 SWITCH-MICRO;125/250VAC,1A,80GF,SPST-NO
3402-000165 3402-000165 SWITCH-ROCKER;AC125/250V,12/6A,SPST,ON-O
DA02-00250A TAPE AL;REF_ALL,AL,T0.135,NATURAL,W100
DA02-10007A TAPE DOUBLE FACE;-,POLYESTER,T1,TRANSPAR
DA02-00262A TAPE DOUBLE FACE;RF9500T,ACRYL,T0.5,BLAC
DA02-10008A TAPE ETC-AL;AL,NTR
DA02-10014B TAPE ETC-AL;ALL MODEL,AL,T0.03,NATURAL
DA02-00041A TAPE ETC-AL;ALL MODEL,AL,T0.04,NATURAL,
DA02-10013B TAPE ETC-AL;GGH,AL,T0.03,NATURAL,T0.03,W
DA02-10015A TAPE ETC-BINDER;ALL,POLYESTER,T0.03,NATU
DA02-10009A TAPE ETC-COTTON;RT29 SNIPER,COTTON,T0.16
DA02-00210B TAPE ETC-GLASS DOOR LOW;MOUTON12,AL,T0.1
DA02-10012A TAPE ETC-PET;REF_ALL,PET,T0.05,TRANSPARE
DA02-10011A TAPE ETC;ALL MODELS,PE,T0.5,TRANSPARENCY
DA02-10004G TAPE PAPER;-,PAPER,T0.125,BROWN,COATING
DA02-10004D TAPE PAPER;-,PAPER,T0.15,BROWN,W40,COATI
DA02-10004E TAPE PAPER;-,PAPER,T0.2,BROWN,COATING
0203-006491 TAPE-AL FOIL;AL,T0.03,W20,N/A,SILVER
0203-001152 TAPE-AL FOIL;AL,T0.06,W100,L100M,SILVER
0203-001151 TAPE-AL FOIL;AL,T0.07,W75,L10M,SILVER
0203-001810 TAPE-COTTON;140SN,T0.24,W60,ROLL,NATURAL
0203-006331 TAPE-COTTON;COTTON,T0.24,W30,N/A,WHITE,C
0203-001811 TAPE-COTTON;COTTON,T0.24,W45,N/A,WHITE
0203-003411 TAPE-DOUBLE FACE;ACRYL,T0.16,W50,N/A,WHI
0203-006426 TAPE-DOUBLE FACE;ACRYL,T0.22,W600,N/A,WH
0203-001523 TAPE-DOUBLE FACE;PET,T0.15,W15,L50M,WHIT
DA02-10005A TAPE-MASKING;FF MODELS,PAPER,T0.3,W25,L0
0203-006630 TAPE-OPP MASKING;OPP,T0.065,W50,WHITE,CA
DA02-10004K TAPE-PAPER;PAPER,T0.15,W15,L50M,WHITE
0203-001308 TAPE-PAPER;PAPER,T0.15,W80,L100M,BROWN
0203-001678 TAPE-POLY;204C,T0.07,W50,L50M,BLUE
0203-006407 TAPE-POLY;DTS-204C,T0.055,W70
0203-000338 TAPE-POLY;OPP,T0.072,W35,L50M,BLUE
0203-006795 TAPE-POLY;PP,GRADE 64294,T0.11,W50,WHITE
0203-001367 TAPE-POLY;PP,T0.07,W50,L50M,GRAY,HAUSEN
0203-006329 TAPE-SINGLE FACE;COTTON,T0.24,W40,L50M,W
DA02-10010A TAPE-SINGLE FACE;OPP,T0.06,W50,N/A,CLEAR
0203-001060 TAPE-SINGLE FACE;OPP,T0.065,W72,N/A,CLEA
0203-006521 TAPE-SINGLE FACE;PET,T0.037,W80,N/A,CLEA
0203-001812 TAPE-SINGLE FACE;PET,T0.055,W20,N/A,GRAY
0203-006797 TAPE-SINGLE FACE;PP,T0.11,W25,N/A,WHITE,
1404-001544 THERMISTOR-NTC;10KOHM,1%,3435K,3.7MWC,TP
1404-001872 THERMISTOR-PTC;3.5OHM(MAX),3%,10VAC,40A,
DA47-00301D DA47-00301D THERMO FUSE-ASSY;AC250V,10A,109~110,S.O
DA64-07572H TOP TABLE;RF9000D,ABS,T2.4,INOX GRAY,H
0506-000175 TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100
0504-001080 TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM
0502-001250 TR-POWER;PBSS5540Z,1,SOT-223,TP,6.5X3.5X
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
0501-000467 TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2
DA26-00058C TRANS SWITCHING;AC85-265V,3400MA,200MA,1
DA63-12052A TRAY DRAIN-WATER;RF9000C,PP,T2,HB,INNER
DA63-12053A TRAY DRAIN-WATER;RF9000C,PP,T2,HB,INNER
DA63-11232A TRAY ICE;RF9000A,PP,T1,NATURAL
DA63-09323A TRAY ICE;RS8000NC,PP,T1,NATURAL
DA63-09788A TRAY WATER;RF6000T,HIPS,T2.5,COOL WHITE
DA64-05373D TRIM BLADE;RF9000A,PVC,SHGS-L130-67-01G,
DA64-06367B TRIM COVER-REF;RF9000A,HIPS,S834S1,NEO V
DA64-07313A TRIM DOOR-REF;RF9000C,ABS,HG-0760GP,IN
DA64-06223A TRIM DOOR-REF;RF9000R(B),ABS,HG-0760GP,E
DA64-07001A TRIM DOOR-UP;RF9000A,ABS,HG-0760GP,INO
DA64-06286A TRIM DOOR-UP;RF9000T,ABS,HG-0760GP,EBONY
DA64-06425A TRIM DOOR-UP;RF9000TC,ABS,HG-0760GP,EBON
DA64-06487B TRIM SHELF-FRONT;RF8000B,ABS,HG-0760GP,T
DA64-05903E TRIM SHELF-REAR;RF8000B,HIPS,S834S1,T5,C
DA64-04915E TRIM SHELF-REF FRONT;RF9000R,ABS,HG-0760
DA64-04915F TRIM SHELF-REF FRONT;RF9000R,ABS,HG-0760
DA64-06490A TRIM SHELF-REF;RF9000A/AC,ABS,HG-0760GP,
DA64-03784A TRIM SHELF;ARAM,LDPE,MB9500,NATURAL,
DA62-01266B TUBE PVC;AW3,PVC,OD19.4,L155,P-1000,
DA62-04606B TUBE-AL;AL,L520,T0.34, LA+CE
DA62-02414A TUBE-FITTING L;POM,1/4INCH,1/4-1
DA62-04299A TUBE-LEFT;AW-CD,LDPE,L0.1,MB9500,N
DA62-05651E TUBE;-,PO,OD16.2,L120,ID15,HOTME
DA62-05881B TUBE;RF8000B,HDPE,OD5.3,L80,ID4.2,
DA62-06196A TUBE;RF9000,PO,OD11.6,L200,ID10.2,
DA62-06196B TUBE;RF9000,PO,OD11.6,L240,ID10.2,
DA62-06054A TUBE;RF9000,PO,OD11.6,L80,ID10.2,
DA62-06178E TUBE;RF9000,PO,OD6.6,L100,ID5.7,
DA62-05650J TUBE;RF9000C,PO,OD16.2,L200,ID15,
DA62-04617B DA62-04617B VALVE STEP;DC12V,MODULE,3WAY,LEFT/LEFT B
DA62-04030D VALVE WATER;AC110-127V,RF6000T,L-WIRE,
DA74-00070B DA74-00070B VALVE-FITTING NUT;A-TOP,C3604,
DA62-00305A DA62-00305A VALVE-FITTING PU;BEST-BUY,C3604,
1405-001239 VARISTOR;680V,560VDC,6000A,17X10MM,TP,11
4709-002927 4709-002927 W-LAN MODULE;CCBQ730M,MT7668,IEEE802.11,
DA69-01982F WRAP VINYL;LDPE,T0.04,W130,ROLL,SET,ADHE
DA69-01981M WRAP VINYL;LDPE,T0.04,W150,ROLL,SET,ADHE
DA69-01981B WRAP VINYL;LDPE,T0.04,W30,ROLL,SET,ADHES
DA69-01981C WRAP VINYL;LDPE,T0.04,W40,ROLL,SET,ADHES
DA69-01981D WRAP VINYL;LDPE,T0.04,W40,ROLL,SET,ADHES
DA69-01981E WRAP VINYL;LDPE,T0.04,W50,ROLL,SET,ADHES
DA69-01981R WRAP VINYL;LDPE,T0.04,W60,ROLL,SET,ADHES
DA69-01981H WRAP VINYL;LDPE,T0.04,W90,ROLL,SET,ADHES
DA69-01982G WRAP VINYL;LDPE,T0.04,W90,ROLL,SET,ADHES
DA69-01982V WRAP VINYL;REF_ALL,LDPE,T0.05,W115,L1000
DA69-01982X WRAP VINYL;REF_ALL,LDPE,T0.05,W130,L1000
DA69-01982Z WRAP VINYL;REF_ALL,LDPE,T0.05,W200,L1000
DA69-01982L WRAP VINYL;REF_ALL,LDPE,T0.05,W250,L1000
DA69-02483F WRAP VINYL;REF_ALL,LDPE,T0.05,W30,L1000,
DA69-01982N WRAP VINYL;REF_ALL,LDPE,T0.05,W40,L1000,
DA69-01982Q WRAP VINYL;REF_ALL,LDPE,T0.05,W60,L1000,
DA69-01982S WRAP VINYL;REF_ALL,LDPE,T0.05,W70,L1000,
DA69-01982U WRAP VINYL;REF_ALL,LDPE,T0.05,W90,L1000,
DA69-02254A WRAP VINYL;REF_ALL,LDPE,T0.095,W30,L1000
Main Menu x
