Manufacturer
Samsung
Model Number
RF23DB9900QDAA
Description
Bespoke 23 Cu. Ft. 4-door Flex French Door Refrige
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DA92-01808A | |
| DA61-16266A | |
| 0201-002906 | ADHESIVE-EMEL;PA-53,WHITE,4560CPS/25 |
| 0201-002337 | ADHESIVE-HM;DJ-8000,WHITE,9,375MPA.S,180 |
| 0201-003797 | ADHESIVE-SEALANT;LOCKSEAL7700,111CPS,LOK |
| 0201-003450 | ADHESIVE-SEALANT;LOCKSEAL7700,LOKPREP |
| 0201-001523 | ADHESIVE-SIL |
| 0201-003079 | ADHESIVE-SILICON;BLACK |
| DA02-00041A | AL-TAPE |
| DA61-16264A | ALUMINUM PLATE;A5052P,T0.5,630,820,H/L, |
| DA61-14455A | ANGLE SHELF-REF MIDDLE |
|
|
ASSEMBLY ACCESSORY-CUSTOM PANEL |
|
|
ASSEMBLY ACCESSORY-CUSTOM PANEL |
|
|
ASSEMBLY CAP-DRAIN |
| DA97-08006L | ASSEMBLY CASE FILTER;H920G |
|
|
ASSEMBLY CASE ICE |
|
|
ASSEMBLY CASE ICE |
| DA97-20069H | ASSEMBLY CASE PBA-MAIN , RF9000B,ICE BALL |
| DA97-15972C | ASSEMBLY CONDENSER-MAIN |
| DA97-21788A | ASSEMBLY COVER BASKET |
| DA97-20572A | ASSEMBLY FIXER-UP |
| DA97-22990F | ASSEMBLY FRENCH |
| DA97-20057A | ASSEMBLY GASKET |
| DA97-23369A | ASSEMBLY GASKET-FRE |
| DA97-23410A | ASSEMBLY GUARD PACKING-DOOR BIN MODULE , RF900 |
| DA97-21915A | ASSEMBLY GUARD REF |
| DA97-21914A | ASSEMBLY GUARD REF LOW |
| DA97-21960A | ASSEMBLY GUARD REF MIDDLE |
|
|
ASSEMBLY GUARD-REF UP;RF9000N,TP G |
| DA97-21336A | ASSEMBLY HINGE LOW LEFT |
|
|

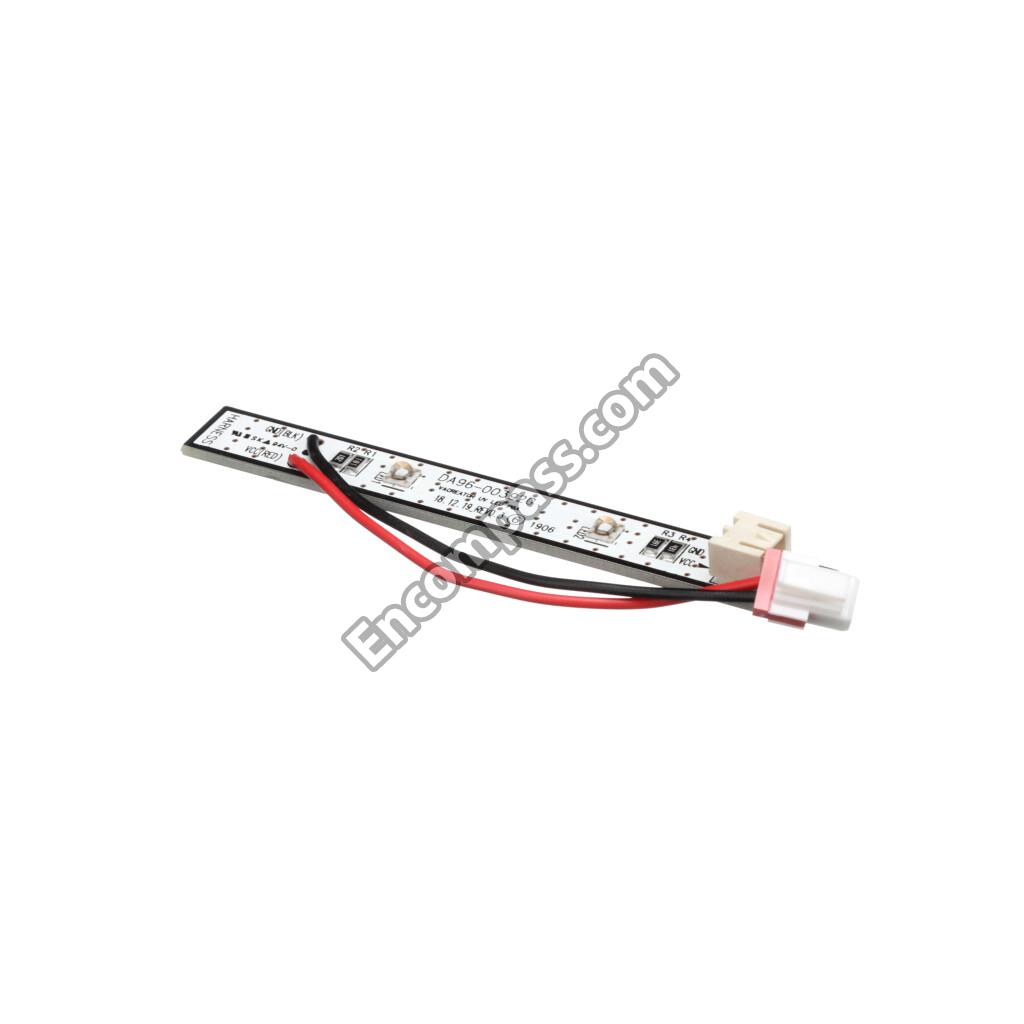

ASSEMBLY LAMP LED |
|
|
ASSEMBLY LAMP LED |
| DA92-00976A | ASSEMBLY MICOM , FHUB2 LCD,HDCP AND OCF KEY CO |
|
|
ASSEMBLY MODULE |
| DA92-01632A | ASSEMBLY PBA MODULE-SMPS;SMPS,RF8000C HUB,12 |
| DA92-01368B | ASSEMBLY PBA MODULE-VOICE;DIGITAL MIC,RF9000 |
|
|
ASSEMBLY PIPE WATER ICE;RF9000A,SEAL 160MM,A |
| DA97-19988A | ASSEMBLY ROLLER;RF9000K,29 |
| DA97-22970A | ASSEMBLY SHELF INSERT-REF FIX |
| DA97-21895A | ASSEMBLY SHELF QUICK SPACE |
| DA97-21902L | ASSEMBLY SHELF VEG-LOW |
| DA97-21898A | ASSEMBLY SHELF-REF UP |
| DA97-02465H | ASSEMBLY URETHANE , KIMCHI-IVY,KIMCHI-CABI |
| DA97-02465C | ASSEMBLY URETHANE- |
| DA96-00852E | ASSEMBLY WIRE HARNESS SPI |
| DA96-01170A | ASSEMBLY WIRE HARNESS-COMP |
| DA96-01581A | ASSEMBLY WIRE HARNESS-DISPLAY;RF9000C,F-HUB |
|
|
ASSEMBLY WIRE HARNESS-EARTH |
| DA96-01609A | ASSEMBLY WIRE HARNESS;32-INCH FHUB IOT DONGLE,FR |
| DA96-01608A | ASSEMBLY WIRE HARNESS;32-INCH FHUB LCD,FREE VOLT |
| DA99-05319H | ASSY ACCESSORY-CUSTOM PANEL;RF9000D,CLEA |
| DA97-24889A | ASSY CABI FRAME-BOTTOM;RF9000DC,610, VF |
| DA97-20316Q | ASSY CABI FRAME-MIDDLE;RF9000A/AC, RF700 |
| DA97-13239B | ASSY CABI FRAME-MIDDLE;ROMANEE-CONTI,VER |
| DA97-24374D | ASSY CABI FRAME-REAR;RF9000D,GL-SGLCC,T0 |
| DA97-24886K | ASSY CABI FRAME;RF9000DC,21C SILVER,D610 |
| DA97-25035A | ASSY CABI-BOTTOM FRONT;RF9000D,SNOW WHTE |
| DA90-14692P | ASSY CABINET FORM;RF9000D,CD,SILVER,SIDE |
| DA97-21875C | ASSY CASE BASKET-LOW;RF9000AC,INDIA |
| DA97-21797D | ASSY CASE FILTER |
| DA97-21793L | ASSY CASE ICE;RF9000DC,610, GLOBAL, SCOO |
| DA97-21793M | ASSY CASE ICE;RF9000DC,610, GLOBAL, WITH |
| DA97-17399U | ASSY CASE INNER |
| DA97-24974A | ASSY CASE PCB;RF9000D,AOD TOUCH SENSOR |
| DA97-24879B | ASSY CASE SENSOR;RF9000D,GRAY,CAMERA MOD |
| DA97-25024B | ASSY CASE UNIT;RF9000D,NATURAL,5VA |
| DA97-21878M | ASSY CASE VEG;RF9000AC,CD, INDIA |
| DA97-21261H | ASSY CASE WATER FILTRE |
| DA97-12557T | ASSY CHASSIS COMP;RF9000C,GI-SGCC,T1.4,W |
| DA97-22349M | ASSY COMP N CONDENSING-COND MODULE;RF900 |
| DA97-24085D | ASSY COVER COMP;RF9000C,GL-SGLCC,T0.25,I |
| DA97-23218B | ASSY COVER DEODORIZER;RF9000B,UV,GLOVAL, |
| DA97-23641A | ASSY COVER EVAP-FRE;RF9000,BOX FAN |
| DA97-21807H | ASSY COVER EVAP-REF;RF9000D,NORMAL,METAL |
| DA97-21951E | ASSY COVER LAMP-REF;RF9000D_HYBRID,LED P |
| DA98-03463A | ASSY CUSHION BOTTOM;RF9000DC,FRE DOOR SU |
| DA98-03212C | ASSY CUSHION TOP;RF9000AC(B),LOW TOP TAB |
| DA90-14677D | ASSY CYCLE;RF9000D,110V,W1 COMP(15CC),CO |
| DA90-14150G | ASSY DAMPER;RF9000D,CONVERTIBLE(N),METAL |
| DA91-05346W | ASSY DOOR FOAM-FRE LEFT;RF9000D,NO TRIM, |
| DA82-03873Q | ASSY DOOR FOAM-FRE RIGHT;RF9000D,NO TRIM |
| DA82-03847R | ASSY DOOR FOAM-REF IN LEFT;RF9000D,DARK |
| DA82-03847Q | ASSY DOOR FOAM-REF OUT LEFT;RF9000D,FDSR |
| DA82-03847P | ASSY DOOR FOAM-REF RIGHT;RF9000D,"32 HUB |
| DA90-13540N | ASSY DOOR FRE-LEFT;RF9000C(B),FIXED,REAL |
| DA90-13539N | ASSY DOOR FRE-RIGHT;RF9000C(B),FIXED,REA |
| DA90-14701R | ASSY DOOR REF-LEFT;RF9000D(B),FDSR,BSC,Q |
| DA90-14698U | ASSY DOOR REF-RIGHT;RF9000D(B),F-HUB,32I |
| DA93-00943L | ASSY DOOR SUB-FRE LEFT DOOR MODULE;RF900 |
| DA93-01316H | ASSY DOOR SUB-FRE LEFT;RF9000C,QL(STAINL |
| DA93-00942L | ASSY DOOR SUB-FRE RIGHT DOOR MODULE;RF90 |
| DA93-01317H | ASSY DOOR SUB-FRE RIGHT;RF9000C,QL(STAIN |
| DA93-01617G | ASSY DOOR SUB-REF IN LEFT DOOR MODULE;RF |
| DA93-01561R | ASSY DOOR SUB-REF LEFT;RF9000D,QL(REAL S |
| DA93-00946N | ASSY DOOR SUB-REF OUT LEFT DOOR MODULE;R |
| DA93-01206R | ASSY DOOR SUB-REF OUT LEFT;RF9000D,QL(RE |
| DA93-01531E | ASSY DOOR SUB-REF RIGHT DOOR MODULE;RF90 |
| DA93-01532K | ASSY DOOR SUB-REF RIGHT;RF9000D,"32 HUB, |
| DA97-16345B | ASSY DRAIN HOSE-FRE LEFT;RF9000A/AC |
| DA97-16135B | ASSY DRAIN HOSE-FRE RIGHT;RF9000A,HDPE, |
| DA97-21998A | ASSY DRAIN HOSE-REF;RF9000A/AC,NATURAL |
| DA97-24796B | ASSY EASY OPEN;RF9000D,ROLLER PUSHER, IN |
| DA96-01520C | ASSY EVAP-CONV EVAP MODULE;RF9000B,FIN T |
| DA96-01515C | ASSY EVAP-FRE EVAP MODULE;RF9000B,FIN TU |
| DA96-01519B | ASSY EVAP-REF EVAP MODULE;RF9000B,FIN TU |
| DA97-11496B | ASSY FIXER HOUSING-FRE;OPUS,HIPS, NTR |
| DA97-11489B | ASSY FIXER HOUSING-VALVE WATER;AW2-11,NT |
| DA97-22257B | ASSY FIXER-UP;RF9000A,BLACK,RECYCLE |
| DA97-22978B | ASSY FIXER;RF8000B,LOKRING PIPE, HOTMELT |
| DA97-23368A | ASSY GASKET-REF;RF9000B |
| DA97-21952A | ASSY GROMMET;RF9000A,FIXER PIPE HANGER |
| DA97-21276A | ASSY GROMMET;RF9900T |
| DA97-19996E | ASSY GUARD-FRE;RF9000A,TP GRAY,INDIA |
| DA90-14674E | ASSY GUARD;RF9000D,F-HUB,L-BSC |
| DA97-22006C | ASSY GUIDE HOSE;RF9000AC,610 MODEL |
| DA97-23111A | ASSY HINGE-LOW |
| DA97-23110A | ASSY HINGE-LOW LEFT;RF9000B,BLACK,AUTO C |
| DA97-25013A | ASSY HINGE-MIDDLE LEFT;RF9000D,GROMMET(C |
| DA97-25014A | ASSY HINGE-MIDDLE RIGHT;RF9000D,GROMMET( |
| DA97-24198A | ASSY HINGE-UP LEFT;RF9000C,T4,BLACK,OUT |
| DA97-19972D | ASSY HINGE-UP LEFT;RF9000R,T3,BLACK |
| DA97-19973C | ASSY HINGE-UP RIGHT;RF9000R,T3,BLACK |
| DA97-21804A | ASSY ICE MAKER-ICE MODULE;RF9000A,DUAL |
| DA59-00392A | ASSY ICE MAKER-ICE MODULE;SWAA,DC 12V, |
| DA97-21804C | ASSY ICE MAKER;RF8000BC,BRACKET |
| DA90-14686A | ASSY ICE MAKER;RF9000D,CD,USA,DUAL I/M |
| DA97-21919K | ASSY INS PARTITION;RF9000DC,DEPTH 610, D |
| DA97-15796B | ASSY INS VACUUM PANEL;AW3-14,T12,W500,L1 |
| DA90-14687H | ASSY INSERT;RF9000D,CD,110V,BSC,DUAL I/M |
| DA91-06529A | ASSY INSTALL-PARTS KIT;BESPOKE_INSTALL,H |
| DA99-03258A | ASSY LABEL-INSTALLER CHECK LIST;AW-PJT,A |
| DA96-01474A | ASSY LAMP LED;1,FR-1,17*17,WHITE,UNDER 8 |
| DA96-01672A | ASSY LAMP LED;20,FR-4,370 X 25,WHITE,SMA |
| DA97-22004A | ASSY LED LAMP;RF9000A,BEVERAGE SHOW CASE |
| DA97-24557A | ASSY LEVER AUTO CLOSE;RF9000CC,LEFT MODU |
| DA97-24558A | ASSY LEVER AUTO CLOSE;RF9000CC,RIGHT MOD |
| DA97-17297F | ASSY LEVER DISPENSER;RF9000A,NO PRINT, U |
| DA94-09095G | ASSY LINER;RF9000D,CD,F-HUB,L-BSC,DUAL I |
| DA98-03466A | ASSY MANUAL;RF9000D/DC,AA |
| DA92-01492F | ASSY MICOM-TOUCH;RF9000D,CY8C4014LQI-422 |
| DA92-01767A | ASSY MICOM;RF9000D,FHUB LCD S/W FOR US |
| DA92-01761A | ASSY MICOM;RF9000D,MAIN MICOM HEX CODE, |
| DA90-14675H | ASSY OUTER;RF9000D,SILVER,L-FDSR,SIDE CO |
| DA90-14679C | ASSY PACKING;RF9000D(B),CD,USA,L-BSC,DUA |
| DA97-24624A | ASSY PANEL;RF9000A,VCM, NON MOVING GUARD |
| DA97-21953C | ASSY PARTITION-FRE V;RF9000AC,DEPTH 610, |
| DA92-01485F | ASSY PBA MODULE;TOUCH PBA,RF9000D,50*20M |
| DA94-08890A | ASSY PCB AUTO;R_PF01_23_A34,RF9000D,165* |
| DA92-01743H | ASSY PCB DISPLAY;A311D_32" LCD_MEMS,RF90 |
| DA94-09287M | ASSY PCB EEPROM;0X1A,RF9000D,DA92-01763A |
| DA94-08954J | ASSY PCB EEPROM;DAT8 0X01,US RF9000_D,FH |
| DA92-01763A | ASSY PCB MAIN;R_PF01_23_A34,RF9000D,165* |
| DA94-09395A | ASSY PCB SMD;A311D_32" LCD_MEMS,RF9000D, |
| DA94-08891A | ASSY PCB SMD;R_PF01_23_A34,RF9000D,165*2 |
| DA97-15974A | ASSY PIPE CONNECT-B;PFC,-,-,-,-,-,- |
| DA97-15975A | ASSY PIPE CONNECT;PFC,-,-,-,-,-,- |
| DA97-16030A | ASSY PIPE SUCTION-SUB;RB5000J, |
| DA97-23184H | ASSY PIPE SUCTION;RF9000C,AL SUCTION, KI |
| DA97-21156W | ASSY PLATE DOOR-FRE LEFT;RF9000D,NO TRIM |
| DA97-21157W | ASSY PLATE DOOR-FRE RIGHT;RF9000D,NO TRI |
| DA97-21158Q | ASSY PLATE DOOR-REF OUT LEFT;RF9000D,FDS |
| DA97-24538E | ASSY PLATE DOOR-REF RIGHT;RF9000D,"32 HU |
| DA90-14683Q | ASSY PRINTING;RF23DB9900QDAA |
| DA97-21973A | ASSY RAIL-FRE UP LEFT;RF9000AC |
| DA97-21972A | ASSY RAIL-FRE UP RIGHT;RF9000AC |
| DA97-15419A | ASSY RAIL-LEFT;RF9000JC |
| DA97-21876B | ASSY RAIL-MIDDLE LEFT;RF9000AC,DELETE RO |
| DA97-21971A | ASSY RAIL-REF LOW LEFT;RF9000AC |
| DA97-21970A | ASSY RAIL-REF LOW RIGHT;RF9000AC |
| DA97-15420A | ASSY RAIL-RIGHT;RF9000JC |
| DA97-06920Y | ASSY REINF-CABI FLANGE UP;RF9000T |
| DA97-05214A | ASSY REINF-GUIDE FRENCH;AW-PJT, |
| DA97-16179A | ASSY REINF-MIDDLE FRONT;RF9000K,PO-SPHC, |
| DA97-22126K | ASSY SEAL CABI;RF9000D,610,V/F |
| DA99-04201D | ASSY SEAL;RF9900N,ASSY, 9900 |
| DA97-21798D | ASSY SHELF SLIDE-FRE;RF7000AC,610,NO VIN |
| DA97-21798B | ASSY SHELF SLIDE-FRE;RF9000AC,VIO VINYL |
| DA97-23375B | ASSY SHELF-SLIDE FRE SHELF MODULE;RF9000 |
| DA90-14678A | ASSY SHELF;RF9000D,CD,WHITE,LUMINOUS |
| DA97-13830B | ASSY SUPPORT-MIDDLE;RF9000A |
| DA97-20982A | ASSY SUPPORT;BESPOKE,T1.5,W130,L230,NATU |
| DA97-13854D | ASSY TANK WATER-REF;RS5000RC,PP,T3.5,NAT |
| DA97-22125J | ASSY TAPE CABI;RF9000D,610,V/F |
| DA97-24811H | ASSY TOP TABLE;RF9000D,ABS,INOX GRAY,NO |
| DA97-15978N | ASSY TRAY DRAIN WATER;RF9000C,T2,GEAR BO |
| DA97-24987C | ASSY URETHANE CABI;RF9000D,CD,VIP REAR(1 |
| DA97-17400A | ASSY VALVE WATER-HOSE;RF8000MC |
| DA96-01638A | ASSY WIRE HARNESS-CABI;RF9000D,DUAL I/M, |
| DA96-01471C | ASSY WIRE HARNESS-DISPENSER;ALL,DISPLAY, |
| DA96-01582C | ASSY WIRE HARNESS-DOOR;RF9000D,AOD,T,FRE |
| DA96-01636C | ASSY WIRE HARNESS-DOOR;RF9000D,BSC,T,100 |
| DA96-01580K | ASSY WIRE HARNESS-DOOR;RF9000D,TOUCH SEN |
| DA96-01349E | ASSY WIRE HARNESS-DOOR;RF9500R,FAMILY HU |
| DA96-00990P | ASSY WIRE HARNESS-ETC;RF9500R,T,NA,12VDC |
| DA96-01637E | ASSY WIRE HARNESS-MAIN;RF9000D,BSC, 32" |
| DA96-01639D | ASSY WIRE HARNESS-TOP;RF9000D,F-HUB,AOD, |
| DA97-12475A | ASSY-GROMMET FRENCH;MOUTON |
| DA97-11082C | ASSY-GROMMET SCREW;POLARIS,FRPP |
| 6902-003050 | BAG PE;HDPE,T0.03,W250,L400,TRP,RECYCLE+ |
| 6902-003053 | BAG ROLL;HDPE,T0.012,W1900,L1000,TRP,REC |
| 6902-000588 | BAG ZIPPER |
| 6902-000336 | BAG ZIPPER |
| 6922-000003 | BAND |
|
|
BEAD-SMD |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2 |
| 6011-001694 | BOLT-ETC |
|
|
BOLT-ETC |
|
|
BOLT-HEX |
| 6011-007289 | BOLT-HEX |
|
|
BOLT-HEX |
| 6011-000129 | BOLT-HEX;M6,L35,ZPC(SILVER),SW |
| DA61-15475A | BRACKET CONDENSER-LOW;RF9000B,PP,BLACK |
| DA61-16192A | BRACKET HOUSING;RF9000D,GL-SGLCC,T0.3, |
| DA61-14213A | BUSH;RF9000T/RF9900T,POM,BLACK,K300 |
| 2401-003069 | C-AL |
| 2402-001398 | C-AL, SMD |
| 2402-001303 | C-AL, SMD |
| 2402-001268 | C-AL, SMD |
| 2402-001254 | C-AL, SMD |
| 2401-004721 | C-AL;680UF,20%,250V,BK,30X30MM,10MM,-25T |
| 2401-004553 | C-AL;820UF,20%,25V,TP,10X20MM,5MM,-40TO+ |
| 2203-008315 | C-CER, CHIP |
| 2203-007544 | C-CER, CHIP |
| 2203-007486 | C-CER, CHIP |
| 2203-007456 | C-CER, CHIP |
| 2203-007306 | C-CER, CHIP |
| 2203-006992 | C-CER, CHIP |
| 2203-006158 | C-CER, CHIP |
| 2203-005968 | C-CER, CHIP |
| 2203-005135 | C-CER, CHIP |
| 2203-002285 | C-CER, CHIP |
| 2203-010142 | C-CER,CHIP |
| 2203-006457 | C-CER,CHIP |
| 2203-010495 | C-CER,CHIP;2.2UF,10%,25V,X7R,TP,2012,T1. |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,TP,1005,T0. |
| 2203-010496 | C-CER,CHIP;4.7UF,10%,25V,X7R,TP,2012,T1. |
| 2203-007717 | C-CER,CHIP;82NF,10%,50V,X7R,TP,1608,T0.8 |
| 2201-002429 | C-CERAMIC,DISC;10NF,+80-20%,2000V,Y5U,TP |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,TP,1 |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,SL,TP,6.3X5 |
| 2201-002711 | C-CERAMIC,DISC;470PF,10%,400VAC,Y5P,TP,1 |
| 2201-002335 | C-CERAMIC,DISC;68PF,10%,2000V,SL,TP,8X5M |
| 2301-002483 | C-FILM,LEAD-MPPF;330NF,10%,275VAC,BK,18X |
| 2301-002484 | C-FILM,LEAD-MPPF;470NF,10%,275VAC,BK,18X |
| 2301-002011 | C-FILM,LEAD-PPF;2.2NF,5%,630V,TP,13X11X6 |
| DA01-00949W | C/STEEL-CABI |
| DA01-01515H | C/STEEL-DOOR |
| DA01-01515G | C/STEEL-DOOR |
| DA01-01370P | C/STEEL-DOOR;RF9000A,EGI-SECC,LIGHT DOI |
| DA01-02041J | C/STEEL;RF9000A,STS430,REAL STS430,0.6MM |
| DA01-02041H | C/STEEL;RF9000A,STS430,REAL STS430,0.6MM |
| DA64-07585A | CABI FRAME-BOTTOM;RF9000D,PP,T1.5,BLACK, |
| DA64-02233S | CABI FRAME-MIDDLE FRONT;RF9000K,EGI-SECC |
| DA64-04288B | CABI FRAME-MIDDLE;ROMANEE-CONTI,EGI-SECC |
| DA64-07387A | CABI FRAME-REAR;RF9000A,GL-SGLCC,T0.35, |
| DA64-07609E | CABI FRAME;RF9000DC,GI-SGCC,T0.4,21 CA |
|
|
CABLE TIE |
| DA66-01678A | CAM AUTO CLOSE-LEFT;RF9000CC,POM,BLACK |
| DA66-01677A | CAM AUTO CLOSE;RF9000CC,POM,BLACK,K3 |
| DA66-01710A | CAM RISER-LOW LEFT;RF9000D,POM,BLACK, |
| DA66-01711A | CAM RISER-LOW RIGHT;RF9000D,POM,BLACK, |
| DA66-01714A | CAM RISER-UP LEFT;RF9000D,PA66,BLACK, |
| DA66-01715A | CAM RISER-UP RIGHT;RF9000D,PA66,BLACK, |
| DA59-00654A | CAMERA MODULE;CT90SN10AA,2880X1620,1/2.7 |
| DA67-03716A | CAP DISPENSER-OUT;3050 PJT,LDPE,T1.2,HB, |
| DA67-03717A | CAP DISPENSER;3050 PJT,LDPE,HB,MB9500,NA |
| DA67-05026A | CAP DOOR-FRE LOW LEFT;RF9000T,ABS,T2.3,H |
| DA67-05028A | CAP DOOR-FRE LOW RIGHT;RF9000T,ABS,T2.3, |
| DA67-05772A | CAP DOOR-FRE UP LEFT;RF9000D,ABS,T2.3,HB |
| DA67-05773A | CAP DOOR-FRE UP RIGHT;RF9000D,ABS,T2.3,H |
| DA67-05721A | CAP DOOR-REF LOW LEFT;RF9000D,ABS,T2,H |
| DA67-05577A | CAP DOOR-REF LOW RIGHT;RF9000C,ABS,T2, |
| DA67-05574A | CAP DOOR-REF UP LEFT;RF9000C,ABS,T2,HG |
| DA67-05720A | CAP DOOR-REF UP LEFT;RF9000D,ABS,T2,HG |
| DA67-05576A | CAP DOOR-REF UP RIGHT;RF9000C,ABS,T2,H |
| DA67-04504D | CAP FIXER-TUBE |
| DA67-05151A | CAP FIXER;RF9000A,SI,T2,NEO VICTORY GRAY |
| DA67-04491A | CAP GUIDE FRENCH;RF9000K,PA66,T2,KN3311, |
| DA67-05051A | CAP HOLE-FRE;RF9000T,ABS,T1.5,GP-35,EBON |
| DA67-05076A | CAP KNOB;RF9900T,POM,K300,NATURAL |
| DA67-30266Q | CAP SCREW |
| DA67-30266K | CAP SCREW |
| DA67-04961A | CAP SCREW |
| DA67-04331A | CAP SHAFT;RF9000K,POM,K300,NATURAL |
| DA67-04732A | CAP TANK;RS5000RC,PP,T3.5,J370,NATURAL |
|
|
CAP-DRAIN |
| DA67-03091B | CAP-FIXER HOUSING VALVE WATER;AW2-11,HIP |
| DA67-05406A | CAP-FRERENCH , RF9000A,PP,T1.5,HB,BJ750,NA |
| DA67-00189A | CAP-HOME BAR;ABS,HG-0760H,SNOW WHITE |
| DA67-02795C | CAP-SHAFT HOLE |
| DB67-01334A | CAP-TUBE;ARX-CC103,LDPE,T0.7,MB9500,NA |
| DA67-03399A | CAP-TUBE;HM12,PP,HB,BJ750,NATURAL |
| DA61-14218A | CASE , ABS,T1.5,DARK GRAY,HG-0760GP,FDSR |
| DA61-14440A | CASE BASKET-LOW;RF9000A,HIPS,T2.5,NEO VI |
| DA61-14527A | CASE BASKET-LOW;RF9000AC,PP,COOL WHITE,B |
| DA61-14149A | CASE BASKET-MIDDLE;RF9900T,HIPS,T3,COOL |
| DA61-14441A | CASE BASKET-UP;RF9000A,ABS,T3,NEO VICTOR |
| DA61-13987A | CASE COCK |
| DA61-11735A | CASE DISPENSER-IN;RF8000MC,ABS,EBONY B |
| DA61-14461A | CASE FILTER-LEFT;RF9000AC,HIPS,T2,NATURA |
| DA61-14163B | CASE FILTER-OUT;RF9000A,HIPS,T2.5,NEO VI |
| DA61-14552A | CASE FILTER-OUT;RF9000AC,HIPS,T2.5,NATUR |
| DA61-14462A | CASE FILTER-RIGHT;RF9000AC,HIPS,T2,NATUR |
| DA61-15091A | CASE FILTER;RF9000A,GPPS,T2.5,TP GRAY,G- |
| DA61-15168A | CASE FRENCH , RF9000A,ABS,T2.5,COOL WHITE, |
| DA61-15169A | CASE FRENCH-FRONT , RF9000A,ABS,T2,COOL WH |
| DA61-13386A | CASE HEATER-FRENCH , RF9000R,ABS,NATURAL,V |
|
|
CASE ICE CUBE |
| DA61-14309A | CASE ICE SCOOP |
| DA61-07581A | CASE LAMP-LED;POLARIS,GPPS,20.4,20.4,TP |
| DA61-14972A | CASE LAMP;RF9000A,PP,T2.5,COOL WHITE,BJ7 |
| DA61-13653A | CASE LOCK-A;RF9000R,ABS,T2.5,INOX GRAY,A |
| DA61-15327A | CASE PBA-MAIN , RF9000B,PP,T2.5,NATURAL, |
| DA61-15902A | CASE PCB;RF9000D,HIPS,T2,INNER WHITE,S |
| DA61-16177B | CASE SENSOR;RF9000D,ABS,T1,INOX GRAY,H |
| DA61-15260A | CASE SPI 2;RF9000B,HIPS,T3,COOL WHITE, |
| DA61-09707C | CASE UNIT;RF9000,ABS,T2.5,VICTORY GRAY, |
| DA61-14524B | CASE VEG-LOW |
| DA61-14174B | CASE WATER TANK;RF8000BC,PCT,T2,TP GRAY, |
| DA61-13315A | CASE WATER TANK;RS5000RC,PP,T3.5,NATURAL |
| DA61-05524A | CASE-FILTER IN;SSEDA,POM,NATURAL,- |
| DA61-05523A | CASE-FILTER OUT;SSEDA,POM,NATURAL, |
| DA61-15759A | CASE-HUB IN;RF9000C,ABS,T2,EBONY BLACK, |
| DA61-14217A | CASE;RF9000T/RF9900T,ABS,T1.5,DARK GRAY, |
|
|
CASTER-FRONT |
|
|
CASTER-REAR |
| DA02-00249A | CATALYST |
| DA02-40003A | CH-BLOWING AGE |
| DA64-07487A | CHASSIS COMP;RF9000C,GI-SGCC,T1.4,W908, |
| DA02-00132A | CHEMICALS-CATALYST |
|
|
CLIP-FITTING LOCK |
| DA61-15114A | CLIP;RF6000T,POM,T2,NATURAL,F20-03,LOCKI |
| DA61-14591A | CLIP;RF9000A,POM,NATURAL,K300 |
| NO14C9151AKD01 | CMP,COMP,REFRIGERATOR,R600A |
| 0204-009273 | COATING AGENT;DS8802FL,50~60%,300CPS,TRA |
| DA02-00235A | COATING-ECO PRO;ECO PRO,12.7,TRANSPARENC |
| DA27-00063A | COIL CHOKE;150UH,6A,11MMX10MM,MN-ZN,4P,D |
| DA27-00062A | COIL CHOKE;18MH,6A,16MMX18MM,MN-ZN,4P,DI |
| DA27-00061A | COIL CHOKE;4.5MH,6A,15MMX10MM,MN-ZN,4P,D |
|
|
CONNECTOR-FPC/FFC/PIC |
| 3708-003389 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,10P,0.5MM |
| 3711-000262 | CONNECTOR-HEADER |
|
|
COVER ASSEMBLY PCB-PANEL |
|
|
COVER ASSEMBLY-TUBE FILTER |
| DA63-11206A | COVER BASKET-LOW;RF9000A,GPPS,TP GRAY,G- |
| DA91-05369B | COVER CAP DOOR |
|
|
COVER CAP DOOR-REF UP |
| DA63-11934A | COVER CAP DOOR-UP;RF9000C,ABS,T1.5,-,DAR |
| DA63-12129A | COVER CAP DOOR;RF9000D,ABS,T2,EBONY BL |
| DA63-11580A | COVER CASE;RF8000B,ABS,T2.5,NEO VICTOR |
| DA63-11981D | COVER COMP;GL-SGLCC,T0.25,CODE E |
| DA63-11901A | COVER DISPLAY-LCD;RF9000C,ABS,HB,EBONY |
| DA63-11902A | COVER DISPLAY-REAR;RF9000C,ABS,5VB,EBO |
| DA63-11741A | COVER EVAP-FRE REAR;RF9000,PP,T1.5,INN |
| DA63-11740A | COVER EVAP-FRE;RF9000,PP,T2,COOL WHITE |
| DA63-11595A | COVER EVAP-REAR;RF9000A,PP,T1.5,INNER |
| DA63-11200A | COVER EVAP-REF , RF9000A,HIPS,T2.5,COOL WH |
| DA63-11209A | COVER FILTER |
| DA63-05403B | COVER FILTER;AW3,PP,T2.5,INNER GRAY,NF-6 |
| DA63-11210A | COVER FILTER;RF9000AC,HIPS,T2.5,COOL WHI |
| DA63-08109A | COVER FIXER HOUSING-FRE;RF9900H 2ND,HIPS |
| DA63-11584A | COVER HINGE-LOW , RF9000A,PP,T1.5,HB,NATUR |
| DA63-11948A | COVER HINGE-UP LEFT;RF9000C,ABS,INOX |
| DA63-12047A | COVER HOUSING;RF9000CC,POM,BLACK,K |
| DA63-12044A | COVER HOUSING;RF9000CC,POM,BLACK,K |
| DA63-11369B | COVER ICE-FRE;RF9000A,PP,T2.5,COOL WHI |
| DA63-12133A | COVER ICE-FRE;RF9000D,PCTG,T3.5,TP GRA |
|
|
COVER LAMP-LED FRONT |
| DA63-06505A | COVER LAMP-LED;POLARIS,ABS,HB,NATURAL,TX |
| DA63-12205A | COVER LAMP-REF;RF9000D_HYBRID,ABS,CO |
| DA63-12204B | COVER LAMP;RF9000D_HYBRID,HIPS,T2,INNE |
|
|
COVER LOCK |
| DA63-08449D | COVER LOCK |
| DA63-05446C | COVER PBA-REAR;GI-SGCC,T0.5, |
| DA63-11997A | COVER PCB;RF9000D,ABS,T2,EBONY BLACK, |
| DA63-09536A | COVER PIPE-UP;RF9000R,HIPS,T2,COOL WHITE |
| DA63-06122A | COVER RELAY |
| DA63-11197A | COVER SENSOR;RF9000A,PP,T2.5,COOL WHITE, |
| DA63-12130A | COVER SENSOR;RF9000D,ABS,T2,EBONY BLAC |
| DA63-12145A | COVER SENSOR;RF9000D,MABS,T2.3,HB,NATURA |
| DA63-09321A | COVER SENSOR;RS8000NC,PP,T2,COOL WHITE,B |
| DA63-11650A | COVER SPI 2;RF9000B,HIPS,T2,COOL WHITE |
| DA63-07680A | COVER UNIT |
| DA63-11207A | COVER VEG-FRONT LOW;RF9000A,GPPS,TP GRAY |
| DA63-09907B | COVER WATER TANK;RF9000A,HIPS,T2.5,NEO V |
| DA63-11211A | COVER WINDOW;RF9000A,ABS,BSC BEIGE SOLID |
| DA63-09539C | COVER WIRE |
| DA63-12138A | COVER WIRE-LEFT;RF9000D,ABS,T2,INOX GR |
| DA63-11285A | COVER-AUTOFILL;RF9000A,ABS,T2.5,NEO VICT |
| DA63-11217A | COVER-AUTOFILL;RF9000A,HIPS,T2,NEO VICTO |
| DA63-06383B | COVER-FIXER HOUSING FRE;OPUS,HIPS,-,-,NA |
| DA63-06285A | COVER-FOOT |
| DA63-07287A | COVER-HEATER FRENCH;ROMANEE CONTI,PC,COO |
| DA63-03809A | COVER-URETHANE |
| DA63-12046A | COVER;RF9000CC,POM,BLACK,K300,LEFT |
| DA63-12045A | COVER;RF9000CC,POM,BLACK,K300,RIGH |
| DA63-09909A | COVER;RF9900T,ABS,EBONY BLACK,GP-35,LOWE |
| DA63-09910A | COVER;RF9900T,ABS,EBONY BLACK,GP-35,UPPE |
| 2801-004938 | CRYSTAL-SMD |
| 2801-000102 | CRYSTAL-SMD |
| 2801-005554 | CRYSTAL-SMD , 19.2MHZ,30PPM,15PF,30PPM/CE, |
| DA69-02847A | CUSHION BOTTOM;RF9000DC,EPS,W958,L762,H1 |
| DA69-00698B | CUSHION CORNER-FRONT;REF_ALL,EPS,W95,L14 |
| DA69-01420A | CUSHION CORNER-REAR;REF_ALL,EPS,W95,L95, |
| DA69-02799A | CUSHION DOOR-FRONT;RF9000C,EPS,W600,L48, |
| DA69-02712A | CUSHION GUARD , RF90000A,EPS,W339,L697,H99 |
| DA69-02714A | CUSHION GUARD;RF90000A,EPS,W83.7,L329.4, |
| DA69-02715A | CUSHION GUARD;RF9000A,EPS,W61.8,L321.5,H |
| DA69-02598A | CUSHION SHELF;RF9000AC,EPS,W500,L201,H69 |
| DA69-02633A | CUSHION TOP;RF9000AC(B),EPS,W960,L764,H1 |
| 0402-001224 | DIODE-BRIDGE |
|
|
DIODE-RECTIFIER |
| 0402-001472 | DIODE-RECTIFIER |
| 0402-000553 | DIODE-SCHOTTKY |
| 0407-000113 | DIODE-SWITCHING |
| 0401-001099 | DIODE-SWITCHING |
| 0406-001689 | DIODE-TVS |
| 0406-001239 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0406-001925 | DIODE-TVS;ASM24,27V,SOT-23,300W,TP |
| 0406-001865 | DIODE-TVS;SMBJ17CA,18.9V,20.9V,5MAV,100A |
| 0406-001906 | DIODE-TVS;SMF200A,224V,SOD-123FL,200W,TP |
| 0403-000461 | DIODE-ZENER |
| DA64-07345A | DOOR-UP LEFT A;RF9000C,ABS,T2.3,W447,L94 |
| DA67-04122A | DRAIN-HOSE FRE LEFT;RF9000K,HDPE,NATURAL |
| DA67-05150A | DRAIN-HOSE REF;RF9000A,HDPE,NATURAL,T1.5 |
|
|
DRYER |
| DA59-00638C | EVAPORATOR CONV;FIN TUBE,RF9000B, BARE, |
| DA59-00637C | EVAPORATOR-FRE;FIN TUBE,RF9000B, BARE, U |
| DA59-00639B | EVAPORATOR-REF;FIN TUBE,RF9000B, REF,1,A |
| DA60-00314D | FASTENER-HINGE |
|
|
FASTENER-HINGE |
| DA60-00314B | FASTENER-HINGE |
|
|
FASTENER-HINGE |
|
|
FASTENER-RIVET |
| DA60-00455A | FASTENER-STATOR;RF9000CC,POM,K300,BLACK, |
| 0505-002598 | FET-SILICON |
| 0505-000110 | FET-SILICON |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7 |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0.08OHM,0.5 |
| 0505-003775 | FET-SILICON;MMBFTX3439KMP-HAF,P,20V,2A,0 |
| 0505-003938 | FET-SILICON;MMD60R400RFZRH,N,650V,10A,40 |
| DA01-01734E | FILM-PET;RF9000C,PET,T0.135,W441.6,L928. |
| 2901-001837 | FILTER-EMI SMD , TP,5OHM,1.00X1.27X0.55MM, |
| DA63-08839B | FILTER-WATER;RF8000MC,PP,COOL WHITE,CART |
| DA60-00371C | FITTING LOCK RING;A6061,ID5.75,SILVER, |
| DA60-00407B | FITTING LOCK RING;A6061,ID9.1,SILVER,O |
| DA60-00367B | FITTING LOCK RING;SMF4030,ID5.2,COND OUT |
| DA60-00366A | FITTING LOCK SLEEVE;SMF4030,PIPE HOT(4.2 |
| DA60-00404A | FITTING TUBE;POM,ID1/4,NATURAL,F20-03,OD |
| DA60-00403A | FITTING TUBE;POM,ID1/4,NATURAL,F20-03,OD |
| DA62-03914G | FITTING TUBE;POM,ID1/4,NATURAL,K300,OD1/ |
| DA60-00395A | FITTING TUBE;PP,ID1/4,1/4-1/2 |
|
|
FITTING-TUBE |
| DA61-11034A | FIXER |
| DA61-11032A | FIXER |
| DA61-09533A | FIXER CASE-PBA;OPUS1-14,ABS,NATURAL, |
| DA61-12488B | FIXER COVER;AW3,HIPS,INNER GRAY,CNTK H30 |
| DA61-14563A | FIXER HOSE;RF9000A,POM,INNER GRAY,F20-03 |
| DA61-14663B | FIXER HOSE;RF9000A,PP,BLACK,CNTK-P101,RE |
| DA61-14677A | FIXER HOUSING-REF RIGHT;RF9000A,HIPS,T2, |
| DA61-14522A | FIXER HOUSING-REF;RF9000A,HIPS,T1.5,NATU |
| DA61-14477A | FIXER HOUSING;RF9000A,ABS,T2.5,NATURAL,H |
| DA61-10758C | FIXER LOCKER;ABS,T2.5,EBONY BLACK,HG-076 |
| DA61-14479A | FIXER SENSOR;RF9000A,PE FOAM,NATURAL,B40 |
| DA61-12990A | FIXER SENSOR;RS8000NC,PE FOAM, |
| DA61-13459A | FIXER SHELF;FDR,POM,T2.5,NATURAL,K300,LE |
| DA61-13460A | FIXER SHELF;FDR,POM,T2.5,NATURAL,K300,RI |
| DA61-06013B | FIXER WIRE |
| DA61-15326A | FIXER WIRE , RF9000,PP,T1.5,NATURAL,BJ75 |
| DA61-15306A | FIXER WIRE;RF9000,ABS,NATURAL,HG-076 |
|
|
FIXER-CASTER |
| DA61-05780A | FIXER-COLLAR;SSEDA,POM,NATURAL,- |
| DA61-05781A | FIXER-COLLET;SSEDA,POM,INNER GRAY,F2 |
|
|
FIXER-DRAIN |
| DA61-04235A | FIXER-EVAP |
| DA61-05525A | FIXER-FILTER;SSEDA,PP,COOL WHITE |
| DA61-06700A | FIXER-HEATER WIRE REF |
|
|
FIXER-HINGE |
| DA61-07370B | FIXER-HOUSING FRE;OPUS,HIPS,NATURAL,S834 |
| DA61-07554B | FIXER-HOUSING VALVE WATER;AW2-11,HIPS, |
|
|
FIXER-SENSER |
| DA61-05570A | FIXER-SHAFT GUIDE;SSEDA,POM,NATU |
| DA61-05526A | FIXER-SHAFT;SSEDA,POM,NATURAL,F20-03 |
| DK61-00464A | FIXER-STEP MOTOR |
| DA61-15292A | FIXER-SUCTION;RF8000B,PP,T2,BLACK,SSPP |
| DA61-15146B | FIXER-SUCTION;RF8000B,PP,T2,NATURAL,BJ |
| DA71-20265A | FIXER-THERMO FUSE |
| DA61-11296B | FIXER;AW3,HIPS,INNER GRAY,CNTK H304,RECY |
| DA61-15295A | FIXER;RS8000B,PC,T2.5,NATURAL,3022IR |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
| DA61-15096A | FOOT-FRONT |
| 3601-001336 | FUSE-AXIAL LEAD |
| 3601-001978 | FUSE-AXIAL LEAD;250V,10A,SLOW-BLOW,BK,5. |
| 3601-001927 | FUSE-AXIAL LEAD;250V,2A,TIME-LAG,CERAMIC |
| 3601-002009 | FUSE-SURFACE MOUNT;32V,6A,SLOW-BLOW,TP,1 |
| DA63-11581A | GASKET FRENCH-LOW |
| DA63-09908B | GASKET-TANK;RF9000A,SI,NEO VICTORY GRAY, |
| DA64-07428A | GLASS-DOOR;RF9000C,GLASS,T3.2,W446.4,L97 |
| DA64-06509A | GLASS-SHELF FRONT;RF9000AC,GLASS,T3.2,W3 |
| DA64-05969A | GLASS-SHELF REAR;AW4_CD,GLASS,T3.2,W375, |
| DA64-07027A | GLASS-SHELF REF FIX , RF8000BC,GLASS,T3.2, |
| DA64-06513N | GLASS-SHELF REF LOW;RF9000AC,GLASS,T3.2, |
| DA64-06511B | GLASS-SHELF REF UP;RF9000AC,GLASS,T5,W82 |
| 0205-000121 | GREASE-SILICON |
| 0205-000131 | GREASE-SILICON;G501,1L |
|
|
GROMMET COMP;REF,IIR,ALL BLACK |
| DA63-02750B | GROMMET COVER SLIDE |
| DA63-09942A | GROMMET DOOR |
| DA63-07805A | GROMMET DRAIN-LOW;RFH920G,NBR,BLACK |
| DA63-09857A | GROMMET HINGE LOW |
| DA63-09856A | GROMMET HINGE LOW |
|
|
GROMMET HINGE-MIDDLE |
| DA63-09914A | GROMMET HINGE;RF9900T,PA66,NATURAL |
| DA63-07969A | GROMMET-A;FSR,PP+GLF15%,NATURAL |
| DA63-09933A | GROMMET-CAP DOOR;RF9900T,SI,BLACK,T5.0,W |
|
|
GROMMET-COVER SLIDE |
| DA63-02761A | GROMMET-DRAIN |
|
|
GROMMET-DRAIN HOSE |
| DA63-08528A | GROMMET-FIXER;RB6000KC,ABS,COOL WHITE,HA |
| DA63-11235A | GROMMET-FIXER;RF9000A,PP,NATURAL,FRONT |
| DA63-03447A | GROMMET-FRENCH |
| DA63-03049A | GROMMET-HOT PIPE |
| DA63-07323A | GROMMET-IMMERSION PIPE B |
| DA63-05349A | GROMMET-RING SHAFT GUIDE;SSEDA,NBR,- |
| DA63-05350A | GROMMET-RING SHAFT;SSEDA,NBR,N |
| DA63-04630B | GROMMET-RING;RF9000A,NBR,NATURAL,D 1/2 |
| DA63-08447A | GROMMET-RING;RF9000K,EPDM,GRAY |
| DA63-05351A | GROMMET-RING;SSEDA,NBR,NATURAL |
| DA63-06042B | GROMMET-SCREW |
|
|
GROMMET-STOPPER |
|
|
GROMMET-SUCT PIPE A |
| DA63-05447A | GROMMET-SUCTION PIPE;AW2,NBR,BLACK |
| DA63-09665A | GROMMET-UP RIGHT;RF9000R(B),SI,BLACK,B-P |
| DA63-07746A | GROMMET;AW3-14,SI,NATURAL |
| DA63-09520A | GUARD-FRE;RF9000R,GPPS,T3,TP GRAY |
| DA63-11221A | GUARD-REF , RF9000A,GPPS,T3,TP GRAY,HUB |
| DA63-11260A | GUARD-REF MIDDLE;RF9000A,SAN,T3,TP GRAY, |
| DA63-11220A | GUARD-REF SUB;RF9000A,SAN,T3,TP GRAY,BSC |
| DA63-07966E | GUARD-REF UP;RF9000N,GPPS,TP GRAY |
| DA61-14507A | GUIDE AIR;RF9000A,HIPS,T2,CNTK H304,INNE |
| DA61-15859A | GUIDE FRENCH;RF9000C,PC+ABS,T2,HR-1008 |
| DA61-14500A | GUIDE HOSE-FRONT;RF7000AC/ RF9000A AC,AB |
| DA61-13440A | GUIDE HOSE-IN;RF9000R,PP,HB,SSPP-640,BLA |
| DA61-16164A | GUIDE HOSE-OUT;RF9000D,PP,HB,SSPP-640, |
| DA61-10404A | GUIDE HOSE;PP,HB,BJ750,COOL WHITE,L |
| DA61-15112A | GUIDE HOSE;RF6000T,PP,T2,J370,NATURAL |
| DA61-14503A | GUIDE HOSE;RF7000AC / RF9000A AC,HDPE,T1 |
| DA61-14661A | GUIDE ICE |
| DA61-13492A | GUIDE RAIL;RF9000R,ABS,NATURAL,GP-35 |
| DA61-14987A | GUIDE-FRE;AW3-14,PP,T1.2,SSPP-640,BLACK |
| DA61-09100A | GUIDE-TUBE C;3050,PP,J550S,NATURAL |
| DA02-40012D | H-ISOCYANATE |
| DA64-04562A | HANDLE-BOTTOM |
| DA61-13449B | HANGER-LEFT |
| DA61-13451B | HANGER-RIGHT |
| DA61-15135A | HANGER-RIGHT , RF8000BC,GI-SGCC,T2.0 |
| 3711-007828 | HEADER BOARD TO CABLE |
| 3711-009451 | HEADER-BOARD TO BOARD , BOX,10P,2R,2.0MM,S |
| 3711-008880 | HEADER-BOARD TO CABLE |
| 3711-008878 | HEADER-BOARD TO CABLE |
| 3711-005616 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-001084 | HEADER-BOARD TO CABLE |
| 3711-001038 | HEADER-BOARD TO CABLE |
| 3711-000999 | HEADER-BOARD TO CABLE |
| 3711-000315 | HEADER-BOARD TO CABLE |
| 3711-008895 | HEADER-BOARD TO CABLE , 1WALL,5P,1R,3.96MM |
| 3711-009174 | HEADER-BOARD TO CABLE , BOX,11P,1R,2.0MM,S |
| 3711-008032 | HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM |
| 3711-008034 | HEADER-BOARD TO CABLE;1WALL,3P,1R,7.92MM |
| 3711-009460 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-009393 | HEADER-BOARD TO CABLE;BOX,24P,2R,2.0MM,S |
| 3711-009394 | HEADER-BOARD TO CABLE;BOX,26P,2R,2.0MM,S |
| 3711-009395 | HEADER-BOARD TO CABLE;BOX,28P,2R,2.0MM,S |
| DA62-05588A | HEAT SINK , FHUB 6.0,AL,T1.5,W48,L81,H5.7 |
| DA47-00442E | HEATER CORD-WATER PIPE;DC12V,RF9000R-ICE |
| DA47-00571A | HEATER FILM-DOOR;AC120V,11W,7507MM,L16 |
| DA47-00519A | HEATER FILM-FRENCH;AC120V,T FRENCH, 1,44 |
| DA47-00318R | HEATER METAL SHEATH |
|
|
HINGE-FRENCH |
| DA61-14219A | HINGE-LOW LEFT , -,PO-SPHC,T4,OUT, |
| DA61-15234A | HINGE-LOW LEFT;RF9000B,ZN,T8,AUT |
| DA61-15235A | HINGE-LOW RIGHT;RF9000B,ZN,T8,AU |
| DA61-16173A | HINGE-MIDDLE LEFT;RF9000D,ZN,T8, |
| DA61-16174A | HINGE-MIDDLE RIGHT;RF9000D,ZN,T8, |
| DA61-15773A | HINGE-UP LEFT;RF9000C,PO-SPHC,T4, |
| DA61-13411A | HINGE-UP LEFT;RF9000R,PO-SPHC,T3, |
| DA61-13412A | HINGE-UP RIGHT;RF9000R,PO-SPHC,T3, |
| DB61-00206A | HOLDER-WIRE |
| DA67-05207A | HOSE DRAIN;RF9000A,HDPE,NATURAL,T1.5 |
| 1001-001942 | IC-ANALOG SWITCH |
| 1201-004045 | IC-AUDIO AMP |
| 0801-002780 | IC-CMOS LOGIC |
| 1205-006403 | IC-CONTROLLER , UONE-A,QFN,8P,TP,3X3X0.75M |
| 1003-000113 | IC-CURRENT DRIVER |
| 1203-008921 | IC-DC/DC CONVERTER |
| 1203-008777 | IC-DC/DC CONVERTER |
| 1203-009801 | IC-DC/DC CONVERTER;MP2491N,13P,QFN,TP,2. |
| 1203-009429 | IC-DC/DC CONVERTER;SYU812C1,SOT23-6,6P,3 |
| 1105-003060 | IC-DDR4 SDRAM , K4A8G165WC-BCTD,FBGA,96P,T |
| 1105-003059 | IC-DDR4 SDRAM , K4AAG165WA-BCTD,FBGA,96P,T |
| 1103-001564 | IC-EEPROM |
| 1103-001228 | IC-EEPROM |
| 1107-002758 | IC-EMMC |
| 1205-006577 | IC-INTERFACE;EP172U,LQFP,64P,TP,7X7X1.6M |
| 0903-002266 | IC-MICROCONTROLLER;A34M418YLN-01,LQFP,12 |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,MQFP,100P,2 |
| 0903-002279 | IC-MICROCONTROLLER;STM32G431RBT3,LQFP,64 |
| 0902-003348 | IC-MICROPROCESSOR , IA8201CQ,175MHZ,QFN,40 |
| 0902-003448 | IC-MICROPROCESSOR;A311D,FCBGA,454P,14.3X |
| 1203-007611 | IC-MONITOR , INA219BIDCNR,SOT-23,8Z30,2.9X |
| 1003-003175 | IC-MOTOR DRIVER;6EDL04N06PT,PG |
| 1003-002899 | IC-MOTOR DRIVER;DRV8848L,16P,H |
| 1003-002900 | IC-MOTOR DRIVER;DRV8848PWPR,16 |
| 1201-004191 | IC-OP AMP;9064,TSSOP,TP,14P,5X4.4X1.2MM, |
| 1203-008933 | IC-POSI.ADJUST REG. |
| 1203-002722 | IC-POSI.FIXED REG. |
| 1203-009642 | IC-PWM CONTROLLER;SC1551C-H084-TL,24P,SO |
| 1205-005749 | IC-SWITCH |
| 1205-004447 | IC-SWITCH |
| 1209-002491 | IC-TOUCH;CY8C4014LQI-422,QFN,24P,4X4MM,P |
| 0904-002882 | IC-USC |
| 1203-006245 | IC-VOL. DETECTOR |
| 1203-004363 | IC-VOL. DETECTOR |
| 1203-001211 | IC-VOL. DETECTOR |
| 2703-005773 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-004630 | INDUCTOR-SMD |
| 2703-003937 | INDUCTOR-SMD |
| 2703-003362 | INDUCTOR-SMD |
| 2703-005846 | INDUCTOR-SMD , 3.3UH,20%,4442,T2,0.078OHM, |
| 2703-005851 | INDUCTOR-SMD;10UH,20%,10.85X10MM,T4,0.03 |
| DA27-00051A | INDUCTOR-SMD;1MH,20%,12.2X12.2MM,T8,1.59 |
| DA64-07140B | INLAY-REF;RF9000B,PC,T0.5,UV, |
| DA62-05944A | INSULATION COVER EVAP-FRE;RF9000,EPS,T8, |
| DA62-06122A | INSULATION COVER EVAP-REF;RF9000C,EPS, |
| DA62-05575A | INSULATION DUCT-UP;RF9000A,PE FOAM,T2, |
| DA62-05581A | INSULATION-MIDDLE;RF9000A,EPS,S-450,CD-6 |
| DA62-04311V | INSULATION;GGH,GLASS WOOL,T12,VIP, |
| DA62-05932C | INSULATION;RF9000BC,GLASS FIBER/LAMINATE |
| DA02-00087A | ISOCYANATE;ISOCYANATE B1001 B1001,100%,I |
| DA68-11081D | LABEL |
| DB68-05458A | LABEL BAR CODE;AM9000H,PAPER,W17.5,L18 |
| DA68-01797W | LABEL CAUTION;ALL USA,AA,ART,OPP, R-600A |
| DA68-04785B | LABEL ENERGY;RF9000D/DC, RF23DB9900**,AA |
| DA68-02986U | LABEL INSTRUCTION;A3LCCBQ730M, A3LWIC212 |
| DA68-02785B | LABEL INSTRUCTION;ROMANEE CONTI,DOM,ART, |
| 6812-000146 | LABEL INTEGRATION QR;PET,LAMINATE COATED |
| DA68-04787V | LABEL RATING;RF9000D/DC, RF23DB9900QD,AA |
| DA68-00007D | LABEL SERIAL |
| DA68-02869A | LABEL TAG;ALL,AA, XAC,MOJO,200G,W140,L21 |
| DA68-10376D | LABEL-BAR CODE |
| DA68-01173B | LABEL-BAR CODE |
| DA68-00679T | LABEL-COLOR |
| DA68-00122E | LABEL-PRINT |
| DA07-00084A | LCD-TFT;698.4X392.85MM,10TO+50C,12V,20 |
| DA07-00085A | LCD;698.4X392.85MM,20TO+70C,3.3V,20TO+ |
| 0601-002345 | LED |
| 0601-002419 | LED;SMD(TOP VIEW),YEL,WATER CLEAR,1.6X0. |
| DA66-01342A | LEVER |
| DA66-01675A | LEVER AUTO CLOSE;RF9000CC,ZNDC,T4.5,W42, |
| DA66-01674A | LEVER AUTO CLOSE;RF9000CC,ZNDC,T4.5,W42, |
| DA66-01246A | LEVER CASE DISPENSER;RF8000MC,ABS, |
| DA66-01696A | LEVER HANDLE;RF9000D,ZNDC,T2.5,W18.5,L19 |
| DA66-01345A | LEVER;RF9000R,ZNDC,T6,W15,L38,ZNDC2,NATU |
| DA61-14539M | LINER;RF9000DC,ABS,QU-0191S,COOL WHITE |
|
|
MAGNET |
|
|
MAGNET ASSEMBLY |
|
|
MAGNET-A |
| DA61-13738A | MAGNET;B-PJT,FERRITE,T5, W15, L100 |
| DA68-03278D | MANUAL INSTRUCTION , RF9000A, RF23/29A9771 |
| DA68-02659D | MANUAL INSTRUCTION;RF9000A/AC, RF29/23A* |
| DA68-04804A | MANUAL INSTRUCTION;RF9000D, DC,AA, GLOBA |
| DA68-04782A | MANUAL USERS;RF9000D/DC,AA/AC,EN/MES/CFR |
|
|
MOTOR BLDC FAN |
|
|
MOTOR BLDC FAN |
| DA31-00348A | MOTOR BLDC FAN;Z19W12MS1A5-52K |
| 6021-000258 | NUT-HEXAGON |
| 6021-000166 | NUT-HEXAGON |
| 0205-000127 | OIL-SILICON |
| DA69-02305K | PACKING CASE;RF9000AC(B),CB,DW2,L766,W96 |
| DA69-01687G | PACKING SHRINKAGE;LDPE,T0.015,24INCH,ROL |
| DA69-01687Q | PACKING SHRINKAGE;RF9000K,LDPE,T0.03,W32 |
| DA69-02549M | PAD CUSHION;REF_ALL,EPS,T10,W15,L80,SE |
| DA69-01740P | PAD PACKING-BOTTOM;AW2 CD,PP,T3,W958,D76 |
| DA62-04618R | PAD-FOAM;REF_ALL,EPE,T10,W20,L100,SET, |
| DA62-04787D | PAD-FOAM;REF_ALL,EPE,T10,W35,L100,SET, |
| DA64-05957B | PANEL DOOR , RF9000A,ABS,T1,W431,L895,QU-0 |
| DA64-06515A | PANEL-FRE;RF9000A,ABS,W,L,HB,QU-0191S,CO |
| DA64-06514A | PANEL-FRE;RF9000A,ABS,W,L,HB,QU-0191S,CO |
| DA64-05958B | PANEL-REF RIGHT;RF9500T (B),ABS,W,L,QU-0 |
| DA64-07491A | PANEL-REF;RF9000,ABS,W383.3,L824.7,HB, |
| DA67-05156A | PARTITION-FRE LEFT;RF9000A,HIPS,COOL WHI |
| DA67-05157A | PARTITION-FRE RIGHT;RF9000A,HIPS,COOL WH |
| DA41-00912B | PCB DISPLAY;FR-4,4L,T1.2,260X80MM,2,1OZ, |
| DA41-00867G | PCB MAIN;FR-4,2L,T1.6,165X242MM,2,1OZ,33 |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200MW,SOP,TP |
| DA62-05882B | PIPE CAPILLARY;RF8000B,AL,OD1.9,T0.54, |
| DA62-05882D | PIPE CAPILLARY;RF8000B,AL,OD1.9,T0.575, |
| DA62-04396D | PIPE CAPILLARY;RF9000,CU,OD2.05,T0.615, |
| DA62-05882C | PIPE CAPILLARY;RF9000B,AL,OD2.05,T0.615, |
| DA62-04396K | PIPE CAPILLARY;RH9000K,CU,OD1.9,T0.575,C |
| DA62-05584B | PIPE CLUSTER-REAR;RF7000AC,TSW,OD4.2,T0. |
|
|
PIPE CONNECT-SUCTION |
| DA62-05884C | PIPE CONNECT;RF8000B,AL,OD8,T0.8,A |
| DA62-05906A | PIPE CONNECT;RF9000B,AL,OD10,T1,A3 |
| DA62-06007A | PIPE CONNECT;RF9000B,AL,OD3.5,ID |
| DA62-05884G | PIPE CONNECT;RF9000C,AL,OD8,T0.8,A |
| DA62-04744A | PIPE HOT;RF9500K,TSW,OD4.2,T0.5 |
| DA62-04609B | PIPE IMMERGING-IN;RF9000B,TSW,OD4.76,T0. |
| DA62-04610C | PIPE IMMERGING-OUT;RF9000,TSW,OD4.76,T0. |
| DA62-04965A | PIPE WATER-FRE;BRF8000M,AL,A3003 |
| DA62-05577A | PIPE WATER-FRE;RF9000A,POM,OD13.8,T2.5,N |
| DA62-05613B | PIPE WATER-LINE;RF9000A,LDPE,OD12.7,NATU |
| DA62-05613A | PIPE WATER-LINE;RF9000A,LDPE,OD12.7,NATU |
| DA62-05883A | PIPE-AL;RF8000B,AL,OD8,T0.8,A1070S |
| DA62-05883B | PIPE-AL;RF9000B,AL,OD8.7,T0.8,A107 |
|
|
PIPE-CONNECT DISC, B |
| DA62-04605A | PIPE-IN;AL,A3003 |
| DA62-04601A | PIPE-MIDDLE;AL,T1.2,A3003 |
| DA62-04600A | PIPE-SUB;AL,A3003 |
| DA62-01604A | PIPE-WATER |
| DA62-03154A | PIPE-WATER LINE |
| DA62-01368B | PIPE-WATER LINE |
| DA97-05803A | PIPE-WATER LINE |
| DA62-04623C | PIPE;ALL,CU,OD7.94,T0.4,C1220T-OL |
| DA61-16178A | PLATE CABINET-BOTTOM FRONT;RF9000D,EGI-S |
| DA61-10697B | PLATE CONDENSER |
| DA61-14451B | PLATE COOLING;RF9000D,AL,T0.5,IM |
| DA61-16185A | PLATE COVER;RF9000JC,GL-SGLCC,T0.25, |
| DA61-16184A | PLATE COVER;RF9000JC,GL-SGLCC,T0.25, |
| DA61-14020D | PLATE DOOR-FRE LEFT;RF9000 BESPOKE,GL-SG |
| DA61-14021D | PLATE DOOR-FRE RIGHT;RF9000 BESPOKE,GL-S |
| DA61-15205K | PLATE DOOR-FRE;RF9000A,STS430,T0.6,REA |
| DA61-13395B | PLATE DOOR-REF LEFT |
| DA61-15755A | PLATE DOOR-REF LEFT;RF9000C,GL-SGLCC,T0. |
| DA61-14022C | PLATE DOOR-REF LEFT;RF9000D,GL-SGLCC,T0. |
| DA61-13394D | PLATE DOOR-REF RIGHT |
| DA61-15756A | PLATE DOOR-REF RIGHT;RF9000C,GL-SGLCC,T0 |
| DA61-15205J | PLATE DOOR-REF;RF9000A,STS430,T0.6,REA |
| DA61-08675B | PLATE DRAIN-FRE;RF9000,GL-SGLCC,T0.3, |
| DA61-14736A | PLATE HEATER;RF9000A,A1100,T1,A1100P-H14 |
| DA61-10692A | PLATE INS-FRE |
| DA61-11737C | PLATE LEVER;RF8000MC,STS304,T0.5,REAL |
| DA61-10700B | PLATE STEEL;AL,B10%,T0.08,W16,LA+CE A300 |
| DA01-01705K | PLATE STEEL;RF9000 BESPOKE,GL-SGLCC,L815 |
| DA01-01705J | PLATE STEEL;RF9000 BESPOKE,GL-SGLCC,L988 |
| DA01-02446A | PLATE STEEL;RF9000C,GL-SGLCC,L757,0.25MM |
| DA01-02447A | PLATE STEEL;RF9000C,GL-SGLCC,L985,0.5MM, |
| DA61-10696A | PLATE-CORNER;AL,T1.5 |
| DA61-08675A | PLATE-DRAIN EVAP FRE |
| DA61-15170A | PLATE-FRENCH;RF9000A,EGI-SECC,T0.5,COO |
| DA61-10371A | PLATE-UP FRONT;ROMANEE CONTI,AL,T0.3,ALD |
| DA67-90108D | PLUG COMP TUBE;SILICON RUBBER,-,-,-,-,OD |
| 0204-005065 | POLYOL;KONIX DP-1950S,POLYEHER POLYOL,90 |
| 0204-009079 | POLYOL;RST-530,ROH,100% |
|
|
POWER CORD-AT |
| 2007-009922 | R-CHIP |
| 2007-008791 | R-CHIP |
| 2007-008779 | R-CHIP |
| 2007-008485 | R-CHIP |
| 2007-008354 | R-CHIP |
| 2007-008304 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008269 | R-CHIP |
| 2007-008231 | R-CHIP |
| 2007-008175 | R-CHIP |
| 2007-008167 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-007699 | R-CHIP |
| 2007-007336 | R-CHIP |
| 2007-007306 | R-CHIP |
| 2007-001297 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-000762 | R-CHIP |
| 2007-000571 | R-CHIP |
| 2007-000476 | R-CHIP |
| 2007-000352 | R-CHIP |
| 2007-000312 | R-CHIP |
| 2007-000308 | R-CHIP |
| 2007-000297 | R-CHIP |
| 2007-000293 | R-CHIP |
| 2007-000279 | R-CHIP |
| 2007-000033 | R-CHIP |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-012276 | R-CHIP;0.09OHM,1%,2W,TP,6432,T0.55,GENER |
| 2007-012479 | R-CHIP;5.1OHM,1%,1/16W,TP,1005,T0.35 |
| DA61-14474A | RAIL-FRE UP LEFT;RF9000A,HIPS,COOL WHITE |
| DA61-14473A | RAIL-FRE UP RIGHT;RF9000A,HIPS,COOL WHIT |
| DA61-10358A | RAIL-LEFT;RF9000JC,HIPS,COOL WHITE,S834S |
| DA61-14528B | RAIL-MIDDLE LEFT;RF9000AC,HIPS,COOL WH |
| DA61-14469A | RAIL-REF LOW LEFT;RF9000A,HIPS,COOL WHIT |
| DA61-14468A | RAIL-REF LOW RIGHT;RF9000A,HIPS,COOL WHI |
| DA61-10359A | RAIL-RIGHT;RF9000JC,HIPS,COOL WHITE,S834 |
| DA61-10849A | REINF CABI-MIDDLE FRONT;RF9000K,PO-SPHC, |
| DA61-10400A | REINF CABI-REAR;RF9000JC,CR-SPCC,T1 |
| DA61-14359A | REINF CABI-UP;RF9900T,PO-SPHC,T2, |
| DA61-13691B | REINF DOOR-REF , RF9000A,PO-SPHC,T2,L220 |
| DA61-13691A | REINF DOOR-REF , RF9000R,PO-SPHC,T2,L310 |
| DA61-13692A | REINF DOOR-REF , RF9000R,PO-SPHC,T2,L832,L |
| DA61-13467A | REINF DOOR-REF LOW;RF9000R,PO-SPHC,T2,OU |
| DA61-01376T | REINF DOOR-REF;RH9000M,HGI-SGHC,T1.4,L69 |
| DA61-13258A | REINF DOOR-RIGHT;RQ7000N,PO-SPHC,T1.6,L7 |
| DA61-16053A | REINF DOOR;RF9000C,CR-SPCC,T1.2,"3 |
| DA61-15766A | REINF HINGE-UP;RF9000C,PO-SPHC,T2, |
| DA71-00025B | REINF-BOTT FRAME |
| DA61-05923A | REINF-EARTH;HGI-SGHC,T3 |
| DA71-10495A | REINF-FRAME |
| DA61-03206A | REINF-GUIDE FRENCH;AW-PJT,HGI-SGHC,T1 |
| DA61-04910A | REINF-HINGE UP R;HAEMIL-PJT,GI-SGCC,T3 |
| DA71-10490C | REINF-HINGE UPP |
| DA61-14209A | REINF-LOW RIGHT;RF9000T/RF9900T,PO-SPHC, |
| DA61-14659A | REINF-REF;RF7000AC,GI-SGCC,T2,BSC, |
| DA61-14660A | REINF-REF;RF9000A,GI-SGCC,T1.6,BSC |
|
|
RELAY-MINIATURE |
|
|
RELAY-POWER |
| 0103-007539 | RESIN PP;SSPP-640/BLACK,BLACK,BK0001,REC |
| 0103-002817 | RESIN-ABS |
| 2802-001211 | RESONATOR-CERAMIC |
| 6130-000387 | RETAINER |
| 6130-000386 | RETAINER |
| 4709-003152 | RF-MODULE;WIC212S,EFR32MG21,IEEE802.15,2 |
| DA66-01679A | ROLLER;PA6+MD40%,OD14,BLACK,ID8.7,1515 |
| DA66-01339A | ROLLER;POM,OD29,NATURAL |
| DA67-05521A | RUBBER |
| DA73-00235D | RUBBER-BUTYL;AW2,RUBBER,T3 |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 6001-000562 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
|
|
SCREW-TAPPING |
| 6002-001669 | SCREW-TAPPING |
| 6002-001547 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000635 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000494 | SCREW-TAPPING |
| 6002-000244 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000555 | SCREW-TAPPING;PH,+,2S,M4,L25,ZPC(WHT),SW |
| 6002-001521 | SCREW-TAPPING;TH,+,NO,2S,M3,L10,PASS,STS |
| 6003-000170 | SCREW-TAPTYPE |
| DA62-05622A | SEAL CASE-HEATER;RF9000A,PU FOAM,T5,L150 |
| DA62-06130A | SEAL COND |
| DA62-06129C | SEAL COND |
| DA62-06129A | SEAL COND |
| DA62-04122B | SEAL COVER EVAP-FRE;RF9000,PE OPEN CELL, |
| DA62-01603W | SEAL CUTT |
| DA62-01142R | SEAL CUTT |
| DA62-01142Q | SEAL CUTT |
| DA62-01142L | SEAL CUTT |
| DA62-01142F | SEAL CUTT |
| DA62-01142D | SEAL CUTT |
| DA62-01142B | SEAL CUTT |
| DA62-01141Z | SEAL CUTT |
| DA62-01141X | SEAL CUTT |
| DA62-01141Q | SEAL CUTT |
| DA62-01141M | SEAL CUTT |
| DA62-01141L | SEAL CUTT |
| DA62-01141H | SEAL CUTT |
| DA62-01141F | SEAL CUTT |
| DA62-01141E | SEAL CUTT |
| DA62-01141D | SEAL CUTT |
| DA62-01141B | SEAL CUTT |
| DA62-01140Z | SEAL CUTT |
| DA62-01140F | SEAL CUTT |
| DA62-01140D | SEAL CUTT |
| DA62-01139D | SEAL CUTT |
| DA62-01139C | SEAL CUTT |
| DA62-01138D | SEAL CUTT |
| DA62-01137V | SEAL CUTT |
| DA62-01136T | SEAL CUTT |
| DA62-01136S | SEAL CUTT |
| DA62-01136Q | SEAL CUTT |
| DA62-01135U | SEAL CUTT |
| DA62-01134L | SEAL CUTT |
| DA62-01134H | SEAL CUTT |
| DA62-01130F | SEAL CUTT |
| DA62-01129B | SEAL CUTT |
| DA72-00033B | SEAL CUTT FOAM PE |
| DA62-05315A | SEAL CUTT FOAM;RF9000R,PE FOAM,T2,W8,HB, |
| DA62-01603V | SEAL CUTT SPONGE |
| DA62-00110E | SEAL CUTT SPONGE;ROMANEE CONTI,PU FOAM,T |
| DA72-60106V | SEAL CUTT-FOAM PE |
| DA62-01492Z | SEAL CUTT-FOAM PE |
| DA62-03449B | SEAL CUTT-FOAM PE;GUGGENHEIM,PE FOAM,T7, |
| DA62-03033R | SEAL CUTT-FOAM PE;HAEMIL,PE FOAM,T3,W20 |
| DA62-02159G | SEAL CUTT-FOAM PE;IVY,PE FOAM,T10,W20 |
| DA62-01138U | SEAL CUTT-FOAM PE;PE FOAM,T7,W50,L1000 |
| DA62-03815K | SEAL CUTT-OJC;3050,PE OPEN CELL,T3,W20 |
| DA62-00608E | SEAL CUTT-OJC;QUEEN,PE OPEN CELL,T5,W160 |
| DA72-60040C | SEAL CUTT-RUBBER;RF6000T,RUBBER,T4,W45,L |
| DA72-60267Q | SEAL CUTT-SPONGE;-,PU FOAM,T20,W20,L1000 |
| DA62-01128S | SEAL CUTT;ALL,PE FOAM,T3,L1000,BLA |
| DA62-01921A | SEAL CUTT;GUGGENHEIM,PE OPEN CELL,T5,W70 |
| DA62-01139A | SEAL CUTT;PE OPEN CELL,T3,W10,L1000,OJC- |
| DA62-01140B | SEAL CUTT;PU FOAM,T3,W10,L1000,V-0,INCOM |
| DA62-01135M | SEAL CUTT;RB7300T,PE FOAM,T5,W10,L1000 |
| DA62-06176C | SEAL CUTT;REF ALL,PU FOAM,T5,W40,L1000, |
| DA62-05654A | SEAL CUTT;RF7000AC,PE FOAM,T5,W200,L76.7 |
| DA62-01137J | SEAL CUTT;RF9000,PE FOAM,T15,W70,L1000, |
| DA62-05649A | SEAL DRAIN;RF9000A/AC, RF7000AC,PU FOAM, |
| DA62-02480B | SEAL DRAIN;RF9000A/AC,PU FOAM,T7,W120,L7 |
| DA62-02987A | SEAL DUCT-REF;AW3-14,LEX FOAM,T3,L155.6, |
| DA62-05690A | SEAL FIXER HOUSING;RF9000A,PU FOAM,T3,L8 |
| DA72-60405Y | SEAL FIXER HOUSING;RF9000A/AC,PU FOAM,T5 |
| DA62-05618A | SEAL FIXER HOUSING;RF9000A/AC,PU FOAM,T5 |
| DA62-05616A | SEAL GUIDE;RF9000A/AC, RF7000AC,PU FOAM, |
| DA62-05341A | SEAL MID-FRONT;RF9000,PU FOAM,T5,W50,L99 |
| DA62-05405A | SEAL PANEL DOOR;RQ9500R(B),PU FOAM,T5, |
| DA62-05628A | SEAL PARTITION-SIDE;RF9000AC,NONWOVEN,T5 |
| DA62-06244A | SEAL PARTITION;RF9000,PU FOAM,T10,W40,L9 |
| DA62-05865A | SEAL PIPE;RF8000B,PU FOAM,T15,W5, |
| DA62-04261A | SEAL SUPPORT TUBE FILTER-REAR;AW4 4DOOR, |
| DA62-05672A | SEAL TUBE-REAR;RF9000A,PU FOAM,T10,W70,L |
| DA62-05330B | SEAL TUBE;RF9000R,PE FOAM,T6,W30,L160,HB |
| DA62-00232B | SEAL WATER HOSE;RF9000A,PU FOAM,T10,DINK |
| DA62-02534B | SEAL-CASE HEATER FRENCH;OPUS1,PU FOAM,T1 |
| DA62-00091A | SEAL-CUTT FOAM, PE |
| DA72-00238B | SEAL-DRAIN HOSE |
| DA62-03171A | SEAL-FIXER HOUSING FRE;OPUS1,PE FOAM,T3, |
| DA62-03262A | SEAL-FIXER HOUSING VALVE WATER;AW2-11,PU |
| DA62-05678A | SEAL-FIXER TUBE;RF9000A/AC, RF7000AC,PU |
| DA62-00302C | SEAL-FOAM PE, DRAIN |
| DA62-05606A | SEAL-GROMMET FIXER;RF9000A,PU FOAM,T3,W8 |
| DA62-03008B | SEAL-GROMMET SCREW;POLARIS,PE FOAM,T3,DO |
| DA62-01500A | SEAL-GUIDE FRENCH;AW-PJT,PE FOAM,T2,DING |
| DA62-03921A | SEAL-MID FRONT VERTICAL AL;ROMANEE,PU FO |
| DA62-03903A | SEAL-MID FRONT VERTICAL;ROMANEE,PU FOAM, |
| DA62-04159A | SEAL-PLATE DOOR;ROMANEE CONTI,PU FOAM,T5 |
| DA62-02453A | SEAL-REINF CABI MID FRONT;PU FOAM,T5,W45 |
| DA62-00079A | SEAL-SUPPORT MOTOR |
| DA62-03420A | SEAL-SUPT TUBE FILTER;AW2-11,PE FOAM,T5 |
| DA62-00959A | SEAL-TUBE WATER |
| DA62-02536A | SEAL;FDSR,LEX FOAM,T15,NON-COMBUSTIBLE S |
| DA32-00088A | SENSOR HUMIDITY;5V,0~100%RH,4.5%,100MM,4 |
| DA32-00078A | SENSOR TEMP |
|
|
SENSOR TEMP |
| DA32-00070E | SENSOR TEMP |
|
|
SENSOR TEMP |
| DC32-00029A | SENSOR-ACCELERATION;3.3V,UL1569,370MM,SM |
| DA32-00075D | SENSOR-CAPACITANCE;5V,NEO VICTORY GRAY,U |
| DA32-00063B | SENSOR-ELECTRODE;5V,CLIPPING TYPE,UL1007 |
| DA66-01048A | SHAFT HINGE-A;FOOD SHOW CASE,SWRCH10A, |
| DA66-01640A | SHAFT HINGE-LOW;RF9000C,SWRCH10A,OD6, |
| DA66-01110A | SHAFT HINGE-MIDDLE;RF-H920G,SWRCH10A,L32 |
| DA66-00960A | SHAFT HINGE-UPP;AW4-PJT,CR-SPCC,ID18.0,T |
| DA66-01255A | SHAFT HINGE;RF9900M,CR-SPCC,T1.4 |
|
|
SHAFT-CASTER |
| DA66-01368A | SHAFT;RF9000R,ZNDC,L429,D8,ZNDC2, LEFT |
| DA63-07282A | SHEET ABS-PANEL REF;RF8000B,ABS,T1.7,QU- |
| DA63-09460A | SHEET;RF9000JC,ABS,T3.5,SE32,COOL WHITE, |
| DA67-05162A | SHELF FOLDER-FRONT;RF9000AC,PP,COOL WHIT |
| DA67-05391A | SHELF FOLDER-REAR;RF8000BC,PP,COOL WHITE |
| DA67-05160A | SHELF SLIDE-FRE;RF7000AC,GPPS,TP GRAY,CD |
| DA67-05153A | SHELF VEGETABLE-LOW;RF9000AC,HIPS,COOL W |
| DA67-05390A | SHELF-REF FIX , RF8000BC,PP,COOL WHITE,B |
|
|
SHIM-HINGE UPP |
| DA63-00015A | SHIM-HINGE UPP |
| DA63-12013A | SHIM;RF9000C,PP,T1,NATURAL,BJ750 |
| DA61-14181A | SLIDER;RF9900T,POM,BLACK,500P |
| DA67-05670A | SMG PART |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007781 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-008213 | SMG PART |
| 2007-008117 | SMG PART |
| 2007-007943 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007627 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007405 | SMG PART |
| 2007-007319 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007107 | SMG PART |
| 0406-001303 | SMG PART |
| DG47-00087A | SMT GASKET , W4.5,T6,L2.5,PI/SILICON RUBBE |
| DA02-00202A | SOLDER RING;ID6.4,91.75CU/6.25P/2.0AG,NU |
| DA02-00202D | SOLDER RING;ID:2.1,91.75CU/6.25P/2.0AG,N |
| DA02-00202H | SOLDER RING;ID:3.55,91.75CU/6.25P/2.0AG, |
| DA02-00202C | SOLDER RING;ID:7.99,91.75CU/6.25P/2.0AG, |
| DA02-00202F | SOLDER RING;YSS26,D0.6,26AG/41CU/33ZN,NU |
| 0202-001338 | SOLDER-BAR |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001463 | SOLDER-WIRE |
| 0204-005794 | SOLVENT;S-1000,(CH3)2CHOH,100%,0.79 |
| 3001-002872 | SPEAKER;6OHM,80 3DB,240,280,206.4X48.2X3 |
| DA61-16058A | SPRING AUTO CLOSE;RF9000CC,PW-2,OD12, |
| DA61-08315A | SPRING ETC-ETC CAP GUIDE |
|
|
SPRING ETC-HANDLE |
| DA61-05782A | SPRING ETC-INNER;SSEDA,STS304,0.8,3.9,5. |
| DA61-02609B | SPRING ETC-PIPE WATER;AW-PJT,STS304,OD7. |
| DA61-05783A | SPRING ETC-SHAFT;SSEDA,STS304,0.5,5.2,6. |
| DA61-08314B | SPRING FRENCH;RFH920G,STS304 |
| DA61-13565A | SPRING LEVER;RF9000R,STS304,ID0.8,OD8,LE |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,-30TO+80C,0.028A,A |
| 0101-002926 | STEEL PLATE;GI,SGCC,0.35MM,290MM,Z12,NC |
| DA61-14211B | STOPPER DOOR LEFT |
| DA61-13384A | STOPPER DOOR REF LOW |
| DA61-14210B | STOPPER DOOR RIGHT |
|
|
STOPPER DOOR-L |
|
|
STOPPER DOOR-R |
| DA61-10712B | STOPPER ROLLER;RF9000K,SWRCH10A,VE |
| DA61-15273A | SUPPORT DOOR-CLOSE;RF9000B,PK,M33R3A00 |
|
|
SUPPORT ICE MAKER |
| DA61-14470A | SUPPORT RAIL;RF9000A,HIPS,S834S1,COOL WH |
| DA61-09179A | SUPPORT TUBE;AW4 F/S,PP,MU30HP,NATURAL |
| DA61-10293A | SUPPORT WIRE-UP;PP,T1.5,BJ750,NATURAL |
| DA61-16057A | SUPPORT-BLOCK;RF9000CC,ZNDC,T3, |
| DA61-16059A | SUPPORT-BLOCK;RF9000CC,ZNDC,T3,LEF |
|
|
SUPPORT-CIRCUIT MOTOR |
| DA61-13947A | SUPPORT-REF;BESPOKE,PP,T1.5,W130,L230, |
| 4715-001217 | SURGE ABSORBER;3600V,20%,3000A,AXIAL |
| DA34-00043M | SWITCH REED |
|
|
SWITCH REED |
|
|
SWITCH-MICRO |
|
|
SWITCH-ROCKER |
| DA02-00250A | TAPE AL;RQ9500R,AL,T0.135,NATURAL,W100 |
| DA02-00262A | TAPE DOUBLE FACE , RF9500T,ACRYL,T0.5,BLAC |
| DA02-10014A | TAPE ETC-AL |
| DA02-00210B | TAPE ETC-GLASS DOOR LOW;MOUTON12,AL,T0.1 |
| DA02-10004G | TAPE ETC-PAPER |
| DA02-10014B | TAPE-AL |
| DA02-10013B | TAPE-AL |
| DA02-10008A | TAPE-AL |
| 0203-001481 | TAPE-AL FOIL |
| 0203-001152 | TAPE-AL FOIL |
| 0203-001151 | TAPE-AL FOIL |
| 0203-000444 | TAPE-AL FOIL |
| 0203-006491 | TAPE-AL FOIL;AL,T0.03,W20,N/A,SILVER |
| DA02-10015A | TAPE-BINDER |
| DA02-10009A | TAPE-COTTON |
| 0203-001811 | TAPE-COTTON |
| 0203-001810 | TAPE-COTTON |
| DA02-10007A | TAPE-DOUBLE FACE |
| 0203-006383 | TAPE-DOUBLE FACE , ACRYL,T0.4,W30,L33M,WHI |
| 0203-003411 | TAPE-DOUBLE FACE;#9183,T0.16,W50,WHITE |
| 0203-001523 | TAPE-DOUBLE FACE;ACRYL,T0.15,W15,L50M,WH |
| DA02-10005A | TAPE-MASKING |
| DA02-10010A | TAPE-OPP |
| 0203-006630 | TAPE-OPP MASKING;OPP,T0.065,W50,WHITE,CA |
| DA02-10004K | TAPE-PAPER |
| DA02-10004D | TAPE-PAPER |
| DA02-10004C | TAPE-PAPER |
| 0203-001308 | TAPE-PAPER |
| DA02-10011A | TAPE-PE |
| DA02-10012A | TAPE-PET |
| 0203-006800 | TAPE-POLY |
| 0203-006796 | TAPE-POLY |
| 0203-001812 | TAPE-POLY |
| 0203-001678 | TAPE-POLY |
| 0203-001367 | TAPE-POLY |
| 0203-006407 | TAPE-POLY;DTS-204C,T0.055,W70 |
| 0203-000338 | TAPE-POLY;OPP,T0.072,W35,L50M,BLUE |
| 0203-006795 | TAPE-POLY;PP,GRADE 64294,T0.11,W50,WHITE |
| 0203-006797 | TAPE-POLY;PP,T0.11,W25,N/A,WHITE,TPP(TEN |
| 0203-006329 | TAPE-SINGLE FACE;COTTON,T0.24,W40,L50M,W |
| 0203-001060 | TAPE-SINGLE FACE;OPP,T0.065,W72,N/A,CLEA |
| 0203-006505 | TAPE-SINGLE FACE;OPP,T0.13,W40,N/A,WHITE |
| 0203-006521 | TAPE-SINGLE FACE;PET,T0.037,W80,N/A,CLEA |
| DA02-00038A | TETRAFLUOROETHANE |
| 1404-001544 | THERMISTOR-NTC;10KOHM,1%,3435K,3.7MWC,TP |
| 1404-001872 | THERMISTOR-PTC |
|
|
THERMO FUSE-ASSEMBLY |
| DA64-07572H | TOP TABLE;RF9000D,ABS,T2.4,INOX GRAY,H |
| 0506-000175 | TR-ARRAY |
| 0504-001080 | TR-DIGITAL |
| 0502-001250 | TR-POWER |
| 0501-000467 | TR-SMALL SIGNAL |
| 0501-000465 | TR-SMALL SIGNAL |
| DA26-00058C | TRANS SWITCHING;AC85-265V,3400MA,200MA,1 |
| DA63-12053A | TRAY DRAIN-WATER;RF9000C,PP,T2,HB,INNER |
| DA63-12052A | TRAY DRAIN-WATER;RF9000C,PP,T2,HB,INNER |
| DA63-11232A | TRAY ICE;RF9000A,PP,T1,NATURAL |
| DA63-09323A | TRAY ICE;RS8000NC,PP,T1,NATURAL |
| DA63-09788A | TRAY WATER;RF6000T,HIPS,T2.5,COOL WHITE |
| DA64-05373F | TRIM BLADE;RF9000DC,PVC,LIGHT GRAY, |
| DA64-06367B | TRIM COVER-REF;RF9000A,HIPS,S834S1,NEO V |
| DA64-07313A | TRIM DOOR-REF;RF9000C,ABS,HG-0760GP,IN |
| DA64-06223A | TRIM DOOR-REF;RF9000R(B),ABS,HG-0760GP,E |
| DA64-07001A | TRIM DOOR-UP;RF9000A,ABS,HG-0760GP,INO |
| DA64-06286A | TRIM DOOR-UP;RF9000T,ABS,HG-0760GP,EBONY |
| DA64-06425A | TRIM DOOR-UP;RF9000TC,ABS,HG-0760GP,EBON |
| DA64-03784A | TRIM SHELF |
| DA64-06487B | TRIM SHELF-FRONT;RF8000B,ABS,HG-0760GP,T |
| DA64-05903E | TRIM SHELF-REAR;RF8000B,HIPS,S834S1,T5,C |
| DA64-04915F | TRIM SHELF-REF FRONT;RF9000R,ABS,HG-0760 |
| DA64-04915E | TRIM SHELF-REF FRONT;RF9000R,ABS,HG-0760 |
| DA64-06490A | TRIM SHELF-REF;RF9000A/AC,ABS,HG-0760GP, |
| DA62-06054A | TUBE |
| DA62-05881B | TUBE , RF8000B,HDPE,OD5.3,L80,ID4.2, |
| DA62-01266B | TUBE PVC |
| DA62-04606B | TUBE-AL;AL,L520,T0.34, LA+CE |
| DA62-02414A | TUBE-FITTING L |
| DA62-04299A | TUBE-LEFT;AW-CD,LDPE,L0.1,MB9500,NAT |
| DA62-05651E | TUBE;PO,OD16.2,L120,ID15,HOTMELT(EVA), B |
| DA62-06196A | TUBE;RF9000,PO,OD11.6,L200,ID10.2, |
| DA62-06196B | TUBE;RF9000,PO,OD11.6,L240,ID10.2, |
| DA62-06178E | TUBE;RF9000,PO,OD6.6,L100,ID5.7, |
| DA62-05650J | TUBE;RF9000C,PO,OD16.2,L200,ID15, |
|
|
VALVE STEP |
| DA62-04030D | VALVE WATER;AC110-127V,RF6000T,L-WIRE, |
|
|
VALVE-FITTING NUT |
|
|
VALVE-FITTING PU |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X10MM,TP,11 |
|
|
W LAN MODULE |
| DA69-01982Q | WRAP VINYL , REF_ALL,LDPE,T0.05,W60,L1000, |
| DA69-01982F | WRAP VINYL;LDPE,T0.04,W130,ROLL,ADHESIVE |
| DA69-01981B | WRAP VINYL;LDPE,T0.04,W30,ROLL,ADHESIVE |
| DA69-01981D | WRAP VINYL;LDPE,T0.04,W40,ROLL,ADHESIVE |
| DA69-01981C | WRAP VINYL;LDPE,T0.04,W40,ROLL,ADHESIVE |
| DA69-01981E | WRAP VINYL;LDPE,T0.04,W50,ROLL,ADHESIVE |
| DA69-01981R | WRAP VINYL;LDPE,T0.04,W60,ROLL,ADHESIVE |
| DA69-01982G | WRAP VINYL;LDPE,T0.04,W90,ROLL,ADHESIVE |
| DA69-01981H | WRAP VINYL;LDPE,T0.04,W90,ROLL,ADHESIVE |
| DA69-01982V | WRAP VINYL;REF_ALL,LDPE,T0.05,W115,L1000 |
| DA69-01982X | WRAP VINYL;REF_ALL,LDPE,T0.05,W130,L1000 |
| DA69-01982Z | WRAP VINYL;REF_ALL,LDPE,T0.05,W200,L1000 |
| DA69-01982L | WRAP VINYL;REF_ALL,LDPE,T0.05,W250,L1000 |
| DA69-02483F | WRAP VINYL;REF_ALL,LDPE,T0.05,W30,L1000, |
| DA69-01982N | WRAP VINYL;REF_ALL,LDPE,T0.05,W40,L1000, |
| DA69-01982S | WRAP VINYL;REF_ALL,LDPE,T0.05,W70,L1000, |
| DA69-01982U | WRAP VINYL;REF_ALL,LDPE,T0.05,W90,L1000, |
| DA69-02254A | WRAP VINYL;REF_ALL,LDPE,T0.095,W30,L1000 |
