Manufacturer
Samsung
Model Number
RM80F23VMRAA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-002337 | ADHESIVE-HM;DJ-8000,WHITE,9,37 |
| 0201-003797 | ADHESIVE-SEALANT;LOCKSEAL7700, |
| DA61-16264A | ALUMINUM PLATE;A5052P,T0.5,630 |
| DA61-14455A | ANGLE SHELF-REF MIDDLE |
|
|
ASSEMBLY ACCESSORY-CUSTOM PANE |
|
|
ASSEMBLY ACCESSORY-CUSTOM PANE |
| DA97-18856A | ASSEMBLY CAP DRAIN |
| DA97-08006L | ASSEMBLY CASE FILTER;H920G |
|
|
ASSEMBLY CASE ICE |
| DA97-15972C | ASSEMBLY CONDENSER-MAIN |
| DA97-21788A | ASSEMBLY COVER BASKET |
| DA97-21997A | ASSEMBLY DRAIN HOSE-FRE , RF70 |
| DA97-21958A | ASSEMBLY DUCT-A , RF7000AC,RIG |
| DA97-21957A | ASSEMBLY DUCT-B , RF7000AC,LEF |
| DA97-20572A | ASSEMBLY FIXER-UP |
| DA97-25580A | ASSEMBLY FIXER-UP;RF9000,A |
| DA97-25581A | ASSEMBLY FIXER-UP;RF9000,B |
| DA97-22990F | ASSEMBLY FRENCH |
| DA97-20057A | ASSEMBLY GASKET |
| DA97-23369A | ASSEMBLY GASKET-FRE |
| DA97-21996A | ASSEMBLY GROMMET , RF7000AC |
| DA97-21912A | ASSEMBLY GUARD REF |
| DA97-21914A | ASSEMBLY GUARD REF LOW |
| DA97-21960A | ASSEMBLY GUARD REF MIDDLE |
|
|
ASSEMBLY GUARD-REF UP;RF9000N, |
| DA97-21336A | ASSEMBLY HINGE LOW LEFT |
| DA97-23173A | ASSEMBLY ICE MAKER;RF9000B,220 |
| DA97-15451B | ASSEMBLY INS VACUUM PANEL , AW |
|
|
ASSEMBLY LAMP LED |
|
|
ASSEMBLY LAMP LED |
|
|
ASSEMBLY MODULE |
|
|
ASSEMBLY PIPE WATER ICE;RF9000 |
| DA97-22036A | ASSEMBLY ROLLER |
| DA97-19988A | ASSEMBLY ROLLER;RF9000K,29 |
| DA97-22970A | ASSEMBLY SHELF INSERT-REF FIX |
| DA97-21895A | ASSEMBLY SHELF QUICK SPACE |
| DA97-21902L | ASSEMBLY SHELF VEG-LOW |
| DA97-21898A | ASSEMBLY SHELF-REF UP |
| DA97-02465C | ASSEMBLY URETHANE- |
| DA96-01170A | ASSEMBLY WIRE HARNESS-COMP |
|
|
ASSEMBLY WIRE HARNESS-EARTH |
| DA97-20316Q | ASSY CABI FRAME-MIDDLE;RF9000A |
| DA97-13239B | ASSY CABI FRAME-MIDDLE;ROMANEE |
| DA97-24375J | ASSY CABI FRAME-REAR;RF9000D,G |
| DA97-25035A | ASSY CABI-BOTTOM FRONT;RF9000D |
| DA97-25375B | ASSY CASE BASKET-LOW;RF90F CD, KF,-,-,-, |
| DA97-24982A | ASSY CASE CONTROL;RF9000C,FLOW |
| DA97-21793M | ASSY CASE ICE;RF9000DC,610, GL |
| DA97-21793K | ASSY CASE ICE;RF9000DC,610, WH |
| DA97-17399U | ASSY CASE INNER |
| DA97-22588C | ASSY CASE PBA;AW, RF8000 |
| DA97-24974A | ASSY CASE PCB;RF9000D,AOD TOUC |
| DA97-25024B | ASSY CASE UNIT;RF9000D,NATURAL |
| DA97-21878M | ASSY CASE VEG;RF9000AC,CD, IND |
| DA97-21261H | ASSY CASE WATER FILTRE |
| DA97-12557T | ASSY CHASSIS COMP;RF9000C,GI-S |
| DA97-24085D | ASSY COVER COMP;RF9000C,GL-SGL |
| DA97-21951E | ASSY COVER LAMP-REF;RF9000D_HY |
| DA97-22520A | ASSY COVER PCB-MAIN;AW,NO F-HU |
| DA97-22254D | ASSY COVER-INLAY;RF9000_STD |
| DA98-03463A | ASSY CUSHION BOTTOM;RF9000DC,F |
| DA91-06648C | ASSY DOOR FOAM-FRE LEFT;RF9000F,BESPOKE, |
| DA91-06647C | ASSY DOOR FOAM-FRE RIGHT;RF9000F,BESPOKE |
| DA97-22257B | ASSY FIXER-UP;RF9000A,BLACK,RE |
| DA97-22978B | ASSY FIXER;RF8000B,LOKRING PIP |
| DA97-23368A | ASSY GASKET-REF;RF9000B |
| DA97-21276A | ASSY GROMMET;RF9900T |
| DA97-23411A | ASSY GUARD PACKING-DOOR BIN MO |
| DA97-19996E | ASSY GUARD-FRE;RF9000A,TP GRAY |
| DA90-14674C | ASSY GUARD;RF9000D,L-BSC |
| DA97-22006C | ASSY GUIDE HOSE;RF9000AC,610 M |
| DA97-23110B | ASSY HINGE-LOW LEFT;RF9000B,BLACK,AUTO C |
| DA97-23111B | ASSY HINGE-LOW RIGHT;RF9000B,BLACK,AUTO |
| DA97-25013A | ASSY HINGE-MIDDLE LEFT;RF9000D |
| DA97-25014A | ASSY HINGE-MIDDLE RIGHT;RF9000 |
| DA97-24198A | ASSY HINGE-UP LEFT;RF9000C,T4, |
| DA97-19972D | ASSY HINGE-UP LEFT;RF9000R,T3, |
| DA97-19973C | ASSY HINGE-UP RIGHT;RF9000R,T3 |
| DA59-00392A | ASSY ICE MAKER-ICE MODULE;SWAA |
| DA97-23179A | ASSY ICE MAKER;RF9000B,12V,BAL |
| DA97-23175A | ASSY ICE MAKER;RF9000B,ASSY BA |
| DA90-14686C | ASSY ICE MAKER;RF9000D,CD,USA, |
| DA91-06529A | ASSY INSTALL-PARTS KIT;BESPOKE |
| DA99-03258A | ASSY LABEL-INSTALLER CHECK LIS |
| DA96-01474A | ASSY LAMP LED;1,FR-1,17*17,WHI |
| DA96-01672A | ASSY LAMP LED;20,FR-4,370 X 25 |
| DA97-22004A | ASSY LED LAMP;RF9000A,BEVERAGE |
| DA97-24557A | ASSY LEVER AUTO CLOSE;RF9000CC |
| DA97-24558A | ASSY LEVER AUTO CLOSE;RF9000CC |
| DA97-17297F | ASSY LEVER DISPENSER;RF9000A,N |
| DA92-01492F | ASSY MICOM-TOUCH;RF9000D,CY8C4 |
| DA97-24624A | ASSY PANEL;RF9000A,VCM, NON MO |
| DA92-01485F | ASSY PBA MODULE;TOUCH PBA,RF90 |
| DA97-15974A | ASSY PIPE CONNECT-B;PFC,-,-,-, |
| DA97-15975A | ASSY PIPE CONNECT;PFC,-,-,-,-, |
| DA97-21876B | ASSY RAIL-MIDDLE LEFT;RF9000AC |
| DA97-21971A | ASSY RAIL-REF LOW LEFT;RF9000A |
| DA97-21970A | ASSY RAIL-REF LOW RIGHT;RF9000 |
| DA97-06920Y | ASSY REINF-CABI FLANGE UP;RF90 |
| DA97-05214A | ASSY REINF-GUIDE FRENCH;AW-PJT |
| DA97-16179A | ASSY REINF-MIDDLE FRONT;RF9000 |
| DA99-04201D | ASSY SEAL;RF9900N,ASSY, 9900 |
| DA97-13830B | ASSY SUPPORT-MIDDLE;RF9000A |
| DA97-20982A | ASSY SUPPORT;BESPOKE,T1.5,W130 |
| DA97-13854D | ASSY TANK WATER-REF;RS5000RC,P |
| DA97-17400A | ASSY VALVE WATER-HOSE;RF8000MC |
| DA96-01638A | ASSY WIRE HARNESS-CABI;RF9000D |
| DA96-01471C | ASSY WIRE HARNESS-DISPENSER;AL |
| DA96-01580K | ASSY WIRE HARNESS-DOOR;RF9000D |
| DA96-00963F | ASSY WIRE HARNESS-ICE;RF9000B, |
| DA97-12475A | ASSY-GROMMET FRENCH;MOUTON |
| 6902-003050 | BAG PE;HDPE,T0.03,W250,L400,TR |
| 6902-003053 | BAG ROLL;HDPE,T0.012,W1900,L10 |
| 6902-000336 | BAG ZIPPER |
| 6902-000588 | BAG ZIPPER |
| 6922-000003 | BAND |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OH |
|
|
BOLT-ETC |
| 6011-001694 | BOLT-ETC |
|
|
BOLT-HEX |
| 6011-007289 | BOLT-HEX |
|
|
BOLT-HEX |
| 6011-000129 | BOLT-HEX;M6,L35,ZPC(SILVER),SW |
| DA61-15475A | BRACKET CONDENSER-LOW;RF9000B, |
| DA61-16192A | BRACKET HOUSING;RF9000D,GL-SGL |
| DA61-14993A | BUSH;RF9000A,POM,NATURAL,F20-0 |
| DA61-14213A | BUSH;RF9000T/RF9900T,POM,BLACK |
| 2401-003069 | C-AL |
| 2402-001254 | C-AL, SMD |
| 2402-001268 | C-AL, SMD |
| 2402-001303 | C-AL, SMD |
| 2402-001398 | C-AL, SMD |
| 2401-004721 | C-AL;680UF,20%,250V,BK,30X30MM |
| 2401-004553 | C-AL;820UF,20%,25V,TP,10X20MM, |
| 2203-002285 | C-CER, CHIP |
| 2203-005968 | C-CER, CHIP |
| 2203-006158 | C-CER, CHIP |
| 2203-007306 | C-CER, CHIP |
| 2203-007456 | C-CER, CHIP |
| 2203-007544 | C-CER, CHIP |
| 2203-008315 | C-CER, CHIP |
| 2203-006457 | C-CER,CHIP |
| 2203-010142 | C-CER,CHIP |
| 2203-010495 | C-CER,CHIP;2.2UF,10%,25V,X7R,T |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,T |
| 2203-010496 | C-CER,CHIP;4.7UF,10%,25V,X7R,T |
| 2201-002429 | C-CERAMIC,DISC;10NF,+80-20%,20 |
| 2201-002688 | C-CERAMIC,DISC;2.2NF,20%,400VA |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,S |
| 2201-002335 | C-CERAMIC,DISC;68PF,10%,2000V, |
| 2301-002483 | C-FILM,LEAD-MPPF;330NF,10%,275 |
| 2301-002484 | C-FILM,LEAD-MPPF;470NF,10%,275 |
| 2301-002011 | C-FILM,LEAD-PPF;2.2NF,5%,630V, |
| DA01-00949W | C/STEEL-CABI |
| DA01-01370P | C/STEEL-DOOR;RF9000A,EGI-SECC, |
| DA01-02041H | C/STEEL;RF9000A,STS430,REAL ST |
| DA01-02041J | C/STEEL;RF9000A,STS430,REAL ST |
| DA64-02233S | CABI FRAME-MIDDLE FRONT;RF9000 |
| DA64-04288B | CABI FRAME-MIDDLE;ROMANEE-CONT |
| DA64-07386A | CABI FRAME-REAR;RF9000A,GL-SGL |
|
|
CABLE TIE |
| 6501-001110 | CABLE TIE;T1.2,W4.8,L200,NYLON |
| DA66-01678A | CAM AUTO CLOSE-LEFT;RF9000CC,P |
| DA66-01677A | CAM AUTO CLOSE;RF9000CC,POM,BL |
| DA66-01710A | CAM RISER-LOW LEFT;RF9000D,POM |
| DA66-01711A | CAM RISER-LOW RIGHT;RF9000D,PO |
| DA66-01714A | CAM RISER-UP LEFT;RF9000D,PA66 |
| DA66-01715A | CAM RISER-UP RIGHT;RF9000D,PA6 |
| DA67-03716A | CAP DISPENSER-OUT;3050 PJT,LDP |
| DA67-03717A | CAP DISPENSER;3050 PJT,LDPE,HB |
| DA67-02385A | CAP DOOR SWITCH |
| DA67-05026D | CAP DOOR-FRE LOW LEFT;RF9000B, |
| DA67-05028D | CAP DOOR-FRE LOW RIGHT;RF9000B |
| DA67-05772A | CAP DOOR-FRE UP LEFT;RF9000D,A |
| DA67-05773A | CAP DOOR-FRE UP RIGHT;RF9000D, |
| DA67-05721A | CAP DOOR-REF LOW LEFT;RF9000D, |
| DA67-04980A | CAP DOOR-REF LOW RIGHT;RF9000R |
| DA67-05574A | CAP DOOR-REF UP LEFT;RF9000C,A |
| DA67-05720A | CAP DOOR-REF UP LEFT;RF9000D,A |
| DA67-04979A | CAP DOOR-REF UP RIGHT;RF9000R( |
| DA67-04504D | CAP FIXER-TUBE |
| DA67-05151A | CAP FIXER;RF9000A,SI,T2,NEO VI |
| DA67-04491A | CAP GUIDE FRENCH;RF9000K,PA66, |
| DA67-05051A | CAP HOLE-FRE;RF9000T,ABS,T1.5, |
| DA67-05076A | CAP KNOB;RF9900T,POM,K300,NATU |
| DA67-04961A | CAP SCREW |
| DA67-30266K | CAP SCREW |
| DA67-30266Q | CAP SCREW |
| DA67-04331A | CAP SHAFT;RF9000K,POM,K300,NAT |
| DA67-04732A | CAP TANK;RS5000RC,PP,T3.5,J370 |
|
|
CAP-DRAIN |
| DA67-05406A | CAP-FRERENCH , RF9000A,PP,T1.5 |
| DA67-00189A | CAP-HOME BAR;ABS,HG-0760H,SNOW |
|
|
CAP-REED SWITCH |
| DA67-02795C | CAP-SHAFT HOLE |
| DB67-01334A | CAP-TUBE;ARX-CC103,LDPE,T0.7,M |
| DA67-03399A | CAP-TUBE;HM12,PP,HB,BJ750,NATU |
| DA61-14218A | CASE , ABS,T1.5,DARK GRAY,HG-0 |
| DA61-14440A | CASE BASKET-LOW;RF9000A,HIPS,T |
| DA61-14149A | CASE BASKET-MIDDLE;RF9900T,HIP |
| DA61-14441A | CASE BASKET-UP;RF9000A,ABS,T3, |
| DA61-13987A | CASE COCK |
| DA61-11735A | CASE DISPENSER-IN;RF8000MC,ABS |
| DA61-14461A | CASE FILTER-LEFT;RF9000AC,HIPS |
| DA61-14163B | CASE FILTER-OUT;RF9000A,HIPS,T |
| DA61-14462A | CASE FILTER-RIGHT;RF9000AC,HIP |
| DA61-15091A | CASE FILTER;RF9000A,GPPS,T2.5, |
| DA61-15168A | CASE FRENCH , RF9000A,ABS,T2.5 |
| DA61-15169A | CASE FRENCH-FRONT , RF9000A,AB |
| DA61-13386A | CASE HEATER-FRENCH , RF9000R,A |
|
|
CASE ICE CUBE |
| DA61-14309A | CASE ICE SCOOP |
| DA61-15721A | CASE ICE-CUBE SUB;RF9000C,PP,T |
| DA61-07581A | CASE LAMP-LED;POLARIS,GPPS,20. |
| DA61-14972A | CASE LAMP;RF9000A,PP,T2.5,COOL |
| DA61-13653A | CASE LOCK-A;RF9000R,ABS,T2.5,I |
| DA61-15404A | CASE PBA-MAIN;RF9000B,PP,T2.5, |
| DA61-15902A | CASE PCB;RF9000D,HIPS,T2,INNER |
| DA61-14558A | CASE TRAY;RF9000A,HIPS,T2.5,NA |
| DA61-09707C | CASE UNIT;RF9000,ABS,T2.5,VICT |
| DA61-14174B | CASE WATER TANK;RF8000BC,PCT,T |
| DA61-13315A | CASE WATER TANK;RS5000RC,PP,T3 |
| DA61-05524A | CASE-FILTER IN;SSEDA,POM,NATUR |
| DA61-05523A | CASE-FILTER OUT;SSEDA,POM,NATU |
| DA61-14217A | CASE;RF9000T/RF9900T,ABS,T1.5, |
|
|
CASTER-FRONT |
|
|
CASTER-REAR |
| DA02-00249A | CATALYST |
| DA02-40003A | CH-BLOWING AGE |
| DA64-07487A | CHASSIS COMP;RF9000C,GI-SGCC,T |
| DA02-00132A | CHEMICALS-CATALYST |
|
|
CLIP-FITTING LOCK |
| DA61-15114A | CLIP;RF6000T,POM,T2,NATURAL,F2 |
| DA61-14591A | CLIP;RF9000A,POM,NATURAL,K300 |
| 0204-009273 | COATING AGENT;DS8802FL,50~60%, |
| DA02-00235A | COATING-ECO PRO;ECO PRO,12.7,T |
| DA27-00063A | COIL CHOKE;150UH,6A,11MMX10MM, |
| DA27-00062A | COIL CHOKE;18MH,6A,16MMX18MM,M |
| DA27-00061A | COIL CHOKE;4.5MH,6A,15MMX10MM, |
| 3711-000262 | CONNECTOR-HEADER |
|
|
COVER ASSEMBLY-TUBE FILTER |
| DA91-05369B | COVER CAP DOOR |
| DA63-12129A | COVER CAP DOOR;RF9000D,ABS,T2, |
| DA63-11580A | COVER CASE;RF8000B,ABS,T2.5,NE |
| DA63-11981D | COVER COMP;GL-SGLCC,T0.25,CODE |
| DA63-11209A | COVER FILTER |
| DA63-05403B | COVER FILTER;AW3,PP,T2.5,INNER |
| DA63-11210A | COVER FILTER;RF9000AC,HIPS,T2. |
| DA63-11584A | COVER HINGE-LOW , RF9000A,PP,T |
| DA63-11948A | COVER HINGE-UP LEFT;RF9000C,AB |
| DA63-12044A | COVER HOUSING;RF9000CC,POM,BLA |
| DA63-12047A | COVER HOUSING;RF9000CC,POM,BLA |
| DA63-11369B | COVER ICE-FRE;RF9000A,PP,T2.5, |
| DA63-12133A | COVER ICE-FRE;RF9000D,PCTG,T3. |
|
|
COVER LAMP-LED FRONT |
| DA63-06505A | COVER LAMP-LED;POLARIS,ABS,HB, |
| DA63-12205A | COVER LAMP-REF;RF9000D_HYBRID, |
| DA63-12204B | COVER LAMP;RF9000D_HYBRID,HIPS |
|
|
COVER LOCK |
| DA63-11401A | COVER PBA-REAR;AW,GL-SGLCC,T0. |
| DA63-11997A | COVER PCB;RF9000D,ABS,T2,EBONY |
| DA63-09536A | COVER PIPE-UP;RF9000R,HIPS,T2, |
| DA63-12360A | COVER REED SWITCH;RF9000F,ABS, |
| DA63-06122A | COVER RELAY |
| DA63-12130A | COVER SENSOR;RF9000D,ABS,T2,EB |
| DA63-09321A | COVER SENSOR;RS8000NC,PP,T2,CO |
| DA63-11305A | COVER TRAY-FRONT;RF9000A,PC,T2 |
| DA63-11258A | COVER TRAY;RF9000A,POM,T2.5,NA |
| DA63-07680A | COVER UNIT |
| DA63-11207A | COVER VEG-FRONT LOW;RF9000A,GP |
| DA63-09907B | COVER WATER TANK;RF9000A,HIPS, |
| DA63-11211A | COVER WINDOW;RF9000A,ABS,BSC B |
| DA63-12138A | COVER WIRE-LEFT;RF9000D,ABS,T2 |
| DA63-11285A | COVER-AUTOFILL;RF9000A,ABS,T2. |
| DA63-11217A | COVER-AUTOFILL;RF9000A,HIPS,T2 |
| DA63-06285A | COVER-FOOT |
| DA63-07287A | COVER-HEATER FRENCH;ROMANEE CO |
| DA63-03809A | COVER-URETHANE |
| DA63-11264A | COVER;RF9000A,HIPS,T2.5,NATURA |
| DA63-12045A | COVER;RF9000CC,POM,BLACK,K300, |
| DA63-12046A | COVER;RF9000CC,POM,BLACK,K300, |
| DA63-09909A | COVER;RF9900T,ABS,EBONY BLACK, |
| DA63-09910A | COVER;RF9900T,ABS,EBONY BLACK, |
| DA69-02847A | CUSHION BOTTOM;RF9000DC,EPS,W9 |
| DA69-00698B | CUSHION CORNER-FRONT;REF_ALL,E |
| DA69-01420A | CUSHION CORNER-REAR;REF_ALL,EP |
| DA69-02799A | CUSHION DOOR-FRONT;RF9000C,EPS |
| DA69-02712A | CUSHION GUARD , RF90000A,EPS,W |
| DA69-02714A | CUSHION GUARD;RF90000A,EPS,W83 |
| DA69-02715A | CUSHION GUARD;RF9000A,EPS,W61. |
| 0402-001224 | DIODE-BRIDGE |
| 0402-001472 | DIODE-RECTIFIER |
|
|
DIODE-RECTIFIER |
| 0402-000553 | DIODE-SCHOTTKY |
| 0401-001099 | DIODE-SWITCHING |
| 0407-000113 | DIODE-SWITCHING |
| 0406-001204 | DIODE-TVS |
| 0406-001239 | DIODE-TVS |
| 0406-001689 | DIODE-TVS |
| 0406-001865 | DIODE-TVS;SMBJ17CA,18.9V,20.9V |
| 0406-001906 | DIODE-TVS;SMF200A,224V,SOD-123 |
| 0403-000461 | DIODE-ZENER |
| DA64-07345A | DOOR-UP LEFT A;RF9000C,ABS,T2. |
| DA67-05163A | DRAIN-HOSE FRE , RF7000,HDPE,N |
|
|
DRYER |
| DA67-05171A | DUCT SUCTION-LOW , RF7000AC,PP |
| DA67-05173A | DUCT SUCTION-LOW , RF7000AC,PP |
| DA67-05170A | DUCT SUCTION-UP , RF7000AC,PP, |
| DA67-05172A | DUCT SUCTION-UP , RF7000AC,PP, |
|
|
FASTENER-HINGE |
| DA60-00314B | FASTENER-HINGE |
|
|
FASTENER-HINGE |
| DA60-00314D | FASTENER-HINGE |
|
|
FASTENER-RIVET |
| DA60-00455A | FASTENER-STATOR;RF9000CC,POM,K |
| 0505-002598 | FET-SILICON |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37 |
| 0505-003960 | FET-SILICON;IPD60R360PFD7S,N,6 |
| DA63-08839B | FILTER-WATER;RF8000MC,PP,COOL |
| DA60-00371C | FITTING LOCK RING;A6061,ID5.75 |
| DA60-00407B | FITTING LOCK RING;A6061,ID9.1, |
| DA60-00367B | FITTING LOCK RING;SMF4030,ID5. |
| DA60-00366A | FITTING LOCK SLEEVE;SMF4030,PI |
| DA60-00403A | FITTING TUBE;POM,ID1/4,NATURAL |
| DA60-00404A | FITTING TUBE;POM,ID1/4,NATURAL |
| DA62-03914G | FITTING TUBE;POM,ID1/4,NATURAL |
| DA60-00395A | FITTING TUBE;PP,ID1/4,1/4-1/2 |
|
|
FITTING-TUBE |
| DA61-11032A | FIXER |
| DA61-11034A | FIXER |
| DA61-12488B | FIXER COVER;AW3,HIPS,INNER GRA |
| DA61-16430A | FIXER HANDLE-A;RF9000,ABS,T2.3 |
| DA61-16431A | FIXER HANDLE-B;RF9000,ABS,T2.3 |
| DA61-14563A | FIXER HOSE;RF9000A,POM,INNER G |
| DA61-14663B | FIXER HOSE;RF9000A,PP,BLACK,CN |
| DA61-10758C | FIXER LOCKER;ABS,T2.5,EBONY BL |
| DA61-12188A | FIXER PIPE |
| DA61-12990A | FIXER SENSOR;RS8000NC,PE FOAM, |
| DA61-13218B | FIXER SHELF;RF6500C,POM,NATURA |
| DA61-13219C | FIXER SHELF;RF6500C,POM,T2,NAT |
| DA61-15326A | FIXER WIRE , RF9000,PP,T1.5,NA |
| DA61-13585A | FIXER-BIMETAL;RF9000R,PP,T1.5, |
|
|
FIXER-CASTER |
| DA61-05780A | FIXER-COLLAR;SSEDA,POM,NATURAL |
| DA61-05781A | FIXER-COLLET;SSEDA,POM,INNER G |
|
|
FIXER-DRAIN |
| DA61-05525A | FIXER-FILTER;SSEDA,PP,COOL WHI |
| DA61-06700A | FIXER-HEATER WIRE REF |
|
|
FIXER-HINGE |
|
|
FIXER-SENSER |
| DA61-05570A | FIXER-SHAFT GUIDE;SSEDA,POM,NA |
| DA61-05526A | FIXER-SHAFT;SSEDA,POM,NATURAL, |
| DA61-15292A | FIXER-SUCTION;RF8000B,PP,T2,BL |
| DA61-15146B | FIXER-SUCTION;RF8000B,PP,T2,NA |
| DA71-20265A | FIXER-THERMO FUSE |
| DA61-11296B | FIXER;AW3,HIPS,INNER GRAY,CNTK |
| DA61-15295A | FIXER;RS8000B,PC,T2.5,NATURAL, |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX |
| DA61-15096A | FOOT-FRONT |
| 3601-001336 | FUSE-AXIAL LEAD |
| 3601-001978 | FUSE-AXIAL LEAD;250V,10A,SLOW- |
| 3601-001927 | FUSE-AXIAL LEAD;250V,2A,TIME-L |
| DA63-11581A | GASKET FRENCH-LOW |
| DA63-09908B | GASKET-TANK;RF9000A,SI,NEO VIC |
| DA66-01512A | GEAR;RF9000A,PA66+GF30%,BLACK, |
| DA66-01509A | GEAR;RF9000A,POM,NATURAL,F20-0 |
| DA66-01510A | GEAR;RF9000A,POM,NATURAL,F20-0 |
| DA64-06509A | GLASS-SHELF FRONT;RF9000AC,GLA |
| DA64-05969A | GLASS-SHELF REAR;AW4_CD,GLASS, |
| DA64-07027A | GLASS-SHELF REF FIX , RF8000BC |
| DA64-06513N | GLASS-SHELF REF LOW;RF9000AC,G |
| DA64-06511B | GLASS-SHELF REF UP;RF9000AC,GL |
| 0205-000121 | GREASE-SILICON |
| 0205-000131 | GREASE-SILICON;G501,1L |
|
|
GROMMET COMP;REF,IIR,ALL BLACK |
| DA63-02750B | GROMMET COVER SLIDE |
| DA63-09942A | GROMMET DOOR |
| DA63-07805A | GROMMET DRAIN-LOW;RFH920G,NBR, |
| DA63-09856A | GROMMET HINGE LOW |
| DA63-09857A | GROMMET HINGE LOW |
|
|
GROMMET HINGE-MIDDLE |
| DA63-09914A | GROMMET HINGE;RF9900T,PA66,NAT |
| DA63-12346A | GROMMET MOTOR;RF9000F/FC HYBRI |
| DA63-07969A | GROMMET-A;FSR,PP+GLF15%,NATURA |
| DA63-09933A | GROMMET-CAP DOOR;RF9900T,SI,BL |
|
|
GROMMET-COVER SLIDE |
| DA63-02761A | GROMMET-DRAIN |
| DA63-11255A | GROMMET-FIXER , RF7000,PP+GF10 |
| DA63-03447A | GROMMET-FRENCH |
| DA63-03049A | GROMMET-HOT PIPE |
| DA63-07323A | GROMMET-IMMERSION PIPE B |
| DA63-06103A | GROMMET-PIPE;W07,NBR,BLACK,ALL |
| DA63-05349A | GROMMET-RING SHAFT GUIDE;SSEDA |
| DA63-05350A | GROMMET-RING SHAFT;SSEDA,NBR,N |
| DA63-07326A | GROMMET-RING;AW4,SI |
| DA63-04630B | GROMMET-RING;RF9000A,NBR,NATUR |
| DA63-08447A | GROMMET-RING;RF9000K,EPDM,GRAY |
| DA63-05351A | GROMMET-RING;SSEDA,NBR,NATURAL |
|
|
GROMMET-STOPPER |
|
|
GROMMET-SUCT PIPE A |
| DA63-09665A | GROMMET-UP RIGHT;RF9000R(B),SI |
| DA63-07746A | GROMMET;AW3-14,SI,NATURAL |
| DA63-09520A | GUARD-FRE;RF9000R,GPPS,T3,TP G |
| DA63-11260A | GUARD-REF MIDDLE;RF9000A,SAN,T |
| DA63-11220A | GUARD-REF SUB;RF9000A,SAN,T3,T |
| DA63-07966E | GUARD-REF UP;RF9000N,GPPS,TP G |
| DA63-11219A | GUARD-REF;RF9000A,GPPS,T3,TP G |
| DA61-15859A | GUIDE FRENCH;RF9000C,PC+ABS,T2 |
| DA61-14500A | GUIDE HOSE-FRONT;RF7000AC/ RF9 |
| DA61-13440A | GUIDE HOSE-IN;RF9000R,PP,HB,SS |
| DA61-16164A | GUIDE HOSE-OUT;RF9000D,PP,HB,S |
| DA61-10404A | GUIDE HOSE;PP,HB,BJ750,COOL WH |
| DA61-15112A | GUIDE HOSE;RF6000T,PP,T2,J370, |
| DA61-14503A | GUIDE HOSE;RF7000AC / RF9000A |
| DA61-14661A | GUIDE ICE |
| DA61-13492A | GUIDE RAIL;RF9000R,ABS,NATURAL |
| DA61-14557A | GUIDE WATER;RF9000A,AL,T1.5,AN |
| DA61-09100A | GUIDE-TUBE C;3050,PP,J550S,NAT |
| DA02-40012D | H-ISOCYANATE |
| DA64-04562A | HANDLE-BOTTOM |
| DA61-13449B | HANGER-LEFT |
| DA61-13451B | HANGER-RIGHT |
| DA61-15135A | HANGER-RIGHT , RF8000BC,GI-SGC |
| 3711-000315 | HEADER-BOARD TO CABLE |
| 3711-000999 | HEADER-BOARD TO CABLE |
| 3711-001038 | HEADER-BOARD TO CABLE |
| 3711-001084 | HEADER-BOARD TO CABLE |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-008889 | HEADER-BOARD TO CABLE |
| 3711-008032 | HEADER-BOARD TO CABLE;1WALL,2P |
| 3711-008034 | HEADER-BOARD TO CABLE;1WALL,3P |
| 3711-009460 | HEADER-BOARD TO CABLE;1WALL,4P |
| 3711-009393 | HEADER-BOARD TO CABLE;BOX,24P, |
| 3711-009394 | HEADER-BOARD TO CABLE;BOX,26P, |
| 3711-009395 | HEADER-BOARD TO CABLE;BOX,28P, |
| DA47-00442E | HEATER CORD-WATER PIPE;DC12V,R |
| DA47-00540A | HEATER CORD-WATER TANK , DC12V |
| DA47-00553A | HEATER CORD;DC12V,14W/6.8W,SIL |
| DA47-00571A | HEATER FILM-DOOR;AC120V,11W,75 |
| DA47-00519A | HEATER FILM-FRENCH;AC120V,T FR |
|
|
HINGE-FRENCH |
| DA61-14219A | HINGE-LOW LEFT , -,PO-SPHC,T4, |
| DA61-15234B | HINGE-LOW LEFT;RF9000B,ZN,T8,A |
| DA61-15235B | HINGE-LOW RIGHT;RF9000B,ZN,T8, |
| DA61-16173A | HINGE-MIDDLE LEFT;RF9000D,ZN,T |
| DA61-16174A | HINGE-MIDDLE RIGHT;RF9000D,ZN, |
| DA61-15773A | HINGE-UP LEFT;RF9000C,PO-SPHC, |
| DA61-13411A | HINGE-UP LEFT;RF9000R,PO-SPHC, |
| DA61-13412A | HINGE-UP RIGHT;RF9000R,PO-SPHC |
| DA61-14956A | HOLDER LEVER;RF9000A,POM,NATUR |
| DB61-00206A | HOLDER-WIRE |
| 1001-001942 | IC-ANALOG SWITCH |
| 0801-002780 | IC-CMOS LOGIC |
| 0801-002895 | IC-CMOS LOGIC |
| 1003-000113 | IC-CURRENT DRIVER |
| 1203-009429 | IC-DC/DC CONVERTER;SYU812C1,SO |
| 1103-001228 | IC-EEPROM |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,M |
| 0903-002279 | IC-MICROCONTROLLER;STM32G431RB |
| 1003-003175 | IC-MOTOR DRIVER;6EDL04N06PT,PG |
| 1003-002899 | IC-MOTOR DRIVER;DRV8848L,16P,H |
| 1003-002900 | IC-MOTOR DRIVER;DRV8848PWPR,16 |
| 1201-004191 | IC-OP AMP;9064,TSSOP,TP,14P,5X |
| 1203-002722 | IC-POSI.FIXED REG. |
| 1203-009642 | IC-PWM CONTROLLER;SC1551C-H084 |
| 1209-002491 | IC-TOUCH;CY8C4014LQI-422,QFN,2 |
| 1203-001211 | IC-VOL. DETECTOR |
| 1203-006245 | IC-VOL. DETECTOR |
| 2703-004724 | INDUCTOR-SMD |
| DA27-00051A | INDUCTOR-SMD;1MH,20%,12.2X12.2 |
| DA64-06491Q | INLAY CONTROL;SIMPLE UX(LCD)_S |
| DA62-04528J | INSULATION |
| DA62-04311Y | INSULATION , GLASS WOOL,T12,HY |
| DA62-05932C | INSULATION;RF9000BC,GLASS FIBE |
| DA02-00087A | ISOCYANATE;ISOCYANATE B1001 B1 |
| DA68-11081D | LABEL |
| DB68-05458A | LABEL BAR CODE;AM9000H,PAPER,W |
| DA68-01797W | LABEL CAUTION;ALL USA,AA,ART,O |
| DA68-02785A | LABEL INSTRUCTION;ROMANEE CONT |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMIN |
| DA68-00007D | LABEL SERIAL |
| DA68-02869A | LABEL TAG;ALL,AA, XAC,MOJO,200 |
| DA68-01173B | LABEL-BAR CODE |
| DA68-10376D | LABEL-BAR CODE |
| DA68-00679T | LABEL-COLOR |
| DA68-02562U | LABEL-INDICATION , MOUTON,YUPO |
| DA68-00122E | LABEL-PRINT |
| DC07-00149A | LCD;57.09X30.1MM,20TO+70C,3.3V |
| 0601-002345 | LED |
| DA66-01342A | LEVER |
| DA66-01674A | LEVER AUTO CLOSE;RF9000CC,ZNDC |
| DA66-01675A | LEVER AUTO CLOSE;RF9000CC,ZNDC |
| DA66-01246A | LEVER CASE DISPENSER;RF8000MC, |
| DA66-01696A | LEVER HANDLE;RF9000D,ZNDC,T2.5 |
| DA66-01542A | LEVER PUSH;RF9000A,POM,T2.5,W3 |
| DA66-01508A | LEVER-TRAY ICE;RF9000A,POM,T2. |
| DA66-01506A | LEVER;RF9000A,STS WIRE,STS30 |
| DA66-01345A | LEVER;RF9000R,ZNDC,T6,W15,L38, |
|
|
MAGNET |
|
|
MAGNET ASSEMBLY |
|
|
MAGNET-A |
| DA61-13738A | MAGNET;B-PJT,FERRITE,T5, W15, |
| DA68-02659D | MANUAL INSTRUCTION;RF9000A/AC, |
| DA68-04804A | MANUAL INSTRUCTION;RF9000D, DC |
|
|
MOTOR BLDC FAN |
| DA31-00334E | MOTOR BLDC FAN;12035GE-12M-YT, |
| DA31-00348A | MOTOR BLDC FAN;Z19W12MS1A5-52K |
| 6021-000166 | NUT-HEXAGON |
| 6021-000258 | NUT-HEXAGON |
| 0205-000127 | OIL-SILICON |
| DA69-02305K | PACKING CASE;RF9000AC(B),CB,DW |
| DA69-01687Q | PACKING SHRINKAGE;RF9000K,LDPE |
| DA69-02549M | PAD CUSHION;REF_ALL,EPS,T10,W1 |
| DA69-01740P | PAD PACKING-BOTTOM;AW2 CD,PP,T |
| DA62-04618R | PAD-FOAM;REF_ALL,EPE,T10,W20,L |
| DA64-05957B | PANEL DOOR , RF9000A,ABS,T1,W4 |
| DA64-06514A | PANEL-FRE;RF9000A,ABS,W,L,HB,Q |
| DA64-06515A | PANEL-FRE;RF9000A,ABS,W,L,HB,Q |
| DA64-05945A | PANEL-REF RIGHT;RF9000R,ABS,W, |
| DA64-07491A | PANEL-REF;RF9000,ABS,W383.3,L8 |
| DA67-05164A | PARTITION-FRE LEFT , RF7000,HI |
| DA67-05165A | PARTITION-FRE RIGHT , RF7000,H |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200M |
| DA62-04396F | PIPE CAPILLARY;ARAM13,CU,OD2.0 |
| DA62-04396A | PIPE CAPILLARY;CU,OD1.9,NATURA |
| DA62-05584B | PIPE CLUSTER-REAR;RF7000AC,TSW |
|
|
PIPE CONNECT-SUCTION |
| DA62-04744A | PIPE HOT;RF9500K,TSW,OD4.2,T0. |
| DA62-04610C | PIPE IMMERGING-OUT;RF9000,TSW, |
| DA62-04965A | PIPE WATER-FRE;BRF8000M,AL,A30 |
| DA62-05577A | PIPE WATER-FRE;RF9000A,POM,OD1 |
| DA62-05883A | PIPE-AL;RF8000B,AL,OD8,T0.8,A1 |
|
|
PIPE-CONNECT DISC, B |
| DA62-04605A | PIPE-IN;AL,A3003 |
| DA62-04601A | PIPE-MIDDLE;AL,T1.2,A3003 |
| DA62-04600A | PIPE-SUB;AL,A3003 |
| DA62-01604A | PIPE-WATER |
| DA97-05803A | PIPE-WATER LINE |
| DA62-01368B | PIPE-WATER LINE |
| DA62-03154A | PIPE-WATER LINE |
| DA62-04623B | PIPE;CU,OD7.94,T0.45 |
| DA61-16178A | PLATE CABINET-BOTTOM FRONT;RF9 |
| DA61-10697B | PLATE CONDENSER |
| DA61-14020D | PLATE DOOR-FRE LEFT;RF9000 BES |
| DA61-14021D | PLATE DOOR-FRE RIGHT;RF9000 BE |
| DA61-15205K | PLATE DOOR-FRE;RF9000A,STS430, |
| DA61-14022C | PLATE DOOR-REF LEFT;RF9000D,GL |
| DA61-14019E | PLATE DOOR-REF RIGHT;RF9000 BE |
| DA61-15205J | PLATE DOOR-REF;RF9000A,STS430, |
| DA61-14531A | PLATE HEATER-FRE , RF7000AC,AL |
| DA61-14532A | PLATE HEATER-FRE , RF7000AC,AL |
| DA61-14736A | PLATE HEATER;RF9000A,A1100,T1, |
| DA61-11737C | PLATE LEVER;RF8000MC,STS304,T0 |
| DA61-10700B | PLATE STEEL;AL,B10%,T0.08,W16, |
| DA01-01705H | PLATE STEEL;RF9000 BESPOKE,GL- |
| DA01-01705J | PLATE STEEL;RF9000 BESPOKE,GL- |
| DA01-01705K | PLATE STEEL;RF9000 BESPOKE,GL- |
| DA61-10696A | PLATE-CORNER;AL,T1.5 |
| DA61-15170A | PLATE-FRENCH;RF9000A,EGI-SECC, |
| DA61-10371A | PLATE-UP FRONT;ROMANEE CONTI,A |
| DA67-90108D | PLUG COMP TUBE;SILICON RUBBER, |
| 0204-005065 | POLYOL;KONIX DP-1950S,POLYEHER |
| 0204-009079 | POLYOL;RST-530,ROH,100% |
|
|
POWER CORD-AT |
| 2007-000033 | R-CHIP |
| 2007-000279 | R-CHIP |
| 2007-000293 | R-CHIP |
| 2007-000297 | R-CHIP |
| 2007-000312 | R-CHIP |
| 2007-000352 | R-CHIP |
| 2007-000476 | R-CHIP |
| 2007-000571 | R-CHIP |
| 2007-000762 | R-CHIP |
| 2007-000938 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-001297 | R-CHIP |
| 2007-007306 | R-CHIP |
| 2007-007336 | R-CHIP |
| 2007-007699 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-008175 | R-CHIP |
| 2007-008231 | R-CHIP |
| 2007-008269 | R-CHIP |
| 2007-008354 | R-CHIP |
| 2007-008485 | R-CHIP |
| 2007-008779 | R-CHIP |
| 2007-008791 | R-CHIP |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-012276 | R-CHIP;0.09OHM,1%,2W,TP,6432,T |
| DA61-14528B | RAIL-MIDDLE LEFT;RF9000AC,HIPS |
| DA61-14469A | RAIL-REF LOW LEFT;RF9000A,HIPS |
| DA61-14468A | RAIL-REF LOW RIGHT;RF9000A,HIP |
| DA67-05278A | REFLECTOR;RF9000A,ABS,TACT BUT |
| DA61-10849A | REINF CABI-MIDDLE FRONT;RF9000 |
| DA61-14359A | REINF CABI-UP;RF9900T,PO-SPHC, |
| DA61-13691B | REINF DOOR-REF , RF9000A,PO-SP |
| DA61-13691A | REINF DOOR-REF , RF9000R,PO-SP |
| DA61-13692A | REINF DOOR-REF , RF9000R,PO-SP |
| DA61-13467A | REINF DOOR-REF LOW;RF9000R,PO- |
| DA61-01376T | REINF DOOR-REF;RH9000M,HGI-SGH |
| DA61-15766A | REINF HINGE-UP;RF9000C,PO-SPHC |
| DA71-00025B | REINF-BOTT FRAME |
| DA61-05923A | REINF-EARTH;HGI-SGHC,T3 |
| DA61-03206A | REINF-GUIDE FRENCH;AW-PJT,HGI- |
| DA61-04910A | REINF-HINGE UP R;HAEMIL-PJT,GI |
| DA71-10490C | REINF-HINGE UPP |
| DA61-14209A | REINF-LOW RIGHT;RF9000T/RF9900 |
| DA61-14659A | REINF-REF;RF7000AC,GI-SGCC,T2, |
| DA61-14660A | REINF-REF;RF9000A,GI-SGCC,T1.6 |
|
|
RELAY-MINIATURE |
|
|
RELAY-POWER |
| 0103-009089 | RESIN ABS;HG-0760GP/G41355,INO |
| 0103-002817 | RESIN-ABS |
| 2802-001211 | RESONATOR-CERAMIC |
| 6130-000386 | RETAINER |
| 6130-000387 | RETAINER |
| DA66-01679A | ROLLER;PA6+MD40%,OD14,BLACK,ID |
| DA66-01515A | ROLLER;POM,OD21.6,NATURAL |
| DA66-01339A | ROLLER;POM,OD29,NATURAL |
| DA67-05521A | RUBBER |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 6001-002267 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
|
|

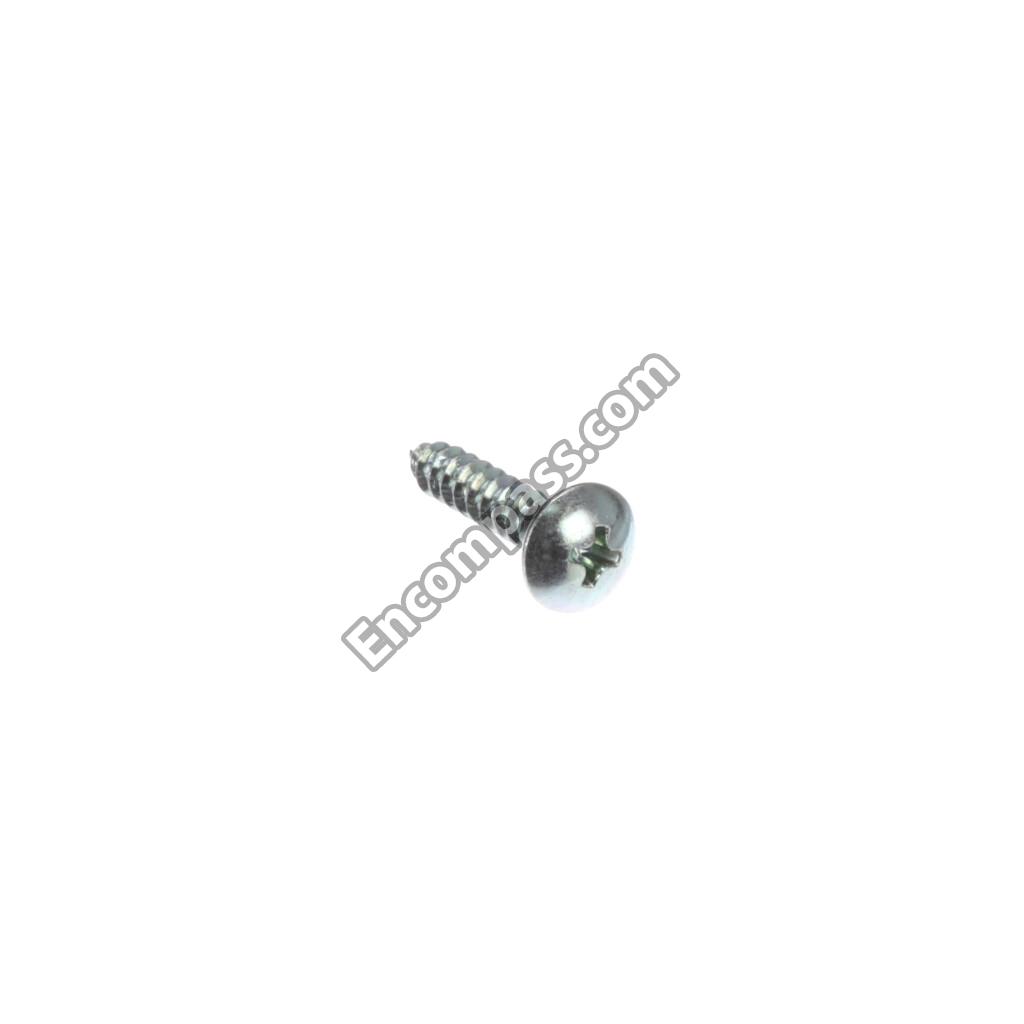

SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000458 | SCREW-TAPPING |
| 6002-000540 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000635 | SCREW-TAPPING |
| 6002-000643 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-001547 | SCREW-TAPPING |
| 6002-001669 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| DC60-20057A | SCREW-TAPPING |
| 6002-000555 | SCREW-TAPPING;PH,+,2S,M4,L25,Z |
| 6002-001521 | SCREW-TAPPING;TH,+,NO,2S,M3,L1 |
| 6003-000170 | SCREW-TAPTYPE |
| DA62-05622A | SEAL CASE-HEATER;RF9000A,PU FO |
| DA62-06129A | SEAL COND |
| DA62-06129C | SEAL COND |
| DA62-01129B | SEAL CUTT |
| DA62-01130F | SEAL CUTT |
| DA62-01134C | SEAL CUTT |
| DA62-01134E | SEAL CUTT |
| DA62-01134H | SEAL CUTT |
| DA62-01134L | SEAL CUTT |
| DA62-01136Q | SEAL CUTT |
| DA62-01136S | SEAL CUTT |
| DA62-01136T | SEAL CUTT |
| DA62-01137V | SEAL CUTT |
| DA62-01138D | SEAL CUTT |
| DA62-01139C | SEAL CUTT |
| DA62-01139E | SEAL CUTT |
| DA62-01139M | SEAL CUTT |
| DA62-01139T | SEAL CUTT |
| DA62-01139W | SEAL CUTT |
| DA62-01140D | SEAL CUTT |
| DA62-01140F | SEAL CUTT |
| DA62-01140Z | SEAL CUTT |
| DA62-01141B | SEAL CUTT |
| DA62-01141D | SEAL CUTT |
| DA62-01141E | SEAL CUTT |
| DA62-01141F | SEAL CUTT |
| DA62-01141H | SEAL CUTT |
| DA62-01141L | SEAL CUTT |
| DA62-01141M | SEAL CUTT |
| DA62-01141Q | SEAL CUTT |
| DA62-01141X | SEAL CUTT |
| DA62-01141Z | SEAL CUTT |
| DA62-01142B | SEAL CUTT |
| DA62-01142D | SEAL CUTT |
| DA62-01142H | SEAL CUTT |
| DA62-01142L | SEAL CUTT |
| DA62-01142Q | SEAL CUTT |
| DA62-01142R | SEAL CUTT |
| DA62-01142S | SEAL CUTT |
| DA72-00033B | SEAL CUTT FOAM PE |
| DA62-05315A | SEAL CUTT FOAM;RF9000R,PE FOAM |
| DA62-01603V | SEAL CUTT SPONGE |
| DA62-00110E | SEAL CUTT SPONGE;ROMANEE CONTI |
| DA62-01492Z | SEAL CUTT-FOAM PE |
| DA72-60106V | SEAL CUTT-FOAM PE |
| DA62-03033R | SEAL CUTT-FOAM PE;HAEMIL,PE FO |
| DA62-01138U | SEAL CUTT-FOAM PE;PE FOAM,T7,W |
| DA62-03815K | SEAL CUTT-OJC;3050,PE OPEN CEL |
| DA62-02351C | SEAL CUTT-OJC;NW2,PE OPEN CELL |
| DA62-00608E | SEAL CUTT-OJC;QUEEN,PE OPEN CE |
| DA72-60267Q | SEAL CUTT-SPONGE;-,PU FOAM,T20 |
| DA62-01921A | SEAL CUTT;GUGGENHEIM,PE OPEN C |
| DA62-01139A | SEAL CUTT;PE OPEN CELL,T3,W10, |
| DA62-01140B | SEAL CUTT;PU FOAM,T3,W10,L1000 |
| DA62-01135M | SEAL CUTT;RB7300T,PE FOAM,T5,W |
| DA62-05654A | SEAL CUTT;RF7000AC,PE FOAM,T5, |
| DA62-01137J | SEAL CUTT;RF9000,PE FOAM,T15,W |
| DA62-01141T | SEAL CUTT;SPONGE,T5,W160,L1000 |
| DA62-00457A | SEAL DUCT-FRE , RF7000AC,PU FO |
| DA62-00464A | SEAL DUCT-FRE , RF7000AC,PU FO |
| DA62-00458A | SEAL DUCT-REF , RF7000AC,PU FO |
| DA62-02987A | SEAL DUCT-REF;AW3-14,LEX FOAM, |
| DA62-05616A | SEAL GUIDE;RF9000A/AC, RF7000A |
| DA62-05341A | SEAL MID-FRONT;RF9000,PU FOAM, |
| DA62-05405A | SEAL PANEL DOOR;RQ9500R(B),PU |
| DA62-05628A | SEAL PARTITION-SIDE;RF9000AC,N |
| DA62-05865A | SEAL PIPE;RF8000B,PU FOAM,T15, |
| DA62-06445A | SEAL REINF-UP;RF9000,PU FOAM,T |
| DA62-04261A | SEAL SUPPORT TUBE FILTER-REAR; |
| DA62-05672A | SEAL TUBE-REAR;RF9000A,PU FOAM |
| DA62-05330B | SEAL TUBE;RF9000R,PE FOAM,T6,W |
| DA62-00232B | SEAL WATER HOSE;RF9000A,PU FOA |
| DA62-02534B | SEAL-CASE HEATER FRENCH;OPUS1, |
| DA62-00091A | SEAL-CUTT FOAM, PE |
| DA62-01142V | SEAL-CUTT SPONGE |
| DA72-00238B | SEAL-DRAIN HOSE |
| DA62-05678A | SEAL-FIXER TUBE;RF9000A/AC, RF |
| DA62-01810B | SEAL-GROMMET HANGER;AW-PJT,PU |
| DA62-01500A | SEAL-GUIDE FRENCH;AW-PJT,PE FO |
| DA62-03921A | SEAL-MID FRONT VERTICAL AL;ROM |
| DA62-03903A | SEAL-MID FRONT VERTICAL;ROMANE |
| DA62-04159A | SEAL-PLATE DOOR;ROMANEE CONTI, |
| DA62-02453A | SEAL-REINF CABI MID FRONT;PU F |
| DA62-00079A | SEAL-SUPPORT MOTOR |
| DA62-03420A | SEAL-SUPT TUBE FILTER;AW2-11,P |
| DA62-00959A | SEAL-TUBE WATER |
| DA32-00088A | SENSOR HUMIDITY;5V,0~100%RH,4. |
|
|

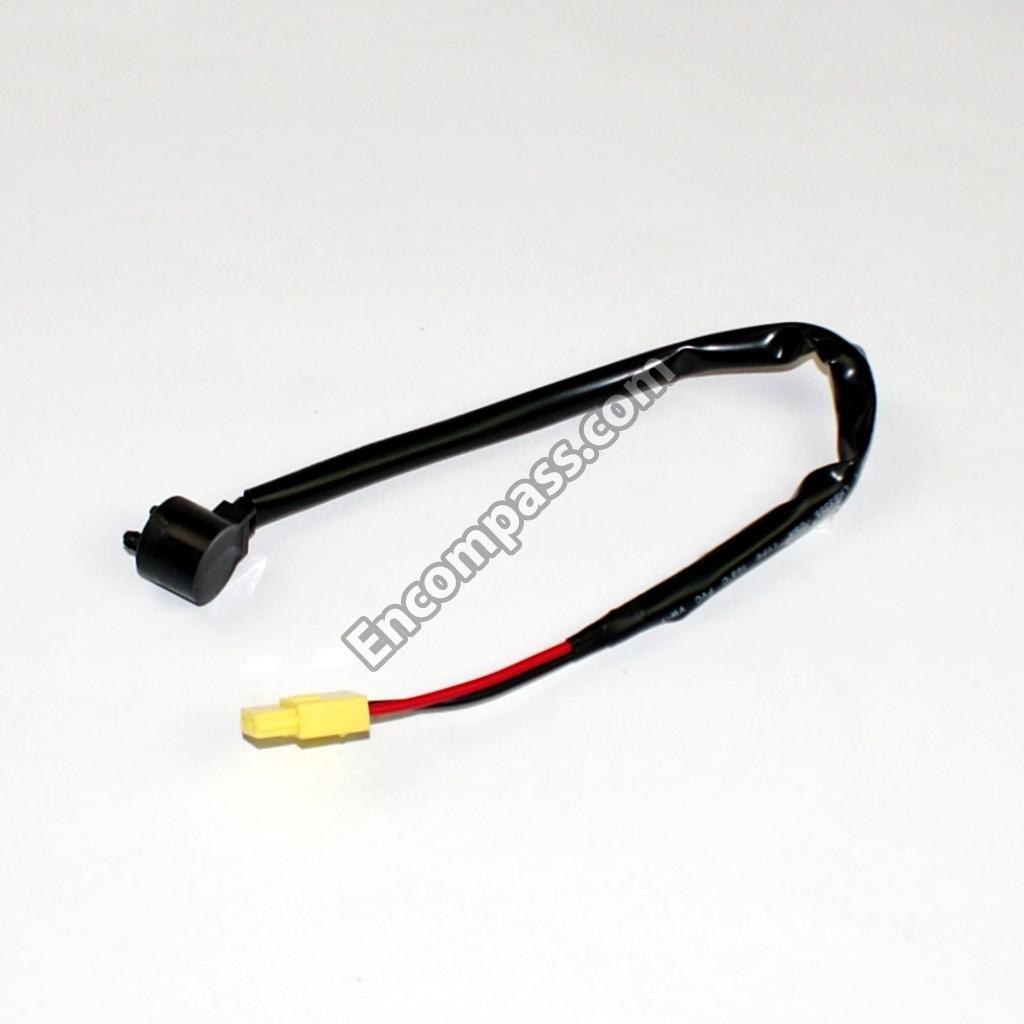

SENSOR TEMP |
|
|
SENSOR TEMP |
| DA32-00070D | SENSOR TEMP |
|
|
SENSOR TEMP |
| DA32-00075D | SENSOR-CAPACITANCE;5V,NEO VICT |
| DA32-00063B | SENSOR-ELECTRODE;5V,CLIPPING T |
| DA66-01048A | SHAFT HINGE-A;FOOD SHOW CASE,S |
| DA66-01640A | SHAFT HINGE-LOW;RF9000C,SWRCH1 |
| DA66-01110A | SHAFT HINGE-MIDDLE;RF-H920G,SW |
| DA66-00960A | SHAFT HINGE-UPP;AW4-PJT,CR-SPC |
| DA66-01255A | SHAFT HINGE;RF9900M,CR-SPCC,T1 |
|
|
SHAFT-CASTER |
| DA66-01507A | SHAFT;RF9000A,STS WIRE,L186.2, |
| DA66-01368A | SHAFT;RF9000R,ZNDC,L429,D8,ZND |
| DA63-07282A | SHEET ABS-PANEL REF;RF8000B,AB |
| DA63-09460A | SHEET;RF9000JC,ABS,T3.5,SE32,C |
| DA67-05162A | SHELF FOLDER-FRONT;RF9000AC,PP |
| DA67-05391A | SHELF FOLDER-REAR;RF8000BC,PP, |
| DA67-05153A | SHELF VEGETABLE-LOW;RF9000AC,H |
| DA67-05390A | SHELF-REF FIX , RF8000BC,PP,CO |
| DA63-00015A | SHIM-HINGE UPP |
|
|
SHIM-HINGE UPP |
| DA63-12013A | SHIM;RF9000C,PP,T1,NATURAL,BJ7 |
| DA61-14181A | SLIDER;RF9900T,POM,BLACK,500P |
| 0103-009131 | SMG PART |
| 0202-002536 | SMG PART |
| 0903-002312 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007319 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007627 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007943 | SMG PART |
| 2007-008117 | SMG PART |
| 2203-000233 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007809 | SMG PART |
| 6902-002318 | SMG PART |
| DA01-02569B | SMG PART |
| DA01-02569C | SMG PART |
| DA02-10004H | SMG PART |
| DA31-00353A | SMG PART |
| DA31-00354A | SMG PART |
| DA41-00867J | SMG PART |
| DA41-00918A | SMG PART |
| DA46-01001A | SMG PART |
| DA47-00572B | SMG PART |
| DA59-00655A | SMG PART |
| DA60-00368B | SMG PART |
| DA61-13394H | SMG PART |
| DA61-13395E | SMG PART |
| DA61-14519B | SMG PART |
| DA61-14524C | SMG PART |
| DA61-15453A | SMG PART |
| DA61-16058C | SMG PART |
| DA61-16181A | SMG PART |
| DA61-16182A | SMG PART |
| DA61-16183A | SMG PART |
| DA61-16204A | SMG PART |
| DA61-16207B | SMG PART |
| DA61-16241A | SMG PART |
| DA61-16242A | SMG PART |
| DA61-16246A | SMG PART |
| DA61-16255A | SMG PART |
| DA61-16256A | SMG PART |
| DA61-16344A | SMG PART |
| DA61-16420A | SMG PART |
| DA61-16421A | SMG PART |
| DA61-16422A | SMG PART |
| DA61-16429A | SMG PART |
| DA61-16432A | SMG PART |
| DA61-16434A | SMG PART |
| DA61-16435A | SMG PART |
| DA61-16436A | SMG PART |
| DA61-16437F | SMG PART |
| DA61-16438A | SMG PART |
| DA61-16439A | SMG PART |
| DA61-16440A | SMG PART |
| DA61-16441A | SMG PART |
| DA61-16442A | SMG PART |
| DA61-16455A | SMG PART |
| DA61-16457A | SMG PART |
| DA62-02084K | SMG PART |
| DA62-04566G | SMG PART |
| DA62-04609E | SMG PART |
| DA62-04618X | SMG PART |
| DA62-05382A | SMG PART |
| DA62-05530A | SMG PART |
| DA62-05613C | SMG PART |
| DA62-05650C | SMG PART |
| DA62-05676A | SMG PART |
| DA62-05932N | SMG PART |
| DA62-05932V | SMG PART |
| DA62-06179C | SMG PART |
| DA62-06290A | SMG PART |
| DA62-06291A | SMG PART |
| DA62-06294A | SMG PART |
| DA62-06295A | SMG PART |
| DA62-06296A | SMG PART |
| DA62-06299A | SMG PART |
| DA62-06299B | SMG PART |
| DA62-06307A | SMG PART |
| DA62-06308A | SMG PART |
| DA62-06349A | SMG PART |
| DA62-06349C | SMG PART |
| DA62-06358A | SMG PART |
| DA62-06427A | SMG PART |
| DA62-06429A | SMG PART |
| DA62-06430A | SMG PART |
| DA62-06431A | SMG PART |
| DA62-06432A | SMG PART |
| DA62-06435A | SMG PART |
| DA62-06436A | SMG PART |
| DA62-06446A | SMG PART |
| DA63-11291D | SMG PART |
| DA63-12175A | SMG PART |
| DA63-12176A | SMG PART |
| DA63-12177A | SMG PART |
| DA63-12178A | SMG PART |
| DA63-12225A | SMG PART |
| DA63-12312A | SMG PART |
| DA63-12313A | SMG PART |
| DA63-12319A | SMG PART |
| DA63-12321A | SMG PART |
| DA63-12322A | SMG PART |
| DA63-12324A | SMG PART |
| DA63-12325A | SMG PART |
| DA63-12326A | SMG PART |
| DA63-12330A | SMG PART |
| DA63-12357A | SMG PART |
| DA64-07585B | SMG PART |
| DA64-07609H | SMG PART |
| DA64-07702B | SMG PART |
| DA64-07708A | SMG PART |
| DA67-05670A | SMG PART |
| DA67-05844A | SMG PART |
| DA67-05845A | SMG PART |
| DA67-05894A | SMG PART |
| DA67-05899A | SMG PART |
| DA67-05900A | SMG PART |
| DA68-04830A | SMG PART |
| DA68-04831A | SMG PART |
| DA68-04832A | SMG PART |
| DA69-02406M | SMG PART |
| DA69-02483A | SMG PART |
| DA69-02597C | SMG PART |
| DA69-02882A | SMG PART |
| DA69-02883A | SMG PART |
| DA72-60446A | SMG PART |
| DA90-14152F | SMG PART |
| DA90-14871A | SMG PART |
| DA90-14882A | SMG PART |
| DA90-14884G | SMG PART |
| DA90-14885A | SMG PART |
| DA90-14887D | SMG PART |
| DA90-14911A | SMG PART |
| DA90-14921A | SMG PART |
| DA90-14924H | SMG PART |
| DA90-14927H | SMG PART |
| DA90-14928F | SMG PART |
| DA90-14934N | SMG PART |
| DA91-06512P | SMG PART |
| DA91-06525T | SMG PART |
| DA91-06618A | SMG PART |
| DA91-06640A | SMG PART |
| DA91-06641A | SMG PART |
| DA91-06643A | SMG PART |
| DA91-06688A | SMG PART |
| DA91-06704A | SMG PART |
| DA92-01808C | SMG PART |
| DA92-01818C | SMG PART |
| DA92-01821B | SMG PART |
| DA92-01831A | SMG PART |
| DA92-01833A | SMG PART |
| DA92-01835D | SMG PART |
| DA92-01836A | SMG PART |
| DA92-01837A | SMG PART |
| DA93-00946V | SMG PART |
| DA93-01617P | SMG PART |
| DA93-01621H | SMG PART |
| DA93-01622H | SMG PART |
| DA93-01681B | SMG PART |
| DA93-01685A | SMG PART |
| DA93-01686A | SMG PART |
| DA93-01690E | SMG PART |
| DA93-01692G | SMG PART |
| DA93-01693G | SMG PART |
| DA94-09975A | SMG PART |
| DA94-09976A | SMG PART |
| DA94-10002A | SMG PART |
| DA94-10037X | SMG PART |
| DA94-10093A | SMG PART |
| DA96-00852H | SMG PART |
| DA96-01644B | SMG PART |
| DA96-01721A | SMG PART |
| DA96-01722N | SMG PART |
| DA96-01723H | SMG PART |
| DA96-01724C | SMG PART |
| DA96-01726A | SMG PART |
| DA96-01726B | SMG PART |
| DA96-01727B | SMG PART |
| DA96-01740A | SMG PART |
| DA97-15798D | SMG PART |
| DA97-15978P | SMG PART |
| DA97-21158W | SMG PART |
| DA97-21395A | SMG PART |
| DA97-21949C | SMG PART |
| DA97-22125Q | SMG PART |
| DA97-22349P | SMG PART |
| DA97-23260E | SMG PART |
| DA97-24205L | SMG PART |
| DA97-24586T | SMG PART |
| DA97-24586Y | SMG PART |
| DA97-24886V | SMG PART |
| DA97-24889G | SMG PART |
| DA97-24921C | SMG PART |
| DA97-24922C | SMG PART |
| DA97-24923C | SMG PART |
| DA97-24924D | SMG PART |
| DA97-24925A | SMG PART |
| DA97-24975B | SMG PART |
| DA97-25057B | SMG PART |
| DA97-25116A | SMG PART |
| DA97-25339B | SMG PART |
| DA97-25351A | SMG PART |
| DA97-25356A | SMG PART |
| DA97-25356B | SMG PART |
| DA97-25357A | SMG PART |
| DA97-25364A | SMG PART |
| DA97-25366A | SMG PART |
| DA97-25394B | SMG PART |
| DA97-25400B | SMG PART |
| DA97-25412A | SMG PART |
| DA97-25415A | SMG PART |
| DA97-25416A | SMG PART |
| DA97-25429D | SMG PART |
| DA97-25456A | SMG PART |
| DA97-25458A | SMG PART |
| DA97-25464A | SMG PART |
| DA97-25465A | SMG PART |
| DA97-25466A | SMG PART |
| DA97-25467A | SMG PART |
| DA97-25500C | SMG PART |
| DA98-03534A | SMG PART |
| NO14C9131AKD01 | SMG PART |
| DA02-00202A | SOLDER RING;ID6.4,91.75CU/6.25 |
| DA02-00202D | SOLDER RING;ID:2.1,91.75CU/6.2 |
| DA02-00202H | SOLDER RING;ID:3.55,91.75CU/6. |
| DA02-00202C | SOLDER RING;ID:7.99,91.75CU/6. |
| DA02-00202F | SOLDER RING;YSS26,D0.6,26AG/41 |
| 0202-001338 | SOLDER-BAR |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM |
| 0202-001463 | SOLDER-WIRE |
| 0204-005794 | SOLVENT;S-1000,(CH3)2CHOH,100% |
| 3001-002875 | SPEAKER;8OHM,82DB,350HZ,60.5X4 |
| DA61-16058A | SPRING AUTO CLOSE;RF9000CC,PW- |
| DA61-08315A | SPRING ETC-ETC CAP GUIDE |
|
|
SPRING ETC-HANDLE |
| DA61-02609B | SPRING ETC-PIPE WATER;AW-PJT,S |
| DA61-05783A | SPRING ETC-SHAFT;SSEDA,STS304, |
| DA61-08314B | SPRING FRENCH;RFH920G,STS304 |
| DA61-13565A | SPRING LEVER;RF9000R,STS304,ID |
| DA61-11871A | SPRING;RF8000MC,STS304,ID7,OD9 |
| DA61-14550A | SPRING;RF9000A,STS304,OD1.2, |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,-30TO+80 |
| 0101-002926 | STEEL PLATE;GI,SGCC,0.35MM,290 |
| DA61-14211B | STOPPER DOOR LEFT |
| DA61-13384A | STOPPER DOOR REF LOW |
| DA61-14210B | STOPPER DOOR RIGHT |
|
|
STOPPER DOOR-L |
|
|
STOPPER DOOR-R |
| DA61-10712B | STOPPER ROLLER;RF9000K,SWRCH10 |
| DA61-15273A | SUPPORT DOOR-CLOSE;RF9000B,PK, |
| DA61-15257A | SUPPORT ICE MAKER;RF9000B,HIPS |
| DA61-14470A | SUPPORT RAIL;RF9000A,HIPS,S834 |
| DA61-14551A | SUPPORT TRAY-ICE;RF9000A,HIPS, |
| DA61-14553A | SUPPORT TRAY-MIDDLE;RF9000A,HI |
| DA61-09179A | SUPPORT TUBE;AW4 F/S,PP,MU30HP |
|
|
SUPPORT-CIRCUIT MOTOR |
| DA61-13947A | SUPPORT-REF;BESPOKE,PP,T1.5,W1 |
| 4715-001217 | SURGE ABSORBER;3600V,20%,3000A |
|
|
SWITCH REED |
| DA34-00043M | SWITCH REED |
|
|
SWITCH-MICRO |
| DA02-00250A | TAPE AL;RQ9500R,AL,T0.135,NATU |
| 0203-001865 | TAPE DOUBLE FACE;ACRYL,T0.8,WH |
| DA02-10014A | TAPE ETC-AL |
| DA02-00210B | TAPE ETC-GLASS DOOR LOW;MOUTON |
| DA02-10004G | TAPE ETC-PAPER |
| DA02-10008A | TAPE-AL |
| DA02-10013B | TAPE-AL |
| 0203-000444 | TAPE-AL FOIL |
| 0203-001151 | TAPE-AL FOIL |
| 0203-001481 | TAPE-AL FOIL |
| 0203-006491 | TAPE-AL FOIL;AL,T0.03,W20,N/A, |
| DA02-10015A | TAPE-BINDER |
| 0203-001810 | TAPE-COTTON |
| DA02-10009A | TAPE-COTTON |
| DA02-10007A | TAPE-DOUBLE FACE |
| 0203-006383 | TAPE-DOUBLE FACE , ACRYL,T0.4, |
| 0203-006442 | TAPE-DOUBLE FACE , COTTON,T0.1 |
| 0203-003411 | TAPE-DOUBLE FACE;#9183,T0.16,W |
| 0203-001523 | TAPE-DOUBLE FACE;ACRYL,T0.15,W |
| 0203-006432 | TAPE-DOUBLE FACE;COTTON,T0.15, |
| DA02-10005A | TAPE-MASKING |
| DA02-10010A | TAPE-OPP |
| 0203-006654 | TAPE-OPP MASKING;OPP,123,T0.06 |
| 0203-006630 | TAPE-OPP MASKING;OPP,T0.065,W5 |
| 0203-001308 | TAPE-PAPER |
| DA02-10004C | TAPE-PAPER |
| DA02-10150A | TAPE-PAPER |
| DA02-10011A | TAPE-PE |
| DA02-10012A | TAPE-PET |
| 0203-001367 | TAPE-POLY |
| 0203-001812 | TAPE-POLY |
| 0203-006796 | TAPE-POLY |
| 0203-006800 | TAPE-POLY |
| 0203-006407 | TAPE-POLY;DTS-204C,T0.055,W70 |
| 0203-000338 | TAPE-POLY;OPP,T0.072,W35,L50M, |
| 0203-006795 | TAPE-POLY;PP,GRADE 64294,T0.11 |
| 0203-006797 | TAPE-POLY;PP,T0.11,W25,N/A,WHI |
| 0203-007305 | TAPE-SINGLE FACE , PP,T0.11,W1 |
| 0203-006329 | TAPE-SINGLE FACE;COTTON,T0.24, |
| 0203-001060 | TAPE-SINGLE FACE;OPP,T0.065,W7 |
| 0203-006505 | TAPE-SINGLE FACE;OPP,T0.13,W40 |
| 0203-006521 | TAPE-SINGLE FACE;PET,T0.037,W8 |
| DA02-00038A | TETRAFLUOROETHANE |
| 1404-001544 | THERMISTOR-NTC;10KOHM,1%,3435K |
| 1404-001872 | THERMISTOR-PTC |
|
|
THERMO BIMETAL-PROTECTOR |
| 0506-000175 | TR-ARRAY |
| 0504-001080 | TR-DIGITAL |
| 0502-001250 | TR-POWER |
| 0501-000465 | TR-SMALL SIGNAL |
| 0501-000467 | TR-SMALL SIGNAL |
| DA26-00058C | TRANS SWITCHING;AC85-265V,3400 |
| DA63-12052A | TRAY DRAIN-WATER;RF9000C,PP,T2 |
| DA63-12053A | TRAY DRAIN-WATER;RF9000C,PP,T2 |
| DA63-11558A | TRAY ICE-FRONT;RF9000A,SI,T3,I |
| DA63-11256A | TRAY ICE;RF9000A,ALDC12,T1.5,A |
| DA63-09323A | TRAY ICE;RS8000NC,PP,T1,NATURA |
| DA63-09788A | TRAY WATER;RF6000T,HIPS,T2.5,C |
| DA63-11557A | TRAY-MOVING;RF9000A,SI,T3,ICE |
| DA64-05373F | TRIM BLADE;RF9000DC,PVC,LIGHT |
| DA64-06367B | TRIM COVER-REF;RF9000A,HIPS,S8 |
| DA64-06223A | TRIM DOOR-REF;RF9000R(B),ABS,H |
| DA64-06286A | TRIM DOOR-UP;RF9000T,ABS,HG-07 |
| DA64-06425A | TRIM DOOR-UP;RF9000TC,ABS,HG-0 |
| DA64-06487B | TRIM SHELF-FRONT;RF8000B,ABS,H |
| DA64-05903E | TRIM SHELF-REAR;RF8000B,HIPS,S |
| DA64-04915E | TRIM SHELF-REF FRONT;RF9000R,A |
| DA64-04915F | TRIM SHELF-REF FRONT;RF9000R,A |
| DA64-06490A | TRIM SHELF-REF;RF9000A/AC,ABS, |
| DA64-03784A | TRIM SHELF;ARAM,LDPE,MB9500,-,NATURAL,- |
| DA62-04606B | TUBE-AL;AL,L520,T0.34, LA+CE |

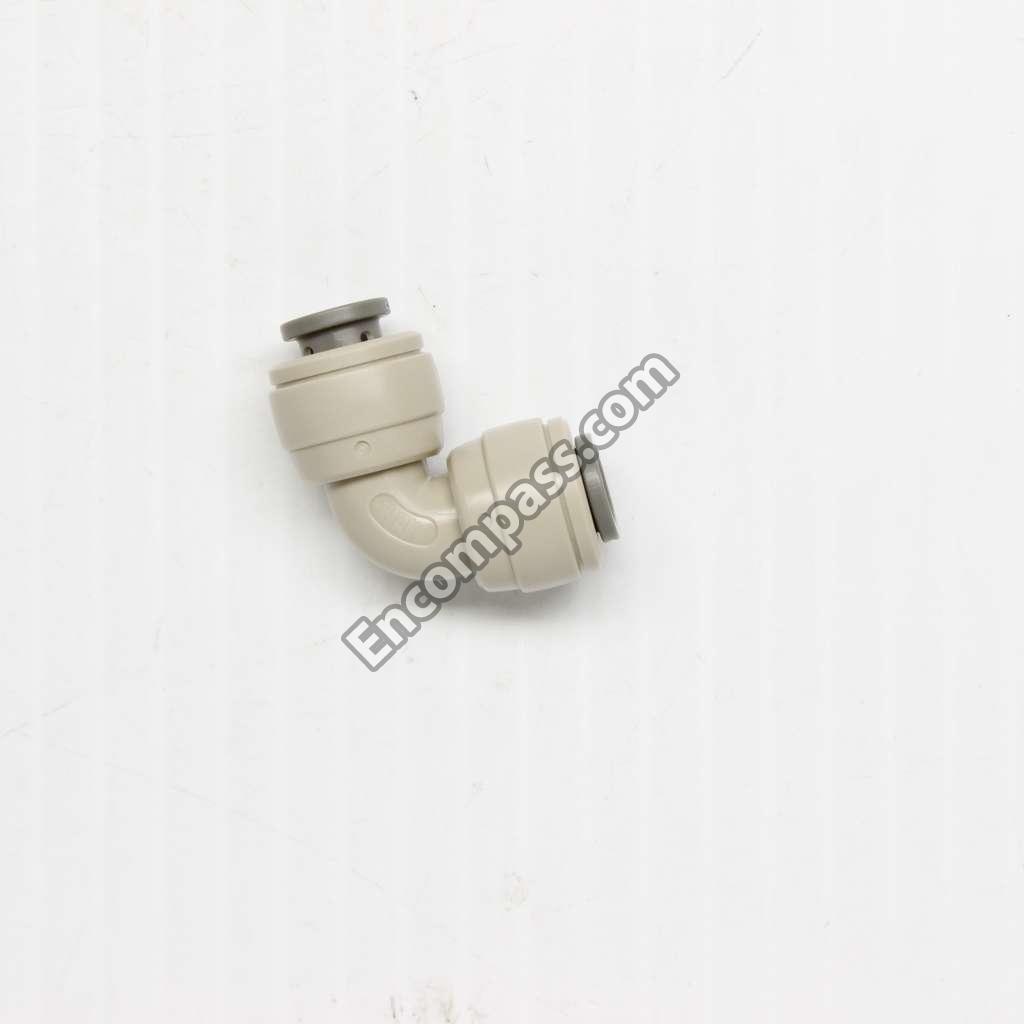

| DA62-02414A | TUBE-FITTING L |
|
|
TUBE-FITTING L |
| DA62-04299A | TUBE-LEFT;AW-CD,LDPE,L0.1,MB95 |
| DA62-06196A | TUBE;RF9000,PO,OD11.6,L200,ID1 |
|
|
VALVE STEP |
| DA62-04030D | VALVE WATER;AC110-127V,RF6000T |
|
|
VALVE-FITTING NUT |
|
|
VALVE-FITTING PU |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X |
| DA69-01982Q | WRAP VINYL , REF_ALL,LDPE,T0.0 |
| DA69-01982F | WRAP VINYL;LDPE,T0.04,W130,ROL |
| DA69-01981Q | WRAP VINYL;LDPE,T0.04,W200,ROL |
| DA69-01981B | WRAP VINYL;LDPE,T0.04,W30,ROLL |
| DA69-01981C | WRAP VINYL;LDPE,T0.04,W40,ROLL |
| DA69-01981E | WRAP VINYL;LDPE,T0.04,W50,ROLL |
| DA69-01981R | WRAP VINYL;LDPE,T0.04,W60,ROLL |
| DA69-01981H | WRAP VINYL;LDPE,T0.04,W90,ROLL |
| DA69-01982G | WRAP VINYL;LDPE,T0.04,W90,ROLL |
| DA69-01982L | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-01982N | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-01982U | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-01982V | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-01982X | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-01982Z | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-02483F | WRAP VINYL;REF_ALL,LDPE,T0.05, |
| DA69-02597A | WRAP VINYL;REF_ALL,PET,T0.06,W |
