Model Image
Manufacturer

Samsung

Model Number

SCX-5330N

Description

Monochrome Laser Multifunction Printer

Interactive Exploded View

Parts List

Part Number Description

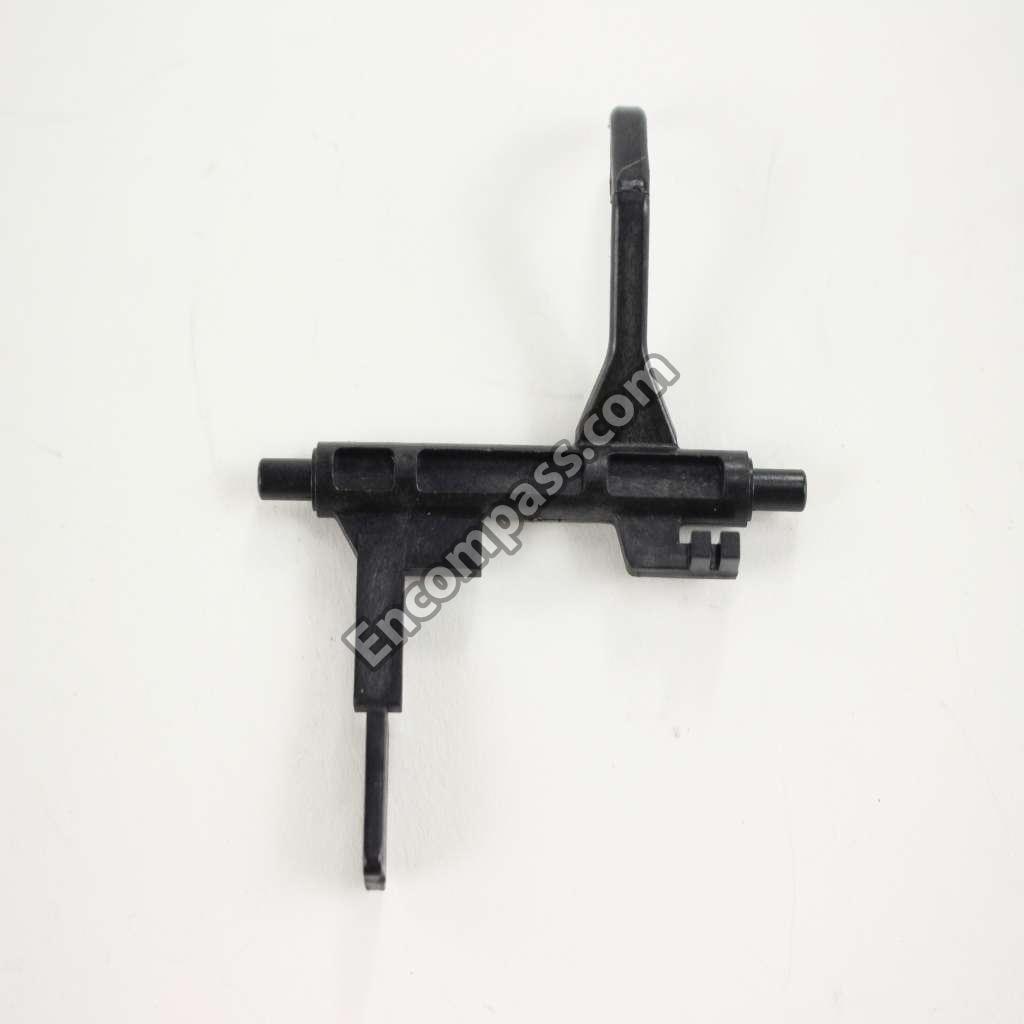

JC66-01284A JC66-01284A Samsung ACTUATOR-EXIT;SCX-5530FN,PBT+GF30%,2.00,
JC70-00300A Samsung ADJUST-M-CASSETTE_L;ML-1400,ABS,VIOLET B
JC70-00301A Samsung ADJUST-M-CASSETTE_R;ML-1400,ABS,VIOLET B
JC90-00932A JC90-00932A Samsung ASF-PICK UP;CLP-660,DOM,-,-,-
6902-000332 Samsung BAG CONDUCTIVE;LDPE,T0.07,W250,L500,BLK,
6902-000288 Samsung BAG PE;LDPE,T0.05,W250,L450,TRP,8,2,10.5
JB72-00764A Samsung BAND;SCX-1110/XRX,POM,WHT
3301-000319 Samsung BEAD-SMD;11OHM,2X1.25X0.9MM,TP
3301-000317 Samsung BEAD-SMD;120OHM,2012,TP,-,-
6601-001479 6601-001479 Samsung BEARING-BALL;6705ZZ,ID25.0,OD32.0,L4,CWB
6602-001067 Samsung BELT-TIMING GEAR;FIBER GLASS,T3.2,T80-40
JC61-01695A Samsung BRACKET-P_WHITE_BAR;SCX-5530FN,SECC,1.00
JC61-00895A Samsung BRACKET-SCAN MOTOR R2;SCX-4920N,PC+GF10%
JC67-00208A Samsung BRUSH-ANTISTATIC;SCX-5530FN,AL+SUS FIBER
JC61-00423A Samsung BUSH-6_D;ML-9400W,BEARING,?6,NTR
JC61-01958A JC61-01958A Samsung BUSH-HR;ML-3471ND/SEE,PPS,14.45,16.41,36
JC61-00585A Samsung BUSH-M-FEED IDLE;ML-1710,POM AT-15CF,?3.
JC61-00587A Samsung BUSH-M-PICK_UP R;ML-1710,POM,?11,WHT
JC61-00588A JC61-00588A Samsung BUSH-M-TR L;ML-1710,POM,?6.1,?8,BLK
JC66-10901A JC66-10901A Samsung BUSH-PRESSURE R;ML-165,PPS(RBA313N),14,7
JC72-00382B Samsung BUSH;ML-1710,POM(DERLIN 8903),WHITE
2402-001049 Samsung C-AL,SMD;10UF,20%,16V,GP,TP,3.3X3.3X5.4
2402-000173 Samsung C-AL,SMD;4.7UF,20%,35V,GP,TP,4.3X4.3X5.4
2402-000008 Samsung C-AL,SMD;47UF,20%,16V,GP,TP,6.6X6.6X5.4
2401-000042 Samsung C-AL;100UF,20%,16V,GP,TP,6.3X7,5
2401-000414 Samsung C-AL;10UF,20%,16V,GP,TP,4X7,5
2401-002300 Samsung C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM
2203-000384 Samsung C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0.
2203-000041 Samsung C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
2203-000626 Samsung C-CER,CHIP;0.022NF,5%,50V,C0G,1608
2203-000998 Samsung C-CER,CHIP;0.047NF,5%,50V,C0G,1608
2203-001071 Samsung C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
2203-000357 Samsung C-CER,CHIP;0.15NF,5%,50V,C0G,1608
2203-001607 Samsung C-CER,CHIP;0.22NF,5%,50V,NP0,1608
2203-000783 Samsung C-CER,CHIP;0.33NF,5%,50V,C0G,1608
2203-005819 Samsung C-CER,CHIP;1000NF,+80-20%,16V,Y5V,TP,160
2203-005249 Samsung C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-000206 Samsung C-CER,CHIP;100NF,10%,50V,X7R,TP,2012
2203-000257 Samsung C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-000440 Samsung C-CER,CHIP;1NF,10,50V,X7R,TP,1608
2203-000491 Samsung C-CER,CHIP;2.2NF,10%,50V,X7R,1608
2203-002392 Samsung C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012
2203-005384 Samsung C-CER,CHIP;4700NF,+80-20%,10V,Y5V,TP,201
6502-001093 Samsung CABLE CLAMP;DAWS-3NE,ID11*L34.8,NYLON66,
6501-000004 Samsung CABLE TIE;DA-80,T1,W2.5,L80,NTR,NYLON66
JC66-00050A Samsung CAM-CATCH;ML-9400W,POM,34X18X7,WHITE
JC66-00377A Samsung CAM-M-PICK_UP;ML-1710,POM(DELIN 8903),WH
JC66-01205A Samsung CAM-M_PICK UP MP;ML-3051ND,POM,16.5*23.4
JC66-01170A Samsung CAM-SHAFT PICK UP;SCX-5530FN,POM(M9044),
JC39-00523A Samsung CBF HARNESS-AC INLET;SCX-5530FN,CBF,UL16
JC39-00538A JC39-00538A Samsung CBF HARNESS-ADF CLUT1;SCX-5530FN,CBF,UL
JC39-00537A Samsung CBF HARNESS-ADF LOWER;SCX-5530FN,UL 1061
JC39-00534A Samsung CBF HARNESS-ADF R GND;SCX-5530FN,UL1007,
JC39-00536A Samsung CBF HARNESS-ADF UPPER;SCX-5530FN,UL 1061
JC39-00531A Samsung CBF HARNESS-CCD_HOME;SCX-5530FN,CBF,UL10
JC39-00517A Samsung CBF HARNESS-CRUM2;SCX-5530FN,CBF,UL 1061
JC39-00526A Samsung CBF HARNESS-DUPLEX;SCX-5530FN,CBF,UL 106
JC39-00518A Samsung CBF HARNESS-ENGINE;SCX-5530FN,CBF,UL 106
JC39-00529A Samsung CBF HARNESS-EXIT MTR;SCX-5530FN,CBF,UL 1
JC39-00522A Samsung CBF HARNESS-FUSER AC;SCX-5530FN,CBF,UL31
JC39-00520A Samsung CBF HARNESS-FUSER CON;SCX-5530FN,CBF,UL3
JC39-00609A Samsung CBF HARNESS-FUSER R_2;SCX-5530FN,CBF,UL3
JC39-00524A Samsung CBF HARNESS-LSU S/W;SCX-5530FN,CBF,UL 10
JC39-00527A Samsung CBF HARNESS-MAIN MTR;SCX-5530FN,CBF,UL 1
JC39-00365A Samsung CBF HARNESS-MPF SEN;SCX-4720F,CBF,UL1061
JC39-00513B Samsung CBF HARNESS-OPE;SCX-5525DN,CBF,UL1061,7,
JC39-00528A Samsung CBF HARNESS-PAPER EMP;SCX-5530FN,CBF,UL
JC39-00535A Samsung CBF HARNESS-PLA_COVER;SCX-5530FN,CBF,UL1
JC39-00519A Samsung CBF HARNESS-SMPS;SCX-5530FN,CBF,UL 1061,
JC39-40511A Samsung CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV
JC39-00001A JC39-00001A Samsung CBF IF-USB;ML-6100,4,UL2725,1800 +/- 50,
JC39-00514A JC39-00514A Samsung CBF SIGNAL-CCD FFC;SCX-5530FN,24PIN,FFC,
3903-000042 3903-000042 Samsung CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/
JC66-00972A Samsung CLUTCH-2.5K Z24;SCX-6345N/XRX,POM+METAL,
JB27-00004A Samsung COIL CHOKE-DIP;DR 8X11(470UH),MJC-1450,4
3708-001637 Samsung CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S
3301-001877 Samsung CORE-FERRITE;33X30X6.5MM,2800,1500GAUSS
JC63-02123A Samsung COVER-DUMMY MIDDLE;SCX-5635FN,HIP HR-136
JC63-00985A Samsung COVER-M_ADF UPPER;SCX-5530FN,HIPS,188.3,
JC63-00963A Samsung COVER-M_DUMMY DUP WO;SCX-5530FN,HIPS,2.5
JC63-00993A Samsung COVER-M_LCD;SCX-5530FN,PC,1,86.6,39,CLEA
JC63-00934A Samsung COVER-M_LEFT UPPER;SCX-5530FN,HIPS,2.5,9
JC63-00927A Samsung COVER-M_MIDDLE;SCX-5530FN,HIPS,2.5,331.6
JC63-01002M Samsung COVER-M_NEVI 3IN1;SCX-5330N/TED,HIPS,2.0
JC63-00987M Samsung COVER-M_OPE 3IN1 MONO;SCX-5330N,HIPS,2.5
JC63-00933A Samsung COVER-M_RIGHT UPPER;SCX-5530FN,HIPS,2.5,
JC63-00152F Samsung COVER-M_SCAN DUMMY;SCX-5530FN,HIPS,63.7,
JC63-00928A Samsung COVER-M_SIDE R;SCX-5530FN,PC+ABS,2.5,409
JC63-00944A Samsung COVER-M_STACKER RX;SCX-5530FN,HIPS,2.5,7
JC63-02376A Samsung COVER-REAR STACKER;SCX-5635FN,ABS HF-066
JC63-00076A Samsung COVER-WINDOW SF-530;SF-530,PVC FILM,T0.
2801-000111 Samsung CRYSTAL-SMD;0.032768MHZ,20PPM,28-AAW,12.
JC69-00917A Samsung CUSHION-MAIN B;SCX-5530FN,EPS,571,540,15
JC69-00917C Samsung CUSHION-MAIN D;SCX-5530FN,EPS,285,135,10
JC69-00917B Samsung CUSHION-MAIN T;SCX-5530FN,EPS,571,540,32
0402-000129 Samsung DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP
0402-001212 Samsung DIODE-RECTIFIER;SS26,60V,2A,SMB,TP
0404-000112 Samsung DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T
0407-000122 Samsung DIODE-SWITCHING;KDS226,80V,100MA,SOT-23,
0401-000116 Samsung DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD
JC96-03784A Samsung ELA HOU-ADF LOWER;SCX-5530FN,SEC,-,-,-,-
JC96-03783A Samsung ELA HOU-ADF MOTOR;SCX-5530FN,SEC,-,-,-,-
JC96-03773A Samsung ELA HOU-ADF;SCX-5530FN,SEC,-,-,-,-
JC96-03819A Samsung ELA HOU-CCDM_2905;SCX-5525DN,-,-,-,-,-,-
JC96-03793B Samsung ELA HOU-COVER MID_LOW;SCX-5330N,-,-,ELBE
JC96-03760A Samsung ELA HOU-FRAME ETC;SCX-5530FN,-,-,ELBERT,
JC96-03789C Samsung ELA HOU-FRAME;SCX-5530FN,XEU,USA,220V,-,
JC96-03866A Samsung ELA HOU-FUSER DRIVE;SCX-5530FN,-,-,ELBER
JC96-03829A Samsung ELA HOU-GUIDE DUP F;SCX-5530FN,-,-,ELBER
JC96-03837A Samsung ELA HOU-MPF;SCX-5530FN,-,-,-,-
JC96-03782M Samsung ELA HOU-OPE 3IN1;SCX-5330N,SEC,-,-,-,-,-
JC96-03775A Samsung ELA HOU-PLATEN;SCX-5530N,SEC,-,-,-,-
JC96-03069A Samsung ELA HOU-SCAN MOTOR;SCX-4920N,DELL,-,SCAN
JC96-04051A Samsung ELA HOU-SMPS;SCX-5530FN,-,-,ELBERT,220V,
JC96-04726A Samsung ELA UNIT-CORE;SCX-5530FN,SAMSUNG,CORE AS
JC96-03800C Samsung ELA UNIT-FUSER;SCX-5530FN,XEU,UK,220V,-,
JC96-03761A Samsung ELA UNIT-MAIN DRIVE;SCX-5530FN,SEC,-,-,-
JC31-00025B Samsung FAN-DC;AD0624MS-A70GL,SCX-6345N/XRX,PBT+
JC31-00025A Samsung FAN-DC;AD0624MSA70GL(R1)DOL,CLP-500,PBT+
0505-001350 Samsung FET-SILICON;NDT2955,P,-60V,-2.5V,0.3OHM,
JC61-01367A JC61-01367A Samsung FIXER-M_E RING 4PI;SCX-6345N/XRX,POM,T1.
JC61-00835A Samsung FOOT-BACK;ML-1750,NBR,D13.6,10.5
JC61-01621A Samsung FRAME-M_EXIT;SCX-5530FN,PC,V0,BLK,2.5,33
JC66-01175A Samsung GEAR-24;SCX-5530FN,POM,0.6,Z 24,WHITE
JC66-00456A JC66-00456A Samsung GEAR-40/21 ADF;SCX-4216F,POM,A:0.6,B:0.6
JC66-00455A Samsung GEAR-58/25 ADF;SCX-4216F,POM,A:0.6,B:0.6
JB66-00103A Samsung GEAR-ADF 38;SCX-1110F,POM,0.6,38,22.8,NT
JB66-00104A Samsung GEAR-ADF IDLE 34;SCX-1110F,POM,0.6,34,20
JC66-00310A Samsung GEAR-AGITATOR-2;SCX-5100,POM M90-44,0.6,
JC66-00381A Samsung GEAR-AGITATOR;ML-1710,POM M90-44,0.6,22
JC66-40209A Samsung GEAR-EXIT;ML-80,POM,WHT
JC66-00393A Samsung GEAR-FEED 1;ML-1710,POM,0.8,NTR,HB
JC66-01165A Samsung GEAR-FEED2 Z27;SCX-5530FN,POM M90-44,0.8
JC66-01210A JC66-01210A Samsung GEAR-FUSER IDLE FR;SCX-5530FN,NYLON,1,29
JC66-01588A JC66-01588A Samsung GEAR-FUSER;ML-3471ND/SEE,PPS,1,37,34.4,S
JC66-00340A JC66-00340A Samsung GEAR-HUB CLUTCH;SCX-5100,POM,M0.8,Z13,NT
JC66-01153A JC66-01153A Samsung GEAR-IDLE 23 FUSER;ML-3560,299X 117946,1
JC66-00396A JC66-00396A Samsung GEAR-IDLE 23;ML-1710,POM,0.8,23,BLK,HB
JC66-00425A JC66-00425A Samsung GEAR-IDLE 33;ML-2150,POM,1,33,8,YELLOW,3
JC66-00458A Samsung GEAR-IDLE 35 ADF;SCX-4216F,POM,0.6,Z35,W
JC66-00699A Samsung GEAR-IDLE 37/19;SCX-4920N,POM M90-44,A:0
JB66-00083A Samsung GEAR-IDLE;SCX-1110/XRX,POM M90-44,0.5,31
JC66-00012A Samsung GEAR-OPC R;SF-5100,POM M90-44,0.6,Z40,BL
JB66-00105A Samsung GEAR-PICK UP 26;SCX-1110F,POM,0.6,26,15.
JB66-00102A Samsung GEAR-PICK UP IDEL 38;SCX-1110F,POM,0.6,3
JG66-40003A Samsung GEAR-PINION;SF4000,POM,1,Z16,WHT
JC66-00417A JC66-00417A Samsung GEAR-RDCN FUSER OUT;ML-2150,NYLON,1,25,8
JC66-00530A Samsung GEAR-REDUCTION73/37;SCX-6320F,POM M90-44
JC66-00457A Samsung GEAR-SWING 31/20 ADF;SCX-4216F,POM,A:0.6
JC66-00484A Samsung GEAR-T2 IDEL_Z27;CLP-500,POM,0.8,Z27,BLA
JC66-00531A Samsung GEAR-TIMING;SCX-6320F,POM M90-44,0.5,Z57
JC66-00395A Samsung GEAR-TRANSFER;ML-1710,POM M90-44,0.6,BLK
JC01-00001A Samsung GLASS-SCAN;329.9*247.5,2.8
JC63-00372A Samsung GROUND-P-ADF R2;SCX-4920N,PHOSPHORUS BRA
JC63-01205A Samsung GROUND-PAD;ML-4550,SUS 301-CSP 1/2H,0.2,
JC61-04021A Samsung GUIDE-CLAW_PI;SCX-5530,PTFE,10,13.5,CLAW
JC61-00918B Samsung GUIDE-M-EXTENSION L2;ML-2250,HIPS,184.2,
JC61-01628A Samsung GUIDE-M_INPUT;SCX-5530FN,PET+GF30%,2,29.
JC61-00607A Samsung GUIDE-P-TR;ML-1710,SECC,0.5,239.1,76.4
JC61-00712A Samsung GUIDE-STACKER SUB;SCX-4216F,PC+ABS,2.5T,
JC61-01746A Samsung GUIDE-TR RIB;SCX-5530FN,PC+ABS,78.9,239.
JC39-00617A Samsung HARNESS-ADF GND;SCX-5530FN,CBF,UL 1007,1
JC39-00306A Samsung HARNESS-LCD;CLP-500,WIRE,UL2877,14-14,35
3711-003035 Samsung HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,STR
3711-002000 Samsung HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,STR
3711-003981 Samsung HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR
3711-003942 Samsung HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA
3711-003408 Samsung HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA
3711-003968 Samsung HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,ST
3711-004349 Samsung HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA
3711-003409 Samsung HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA
3711-004379 Samsung HEADER-BOARD TO CABLE;BOX,4P,1R,2MM,STRA
3711-002807 Samsung HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,STRA
JC61-00695A Samsung HINGE-M-CAM;SCX-4216F,POM,WHITE
JC61-00696A Samsung HINGE-M-FRAME;SCX-4216F,POM,WHITE
JC61-00697A Samsung HINGE-M-PRESSURE;SCX-4216F,PC(LF1025),NT
JC61-00829A JC61-00829A Samsung HOLDER-BEARING EXIT F/DOWN;SCX-4216F,POM
JC61-00785A Samsung HOLDER-M-IDLE ROLLER;ML-2150,PC,BLK
JC61-00924A Samsung HOLDER-M-PAD_MP;ML-2250,PC+ABS,48,24.2
JC61-00907A Samsung HOLDER-M-PTL R2;SCX-4920N,PC(NH-1023P),1
JC61-00926A Samsung HOLDER-M-SENSOR_MP;ML-2250,ABS,22.3,36.5
JC61-01618A Samsung HOLDER-M_ACT FEED;SCX-5530FN,ABS,2.0,49.
JC61-01619A JC61-01619A Samsung HOLDER-M_ACT REGI;SCX-5530FN,ABS,2.0,60.
JC61-00894B Samsung HOLDER-M_CCD;SCX-4720F/XRX,HIPS,2,43.6,3
JC61-01305A Samsung HOLDER-M_JAM L;ML-2550,PC+GF20%,T1.5,12.
JC61-00953A Samsung HOLDER-M_LOCKER;SCX-5530FN,HIPS HB,113.4
JC61-00893B Samsung HOLDER-M_PAD ADF;SCX-5530FN,POM,1.5,44.9
JC61-01625A Samsung HOLDER-M_REAR_LEVER;SCX-5530FN,PC,NH-102
JC61-01796A Samsung HOLDER-PAD;ML-4050N,PC,2.5,14.7,48,BLACK
JC61-01978A JC61-01978A Samsung HOUSING-HOLDER PAD;ML-3471ND,ABS,2.0,45.
JC61-00910A Samsung HOUSING-M-PICK UP2_R2;SCX-4920N,PC+ABS,5
JC61-01601A Samsung HOUSING-M_PICK UP;SCX-5530FN,PC+ABS,17.0
JC61-00925A Samsung HOUSING-M_PICK UP_MP;ML-2250,PC+ABS,20.2
JC44-00107A JC44-00107A Samsung HVPS-ELBERT;24V,21.6V~27.6V,MAX 5KV,MAX-
JC13-00031C Samsung IC ASIC-CHORUSM;CHORUSM,SCX-5530FN,496PI
JB13-00004A Samsung IC ASIC-OPE;HT48C50-1-SPPF,SF-3100,48P,+
1106-001228 Samsung IC-ASYNC SRAM;K6R1016V1D,1MBIT,64KX16,TS
1205-002339 Samsung IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150
0801-002469 Samsung IC-CMOS LOGIC;74HC14,SCHMITT INVERTER,TS
0801-002446 Samsung IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T
0801-002379 Samsung IC-CMOS LOGIC;74LCX16245,TRANSCEIVER,TSS
1203-003739 Samsung IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM,
1105-001379 Samsung IC-DRAM;K4S561632,256MBIT,4X4MX16,TSOP(I
1103-001279 Samsung IC-EEPROM;24C32,32KBIT,4KX8,SOP,8P,5X4MM
1006-001224 Samsung IC-LINE TRANSCEIVER;74LVX161284,TSSOP,48
1003-001535 Samsung IC-MOTOR DRIVER;A3977SLP,TSSOP,28P,9.6X4
1003-001729 Samsung IC-MOTOR DRIVER;AN44060A,HSOP,28P,326MIL
1107-001590 Samsung IC-NOR FLASH;S29GL064M,64MBIT,8MX8/4MX16
1205-002762 Samsung IC-TRANSCEIVER;BCM5241A1KMLG,MLP,32P,5X5
1202-000164 Samsung IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
JB70-00236A Samsung ICT-HINGE SHAFT(4IN1);SCX-1150F,SWCH,32.
JB70-00168A Samsung ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0
JF70-40521B Samsung ICT-SHAFT PINCH;FX2200,STSC304WPA,D2.6
JB70-00148A Samsung IPR-HOLDER GLASS;SCX-1110/XRX,SUS304,12*
JC70-00307A Samsung IPR-P-EARTH TRANSFER;ML-1710,SECC,1.0T,W
JC70-00312A Samsung IPR-P-TERMINAL CON;ML-1710,SUS301-CSP 3/
JF70-10616A Samsung IPR-WASHER SPRING CU;CF3400,SUS301-CSP,T
JB70-00070A Samsung IPR-WASHER WAVE;SUS301,0.1T,SF-4750C
3722-000124 Samsung JACK-DIN;8P,AU,BLK,ANGLE
3722-002381 Samsung JACK-MODULAR;8P/8C,INVERTED,Y,ANGLE,GRN/
3722-002303 Samsung JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE
JC64-00154C Samsung KNOB-M_LOCKER;SCX-5530FN,HIPS,84.1,34.1,
JB68-00916A Samsung LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0
JC68-01584A Samsung LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100
JC68-10932A Samsung LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO
JB68-00644A Samsung LABEL(P)-SHADING;COMMON,YOOPO PAPER,T0.2
JB68-00073A Samsung LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34
JC68-00573A Samsung LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM,
JC68-01898A Samsung LABEL-INFORMATION;CLP-300/SEE,SAMSUNG,AR
4713-001208 4713-001208 Samsung LAMP-HALOGEN;230V,800W,6X284MM
JC07-00003A Samsung LCD-DISPLAY(XEV);VHX1620BHRC9/YMC162197A
0601-001226 Samsung LED;SMD(TOP VIEW),RED,1.2X0.8MM,660NM,1.
JC66-01187A Samsung LEVER-ACTUATOR EMPTY;SCX-5530FN,PC,F3,68
JC66-01190A JC66-01190A Samsung LEVER-M_ACT DUP OUT;SCX-5530FN,PBT GF30%
JC66-01189A JC66-01189A Samsung LEVER-M_ACTUATOR FEED;SCX-5530FN,PBT+GF3
JC66-01191A JC66-01191A Samsung LEVER-M_ACTUATOR REGI;SCX-5530FN,PBT+GF3
JC66-00957A Samsung LEVER-M_LINK JAM;ML-2550,PET GF30%,2.5,4
JC74-00021A Samsung MCT-GLASS ADF;SCX-4216F,GLASS,238.4*19.1
JC97-01034A JC97-01034A Samsung MEA RACK-EXIT ROLLER;ML-1605,SUMSUNG,KOR
JC97-01692A Samsung MEA UNIT- ROLLER CLEAN;ML-2150,SAMSUNG,C
JC97-02394A Samsung MEA UNIT-BRACKET FEED;SCX-5530FN,SEC,-,-
JC97-02413A Samsung MEA UNIT-CASSETTE;SCX-5530FN,-,-,ELBERT,
JC97-01788A JC97-01788A Samsung MEA UNIT-CLUTCH;ML-1710,SAMSUNG
JC97-02416C Samsung MEA UNIT-COVER PLATEN;SCX-5530FN,SEC,-,-
JC97-02648A JC97-02648A Samsung MEA UNIT-GEAR PICK UP;SCX-5530FN,-,-,-,-
JC97-02779A JC97-02779A Samsung MEA UNIT-HINGE;SCX-5330N,-,-,ELBERT,-
JC97-01940B JC97-01940B Samsung MEA UNIT-HOLDER ADF;SCX-5530FN,-,-,-,-,-
JC97-01962C JC97-01962C Samsung MEA UNIT-PICKUP;SCX-5530FN,-,-,-,-,-
JC97-02429A Samsung MEA UNIT-SCAN DUMMY;SCX-5530FN,SEC,-,-,-
JC97-02420A Samsung MEA-COVER FRONT;SCX-5530FN,-,-,ELBERT,-,
JC97-02419A Samsung MEA-COVER MID FRONT;SCX-5530FN,-,-,ELBER
JC97-02411A Samsung MEA-COVER OPEN;SCX-5530FN,SEC,-,-,-,-,-
JC97-02418B Samsung MEA-COVER REAR;SCX-5330N,-,-,ELBERT,-,-,
JC97-02417A Samsung MEA-COVER SIDE L;SCX-5530FN,-,-,ELBERT,-
JC97-03082A Samsung MEA-HOLDER PAD;ML-3471ND,SEC,-,-,-
JC97-02443A Samsung MEA-IDLE FEED;SCX-5530FN,-,-,-,-
JC97-02034A JC97-02034A Samsung MEA-PICK UP_MP;ML-2250,SEC,-,PICK UP-MP
JC97-02412A Samsung MEA-SCAN UPPER;SCX-5530FN,SEC,-,-,-,-
JC97-02652A Samsung MEA-TRANSFER ROLLER;SCX-5530FN,-,KOREA,E
JC97-02406A Samsung MEA-TX STACKER;SCX-5530FN,SEC,-,-,-,-
JB75-00299A JB75-00299A Samsung MEC-ADF ROLLER ASSY;SCX-1110F/XRX,XEROX,
JC75-00095A JC75-00095A Samsung MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR
JB75-00300A JB75-00300A Samsung MEC-PICK UP ROLLER ASSY;SCX-1110F/XRX,XE
JC75-00049A Samsung MEC-TERMINAL;SF-5100,SAMSUNG
JC31-00047A Samsung MOTOR BLDC-MAIN;1576RPM,24V,SCX-5530FN,C
JC31-00036A Samsung MOTOR STEP-ADF;M42SP-13NK,SCX-4920N,0.6A
JC31-00037E Samsung MOTOR STEP-MAIN;M55SP-2NK,SCX-5530FN,1.2
JB31-00011A Samsung MOTOR STEP-SCAN;M42SP-4TKC,SCX-1110/XRX,
JC92-01743F Samsung PBA MAIN-CONTROLLER;SCX-5330N,SEC,-,LAMP
JC92-01828A Samsung PBA SUB-CONNECTION;SCX-5530FN,SEC,-,-,-,
JC92-01748A Samsung PBA SUB-OPE;SCX-5330N,SEC,-,-,-,-,-,289M
JC92-01829A Samsung PBA SUB-TERMINAL;SCX-5530FN,SEC,-,-,-,-,
JC92-01755A Samsung PBA;SCX-5530FN,-,-,-,-,-,-,53MM X 108MM
0604-001415 0604-001415 Samsung PHOTO-INTERRUPTER;TR,90%,150MW,DIP-4,BK
JC61-00604B Samsung PLATE-E_SAW;SF-755P,SUS304-CSP 1/2H,0.1,
JC61-00914A Samsung PLATE-P-PUSH BUSHING;SCX-4920N,SECC,0.8,
JC72-01320A Samsung PMO-ACT EMPTY ADF;SCX-4920N,ABS,HB,GRAY
JC72-00974A Samsung PMO-ACTUATOR CVR OPEN;ML-1710,PC V0(NH10
JC72-01010A Samsung PMO-ACTUATOR REGI SENSOR;SCX-4216F,PC,HB
JC72-01011A Samsung PMO-ACTUATOR SCAN SENSOR;SCX-4216F,PC,HB
JB72-00817A Samsung PMO-ADF CLUTCH;SCX-1110F,POM,WHT
JB72-00821A Samsung PMO-ADF COLAR;SCX-1110F,POM,NTR
JB72-00819A Samsung PMO-BUSH;SCX-1110F,POM,NTR
JC72-41364A Samsung PMO-BUSHING_P/U,MP;ML-6100,POM,BLACK,CF-
JC72-00102A JC72-00102A Samsung PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL
JG72-40960A Samsung PMO-CAP TONER;SF6000,PP,OD22,W6,BLK
JC72-00978A Samsung PMO-COLLAR_SPRING;ML-1710,POM(M90-44),NT
JC72-00971A Samsung PMO-EXTENSION SMALL;ML-1710,ABS(HF-0660I
JC72-41128B JC72-41128B Samsung PMO-GUIDE CLAW GREEN;SCX-5530FN,PEEK,T1.
JB72-00843A JB72-00843A Samsung PMO-GUIDE PAPER;SCX-1110F,HIPS,HB,IV21
JC72-41006A Samsung PMO-HOLDER EXIT ROLL;ML-165,PC,BLK,HB
JC72-00982A Samsung PMO-IDLE PICK_UP;ML-1710,POM(M90-44),HB,
JC72-00755A Samsung PMO-LEVER SENSOR;SCX-5100,POM,HB,BLK
JC72-00983A Samsung PMO-LOCKER CST;ML-1710,POM(DELIN 900P),W
JC72-01338A Samsung PMO-M-ACT EMPTY MP;ML-2250,PC,H31.4,HB,B
JB72-00845A Samsung PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8
JC72-00984A JC72-00984A Samsung PMO-PLATE GUIDE DEVE_L;ML-1710,POM(M90-4
JC72-00985A JC72-00985A Samsung PMO-PLATE GUIDE DEVE_R;ML-1710,POM(M90-4
JC72-00972A Samsung PMO-PLATE_LOCKER;ML-1710,POM(M90-44),WHT
JB72-00763A Samsung PMO-PULLEY;SCX-1110/XRX,POM,WHT
JG72-40663A JG72-40663A Samsung PMO-ROLL PINCH;SF5500,POM(DERLIN 500P),H
JC72-00761A Samsung PMO-ROLLER CAM.MP;SCX-5100,POM,WHITE,K70
JC72-41007A Samsung PMO-ROLLER FD F;ML-165,POM,BLACK
JC72-00744A Samsung PMO-SHAFT PICK UP;SCX-5150,ABS,BLK,HB
JB72-00822A Samsung PMO-SLEEVE ADF;SCX-1110F,POM,BLK
JB72-00823A Samsung PMO-SLEEVE PICK UP;SCX-1110F,POM,BLK
JC72-01001A JC72-01001A Samsung PMO-SUB STACKER;ML-1400,PC,32*4.8*25.5,H
JC72-00752A JC72-00752A Samsung PPR-WHITE BAR SHEET;SCX-5100,PET,T0.075,
2007-000033 Samsung R-CHIP;0OHM,5%,1/4W,TP,3216
2007-007482 Samsung R-CHIP;1.24KOHM,1%,1/10W,TP,1608
2007-000123 Samsung R-CHIP;1.5KOHM,5%,1/10W,TP,1608
2007-000074 Samsung R-CHIP;100OHM,5%,1/10W,TP,1608
2007-000090 Samsung R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-000309 Samsung R-CHIP;10OHM,5%,1/10W,TP,1608
2007-002901 Samsung R-CHIP;12.1KOHM,1%,1/10W,TP,1608
2007-007521 Samsung R-CHIP;14.7KOHM,1%,1/10W,TP,1608
2007-008567 Samsung R-CHIP;15.4KOHM,1%,1/10W,TP,1608
2007-000402 Samsung R-CHIP;150OHM,5%,1/10W,TP,1608
2007-000078 Samsung R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000475 Samsung R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-000105 Samsung R-CHIP;200KOHM,5%,1/10W,TP,1608
2007-000075 Samsung R-CHIP;220OHM,5%,1/10W,TP,1608
2007-000094 Samsung R-CHIP;22KOHM,5%,1/10W,TP,1608
2007-000071 Samsung R-CHIP;22OHM,5%,1/10W,TP,1608
2007-000082 Samsung R-CHIP;3.3KOHM,5%,1/10W,TP,1608
2007-000704 Samsung R-CHIP;3.6KOHM,5%,1/10W,TP,1608
2007-000125 Samsung R-CHIP;3.9KOHM,5%,1/10W,TP,1608
2007-000729 Samsung R-CHIP;300OHM,5%,1/10W,TP,1608
2007-000096 Samsung R-CHIP;30KOHM,5%,1/10W,TP,1608
2007-000076 Samsung R-CHIP;330OHM,5%,1/10W,TP,1608
2007-000134 Samsung R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000113 Samsung R-CHIP;33OHM,5%,1/10W,TP,1608
2007-000839 Samsung R-CHIP;39OHM,5%,1/10W,TP,1608
2007-000083 Samsung R-CHIP;3KOHM,5%,1/10W,TP,1608
2007-000084 Samsung R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000107 Samsung R-CHIP;470KOHM,5%,1/10W,TP,1608
2007-002916 Samsung R-CHIP;475KOHM,1%,1/10W,TP,1608
2007-000097 Samsung R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-007226 Samsung R-CHIP;49.9OHM,1%,1/10W,TP,1608
2007-000965 Samsung R-CHIP;5.1KOHM,5%,1/10W,TP,1608
2007-000086 Samsung R-CHIP;5.6KOHM,5%,1/10W,TP,1608
2007-007733 Samsung R-CHIP;51OHM,1%,1/10W,TP,1608
2007-000119 Samsung R-CHIP;560OHM,5%,1/10W,TP,1608
2007-000098 Samsung R-CHIP;56KOHM,5%,1/10W,TP,1608
2007-001044 Samsung R-CHIP;56OHM,5%,1/10W,TP,1608
2007-001056 Samsung R-CHIP;6.2KOHM,5%,1/10W,TP,1608
2007-000120 Samsung R-CHIP;680OHM,5%,1/10W,TP,1608
2007-001134 Samsung R-CHIP;68OHM,5%,1/10W,TP,1608
2007-001139 Samsung R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-001179 Samsung R-CHIP;8.2KOHM,5%,1/10W,TP,1608
2011-001011 Samsung R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3
2011-000002 Samsung R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,32
2011-001094 Samsung R-NETWORK;39OHM,5%,1/16W,L,CHIP,8P,TP,3.
2011-001193 Samsung R-NETWORK;68OHM,5%,1/16W,L,CHIP,8P,TP,3.
6044-000159 Samsung RING-C;ID3,OD7,T0.6,PASS,STSC
6044-000001 Samsung RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5
6044-000125 Samsung RING-E;ID4,OD9,T0.6,STSC
6044-000231 Samsung RING-E;ID5.0,OD11.0,T0.6,PASS,STS304
JB73-00052A JB73-00052A Samsung RMO-ADF RUBBER;SCX-1110F,SILICON RUBBER,
JC66-00728A Samsung ROLLER-ADF FEED;SCX-4920N,POM + EPDM
JC66-00560A Samsung ROLLER-DRIVE;SCX-4216F,CR+SUM24L,14
JC66-01196A Samsung ROLLER-EXIT F/DOWN;SCX-5530FN,SUM22 + EP
JC66-00559A Samsung ROLLER-EXIT;SCX-4216F,CR+SUM24L,14
JC66-00526A JC66-00526A Samsung ROLLER-FEED ROLLER 1;ML-1510,SUM24L+NI+E
JC66-01173A Samsung ROLLER-FEED;SCX-5530FN,EPDM+SUM22+NI,13.
JC66-01593A Samsung ROLLER-HEAT;ML-3471ND,AL 5052,28.3,254,N
JC66-01169A Samsung ROLLER-IDLE PICK UP;SCX-5530FN,POM,28.5,
JC66-00461A JC66-00461A Samsung ROLLER-M-ADF IDLE;SCX-4114F,POM,BLK
JC66-01195A JC66-01195A Samsung ROLLER-PRESSURE;SCX-5530FN,LSR+PFA,32,25
JC66-01181A JC66-01181A Samsung ROLLER-TRANSFER;SCX-5530FN,SUS303+NBR,15
JC72-40981A Samsung ROLLER;ML-165,POM,WHT,HB
JC72-20902A Samsung ROLLER;ML-5000A,TEFLON,WHT
JC73-00140A JC73-00140A Samsung RPR-FRICTION PAD;ML-1510,NBB,1T 8.9*47,5
JC73-00141A JC73-00141A Samsung RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE
JC73-00194A JC73-00194A Samsung RUBBER-PICK UP MP;SCX-4720F,EPDM,40,SEC,
6001-000130 Samsung SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6001-000568 Samsung SCREW-MACHINE;PH,+,M3,L8,NI PLT,SWRCH18A
6002-000440 Samsung SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR
6003-000261 Samsung SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW
6003-000282 6003-000282 Samsung SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW
6003-000269 6003-000269 Samsung SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW
6003-000301 Samsung SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC
6003-001001 6003-001001 Samsung SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC
6006-001078 Samsung SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT)
6003-000264 Samsung SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S
6003-000221 Samsung SCREW-TAPTYPE;PWH,+,-,S,M4,L8,ZPC(WHT),S
6003-000196 Samsung SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC
JC62-00140A Samsung SEAL-BLADE SIDE_BK;CLP-500,PE FORM,GRAY,
JC66-00561A Samsung SHAFT-ADF PICKUP;SCX-4216F,SUM22L,7,NI C
JC66-00527A Samsung SHAFT-FEED IDLE;ML-1510,SUM24L+NI,223,8
JC66-00398A Samsung SHAFT-FEED;ML-1710,POM(M90-44),NTR
JC66-00909A Samsung SHAFT-IDLE FEED;SCX-4521F,SUS303F,59.5,2
JC66-00460A Samsung SHAFT-M-FEED GEAR 38;SCX-4216F,POM,D5.0,
JC66-00402A Samsung SHAFT-M_EXIT_F/UP;ML-2150,PBT+GF30%,BLAC
JC66-01160A Samsung SHAFT-M_FEED2;SCX-5530FN,POM(M90-44),72.
JC66-00720A Samsung SHAFT-P-CORE;ML-1750,SECC 1.2T,203
JC66-00399A Samsung SHAFT-P-PICK_UP;ML-1710,SECC,0.8T
JC66-00662A Samsung SHAFT-REGI;SCX-6320F,SUM24L,47.5,PI 6.0
JC70-20901A JC70-20901A Samsung SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9
JC63-01094A Samsung SHEET-GUIDE MP;SCX-5530FN,PET,0.125,200,
JC63-00209A JC63-00209A Samsung SHEET-WHITE SPONGE;SCX-4216F,POLYURETHAN
JC63-00912A Samsung SHIELD-P-CONTROLLER;SCX-5530FN,SECC,0.8,
JC44-00090A Samsung SMPS-PSP_TYPE3_V2C;SCX-4521F,*,AC/DC,220
JC33-00014A Samsung SOLENOID-FEED ROCKY2;SCX-4920,300MA,3PIN
JC33-00010A Samsung SOLENOID-HB (MANUAL);ML-1510,DC24V,300MA
JC33-00015A Samsung SOLENOID-MP;ML-2250,DC24V,300MA,2PIN CON
JC61-70903A Samsung SPRING ETC-ACTUATOR;ML-165,SUS304,PI0.2,
JG61-70549A Samsung SPRING ETC-CIS(C2);SF4400,SUS304WPB,D11.
JB61-70904A Samsung SPRING ETC-CLUTCH;AMUNDSEN,SWRS82A,D11.4
JC61-00025A Samsung SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS
JC61-00484A Samsung SPRING ETC-EXIT LOWER IDLE;SCX-5100,SUS3
JC61-70911A Samsung SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP
JC61-00011A Samsung SPRING ETC-FEED;SF-5100,SUS304WPB,0.6,13
JC61-70932A Samsung SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16.
JG61-70531A Samsung SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB
JC61-00387A Samsung SPRING ETC-PAD;ML-9400W,SUS304WPB,PI0.5,
JB61-00076A JB61-00076A Samsung SPRING ETC-TORSION DOC (CC2-F);SCX-1110F
JC61-00047A Samsung SPRING ETC-TR L HAWK;ML-6060A,SWP-B
JC61-70958A Samsung SPRING ETC-TR;ML-5000A,SUS304 WPB,PI0.55
JC61-00548A Samsung SPRING ETC-WHITE BAR;SCX-5312F,SUS304WPB
6107-001135 Samsung SPRING-CS;SUS304 WPB,PI0.3,L14,ID5.4,OD6
6107-001167 Samsung SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I
6107-001166 Samsung SPRING-CS;SUS304-WPB,PI0.65,D12.65,L59.3
6107-001193 Samsung SPRING-CS;SUS304-WPB,YEL,PI1.1,D6.1,L19.
6107-001291 Samsung SPRING-ES;SUS304-WPB,NTR,PI0.12,D2.48,L8
6107-001237 Samsung SPRING-ES;SUS304-WPB,P0.5,D4.5,L42,ID4,O
6107-001498 Samsung SPRING-ES;SUS304-WPB,PI0.55,D4.5,L25.9,I
6107-001159 Samsung SPRING-TS;SUS304,PI0.45,D3.85,L20,W10,ID
6107-001164 6107-001164 Samsung SPRING-TS;SUS304-WPB,PI0.15,D3.95,L12,ID
6107-001170 Samsung SPRING-TS;SWP-B,PI0.9,D6.0,ID5.2,OD7.0
6107-001171 Samsung SPRING-TS;SWRS82A,0.75X0.5,D14.2,ID13.7,
JC61-00915A Samsung STOPPER-M-PICK UP_R2;SCX-4920N,POM,D14,2
JC61-01653A Samsung STOPPER-M-STRAP;SCX-5530FN,PE BOX,T1,253
JC61-00963B Samsung STOPPER-M_PICKUP ADF;SCX-5530FN,POM,10,7
0203-001100 Samsung TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75,
JC65-00019A Samsung TERMINAL-CRUM;SCX-5530FN,SUS304WPB,PI 0.
CALL_1-800-SAMSUNG Samsung THERMISTOR-NTC ASSY;7KOHM,3370K,0.3MW/C,
0501-000632 Samsung TR-SMALL SIGNAL;2SB1197K,PNP,200MW,SOT-2
0501-000279 Samsung TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000342 Samsung TR-SMALL SIGNAL;KSC1623-Y,NPN,200MW,SOT-
0501-000009 Samsung TR-SMALL SIGNAL;KSC945-Y,NPN,250MW,TO-92
0501-000457 Samsung TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3
JC63-00447E Samsung TRAY-M-ASF_FOLDER;ML-3051ND,HIPS,2.5,235
JC63-00446E Samsung TRAY-M-ASF_INPUT UPPER;ML-3051ND,HIPS,26
JC63-00444A JC63-00444A Samsung TRAY-M-LINK_MP;ML-2250,PC,2,74.9,9.3
JC59-00027A JC59-00027A Samsung UNIT-LSU;SCX-5530FN,DUAL,SINGLE LD,4FACE
6031-000023 Samsung WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK
Main Menu x
