Model Image
Manufacturer

Samsung

Model Number

SCX-5835FN

Description

Black & White Multifunction Laser Printer

Interactive Exploded View

Parts List

Part Number Description
JC66-01821A JC66-01821A ACTUATOR-BIN FULL;SCX-5235ND,PC,BLACK
JC66-02092A ACTUATOR-EXIT PAPER;SCX-5835FN,PC,BLACK
JC66-01766A ACTUATOR-FEED;CLX-6200FX,PC,2,BLACK
JC66-01820A JC66-01820A ACTUATOR-PAPER EMPTY;SCX-5135ND,POM,FJ40
JC66-01762A JC66-01762A ACTUATOR-REGI;CLX-6200FX,POM,2,BLACK
0201-001006 ADHESIVE-AA;#7452,TRP
JC90-00932A JC90-00932A ASF-PICK UP;CLP-660,DOM,-,-,-
JC66-20901A AUTO CLOSE-TIMING BELT;B32S2M280,CR+FG+N
6902-000332 BAG CONDUCTIVE;LDPE,T0.07,W250,L500,BLK,
JB72-00764A BAND;SCX-1110/XRX,POM,WHT
JC71-00042A BAR-P_CROSS BOTTOM;ML-2150,SECC T1.0
4301-001042 4301-001042 BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON
3301-000344 BEAD-RADIAL;200OHM,3.5X0.6X6.5MM,7000MA,
3301-000319 BEAD-SMD;11OHM,2X1.25X0.9MM,TP
3301-000317 BEAD-SMD;120OHM,2012,TP,-,-
3301-001655 BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH
3301-001067 BEAD-SMD;600OHM,1608
3301-001594 BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,-
6601-001479 6601-001479 BEARING-BALL;6705ZZ,ID25.0,OD32.0,L4,CWB
6602-001067 BELT-TIMING GEAR;FIBER GLASS,T3.2,T80-40
JC61-00895A BRACKET-SCAN MOTOR R2;SCX-4920N,PC+GF10%
JC67-00208A BRUSH-ANTISTATIC;SCX-5530FN,AL+SUS FIBER
JC61-01686A BUSH-4D_FE;SCX-6345N,SBF2118,?4,?5.93,3.
JC61-00423A BUSH-6_D;ML-9400W,BEARING,?6,NTR
JC61-01958A JC61-01958A BUSH-HR;ML-3471ND/SEE,PPS,14.45,16.41,36
JC61-00585A BUSH-M-FEED IDLE;ML-1710,POM AT-15CF,?3.
JC61-00665A BUSH-M-FEED, DUP;ML-2150,POM, SW01,4.0,7
JC61-00587A BUSH-M-PICK_UP R;ML-1710,POM,?11,WHT
JC61-00588A JC61-00588A BUSH-M-TR L;ML-1710,POM,?6.1,?8,BLK
JC61-00750A JC61-00750A BUSH-M_ADF CLUTCH;SCX-6320F,PPS,7,11.85,
JC72-00382B BUSH;ML-1710,POM(DERLIN 8903),WHITE
3002-000185 BUZZER-MAGNETIC;85DB,5V,40MA,2.4KHZ,BK
2402-001042 C-AL,SMD;100UF,20%,16V,GP,TP,6.6X6.6X5.4
2402-001178 C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4.3X5.8M
2402-000117 C-AL,SMD;10UF,20%,35V,GP,TP,5.3X5.3X5.4
2402-000125 C-AL,SMD;1UF,20%,50V,GP,TP,3.3X3.3X5.4,
2402-001106 C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M
2402-000008 C-AL,SMD;47UF,20%,16V,GP,TP,6.6X6.6X5.4
2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM
2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0.
2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,1608
2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
2203-001683 C-CER,CHIP;0.068NF,5%,50V,NP0,1608
2203-001408 C-CER,CHIP;0.27NF,5%,50V,NP0,1608
2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,1608
2203-006467 C-CER,CHIP;0.68NF,10%,3000V,X7R,4520
2203-000140 C-CER,CHIP;1.5NF,10%,50V,X7R,1608
2203-006676 C-CER,CHIP;10000NF,+80-20%,10V,Y5V,TP,20
2203-005617 C-CER,CHIP;1000NF,+80-20%,50V,Y5V,TP,201
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-002709 C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005
2203-000192 C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-006468 C-CER,CHIP;10NF,10%,250V,X7R,-,2012
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-000440 C-CER,CHIP;1NF,10,50V,X7R,TP,1608
2203-000491 C-CER,CHIP;2.2NF,10%,50V,X7R,1608
2203-006320 C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012
2203-002392 C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012
2305-000385 C-FILM,LEAD-PEF;470NF,10%,250V,BK,18X6X1
6502-000132 CABLE CLAMP;DAWS-1NE,ID11,L21.0,NTR,NYLO
6502-001093 CABLE CLAMP;DAWS-3NE,ID11*L34.8,NYLON66,
JC66-00050A CAM-CATCH;ML-9400W,POM,34X18X7,WHITE
JC66-00377A CAM-M-PICK_UP;ML-1710,POM(DELIN 8903),WH
JC66-01205A CAM-M_PICK UP MP;ML-3051ND,POM,16.5*23.4
JC39-00523A CBF HARNESS-AC INLET;SCX-5530FN,CBF,UL16
JC39-00520A CBF HARNESS-FUSER CON;SCX-5530FN,CBF,UL3
JC39-00521A CBF HARNESS-FUSER REC;SCX-5530FN,CBF,UL3
JC39-00528A CBF HARNESS-PAPER EMP;SCX-5530FN,CBF,UL
JC39-40511A CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV
JF39-50094B CBF LINE CORD;MINI FAX,IVR
3903-000085 3903-000085 CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125
3709-001372 CONNECTOR-CARD EDGE;200P,0.6MM,SMD,AUF,S
3708-002121 CONNECTOR-FPC/FFC/PIC;40P,1MM,SMD-S,SN,N
3711-006574 CONNECTOR-HEADER;BOX,2P,1R,1.5MM,STRAIGH
3711-006573 CONNECTOR-HEADER;BOX,3P,1R,1.5MM,STRAIGH
3711-006454 CONNECTOR-HEADER;BOX,7P,1R,1.27MM,STRAIG
JC63-00998D COVER-ADF CONNECTOR;SCX-5835FN,ABS HF-06
JC63-02027A COVER-DADF FRONT;SCX-5835FN,ABS,SEC,G616
JC63-02028A COVER-DADF REAR;SCX-5835FN,ABS,SEC,G6167
JC63-01622D COVER-DADF_UPPER BT;SCX-5835FN,ABS HF-06
JC63-01610D COVER-DADF_UPPER TOP;SCX-5835FN,ABS HF-0
JC63-01778A COVER-FAN_DC;SCX-5235ND,ABS,BLACK
JC63-01677A COVER-FAX;SCX-5235ND,PC+ABS,5V,BLACK
JC63-02043A COVER-OPE;SCX-5835FN,ABS,SEC,G32000
JC63-01740A COVER-SMPS;SCX-5135ND,PC,V0,BLACK
JC63-02039A COVER-STACKER RX;SCX-5835FN,PC+ABS,SEC,G
2801-000111 CRYSTAL-SMD;0.032768MHZ,20PPM,28-AAW,12.

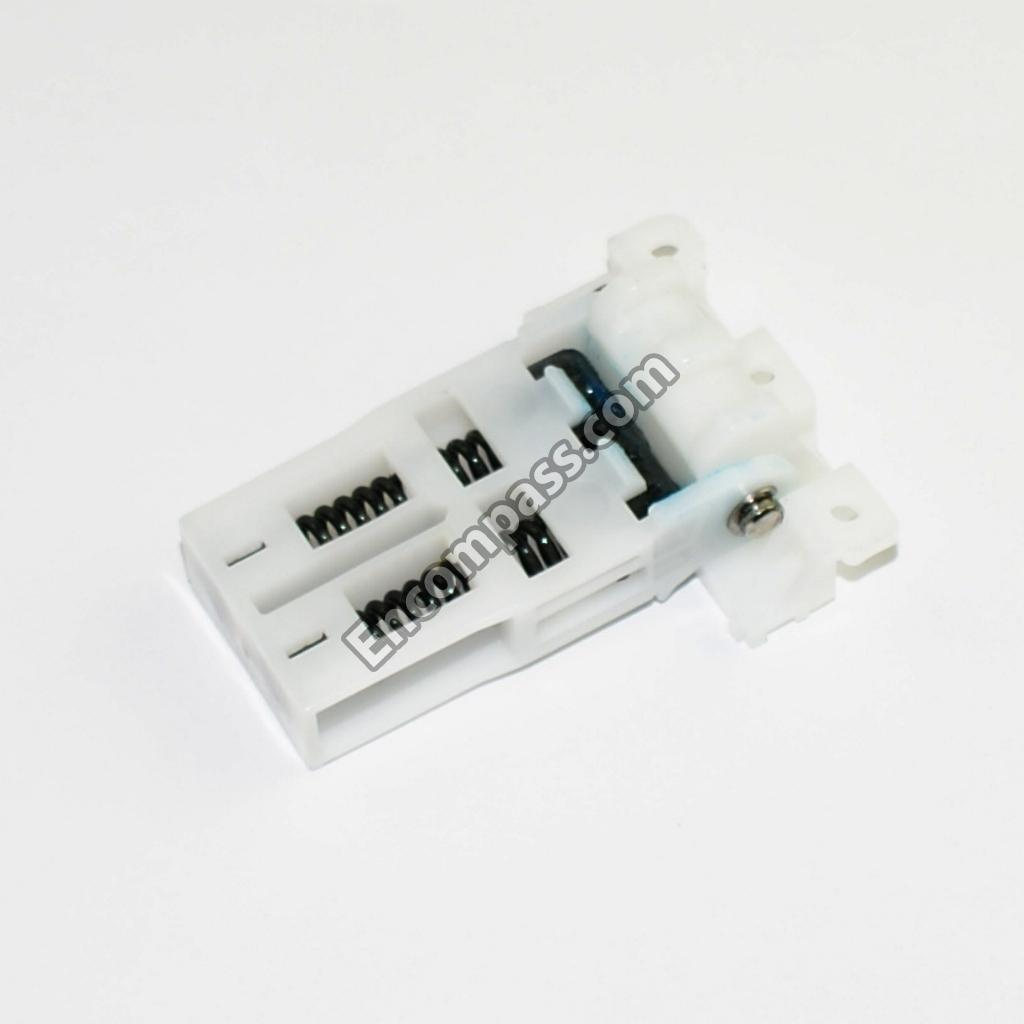

JC97-03038C JC97-03038C DADF-HINGE;SCX-5133F,SEC/XEROX,DOM/EXP,W
0402-001189 DIODE-RECTIFIER;M4,400V,1A,TS-1,TP
0402-001212 DIODE-RECTIFIER;SS26,60V,2A,SMB,TP
0404-001084 DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T
0404-000112 DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T
0407-000122 DIODE-SWITCHING;KDS226,80V,100MA,SOT-23,
0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD
0403-000287 DIODE-ZENER;MMBZ5251B,20.9-23.1V,225MW,S
0403-001401 DIODE-ZENER;MMSZ5260B,40.85/45.15V,500MW
JC96-05380A ELA HOU-COVER MID;SCX-5835FN,-,-,-,-,-,-
JC96-05379A ELA HOU-COVER PLATEN;SCX-5835FN,-,-,-,-,
JC96-04921B ELA HOU-COVER_REAR UP;SCX-5835FN,-,-,-,-
JC96-04816A ELA HOU-DADF DRV;CLX-6240FX,-,-,-,-,-
JC96-04818C ELA HOU-DADF LOWER;SCX-5835FN,-,-,-,-,-
JC96-04815C ELA HOU-DADF UPPER;SCX-5835FN,-,-,-,-,-

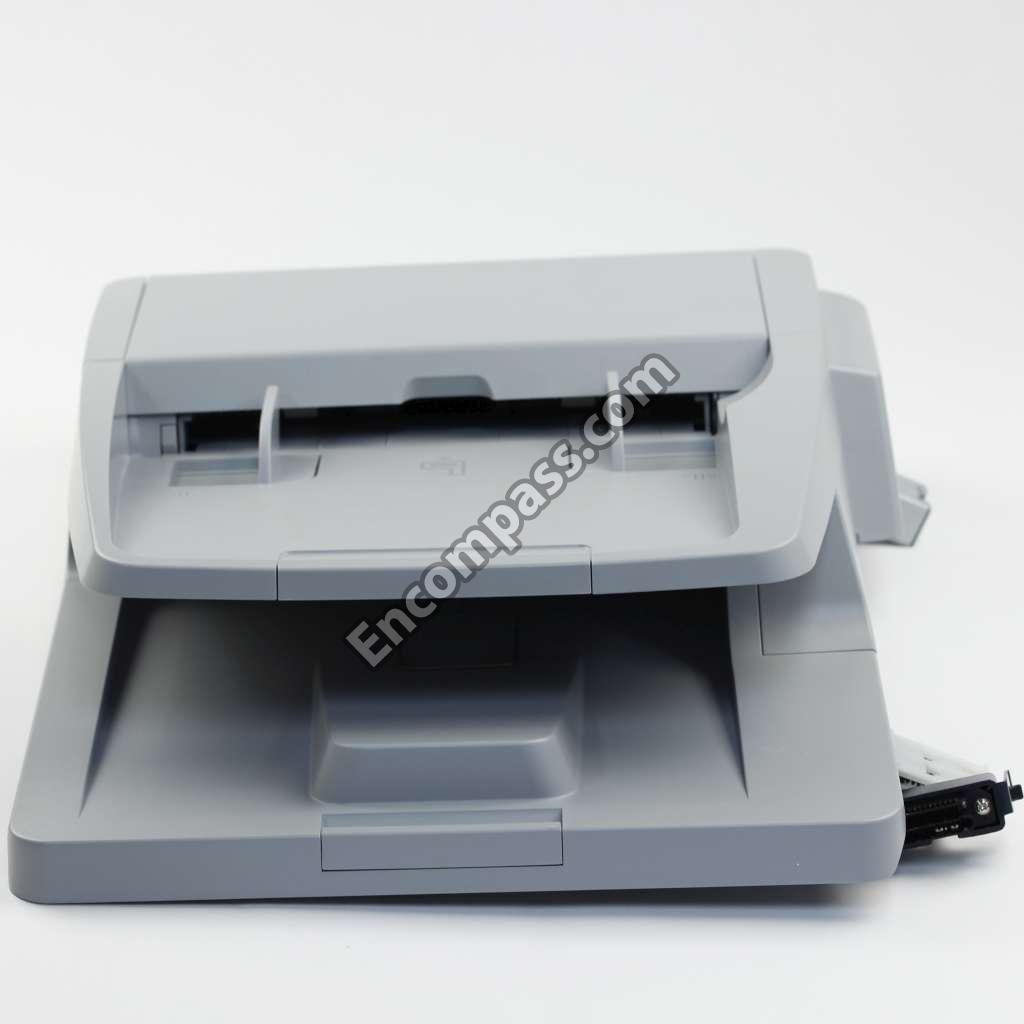

JC96-05378A JC96-05378A ELA HOU-DADF;SCX-5835FN,-,-,-,-,-
JC96-04876A JC96-04876A ELA HOU-FUSER DRIVE;SCX-5235ND,-,-,-,-,-
JC96-04877A JC96-04877A ELA HOU-GUIDE DUP F;SCX-5235ND,-,-,-,-
JC96-05478A ELA HOU-LOWER DUMMY;SCX-5835FN,SEC,-,-,-
JC96-04880A JC96-04880A ELA HOU-MPF;SCX-5235ND,-,-,-,-
JC96-05381A ELA HOU-PLATEN;SCX-5835FN,-,-,-,-,-
JC96-04918A ELA HOU-SCAN MOTOR;SCX-5235ND,-,-,-,-,-
JC96-05146A ELA HOU-SMPS;SCX-5235ND,XEROX,-,V1,-,-,-
JC96-05377A ELA HOU-TX STACKER;SCX-5835FN,-,-,-,-,-
JC96-03762B ELA UNIT-DUPLEX DRIVE;SCX-5235ND,-,-,-,-
JC91-00925D JC91-00925D ELA UNIT-FUSER;SCX-5235ND,-,-,110V,BIAS,
JC96-05207A ELA UNIT-LED MIDDLE VE;ADVANCED - COLOR,
JC96-03761B ELA UNIT-MAIN DRIVE;SCX-5235ND,-,-,-,-
JC96-04983B ELA UNIT-ROLLER_DUP2;SCX-5235ND,XEROX,-,
JC96-04983A JC96-04983A ELA UNIT-ROLLER_DUP;SCX-5235ND,XEROX,-,-
JC31-00087A FAN;CLX-8380ND/XAA,PBT+GF,UL10272 AWG#26
JC31-00108A FAN;SCX-5135ND
JC31-00107A FAN;SCX-5135ND,PBT+GF
0505-001326 FET-SILICON;SI2308DS,N,60V,2A,0.22OHM,1.
JC61-01367A JC61-01367A FIXER-M_E RING 4PI;SCX-6345N/XRX,POM,T1.

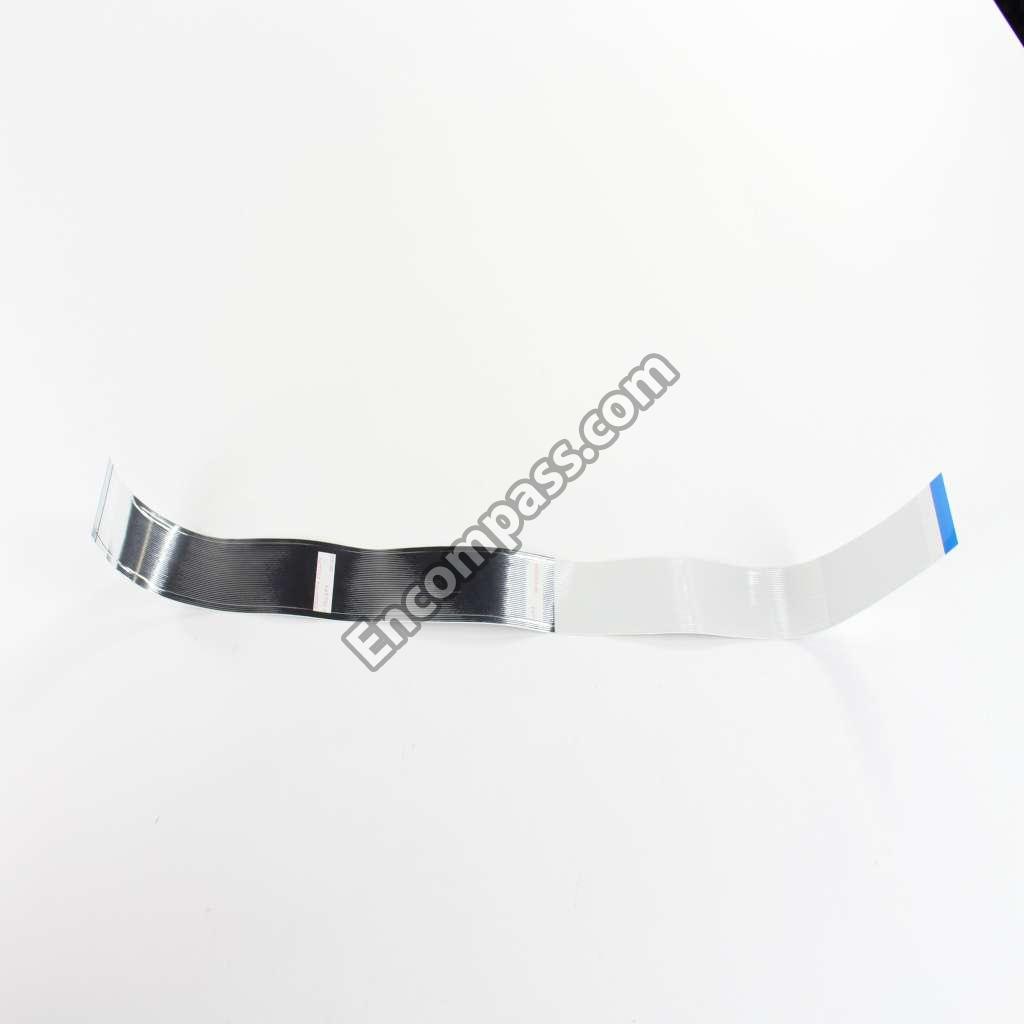

JC39-01042A JC39-01042A FLAT CABLE;SCX-5835FN,40P,630MM,AWM 2062
JC61-00835A FOOT-BACK;ML-1750,NBR,D13.6,10.5
JB66-00104A GEAR-ADF IDLE 34;SCX-1110F,POM,0.6,34,20
JC66-00381A GEAR-AGITATOR;ML-1710,POM M90-44,0.6,22
JC66-00038A GEAR-EXIT F/DOWN;ML-4500,POM,0.8,GREEN
JC66-01757A GEAR-EXIT;CLX-6200FX,POM,M0.5,Z51,F26.5,
JC66-01583A GEAR-EXIT;ML-3471ND/SEE,POM,0.8,19,23.75
JC66-40209A GEAR-EXIT;ML-80,POM,WHT
JC66-00393A GEAR-FEED 1;ML-1710,POM,0.8,NTR,HB
JC66-01753A GEAR-FEED IDLE B;CLX-6200FX,POM,M0.5,Z47
JC66-01754A GEAR-FEED IDLE C;CLX-6200FX,POM,M0.5,Z19
JC66-01755A GEAR-FEED IDLE D;CLX-6200FX,POM,M0.5,Z23
JC66-01165A GEAR-FEED2 Z27;SCX-5530FN,POM M90-44,0.8
JC66-01756A GEAR-FEED;CLX-6200FX,POM,M0.5,Z51,F26.5,
JC66-01210A JC66-01210A GEAR-FUSER IDLE FR;SCX-5530FN,NYLON,1,29
JC66-00340A JC66-00340A GEAR-HUB CLUTCH;SCX-5100,POM,M0.8,Z13,NT
JC66-01153A JC66-01153A GEAR-IDLE 23 FUSER;ML-3560,299X 117946,1
JC66-00396A JC66-00396A GEAR-IDLE 23;ML-1710,POM,0.8,23,BLK,HB
JC66-00699A GEAR-IDLE 37/19;SCX-4920N,POM M90-44,A:0
JB66-00083A GEAR-IDLE;SCX-1110/XRX,POM M90-44,0.5,31
JC66-00012A GEAR-OPC R;SF-5100,POM M90-44,0.6,Z40,BL
JB66-00105A GEAR-PICK UP 26;SCX-1110F,POM,0.6,26,15.
JB66-00102A GEAR-PICK UP IDEL 38;SCX-1110F,POM,0.6,3
JC66-01759A GEAR-PICKUP IDLE LOW;CLX-6200FX,POM,M0.5
JC66-01760A GEAR-PICKUP IDLE UP;CLX-6200FX,POM,M0.5,
JC66-01758A GEAR-PICKUP IDLE;CLX-6200FX,POM,M1.0/M0.
JC66-01761A GEAR-PICKUP;CLX-6200FX,POM,M1,Z25,F27.0,
JG66-40003A GEAR-PINION;SF4000,POM,1,Z16,WHT
JC66-00417A JC66-00417A GEAR-RDCN FUSER OUT;ML-2150,NYLON,1,25,8
JC66-00530A GEAR-REDUCTION73/37;SCX-6320F,POM M90-44
JC66-00484A GEAR-T2 IDEL_Z27;CLP-500,POM,0.8,Z27,BLA
JC66-00531A GEAR-TIMING;SCX-6320F,POM M90-44,0.5,Z57
JC01-00001A GLASS-SCAN;329.9*247.5,2.8
JC63-01664A GROUND-BRUSH;CLX-6200FX,C5210P,0.2,7.0,4
JC63-01206A GROUND-CASSETTE;ML-4550,SUS 301-CSP,0.2,
JC63-01663A GROUND-DADF UPPER;CLX-6200FX,C5210P,0.2,
JC63-01661A GROUND-DADF;CLX-6200FX,C5210P,0.2,12.3,4
JC63-01662A GROUND-FEED EXIT;CLX-6200FX,C5210P,0.2,4
JC63-01660A GROUND-PLATEN;CLX-6200FX,C5210P,0.2,10.0
JC61-00267B GUIDE-M-LOCK A;ML-2150,HIPS,HB,C75064
JC61-01410A JC61-01410A GUIDE-M_PICKUP DOC;SCX-6345N/XRX,PC+ABS,
JC61-01226B JC61-01226B GUIDE-M_REAR;ML-3560,HIPS,2.5,98,100.3,B
JC61-01225B GUIDE-M_SIDE LOCK;ML-3560,ABS,2.5,72.8,1
JC61-00751A GUIDE-P-REAR PAPER CST;ML-2150,SUS-301,T
JC61-01244A GUIDE-P-SIDE_R;ML-3560,SECC,1.2,130,120.
JC61-02438A GUIDE-SIDE L;SCX-5135ND,SECC,1.2T
JC39-00869A HARNESS-BLDC;SCX-5235ND,UL10272,10P/10P,
JC39-00870A HARNESS-CCD_HOME;SCX-5235ND,UL10272,4P/3
JC39-00881A HARNESS-CRUM;SCX-5235ND,UL10272,4P/4P,42
JC39-00892A HARNESS-DADF GND;CLX-6240FX,UL1007,125MM
JC39-00852A HARNESS-DADF MOTOR;CLX-6240FX,UL10272,4P
JC39-00855A HARNESS-DADF REGI SOL;CLX-6240FX,UL10272
JC39-00853A HARNESS-DADF SENSOR 1;CLX-6240FX,UL10272
JC39-00854A HARNESS-DADF SENSOR 2;CLX-6240FX,UL10272
JC39-00851A HARNESS-DADF UPPER;CLX-6240FX,UL10272,22
JC39-00871A HARNESS-DADF_MAIN;SCX-5235ND,UL10272,12P
JC39-01003A HARNESS-DUPLEX_MOTOR;SCX-5535ND,UL10272,
JC39-00863A HARNESS-ENGINE;SCX-5235ND,UL10272,28P/28
JC39-00884A HARNESS-EXIT_MOTOR;SCX-5235ND,UL10272,6P
JC39-00883A JC39-00883A HARNESS-FAX;SCX-5235ND,UL10272,12P/12P,1
JC39-00886A HARNESS-FUSER_AC;SCX-5235ND,UL10272,UL16
JC39-00887A HARNESS-F_COVER_OPEN;SCX-5235ND,UL10272,
JC39-00861A HARNESS-HVPS;SCX-5235ND,UL10272,22P/22P,
JC39-00888A HARNESS-LSU_SW;SCX-5235ND,UL10272,3P,225
JC39-00873A HARNESS-MP;SCX-5235ND,UL10272,5P/2P/3P,1
JC39-01043A HARNESS-OPE_HUB;SCX-5835FN,UL2547,3P/4P,
JC39-00874A HARNESS-OPE_KEY;SCX-5235ND,UL10272,17P/1
JC39-00875A HARNESS-OPE_KEY_SUB;SCX-5235ND,UL10272,1
JC39-01033A HARNESS-OPE_MAIN;SCX-5835FN,UL2547,UL 10
JC39-01052A HARNESS-P_WIDTH;SCX-5835FN,UL10272,4P/5P
JC39-00753A HARNESS-SATA_POWER;SCX-6555N,FLAT,UL1061
JC39-00754A HARNESS-SATA_SIGNAL;SCX-6555N,FLAT,UL272
JC39-00890A HARNESS-SCAN MOTOR;CLX-6240FX,UL10272,4P
JC39-00879A HARNESS-SCF_MAIN;SCX-5235ND,UL10272,10P/
JC39-00862A HARNESS-SMPS;SCX-5235ND,UL10272,16P/16P,
JC39-00911A HARNESS-SMPS_FAN;SCX-5235ND,UL10272,2P/2
JC39-00880A HARNESS-SOLENOID;SCX-5235ND,UL10272,4P/3
JC39-00882A HARNESS-TEMP;SCX-5235ND,UL10272,6P/2P/2P
JC59-00035A JC59-00035A HDD;160G,HTS545016B9A300,512BYTES,5400RP
JC59-00032A HDD;250G,HTS543225A7A384/HM250HI,S63,H16
3711-000178 HEADER-BOARD TO CABLE;1WALL,2P,1R,3.96MM
3711-006435 HEADER-BOARD TO CABLE;BOX,10P,1R,1.5MM,S
3711-006436 HEADER-BOARD TO CABLE;BOX,11P,1R,1.5MM,S
3711-006501 HEADER-BOARD TO CABLE;BOX,12P,1R,1.5MM,S
3711-003340 HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,STR
3711-002000 HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,STR
3711-002002 HEADER-BOARD TO CABLE;BOX,22P,2R,2MM,STR
3711-003981 HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR
3711-006431 HEADER-BOARD TO CABLE;BOX,4P,1R,1.5MM,ST
3711-006433 HEADER-BOARD TO CABLE;BOX,6P,1R,1.5MM,ST
3711-005912 HEADER-BOARD TO CABLE;BOX,6P,1R,2.54MM,S
JC61-00695A HINGE-M-CAM;SCX-4216F,POM,WHITE
JC61-00696A HINGE-M-FRAME;SCX-4216F,POM,WHITE
JC61-00697A HINGE-M-PRESSURE;SCX-4216F,PC(LF1025),NT
JC61-00829A JC61-00829A HOLDER-BEARING EXIT F/DOWN;SCX-4216F,POM
JC61-00953E HOLDER-LOCKER;HIPS,SCX-5835FN,113.4,31.6
JC61-01228A HOLDER-M-PAD_HOUSING;ML-3560,ABS,2.5,48,
JC61-00924A HOLDER-M-PAD_MP;ML-2250,PC+ABS,48,24.2
JC61-00907A HOLDER-M-PTL R2;SCX-4920N,PC(NH-1023P),1
JC61-00926A HOLDER-M-SENSOR_MP;ML-2250,ABS,22.3,36.5
JC61-01618A HOLDER-M_ACT FEED;SCX-5530FN,ABS,2.0,49.
JC61-01619A JC61-01619A HOLDER-M_ACT REGI;SCX-5530FN,ABS,2.0,60.
JC61-01625A HOLDER-M_REAR_LEVER;SCX-5530FN,PC,NH-102
JC61-02652A HOLDER-PAD;ML-5050ND,POM,2.5,51,18.5,BLA
JC61-00910A HOUSING-M-PICK UP2_R2;SCX-4920N,PC+ABS,5
JC61-00925A HOUSING-M_PICK UP_MP;ML-2250,PC+ABS,20.2
JC44-00162A HVPS;24V,21.6V~27.6V,MAX 5KV,MAX-2KV
JC09-00004A IC MICOM;CP6789AMT,SCX-4500,8,3.3,24MHZ,
1001-000170 IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP
1201-000105 IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE,
1205-002339 IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150
0801-002446 IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T
0801-002326 IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1
0801-000794 IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0
0801-002143 IC-CMOS LOGIC;7S32,OR GATE,SOT-23,5P,63M
1205-002500 IC-DAA;SI3018-FS,SOIC,16P,9.9X3.9MM,PLAS
1203-003739 IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM,
1105-001652 IC-DDR SDRAM;K4H511638,DDR,512MBIT,32MX1
1006-001250 IC-LINE DRIVER;DS90LV017A,SOIC,8P,150MIL
1003-001729 IC-MOTOR DRIVER;AN44060A,HSOP,28P,326MIL
1203-003700 IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P,
1203-001455 IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P
1203-005228 IC-PWM CONTROLLER;FAN5333,SOT-23,5P,2.9X
1205-002762 IC-TRANSCEIVER;BCM5241A1KMLG,MLP,32P,5X5
0904-002093 IC-USC;ISP1761BE,32BIT,LQFP,128P,20X14MM
0904-002329 IC-USC;USB2514B,QFN,36P,6.0X6.0X0.5MM,24
1202-000164 IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
JB70-00236A ICT-HINGE SHAFT(4IN1);SCX-1150F,SWCH,32.
JB70-00168A ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0
2703-002539 INDUCTOR-SMD;6.8UH,20%,6965
JB70-00148A IPR-HOLDER GLASS;SCX-1110/XRX,SUS304,12*
JC70-00307A IPR-P-EARTH TRANSFER;ML-1710,SECC,1.0T,W
JC70-00312A IPR-P-TERMINAL CON;ML-1710,SUS301-CSP 3/
JF70-10616A IPR-WASHER SPRING CU;CF3400,SUS301-CSP,T
3722-002345 JACK-MODULAR;6P/4C,INVERTED,N,ANGLE,N,GR
3722-002376 JACK-MODULAR;8P/8C,STANDARD,Y,ANLGE,YEL/
3722-002762 JACK-USB;4P,AU30U,WHITE,SMD-A,TP
3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE
3722-002303 JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE
JC64-00335A JC64-00335A KEY-POWER;CLX-8330ND/XAA,ABS,25*25*10,DA
JC64-00289A KEY-STOP;SCX-6345N,HIPS HB,25*25*10,HB,S
JC64-00190B KNOB-M_REAR;ML-3560,HIPS,2.5,24.7,44.7,H
JB68-00916A LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0
JC68-01584A LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100
JC68-10932A LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO
JC68-00780A LABEL(P)-CAUTION PRINTING;COMMON,WHITE P
JB68-00073A LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34
JC68-00573A LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM,
4713-001207 LAMP-HALOGEN;115V,800W,6X284MM
JC66-00958A LATCH-M_ARM FRT;SCX-6345N/XRX,POM,T1.5,3
0601-001226 LED;SMD(TOP VIEW),RED,1.2X0.8MM,660NM,1.
JC66-01190A JC66-01190A LEVER-M_ACT DUP OUT;SCX-5530FN,PBT GF30%
JC66-01189A JC66-01189A LEVER-M_ACTUATOR FEED;SCX-5530FN,PBT+GF3
JC66-01191A JC66-01191A LEVER-M_ACTUATOR REGI;SCX-5530FN,PBT+GF3
JC74-00021A MCT-GLASS ADF;SCX-4216F,GLASS,238.4*19.1
JC97-03126A MEA RACK-EXIT ROLLER;SCX-5235ND,-,-,-,-
JC97-01692A MEA UNIT- ROLLER CLEAN;ML-2150,SAMSUNG,C
JC97-02394A MEA UNIT-BRACKET FEED;SCX-5530FN,SEC,-,-
JC97-03494A JC97-03494A MEA UNIT-CASSETTE;SCX-5835FN,-,-,-,-
JC97-01788A JC97-01788A MEA UNIT-CLUTCH;ML-1710,SAMSUNG
JC97-03487A MEA UNIT-COVER OPEN;SCX-5835FN,-,-,-,-,-
JC97-03069A JC97-03069A MEA UNIT-DADF RUBBER;CLX-6240FX,-,-,-,-,
JC97-03164A MEA UNIT-DOOR FUSER;SCX-5235ND,-,-,-,-,-
JC97-03127B MEA UNIT-DUPLEX;SCX-5835FN,-,-,-,-
JC97-02648A JC97-02648A MEA UNIT-GEAR PICK UP;SCX-5530FN,-,-,-,-
JC97-02779A JC97-02779A MEA UNIT-HINGE;SCX-5330N,-,-,ELBERT,-
JC97-02276A MEA UNIT-HOLDER HDD;SCX-6345N/XRX,XEROX,
JC97-03249A JC97-03249A MEA UNIT-HOLDER PAD;ML-5050ND,DELL,-,110
JC97-03070A JC97-03070A MEA UNIT-PICK UP DADF;CLX-6240FX,-,-,-,-
JC97-03060A MEA UNIT-STOPPER;CLX-6240FX,-,-,-,-,-
JC97-03490A MEA-COVER FRONT;SCX-5835FN,-,-,-,-,-
JC97-03491A MEA-COVER MID FRONT;SCX-5835FN,-,-,-,-,-
JC97-03492A MEA-COVER REAR;SCX-5835FN,-,-,-,-,-
JC97-03116B MEA-COVER_SIDE L;SCX-5835FN,-,-,-,-,-,-
JC97-03148B MEA-COVER_SIDE R;SCX-5835FN,-,-,-,-,-,-
JC97-03085A MEA-GEAR FEED;CLX-6240FX,-,-,-,-,-
JC97-02443A MEA-IDLE FEED;SCX-5530FN,-,-,-,-
JC97-02034A JC97-02034A MEA-PICK UP_MP;ML-2250,SEC,-,PICK UP-MP
JC97-03489A MEA-SCAN DUMMY UPPER;SCX-5835FN,-,-,-,-,
JC97-03488A JC97-03488A MEA-SCAN UPPER;SCX-5835FN,-,-,-,-,-
JB75-00299A JB75-00299A MEC-ADF ROLLER ASSY;SCX-1110F/XRX,XEROX,
JC75-00095A JC75-00095A MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR
JB75-00300A JB75-00300A MEC-PICK UP ROLLER ASSY;SCX-1110F/XRX,XE
JC75-00049A MEC-TERMINAL;SF-5100,SAMSUNG
JC31-00101A MOTOR BLDC;1576RPM,1500GF.CM,24V,SCX-513
JC31-00104A MOTOR STEP;M42SP,CLX-6240FX,24V
JC31-00103A MOTOR STEP;M42SP-4NK,SCX-5135ND,0.6A,215
JC31-00084A MOTOR STEP;M49SP-2K,ML-3471ND/SEE,1.18A,
JC31-00096A MOTOR STEP;STP-42D1079,SCX-5135ND,0.8A,2
JC92-01954A JC92-01954A PBA-DADF;CLX-6240FX,SEC,-,-,-,-,-,65MM*4
JC92-02007A PBA-DEVE CRUM IF;SCX-5235ND,XEROX,XEROX,
JC92-02096A PBA-DRIVER;SCX-5835FN,SEC,DRIVER,FR-4,2
JC92-02060C JC92-02060C PBA-FAX CARD P;CLX-3175FN,SEC,-,-,-,FR-4
JC92-02071A PBA-MAIN;SCX-5635ND,SEC,-,-,-,-,215X158M
JC92-02045D PBA-OPE;SCX-5835FN,SEC,-,OPE,HDD,-,145X9
JC92-02072A PBA-OPE_KEY;SCX-5635ND,SEC,SEC,OPE KEY,F
JC92-02073A JC92-02073A PBA-OPE_KEY_SUB;SCX-5635ND,SEC,SEC,OPE K
JC92-01975A JC92-01975A PBA-RAM DIMM;CLP-610,SEC,SEC,DDR2 DIMM X
0604-001415 0604-001415 PHOTO-INTERRUPTER;TR,90%,150MW,DIP-4,BK
JC61-00604B PLATE-E_SAW;SF-755P,SUS304-CSP 1/2H,0.1,
JC61-01179A JC61-01179A PLATE-M_WHITE BAR;SCX-4521F,ABS,2,20.24,
JC61-00914A PLATE-P-PUSH BUSHING;SCX-4920N,SECC,0.8,
JC72-00974A PMO-ACTUATOR CVR OPEN;ML-1710,PC V0(NH10
JB72-00821A PMO-ADF COLAR;SCX-1110F,POM,NTR
JC72-41191A PMO-BEARING SHAFT;ML-6000,POM,WHT,M90-44
JB72-00819A PMO-BUSH;SCX-1110F,POM,NTR
JC72-41364A PMO-BUSHING_P/U,MP;ML-6100,POM,BLACK,CF-
JC72-00102A JC72-00102A PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL
JG72-40960A PMO-CAP TONER;SF6000,PP,OD22,W6,BLK
JC72-00978A PMO-COLLAR_SPRING;ML-1710,POM(M90-44),NT
JC72-00982A PMO-IDLE PICK_UP;ML-1710,POM(M90-44),HB,
JC72-00755A PMO-LEVER SENSOR;SCX-5100,POM,HB,BLK
JC72-00983A PMO-LOCKER CST;ML-1710,POM(DELIN 900P),W
JC72-41210A PMO-LOCKER PLATE;ML-6000,POM,WHT,HB
JC72-01338A PMO-M-ACT EMPTY MP;ML-2250,PC,H31.4,HB,B
JB72-00845A PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8
JC72-00984A JC72-00984A PMO-PLATE GUIDE DEVE_L;ML-1710,POM(M90-4
JC72-00985A JC72-00985A PMO-PLATE GUIDE DEVE_R;ML-1710,POM(M90-4
JB72-00763A PMO-PULLEY;SCX-1110/XRX,POM,WHT
JC72-00761A PMO-ROLLER CAM.MP;SCX-5100,POM,WHITE,K70
JC72-00833A PMO-ROLLER DECURL;SCX-5100,POM,WHT,HB
JC72-00744A PMO-SHAFT PICK UP;SCX-5150,ABS,BLK,HB
JB72-00822A PMO-SLEEVE ADF;SCX-1110F,POM,BLK
JB72-00823A PMO-SLEEVE PICK UP;SCX-1110F,POM,BLK
JC66-00899A PULLEY-18_DUP;ML-3560,POM,HB,WHITE,?4.1
JC66-00900A PULLEY-M-18-DUMMY_DUP;ML-3560,POM,HB,WHI
2007-008433 R-CHIP;0.33OHM,1%,1W,TP,6432
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-008803 R-CHIP;1.07KOHM,1%,1/4W,TP,3216
2007-007482 R-CHIP;1.24KOHM,1%,1/10W,TP,1608
2007-000123 R-CHIP;1.5KOHM,5%,1/10W,TP,1608
2007-000079 R-CHIP;1.8KOHM,5%,1/10W,TP,1608
2007-000102 R-CHIP;100KOHM,5%,1/10W,TP,1608
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000074 R-CHIP;100OHM,5%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-000090 R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-002901 R-CHIP;12.1KOHM,1%,1/10W,TP,1608
2007-000116 R-CHIP;120OHM,5%,1/10W,TP,1608
2007-000091 R-CHIP;12KOHM,5%,1/10W,TP,1608
2007-007521 R-CHIP;14.7KOHM,1%,1/10W,TP,1608
2007-008567 R-CHIP;15.4KOHM,1%,1/10W,TP,1608
2007-000104 R-CHIP;150KOHM,5%,1/10W,TP,1608
2007-000402 R-CHIP;150OHM,5%,1/10W,TP,1608
2007-000403 R-CHIP;150OHM,5%,1/4W,TP,3216
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-000092 R-CHIP;15KOHM,5%,1/10W,TP,1608
2007-008105 R-CHIP;18.2OHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000475 R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000124 R-CHIP;2.2KOHM,5%,1/10W,TP,1608
2007-002589 R-CHIP;2.49KOHM,1%,1/4W,TP,3216
2007-000093 R-CHIP;20KOHM,5%,1/10W,TP,1608
2007-007382 R-CHIP;20MOHM,5%,1/10W,TP,1608
2007-000075 R-CHIP;220OHM,5%,1/10W,TP,1608
2007-000094 R-CHIP;22KOHM,5%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-000616 R-CHIP;24KOHM,5%,1/10W,TP,1608
2007-000082 R-CHIP;3.3KOHM,5%,1/10W,TP,1608
2007-007525 R-CHIP;3.4KOHM,1%,1/10W,TP,1608
2007-002607 R-CHIP;3.65KOHM,1%,1/4W,TP,3216
2007-000704 R-CHIP;3.6KOHM,5%,1/10W,TP,1608
2007-000729 R-CHIP;300OHM,5%,1/10W,TP,1608
2007-000096 R-CHIP;30KOHM,5%,1/10W,TP,1608
2007-000740 R-CHIP;30KOHM,5%,1/4W,TP,3216
2007-000133 R-CHIP;330KOHM,5%,1/10W,TP,1608
2007-000076 R-CHIP;330OHM,5%,1/10W,TP,1608
2007-000134 R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000113 R-CHIP;33OHM,5%,1/10W,TP,1608
2007-000083 R-CHIP;3KOHM,5%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000107 R-CHIP;470KOHM,5%,1/10W,TP,1608
2007-000077 R-CHIP;470OHM,5%,1/10W,TP,1608
2007-002916 R-CHIP;475KOHM,1%,1/10W,TP,1608
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-007226 R-CHIP;49.9OHM,1%,1/10W,TP,1608
2007-000965 R-CHIP;5.1KOHM,5%,1/10W,TP,1608
2007-000144 R-CHIP;5.1KOHM,5%,1/16W,TP,1005
2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608
2007-001020 R-CHIP;536OHM,1%,1/4W,TP,3216
2007-001056 R-CHIP;6.2KOHM,5%,1/10W,TP,1608
2007-000120 R-CHIP;680OHM,5%,1/10W,TP,1608
2007-001134 R-CHIP;68OHM,5%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-001179 R-CHIP;8.2KOHM,5%,1/10W,TP,1608
2007-000121 R-CHIP;820OHM,5%,1/10W,TP,1608
2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3
2011-000660 R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001261 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001346 R-NETWORK;68OHM,5%,1/16W,L,CHIP,8P,TP,2.
3501-000203 RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6
6044-000107 RING-C;ID2.5,OD6,T0.4,PASS,STS304
6044-000159 RING-C;ID3,OD7,T0.6,PASS,STSC
6044-000001 RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5
6044-000125 RING-E;ID4,OD9,T0.6,STSC
6044-000231 RING-E;ID5.0,OD11.0,T0.6,PASS,STS304
JB73-00052A JB73-00052A RMO-ADF RUBBER;SCX-1110F,SILICON RUBBER,
JC66-01824A JC66-01824A ROLLER-EXIT;CLX-6240FX,SUM22L+NI, EPDM,1
JC66-00526A JC66-00526A ROLLER-FEED ROLLER 1;ML-1510,SUM24L+NI+E
JC66-01823A ROLLER-FEED;CLX-6240FX,SUM22L+NI , EPDM,
JC66-01173A ROLLER-FEED;SCX-5530FN,EPDM+SUM22+NI,13.
JC66-01167A ROLLER-FEED_DUP2;SCX-5530FN,SUM22+NBR,OD
JC66-01593B ROLLER-HEAT;SCX-5235ND,AL3304,28.3,254,N
JC66-01169A ROLLER-IDLE PICK UP;SCX-5530FN,POM,28.5,
JC66-00461A JC66-00461A ROLLER-M-ADF IDLE;SCX-4114F,POM,BLK
JC66-00824A ROLLER-M-EXIT MAIN;ML-1610,POM,8.5,L23.6
JC66-00896A ROLLER-M-IDLE_ DUP;ML-3560,POM,OD9.6,14.
JC66-01822A ROLLER-MIDDLE;CLX-6240FX,SUM22L+NI, EPDM
JC66-01453B ROLLER-PRESSURE;SCX-5235ND,LSR/PFA,12,BL
JC66-01181A JC66-01181A ROLLER-TRANSFER;SCX-5530FN,SUS303+NBR,15
JC72-40981A ROLLER;ML-165,POM,WHT,HB
JC72-20902A ROLLER;ML-5000A,TEFLON,WHT
JC73-00140A JC73-00140A RPR-FRICTION PAD;ML-1510,NBB,1T 8.9*47,5
JC73-00141A JC73-00141A RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE
JC73-00215A RUBBER-DAMPER HDD;SCX-6345N/XRX,EPDM,7.5
JC73-00288A RUBBER-JOB STATUS;SCX-5835FN,SILICON,SEC
JC73-00194A JC73-00194A RUBBER-PICK UP MP;SCX-4720F,EPDM,40,SEC,
JC73-00287A RUBBER-START;SCX-5835FN,SILICON,SEC,MILK
6009-001492 SCREW-HEX;HWH,+,M3,L8,NI PLT,SWRCH18A,S,
6001-000130 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6002-000440 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR
6003-000282 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW
6003-000269 6003-000269 SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW
6003-000301 SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC
6003-001001 6003-001001 SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC
6006-001078 SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT)
6003-000196 SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC
JC62-00140A SEAL-BLADE SIDE_BK;CLP-500,PE FORM,GRAY,
JC66-00527A SHAFT-FEED IDLE;ML-1510,SUM24L+NI,223,8
JC66-00398A SHAFT-FEED;ML-1710,POM(M90-44),NTR
JC66-00444A SHAFT-IDLE ROLL, DUP;ML-2150,SUM24L,25,2
JC66-01160A SHAFT-M_FEED2;SCX-5530FN,POM(M90-44),72.
JC66-00720A SHAFT-P-CORE;ML-1750,SECC 1.2T,203
JC66-00399A SHAFT-P-PICK_UP;ML-1710,SECC,0.8T
JC70-20901A JC70-20901A SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9
JC63-00186A SHEET-GUIDE ADF;SCX-6320F,PET,0.125,37,2
JC63-02108B SHEET-JOB STATUS;SCX-5835FN,PC,0.254,112
JC63-02108A SHEET-JOB STATUS;SCX-5835FN,PC,0.254,112
JC63-01784A SHEET-LCD;CLX-8330N,PET,T0.125,153,91.5,
JC63-01776A SHEET-PATH;CLX-6240FX,PET,0.188,12.0,30,
JC63-02109B SHEET-START;SCX-5835FN,PC,0.254,162.8,11
JC63-02109A SHEET-START;SCX-5835FN,PC,0.254,162.8,11
JC63-00209A JC63-00209A SHEET-WHITE SPONGE;SCX-4216F,POLYURETHAN
JC64-00370A SHUTTER-CST;SCX-5135ND,POM,WHITE
JC44-00097C SMPS-V1;SCX-5235ND,PSP TYPE3-V1(1W),AC-D
JC33-00030A JC33-00030A SOLENOID-DADF;DLH-34L130-01,CLX-6240FX,D
JC33-00027C JC33-00027C SOLENOID-FEED;SCX-5636ND,DC 24V,120OHM,2
JC33-00031A SOLENOID-LIFTING;DAH-10H080-01,CLX-6240F
JC33-00025B JC33-00025B SOLENOID-MANUAL;SCX-5135ND,DC 24V,120OHM
JC33-00028B JC33-00028B SOLENOID-MP;SCX-5135ND,DC 24V,120OHM,200
3001-002262 SPEAKER;0.3W,8OHM,81DB,400HZ,50X16.4MM
JC61-70903A SPRING ETC-ACTUATOR;ML-165,SUS304,PI0.2,
JG61-70549A SPRING ETC-CIS(C2);SF4400,SUS304WPB,D11.
JC61-01950A JC61-01950A SPRING ETC-CLAW;ML-3471ND/SEE,SUS304WPB,
JB61-70904A SPRING ETC-CLUTCH;AMUNDSEN,SWRS82A,D11.4
JC61-00025A SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS
JC61-00484A SPRING ETC-EXIT LOWER IDLE;SCX-5100,SUS3
JC61-70911A SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP
JC61-70932A SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16.
JC61-00414A SPRING ETC-GUIDE PAPER;ML-9400W,SUS304WP
JC61-70913A SPRING ETC-KNOCK UP MP;ML-2150,SUS304 WP
JG61-70531A SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB
JC61-00387A SPRING ETC-PAD;ML-9400W,SUS304WPB,PI0.5,
JC61-02489A JC61-02489A SPRING ETC-PICKUP;CLX-6240FX,SUS304 WPB,
JC61-00455A SPRING ETC-PLATE K/UP;SCX-5100,SUS304,24
JB61-00076A JB61-00076A SPRING ETC-TORSION DOC (CC2-F);SCX-1110F
JC61-70958A SPRING ETC-TR;ML-5000A,SUS304 WPB,PI0.55
6107-001370 SPRING-CS;STS304WPB,NO FIN,PI0.45,D4.45,
6107-001135 SPRING-CS;SUS304 WPB,PI0.3,L14,ID5.4,OD6
6107-001552 6107-001552 SPRING-CS;SUS304,PI0.3,L14(7.5TURN),ID5.
6107-001167 SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I
6107-001246 SPRING-CS;SWP B,PI0.9,D5.8,L15.5,ID4.9,O
6107-001354 SPRING-CS;SWP-B,END CLOSE,PI2,L33,ID7,OD
6107-001256 6107-001256 SPRING-ES;SUS304-WPB,NTR,PI0.32,D3.88,L1
6107-001237 SPRING-ES;SUS304-WPB,P0.5,D4.5,L42,ID4,O
6107-001498 SPRING-ES;SUS304-WPB,PI0.55,D4.5,L25.9,I
6107-001159 SPRING-TS;SUS304,PI0.45,D3.85,L20,W10,ID
6107-001164 6107-001164 SPRING-TS;SUS304-WPB,PI0.15,D3.95,L12,ID
6107-001156 SPRING-TS;SWP-B,PI0.6,W20,ID3.5
6107-001352 SPRING-TS;SWP-B,PI0.75,D5.95,ID5.2,OD6.7
6107-001171 SPRING-TS;SWRS82A,0.75X0.5,D14.2,ID13.7,
JC61-00915A STOPPER-M-PICK UP_R2;SCX-4920N,POM,D14,2
JC61-01653A STOPPER-M-STRAP;SCX-5530FN,PE BOX,T1,253
3404-000165 SWITCH-TACT;12V,50MA,160GF,6X6X5,SPST
3404-001222 SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S
0203-001100 TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75,
JC65-00019A TERMINAL-CRUM;SCX-5530FN,SUS304WPB,PI 0.
JC65-00017A TERMINAL-P-GND DUP;SCX-5530FN,C5210W,PI0
1404-001417 1404-001417 THERMISTOR-NTC ASSY;10KOHM,3435K,3MW/C
CALL_1-800-SAMSUNG THERMISTOR-NTC ASSY;7KOHM,3370K,0.3MW/C,
1404-001065 THERMISTOR-PTC;0.11OHM,13.2VAC,40A,1.5A,
0504-000144 TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92,
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-002326 TR-SMALL SIGNAL;KST06,NPN,350MW,SOT-23,T
0501-000479 TR-SMALL SIGNAL;KST42,NPN,350MW,SOT-23,T
0501-000481 TR-SMALL SIGNAL;KST92,PNP,350MW,SOT-23,T
0501-000457 TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
2602-000062 TRANS-PULSE;450UH,0.25/0.25OHM,1:1,12.8X
JC63-02001B TRAY-ASF OUTPUT;SCX-5835FN,ABS,2.0,G3200
JC63-00444A JC63-00444A TRAY-M-LINK_MP;ML-2250,PC,2,74.9,9.3
JC59-00027A JC59-00027A UNIT-LSU;SCX-5530FN,DUAL,SINGLE LD,4FACE
1405-000130 VARISTOR;270V,1200A,9X4.6MM,TP
1405-000170 VARISTOR;82V,1200A,9X4.1MM,TP
6031-000023 WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK
6031-001584 WASHER-PLAIN;POLYSLIDER,ID4,OD7,T0.5,BLA
Main Menu x
