Manufacturer
Samsung
Model Number
SCX-6545N
Description
Black & White Multifunction Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC66-01689A | ACTUATOR-DUPLEX;SCX-6555N,PC,T2,BLK |
| JC66-01803A | ACTUATOR-GATE;SCX-6555N,PC,BLK |
| JC66-01688A | ACTUATOR-REGI;SCX-6555N,PC,T2,BLK |
| JC66-01691A | ACTUATOR-REVERSE;SCX-6555N,PC,T2,BLK |
| JC66-01690A | ACTUATOR-SCAN;SCX-6555N,PC,T2,BLK |
| 0201-001006 | ADHESIVE-AA;#7452,TRP |
| JB72-00764A | BAND;SCX-1110/XRX,POM,WHT |
|
|
BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON |
| 3301-000317 | BEAD-SMD;120OHM,2012,TP,-,- |
| 3301-001655 | BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH |
| 3301-001067 | BEAD-SMD;600OHM,1608 |
| 3301-001594 | BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,- |
|
|
BEARING-BALL;6705ZZ,ID25.0,OD32.0,L4,CWB |
| 6601-001385 | BEARING-BALL;679ZZ,ID9.0,OD14,L4.5,SRL |
|
|
BEARING-BALL;688ZZ,ID8,OD16,L5,SUJ2 |
| JC66-10205A | BEARING-PRESSURE R;ML-80,PPS |
| 6602-001090 | BELT-TIMING GEAR;FIBER GLASS,T3.2,942.85 |
| 6602-001092 | BELT-TIMING GEAR;RUBBER,T1.36,40S2M338,3 |
| JC61-02767A | BLADE-CLEANER;SCX-6555N,FLOCKING |
| JC69-00878A | BOX(P)-MAIN_BOT;CB,DC3,A-1,207,577,799,B |
| JC69-01311F | BOX-TOP;SCX-6545N,CB,DC3,689,815,593,SUK |
| JC61-03317A | BRACKET-ADJUST SKEW;SCX-6445N,SECC,T1.0 |
| JC61-02246A | BRACKET-CAM FRONT;SCX-6555N,SECC,T1.2 |
| JC61-02091A | BRACKET-OPE GROUND;CLX-8380ND/XAA,SECC,T |
| JC61-02754A | BRACKET-WHITE BAR;CLX-8380ND,SECC,1.0,27 |
| JC67-00055A | BRUSH-ANTISTATIC 531P;SF-531P,AL+THUNDER |
| JC67-00125A | BRUSH-EXIT;SCX-6345N/XRX,AL0.4T, SUS FIB |
| JC61-01694A | BUSH-46D;SCX-6345N,BRONZE POWDER,?4.6,?6 |
| JC61-00424A | BUSH-4;ML-9400W,BEARING,?4,NTR |
| JC61-01686A | BUSH-4D_FE;SCX-6345N,SBF2118,?4,?5.93,3. |
| JC61-00884A | BUSH-6_D(L);SCX-6320F,BRONZE POWDER(KAB- |
| JC61-00423A | BUSH-6_D;ML-9400W,BEARING,?6,NTR |
| JC61-00426A | BUSH-8/5;ML-9400W,BEARING,?8,OD12.0,L6.0 |
| JC61-01428A | BUSH-DRY;SCX-6345N/XRX,BRONZE SINTERED(K |
|
|
BUSH-HR;ML-3471ND/SEE,PPS,14.45,16.41,36 |
|
|
BUSH-M_ADF CLUTCH;SCX-6320F,PPS,7,11.85, |
| 3002-000185 | BUZZER-MAGNETIC;85DB,5V,40MA,2.4KHZ,BK |
| 2402-001086 | C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3 |
| 2402-000204 | C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4.3X5.4 |
| 2402-001178 | C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4.3X5.8M |
| 2402-000117 | C-AL,SMD;10UF,20%,35V,GP,TP,5.3X5.3X5.4 |
| 2402-000209 | C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM |
| 2402-001106 | C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M |
| 2402-000173 | C-AL,SMD;4.7UF,20%,35V,GP,TP,4.3X4.3X5.4 |
| 2402-001155 | C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM |
| 2401-000039 | C-AL;1000UF,20%,16V,GP,TP,10X16,5 |
| 2401-000207 | C-AL;100UF,20%,50V,WT,TP,8X12,5 |
| 2203-000384 | C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0. |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-000783 | C-CER,CHIP;0.33NF,5%,50V,C0G,1608 |
| 2203-001656 | C-CER,CHIP;0.47NF,5%,50V,NP0,1608 |
| 2203-000140 | C-CER,CHIP;1.5NF,10%,50V,X7R,1608 |
| 2203-007236 | C-CER,CHIP;10000NF,10%,50V,X7R,TP,3225 |
| 2203-005617 | C-CER,CHIP;1000NF,+80-20%,50V,Y5V,TP,201 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-002709 | C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2203-002392 | C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608,- |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| 2404-001272 | C-TA,CHIP;100UF,20%,16V,-,TP,7343 |
| 6502-000132 | CABLE CLAMP;DAWS-1NE,ID11,L21.0,NTR,NYLO |
| 6502-001093 | CABLE CLAMP;DAWS-3NE,ID11*L34.8,NYLON66, |
| 6501-000004 | CABLE TIE;DA-80,T1,W2.5,L80,NTR,NYLON66 |
| JC67-00284A | CAP-TONER L;SCX-6555N,PP,1.0,33,6,BLK |
| JC39-00187A | CBF HARNESS-ADF ROLLER GND;SCX-5100,WIRE |
| JC39-00545A | CBF HARNESS-HVPS(3P);SCX-6345N,CBF,UL323 |
| JC39-00544A | CBF HARNESS-HVPS(8P);SCX-6345N,CBF,UL323 |
| JB39-00103A | CBF HARNESS-LIU GND;SCX-1110F,WIRE,UL100 |
|
|
CBF IF-USB;ML-6100,4,UL2725,1800 +/- 50, |
| 3903-000190 | CBF-POWER CORD;DT,AR,AP3,IEC320 C13,250/ |
| 3903-000146 | CBF-POWER CORD;DT,CL,LP3/NO,I(IEC C13/C1 |

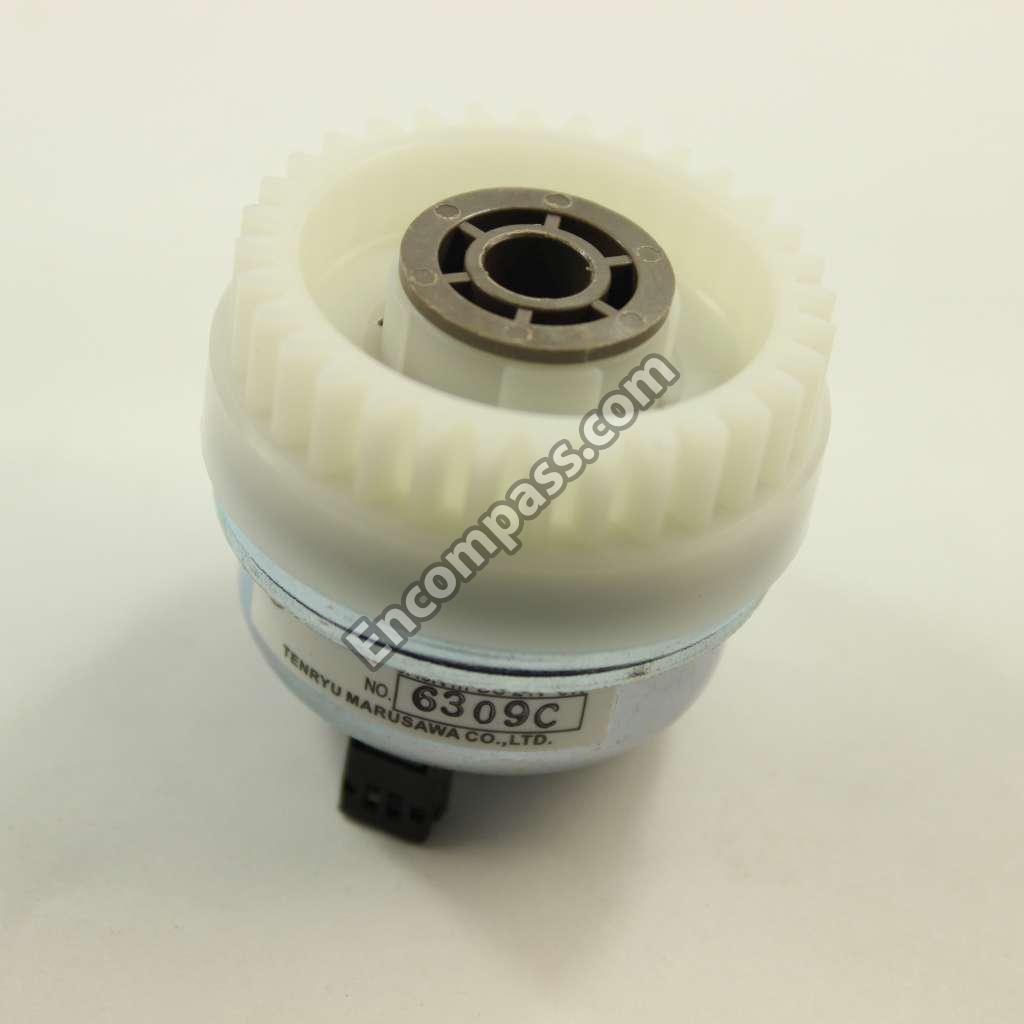

| JC66-01837A | CLUTCH-2.5K Z24;CLX-8380ND/XAA,POM+METAL |
|
|
CLUTCH-2.5K Z24;SCX-6555N,POM+METAL,2.5K |
| JC66-00994B | CLUTCH-5K Z32;CLX-8380ND/XAA,POM+METAL,5 |
|
|
CLUTCH-5K Z32;SCX-6345N/XRX,POM+METAL,5K |
|
|
CLUTCH-P_ONE WAY;SCX-6345N/XRX,OWC612GXR |
| JB27-00004A | COIL CHOKE-DIP;DR 8X11(470UH),MJC-1450,4 |
| 3709-001372 | CONNECTOR-CARD EDGE;200P,0.6MM,SMD,AUF,S |
| 3701-001143 | CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,AUF |
| 3708-002121 | CONNECTOR-FPC/FFC/PIC;40P,1MM,SMD-S,SN,N |
| 3708-001741 | CONNECTOR-FPC/FFC/PIC;6P,1MM,STRAIGHT,SN |
| 3711-006454 | CONNECTOR-HEADER;BOX,7P,1R,1.27MM,STRAIG |
| 3711-002349 | CONNECTOR-HEADER;BOX,7P,1R,2MM,STRAIGHT, |
| JC67-00126A | COUPLER-TORQUELIMITER;SCX-6345N/XRX,OTLV |
| JC63-01362A | COVER-CCD CABLE;CLX-8380ND/XAA,ABS,T2.0, |
| JC63-00765B | COVER-CONNECTOR;SCX-6345N,ABS,5.3,55.0,7 |
| JC63-00727B | COVER-EXIT BOTTOM;SCX-6345N/XRX,PC/ABS,2 |
| JC63-00728B | COVER-EXIT BRACKET;SCX-6345N/XRX,HIPS,2. |
| JC63-00731B | COVER-EXIT REAR;SCX-6345N/XRX,HIPS,2.5,3 |
| JC95-01052A | COVER-FRONT;SCX-6545N,SEC |
| JC63-01611A | COVER-FRONT;SCX-6555N,HIPS,T2.5,VIOLET S |
| JC63-01456G | COVER-PANEL FRONT;CLX-8330N/XAA,ABS,T2.5 |
| JC63-01588A | COVER-PANEL MFP;SCX-6555N,HIPS,T2.5,VIOL |
| JC63-01637A | COVER-REAR;SCX-6555N,HIPS,T2.5,VIOLET SM |
| JC63-00775B | COVER-SIDE;SCX-6345N/XRX,ABS,3,392.1,378 |
| 2801-000111 | CRYSTAL-SMD;0.032768MHZ,20PPM,28-AAW,12. |
| 2801-004181 | CRYSTAL-SMD;20MHZ,50PPM,28-AAN,16PF,30OH |
| JC69-01317A | CUSHION-BLOCK;SCX-6555N,EPS,290,158,31,1 |
| JC69-01318A | CUSHION-BOTTOM;SCX-6555N,EPP,789,567,125 |
| JC69-01321A | CUSHION-SUPPORT;SCX-6555N,EPS,386,155,19 |
| JC69-01307A | CUSHION-TOP_FRONT;SCX-6555N,EPP,805,235, |
| JC69-01309A | CUSHION-TOP_LEFT;SCX-6555N,EPP,228,175,2 |
| JC69-01308A | CUSHION-TOP_RIGHT;SCX-6555N,EPP,228,175, |
| 0402-001212 | DIODE-RECTIFIER;SS26,60V,2A,SMB,TP |
| 0404-001084 | DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T |
| 0404-001020 | DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0407-000123 | DIODE-SWITCHING;DAN202K,80V,100MA,SOT-23 |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| JC93-00169A | DRIVE FUSER;SCX-6555N,SEC |
| JC93-00168A | DRIVE MAIN;SCX-6555N,SEC |
| JC67-00127A | DUCT-M_FAN LSU;SCX-6345N/XRX,ABS ,T1.5,W |
| JC96-04903A | ELA HOU-BASE FRAME;SCX-6555N,SEC,-,-,-,- |
| JC96-04908A | ELA HOU-BASE PLATE R;SCX-6555N,SEC,-,-,- |
| JC96-04857A | ELA HOU-COVER JAM;SCX-6555N,SEC,-,-,- |
| JC96-04862A | ELA HOU-COVER OPEN;SCX-6555N,SEC,-,-,-,- |
| JC96-03534A | ELA HOU-CVR OPN;SCX-6345N/XRX,-,-,CVR OP |
| JC96-04859A | ELA HOU-DADF MOTOR;SCX-6555N,SEC,-,-,-,- |
| JC96-04858A | ELA HOU-DADF SUB;SCX-6555N,SEC,-,-,-,- |
| JC96-04855A | ELA HOU-DADF;SCX-6555N,SEC,-,-,-,- |
| JC96-04893A | ELA HOU-DRIVE FUSER;SCX-6555N,SEC,-,-,-, |
| JC96-04860A | ELA HOU-DUPLEX MOTOR;SCX-6555N,SEC,-,-,- |
| JC96-04982A | ELA HOU-DUPLEX;SCX-6555N,SEC,-,-,- |
|
|
ELA HOU-EXIT;SCX-6555N,SEC,-,-,- |
| JC96-04990A | ELA HOU-FAN DUCT;SCX-6555N,SEC,100MOHM,- |
| JC96-04898A | ELA HOU-FRAME MAIN;SCX-6555N,SEC,KOREA,- |
| JC96-04888A | ELA HOU-FRAME TOP;SCX-6555N,SEC,KOREA,-, |
| JC91-00973B | ELA HOU-FUSER;SCX-6555N,SEC,220V,-,-,-,- |
| JC96-04861A | ELA HOU-GUIDE SCAN;SCX-6555N,SEC,-,-,-,- |
|
|
ELA HOU-GUIDE SIDE;SCX-6555N,SEC,-,-,-,- |
|
|
ELA HOU-ID SENSOR;SCX-6555N,SEC,KOREA,-, |
|
|
ELA HOU-MP PICK UP;SCX-6345N/XRX,-,-,MP |
| JC96-04905A | ELA HOU-MP;SCX-6555N,SEC,-,-,- |
| JC96-04667A | ELA HOU-OPE COVER;CLX-8330ND,SEE,SEE,-,- |
|
|
ELA HOU-PICK UP;SCX-6555N,SEC,ASSY SPEAK |
| JC96-04979A | ELA HOU-PLATEN;SCX-6555N,SEC,-,-,-,- |
|
|
ELA HOU-SIDE DUPLEX;SCX-6555N,SEC,-,-,- |
| JC96-04896A | ELA HOU-SIDE;SCX-6555N,SEC,-,-,-,-,- |
| JC96-04906A | ELA HOU-SIZE SENSOR;SCX-6555N,SEC,KOREA, |
| JC96-03749B | ELA HOU-SOLENOID DP;CLX-8380ND/XAA,-,KOR |
| JC96-03535A | ELA HOU-TERMINAL;SCX-6345N/XRX,-,-,TERMI |
| JC96-04907A | ELA HOU-UPPER DP;SCX-6555N,SEC,-,-,- |
| JC96-04056A | ELA HOU-VARISTOR;SCX-6345N,XEROX,-,-,- |
| JC96-04615A | ELA UNIT-CCDM HC;ADVANCED - COLOR,EPIN,C |
| JC96-02127B | ELA UNIT-CST SENSOR;CLX-8380ND/XAA,SEC,- |
| JC96-04047A | ELA UNIT-LSU LD;SCX-6345N,-,-,DUAL,14 PI |
| JC96-04958A | ELA UNIT-SCAN MOTOR;CLX-8380ND/XAA,SEC,- |
| JC96-04569A | ELA UNIT-SCAN UPPER;CLX-8380ND/XAA,SEC,- |
| JC96-04947A | ELA UNIT-SHIELD SMPS;SCX-6555N,-,-,-,-,- |
| JC31-00086A | FAN-DC;CLX-8380ND/XAA,PBT+GF,UL10272 AWG |
|
|
FAN-DC;CLX-8380ND/XAA,UL10272 AWG#26,AMP |
| JC31-00087A | FAN;CLX-8380ND/XAA,PBT+GF,UL10272 AWG#26 |
| JC31-00099A | FAN;SCX-6555N,PBT+GF,HNS100MM |
|
|
FDB-MULTI TRIAC V2C;SCX-6555N,FDB 2S PC |
| 0505-001350 | FET-SILICON;NDT2955,P,-60V,-2.5V,0.3OHM, |
| 0505-001326 | FET-SILICON;SI2308DS,N,60V,2A,0.22OHM,1. |
| 2901-001178 | FILTER-EMI SMD;25V,2A,100000PF,2X1.25X1M |
|
|
FIXER-M_E RING 4PI;SCX-6345N/XRX,POM,T1. |
| JC39-00941A | FLAT CABLE-APS_FFC;SCX-6555N,6P,410MM,AW |
| JC61-40001A | FOOT-ML80;ML-80,NBR,GRAY |
|
|
FRAME-ACTUATOR;SCX-6345N,SEC |
| JC61-01411B | FRAME-CASSETTE;SCX-6345N,HIPS,HB,VIOLET |
| JC61-01351B | FRAME-MP LOWER;SCX-6345N,ABS,HB,VIOLET S |
| JC61-01352B | FRAME-MP TOP;SCX-6345N,ABS,HB,VIOLET SMO |
| JC96-04989A | FRAME;SCX-6555N,SEC |
| JB66-00104A | GEAR-ADF IDLE 34;SCX-1110F,POM,0.6,34,20 |
| JC66-01679A | GEAR-AGI IDLE B;SCX-6555N,POM,0.5/1,86/1 |
| JC66-00320A | GEAR-AUGER;SCX-5100,POM M90-44,0.6,24,14 |
|
|
GEAR-CAM REAR;SCX-6555N,PC,0.7,14,BLK,SP |
| JC66-01667A | GEAR-CLUTCH;SCX-6555N,POM,0.6,28,NTR,SPU |
| JC66-00565A | GEAR-DADF24(A);SCX-6320F,POM M90-44,1,Z2 |
|
|
GEAR-DRIVE REAR;SCX-6555N,POM,0.4/0.6,20 |
| JC66-01666A | GEAR-FUSER;SCX-6555N,PPS+GF40%,1.0,51,BR |
|
|
GEAR-IDLE ENV;SCX-6555N,POM,0.4/0.7,70/1 |
| JB66-00083A | GEAR-IDLE;SCX-1110/XRX,POM M90-44,0.5,31 |
| JC66-01011A | GEAR-M DRV Z2228;SCX-6345N/XRX,NYLON66,A |
|
|
GEAR-MIDDLE;SCX-6555N,POM,1,21,NTR,HELIC |
| JC66-01680A | GEAR-MP HELICAL;SCX-6555N,L1724KH,1/1,17 |
| JC66-01806A | GEAR-MULTI ROLLER;SCX-6555N,POM,0.6,51,N |
| JC66-00989A | GEAR-M_AGI IDLE;SCX-6345N/XRX,POM,1,31/5 |
| JC66-00986A | GEAR-M_AGITATOR;SCX-6345N/XRX,POM,1,61,H |
| JC66-00950B | GEAR-M_CHARGE ROLL;SCX-6555N,POM,0.5,Z20 |
| JC66-00991A | GEAR-M_DUPLEX IDLE;SCX-6345N/XRX,POM,1,3 |
| JC66-01018A | GEAR-M_EXIT LOWER;SCX-6345N/XRX,POM,0.8, |
| JC66-01017A | GEAR-M_EXIT UPPER;SCX-6345N/XRX,POM,0.8, |
| JC66-01012A | GEAR-M_EXIT;SCX-6345N/XRX,POM,1,15,W10,B |
| JC66-00974A | GEAR-M_FORWARD;SCX-6345N/XRX,POM,1,31,H9 |
| JC66-00940A | GEAR-M_IDLE PU;SCX-6345N/XRX,POM,0.7,22, |
| JC66-00955A | GEAR-M_LIFT COUPLING;SCX-6345N/XRX,POM,1 |
| JC66-00954A | GEAR-M_LIFTING;SCX-6345N/XRX,POM,1.5,46, |
| JC66-00985A | GEAR-M_MIXER;SCX-6345N/XRX,POM,1,27,D34. |
| JC66-00936A | GEAR-M_MP FEED;SCX-6345N/XRX,POM,1,24,H2 |
| JC66-00990A | GEAR-M_MP IDLE B;SCX-6345N/XRX,POM,A:1,B |
| JC66-00941A | GEAR-M_ONE WAY;SCX-6345N/XRX,POM,0.7,21, |
| JC66-00982A | GEAR-M_OPC BASE;SCX-6345N/XRX,POM,0.5,79 |
| JC66-00973A | GEAR-M_PICKUP IDLE B;SCX-6345N/XRX,POM,A |
| JC66-01020A | GEAR-M_PINION 24;SCX-6345N/XRX,POM,1,24, |
|
|
GEAR-M_PU JOINT;SCX-6345N/XRX,POM,0.7,21 |
| JC66-00975A | GEAR-M_RETARD;SCX-6345N/XRX,POM,0.6,57,H |
| JC66-00993A | GEAR-M_SUPPLY IDLE;SCX-6345N/XRX,POM,A:0 |
| JC66-01683A | GEAR-ONE WAY DADF;SCX-6555N,POM,0.6,42,N |
| JB66-00105A | GEAR-PICK UP 26;SCX-1110F,POM,0.6,26,15. |
| JC66-01682A | GEAR-PICK UP HELICAL;SCX-6555N,POM,1/1,3 |
| JB66-00102A | GEAR-PICK UP IDEL 38;SCX-1110F,POM,0.6,3 |
| JC66-01676A | GEAR-PICKUP DRIVE;SCX-6555N,POM,1,25,BLK |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC66-00530A | GEAR-REDUCTION73/37;SCX-6320F,POM M90-44 |
|
|
GEAR-REGI HELICAL;SCX-6555N,POM,0.5/1,55 |
| JC66-01677A | GEAR-REGI IDLE C;SCX-6555N,POM,1/1,19/31 |
| JC66-01675A | GEAR-ROLLER DRIVE;SCX-6555N,POM,0.6,42,N |
| JC66-01867A | GEAR-TIMING;CLX-8380ND/XAA,POM,M0.5,57,W |
| JC01-00008A | GLASS-LSU;180.5*11.5,1.9 |
| JC01-00016A | GLASS-SCAN HEATING;388*271.5,T3.2 |
| JC74-00019A | GLASS;238.4*19*2.8,SCX-5100,GLASS,CLEAR |
| JC63-00802A | GROUND-P-OPC CONTACT;SCX-6345N/XRX,C5210 |
| JC63-00794A | GROUND-P-PAPER SIZE;SCX-6345N/XRX,PHOSPH |
| JC63-00833A | GROUND-P-SHAFT RETARD;SCX-6345N/XRX,PHOS |
| JC61-02760A | GUIDE-EARTH TR;SCX-6555N,SECC,T1,PATH |
|
|
GUIDE-EXIT SUB;SCX-6555N,PPE+PS,T2,BLK |
| JC61-02347A | GUIDE-EXTENSIONPLATEN;SCX-6555N,ABS,T2.5 |
|
|
GUIDE-M_EXIT;SCX-6345N/XRX,PPE+PS,T2.5,2 |
| JC61-01297A | GUIDE-M_FEED IDLE MP;SCX-6345N/XRX,ABS , |
|
|
GUIDE-M_PICKUP DOC;SCX-6345N/XRX,PC+ABS, |
| JC61-01299A | GUIDE-M_UPPER PICK UP;SCX-6345N/XRX,PC A |
| JC61-01413A | GUIDE-P-SIDE LEFT;SCX-6345N/XRX,SECC,T1. |
| JC64-00224A | HANDLE-M-FUSER_JF;SCX-6345N/XRX,PC/STEEL |
| JC39-00815A | HARNESS-CCD_FFC;SCX-6555N,40P,680MM,WHT, |
| JC39-00541A | HARNESS-COVER_SW;SCX-6345N,CBF,UL1061,5, |
| JC39-00783A | HARNESS-DUPLEX;SCX-6555N,UL10272,24P,110 |
| JC39-00801A | HARNESS-DUPLEX_SEN;SCX-6555N,UL10272,9P/ |
| JC39-00806A | HARNESS-FEED_MTR;SCX-6555N,UL10272,10P,2 |
| JC39-00555A | HARNESS-LSU;SCX-6345N,CBF,UL1061,18P(14P |
| JC39-00793A | HARNESS-NEAR_SEN;RUSHMORE,UL10272,3P,75M |
| JC39-00834A | HARNESS-POWER_SW;SCX-6555N,UL 1617, UL 1 |
| JC39-00753A | HARNESS-SATA_POWER;SCX-6555N,FLAT,UL1061 |
| JC39-00754A | HARNESS-SATA_SIGNAL;SCX-6555N,FLAT,UL272 |
|
|
HARNESS-SCF_MAIN;RUSHMORE,UL10272,18P,22 |
| JC39-00460A | HARNESS-SMPS;SCX-6345N,CBF,UL1061,28,325 |
| JC39-00789A | HARNESS-STP_MTR;SCX-6555N,UL10272,12P/4P |
| JC39-00615A | HARNESS-VARISTOR;SCX-6345N,CBF,UL1007,2P |
|
|
HDD;160G,HTS545016B9A300,512BYTES,5400RP |
| JC59-00032A | HDD;250G,HTS543225A7A384/HM250HI,S63,H16 |
| 3711-000178 | HEADER-BOARD TO CABLE;1WALL,2P,1R,3.96MM |
| 3711-000255 | HEADER-BOARD TO CABLE;1WALL,5P,1R,2.5MM, |
| 3711-006435 | HEADER-BOARD TO CABLE;BOX,10P,1R,1.5MM,S |
| 3711-006436 | HEADER-BOARD TO CABLE;BOX,11P,1R,1.5MM,S |
| 3711-006501 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.5MM,S |
| 3711-004909 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-003340 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,STR |
| 3711-002000 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,STR |
| 3711-003981 | HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR |
| 3711-005912 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.54MM,S |
| JC61-00729A | HINGE-M-HOUSING;SCX-6320F,DELRIN 100P,WH |
| JC61-02753A | HOLDER-CLEANER;SCX-6555N,PC,BLK |
| JC61-01422A | HOLDER-M_ACT READY;SCX-6345N/XRX,PC,T2,W |
| JC61-01335A | HOLDER-M_ACTUATOR DP;SCX-6345N/XRX,PC,T1 |
| JC61-01421A | HOLDER-M_ACT_FEED;SCX-6345N/XRX,PC,T2,W1 |
| JC61-01288A | HOLDER-M_IDLE ONE WAY;SCX-6345N/XRX,POM, |
| JC61-01406A | HOLDER-M_LIU;SCX-6345N/XRX,ABS,T2.5,W80, |
| JC61-02710A | HOLDER-STAR WHEEL;SCX-6555N,PC,T1.5,BLK |
| JC61-01341B | HOUSING-BASE RIGHT;SCX-6345N/XRX,ABS,3.0 |
| JC61-02421A | HOUSING-FEED ROLLER;SCX-6555N,ABS,BLACK |
| JC61-01343A | HOUSING-M_SIZE SENSOR;SCX-6345N/XRX,ABS, |
| JC61-01752A | HOUSING-WTB;SCX-6345N/XRX,HIPS,W211.13,L |
| JC44-00158A | HVPS;24V,21.6V~27.6V,MAX 5KV,MAX-2KV |
| JC13-00038A | IC ASIC-CIP5;CIP5,SCX-6345N,256P,3.3V,-4 |
| JC13-00020A | IC ASIC-ENGINE CONTROL;LPEC1,CLP-500,128 |
| JC13-00037A | IC ASIC-HYPER3;HYPER3,SCX-6345N,388P,3.3 |
| 1001-000170 | IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP |
| 1201-000105 | IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE, |
| 1205-002339 | IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150 |
| 0803-003263 | IC-CMOS LOGIC;74LCX07,HEX BUFFER,SOIC,14 |
| 0801-002403 | IC-CMOS LOGIC;74LCX08,AND GATE,TSSOP,14P |
| 0801-002446 | IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T |
| 0801-002379 | IC-CMOS LOGIC;74LCX16245,TRANSCEIVER,TSS |
| 0801-002095 | IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP |
| 0801-002326 | IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1 |
| 0801-000794 | IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0 |
| 0801-002143 | IC-CMOS LOGIC;7S32,OR GATE,SOT-23,5P,63M |
| 1203-003739 | IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM, |
| 1105-001652 | IC-DDR SDRAM;K4H511638,DDR,512MBIT,32MX1 |
| 1105-001876 | IC-DDR2 SDRAM;K4T51163QG-HCE6,DDR2 SDRAM |
| 1105-001746 | IC-DRAM;HYB18T(C)512160,DDR2,512MBIT,32M |
| 1105-001384 | IC-DRAM;K4S561632,256MBIT,4X4MX16,TSOP(I |
| 1006-001250 | IC-LINE DRIVER;DS90LV017A,SOIC,8P,150MIL |
| 0903-001411 | IC-MICROCONTROLLER;S3F443FX,LQFP,64P,12X |
| 0902-002207 | IC-MICROPROCESSOR;88F5281-D2-BF02-C500,5 |
| 1003-001732 | IC-MOTOR DRIVER;A3953SLBTR,SOIC,16P,10.1 |
| 1003-001535 | IC-MOTOR DRIVER;A3977SLP,TSSOP,28P,9.6X4 |
| 1003-001848 | IC-MOTOR DRIVER;SLA7066M-LF2102,ZIP,21P, |
| 1107-001589 | IC-NOR FLASH;S29GL128,128MBIT,16MX8/8MX1 |
| 1201-000167 | IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V |
| 1203-003700 | IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P, |
| 1203-001455 | IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P |
| 1203-002454 | IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL |
| 1203-000259 | IC-POSI.FIXED REG.;7818,TO-220IS,3P,-,PL |
| 1203-005228 | IC-PWM CONTROLLER;FAN5333,SOT-23,5P,2.9X |
| 0904-002093 | IC-USC;ISP1761BE,32BIT,LQFP,128P,20X14MM |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| JB70-00168A | ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0 |
| JG70-40534A | ICT-SPRING CLUTCH;SF5500,STC-5,T0.3 |
| 2703-002539 | INDUCTOR-SMD;6.8UH,20%,6965 |
| JC70-00195A | IPR-BRACKET SENSOR;ML-7250,SECC,1.0T |
| JC70-00239A | IPR-CHANNEL BASE FRAME;SCX-5100,SECC,T1. |
| JC70-10232D | IPR-E-PLATE SAW(MCK2);SCX-6320F,SUS304CS |
| JC70-11028A | IPR-GROUND TOP;ML-6000,SUS304CSP3/4H,T0. |
| JC70-00218A | IPR-GUARD C/O S/W;SCX-5100,SUS301CSP,0.2 |
| JB70-00148A | IPR-HOLDER GLASS;SCX-1110/XRX,SUS304,12* |
| JC70-00064A | IPR-PIN ROLLER EXIT;SUS304,SF-5100,L23,P |
| JC70-00192A | IPR-PLATE SENSOR;ML-7250,SUS301,0.2T |
| JC70-00111A | IPR-SPRING MIRROR (A);ML-5200A,STSC301-C |
| 3722-002591 | JACK-MODULAR;8P/8C,N,ANGLE,N,AU,1PORT |
| 3722-001051 | JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE |
| 3722-002303 | JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE |
| JC72-00621A | JOINT-COUPLING_CONTAINER;POM,DELIN100P,1 |
| JC66-00976A | JOINT-M_RETARD;SCX-6345N/XRX,POM,T1.2,18 |
| JC64-00288A | KEY-HOOK;SCX-6345N,ABS HB,70*20*15,HB,DA |
| JC64-00287A | KEY-JOB_STATUS;SCX-6345N,ABS,16*22*9,HB, |
|
|
KEY-POWER;CLX-8330ND/XAA,ABS,25*25*10,DA |
| JC64-00289A | KEY-STOP;SCX-6345N,HIPS HB,25*25*10,HB,S |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-01584A | LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JC68-00780A | LABEL(P)-CAUTION PRINTING;COMMON,WHITE P |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JC68-00573A | LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM, |
| JC68-01621A | LABEL(R)-MAX FILL;SCX-6345N/XRX,XEROX,PC |
| 4713-001235 | LAMP-HALOGEN;230V,1300W,13X9.8X276MM |
| JC66-02071A | LATCH-BOX;CLX-6200FX,PP,1.8,81.7,68.4,WH |
| JC66-00958A | LATCH-M_ARM FRT;SCX-6345N/XRX,POM,T1.5,3 |
| 0601-001226 | LED;SMD(TOP VIEW),RED,1.2X0.8MM,660NM,1. |
| JC61-01391A | LEG-M LIMIT STACKING;SCX-6345N/XRX,PC,BL |
| JC61-01426A | LEG-M_ACT FEED BASE;SCX-6345N/XRX,POM,BL |
| JC61-01435A | LEG-M_ACT READY DP;SCX-6345N/XRX,PC,V0,B |
| JC61-01336A | LEG-M_ACTUATOR DUPLEX;SCX-6345N/XRX,PC,V |
| JC61-01408A | LEG-M_ACTUATOR REGI;SCX-6345N/XRX,POM,BL |
| JC67-00209A | LENS-STATUS;SCX-6345N,PMMA,MILKY WHITE,1 |
| JC66-01686A | LEVER-GEAR FRONT;SCX-6555N,PC,BLK |
| JC66-01859A | LEVER-JAM L;SCX-6555N,NYLON66,T2,V0,BLK |
| JC66-01687A | LEVER-JAM R;SCX-6555N,NYLON66,T2,V0,BLK |
| JC66-01523A | LEVER-LOCKER;CLX-8380ND/XAA,ABS,HB,VIOLE |
| JC66-00959A | LEVER-M_ARM FRICTION;SCX-6345N/XRX,POM M |
|
|
LOCKER-M_FRONT;SCX-6345N/XRX,POM,BLACK,H |
| JC64-00199A | LOCKER-M_REAR;SCX-6345N/XRX,POM,BLACK,HB |
|
|
LSU;SCX-6345N,SEC,SEE,45,600DPI,DUAL BEA |
| JC97-02702A | MEA UNIT-ACT FEED;SCX-6345N,XEROX,-,-,- |
| JC97-02704A | MEA UNIT-ACT READY;SCX-6345N,XEROX,GB,-, |
| JC97-02703A | MEA UNIT-ACT REGI;SCX-6345N,XEROX,GB,-,- |
|
|
MEA UNIT-CASSETTE;SCX-6345N/XRX,SEC,-,CA |
|
|
MEA UNIT-CLAW;SCX-6345N/XRX,XEROX |
| JC97-02258B | MEA UNIT-COVER TOP;SCX-6345N/XRX,SEC,-,C |
| JC97-02274B | MEA UNIT-COVER UPPER;SCX-6345N/XRX,SEC,- |
| JC97-02301A | MEA UNIT-DAMPER,L;SCX-6345N/XRX,XEROX,DA |
| JC97-02950A | MEA UNIT-DUMMY UPPER;CLX-8380ND/XAA,SEC |
|
|
MEA UNIT-F DR;SCX-6345N/XRX,XEROX,-,F DR |
| JC97-02705A | MEA UNIT-FEED IDLE MP;SCX-6345N,XEROX,-, |
|
|
MEA UNIT-GEAR SUPPLY;SCX-6345N/XRX,XEROX |
|
|
MEA UNIT-HINGE RM;SCX-6555N,SEC,-,-,- |
|
|
MEA UNIT-HINGE;SCX-6345N/XRX,XEROX,-,HIN |
| JC97-02276A | MEA UNIT-HOLDER HDD;SCX-6345N/XRX,XEROX, |
|
|
MEA UNIT-HOLDER PAD;SCX-6345N/XRX,XEROX, |
| JC97-02836A | MEA UNIT-LIFTING GEAR;SCX-6345N,SEC,-,-, |
| JC97-02618A | MEA UNIT-MAGNET PLATE;SCX-6345N/XRX,XERO |
| JC97-03477A | MEA UNIT-PLATE OPE;CLX-8330N,SEE,-,-,-,- |
| JC97-02262A | MEA UNIT-REGI F;SCX-6345N/XRX,XEROX,-,RE |
| JC97-02261A | MEA UNIT-REGI R;SCX-6345N/XRX,XEROX,-,RE |
| JC97-02290A | MEA UNIT-RETARD;SCX-6345N/XRX,XEROX,-,RE |
|
|
MEA UNIT-ROLLER PU;SCX-6345N/XRX,XEROX,- |
| JC97-02375A | MEA UNIT-TR SUB;SCX-6345N/XRX,XEROX,-,-, |
|
|
MEA UNIT-TR;SCX-6345N/XRX,XEROX,-,TR,-,- |
|
|

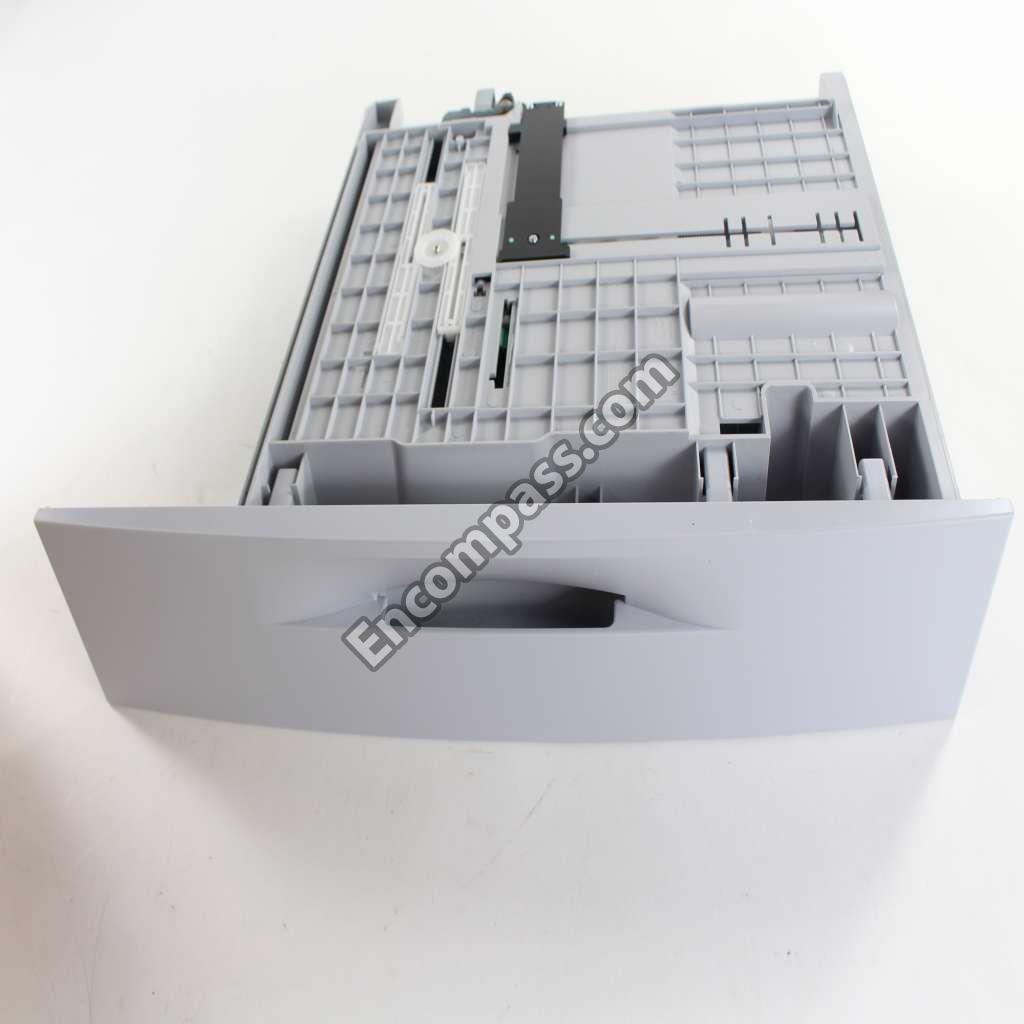

MEA UNIT-TRAY;SCX-6345N/XRX,SEC,-,TRAY,- |
| JC97-02687A | MEA-ACTUATOR_DUPLEX;SCX-6345N/XRX,XEROX, |
| JC97-02680A | MEA-BRACKET FUSER;SCX-6345N/XRX,XEROX,-, |
| JC97-03219A | MEA-COVER PLATEN SUB;SCX-6555N,SEC,-,-,- |
| JC97-03123A | MEA-COVER REAR;SCX-6555N,SEC,-,-,-,-,- |
| JC97-03095A | MEA-EXIT;SCX-6555N,SEC,-,-,- |
| JC97-03119A | MEA-FEED ROLLER;SCX-6555N,SEC,-,-,-,- |
| JC97-03096A | MEA-GUIDE PICKUP;SCX-6555N,SEC,-,-,-,- |
|
|
MEA-HOLDER ADF RUBBER;SCX-6555N,SEC,-,-, |
|
|
MEA-PICK UP;SCX-6555N,SEC,-,-,-,- |
| JC97-03117A | MEA-SUPPORT SCAN;SCX-6555N,SEC,-,-,-,- |
| JC97-03098A | MEA-TX STACKER;SCX-6555N,SEC,-,-,-,- |
|
|
MEC-ADF ROLLER ASSY;SCX-1110F/XRX,XEROX, |
|
|
MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR |
|
|
MEC-PICK UP ROLLER ASSY;SCX-1110F/XRX,XE |
|
|
MOTOR BLDC;2220 RPM,1400GF.CM,DC24V,2.1A |
| JC31-00066A | MOTOR DC;-,35000,-,24V,0.85A,-,3500HZ,MA |
| JC31-00094A | MOTOR DC;HF283LG,DC24V,CLX-8380ND/XAA,79 |
|
|
MOTOR DC;NF213G-1020515,DC24V,CLX-8380ND |
| JC31-00045A | MOTOR GEARED-P LIFT;2.1RPM,1.5N.M,1/1513 |
| JC31-00033B | MOTOR STEP;17PM-J342-G4VS,CLX-8380ND/XAA |
| JC31-00102A | MOTOR STEP;M42SP-13NK,SCX-6555N,0.6A,200 |
| JC31-00077A | MOTOR STEP;M42SP-4NK,CLX-8380ND/XAA,0.6A |
|
|
MOTOR STEP;M49SP-2NK,SCX-6555N,1.18A,100 |
| JC31-00098A | MOTOR STEP;STP-43D3006,SCX-6555N,1.2A,42 |
| JC74-10901A | MPR-WASHER SUPPLY;POLY,ID4.1*OD11*T0.13, |
| JC97-03683C | OPE;SCX-6545N,SEC,SPANISH |
|
|
OTHER MECHA-M CPL OPC;SCX-6345N/XRX,POM, |
| JC67-00122A | OTHER MECHA-M GATE DP;SCX-6345N/XRX,PC+G |
|
|
PAD-GUIDE PICKUP;SCX-6555N,CB,T0.9,W19*L |
|
|
PAD-MP(PLUS);EPU,SCX-5315F,0.9T,W31*L11. |
| JC92-01824B | PBA MAIN-DIMM;ML-4550,SEC,EXPORT,DDR2_SO |
| JC92-01913A | PBA SUB-CASSETTE;CLX-8380ND,SEC,SEC,CASS |
|
|
PBA SUB-KEY;CLX-8380,SEC,SEC,OPE_KEY,FR- |
| JC92-01928A | PBA SUB-KEY_SUB;CLX-8380,SEC,SEC,OPE_KEY |
| JC92-01884A | PBA SUB-SCAN_IF;CLX-8380ND,SEC,SEC,SCAN_ |
| JC92-02009A | PBA-APS_IF;SCX-6555N,SEC,EXPORT,-,-,-,30 |
|
|
PBA-CONTROLLER;SCX-6445N,SEC,88F5281-D0- |
| JC92-01942A | PBA-DADF;SCX-6555N,SEC,EXPORT,-,-,-,135X |
| JC92-02045F | PBA-OPE;SCX-6545N,SEC,S3C2413,USB2.0,5V, |
| JC92-01963A | PBA-TCRUM_IF;SCX-6555N,SEC,EXPORT,-,-,-, |
| 0604-001370 | PHOTO-INTERRUPTER;CIRCUIT,BULK |
|
|
PHOTO-INTERRUPTER;TR,75MW,BGA,TR |
|
|
PHOTO-INTERRUPTER;TR,90%,150MW,DIP-4,BK |
| 6043-001028 | PIN-SPRING;W,OD2,L12,BLK,STS304 |
| JC61-01295A | PLATE-M_FEED UPPER;SCX-6345N/XRX,ABS ,T2 |
| JC61-01322A | PLATE-P-LEVER;SCX-6345N/XRX,SECC,T1.6,40 |
| JC72-01248A | PMO-ACTUATOR DOC;SCX-6320F,ABS+GF10%,HB, |
|
|
PMO-ACTUATOR LENGTH;SCX-6322DN,ABS+GF10% |
| JB72-00821A | PMO-ADF COLAR;SCX-1110F,POM,NTR |
| JC72-41191A | PMO-BEARING SHAFT;ML-6000,POM,WHT,M90-44 |
|
|
PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL |
| JC72-00743A | PMO-DEV/COUPLING;SCX-5100,DE8903,BLK |

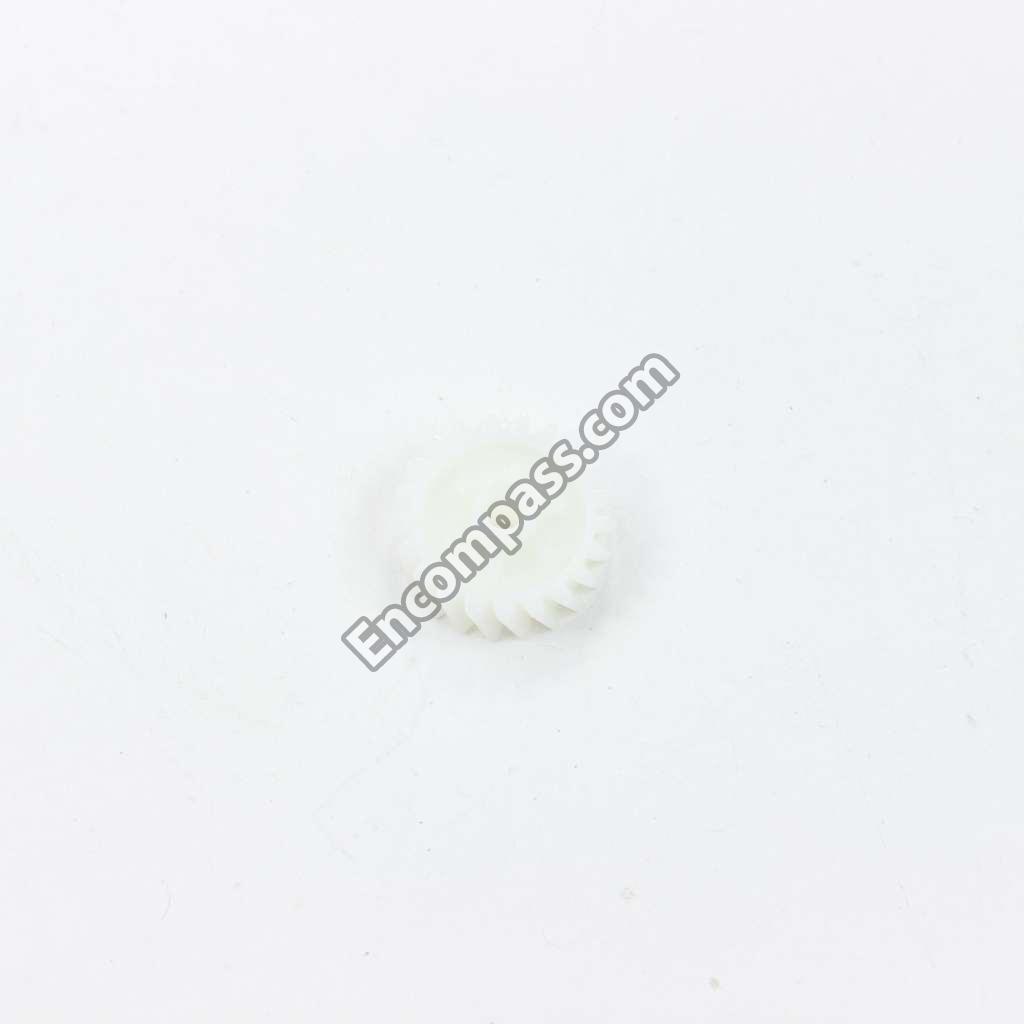

| JF72-41354A | PMO-GEAR PINION;CF4500,POM,NTR+WHT(DELRI |
| JC72-00444A | PMO-HOLDER COLLIMATOR;ML-1710,PC,TRANSPA |
| JC72-00884A | PMO-HOLDER GEAR TR;SCX-5312F,PC+ABS,EMBE |
| JC72-00883A | PMO-HOLDER GND TR;SCX-5312F,PC+ABS,EMBER |
| JC72-00825A | PMO-IMPELLER_DRV;ML-6200,NYLON66,V0,BLK |
| JC72-00755A | PMO-LEVER SENSOR;SCX-5100,POM,HB,BLK |
| JC72-01300B | PMO-M_LOCKER DEVE;SCX-6345N,PC+ABS,ICE G |
| JB72-00845A | PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8 |
| JB72-00763A | PMO-PULLEY;SCX-1110/XRX,POM,WHT |
| JC72-00744A | PMO-SHAFT PICK UP;SCX-5150,ABS,BLK,HB |
| JB72-00822A | PMO-SLEEVE ADF;SCX-1110F,POM,BLK |
| JB72-00823A | PMO-SLEEVE PICK UP;SCX-1110F,POM,BLK |
| JC72-00766A | PMO-TIE STOPPER;SCX-5100,NYLON66,NTR |
| JC66-00971A | PULLEY-M_DUPLEX;SCX-6345N/XRX,POM,HB,BLA |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-008433 | R-CHIP;0.33OHM,1%,1W,TP,6432 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000239 | R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
| 2007-000123 | R-CHIP;1.5KOHM,5%,1/10W,TP,1608 |
| 2007-002431 | R-CHIP;1.8OHM,5%,1/16W,TP,1005 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-007467 | R-CHIP;12.1KOHM,1%,1/16W,TP,1005 |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000116 | R-CHIP;120OHM,5%,1/10W,TP,1608 |
| 2007-007613 | R-CHIP;121OHM,1%,1/10W,TP,1608 |
| 2007-000091 | R-CHIP;12KOHM,5%,1/10W,TP,1608 |
| 2007-008567 | R-CHIP;15.4KOHM,1%,1/10W,TP,1608 |
| 2007-000104 | R-CHIP;150KOHM,5%,1/10W,TP,1608 |
| 2007-000403 | R-CHIP;150OHM,5%,1/4W,TP,3216 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-000092 | R-CHIP;15KOHM,5%,1/10W,TP,1608 |
| 2007-007937 | R-CHIP;17.4KOHM,1%,1/10W,TP,1608 |
| 2007-008505 | R-CHIP;17.8KOHM,1%,1/10W,TP,1608 |
| 2007-008105 | R-CHIP;18.2OHM,1%,1/10W,TP,1608 |
| 2007-000458 | R-CHIP;18KOHM,5%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-000124 | R-CHIP;2.2KOHM,5%,1/10W,TP,1608 |
| 2007-007803 | R-CHIP;2.37KOHM,1%,1/10W,TP,1608 |
| 2007-000081 | R-CHIP;2.7KOHM,5%,1/10W,TP,1608 |
| 2007-000105 | R-CHIP;200KOHM,5%,1/10W,TP,1608 |
| 2007-000093 | R-CHIP;20KOHM,5%,1/10W,TP,1608 |
| 2007-000075 | R-CHIP;220OHM,5%,1/10W,TP,1608 |
| 2007-000094 | R-CHIP;22KOHM,5%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000616 | R-CHIP;24KOHM,5%,1/10W,TP,1608 |
| 2007-000129 | R-CHIP;27KOHM,5%,1/10W,TP,1608 |
|
|
R-CHIP;2KOHM,5%,1/10W,TP,1608 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-007525 | R-CHIP;3.4KOHM,1%,1/10W,TP,1608 |
| 2007-000704 | R-CHIP;3.6KOHM,5%,1/10W,TP,1608 |
| 2007-000125 | R-CHIP;3.9KOHM,5%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-009913 | R-CHIP;31.6KOHM,0.1%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000126 | R-CHIP;4.3KOHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000875 | R-CHIP;4.7KOHM,5%,1/4W,TP,3216 |
| 2007-000882 | R-CHIP;4.7OHM,5%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-002916 | R-CHIP;475KOHM,1%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000072 | R-CHIP;47OHM,5%,1/10W,TP,1608 |
| 2007-007226 | R-CHIP;49.9OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-000144 | R-CHIP;5.1KOHM,5%,1/16W,TP,1005 |
| 2007-008133 | R-CHIP;56.2KOHM,1%,1/10W,TP,1608 |
| 2007-000098 | R-CHIP;56KOHM,5%,1/10W,TP,1608 |
| 2007-007222 | R-CHIP;6.04KOHM,1%,1/10W,TP,1608 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-000121 | R-CHIP;820OHM,5%,1/10W,TP,1608 |
| 2007-000101 | R-CHIP;82KOHM,5%,1/10W,TP,1608 |
| 2007-001219 | R-CHIP;82OHM,5%,1/4W,TP,3216 |
| 2008-000166 | R-FUSIBLE;56OHM,5%,1/4W,AA,TP,2.6X6.7MM |
| 2011-001011 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001482 | R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP, |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001468 | R-NETWORK;3OHM,5%,1/16W,L,CHIP,8P,TH,201 |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| 6044-000121 | RING-E;ID2,OD5,T0.4,PASS,STSC |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| 6044-000231 | RING-E;ID5.0,OD11.0,T0.6,PASS,STS304 |
|
|
RMO-ADF RUBBER;SCX-1110F,SILICON RUBBER, |
|
|
ROLLER-DR REGI;SCX-6345N/XRX,EPDM,SUM22+ |
| JC66-00970A | ROLLER-DUPLEX READY;SCX-6345N/XRX,SUM22+ |
| JC66-00969A | ROLLER-DUPLEX;SCX-6345N/XRX,SUM22+EPDM60 |
|
|
ROLLER-HEAT;SCX-6555N,AL PIPE + MP-531 C |
| JC66-01028A | ROLLER-IDLE REGI;SCX-6345N/XRX,SUM 22+NI |
| JC66-01019A | ROLLER-M EXIT DP IDLE;SCX-6345N/XRX,POM, |
|
|
ROLLER-M IDLE JF;SCX-6345N/XRX,POM+PFPE, |
| JC66-01026A | ROLLER-MP DRV;SCX-6345N/XRX,EPDM+SUM22,O |
|
|
ROLLER-PRESSURE;SCX-6555N,SILICON RUBBER |
| JC66-00998A | ROLLER-TONER FEED;SCX-6345N/XRX,SUS+U_FO |
|
|
ROLLER-TRANSFER;SCX-6345N/XRX,EPDM,OD18. |
| JC72-20902A | ROLLER;ML-5000A,TEFLON,WHT |
|
|
RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE |
| JC73-00079A | RPR-SEAL SIDE;SCX-5100,URETHANE FOAM,NTR |
| JC73-00266A | RUBBER-ADF ROLLER;SCX-6555N,EPDM+IR,OD25 |
| JC73-00215A | RUBBER-DAMPER HDD;SCX-6345N/XRX,EPDM,7.5 |
| JC73-00268A | RUBBER-FEED;SCX-6555N,EPDM,OD50,BLK,70C |
| JC73-00235A | RUBBER-GUIDE MP;SCX-6345N/XRX,NBB,38*28. |
| JC73-00319A | RUBBER-GUIDE SIDE;SCX-6545,NBB,1,W9,L2.5 |

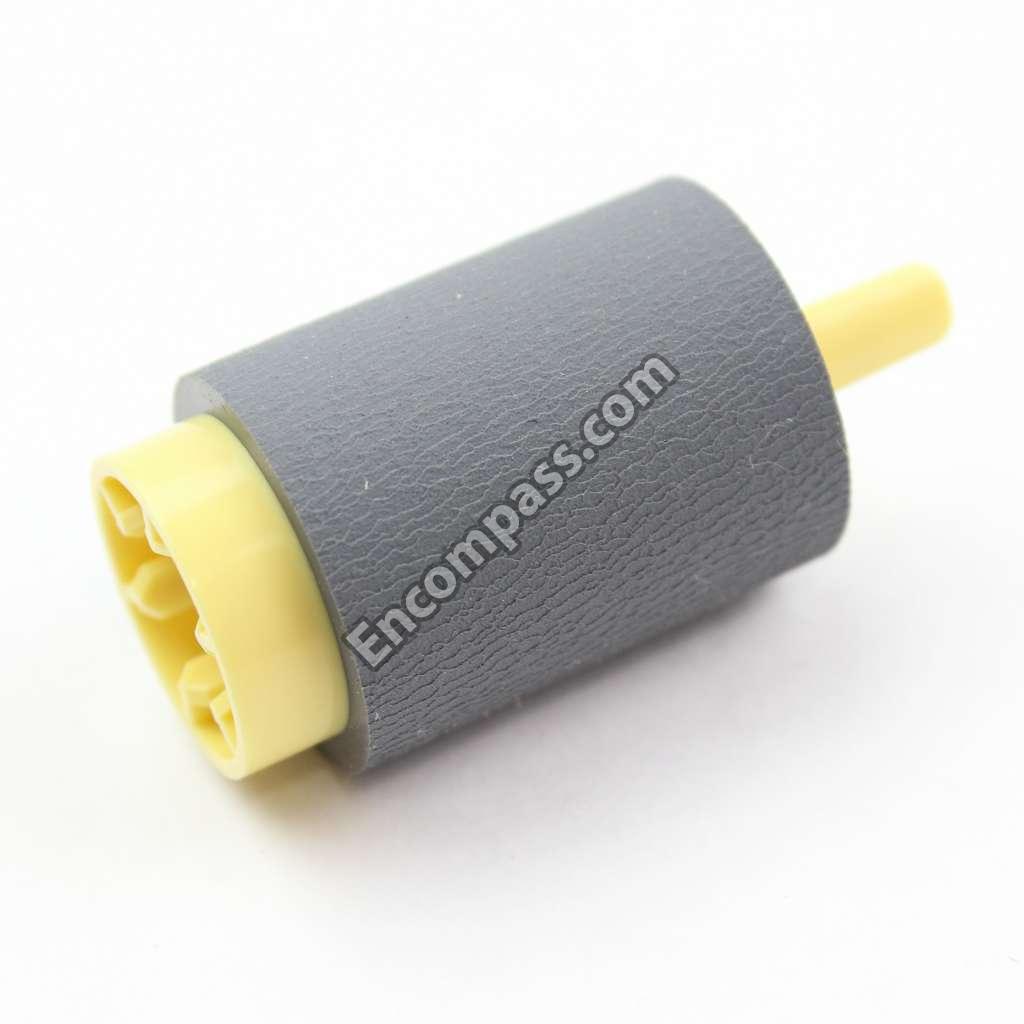

| JC73-00267A | RUBBER-PICKUP ROLLER;SCX-6555N,EPDM+IR,O |
| JC73-00216A | RUBBER-ROLLER PU;SCX-6345N/XRX,EPDM+IR 3 |
| 6001-000130 | SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
| 6001-000485 | SCREW-MACHINE;PH,+,-,M2.6,L4,ZPC(WHT),SW |
| 6006-001193 | SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S |
| 6002-000440 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L12,ZPC(BLK),S |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6003-001474 | SCREW-TAPTYPE;BH,+,B,M3,L30,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L16,NI PLT,SWRCH |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M3,L8,ZPC(BLK),SWRC |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S |
| 6003-000266 | SCREW-TAPTYPE;PWH,+,-,S,M3,L6,ZPC(WHT),S |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC62-00492A | SEAL-COVER CCD;CLX-8380ND/XAA,URETHAN FO |
| JC62-00327A | SEAL-COVER FRONT;SCX-6345N/XRX,POLYURETH |
| JC62-00302A | SEAL-LSU;SCX-6345N,TAPE,0.2,161.3,205.3 |
| JC62-00301A | SEAL-LSU;SCX-6345N,URETHANE,10,20,20 |
| JC62-00499A | SEAL-SCAN_LOWER;CLX-8380ND/XAA,URETHAN F |
| JC32-00009A | SENSOR-CTD;KUA0057B,SCX-6555N,0TO+50C,0~ |
| JC32-00007A | SENSOR-TONER;TS0524LA-95,SCX-6555N,24V,L |
| JC66-01870A | SHAFT-CLEANING_PR;SCX-6555N,SUM22,L243.4 |
| JC70-40914A | SHAFT-ICT-PIN P/UP SHAFT;ML-5000A,SUM24L |
| JC66-02566A | SHAFT-IDLE ROLLER;SCX-6445N,SUM22,221,4 |
|
|
SHAFT-PLATE LEVER;SCX-6345N/XRX,SUM22 NI |
| JC66-00662A | SHAFT-REGI;SCX-6320F,SUM24L,47.5,PI 6.0 |
| JC66-00937A | SHAFT-RETARD S;SCX-6345N/XRX,SUM22 NI,22 |
| JC66-00939A | SHAFT;SCX-6345N/XRX,SUS303,L8,OD2,NTR |
| JC63-00074A | SHEET-DUMMY UPPER;SCX-5312F,PET SHEET,0. |
| JC01-00036A | SHEET-FILM LCD;SCX-5128F,PET,0.075T,TRAS |
| JC63-00186A | SHEET-GUIDE ADF;SCX-6320F,PET,0.125,37,2 |
| JC63-00795A | SHEET-GUIDE FILM BASE;SCX-6345N/XRX,PET, |
|
|
SHEET-GUIDE RETARD;SCX-6345N/XRX,PET,0.1 |
| JC63-01784A | SHEET-LCD;CLX-8330N,PET,T0.125,153,91.5, |
| JC63-01114A | SHEET-LSU;SCX-6345N,PVC,0.3,15,25 |
| JC63-01242A | SHEET-PANEL;SCX-6345N/XEU,PC SHEET,0.254 |
| JC63-01876A | SHEET-SCAN_LOWER_L;CLX-8380ND/XAA,PC,T0. |
| JC63-01875A | SHEET-SCAN_LOWER_S;CLX-8380ND/XAA,PC,T0. |
| JC63-00810A | SHEET-WHITE BAR;SCX-6345N/XRX,PET,0.075, |
| JC72-00751A | SHEET;SCX-5100,SPONGE+SHEET,217.5*357.5, |
| JC44-00100B | SMPS-V2C;CLP-600,PSP TYPE5-V2C,AC-DC,270 |
| JC33-00029A | SOLENOID-DUPLEX;CLX-8380ND/XAA,24V,45O,2 |
| JC33-00032A | SOLENOID-PICK UP;SCX-6555N,24V,80O,36.5* |
| 3001-002207 | SPEAKER;0.3W,8OHM,81DB,400HZ,50X16.4MM |
| JC72-01415A | SPONGE-DAMPER GATE;SCX-6555N,SHL55+3M909 |
| JC72-01416A | SPONGE-DAMPER SOL;SCX-6555N,SHL55+3M9096 |
| JC72-01444A | SPONGE-GUIDE CHANGE DUP;ML-2851ND/XAA,PO |
| JC72-01483A | SPONGE-OPEN LOWER;SCX-6555N/XAA,POLYURET |
| JC72-01484A | SPONGE-OPEN UPPER A;SCX-6555N/XAA,POLYUR |
| JC72-01485A | SPONGE-OPEN UPPER B;SCX-6555N/XAA,POLYUR |
| JC72-01556A | SPONGE-REAR FAN;SCX-6445N,POLYESTERE FOA |
| JC72-01542A | SPONGE-SIDE FAN;SCX-6255N,PORON,2.0T,10, |
| JC61-70959B | SPRING ETC--FEED;ML-5200A,SUS 304 WPB,F0 |
| JB61-70904A | SPRING ETC-CLUTCH;AMUNDSEN,SWRS82A,D11.4 |
| JC61-00396A | SPRING ETC-COIL CONTAINER;ML-9400W,SUS30 |
| JC61-70928A | SPRING ETC-DEV_R;ML-7000,D0.6,5.6,L18.5, |
| JC61-02514A | SPRING ETC-DOCU;CLX-6240FX,SUS304,0.25,5 |
| JC61-01563A | SPRING ETC-DUP IDLE;SCX-6345N/XRX,SUS304 |
| JC61-70950A | SPRING ETC-EXTENSION;ML-5000A,SUS304WPB |
| JC61-02557A | SPRING ETC-GUIDE SIDE;SCX-6555N,SUS304 W |
| JC61-70930A | SPRING ETC-HV SMALL;ML-5000A,PI0.3,L12.5 |
| JC61-00483A | SPRING ETC-KNOCKUP,MP;SCX-5100,SUS304-WP |
| JC61-00479A | SPRING ETC-LOCKER TORSION;SCX-5100,SUS30 |
| JC61-00387A | SPRING ETC-PAD;ML-9400W,SUS304WPB,PI0.5, |
|
|
SPRING ETC-PICKUP;SCX-5100,SUS304-WPB,PI |
| JC61-70203A | SPRING ETC-PLATE TR;SL-1050,SUS304CSP-3/ |
| JC61-70910A | SPRING ETC-RAIL;ML-165,SUS304 WPB,D5.4,L |
| JB61-00074A | SPRING ETC-SCAN STOPPER (CC2-F);SCX-1110 |
| JC61-70915A | SPRING ETC-SOLENOID DP;ML-165,SUS304-WPB |
| JC61-70959A | SPRING ETC-SPRING ETC FEED;ML-5000A,SUS3 |
|
|
SPRING ETC-TORSION DOC (CC2-F);SCX-1110F |
| JC61-00486A | SPRING ETC-TORSION;SCX-5100,SUS304WPB,0. |
| JC61-70967A | SPRING ETC-TR R;ML-5000A,SUS304 WPB,D4.5 |
| JC61-70906A | SPRING ETC-TR_R;ML-165,SUS304WPB,PI0.5,O |
| JC61-00548A | SPRING ETC-WHITE BAR;SCX-5312F,SUS304WPB |
| 6107-000117 | SPRING-CS;PI0.7,D12.4,L29,DEGRE,STS304-W |
| 6107-000014 | SPRING-CS;SUS304-WPB,PI0.55,D6.9,L14 |
| 6107-001219 | SPRING-CS;SWOSC-V,PI3.2,D12.4,L55.8,ID9. |
| 6107-001194 | SPRING-CS;SWP-B,BLK,PI0.9,D6.95,L20,ID6. |
| 6107-001291 | SPRING-ES;SUS304-WPB,NTR,PI0.12,D2.48,L8 |
|
|
SPRING-ES;SUS304-WPB,NTR,PI0.32,D3.88,L1 |
| 6107-001258 | SPRING-ES;SUS304-WPB,PI0.55,D4.25,L37.5, |
| 6107-001315 | SPRING-ES;SWP-B,PI0.3,D2.8,L40,ID2.5,OD3 |
| 6107-001259 | SPRING-ES;SWP-B,PI0.35,D4.25,L33.8,ID3.9 |
| 6107-001155 | SPRING-ES;SWP-B,PI0.55,L25,OD4.4 |
| 6107-001261 | SPRING-TS;SUS304-WPB,PI0.35,D5.15,L12/12 |
| 6107-001540 | SPRING-TS;SWP B,PI0.5,D3.55,L12.93/6.5,W |
|
|
STOPPER-M-FAN80;ML-2150,ABS HB,26.4,BLAC |
| JC61-00832B | STOPPER-M_KNOCK UP;CLP-510,HIPS HB,24,VI |
| 6103-000101 | SUPPORTER;DALS-10N,H10,NTR,NYLON66 |
| 3404-000165 | SWITCH-TACT;12V,50MA,160GF,6X6X5,SPST |
| 0203-000007 | TAPE-FILAMENT;T0.15,L55M,TRP,FILAMENT |
| 0203-001100 | TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75, |
| JC65-00012A | TERMINAL-S_IDLE;SCX-6345N/XRX,SUS304WPB, |
|
|
THERMISTOR-NTC ASSY;10KOHM,3435K,3MW/C |
| 1404-001453 | THERMISTOR-NTC ASSY;7KOHM,3370K |
| 1404-001065 | THERMISTOR-PTC;0.11OHM,13.2VAC,40A,1.5A, |
| JC02-00058A | TONER-JF;SCX-6345N,BLACK,8.5UM,-7~-19UQ/ |
| 0506-001069 | TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT |
| 0502-001258 | TR-POWER;FJT44,NPN,SOT-223,TP,40-200 |
| 0502-000245 | TR-POWER;KSB1151-Y,PNP,1300MW,TO-126,160 |
| 0502-001048 | TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160 |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000342 | TR-SMALL SIGNAL;KSC1623-Y,NPN,200MW,SOT- |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |

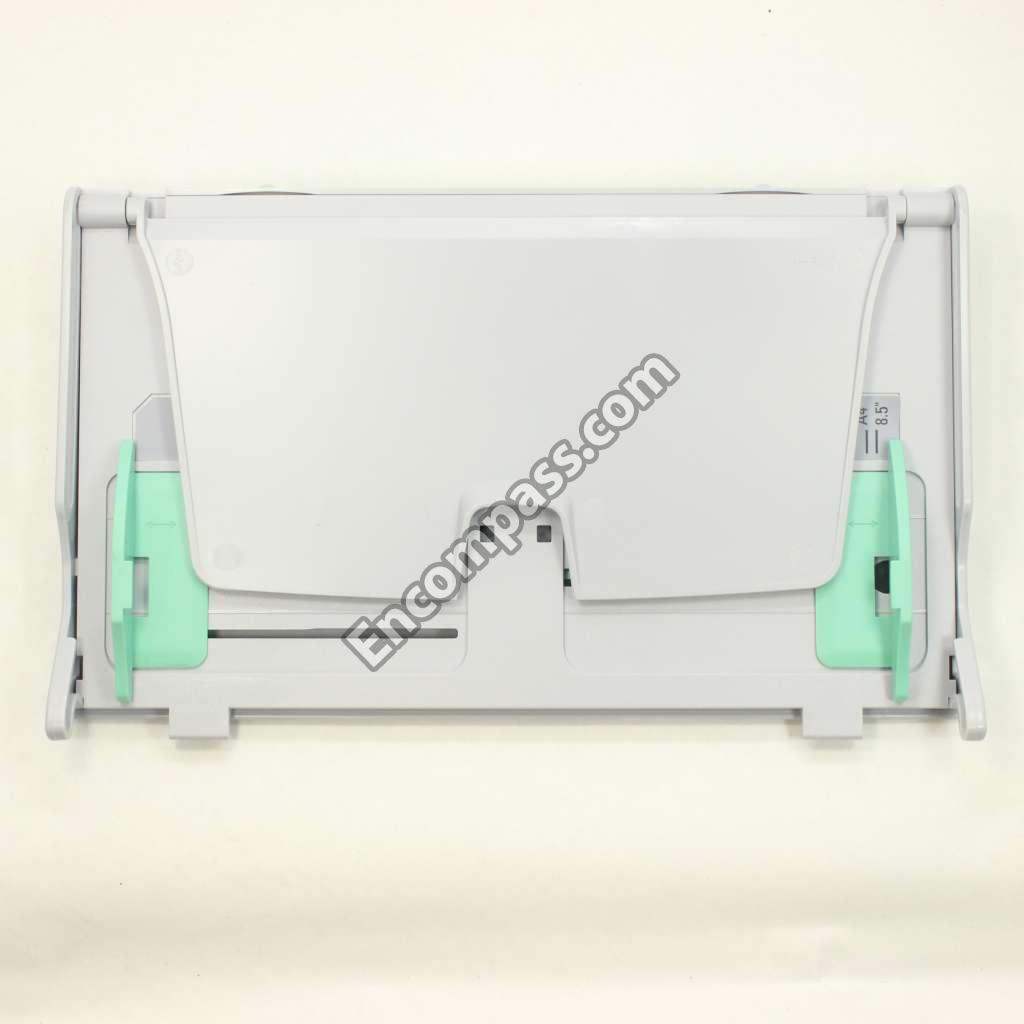

| JC63-00447E | TRAY-M-ASF_FOLDER;ML-3051ND,HIPS,2.5,235 |
| 1405-000188 | VARISTOR;560V,2500A,14X8.5MM,TP |
| 6031-001255 | WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5, |
| 6031-000023 | WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK |
| 6031-000019 | WASHER-PLAIN;POLY,ID6.1,OD8.5,T0.1,BLK |
