Manufacturer
Samsung
Model Number
UN32J4000AFXZA
Description
Led Tv,un32j4000af,32,united States,unb
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY HOLDER P-RING;11 LED-TV,ABS,BLACK,H |
|
|
ASSY K/D-BOARD IR BOARD;BN98-05970F |
|
|

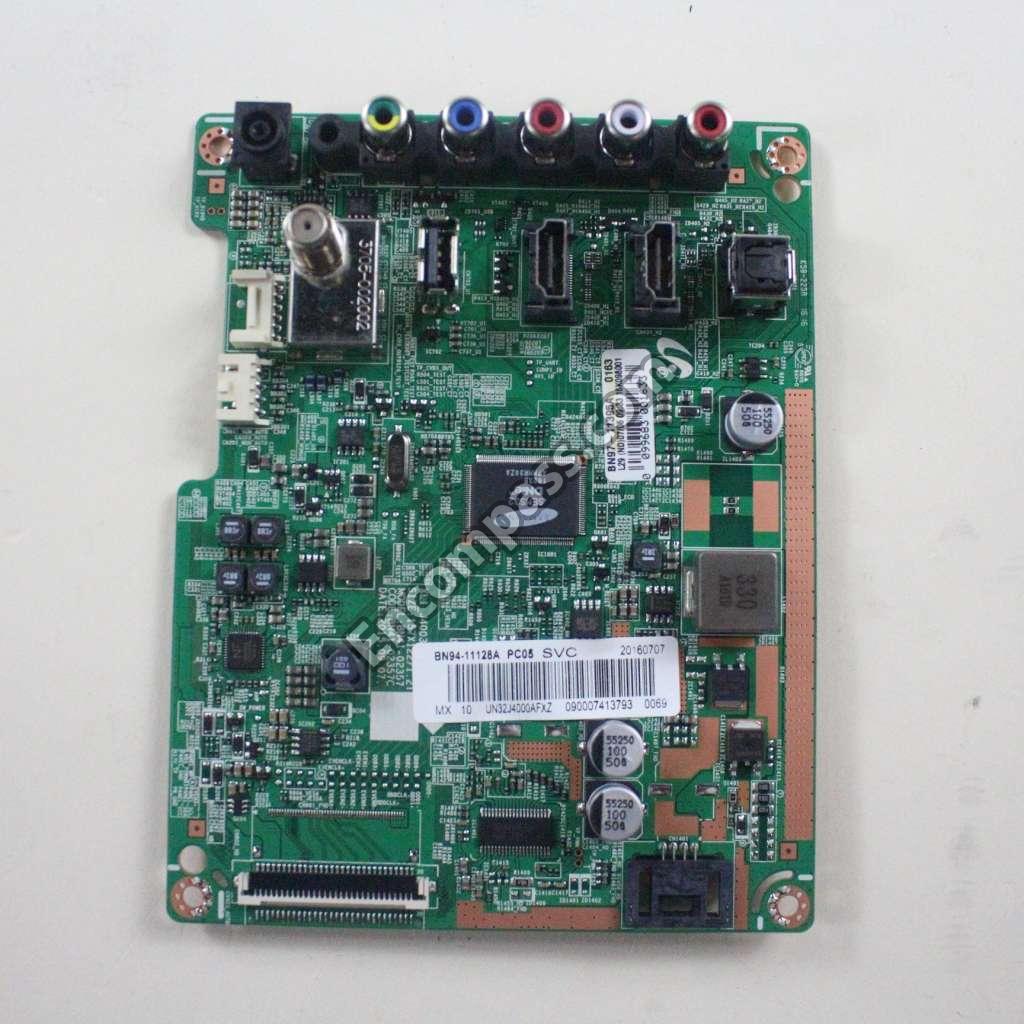

ASSY PCB MAIN;J4000 * BN94-07830P |
|
|
ASSY SPEAKER P-FRONT;TV-SPK,J4003,6OHM,5 |
|
|
ASSY STAND P-BOTTOM;J4003,BLACK,ARC-FEET |
| BN96-36076B | ASSY SUB PCB-FUNCTION;BN96-36076B(BN98-0 |
| 6902-000341 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2402-001474 | C-AL,SMD;100UF,20%,50V,TP,10.0X8.5MM |
| 2203-001683 | C-CER,CHIP;0.068NF,5%,50V,NP0,TP,1608 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0 |
| 2203-006399 | C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005005 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1608 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002720 | C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-001391 | C-CER,CHIP;150NF,10%,25V,X7R,TP,2012 |
| 2203-008096 | C-CER,CHIP;2200NF,10%,50V,X5R,TP,2012,1. |
| 2203-007600 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
| 2203-001634 | C-CER,CHIP;33NF,10%,50V,X7R,TP,1608 |
| 2203-006377 | C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A, |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC;30P,1MM,SMD-A,SN,Z |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE,S |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| BN63-13871C | COVER-REAR;32J4003,HIPS,MOLD,V-0,BK0020 |
| 2801-003778 | CRYSTAL-SMD;16MHZ,30PPM,SMD,16PF,50OHM,T |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
|
|
DC VSS(A);A4819_FDY,19V,2.53A,100-240V,5 |
| 0402-002006 | DIODE-RECTIFIER;SBR6100CTL,100V,6A,TO-25 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001166 | DIODE-SWITCHING;BAV20WS-V,150V,250MA,SOD |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0406-001579 | DIODE-TVS;ESD0501WT,6V,1MAV,0.9VPA,16A,T |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001552 | DIODE-ZENER;DDZ16,15.69~16.51V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94~5.2V,500MW,SOD- |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-002887 | FET-SILICON;AOD478,N,100V,11A,140MOHM,45 |
| BN96-35954A | FFC CABLE;UN32J4003,FOLD,L250,30P |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003891 | IC-AUDIO AMP;NTP7415,MLF,48P,7X7MM,DUAL, |
| 1203-008496 | IC-BACKLIGHT DRIVER;BD9397EFV,HTSSOP-B40 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-008119 | IC-DC/DC CONVERTER;SN1208017DDAR,SO POWE |
|
|
IC-DC/DC CONVERTER;TPS54331D,SOIC8,8P,4. |
| 1107-002248 | IC-NOR FLASH;-,64MBIT,8MBX8,SOP,8P,5.33X |
| 1203-006118 | IC-POSI.FIXED REG.;S-1172B18-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
| 1204-003562 | IC-TUNER;TDA18275A,SOT617-11,32P,5X5X0.8 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-003135 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-002238 | INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE |
| 2703-005289 | INDUCTOR-SMD;33.6UH,20%,15X16MM,8.5T,0.0 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
|
|
JACK-DC POWER;4P,4PI,SN/PB,BLK,12.4X10.8 |
|
|
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
| 3722-003248 | JACK-USB;4P/1C,AU/NI,BLK,STRAIGHT,A,2.0, |
| BN68-00513A | LABEL-E, PASS |
| BN07-01434A | LCD-PANEL;JJ032AGL-R1,RJJ4AL1,745.40X433 |
| BN39-02045A | LEAD CONNECTOR-SATA;UN32J4003,UL21016,6P |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005 |
| 2007-000063 | R-CHIP;150KOHM,1%,1/10W,TP,1608 |
| 2007-001306 | R-CHIP;150OHM,5%,1/16W,TP,1005 |
| 2007-002903 | R-CHIP;18.2KOHM,1%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000691 | R-CHIP;3.3MOHM,5%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-007720 | R-CHIP;300KOHM,1%,1/10W,TP,1608 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000839 | R-CHIP;39OHM,5%,1/10W,TP,1608 |
| 2007-010664 | R-CHIP;4.7MOHM,1%,1/4W,TP,3216 |
| 2007-000931 | R-CHIP;470OHM,5%,1/8W,TP,2012 |
| 2007-008473 | R-CHIP;59KOHM,1%,1/10W,TP,1608 |
| 2007-007668 | R-CHIP;68.1KOHM,1%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-007723 | R-CHIP;75KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001196 | R-CHIP;820KOHM,5%,1/10W,TP,1608 |
| 2007-007431 | R-CHIP;91KOHM,1%,1/10W,TP,1608,T0.45 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| BN81-15750A | REMOCON-TV;2012 TV,SAMSUNG,44KEY,3V,4003 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
| 3404-001379 | SWITCH-TACT;12V,50MA,250GF,4.9X4.9X1.5MM |
| 0501-002080 | TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59 |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
