Manufacturer
Samsung
Model Number
UN32J400DAFXZA
Description

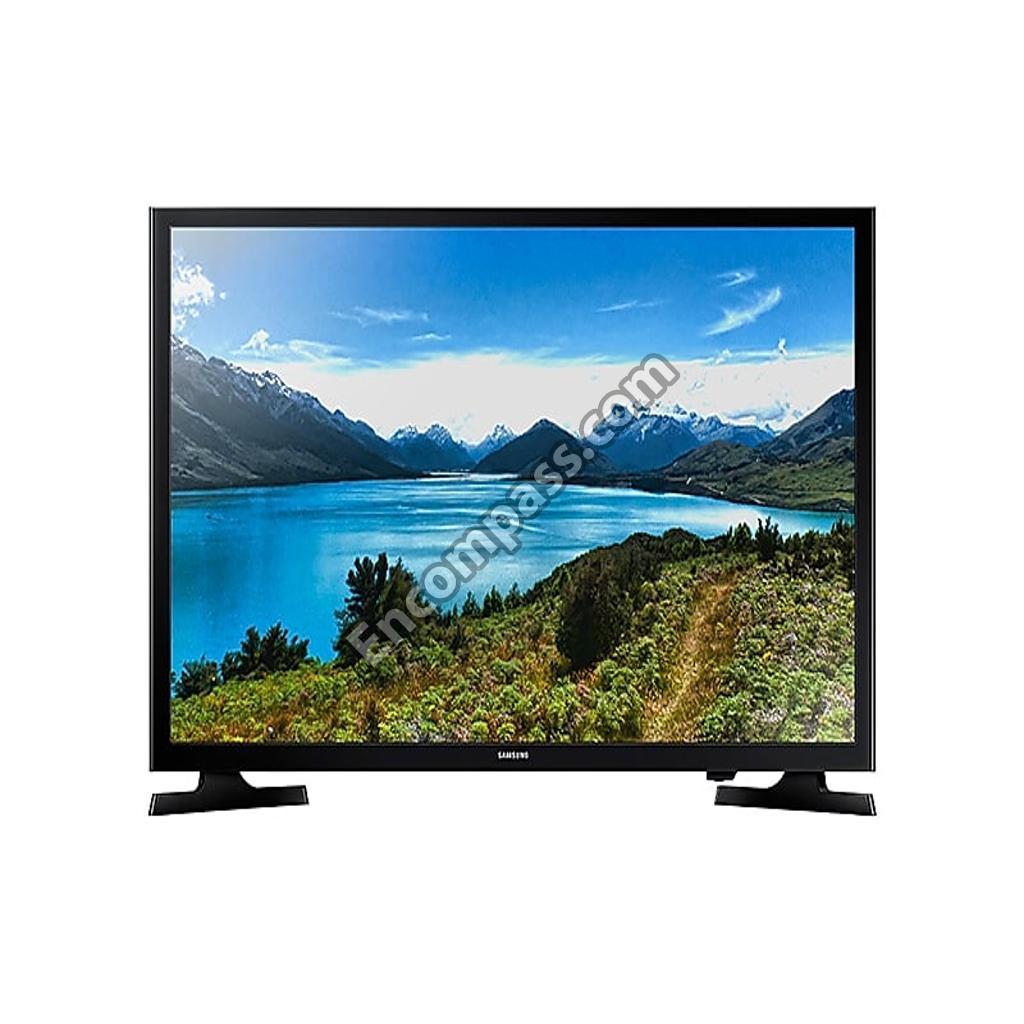

Led Tv,un32j400daf,32,united States,unb
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-35954E | ASSEMBLY CABLE P-FFC CABLE |
|
|
ASSEMBLY HOLDER P-RING |
| BN98-06423A | ASSEMBLY K/D-BOARD IR BOARD |
| BN96-36233A | ASSEMBLY LED BAR P |
| BN96-21905D | ASSEMBLY OPEN CELL |
|
|
ASSEMBLY SPEAKER P |
|
|
ASSEMBLY STAND P-BASE |
| BN95-02399A | ASSEMBLY SUB PCB-FUNCTION |
| 6902-000341 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000121 | BATTERY-MN |
|
|
BEAD-SMD |
| 2402-001474 | C-AL,SMD |
| 2203-008096 | C-CER,CHIP |
| 2203-007600 | C-CER,CHIP |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006698 | C-CER,CHIP |
| 2203-006399 | C-CER,CHIP |
| 2203-006377 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-005005 | C-CER,CHIP |
| 2203-002982 | C-CER,CHIP |
| 2203-002720 | C-CER,CHIP |
| 2203-002711 | C-CER,CHIP |
| 2203-002398 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-001683 | C-CER,CHIP |
| 2203-001634 | C-CER,CHIP |
| 2203-001391 | C-CER,CHIP |
|
|
CBF-POWER CORD |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC |
| 3701-001856 | CONNECTOR-HDMI |
| 3711-007585 | CONNECTOR-HEADER |
| 3707-001106 | CONNECTOR-OPTICAL |
| BN63-13871C | COVER-REAR |
| 2801-004774 | CRYSTAL-SMD |
| 2801-003778 | CRYSTAL-SMD |
|
|
DC VSS(A) |
| 0402-002006 | DIODE-RECTIFIER |
| 0404-001881 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0407-000114 | DIODE-SWITCHING |
| 0401-001166 | DIODE-SWITCHING |
| 0401-001099 | DIODE-SWITCHING |
| 0406-001635 | DIODE-TVS |
| 0406-001579 | DIODE-TVS |
| 0403-001785 | DIODE-ZENER |
| 0403-001552 | DIODE-ZENER |
| 0505-003397 | FET-SILICON |
| 0505-003224 | FET-SILICON |
| 0505-002887 | FET-SILICON |
| 0505-002560 | FET-SILICON |
| 3711-007838 | HEADER-BOARD TO CABLE |
| 1001-001545 | IC-ANALOG MULTIPLEX |
| 1201-003891 | IC-AUDIO AMP |
| 1203-008496 | IC-BACKLIGHT DRIVER |
| 1203-008183 | IC-DC/DC CONVERTER |
| 1203-008119 | IC-DC/DC CONVERTER |
|
|
IC-DC/DC CONVERTER |
| 1107-002248 | IC-NOR FLASH |
| 1203-006118 | IC-POSI.FIXED REG. |
| 1203-006109 | IC-POSI.FIXED REG. |
| 1205-004447 | IC-SWITCH |
| 1204-003562 | IC-TUNER |
| 1203-006017 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 2703-005289 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-003135 | INDUCTOR-SMD |
| 2703-002238 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD |
|
|
JACK-DC POWER |
|
|
JACK-PIN |
| 3722-003248 | JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-02045A | LEAD CONNECTOR |
| BN95-02143B | PRODUCT LCD-BOE |
| 2007-010664 | R-CHIP |
| 2007-008649 | R-CHIP |
| 2007-008473 | R-CHIP |
| 2007-008167 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-007723 | R-CHIP |
| 2007-007720 | R-CHIP |
| 2007-007668 | R-CHIP |
| 2007-007431 | R-CHIP |
| 2007-002903 | R-CHIP |
| 2007-001306 | R-CHIP |
| 2007-001196 | R-CHIP |
| 2007-001139 | R-CHIP |
| 2007-000931 | R-CHIP |
| 2007-000839 | R-CHIP |
| 2007-000755 | R-CHIP |
| 2007-000695 | R-CHIP |
| 2007-000691 | R-CHIP |
| 2007-000614 | R-CHIP |
| 2007-000501 | R-CHIP |
| 2007-000336 | R-CHIP |
| 2007-000309 | R-CHIP |
| 2007-000066 | R-CHIP |
| 2007-000063 | R-CHIP |
| 2007-000060 | R-CHIP |
| 2007-000052 | R-CHIP |
| 2007-000039 | R-CHIP |
| 2007-000029 | R-CHIP |
| 2011-001449 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
| 3404-001379 | SWITCH-TACT |
| 0501-002080 | TR-SMALL SIGNAL |
| 0501-000445 | TR-SMALL SIGNAL |
| 0501-000279 | TR-SMALL SIGNAL |
|
|
VARISTOR |
