Manufacturer
Samsung
Model Number
UN32M530DAFXZA
Description
31.5-inch 1080p Hd Led Lcd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-38694E | ASSY BOARD P-FUNCTION TACT;M5300,CT15SF1 |
| BN96-43978B | ASSY COVER P-REAR;32M5300,HIPS,V-0,BK002 |
|
|

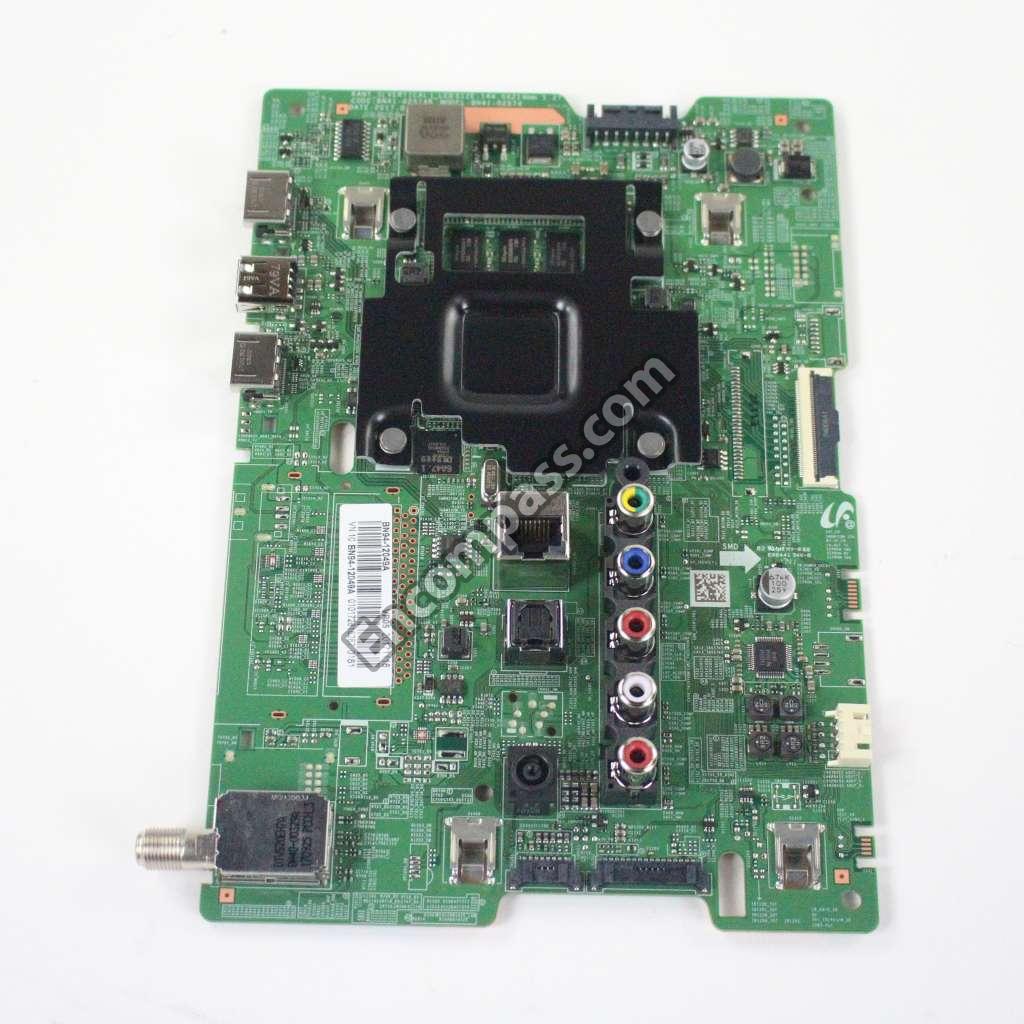

ASSY PCB MAIN;5 SERIES |
| BN96-36052C | ASSY SPEAKER P-FRONT;TV-SPK,M5000,6OHM,5 |
|
|

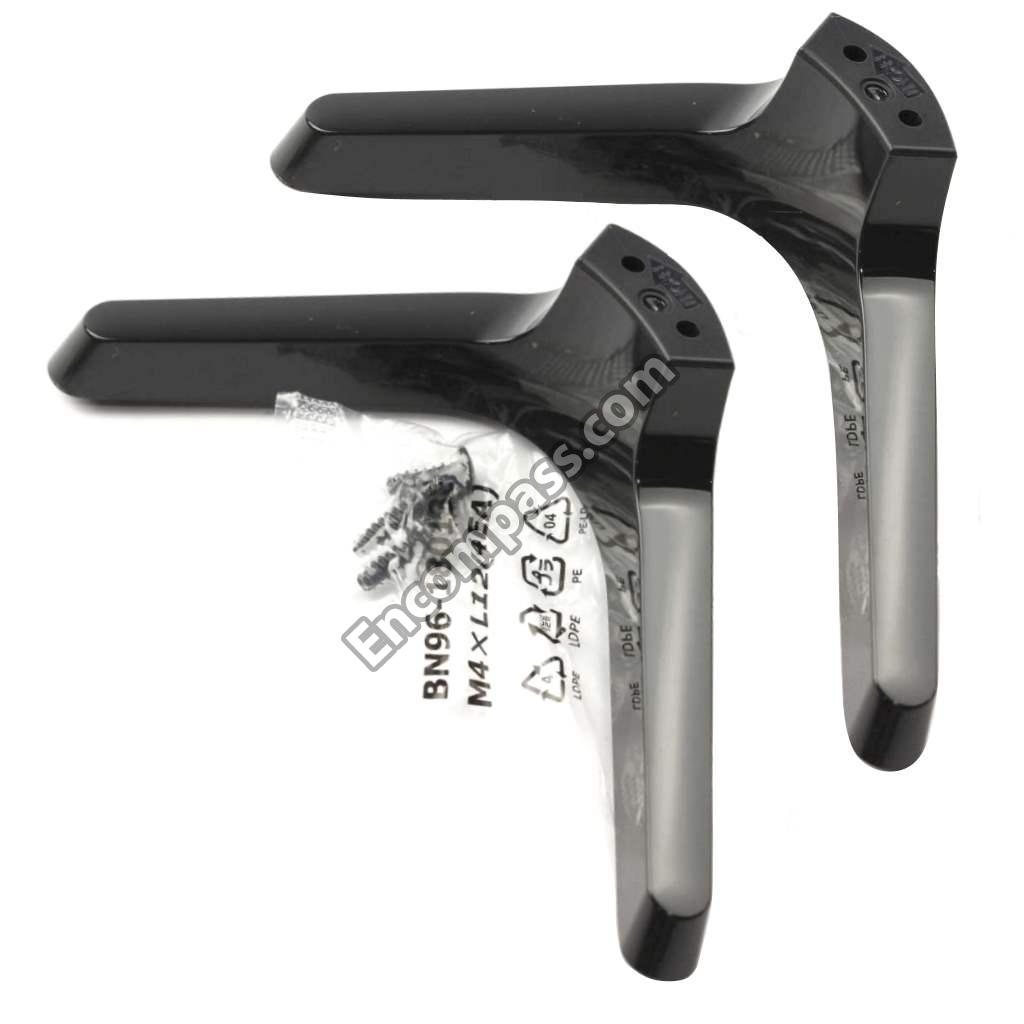

ASSY STAND P-COVER BOTTOM;32J5003,PC+ABS |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001276 | C-AL,SMD;47UF,20%,35V,TP,6.6X6.6X5.8MM |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-001124 | C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T |
| 2203-009740 | C-CER,CHIP;1000NF,10%,100V,X7R,TP,3216,T |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0 |
| 2203-007486 | C-CER,CHIP;1000NF,10%,50V,X5R,TP,1608 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-008315 | C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T |
| 2203-008096 | C-CER,CHIP;2200NF,10%,50V,X5R,TP,2012,1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-000726 | C-CER,CHIP;3.9NF,10%,50V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| BN63-15392E | COVER-TERMINAL SIDE;40M5000,HIPS,T1.5,HB |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
|
|

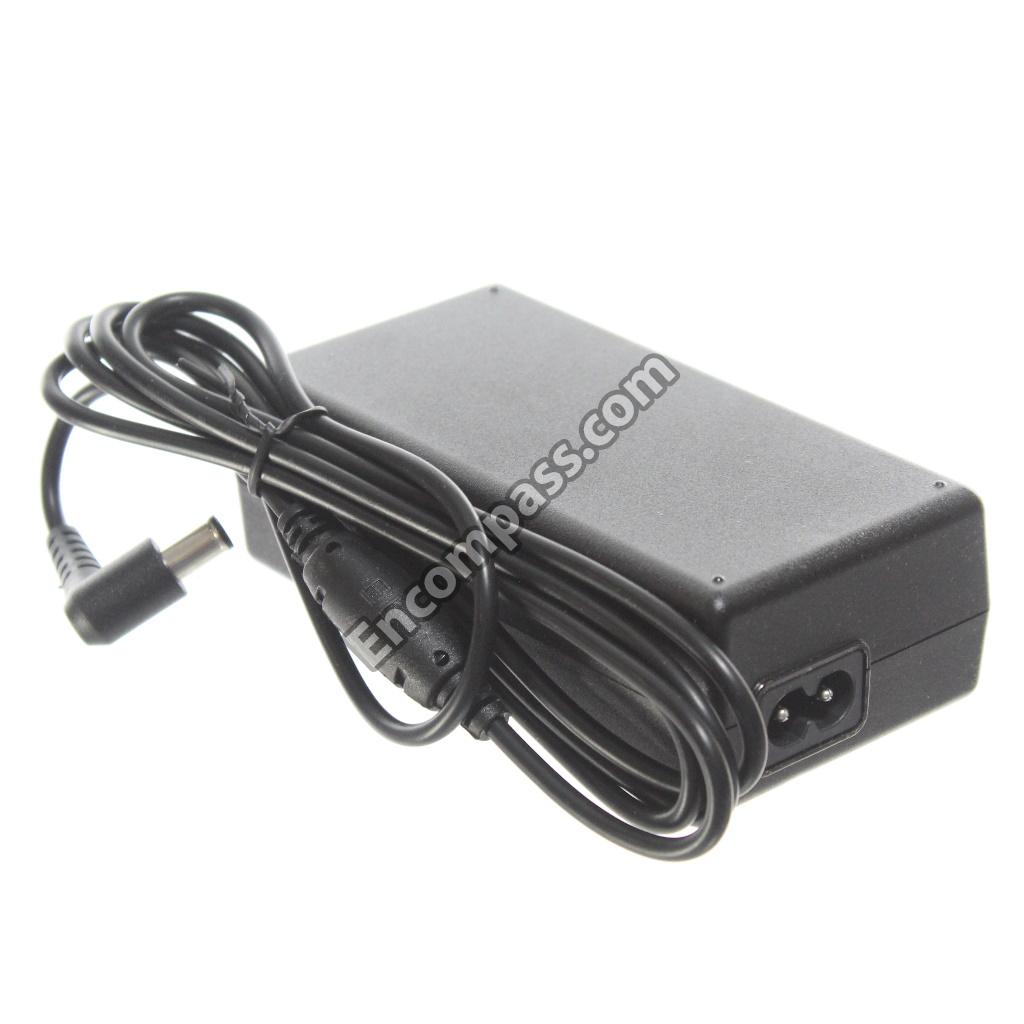

DC VSS(A);A6619_FSM,19V,3.474A,100-240V, |
| 0402-002006 | DIODE-RECTIFIER;SBR6100CTL,100V,6A,TO-25 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001166 | DIODE-SWITCHING;BAV20WS-V,200V,250MA,SOD |
| 0401-001116 | DIODE-SWITCHING;BAV99DW,75V,215MA,SOT-36 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001411 | DIODE-ZENER;BZT52-B5V6S,5.49~5.73V,200MW |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94~5.2V,500MW,SOD- |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| BN96-43790D | FFC CABLE;KANT-S,32M5300,FOLD,L300,51P,- |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-008690 | HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,AN |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 1203-008728 | IC-BACKLIGHT DRIVER;BD9413F,SOP,18P,11.2 |
| 1203-008734 | IC-DC/DC CONVERTER;RT6214,TSOT-23,6,3X1. |
| 1203-008919 | IC-DC/DC CONVERTER;SYD104AADC,TSOT23,6P, |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-008030 | IC-DC/DC CONVERTER;TPS54531DDA,SO POWERP |
| 1203-008393 | IC-DDR TERMINATION REG.;AP2303MTR-G1-89, |
| 1105-002681 | IC-DDR3 SDRAM;H5TQ4G63CFR,DDR3 1866,4GBI |
| 1204-003720 | IC-DECODER;SDP1604,HS-LFBGA,576P,22.8X22 |
| 1107-002505 | IC-EMMC;THGBMDG5D1LBAIT,4GBYTE,X1,WFBGA, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005192 | INDUCTOR-SMD;4.7UH,20%,6060,T4.5,0.036OH |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
|
|

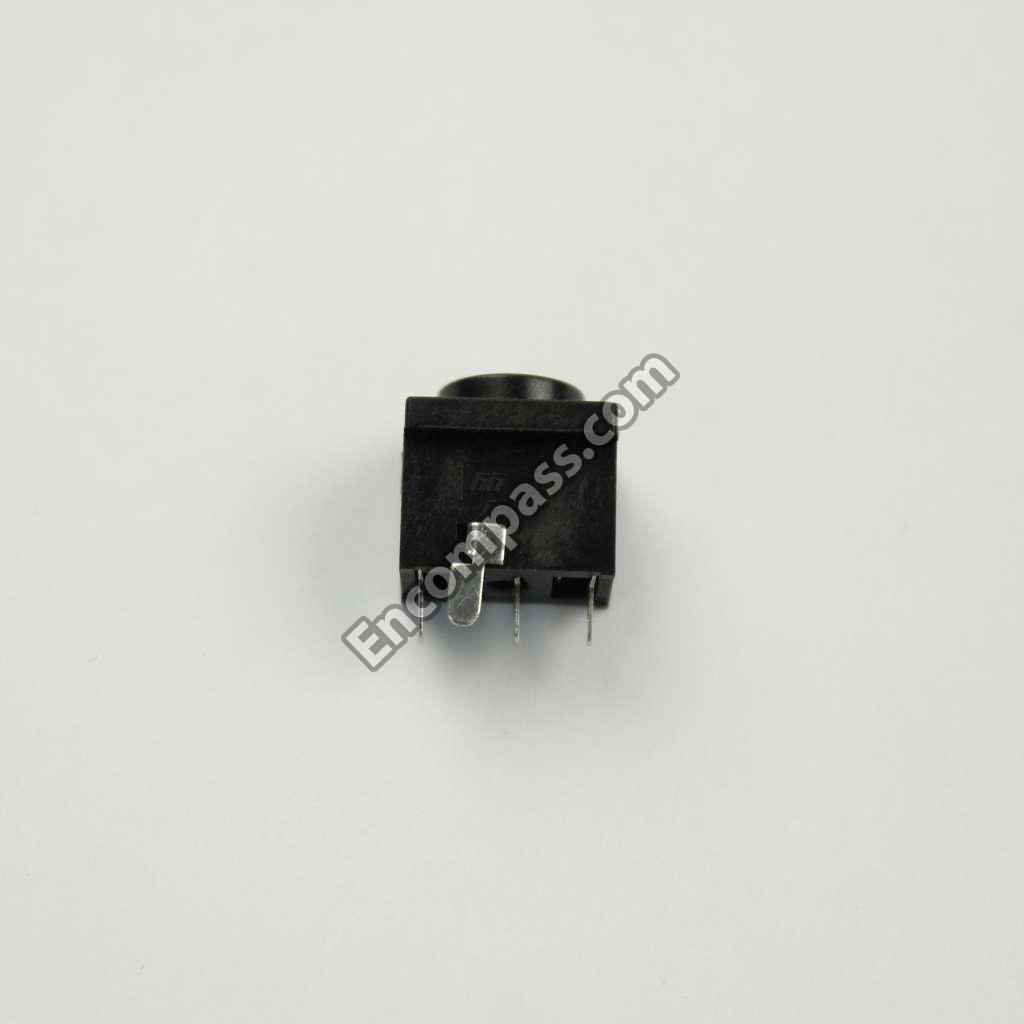

JACK-DC POWER;6P/4C,4PI,SN/PB,BLK,12.4X1 |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
|
|
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN07-01571C | LCD-PANEL;CY-JM032BGER3V,RMJ4BE3,741X428 |
| BN39-02230A | LEAD CONNECTOR-SUB ASSY;39.5K5300,UL2101 |
|
|
NETWORK-WLAN CLIENT;WIDT30Q,55X24X5.8MM |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 2007-009234 | R-CHIP;0.47OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005 |
| 2007-008035 | R-CHIP;160KOHM,1%,1/10W,TP,1608 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007382 | R-CHIP;20MOHM,5%,1/10W,TP,1608 |
| 2007-007526 | R-CHIP;23.7KOHM,1%,1/10W,TP,1608 |
| 2007-008517 | R-CHIP;240KOHM,1%,1/16W,TP,1005 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-007443 | R-CHIP;3.01KOHM,1%,1/10W,TP,1608 |
| 2007-002749 | R-CHIP;3.3OHM,5%,1/4W,TP,3216 |
| 2007-000879 | R-CHIP;4.7OHM,1%,1/10W,TP,1608 |
| 2007-008720 | R-CHIP;4.7OHM,1%,1/4W,TP,3216 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005 |
| 2007-001042 | R-CHIP;56OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
|
|
REMOCON-TV;2017 TV,SAMSUNG,45KEY,3V,NORT |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
| 3404-001379 | SWITCH-TACT;12V,50MA,250GF,4.9X4.9X1.5MM |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
