Manufacturer
Samsung
Model Number
UN40C6500VFXZA
Description

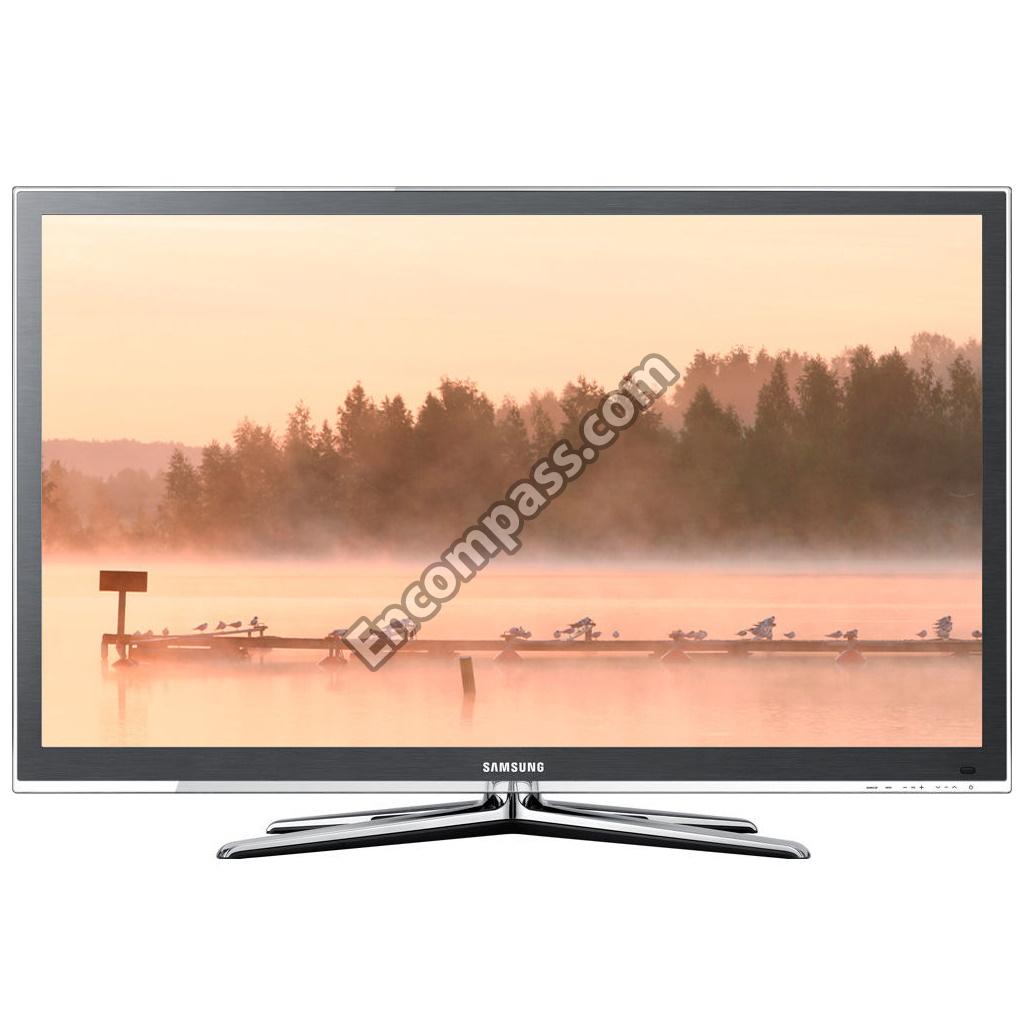

40-inch 1080p Led Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-04353A | A/S-T CON;LTF460HQ03 |
| BN96-13679C | ASSY BOARD P-TOUCH FUNCTION&IR;LC6500,CT |
| BN96-12928A | ASSY BRACKET P-STAND LINK;UC6500 40,SECC |
|
|

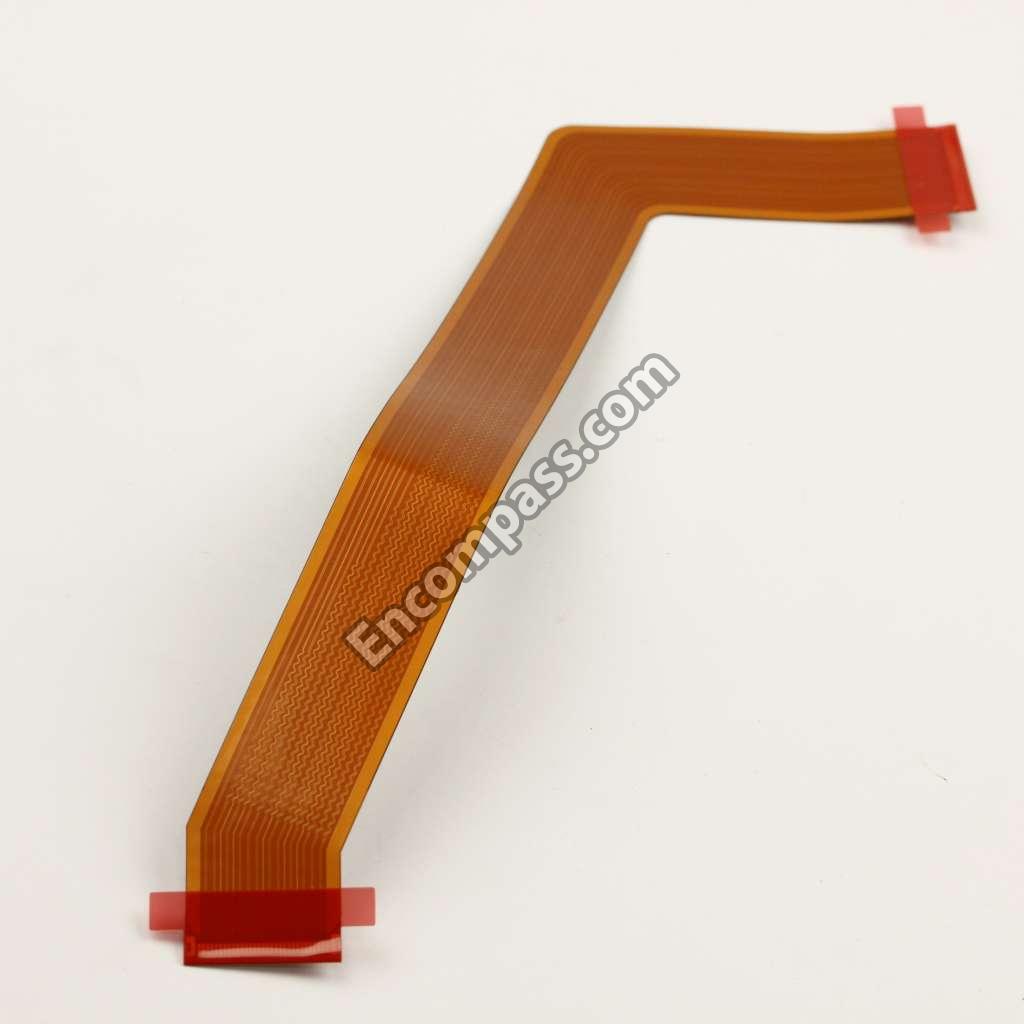

ASSY CABLE P-FPCB LVDS;LED120HZ-40INCH,F |
| BN96-13747H | ASSY COVER P-FRONT;UC6500 40,UO,PMMA+PMM |
|
|
ASSY COVER P-GUIDE STAND;UC7000,PC+ABS+G |
| BN96-13842A | ASSY COVER P-REAR;UC6900 40,UO,PCM,BKN-P |
| BN96-10276B | ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB |
| BN96-10810A | ASSY HOLDER P;09 LEDTV MODEL,NYRON |
| BN94-03370S | ASSY PCB MAIN;UN40C6500VFXZA AMLCD |
|
|

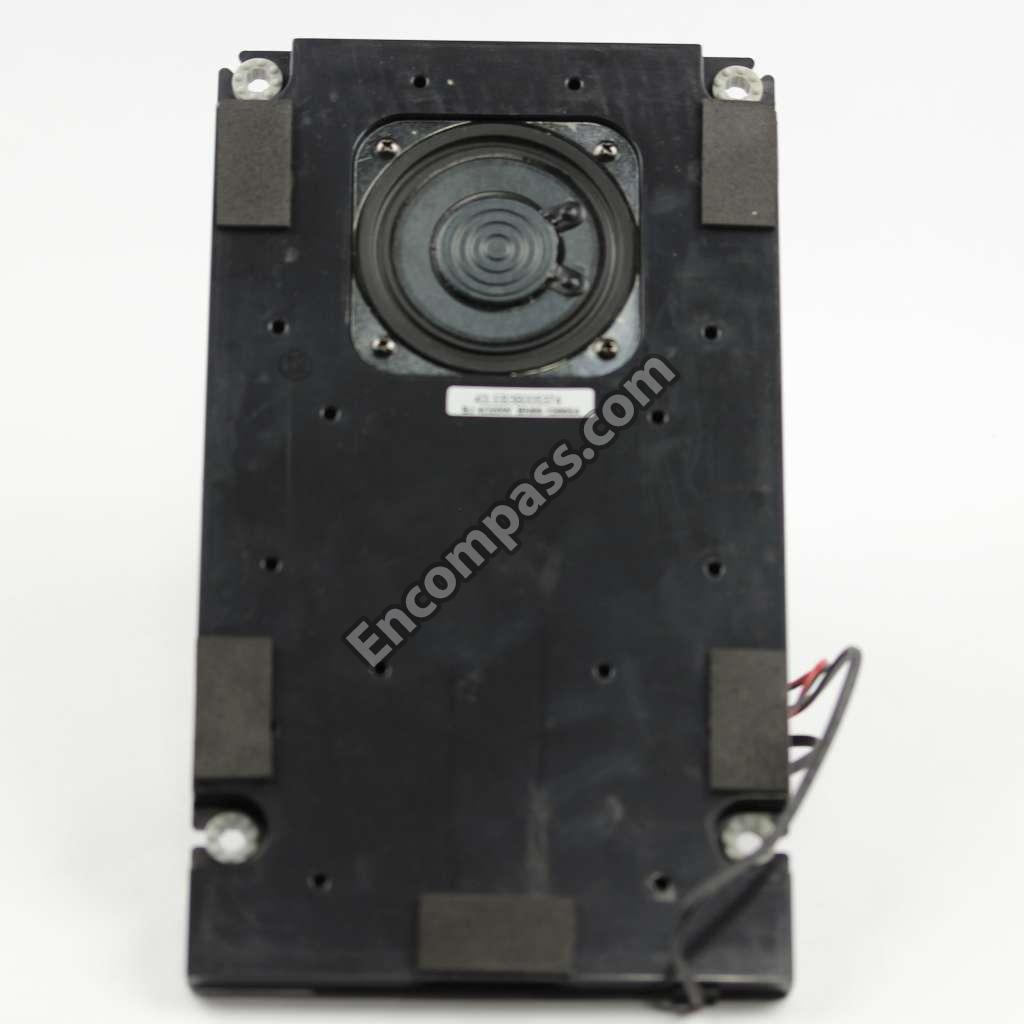

ASSY SPEAKER P;4OHM,4PIN,20W,R: 680,ENCL |
| BN96-12941J | ASSY SPEAKER P;8OHM,4PIN,10,L:560 R:1090 |
| BN96-13132A | ASSY STAND P-BASE;37/40,FOUR-LEG,HIPS,HB |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 3301-000314 | BEAD-SMD;120OHM/100MHZ,1.6X0.8MM,TP,120O |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 3301-001404 | BEAD-SMD;30OHM/100MHZ,2X1.2MM,TP,10MOHM, |
| 3301-001236 | BEAD-SMD;60OHM/100MHZ,1.6X0.8MM,TP,0.7OH |
| 2203-000125 | C-CER,CHIP;1.2NF,10%,50V,X7R,TP,1608,-55 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
|
|
C-CER,CHIP;10UF,10%,25V,X5R,TP,3216,-55T |
| 2203-005221 | C-CER,CHIP;15NF,10%,50V,X7R,TP,1608,-55T |
| 2203-000405 | C-CER,CHIP;180PF,5%,50V,C0G,TP,1608,-55T |
| 2203-006039 | C-CER,CHIP;1NF,10%,2000V,X7R,3216,-55TO+ |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012,-55 |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-007233 | C-CER,CHIP;22UF,10%,16V,X5R,TP,3216,T1.6 |
| 2203-006992 | C-CER,CHIP;330PF,5%,50V,C0G,TP,1005,-55T |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005,-55 |
| 2203-001124 | C-CER,CHIP;680PF,10%,50V,X7R,TP,1005,-55 |
| 2203-003039 | C-CER,CHIP;8PF,0.25PF,50V,C0G,TP,1005,T0 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| AA65-30023A | CLAMPER-CORE CABLE;NYLON 66,BLK |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3701-001724 | CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,NI,30 |
| 3708-002777 | CONNECTOR-FPC/FFC/PIC;82P,0.5MM,SMD-A,AU |
| 3701-001293 | CONNECTOR-HDMI;19P,A,FEMALE,AU,1.0MM,BLK |
| 3711-007583 | CONNECTOR-HEADER;BOX,10P,1R,2MM,ANGLE,SN |
| 3711-007587 | CONNECTOR-HEADER;BOX,18P,2R,2MM,ANGLE,SN |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE,S |
| 3707-001095 | CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-06543B | COVER-BOTTOM;UC7000 40,HIPS,V0,BK0020 |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
| 2801-003954 | CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH |
|
|

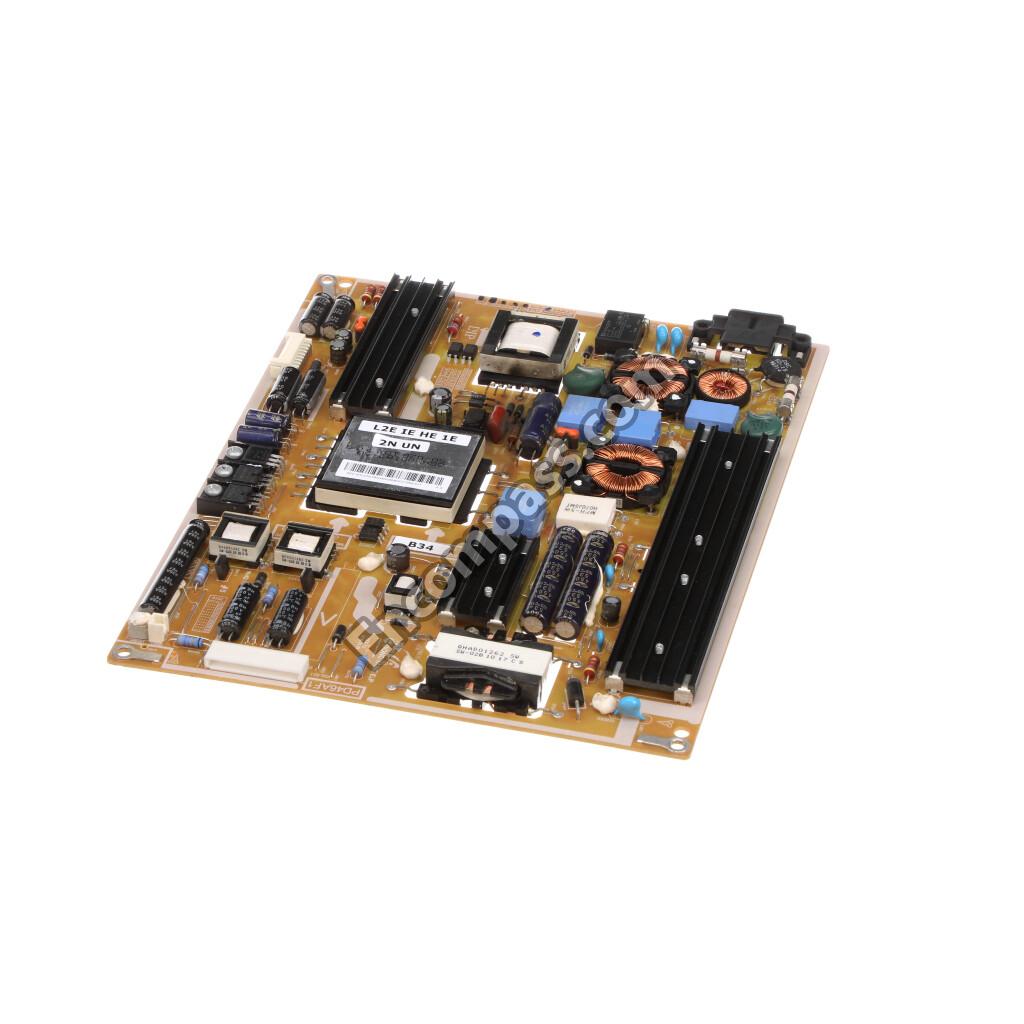

DC VSS-PD BOARD;PD46AF1U_ZDY,PD46AF1U_ZD |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6V,1MAV,5A,TR |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S |
| 0505-000110 | FET-SILICON;2N7002,N,60V,0.115A,7.5OHM,0 |
| 0505-002386 | FET-SILICON;AO3415AL,P,20V,-4A,0.045OHM, |
| 0505-000274 | FET-SILICON;AO4435L,P,30V,11A,0.014OHM,3 |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2.0X1.0X0.5M |
|
|
GUIDE-STAND;UC6500 40INCH,PC+GF20%,BK000 |
| BN61-05596A | HOLDER-CABLE;LED TV,LDPE,T0.8,L150,WHITE |
|
|
HOLDER-STAND CABLE;46UB7000,PA66,NATURAL |
| 1001-000164 | IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1205-003840 | IC-CODEC;WM8595GEFL/RV,QFN,48P,7X7X0.75M |
| 1203-005538 | IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. |
| 1203-006013 | IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8,4.9X |
| 1203-006142 | IC-DC/DC CONVERTER;BD8924G,SO,5,2.9X1.6X |
| 1203-005988 | IC-DC/DC CONVERTER;TPS54620RGY,QFN,14,3. |
| 1105-002127 | IC-DDR2 SDRAM;K4T51163QI-HCE7,512MBIT,32 |
| 1204-003100 | IC-DECODER;SDP92,FCPBGAH,937P,35X35MM,PL |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001475 | IC-EEPROM;M24256-BR,256KBIT,32KX8,SOP,8P |
|
|
IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q |
| 1006-001480 | IC-LINE TRANSCEIVER;MAX3222ECAP+T,SSOP,2 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-003121 | IC-POSI.FIXED REG.;FAN1112,SOT-223,3,6.5 |
| 1203-002519 | IC-POSI.FIXED REG.;KIA7809AF,DPAK,3,6.6X |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1201-002992 | IC-POWER AMP;STA369BWS,PSSO,36P,10.3X7.5 |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 1204-003085 | IC-VIDEO PROCESS;SDP91-PS,PBGA,496Z30,23 |
| 1204-003101 | IC-VIDEO PROCESS;SDP94,PBGA,345P,19X19MM |
| 1001-001573 | IC-VIDEO SWITCH;SII9287BCNUTR,QFN,72P,10 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-002044 | INDUCTOR-SMD;390NH,5%,2012,1.5OHM,290MA, |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 2703-003296 | INDUCTOR-SMD;47UH,10%,2012,3.7OHM,90MA,W |
| 2703-000222 | INDUCTOR-SMD;560NH,10%,2012,0.75OHM,150M |
| 3722-003150 | JACK-MODULAR;8P/8C,Y,ANGLE,GRN/YEL,AU,1P |
|
|
JACK-PHONE;1P/6C,NI,BLK,ANGLE,3.6PI,9X14 |
| 3722-003151 | JACK-PIN;5P,NI,BLK,ANGLE |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A,2.0,13.1X1 |
|
|
LCD-PANEL;LTF400HJ03,SSDZJT,SSDZJT,8BIT, |
|
|

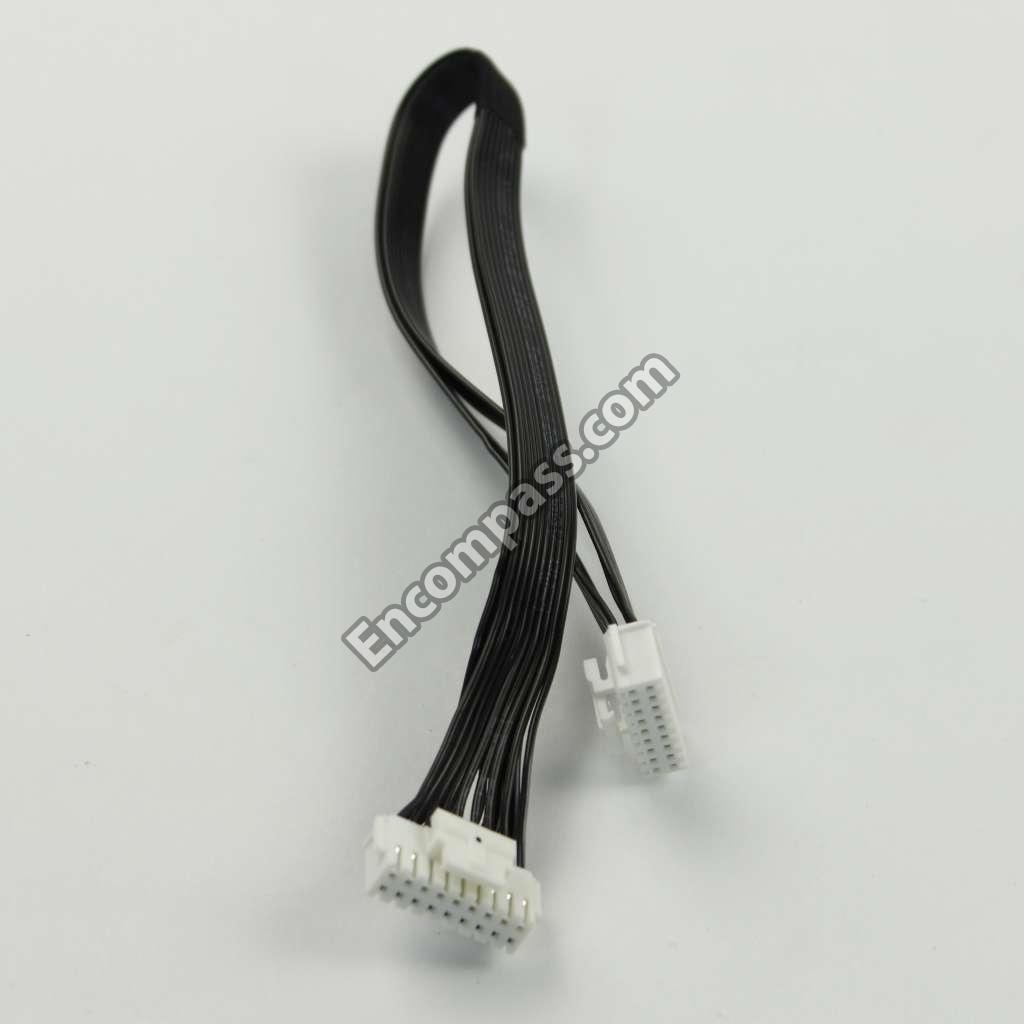

LEAD CONNECTOR;UN40C6400,LEAD CONNECTOR, |
| 2804-001878 | OSCILLATOR-CLOCK;49.152MHZ,50PPM,10TTL/1 |
|
|
PAD GAP-THERMAL;UE32B6000VWXXC,T3,L35,H3 |
| 3903-000527 | POWER CORD-DT;UL/CSA,EP-2,125V,5A,BLK,L1 |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2007-000231 | R-CHIP;1.3KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-009853 | R-CHIP;1.6KOHM,1%,1/16W,TP,1005 |
| 2007-000483 | R-CHIP;1OHM,5%,1/8W,TP,2012 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-000591 | R-CHIP;22OHM,1%,1/10W,TP,1608 |
| 2007-000606 | R-CHIP;240OHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000726 | R-CHIP;300OHM,1%,1/10W,TP,1608 |
| 2007-000763 | R-CHIP;330OHM,1%,1/10W,TP,1608,T0.45 |
| 2007-007947 | R-CHIP;36OHM,1%,1/10W,TP,1608 |
| 2007-007724 | R-CHIP;40.2OHM,1%,1/10W,TP,1608 |
| 2007-008391 | R-CHIP;6.34KOHM,1%,1/16W,TP,1005 |
| 2007-008593 | R-CHIP;750OHM,1%,1/16W,TP,1005 |
| 2007-007723 | R-CHIP;75KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,4P,TP,1.0 |
| 2011-001093 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
| 2011-001497 | R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|

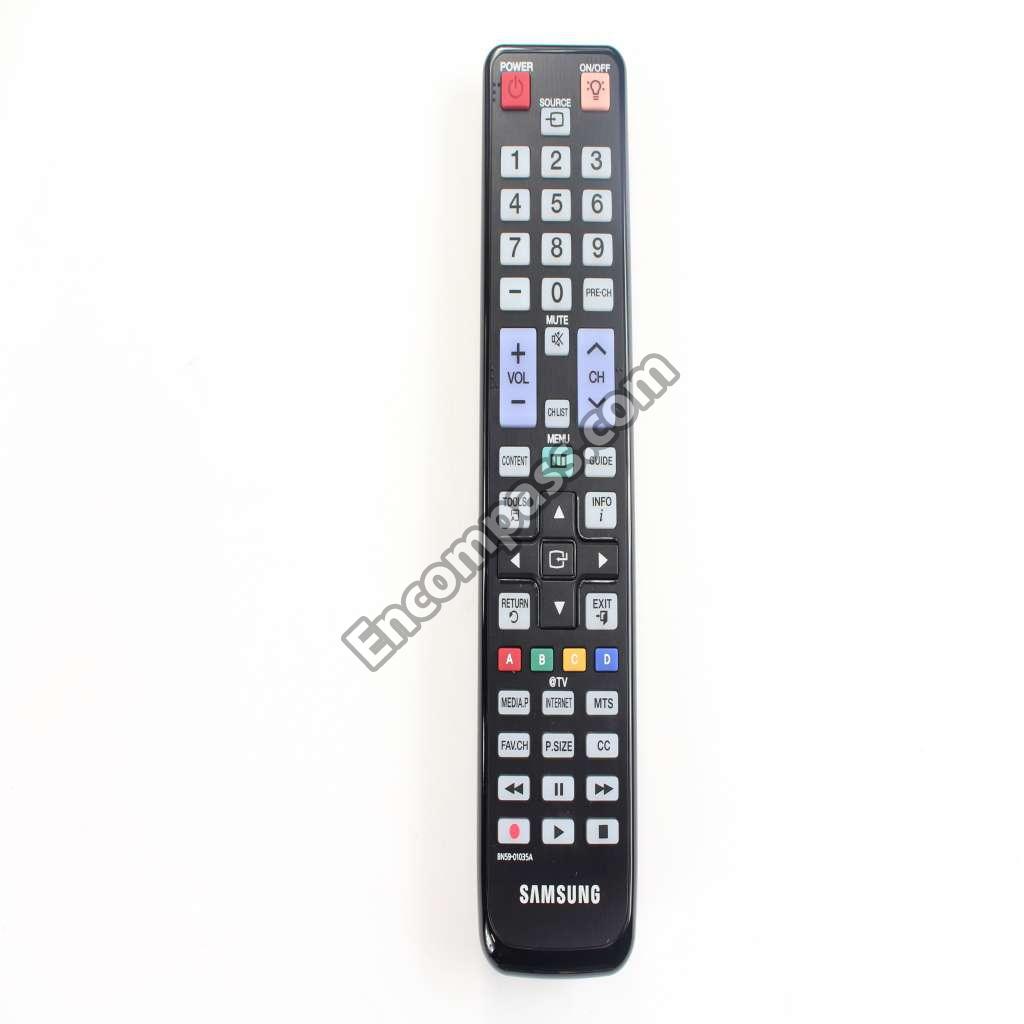

REMOCON-TV;TM1060,SAMSUNG,20PIN SINGLE,4 |
|
|
SCREW-MACHINE;BH,+,M3,L10,ZPC(WHT),SWRCH |
| 6001-002283 | SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 |
| 6001-002610 | SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 0501-002654 | TR-SMALL SIGNAL;2PD601ASL,NPN,250MW,SOT- |
| 0501-000669 | TR-SMALL SIGNAL;KTA1505Y,PNP,150MW,SOT-2 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 2601-001056 | TRANS-SMD,PULSE;350UH,1:1,1:1,12.7X6.7 |
|
|
TUNER-DTV AIR CABLE;DTVS20CVH081A,NTSC,1 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1608,TP,120V,10PF |
