Manufacturer
Samsung
Model Number
UN40D5003BFXZA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

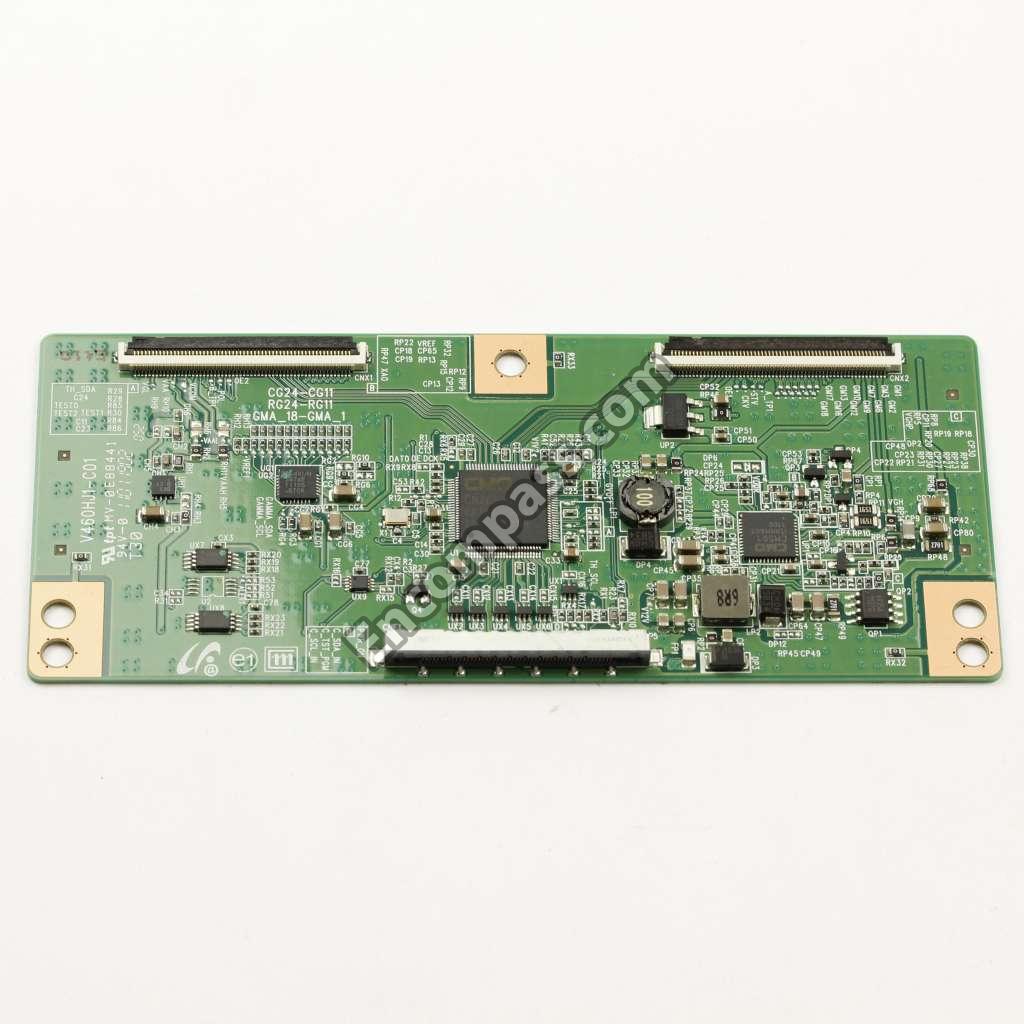

A/S-T CON;LD400BGC-C1 |
| BN96-19790C | ASSY BOARD P-TOUCH FUNCTION&IR;40"5003,E |
| BN96-17116M | ASSY CABLE P-FFC;UN40D5003,FFC,294MM,51P |
| BN96-19849A | ASSY COVER P-FRONT;UD5003 40,W/W,ABS+PMM |
| BN96-19851A | ASSY COVER P-REAR;UD5003 40,UO,HIPS,V0,B |
|
|

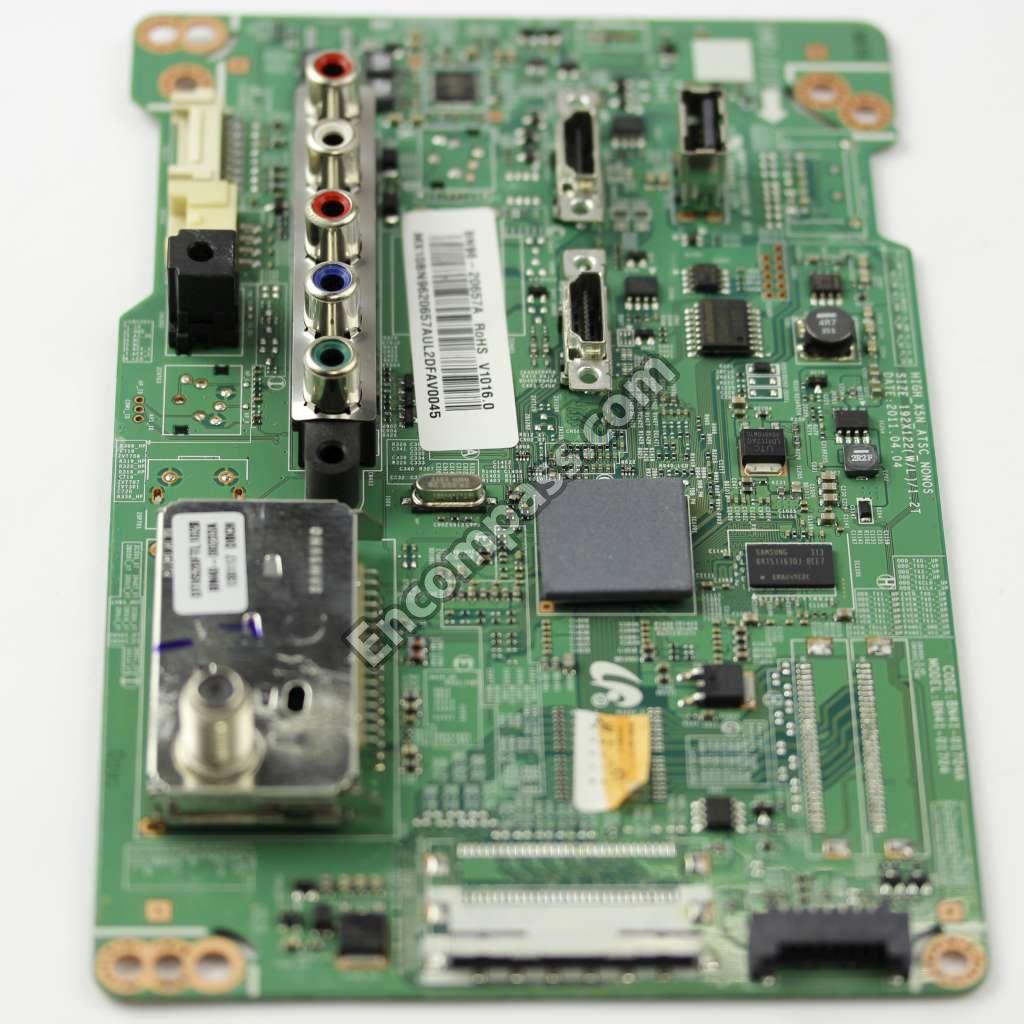

ASSY PCB MAIN;UN40D5003BDXZA CMO |
| BN96-20658A | ASSY PCB P-MAIN;BN94-04897D;UN40D5003BFX |
| BN96-19642A | ASSY SPEAKER P;6OHM,4PIN,10W,LOW_LED_40" |
|
|

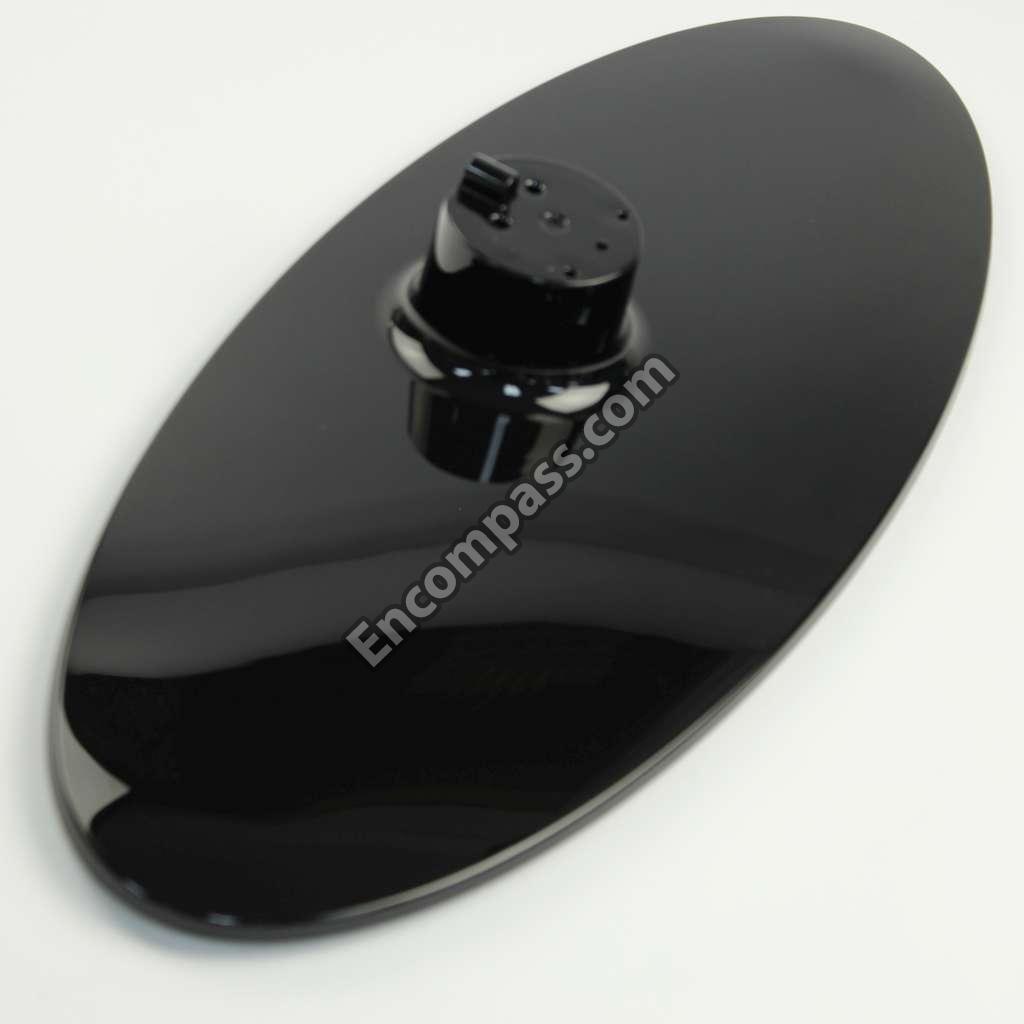

ASSY STAND P-BASE;UD5003 40,ABS+PMMA,HB, |
| BN96-19853B | ASSY STAND P-GUIDE;UD5003 40,UO,PC,G/F 2 |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
|
|
BRACKET-SUPPORT PCB;LD550,SK-5,T0.5,PLAT |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006378 | C-CER,CHIP;4700NF,10%,6.3V,X5R,TP,1608 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|
CBF-POWER CORD;DT,UL/CSA,EP-2,N,125V,5A, |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-007569 | CONNECTOR-HEADER;BOX,14P,2R,2.0MM,DIP,SN |
| BN63-07807A | COVER-BOTTOM;UD5000 37,HIPS,V0,BK0020 |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
|
|

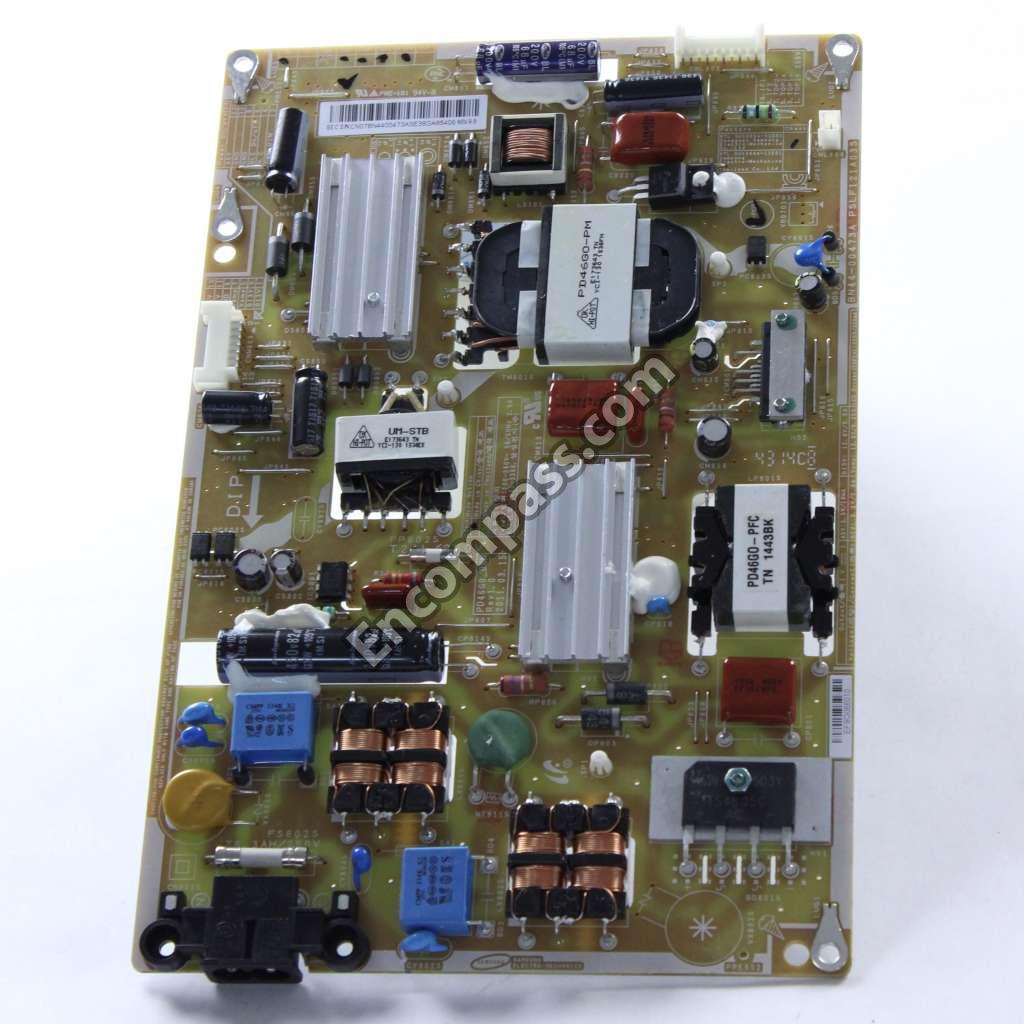

DC VSS-LED TV PD BD;PD46G0_BSM,PSLF121A0 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0403-001561 | DIODE-ZENER;MMSZ5226B,3.135/3.465V(5%),5 |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94/5.2V,500MW,SOD- |
| 0505-002893 | FET-SILICON;AO4801AS,P,-30V,-5A,2W,SOIC- |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| BN96-19853A | GUIDE-STAND;UD5003 40,PC+GF,PC,G/F 20%,V |
| 3711-007336 | HEADER-BOARD TO CABLE;B0X,4P,1R,2.5MM,SM |
| 3711-005925 | HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,NYRON |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-006619 | IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 |
| 1203-006142 | IC-DC/DC CONVERTER;BD8924G,5P,2.9X1.6X1. |
| 1105-002049 | IC-DDR2 SDRAM;EM68B16CWPA-25H,DDR2 SDRAM |
| 1105-002268 | IC-DDR2 SDRAM;K4T51163QJ-BCE7,512MBIT,32 |
| 1204-003279 | IC-DECODER;SEMS22-LF,LFBGA,397P,17.5X17. |
| 1103-001441 | IC-EEPROM;24C1024,1MBIT,128KX8,SOP,8P,4. |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1107-001777 | IC-NOR FLASH;MX25L6406,64MBIT,64MX1,SOP, |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,6.6X6.1MM,PLA |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. |
| 1203-005134 | IC-POSI.FIXED REG.;RT9167A-33PB,SOT-23-5 |
| 1201-003153 | IC-POWER AMP;NTP-7411S,MLF,48P,7X7MM,DUA |
| 1201-003470 | IC-POWER AMP;NTP-7411S2,MLF,48Z30,7X7MM, |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-000398 | INDUCTOR-SMD;10UH,10%,3225,.5OHM,300MA,1 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-002238 | INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 2703-003890 | INDUCTOR-SMD;47UH,10%,3225,1.90OHM,150MA |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
| 3722-003213 | JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,BLK,S |
| 3722-003248 | JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
|
|
LCD-PANEL;LD400BGC-C2,CLL6BC3,8BIT,40 IN |
| BN39-01455K | LEAD CONNECTOR;UN40D5003,FALT CONNECTOR, |
| 2007-000640 | R-CHIP;270OHM,1%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-007721 | R-CHIP;560OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP-V,4P,TP,1 |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
|
|
REMOCON;TM940,SAMSUNG,20PIN SINGLE,39,3. |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M4,L8,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN40-00233A | TUNER;DTVS20FTL102B,DTVS20FTL102B,VSB HA |
|
|
TUNER;TDAU4-K01A,TDAU4-K01A,VSB(NTSC/ATS |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
