Manufacturer

Samsung

Model Number

UN48J520DAFXZA

Description

Led Tv,un48j520daf,48,united States,uae

Interactive Exploded View

Parts List

Part Number	Description
BN96-38694C	ASSEMBLY BOARD P-FUNCTION TACT
BN96-37145A	ASSEMBLY CHASSIS FRONT P
BN96-38076G	ASSEMBLY COVER P-REAR
BN96-35223A	ASSEMBLY GUIDE P-STAND
BN96-37044A	ASSEMBLY OPEN CELL

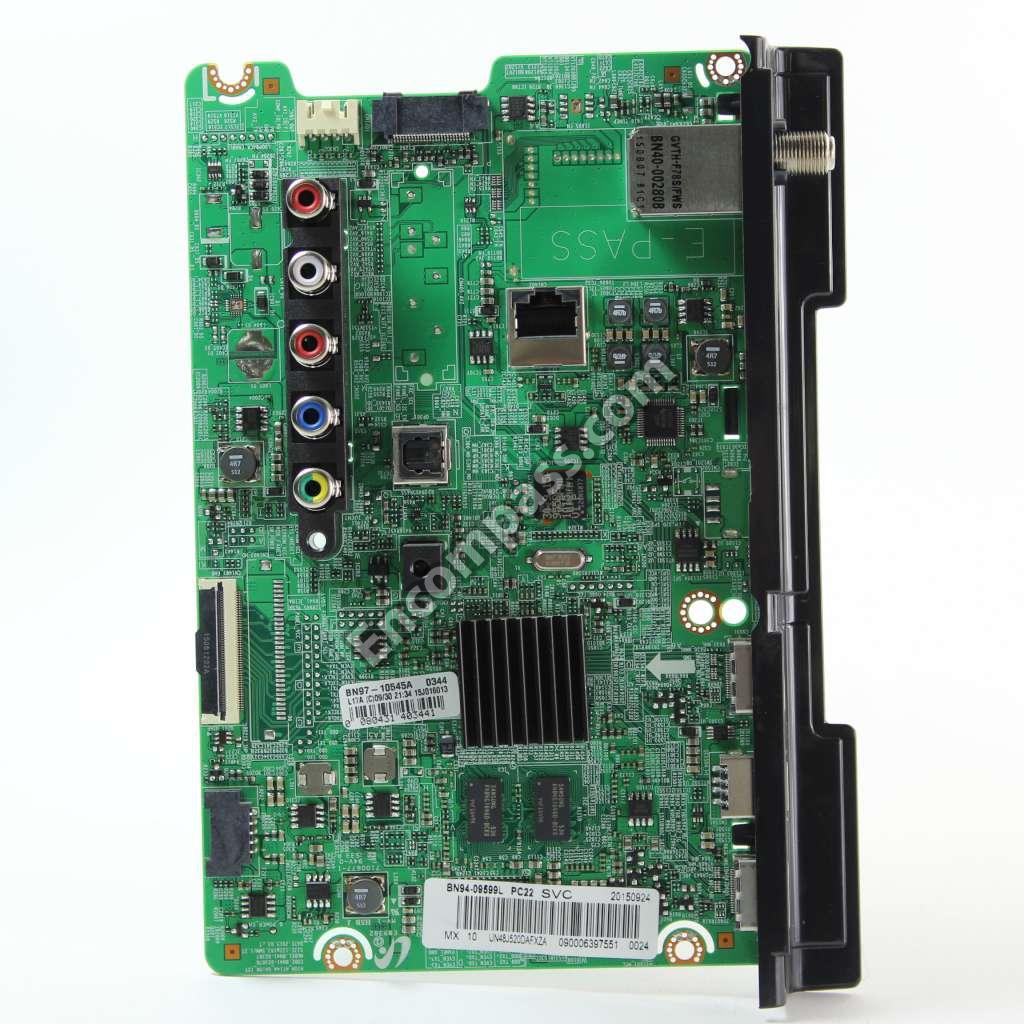

BN94-09599L	ASSEMBLY PCB MAIN-MAIN
BN96-30337C	ASSEMBLY SPEAKER P-FRONT
BN96-38964P	ASSEMBLY STAND P-BOTTOM
BN96-38627A	ASSEMBLY T CON P
6902-001063	BAG PE
BH69-00418A	BAG PE-WRAPPING FILM
4301-000121	BATTERY-MN
3301-002039	BEAD-SMD
3301-001364	BEAD-SMD
3301-000314	BEAD-SMD
2203-007544	C-CER,CHIP
2203-007513	C-CER,CHIP
2203-007306	C-CER,CHIP
2203-007176	C-CER,CHIP
2203-006960	C-CER,CHIP
2203-006698	C-CER,CHIP
2203-006460	C-CER,CHIP
2203-006399	C-CER,CHIP
2203-006348	C-CER,CHIP
2203-006158	C-CER,CHIP
2203-006126	C-CER,CHIP
2203-006048	C-CER,CHIP
2203-005968	C-CER,CHIP
2203-005918	C-CER,CHIP
2203-005344	C-CER,CHIP
2203-005249	C-CER,CHIP
2203-002711	C-CER,CHIP
2203-002285	C-CER,CHIP
2203-001414	C-CER,CHIP
2203-000715	C-CER,CHIP
2203-000627	C-CER,CHIP
2203-000575	C-CER,CHIP
3903-000853	CBF-POWER CORD
3708-003176	CONNECTOR-FPC/FFC/PIC
3701-001861	CONNECTOR-HDMI
3707-001106	CONNECTOR-OPTICAL
2801-003773	CRYSTAL-SMD
BN44-00852A	DC VSS-LED TV PD
0404-001881	DIODE-SCHOTTKY
0404-001640	DIODE-SCHOTTKY
0404-001404	DIODE-SCHOTTKY
0401-001056	DIODE-SWITCHING
0406-001635	DIODE-TVS
0406-001628	DIODE-TVS
0406-001445	DIODE-TVS
0403-001797	DIODE-ZENER
0403-001785	DIODE-ZENER
0403-001552	DIODE-ZENER
0505-003397	FET-SILICON
0505-003205	FET-SILICON
0505-002893	FET-SILICON
0505-002826	FET-SILICON
0505-002560	FET-SILICON
BN96-36273P	FFC CABLE
2901-001362	FILTER-EMI/ESD
3601-001038	FUSE-SURFACE MOUNT
3711-008634	HEADER-BOARD TO CABLE
3711-008558	HEADER-BOARD TO CABLE
3711-008131	HEADER-BOARD TO CABLE
3711-005601	HEADER-BOARD TO CABLE
BN61-09494D	HOLDER-BOLT
BN61-08370A	HOLDER-WIRE STAND
BN13-00064A	IC ASIC
1201-003690	IC-AUDIO AMP
1203-008183	IC-DC/DC CONVERTER
1203-008118	IC-DC/DC CONVERTER
1203-007984	IC-DC/DC CONVERTER
1105-002529	IC-DDR3 SDRAM
1103-001565	IC-EEPROM
1103-001487	IC-EEPROM
1107-002374	IC-EMMC
1107-002226	IC-NOR FLASH
1203-007242	IC-POSI.ADJUST REG.
1203-006130	IC-POSI.FIXED REG.
1203-006330	IC-POWER SUPERVISOR
1205-004983	IC-SWITCH
1205-004447	IC-SWITCH
1204-003558	IC-VIDEO PROCESS
1203-006017	IC-VOL. DETECTOR
1203-004363	IC-VOL. DETECTOR
2703-003930	INDUCTOR-SMD
2703-003862	INDUCTOR-SMD
2703-003790	INDUCTOR-SMD
2703-003747	INDUCTOR-SMD
2703-003713	INDUCTOR-SMD
2703-000158	INDUCTOR-SMD
3722-003229	JACK-MODULAR
3722-003667	JACK-PHONE
3722-003546	JACK-PIN
3722-003457	JACK-USB
BN68-00513A	LABEL-E, PASS
BN39-02096A	LEAD CONNECTOR-BLU
BN39-01885T	LEAD CONNECTOR-POWER

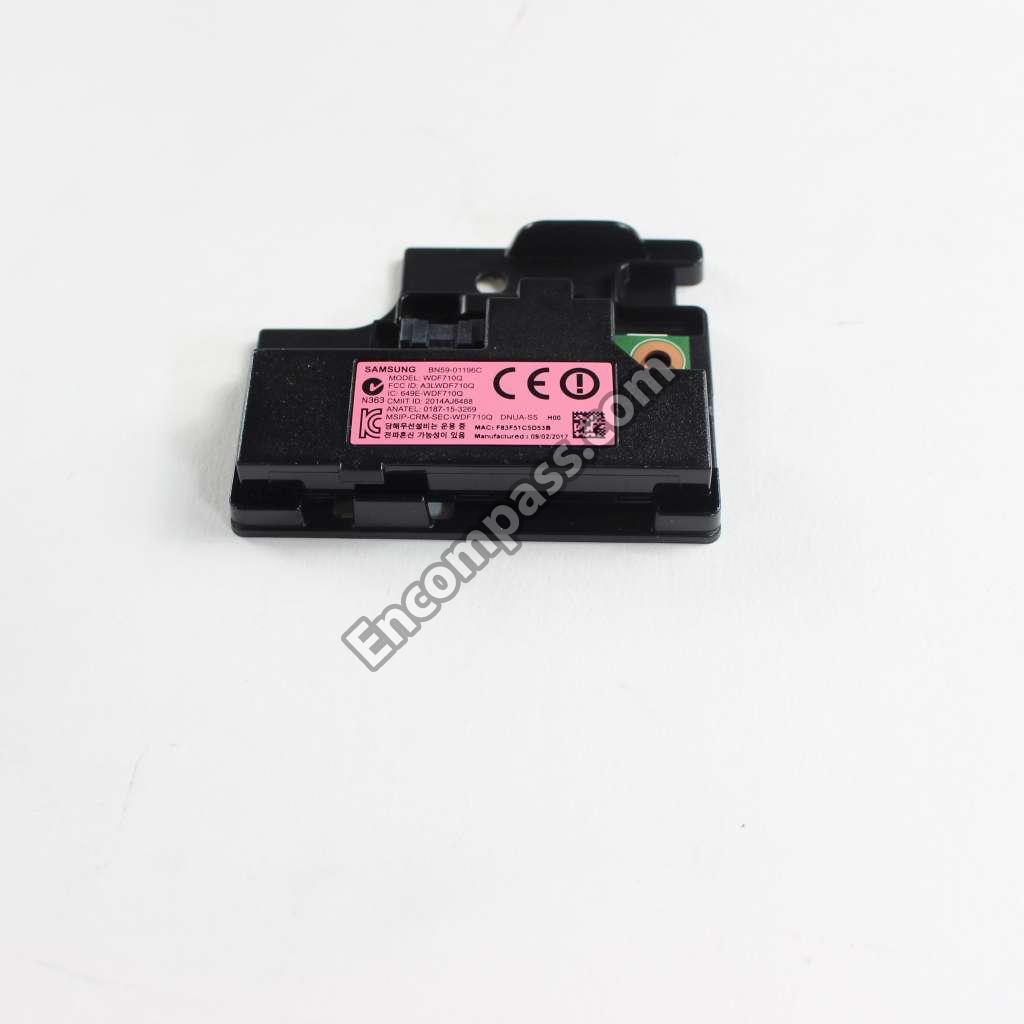

BN59-01196C	NETWORK-WI-FI MODULE
BN95-02334A	PRODUCT LCD-SDC
2007-008779	R-CHIP
2007-008298	R-CHIP
2007-008294	R-CHIP
2007-008015	R-CHIP
2007-007992	R-CHIP
2007-007942	R-CHIP
2007-007720	R-CHIP
2007-002768	R-CHIP
2007-001240	R-CHIP
2007-001168	R-CHIP
2007-000962	R-CHIP
2007-000939	R-CHIP
2007-000869	R-CHIP
2007-000821	R-CHIP
2007-000803	R-CHIP
2007-000779	R-CHIP
2007-000763	R-CHIP
2007-000736	R-CHIP
2007-000726	R-CHIP
2007-000708	R-CHIP
2007-000583	R-CHIP
2007-000570	R-CHIP
2007-000543	R-CHIP
2007-000336	R-CHIP
2007-000287	R-CHIP
2007-000265	R-CHIP
2007-000256	R-CHIP
2007-000113	R-CHIP
2007-000092	R-CHIP
2007-000067	R-CHIP
2007-000060	R-CHIP
2007-000052	R-CHIP
2007-000039	R-CHIP
2011-001527	R-NETWORK
2011-001506	R-NETWORK
2011-001449	R-NETWORK
2011-001264	R-NETWORK
BN59-01199F	REMOTE CONTROL
6001-003016	SCREW-MACHINE
6001-002757	SCREW-MACHINE
6001-002755	SCREW-MACHINE
6003-001782	SCREW-TAPTYPE
6003-001315	SCREW-TAPTYPE
6003-001239	SCREW-TAPTYPE
6003-001001	SCREW-TAPTYPE
BN63-05199H	SHEET-COVER
0203-001602	TAPE-OPP MASKING
0501-000467	TR-SMALL SIGNAL
0501-000445	TR-SMALL SIGNAL
BN40-00280B	TUNER
1405-001382	VARISTOR
1405-001381	VARISTOR
1405-001271	VARISTOR
