Model Detail - Appliance Parts King

Manufacturer

Samsung

Model Number

UN50F6300AFXZA

Description

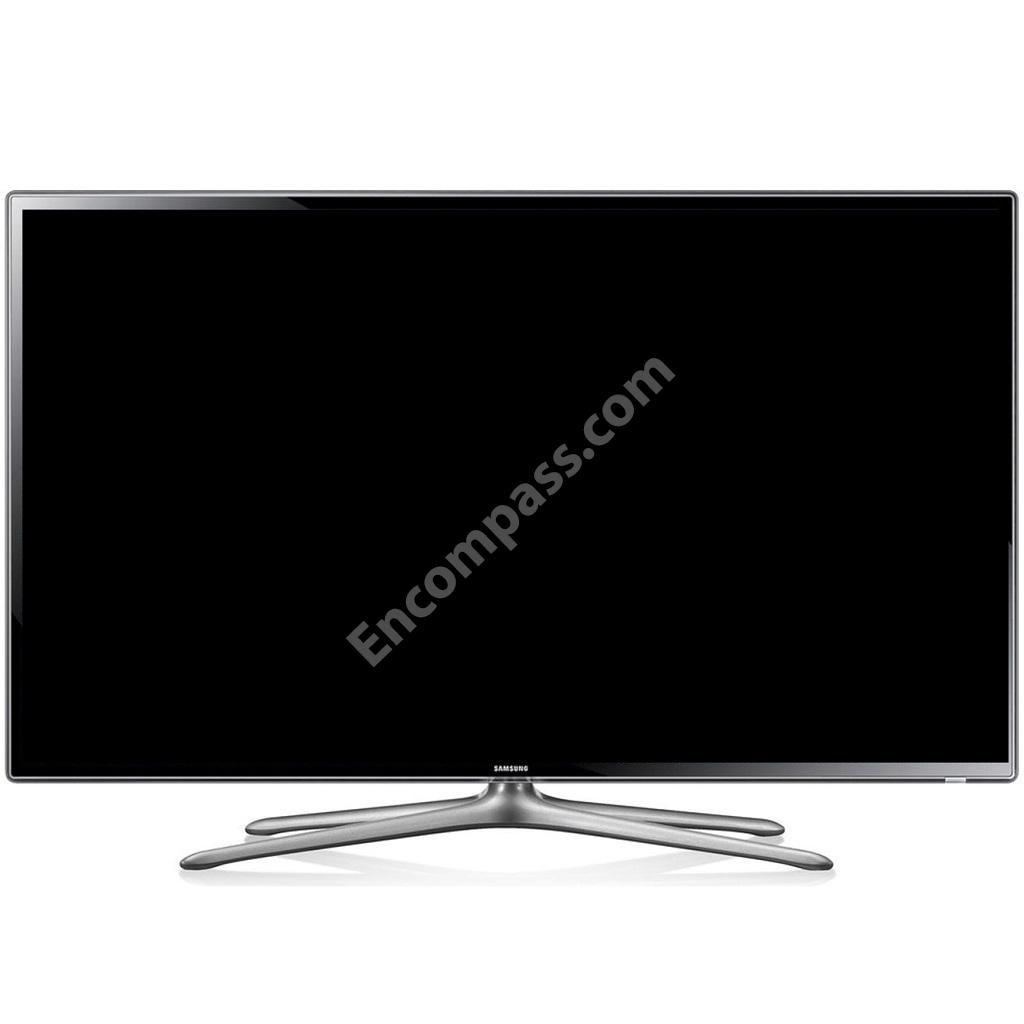

50-inch Class (49.5-inch Diag.) Led 6300 Series Tv

Interactive Exploded View

Parts List

Part Number	Description
BN96-26401L	ASSY BOARD P-JOG SWITCH & IR;UN50F6300,F

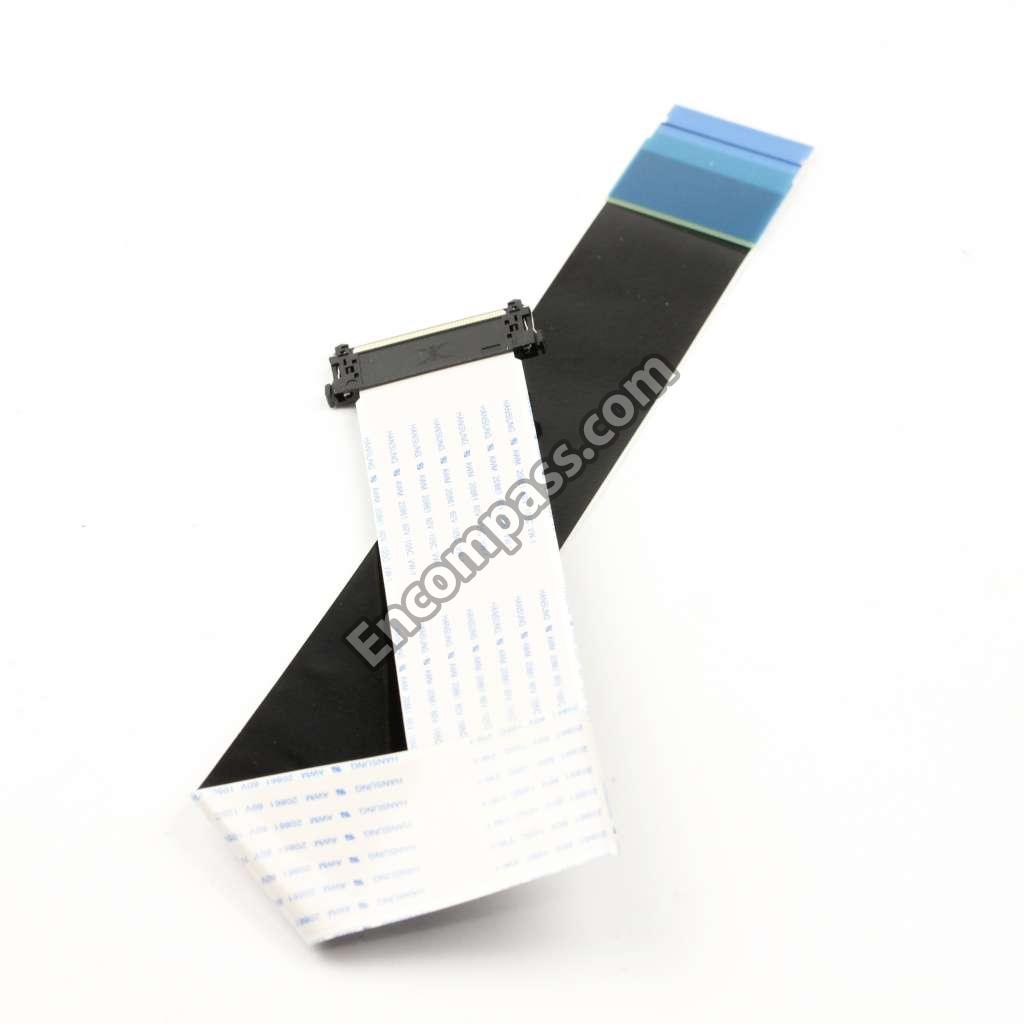

BN96-24278Z	ASSY CABLE P-FFC;UE50F6400,FFC,377MM,51P
BN96-26652B	ASSY CABLE P;IR BLASTER,IR BLASTER CABL,
BN96-25527H	ASSY COVER P-MIDDLE,REAR;UF6300 50,N/AME
BN96-25543A	ASSY GUIDE P-STAND;UF6100 40,QUAD

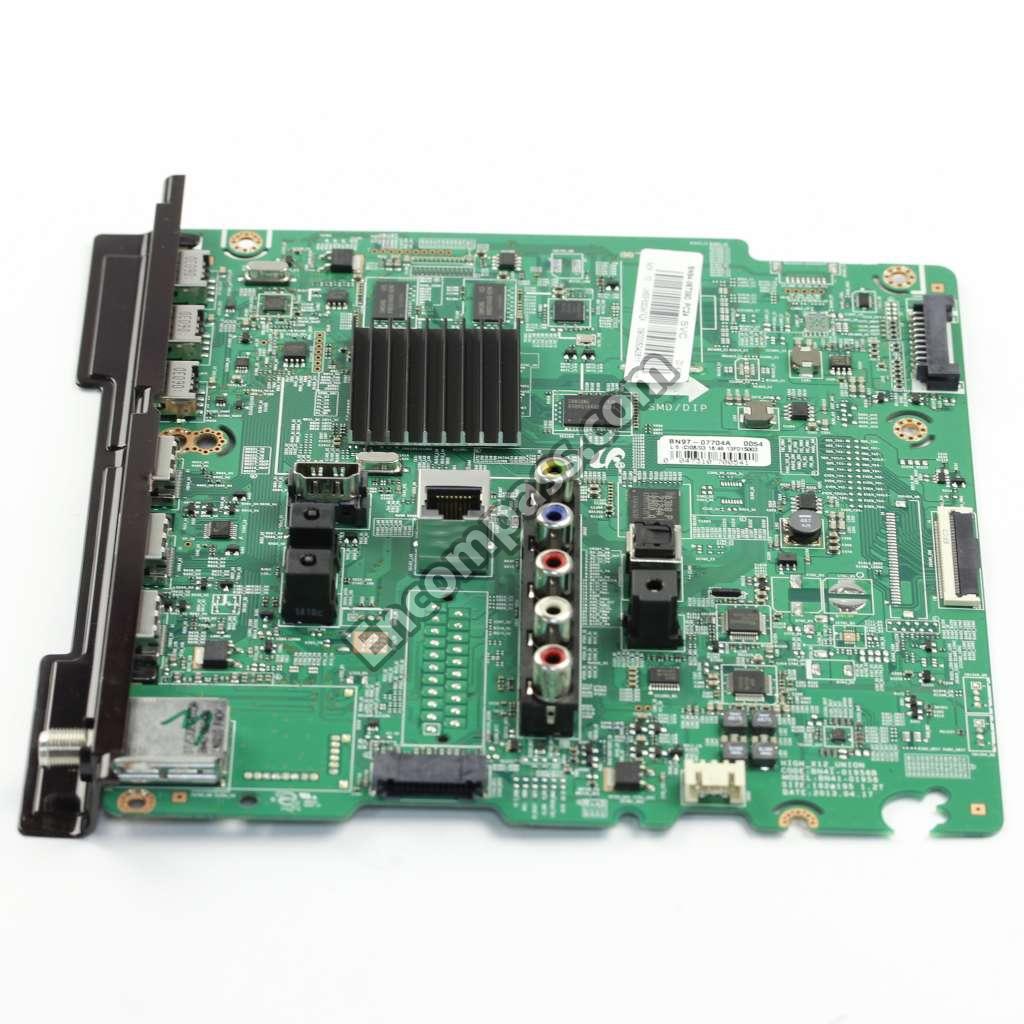

BN94-06739D	ASSY PCB MAIN;UN50F6300AFXZA

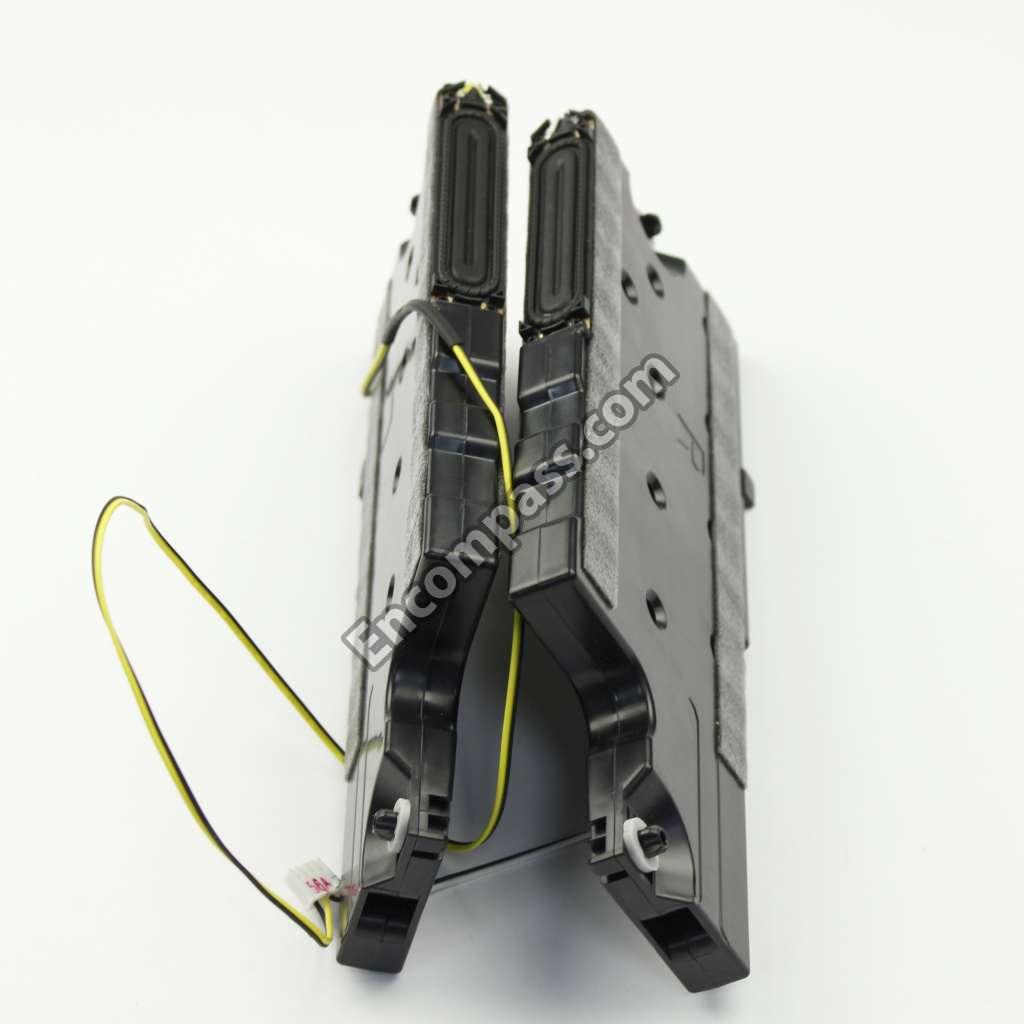

BN96-25565D	ASSY SPEAKER P;6OHM,10W,ENCLOSURE_F6K
BN96-26518B	ASSY STAND P-BASE;UF6400 46~55,N/AMERICA

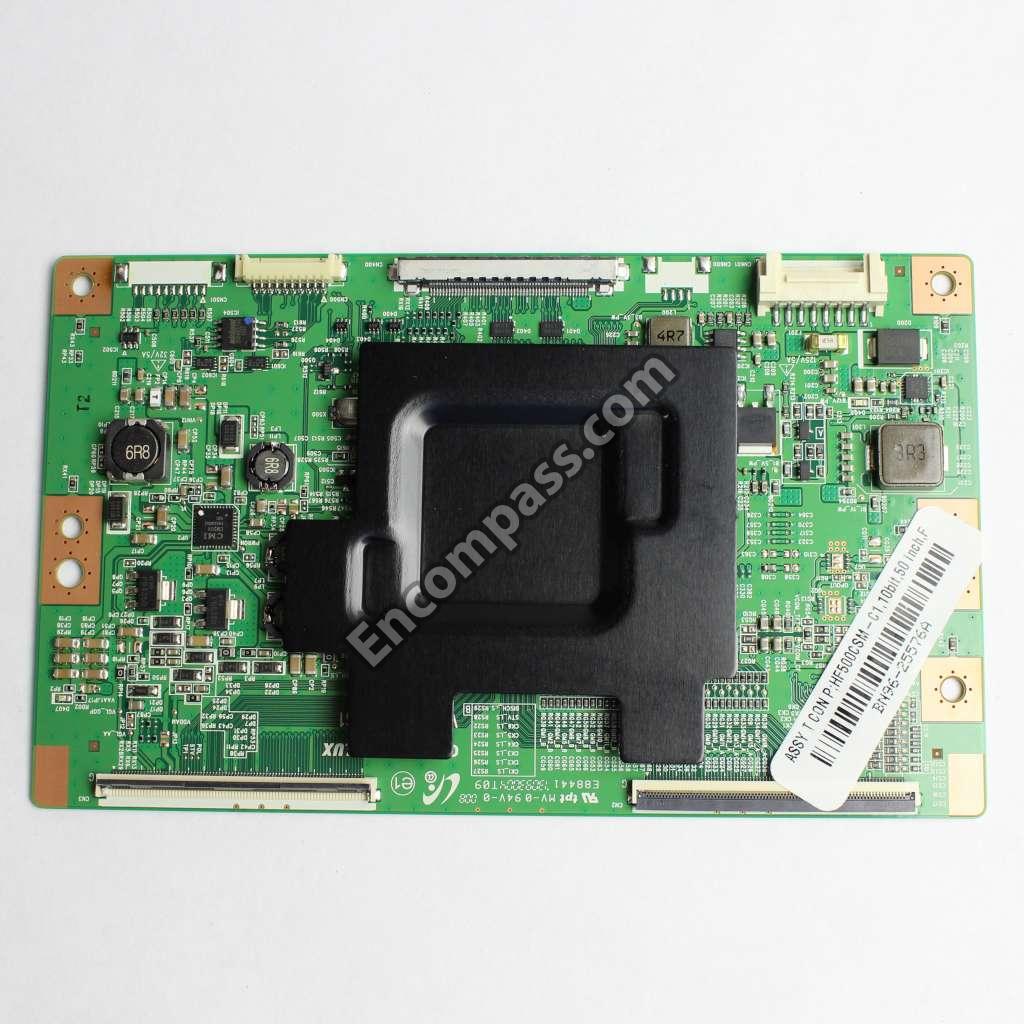

BN96-25576A	ASSY T CON P;HF500CSM-C1,10BIT,50 INCH,F
6902-001063	BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE
3301-000314	BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039	BEAD-SMD;26OHM,1608,TP
2203-003039	C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100
2203-005642	C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005
2203-007513	C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176	C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-006348	C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006048	C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-002711	C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-005249	C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285	C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000575	C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-005344	C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-005968	C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5
2203-006126	C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
3903-000853	CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A,
3701-001861	CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU
3701-001856	CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU
3707-001106	CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF
2801-000102	CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-004775	CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP
2801-003326	CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
BN44-00612B	DC VSS-LED TV PD BD;L55S1_DHS,L55S1_DHS,
0404-001404	DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0401-001056	DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001271	DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251
0505-002560	FET-SILICON;AO6415,P,-20V,-3.3A,0.15OHM,
0505-002598	FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O
3711-007742	HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG
3711-008558	HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM,
3711-008131	HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN61-08370A	HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N
1001-001545	IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
0801-002701	IC-CMOS LOGIC;74VHCT125A,BUFFER,TSSOP,14
0801-003330	IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X
1203-007502	IC-DC/DC CONVERTER;AOZ3011PI,SO-8,8Z30,4
1105-002430	IC-DDR3 SDRAM;K4B2G1646E-BCMA,DDR3 1866,
1105-002534	IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM
1105-002338	IC-DDR3 SDRAM;K4B4G1646B-HCMA,DDR3 1866,
1204-003421	IC-DECODER;SEMS30,PBGA,729Z30,21.6X21.6M
1006-001509	IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001487	IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8
1107-002077	IC-EMMC;KLM4G1FE3B-B001,4GBYTE,32GX1BIT,
0903-001863	IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48
1203-006138	IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2
1203-007242	IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P,
1203-006136	IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135	IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-006130	IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109	IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1205-004447	IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65
1203-004364	IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-007728	IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L
2703-003713	INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-000158	INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45,
2703-003930	INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245
2703-003790	INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450
3722-003229	JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1
3722-003617	JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI,
3722-003226	JACK-PHONE;7P/1C,SN,BLK
3722-003546	JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED
3722-003457	JACK-USB;4P/1C,NI,BLK,A
BN07-01270A	LCD-PANEL;HF500CSM-C1,CFHBCM1,10BIT,50 I
BN39-01744H	LEAD CONNECTOR;40/46" FHD,LEAD CONNECTOR

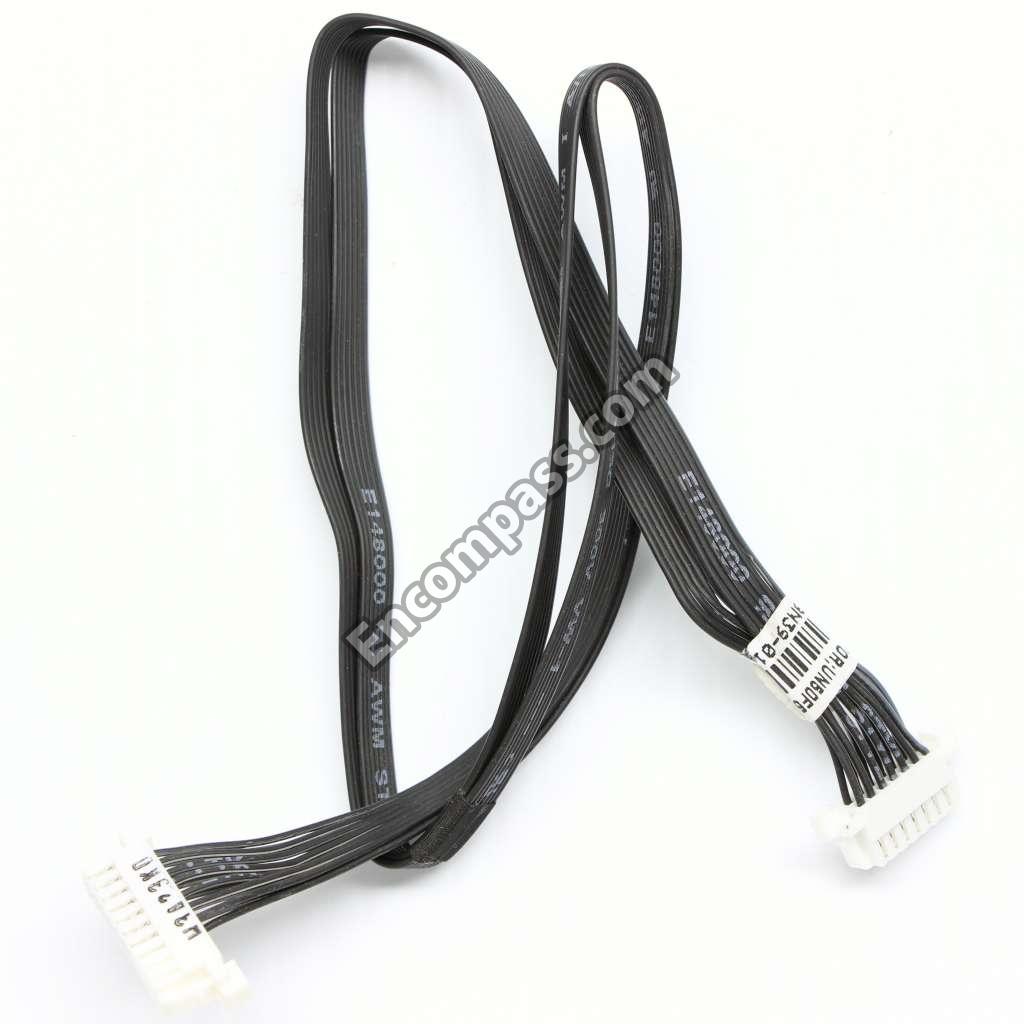

BN39-01652U	LEAD CONNECTOR;UN50F5500,LEAD CONNECTOR,
BN59-01161A	NETWORK;WIDT-30Q,INTERNAL WIFI,USB,IEEE8
2007-007463	R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000256	R-CHIP;1.6KOHM,1%,1/10W,TP,1608
2007-008426	R-CHIP;12.4KOHM,1%,1/10W,TP,1608
2007-000336	R-CHIP;120KOHM,1%,1/10W,TP,1608
2007-007942	R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-003015	R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-008649	R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000583	R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-000695	R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-000803	R-CHIP;36KOHM,1%,1/10W,TP,1608
2007-000857	R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-008298	R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000979	R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-008807	R-CHIP;53.6KOHM,1%,1/16W,TP,1005
2007-008133	R-CHIP;56.2KOHM,1%,1/10W,TP,1608
2007-001116	R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125	R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015	R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168	R-CHIP;75OHM,5%,1/4W,TP,3216
2007-007238	R-CHIP;8.25KOHM,1%,1/10W,TP,1608
2007-007331	R-CHIP;90.9KOHM,1%,1/10W,TP,1608
2011-001587	R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP
2011-001506	R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001449	R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262	R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527	R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
AA59-00784C	REMOCON;TM1260B,52,3.0V,NETFLIX, AMAZON
6001-002755	SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1
6001-003016	SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S
6002-001294	SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
6003-000115	SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6003-001782	SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR
6003-001785	SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC
0501-000279	TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000445	TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00248A	TUNER;DTVS20EIH035A,DTVS20EIH035A,VSB-HA
1405-001271	VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1
