Manufacturer
Samsung
Model Number
UN50NU7100FXZA
Description
50-inch Class Led Nu7100 Series Smart 4k Uhd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-16147A | A/S-A/S-IC DRIVER SOURCE;A/S-IC DRIVER S |
|
|
ASSY BOARD P-FUNCTION;Y18 NU7300, 7100,C |
| BN96-46054A | ASSY CHASSIS FRONT P;50UNU7100X,PC+ABS+E |
| BN96-45660A | ASSY COVER P-REAR;50UNU7100X,PC+ABS+ED20 |
|
|
ASSY HOLDER P-RING;65Q8C,ABS,BLACK,HB |
| BN96-45952A | ASSY LED BAR P;50INCH_NU7100,ALUMINUM,NU |
| BN96-45763A | ASSY OPEN CELL;AUO,50INCH,Y2018 NEW MODE |
|
|
ASSY PCB MAIN;LEDTV 7K,B VERSION |
| BN96-45632B | ASSY SPEAKER P-FRONT;TV-SPK,UNU7100X,6OH |
|
|
ASSY STAND P-COVER TOP LEFT;55UNU7100X,A |
|
|
ASSY STAND P-COVER TOP RIGHT;55UNU7100X, |
|
|
ASSY STAND P-HOLDER CABLE;55UNU7100X,ABS |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
|
|
BRACKET-STAND LINK;55UNU7100X,EGI-SECC,T |
| BN61-13557H | BRACKET-WIRE;55KS7000,SW-C,T1,NATURAL,ZI |
| BN61-13557F | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2203-005993 | C-CER,CHIP;68NF,10%,16V,X7R,1005,-55TO+1 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-16652A | COVER-TERMINAL SIDE;55MU6400,HIPS,HB,BK0 |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
|
|
DC VSS-PD BOARD;L55E6_NHS,AC/DC,167W,AC1 |
| BN61-15659A | DIFFUSER PLATE;18Y_NU7K_50INCH_DIFFUSER |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 |
| 0505-002790 | FET-SILICON;ZXMP6A17G,P,60V,-4.3A,0.190O |
|
|
FFC CABLE;55NU7100,FOLD,L350,96P,- |
|
|
FFC CABLE;55NU7100,FOLD,L500,96P,- |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
|
|
GENDER CABLE;DC TO RCA CABLE,2P,L100,UL2 |
|
|
GENDER CABLE;DC TO RCA CABLE,3P,L100,UL2 |
| 3711-007803 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-15815A | HOLDER-STAND CABLE;55UNU7100X,ABS,BK0007 |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-004117 | IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU |
| 1203-008920 | IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2 |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-008139 | IC-DC/DC CONVERTER;TPS56C20PWPR,HTSSOP,2 |
| 1203-009059 | IC-DC/DC CONVERTER;VPM2GM,QFN,56P,7X7X0. |
| 1105-002926 | IC-DDR4 SDRAM;H9HCNNN4KUMLHR,LPDDR4-SDRA |
| 1105-002925 | IC-DDR4 SDRAM;H9HCNNN8KUMLHR,LPDDR4-SDRA |
| 1204-003752 | IC-DECODER;SDP1711,FCBGA,932P,27X27X1.79 |
| 1107-002623 | IC-EMMC;KLM4G1FETE-B041,4GBYTE,32GX1BIT, |
| 1003-002948 | IC-LEVEL DRIVER;VLS2RT,QFN,40P,6X6X1MM,6 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1203-009057 | IC-POSI.ADJUST REG.;G943F11U,SOP-8,8P,4. |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1205-004692 | IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8 |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003873 | JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 |
| 3722-003814 | JACK-PHONE;TP,1P/7C,P-BRONZE,10X15.5X7.5 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02390A | LEAD CONNECTOR-BLU;55NU7.1K,UL21016,12P, |
| BN39-02217D | LEAD CONNECTOR-POWER;43K5500,UL21016,12P |
| BN39-02231D | LEAD CONNECTOR-SUB ASSY;43KU6400,UL21016 |
| BN61-15661A | LGP;18Y_NU7K_50INCH_LGP,PMMA,NEWEDGE(OD5 |
|
|
NETWORK-WLAN CLIENT;WDN220M,35X35X18.2MM |
| BN61-15702A | OPTICAL SHEET-REFLECTOR;18Y_NU7K_50INCH_ |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| BN95-04772A | PRODUCT LCD-AUO;CY-NN050HGAV1V/H,NU7100, |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000816 | R-CHIP;390KOHM,1%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|
REMOCON-TV;2018 TV,SAMSUNG,44KEY,3.0V,US |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
|
|

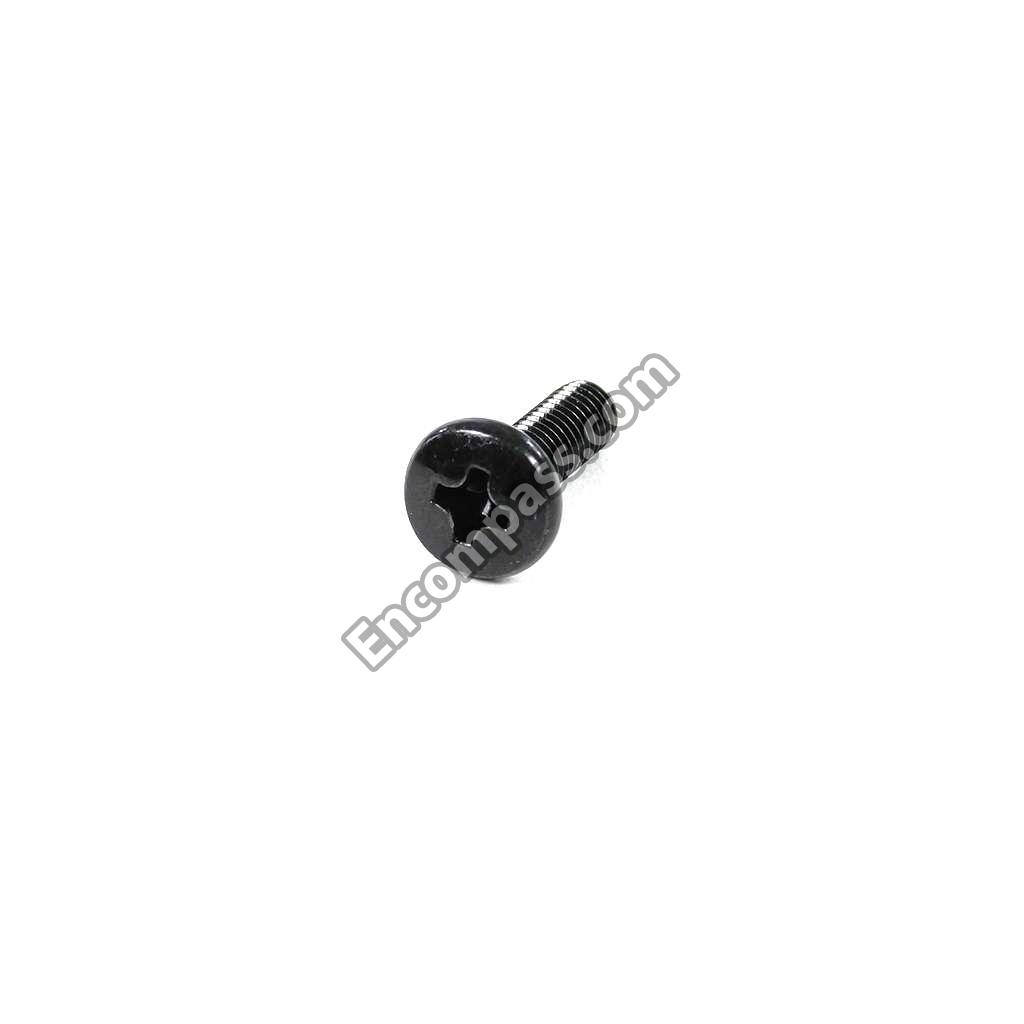

SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
