Model Image
Manufacturer

Samsung

Model Number

UN55F6350AFXZA

Description

55-inch Class (54.6-inch Diag.) Led 6350 Series Tv

Interactive Exploded View
Exploded View

Parts List

Part Number Description

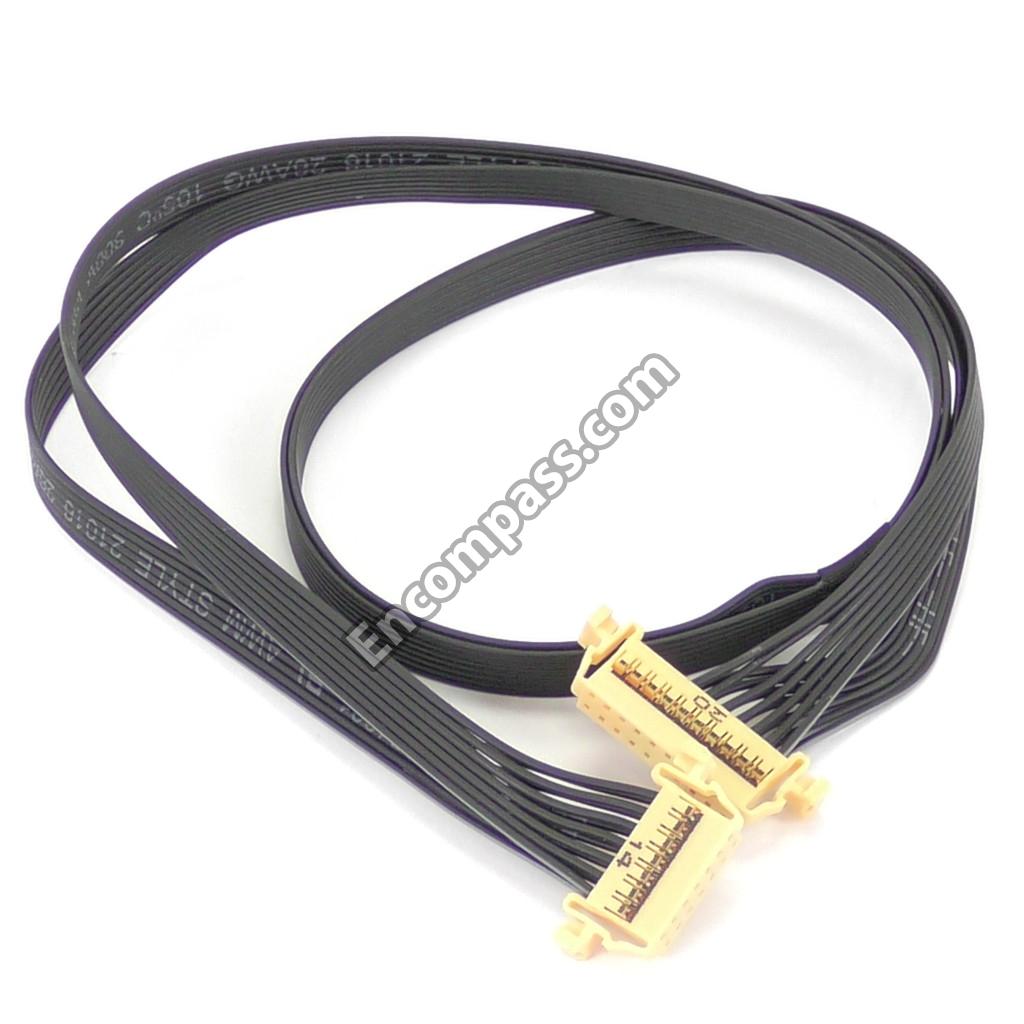

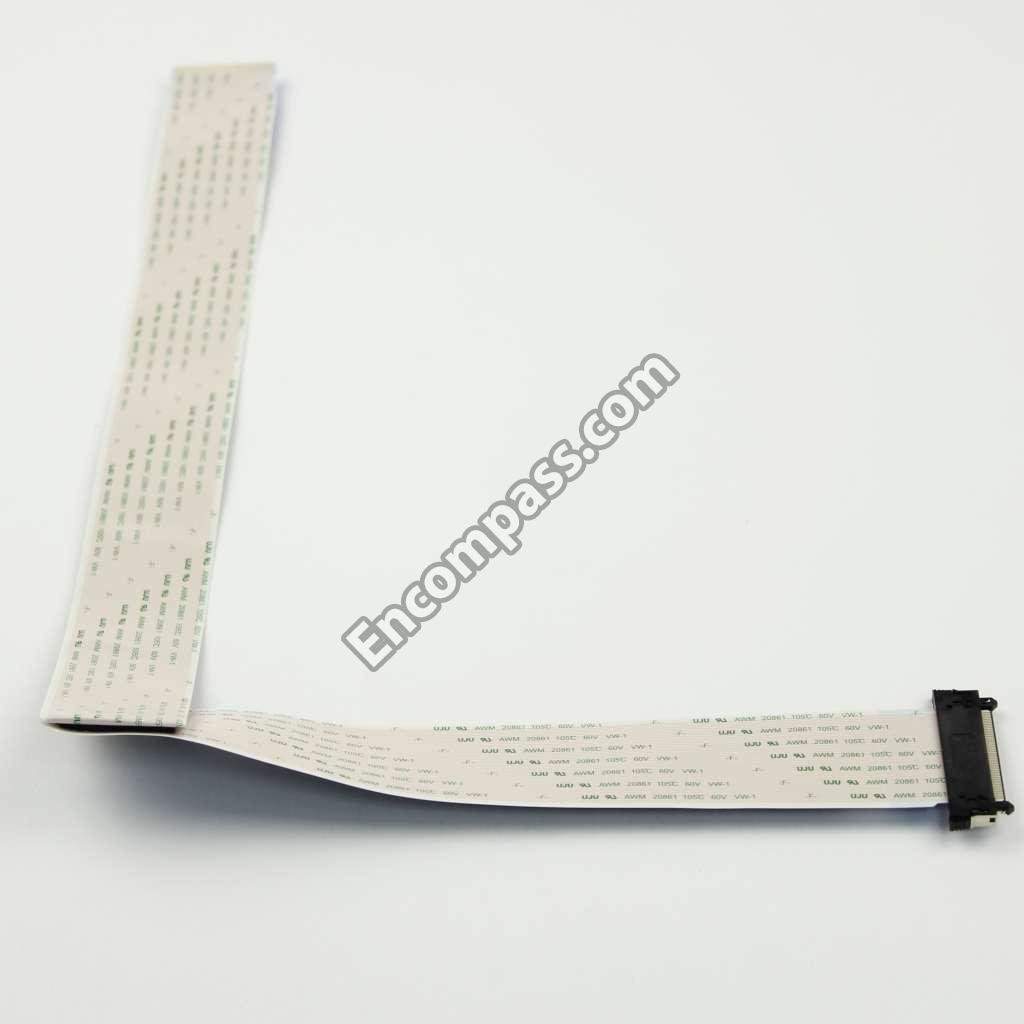

BN96-24278Q BN96-24278Q ASSY CABLE P-FFC;UE55F6470,FFC,442MM,51P
BN96-25290A BN96-25290A ASSY CHASSIS TOP P;Y13 SF-LED 55(6

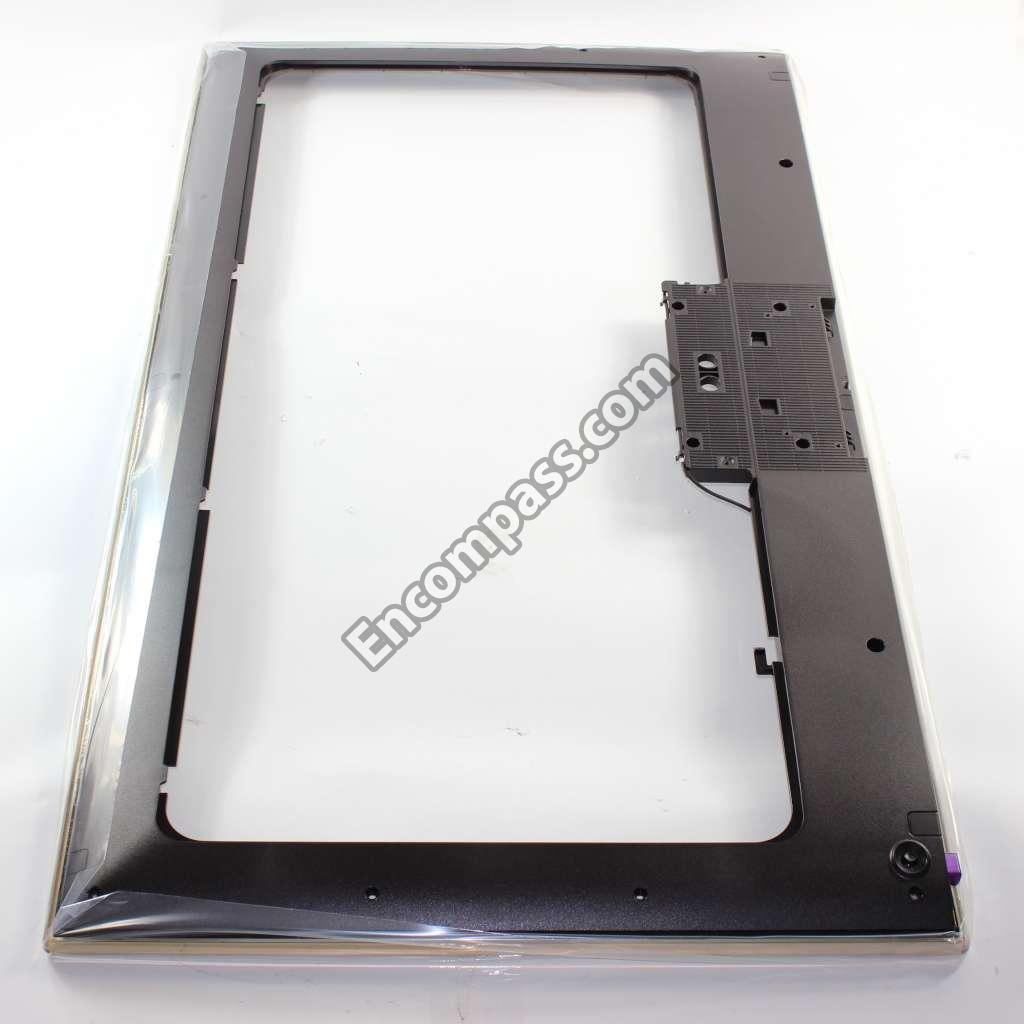

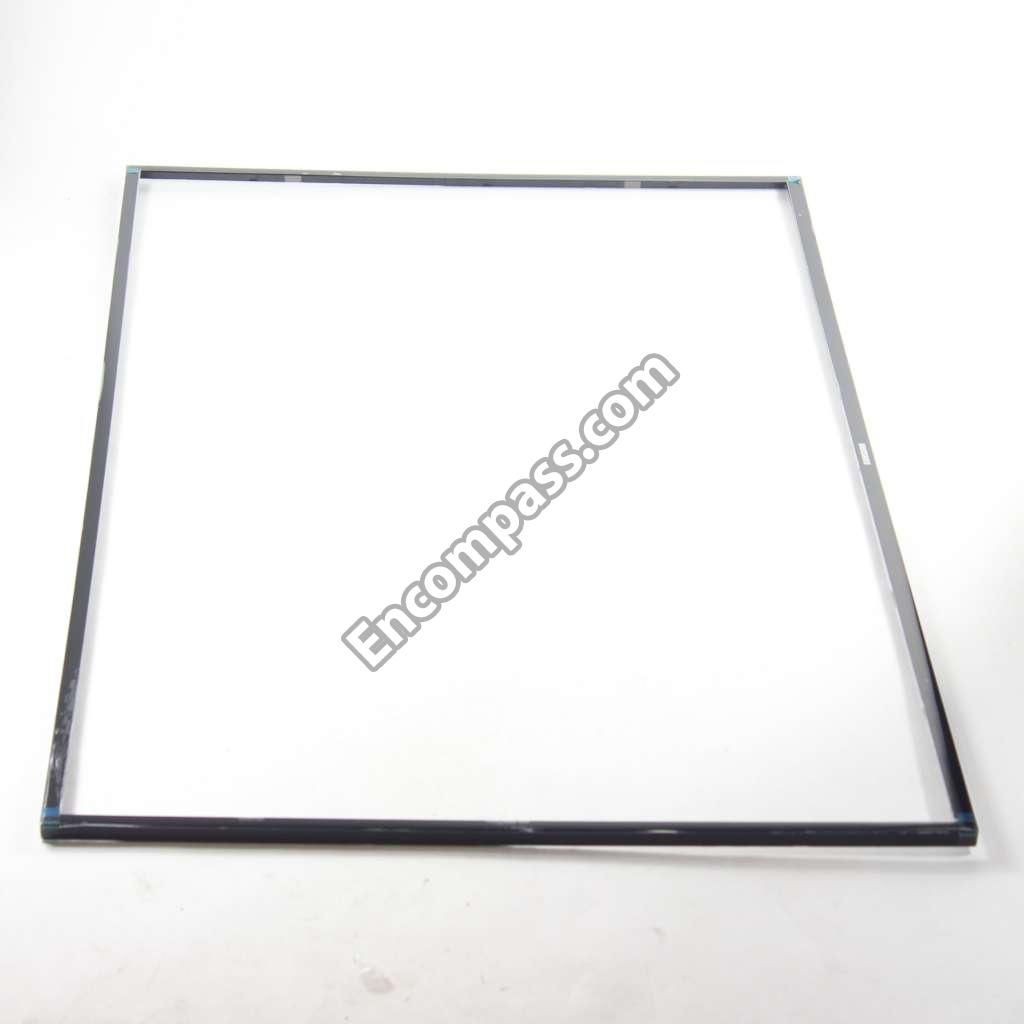

BN96-25528E BN96-25528E ASSY COVER P-MIDDLE;UF6350 55,N/AMERICA,
BN96-28347A ASSY COVER P-REAR;F6300 55,PCM,RDN5P333
BN96-18153A BN96-18153A ASSY HOLDER P-RING;11 LED-TV
BN96-25312A ASSY LED BAR P;55INCH SLIM DIR,PKG7EA,35
BN96-25313A ASSY LED BAR P;55INCH SLIM DIR,PKG7EA,35
CALL_1-800-SAMSUNG ASSY OPEN CELL;LSF550HJ02-A,8BIT,55 INCH

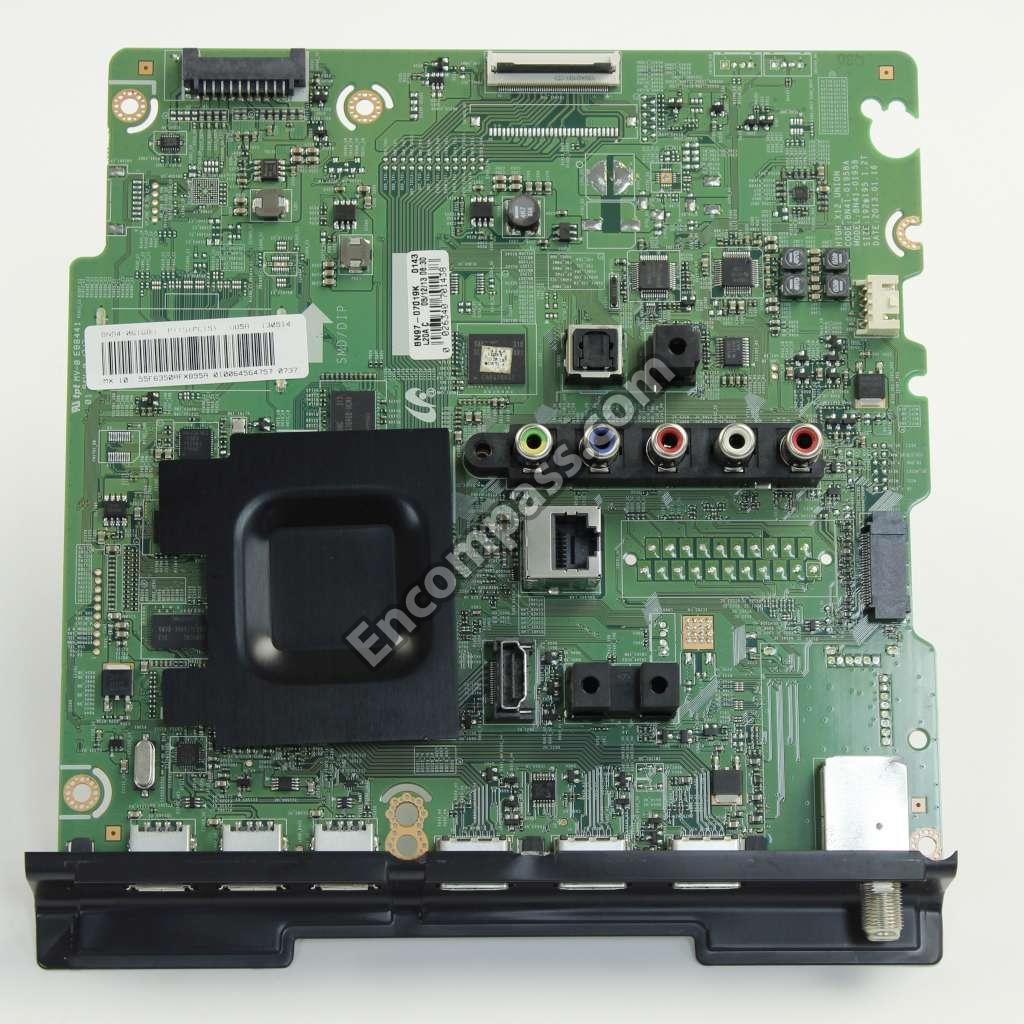

BN94-06168U BN94-06168U ASSY PCB MAIN;UN55F6350AFXZA

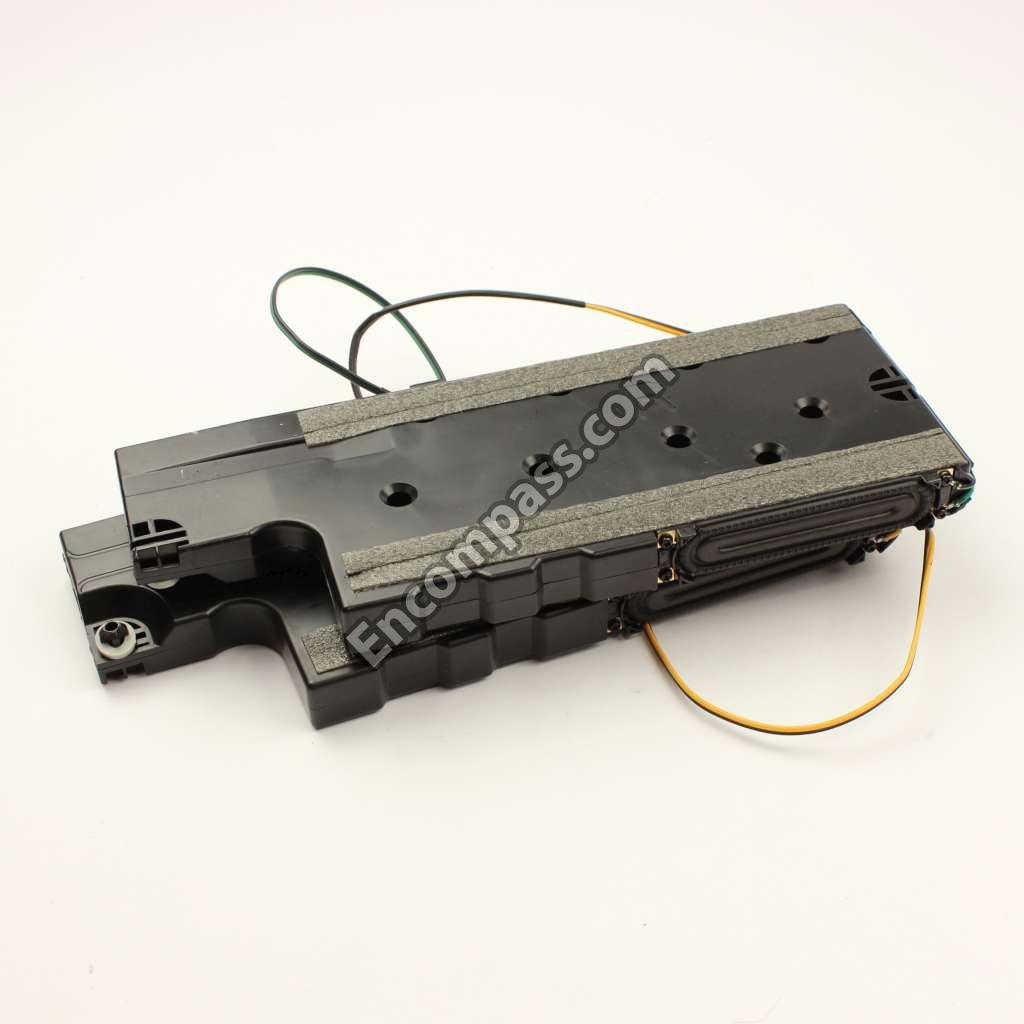

BN96-25565C BN96-25565C ASSY SPEAKER P;6OHM,10W,ENCLOSURE_5300
6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE
3301-000314 BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
2203-003039 C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100
2203-001851 C-CER,CHIP;0.016NF,5%,50V,NP0,TP,1608
2203-001697 C-CER,CHIP;0.082NF,5%,50V,NP0,TP,1608
2203-005642 C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006960 C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-006320 C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2203-002982 C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
2409-001118 C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2
3903-000853 3903-000853 CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A,
3701-001861 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU
3701-001856 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU
3707-001106 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-004775 CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP
2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
2801-003954 CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH
0404-001643 DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0401-001192 DIODE-SWITCHING;MMBD7000LT1,100V,200MA,S
0406-001483 DIODE-TVS;ESD5B5.0ST1G,5,8V/- /7.8V,50W,
0406-001556 DIODE-TVS;NUP4114UCW1,6/-/-V,180W,SC-88
0406-001578 DIODE-TVS;P4SMAJ40A,44.4,51.1,400W,SMA
0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251
0406-001445 DIODE-TVS;RCLAMP7512N,2.7/2.8/2.9,300W,S
0406-001438 DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO-
0505-003224 FET-SILICON;AO6405,P,-30V,-5A,0.052OHM,2
0505-002560 FET-SILICON;AO6415,P,-20V,-3.3A,0.15OHM,
0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O
0505-002826 FET-SILICON;ZXMN6A07F,N,60V,1A,0.4OHM,0.
3601-001386 FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C

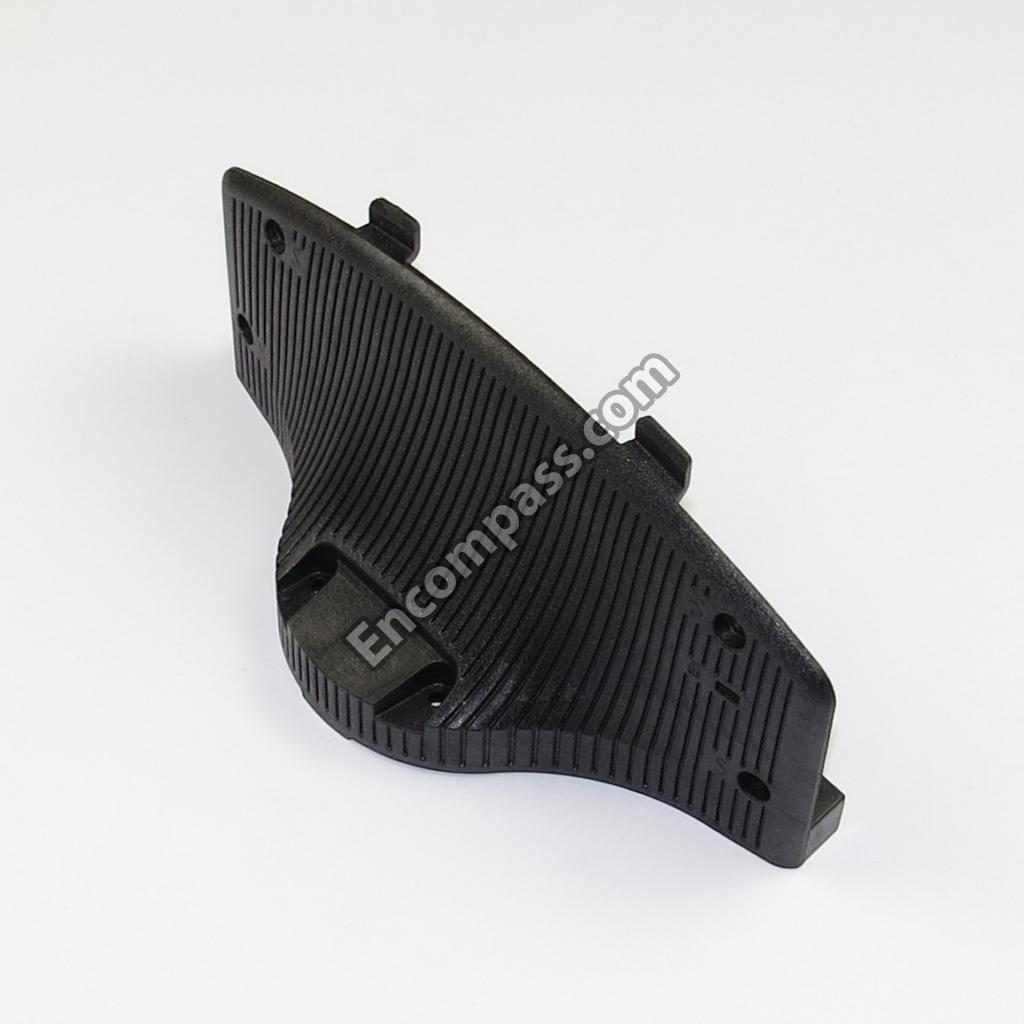

BN96-25543A BN96-25543A GUIDE-STAND;UF6100 55",PC+GF,G/F 20%
3711-007742 3711-007742 HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG
3711-008558 3711-008558 HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM,
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S
3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD-
AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G
BN61-08370A BN61-08370A HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N
1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
0801-002701 IC-CMOS LOGIC;74VHCT125A,BUFFER,TSSOP,14
0801-003292 IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
0801-003330 IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X
1203-007502 IC-DC/DC CONVERTER;AOZ3011PI,SO-8,8Z30,4
1203-007552 IC-DC/DC CONVERTER;TPS56921PWPR,HTSSOP,2
1105-002227 IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM
1105-002430 IC-DDR3 SDRAM;K4B2G1646E-BCMA,DDR3 1866,
1105-002534 IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM
1105-002338 IC-DDR3 SDRAM;K4B4G1646B-HCMA,DDR3 1866,
1204-003421 IC-DECODER;SEMS30,PBGA,729Z30,21.6X21.6M
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001487 IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8
1107-002077 IC-EMMC;KLM4G1FE3B-B001,4GBYTE,32GX1BIT,
0903-001863 IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48
1201-003130 IC-OP AMP;IML2811SEC,TDFN-EP,TP,8P,3X3MM
1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2
1203-007242 IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P,
1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1209-002183 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65
1204-003406 IC-VIDEO PROCESS;SDP1203,HSFCBGA,756Z30,
1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-007728 IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L
2703-003713 INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-000158 INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45,
2703-003937 INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00
2703-003867 INDUCTOR-SMD;22UH,20%,4040,1.8T,0.29OHM,
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-003930 INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245
2703-003803 INDUCTOR-SMD;4.7UH,20%,6060,0.031OHM,270
2703-003790 INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450
BN96-26652B BN96-26652B IR BLASTER
3722-003229 JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1
3722-003617 JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI,
3722-003226 JACK-PHONE;7P/1C,SN,BLK
3722-003546 3722-003546 JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,A
BN39-01744H BN39-01744H LEAD CONNECTOR;40/46" FHD,LEAD CONNECTOR

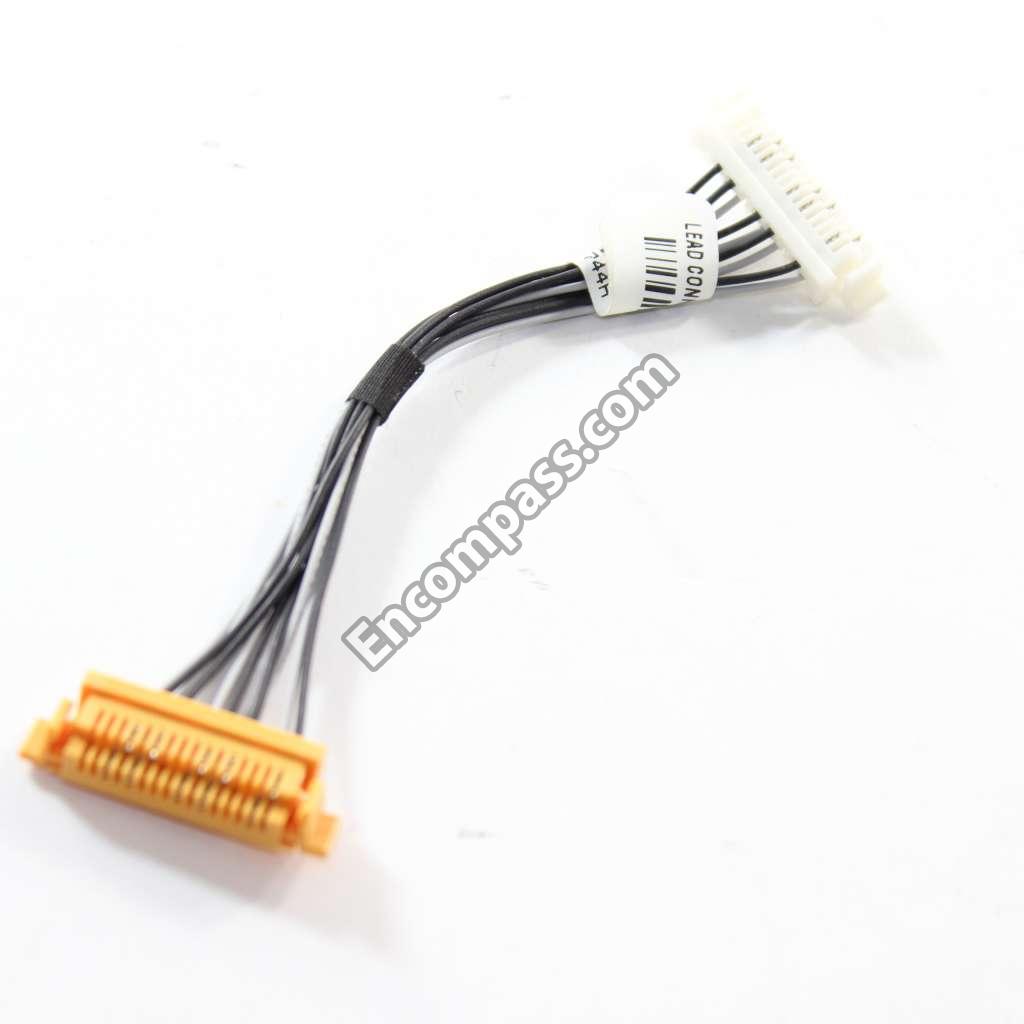

BN39-01652V BN39-01652V LEAD CONNECTOR;UN55F6300,LEAD CONNECTOR,
BN59-01161A BN59-01161A NETWORK;WIDT-30Q,INTERNAL WIFI,USB,IEEE8

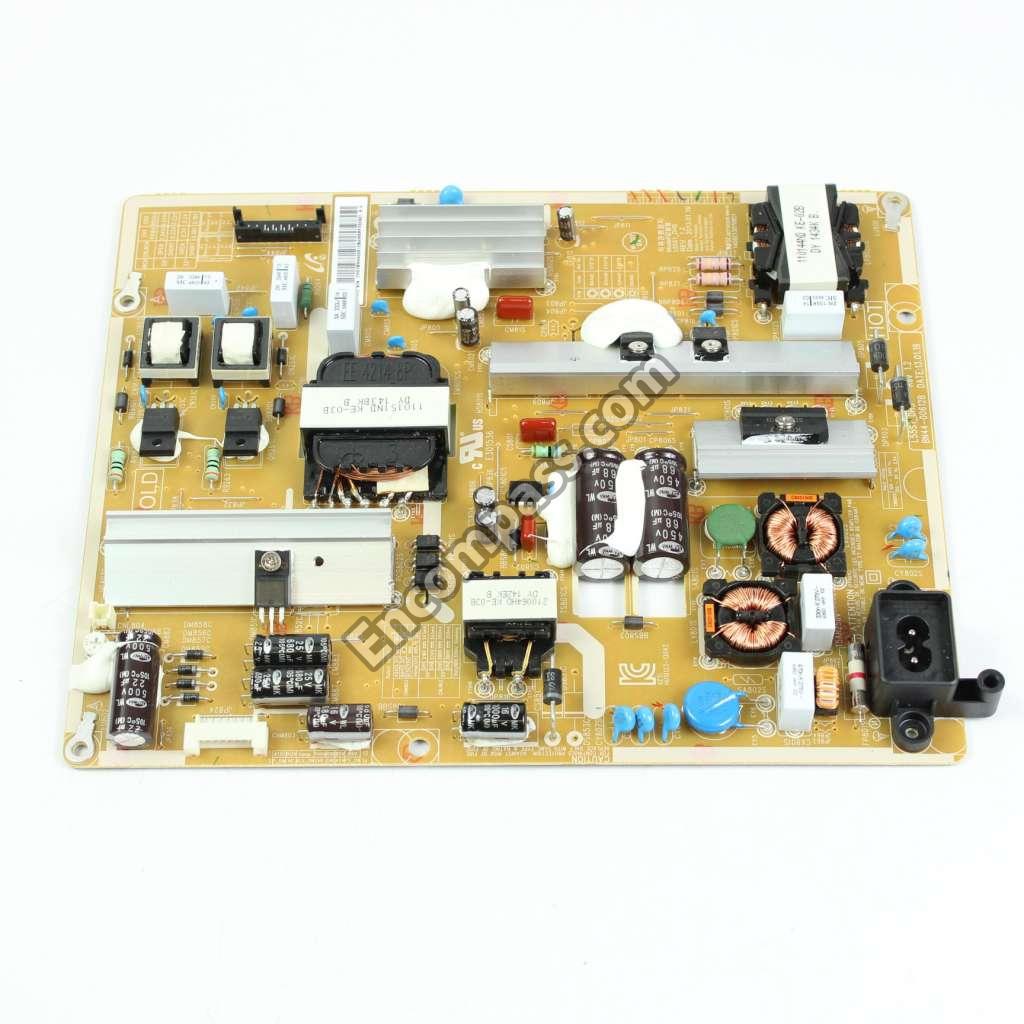

BN44-00612B BN44-00612B POWER SUPPLY PCB

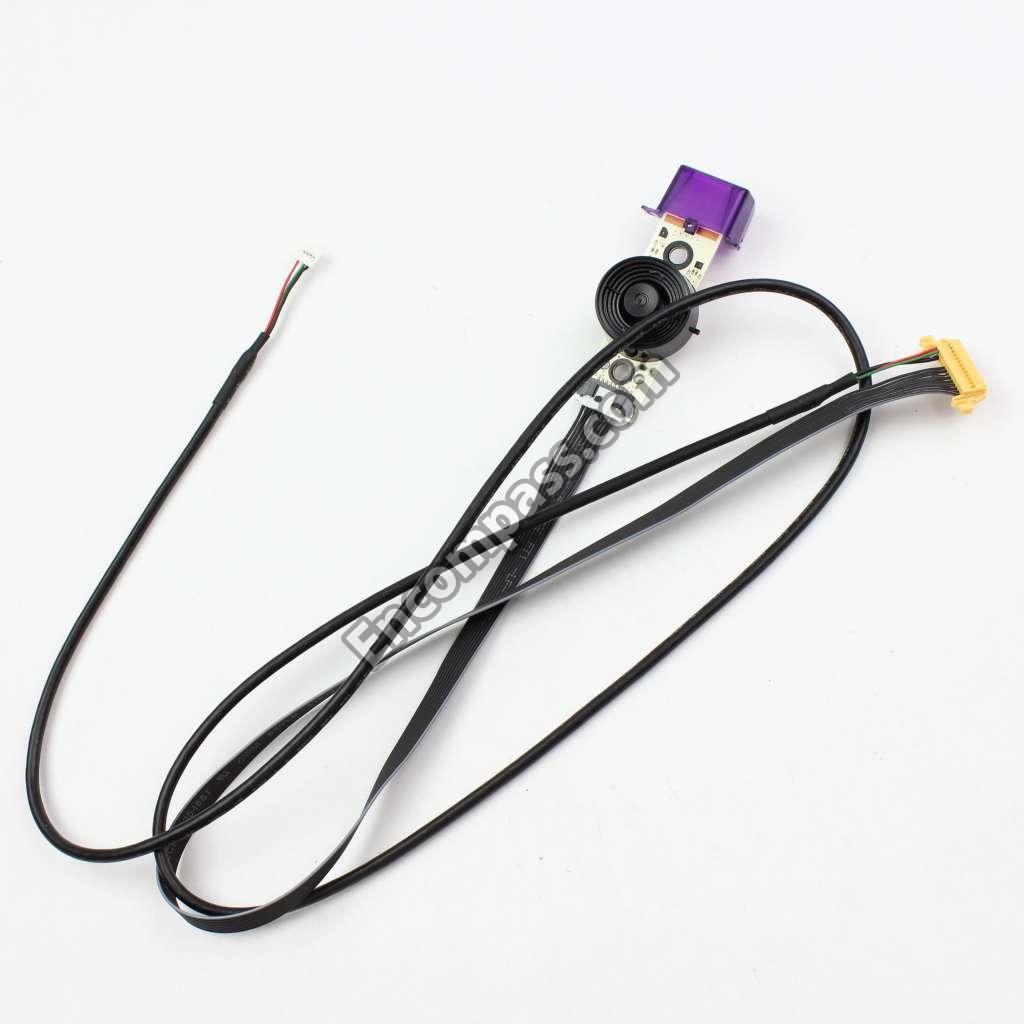

BN96-26401L BN96-26401L POWER SWITCH AND IR PCB
BN95-00895A BN95-00895A PRODUCT LCD-AMLCD;LSF550HJ02,CY-HF550CSL
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-007463 R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000219 R-CHIP;1.2KOHM,1%,1/10W,TP,1608
2007-000256 R-CHIP;1.6KOHM,1%,1/10W,TP,1608
2007-000265 R-CHIP;1.8KOHM,1%,1/10W,TP,1608
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002900 R-CHIP;11KOHM,1%,1/10W,TP,1608
2007-008426 R-CHIP;12.4KOHM,1%,1/10W,TP,1608
2007-000336 R-CHIP;120KOHM,1%,1/10W,TP,1608
2007-001433 R-CHIP;12KOHM,1%,1/10W,TP,1608
2007-000063 R-CHIP;150KOHM,1%,1/10W,TP,1608
2007-000040 R-CHIP;150OHM,1%,1/10W,TP,1608
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-000455 R-CHIP;18KOHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-000491 R-CHIP;2.2KOHM,1%,1/10W,TP,1608
2007-003015 R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-000516 R-CHIP;2.7KOHM,1%,1/10W,TP,1608
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-008649 R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000583 R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608
2007-000695 R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-000726 R-CHIP;300OHM,1%,1/10W,TP,1608
2007-000763 R-CHIP;330OHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-000803 R-CHIP;36KOHM,1%,1/10W,TP,1608
2007-000857 R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-008807 R-CHIP;53.6KOHM,1%,1/16W,TP,1005
2007-008133 R-CHIP;56.2KOHM,1%,1/10W,TP,1608
2007-007721 R-CHIP;560OHM,1%,1/10W,TP,1608
2007-001038 R-CHIP;56KOHM,1%,1/10W,TP,1608
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-001153 R-CHIP;750OHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168 R-CHIP;75OHM,5%,1/4W,TP,3216
2007-007238 R-CHIP;8.25KOHM,1%,1/10W,TP,1608
2007-001199 R-CHIP;820OHM,1%,1/10W,TP,1608
2007-007651 R-CHIP;9.1KOHM,1%,1/10W,TP,1608
2007-007331 R-CHIP;90.9KOHM,1%,1/10W,TP,1608
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP
2011-001506 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,

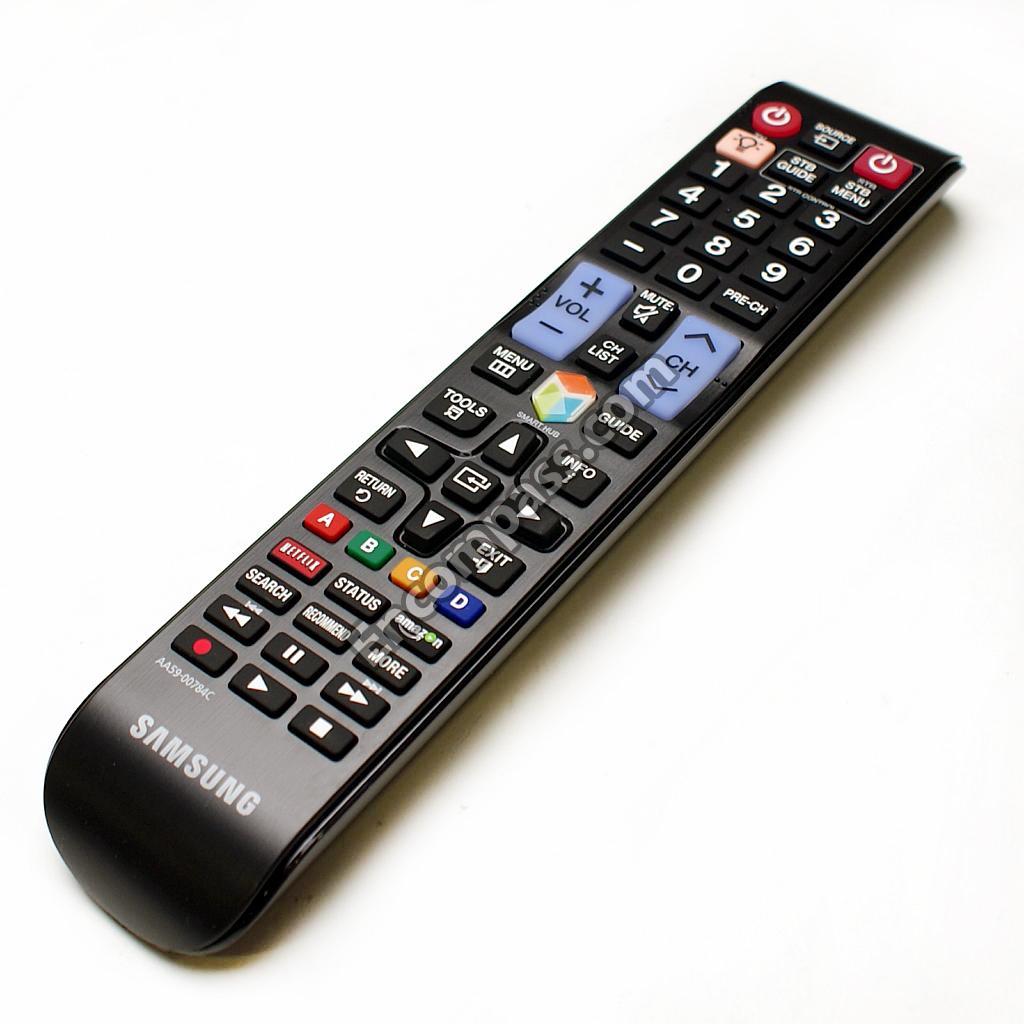

AA59-00784C AA59-00784C REMOTE CONTROL
6001-002757 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1
6001-003075 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1
6001-002755 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1
6001-003081 6001-003081 SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH
6001-003016 6001-003016 SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S
6002-001294 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
6003-000115 6003-000115 SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6003-001782 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR
6003-001785 6003-001785 SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC
BN96-26518B BN96-26518B STAND BASE

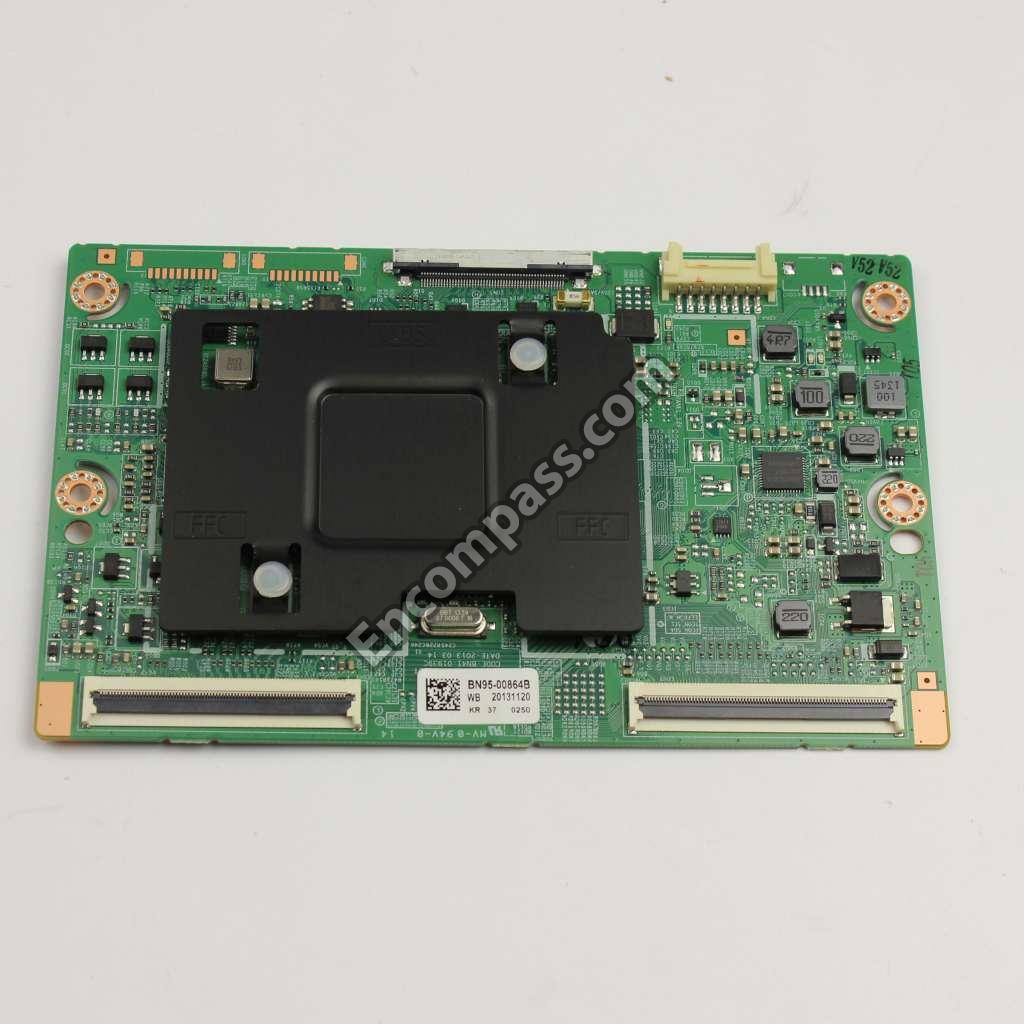

BN95-00864B BN95-00864B T-CON PCB
0502-001345 TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0502-001331 TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
BN40-00248A BN40-00248A TUNER;DTVS20EIH035A,DTVS20EIH035A,VSB-HA
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1
