Manufacturer
Samsung
Model Number
UN55HU8700FXZA
Description
Curved 55-inch 4k Ultra Hd 120hz 3d Smart Led Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY ACCESSORY-3D GLASSES;SSG-5150GB,3D |
| BN96-32311B | ASSY BLU P-DECO;UN55UH9000,M14-HU9000 55 |
|
|
ASSY BOARD P-FUNCTION JOG;UH9000,SJ14-01 |
| BN96-30983B | ASSY BRACKET P-LINK;SECC,HH96JK |
| BN96-30973B | ASSY CHASSIS FRONT P;Y14 U9K 55",SPCC,BN |
| BN95-01556B | ASSY COVER FRAME SMT-SIDE L;UH9000,55",L |
| BN95-01558A | ASSY COVER FRAME SMT-TOP;9000,55,PLATING |
| BN96-33132A | ASSY COVER P-REAR;UH8700,55,PC+ABS-GF15% |
|
|
ASSY GUIDE P-STAND;UH8700,ABS,BLACK |
|
|
ASSY HOLDER P-RING;11 LED-TV,ABS,BLACK,H |
| BN96-31033A | ASSY LED BAR P;55INCH EDGE TYP,ALUMINUM, |
| BN96-31034A | ASSY LED BAR P;55INCH EDGE TYP,ALUMINUM, |
| BN96-30711A | ASSY OPEN CELL;LSF550FJ03-G,16:9,UHD 120 |
|
|

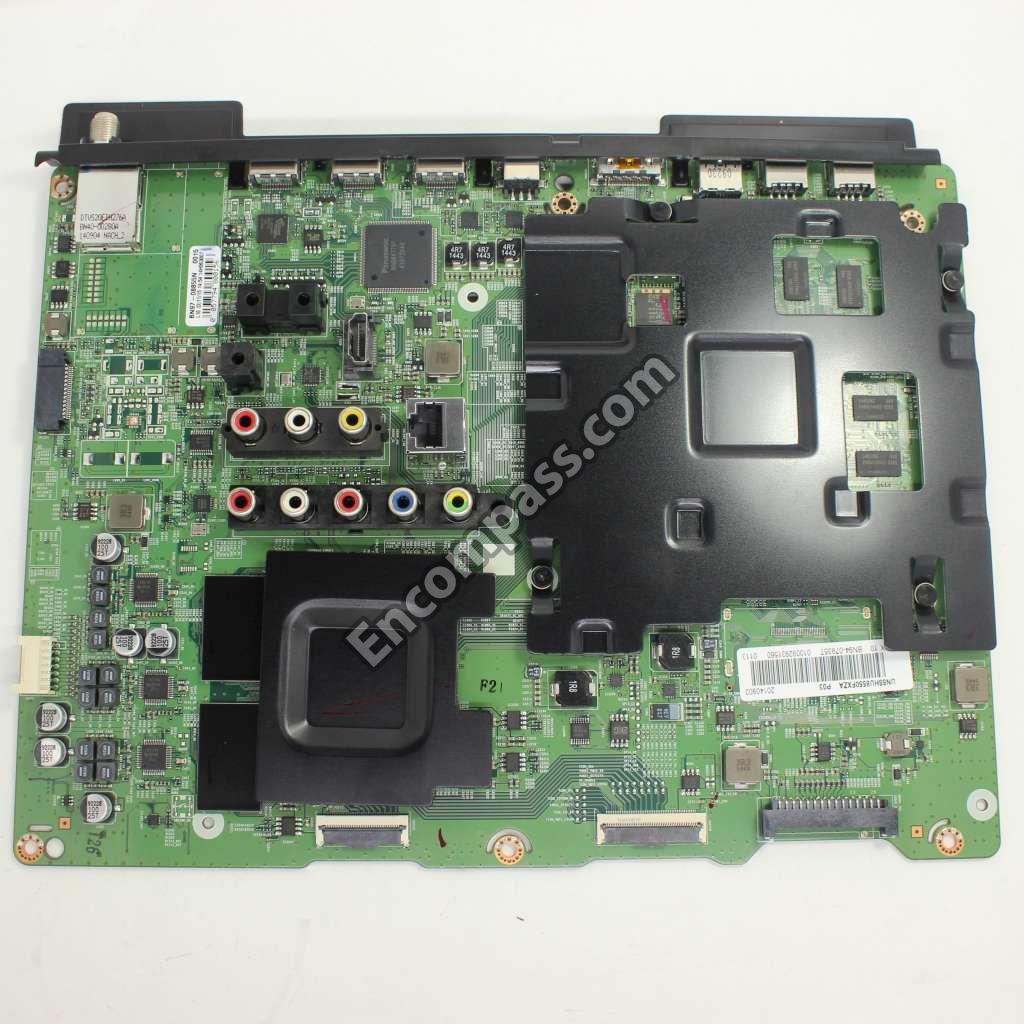

ASSY PCB MAIN;UH8X,NT14U |
| BN96-30934C | ASSY SPEAKER P-FRONT;6OHM,10 |
| BN96-33134B | ASSY STAND P-BOTTOM;UH8700,55(NEW),AL,AL |
|
|
ASSY T CON P;LMF550FJ03-G,LMF550FJ03-G,8 |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-001851 | C-CER,CHIP;0.016NF,5%,50V,NP0,TP,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-005659 | C-CER,CHIP;0.18NF,5%,50V,NP0,TP,1005 |
| 2203-006992 | C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1005 |
| 2203-001124 | C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-001587 | C-CER,CHIP;18NF,10%,50V,X7R,1608 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006047 | C-CER,CHIP;33NF,10%,16V,X7R,TP,1005 |
| 2203-007535 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
| 2409-001191 | C-ORGANIC,SMD;47UF,20%,20V,TP,7343(1.9T) |
| 2409-001118 | C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A, |
| 3708-003183 | CONNECTOR-FPC/FFC/PIC;41P,0.5MM,SMD-A,AU |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001861 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-007741 | CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE, |
| 3707-001104 | CONNECTOR-OPTICAL;ANGLE,SPDIF |
| BN63-11997B | COVER-DECORATION BOTTOM;HU9000 55",PC |
| BN63-11997A | COVER-DECORATION TOP;HU9000 55",PC,MOLD |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-005373 | CRYSTAL-SMD;156.25MHZ,50PPM,TP |
| 2801-004814 | CRYSTAL-SMD;25MHZ,50PPM,8PF,100OHM,TP |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|
DC VSS-PD BOARD;L55C4P_EHS,AC/DC,291W,10 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,11.4 |
|
|

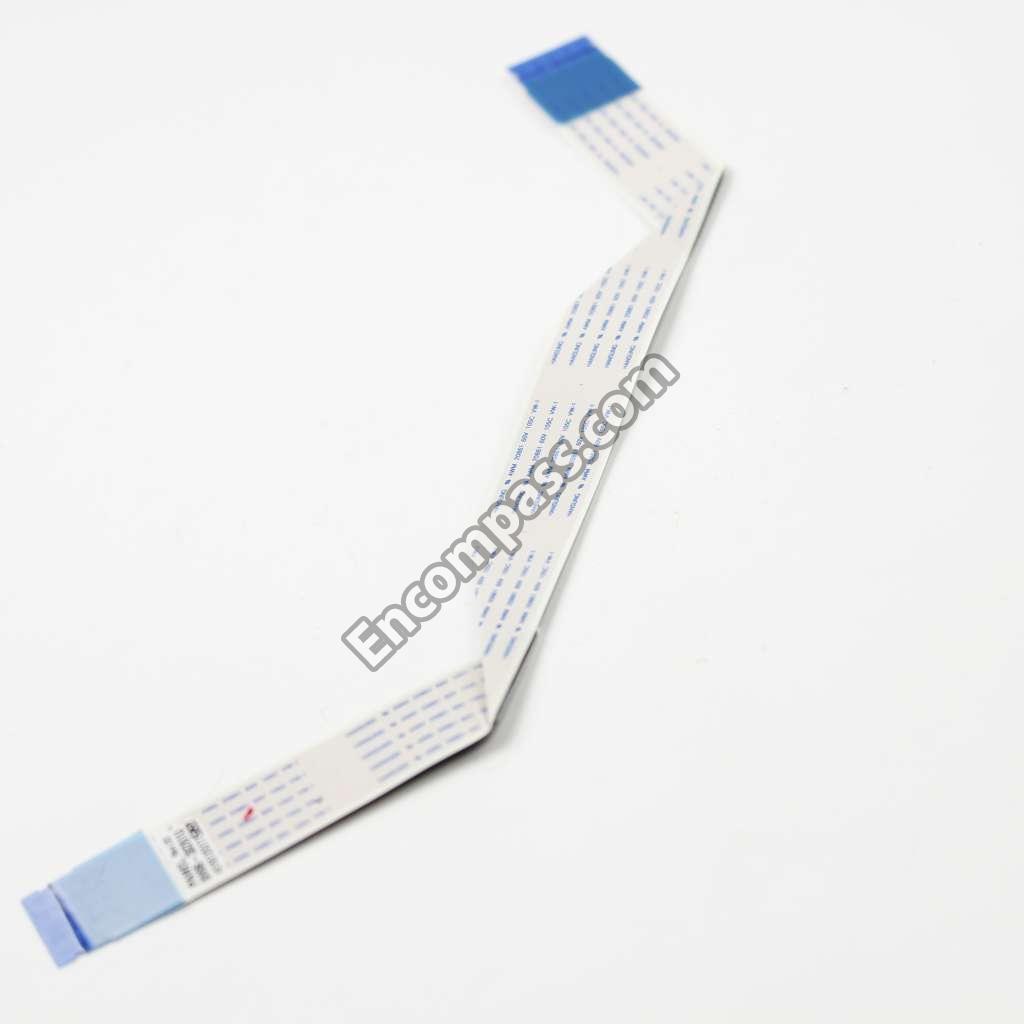

FFC CABLE;55HU8700FXZA,FOLD,L350,41P |
|
|
FFC CABLE;HU8700 55",FOLD,L450,51P |
| BN73-00052C | FOOT-RUBBER;PEARL,SI,GRAY,T2,PI19 |
| 6302-001236 | GASKET-EMI;CONDUCTIVE FABRIC,T6,W4.5,L6. |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008739 | HEADER-BOARD TO CABLE;BOX,30P,2R,2MM,ANG |
| AA61-20285C | HOLDER-BOX;ALL,PP,MOLD,BLACK,HB,HB,17.5G |
| 1001-001686 | IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP, |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1001-001689 | IC-ANALOG SWITCH;TS5A23159RSER,QFN,10P,2 |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 0801-003330 | IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
| 1203-008118 | IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
| 1203-007984 | IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8,6.2X |
| 1203-007665 | IC-DC/DC CONVERTER;RT7266ZSP,SOP-8,8,6.2 |
| 1203-007018 | IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. |
| 1203-006341 | IC-DC/DC CONVERTER;TPS63020,SON-14,14,4X |
| 1203-007755 | IC-DC/DC CONVERTER;TPS65253RHD,VQFN,28,5 |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002529 | IC-DDR3 SDRAM;K4B4G1646D-BCK0,DDR3 1600, |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002287 | IC-EMMC;KLM4G1FEAC-C031,4GBYTE,BGA,153P, |
| 1205-004385 | IC-ETHERNET CONTROLLER;RTL8201F-VB-CGT,Q |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-008023 | IC-POSI.ADJUST REG.;AOZ2003PI,SO-8,8,4.9 |
| 1203-007242 | IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7 |
| 1203-007757 | IC-POSI.ADJUST REG.;TPS7A7001DDAR,SOIC-8 |
| 1203-006118 | IC-POSI.FIXED REG.;S-1172B18-U5T1G,SOT-8 |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006330 | IC-POWER SUPERVISOR;TPS2065DBV,SOT-23,5P |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-004983 | IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4. |
| 1205-004822 | IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM |
| 1205-004855 | IC-SWITCH;TPS25910RSAR,QFN,16P,4X4X0.8MM |
| 0904-002882 | IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ, |
| 1204-003489 | IC-VIDEO PROCESS;SDP1301,FCBGA,680P,25X2 |
| 1204-003573 | IC-VIDEO PROCESS;SENK16-A,HS-PBGA,1135P, |
| 1204-003497 | IC-VIDEO PROCESS;SENK83,EDHS-PBGA,1057P, |
| 1001-001886 | IC-VIDEO SWITCH;QFP,144P,22*22,PLASTIC,T |
| 1001-001885 | IC-VIDEO SWITCH;SII9679,QFN,76P,9X9MM,PL |
| 1001-001828 | IC-VIDEO SWITCH;TS3V330PWR,TSSOP,16,6.9X |
| 1203-007728 | IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-002834 | INDUCTOR-SMD;1.8UH,20%,10X10MM,.005OHM,1 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00 |
| 2703-003263 | INDUCTOR-SMD;3.3UH,20%,10.0X10.0MM,0.011 |
| 2703-003824 | INDUCTOR-SMD;3.3UH,20%,7070 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
|
|
IRBLASTER CABLE;2P,L2500,UL1185,BLK,IR B |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-003226 | JACK-PHONE;1P/7C,SN,BLK,STRAIGHT,3.6PI,1 |
| 3722-003617 | JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI, |
| 3722-003725 | JACK-PIN;3P,NI/SN,RED/WHT/YEL,STRAIGHT |
|
|
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| 3722-003837 | JACK-USB;9P/1C,AU/NI,BLU,SMD-A,A,3.0,13. |
| BN39-01911D | LEAD CONNECTOR-BLU;55HU8700,UL21016,26P, |
| BN39-01847G | LEAD CONNECTOR-POWER;55HU8700,UL21016,30 |
|
|
NETWORK-BLUETOOTH;WIBT40A,34.79X28X7.7MM |
|
|
NETWORK-WLAN CLIENT;WIDT30Q,58X31.45X8.5 |
|
|
PRODUCT LCD-AMLCD;CY-VH055FSLV2V,10 BIT, |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-000063 | R-CHIP;150KOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-000512 | R-CHIP;2.4KOHM,5%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-007720 | R-CHIP;300KOHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000816 | R-CHIP;390KOHM,1%,1/10W,TP,1608 |
| 2007-000828 | R-CHIP;39KOHM,1%,1/10W,TP,1608 |
| 2007-000057 | R-CHIP;40.2KOHM,1%,1/10W,TP,1608 |
| 2007-007797 | R-CHIP;44.2OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005 |
| 2007-007668 | R-CHIP;68.1KOHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOCON-SMART CONTROL;2013 TV,SAMSUNG,28 |
|
|
REMOCON;2014 TV,SAMSUNG,52,3.0,TM1260C_L |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;FH,M3,L5.0,ZPC(BLK),SWRC |
|
|
SCREW-MACHINE;FH,M4,L8,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,B,M3,L6,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,B,M4,L8,ZPC(BLK),SWRC |
| 6003-000264 | SCREW-TAPTYPE;PWH,B,M3,L6,ZPC(WHT),S |
| 3710-003901 | SOCKET-INTERFACE;34P,2R,0.5MM,SMD-A,AU,B |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;DTVS20EIH276A,VSB HA |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V, |
