Manufacturer
Samsung
Model Number
UN55J6300AFXZA
Description
55 Inch Led 1080p Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-09604A | A/S-IC DRIVER SOURCE;LSF320HN03-G,LJ13-0 |
|
|
ASSY BOARD P-FUNCTION JOG;UH5500,CT15SD0 |
| BN96-30625A | ASSY CHASSIS FRONT P;Y14 VNB 55" 6.3,PC+ |
| BN96-36639A | ASSY COVER P-REAR;55J6200,HIPS,BK0020,BN |
|
|

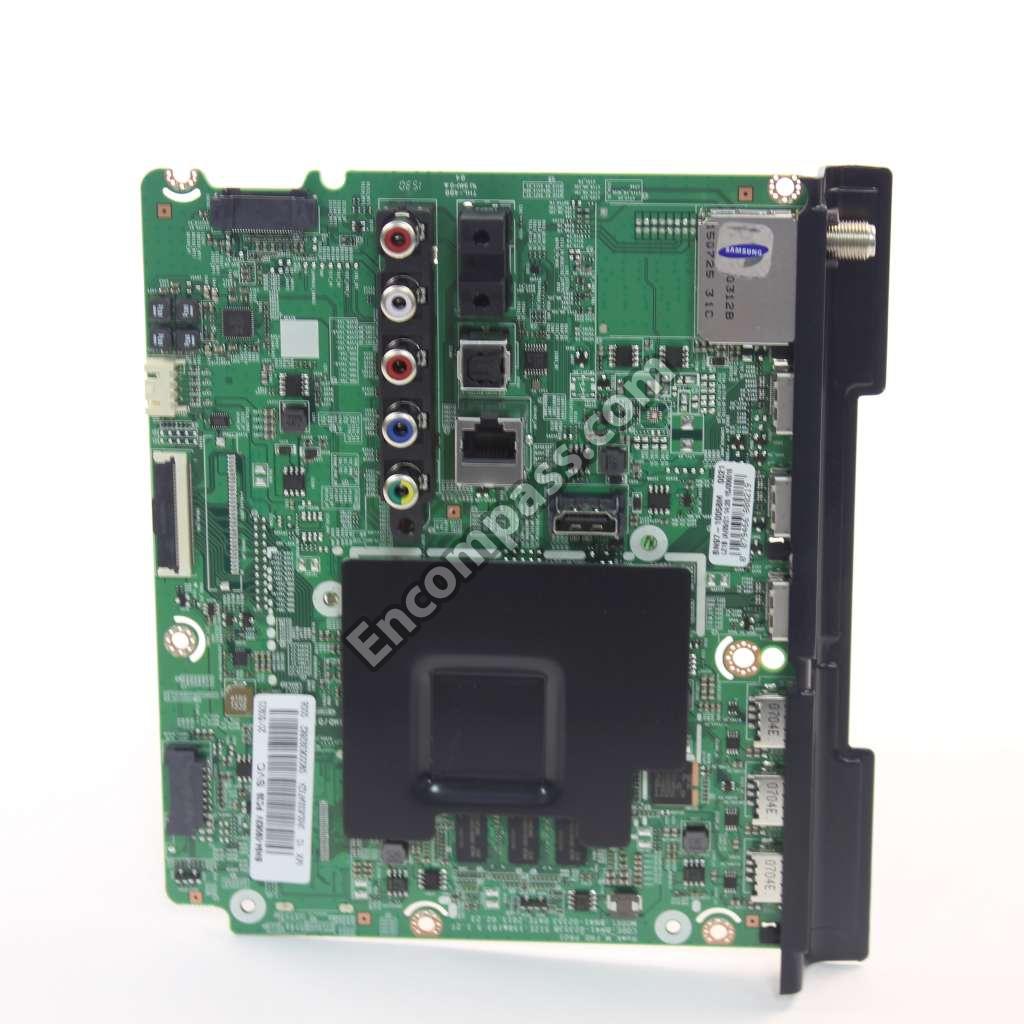

ASSY PCB MAIN;LED_J6K |
|
|

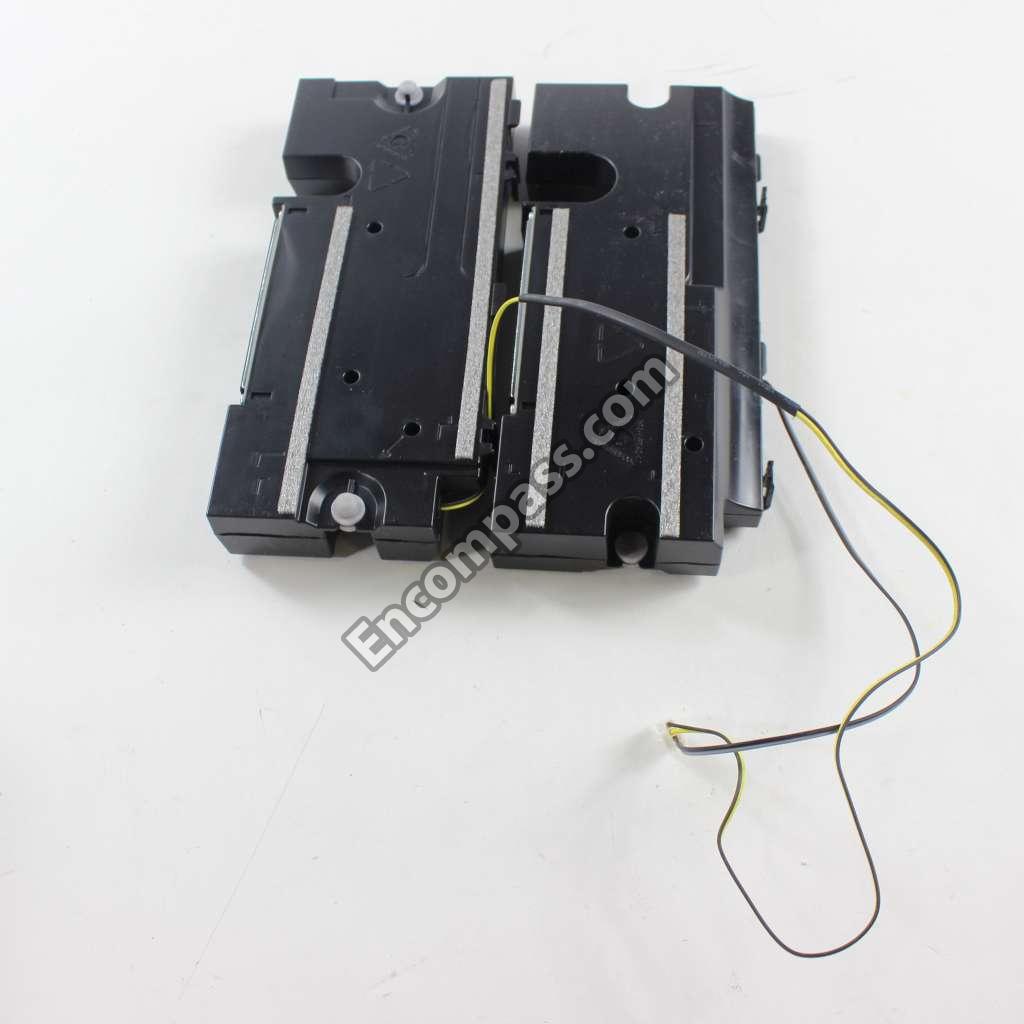

ASSY SPEAKER P-FRONT;6OHM,20W |
|
|

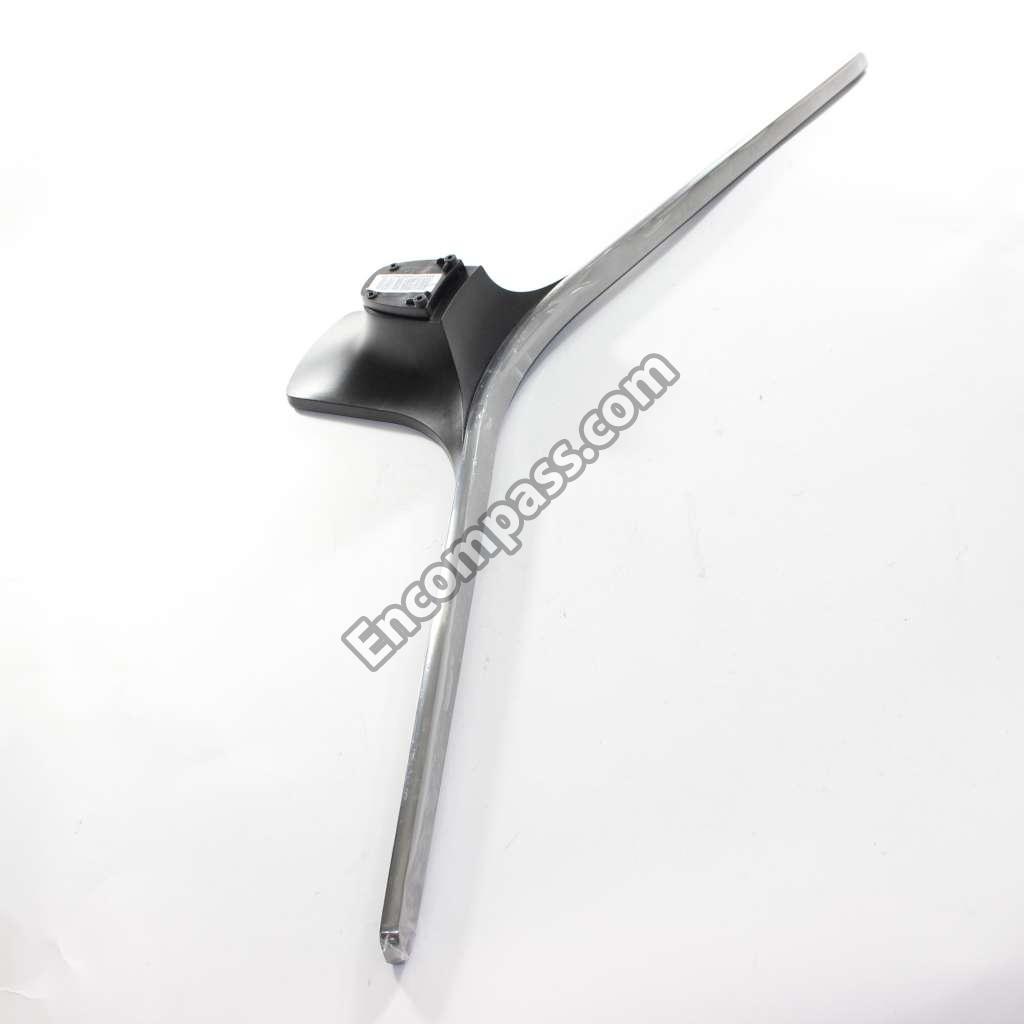

ASSY STAND P-BOTTOM;J5500 48",PC+ABS+GF2 |
|
|
ASSY T CON;LSF550HJ04-G,55F120HZ VNB |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 3301-001364 | BEAD-SMD;1000OHM,1608,TP,1085OHM/108MHZ, |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-001697 | C-CER,CHIP;0.082NF,5%,50V,NP0,TP,1608 |
| 2203-000357 | C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-006460 | C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608 |
| 2203-006088 | C-CER,CHIP;330NF,10%,10V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A, |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU |
| 3701-001861 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE,S |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF |
| BN63-12537A | COVER;H6340_55,PC+ABS+GF15%,V-1,BK0007 |
| 2801-004477 | CRYSTAL-SMD;24.576MHZ,20PPM,SMD,18PF,15O |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|
DC VSS-PD BOARD;L55S1_FHS,AC/DC,168W,100 |
| 0404-001643 | DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001578 | DIODE-TVS;P4SMAJ40A,44.4V,51.1V,1MAV,64. |
| 0406-001445 | DIODE-TVS;RCLAMP7512N,2.7V,2.8V,2.9V,0.5 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
|
|

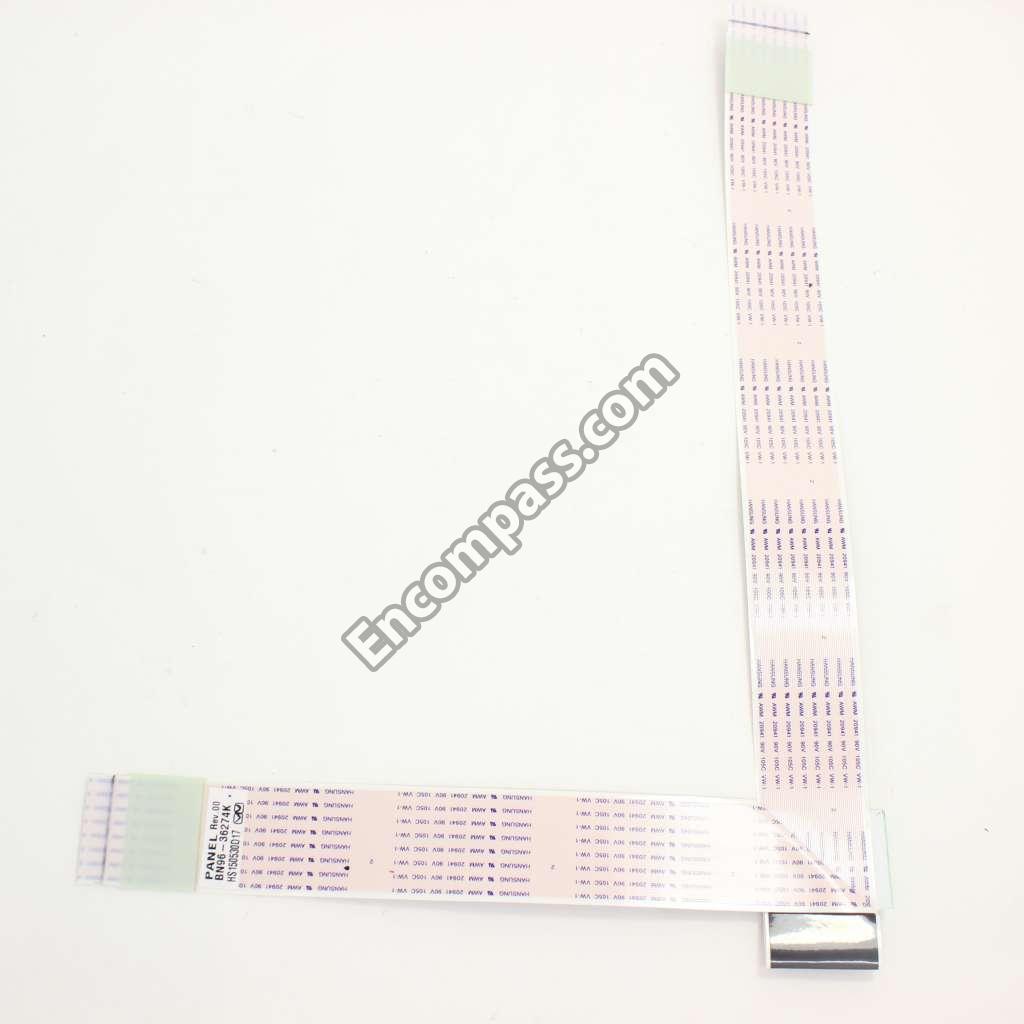

FFC CABLE;55J6200,FOLD,L500,51P |
| 2901-001362 | FILTER-EMI/ESD |
| 3601-001386 | FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C |
| BN63-00520A | GASKET |
|
|

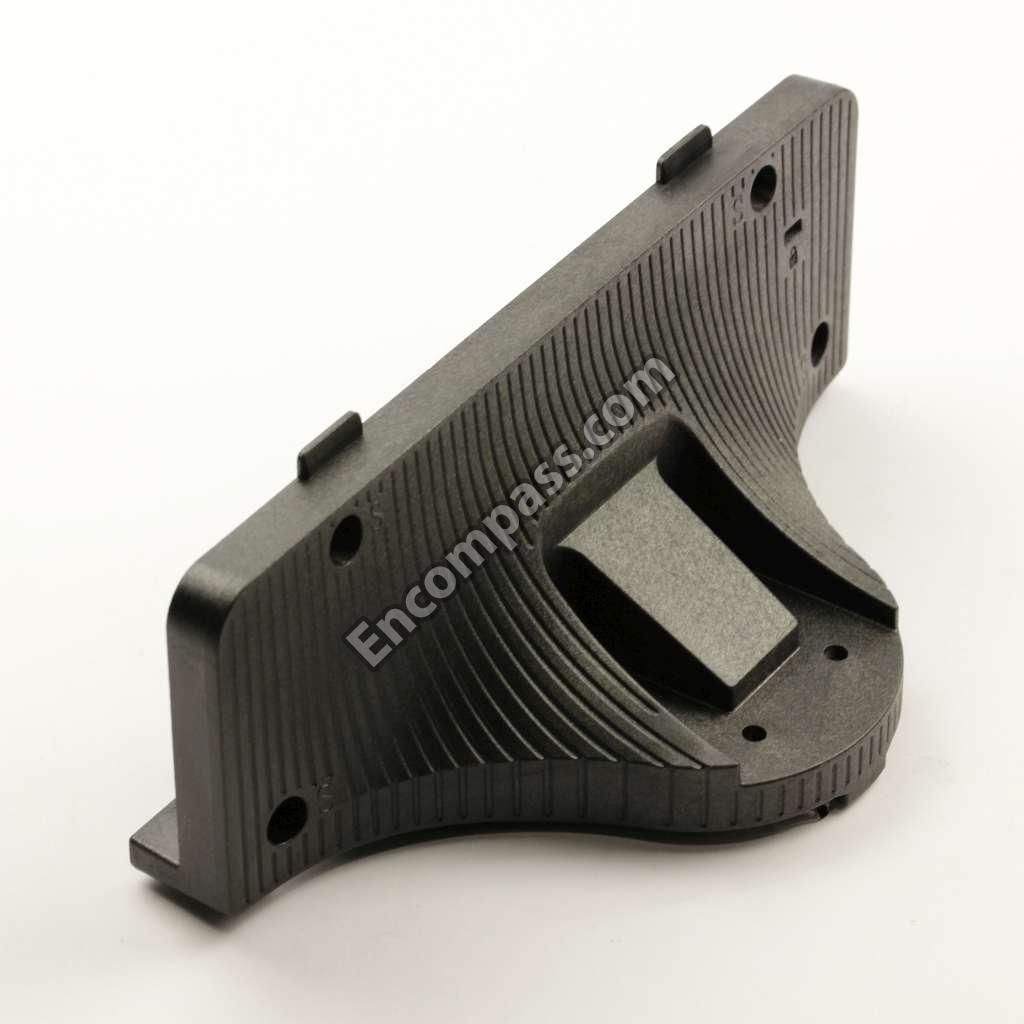

GUIDE-STAND;J5100/5500 40",PC+GF20%,V-2, |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
|
|
HOLDER-BOLT;BH+,SWRCH18A,BLACK,PRESS,B T |
|
|
HOLDER-STAND CABLE;26UE4000 GUIDE STAND, |
| 1001-001872 | IC-ANALOG SWITCH;NLAS2750MUTAG,DUAL SPDT |
| 1201-003891 | IC-AUDIO AMP;NTP7415,MLF,48P,7X7MM,DUAL, |
| 0801-003330 | IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
| 1203-008118 | IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007700 | IC-DC/DC CONVERTER;TPS54527DDAR,DDA,8Z30 |
| 1203-008082 | IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 |
| 1203-007018 | IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. |
| 1203-008454 | IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 |
| 1203-008393 | IC-DDR TERMINATION REG.;AP2303MTR-G1-89, |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
| 1204-003586 | IC-DECODER;SDP1415,PBGA,631P,23X23MM,PLA |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-008112 | IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8,4.9 |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006330 | IC-POWER SUPERVISOR;TPS2065DBV,SOT-23,5P |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-004983 | IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4. |
| 1204-003472 | IC-VIDEO PROCESS;SDP1209,PBGA-H,585P,23X |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,4.5,0.02OHM,5300M |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,4.5,0.03OHM,4500M |
| 2703-004847 | INDUCTOR-SMD;4.7UH,20%,3838,1.8T,0.075OH |
| 2703-005192 | INDUCTOR-SMD;4.7UH,20%,4.5,0.036OHM,4200 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-003617 | JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI, |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,BLU/GRN/RED |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN68-00513A | LABEL-E, PASS |
|
|

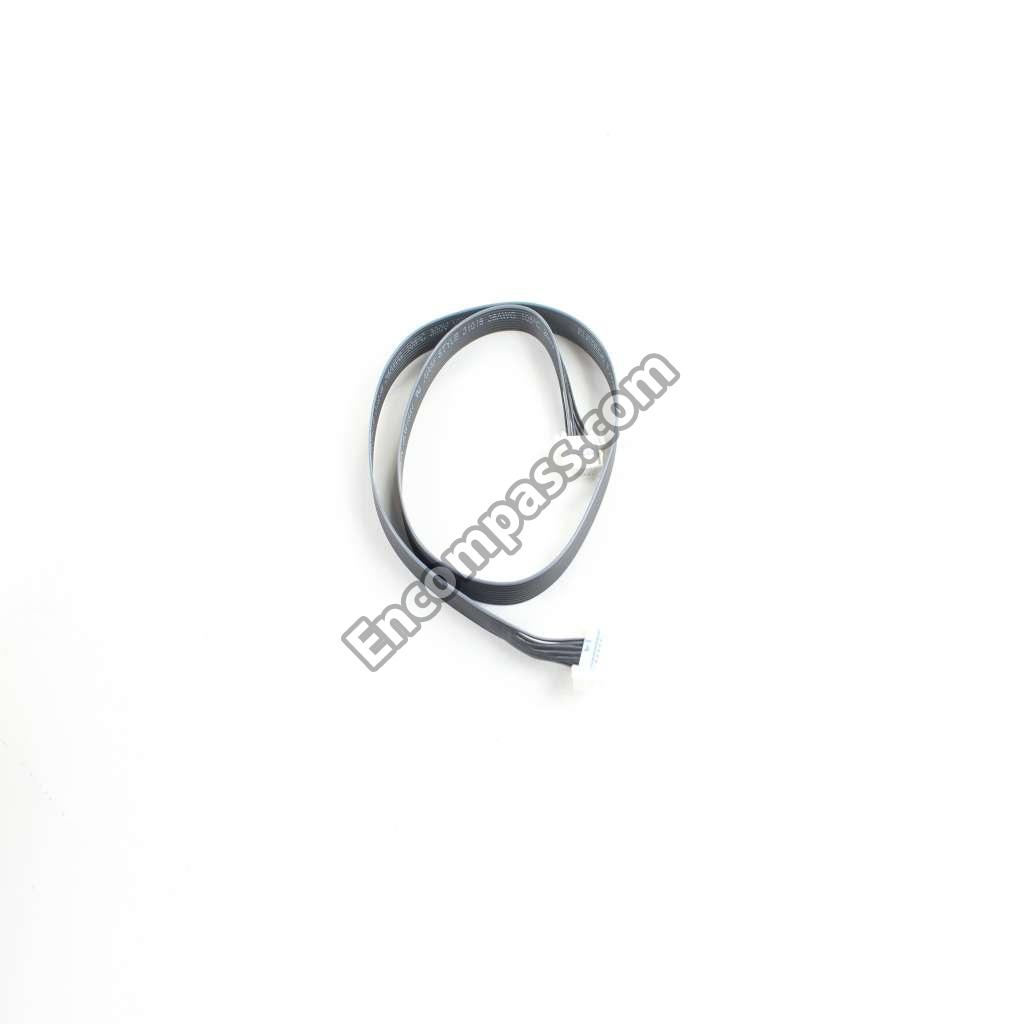

LEAD CONNECTOR-DIMMING;UN40H5200AF,UL210 |
|
|
LEAD CONNECTOR-POWER;50J5500/55J5500,UL2 |
| BN39-02001D | LEAD CONNECTOR-SUB ASSY;55J5500,UL21016, |
|
|
NETWORK-BLUETOOTH;WIBT40A,34.79X28X7.7MM |
|
|
NETWORK-WLAN CLIENT;WIDT30Q,58X31.45X8.5 |
|
|
PRODUCT LCD-AMLCD;LSF550HJ04-G,CY-GH055C |
| 2007-007268 | R-CHIP |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-000256 | R-CHIP;1.6KOHM,1%,1/10W,TP,1608 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-001433 | R-CHIP;12KOHM,1%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-008035 | R-CHIP;160KOHM,1%,1/10W,TP,1608 |
| 2007-000455 | R-CHIP;18KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-000516 | R-CHIP;2.7KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000651 | R-CHIP;27KOHM,1%,1/10W,TP,1608 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-000828 | R-CHIP;39KOHM,1%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-008429 | R-CHIP;499OHM,1%,1/16W,TP,1005 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-007238 | R-CHIP;8.25KOHM,1%,1/10W,TP,1608 |
| 2007-007651 | R-CHIP;9.1KOHM,1%,1/10W,TP,1608 |
| 2007-007431 | R-CHIP;91KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001497 | R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|
REMOCON-TV;2014 TV,SAMSUNG,52KEY,3V,AMER |
| BN61-09175B | SCREW-MACHINE;BH,M3,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3.0,L5.0,ZPC(WHT),S |
|
|

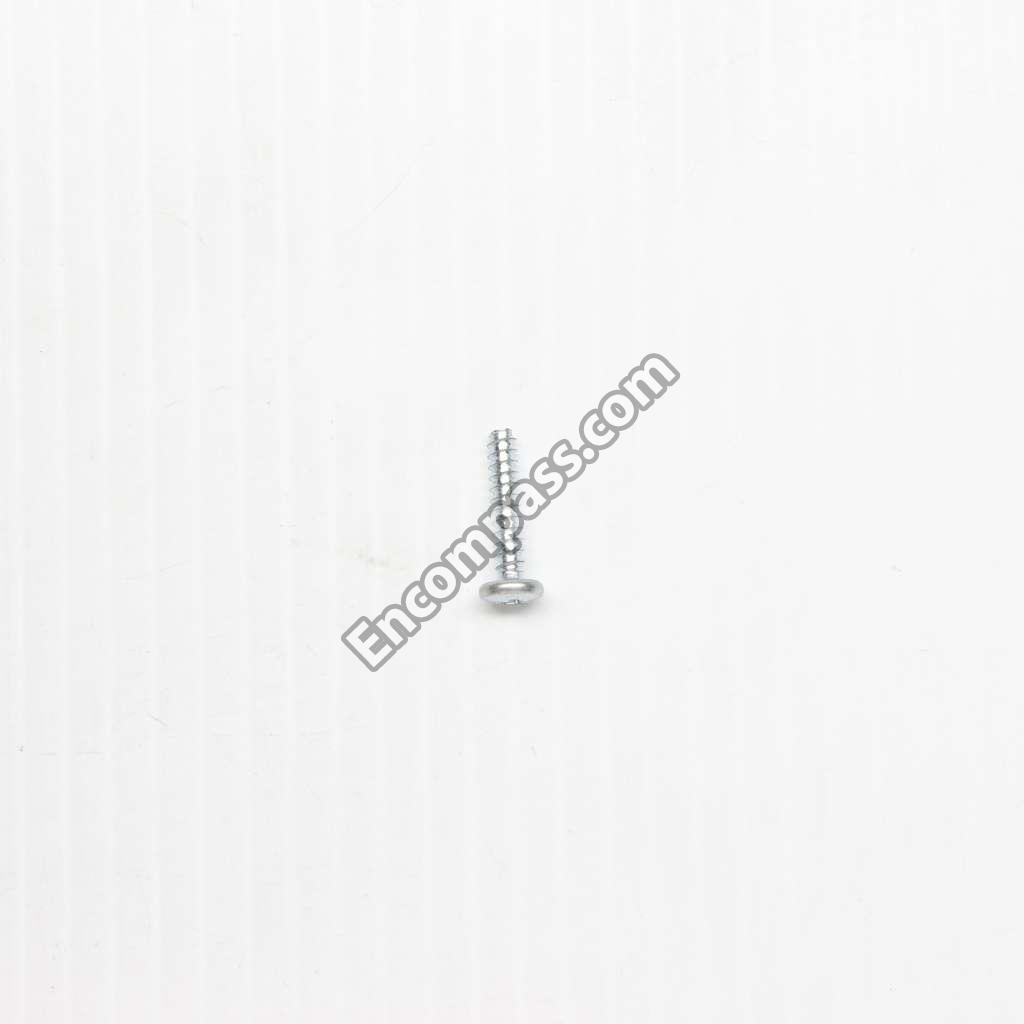

SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,B,M4,L20,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;FH,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;FH,B,M4,L10,ZPC(WHT),SWR |
| BN63-05199H | SHEET-COVER |
| 0203-001602 | TAPE-OPP MASKING |
| 0502-001345 | TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900 |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0502-001331 | TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;GVTH-5B31,VSB HALF,5 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8MM,TP,25V,5 |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2.0X1.25MM,TP, |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V, |
