Manufacturer
Samsung
Model Number
UN60JU6500FXZC
Description

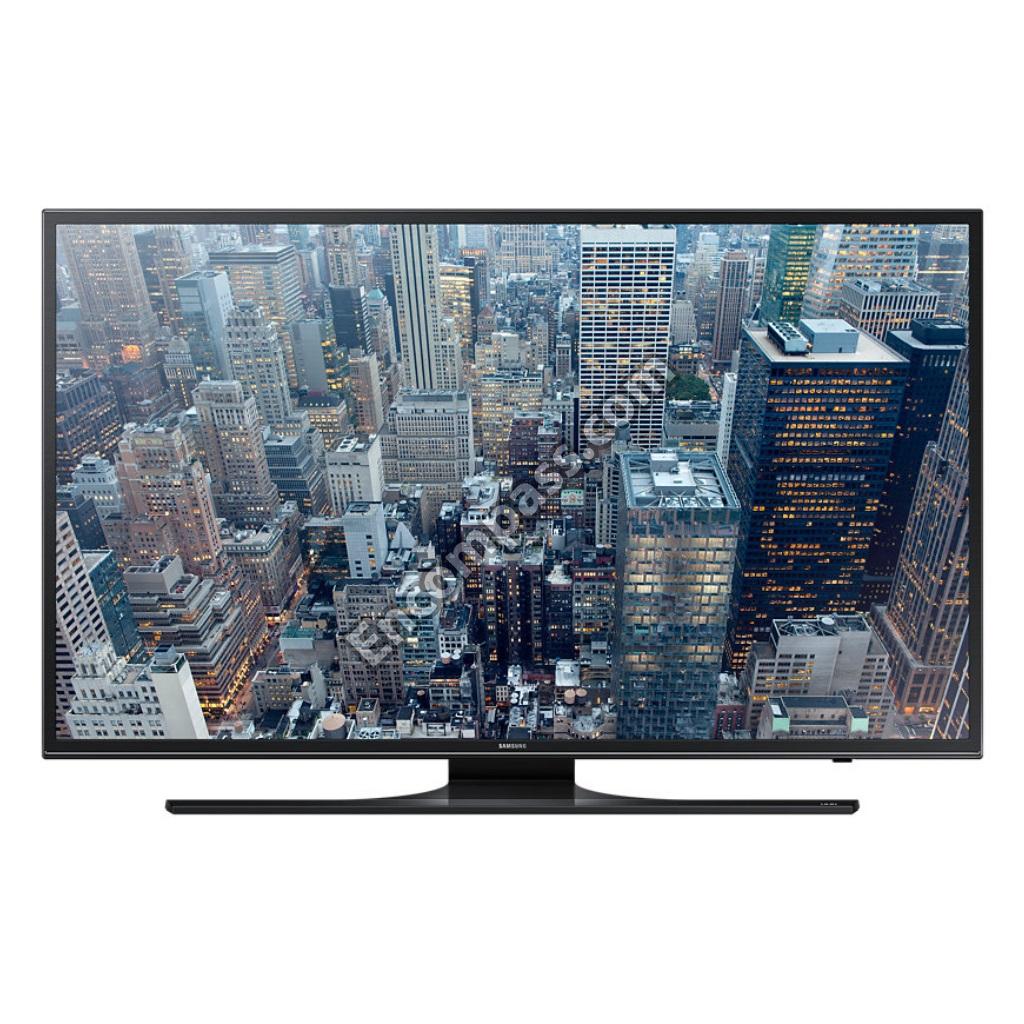

60-inch Class Ks8000 8-series 4k Suhd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 |
|
|
ASSY BOARD P-IR FUNCTION;JU6400,CT20SE39 |
|
|
ASSY CHASSIS FRONT P;Y15_JU6.4K_60,PC+AB |
| BN96-35660G | ASSY COVER P-REAR;60JU6400,PC+ABS+GF15%, |
|
|
ASSY GUIDE P-STAND;JU6400,60"~65" |
| BN94-09454A | ASSY PCB MAIN;UN60JU6500FXZC |
| BN96-35006B | ASSY SPEAKER P-FRONT;TV-SPK,JU7000,6OHM, |
|
|
ASSY STAND P-BOTTOM;JU6400,60"~65" |
|
|
ASSY T CON;LQ601R3HA6K,UHD SHARP 60",U60 |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| BN61-11517A | BRACKET-STAND LINK;HGI-SGHC,T2,NATURAL |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007370 | C-CER,CHIP;10000NF,10%,10V,X7R,TP,2012 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0 |
| 2203-007486 | C-CER,CHIP;1000NF,10%,50V,X5R,TP,1608 |
| 2203-006960 | C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-005221 | C-CER,CHIP;15NF,10%,50V,X7R,TP,1608 |
| 2203-008315 | C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-000888 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1608 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,0.8 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A, |
| 3701-001861 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-007839 | CONNECTOR-HEADER;BOX,15P,1R,1.25MM,SMD-A |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| BN61-11587A | COVER-TERMINAL SIDE;HIPS,HIPS,MOLD,BLACK |
| 2801-004477 | CRYSTAL-SMD;24.576MHZ,20PPM,SMD,18PF,15O |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|
DC VSS-PD BOARD;L65S6N_FDY,AC/DC,262W,10 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0401-001192 | DIODE-SWITCHING;MMBD7000LT1,100V,200MA,S |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001691 | DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0406-001689 | DIODE-TVS;SMH14A,15.6V,17.9V,1MAV,40A,TP |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 |
|
|
FFC CABLE;UN60JU6400,FOLD,L350,51P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-008422 | HEADER-BOARD TO CABLE;BOX,9P,1R,1.25MM,S |
| 1201-003891 | IC-AUDIO AMP;NTP7415,MLF,48P,7X7MM,DUAL, |
| 0801-003292 | IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P |
| 1203-008391 | IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, |
| 1203-008118 | IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007694 | IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8,5 |
| 1203-008082 | IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 |
| 1203-007018 | IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. |
| 1203-008454 | IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 |
| 1203-008393 | IC-DDR TERMINATION REG.;AP2303MTR-G1-89, |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002534 | IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
| 1204-003660 | IC-DECODER;SDP1406,PBGA,1053P,31*31MM,PL |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002357 | IC-EMMC;H26M41103HPR,8GBYTE,BGA,153P,11. |
| 1107-002265 | IC-NOR FLASH;W25Q32FVSSIG,32MBIT,SOP,8P, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1203-008112 | IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8,4.9 |
| 1203-008023 | IC-POSI.ADJUST REG.;AOZ2003PI,SO-8,8,4.9 |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1205-005325 | IC-REPEATER;PS8409QFN48GTR2-A1,QFN,48P,6 |
| 1205-004983 | IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4. |
| 1204-003617 | IC-VIDEO PROCESS;SDP1409.3,FCBGA,1023P,3 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,4.5,0.024OHM,5100 |
| 2703-004589 | INDUCTOR-SMD;2.2UH,20%,5050,2T,0.048OHM, |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,4.5,0.03OHM,4500M |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-003617 | JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI, |
|
|
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| 3722-003837 | JACK-USB;9P/1C,AU/NI,BLU,SMD-A,A,3.0,13. |
| BN39-02030G | LEAD CONNECTOR-BLU;BLU,UL21016,16P,175MM |
|
|
LEAD CONNECTOR-POWER;UN40JU6400AFXZA,UL2 |
| BN39-02017B | LEAD CONNECTOR-SUB ASSY;FLAT CONNECTOR A |
|
|
LEAD CONNECTOR-SUB ASSY;JU7K,UL21016,9P, |
|
|
NETWORK-WLAN CLIENT;WCH730B,58X31.45X8.5 |
|
|
PRODUCT LCD-SHARP;CY-GJ060HGSV1V,JU6400, |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-009234 | R-CHIP;0.47OHM,1%,1/4W,TP,3216 |
| 2007-000239 | R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-010387 | R-CHIP;10KOHM,1%,1/16W,TP,1005 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005 |
| 2007-008070 | R-CHIP;130OHM,1%,1/10W,TP,1608 |
| 2007-008035 | R-CHIP;160KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-000034 | R-CHIP;1OHM,5%,1/4W,TP,3216 |
| 2007-000491 | R-CHIP;2.2KOHM,1%,1/10W,TP,1608 |
| 2007-000504 | R-CHIP;2.2OHM,5%,1/4W,TP,3216 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000606 | R-CHIP;240OHM,1%,1/10W,TP,1608 |
| 2007-002437 | R-CHIP;2OHM,5%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000857 | R-CHIP;4.3KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000999 | R-CHIP;510OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
|
|
REMOCON-TV;2015 TV,SAMSUNG,49KEY,3V,NORT |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR |
| 6003-000003 | SCREW-TAPTYPE;BH,B,M4,L10,ZPC(BLK),S |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,B,M4,L8,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,B,M3,L6,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;FH,B,M4,L8,ZPC(BLK),SWRC |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001345 | TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900 |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
|
|
TUNER-DTV AIR CABLE;GVTH-5B31,VSB HALF,5 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
