Model Image
Manufacturer

Samsung

Model Number

UN65AU8000FXZA

Description

65-inch Class Au8000 Crystal Uhd Smart Tv

Interactive Exploded View

Parts List

Part Number Description
BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC SPEC-C
BN81-20468W A/S PART SET-MECH W/I;AU8000B,U65AB*
BN81-19626A A/S-ADHESIVE-A.C.F;ACF-SPCB SIDE,QCNC-00
BN81-19624A A/S-ASSY PCB-SOURCE(L);ASSY PCB-SOURCE(X
BN81-19623A A/S-ASSY PCB-SOURCE(M);ASSY PCB-SOURCE(X
BN81-19629A A/S-ASSY PCB-SOURCE(R);ASSY PCB-SOURCE(X
BN81-19622A A/S-FPC(XL-XC-XR);FPC (XL-XC-XR),QPWBM00
BN81-19621A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,S6
BN81-19625A A/S-OPEN CELL-ADHESIVE ACF;OPEN CELL-ADH
BN81-19627A A/S-POLARIZER-C/F;POLARIZER-C/F,PFILV001
BN81-19628A A/S-POLARIZER-TFT;POLARIZER-TFT,PFILV001
BN81-01918A A/S-RESIN;EPS,SG-302
0201-003279 ADHESIVE-AA;UPUV,CLEAR
BN96-53815N ASSY ACCESSORY MANUAL CABLE;AU8000B
BN92-30345D ASSY ACCESSORY;AU8000B
BN90-00131X ASSY BACK LIGHT UNIT;AU8000B
BN92-30131D ASSY BOX;AU8000B
BN96-52851A ASSY CHASSIS FRONT P-BOTTOM;65QAQ60G,PC+
BN96-52778A ASSY CHASSIS FRONT P;65QAQ60G,PC+ABS+ED1
BN96-52846B ASSY CHASSIS REAR P;65AU8000B,EGI-SECC,N
BN91-23790A ASSY CHASSIS;AU8000B
BN96-52860A ASSY COVER P-DECORATION;65QAQ60G,PC+ABS+
BN96-53016A ASSY COVER P-REAR;65QAQ60G,PC+ABS+ED20%,
BN90-12058M ASSY COVER REAR;QAQ60G
BN97-16699A ASSY DRM;NIKE-L BUILT-IN,ATSC,NAGSAM, MA
BN92-30026K ASSY LABEL;AU8000B
BN96-52586A ASSY LED BAR P;21Y AU8000,ALUMINUM
BN97-18849A ASSY MICOM;NIKE-L BUILT-IN / AU8000,1107
BN97-18186A ASSY MICOM;NKL1_COMMON,NKL1_COMMON,NKL1_
BN97-18139A ASSY MICOM;NKLMICOM_INTV,QAQ60G,1107-002
BN97-18177A ASSY MICOM;Y21 NIKE-L TCON FW
BN96-51822B ASSY OPEN CELL;SDP,65INCH,Y21 EC,JR645R3
BN92-30025E ASSY P/MATERIAL;AU8000B
BN96-49889S ASSY PACKING P-CUSHION SET;Y20
BN94-17640J ASSY PCB MAIN;AU8000B
BN94-17202N ASSY PCB MAIN;AU8000B
BN91-23258N ASSY SHIELD;AU8000B
BN97-19296A ASSY SMD BOTTOM;AU8000B
BN97-18518D ASSY SMD BOTTOM;AU8000B
BN97-19870D ASSY SMD TOP;AU8000B
BN97-18519E ASSY SMD TOP;AU8000B
BN96-52483A BN96-52483A ASSY SPEAKER P-FRONT;TV-SPK,65QAQ60G,2CH
BN96-52711A ASSY STAND P-COVER TOP;65AU8000B,PP+GF40
BN96-49093C ASSY STAND P-HOLDER CABLE;65QRQ60T,ABS,B
BN90-11483A ASSY STAND;QTQ60F
BN90-12107R ASSY W/I;AU8000B
6902-003526 BAG ACCESSORY;LDPE,T0.06,W350,L300,TRP,R
6902-003537 BAG ACCESSORY;LDPE,T0.06,W400,L280,TRP,R
6902-003068 BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO
6902-003720 BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W1700,
6922-000421 BAND;PP,T0.8,W18,L2300,TRP,RECYCLED PIR_
6922-000001 BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50%
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
BN69-22147A BOX UNIT-IN;65AU8000B,CB,DW1,C1,L1870,W4
BN69-22143A BOX UNIT-OUT;65AU8000B,CB,DW4,F3,L1597,W
BN61-17479B BRACKET-LED PCB;65AU8000B,AL,T1.5,NATURA
BN61-13312B BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3,
BN61-11982B BRACKET-WALL;65MU8000,CR-SPCC,NATURAL,M8
BN61-13557K BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557J BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557P BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,55
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T
2203-007176 C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007423 C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-006460 C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,55
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-005642 C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0.
2203-008412 C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1.
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343
BN64-04491A CHASSIS-FRONT BOTTOM;65QAQ60G,PC+GF10%,V
BN64-04490A CHASSIS-FRONT;65QAQ60G,PC+ABS+ED18%,V-0,
BN64-04512A CHASSIS-REAR;65QAQ60G,EGI-SECC,T0.8,NATU
3708-003241 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU
3708-003355 3708-003355 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3701-001856 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3707-001133 CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI
BN63-19268A COVER-DECORATION;65QAQ60G,PC+ABS+ED18%,V
BN63-19279A COVER-REAR;65QAQ60G,PC+ABS+ED20%,V-0,BK0
BN63-19339A COVER-STAND TOP;65AU8000B,PP+GF40%,HB,BK
BN63-19296A COVER-TERMINAL SIDE;65QAQ60G,PC+ABS,V-0,
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
BN69-21890A CUSHION-SET FRONT;65QAQ70F,EPS,16.7G/L,W
BN69-21924A CUSHION-SET SIDE;65QAQ60G,EPS,16.7G/L,WH
BN69-21910A CUSHION-SET;65QAQ60G,EPS,16.7G/L,WHITE,F
BN44-01111A DC VSS-PD BOARD;L65E6N_AHS,AC/DC,197.5W,
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO
0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD
0403-002067 DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30
0204-006855 ETHANOL;CS-E-14,GRAVITY 0.8,DENSITY 1.59
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-002560 FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1
0505-003391 FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-003752 FET-SILICON;AONR21321,P,30V,50A,0.035OHM
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
BN96-52799A BN96-52799A FFC;65Q60A,FOLD,L600,24P
BN96-52744A BN96-52744A FFC;65Q60A,FOLD,L650,96P
BN61-13520D FOOT-RUBBER;40K5500,SI,GRAY,T3
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN63-00520A GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L
6302-001376 GASKET-SMD;SMT GASKET,SI,T6,W4.5,L2.5,SI
3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN62-00923A HEAT SINK-PS;Q60A,LS01A,A1050,T1.5,W110,
BN61-17490A HOLDER-LGP BOTTOM LEFT;65QAQ60G,PC+ABS,B
BN61-17483A HOLDER-LGP BOTTOM RIGHT;65QAQ60G,PC+ABS,
BN61-17484B HOLDER-LGP TOP LEFT;65QAQ60G,PC+ABS,BK00
BN61-17486B HOLDER-LGP TOP RIGHT;65QAQ60G,PC+ABS,BK0
BN61-17922A HOLDER-REAR;65QAQ60G,PC+GF10%,BLACK,V-2,
BN61-17482A HOLDER-SHEET;65QAQ60G,STS304,T0.2,NATURA
BN61-16080A HOLDER-STAND CABLE;65QRQ60T,ABS,BK0007,H
BN61-17564A HOLDER-STAND SUPPORT;65QAQ60G,ABS,BK0007
1201-004117 IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU
1201-004170 IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6
1203-009194 IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6
1203-009312 IC-DC/DC CONVERTER;SYD105I,TSOT23-6,6P,2
1203-009613 IC-DC/DC CONVERTER;TPS56C215,18P,VQFN,TP
1105-002993 IC-DDR3 SDRAM;H5TQ4G63EFR-TEC,DDR3-SDRAM
1105-002925 IC-DDR4 SDRAM;H9HCNNN8KUMLHR,LPDDR4-SDRA
1204-003818 IC-DECODER;SDP19403,TR,27X27X1.78MM,10T
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP
1107-002590 IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-004368 IC-OP AMP;LV358G-S08-R,SOP-8,8P,TP,3.95X
1201-004258 IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA
1203-009643 IC-POSI.ADJUST REG.;ET5A0ADJY2B,6P,DFN6,
1203-009186 IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1205-006382 IC-SWITCH;G2898KD1U,14P,TDFN,TP,2X3X0.75
1203-009188 IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1.
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-005780 INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
2703-005715 INDUCTOR-SMD;820NH,20%,11X10MM,T3.8,0.00
BN63-19574A INSULATOR-SMPS;65QAQ60G,PC,BLACK,L257,W3
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL
BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2)
BN46-01158A KEY CODE;NIKE-L,NAGRA CSC DATA,T-NKLAKUC
BH68-00697A LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9
BN68-04746A LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER,
BN68-05595A LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W
BN68-02422B LABEL WARNING;ALL,ART,T0.05,W240,L100,WH
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W
BN68-11850A LABEL-ENERGY;UN65AU8000FXZA,ZA,PET,T0.1,
BN68-06708G LABEL-RATING;ALL,WW,PP,T0.1,W93,L73,DARK
BN68-05381A LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI
BN68-09671G LABEL;AU8000,ART,W15,L50,YELLOW
BN39-02669A BN39-02669A LEAD CONNECTOR-BLU;65AU8500/8000,UL21016
BN39-02217F BN39-02217F LEAD CONNECTOR-POWER;70KU6000,UL21016,12
BN68-12980A LEAFLET-PROMOTION;Y21 SOUNDBAR (A,S SERI
BN68-12049A LEAFLET-QUICK SETUP GUIDE;AU800D (43-70)
BN68-09371B LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-11876A LEAFLET-REMOTE CONTROL;TM2180(COLOR KEY)
BN68-10628A LEAFLET-WARRANTY;QT/UT,ZA,MOJO,1 COLOR,1
BN61-17675A LGP;21Y_AU8500AU8000_65INCH_LGP,PMMA,T2
BN68-12940A MANUAL USERS;QN90A (98),ZA,NORTH AMERICA

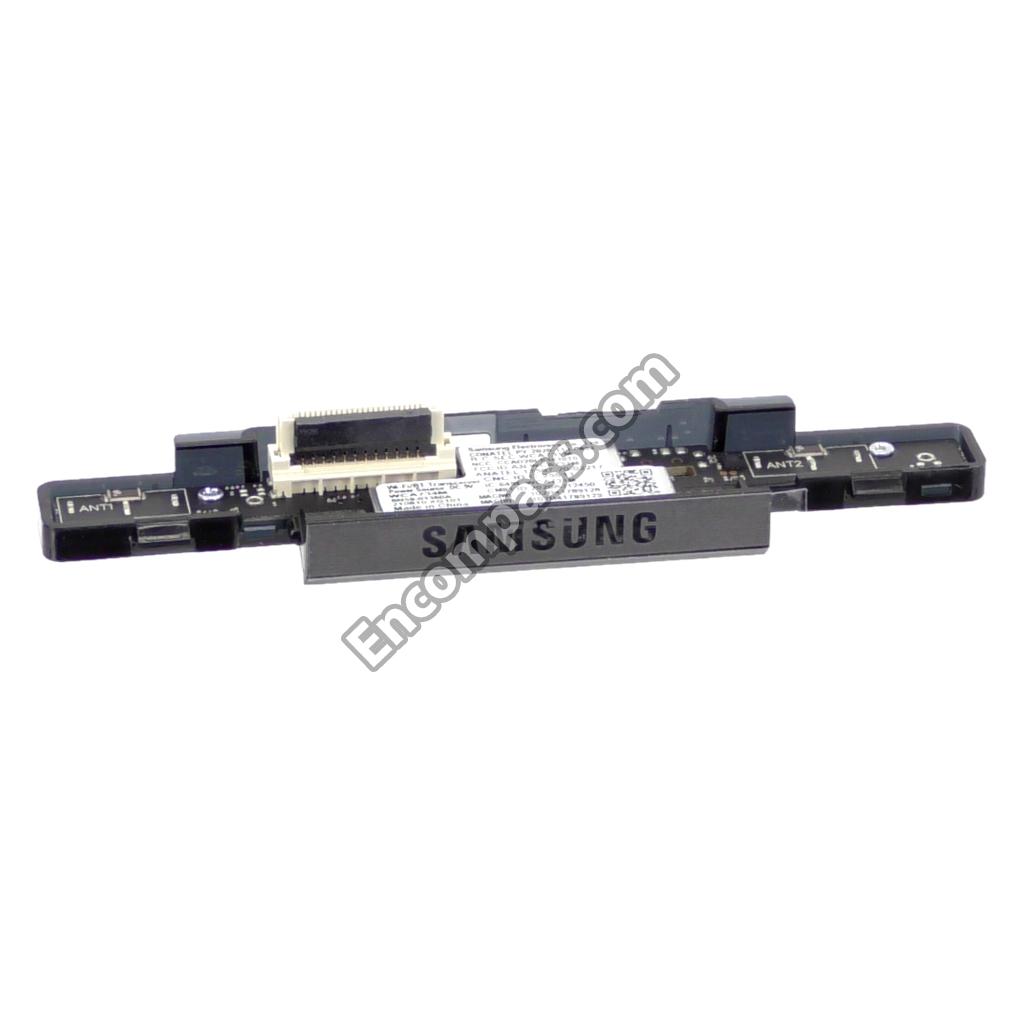

BN59-01360A BN59-01360A NETWORK-WLAN CLIENT;WCA734M,90.83X20.94X
BN61-17673A OPTICAL SHEET-COMPLEX;21Y_AU9000 AU8000_
BN61-17674A OPTICAL SHEET-DIFFUSER;21Y_AU8500AU8000_
BN61-17669A OPTICAL SHEET-REFLECTOR;21Y_AU9K8K_65INC
BN69-17053Q PACKING ANGLE;ALL,PAPER,T3,W1800,L50,YEL
BN69-22276D PAD-SHEET;65QAQ60G,PET,T3.2,W50,L809,WHI
BN41-02844F PCB-MAIN;QN65Q60AAFXZA,FR-4,4L,T1.6,1,F,
BN41-02844B PCB-MAIN;QN65Q60AAFXZA,FR-4,4L,T1.6,144.
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-07271A PRODUCT LCD-SDP;CY-SA065HGSV2V/H,AU8000B
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-007520 R-CHIP;20OHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35
2011-001448 R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.

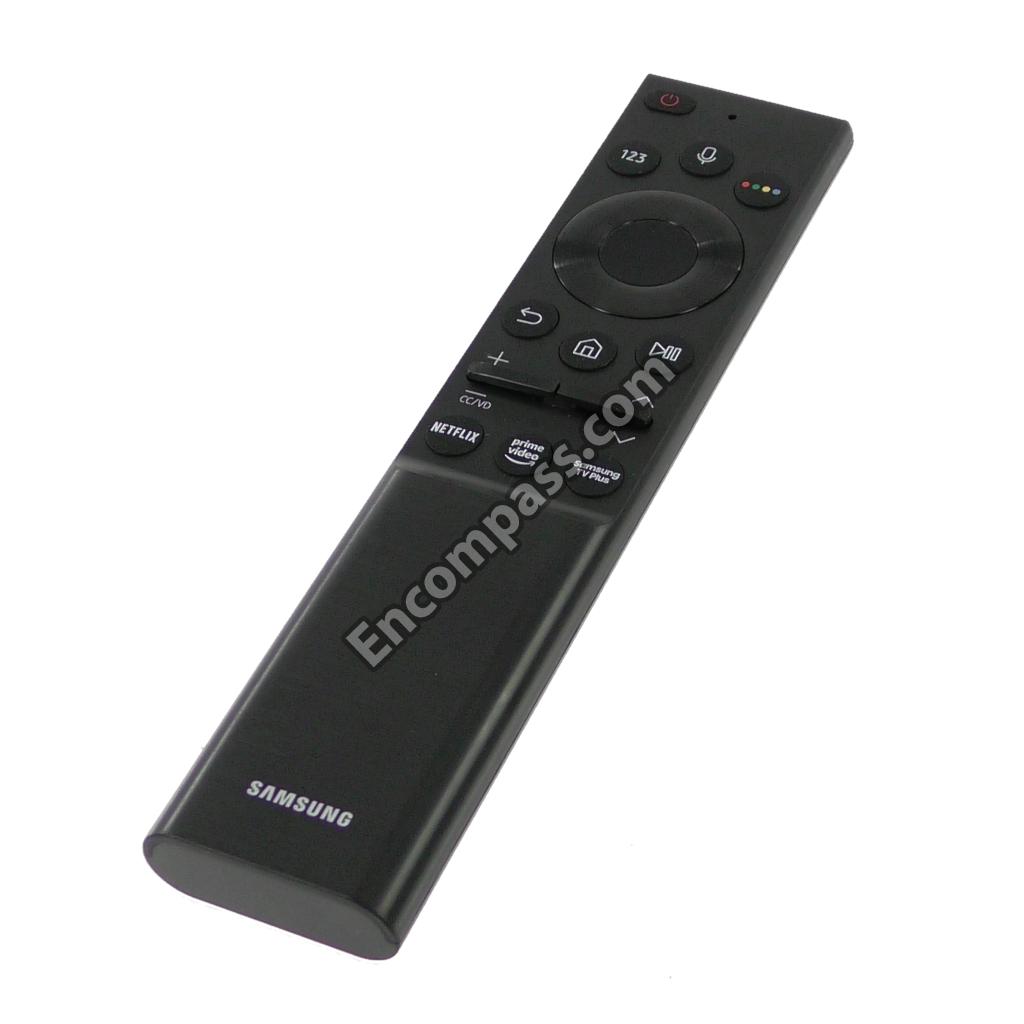

BN59-01363A BN59-01363A REMOCON-SMART CONTROL;2021 TV,SAMSUNG,21
6041-001068 RIVET-PH;6SR000032004301_CR3+WH,SWRCH10A
BN46-01508A S/W MICOM;NKL1_COMMON,NKL1_COMMON
BN46-01755A S/W-MODEL;UAU8000_L,NIKE-L,AU8000B
BN63-19568C SHEET-PROTECTION COVER;65QAQ60G,PO,T0.05
BN63-19568B SHEET-PROTECTION COVER;65QAQ60G,PO,T0.05
BN63-19568A SHEET-PROTECTION COVER;Y21-Q60A,PO,T0.05
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
BN60-01656A SPACER-CONDUCTIVE;CONDUCTIVE FABRIC/PU F
BN60-01661A SPACER-FABRIC;CONDUCTIVE FABRIC,L20,GRAY
BN60-01668B SPACER-FOAM;65QAQ60G,HR FOAM,L1000,GRAY,
BN60-00162X SPACER-FOAM;PE FOAM,L50M,GRAY,T1,W15
BN61-16805B STUD-PEM;65QAQ60G,SUM24L,L11.7,BLACK
BN02-00352A TAPE SINGLE FACE;Y12 F-LED,PET,T0.05,W30
0203-007142 TAPE-DOUBLE FACE;ACRYL,T0.2,W4.5,N/A,WHI
0203-007235 TAPE-DOUBLE FACE;PU FOAM,T1.4,W3.2,N/A,B
BN02-00102K TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL
BN02-00319B TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE
BN02-00102B TAPE-SINGLE FACE;OPP,T0.15,W25,L50M,WHIT
BN74-00053G TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10,
0203-007086 TAPE-SINGLE FACE;PET,T0.05,W6,L50M,BLACK
1404-001731 THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
BN40-00329A BN40-00329A TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF,
1405-001306 VARISTOR;11VDC,45A,1608,TP,50V,40PF
1405-001452 VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
BH69-00418A WRAP;762,1828M,SAMEX FACTORY
Main Menu x
