Manufacturer
Samsung
Model Number
UN65JU6700FXZA
Description
65-inch Class Ju6700 Curved 4k Uhd Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

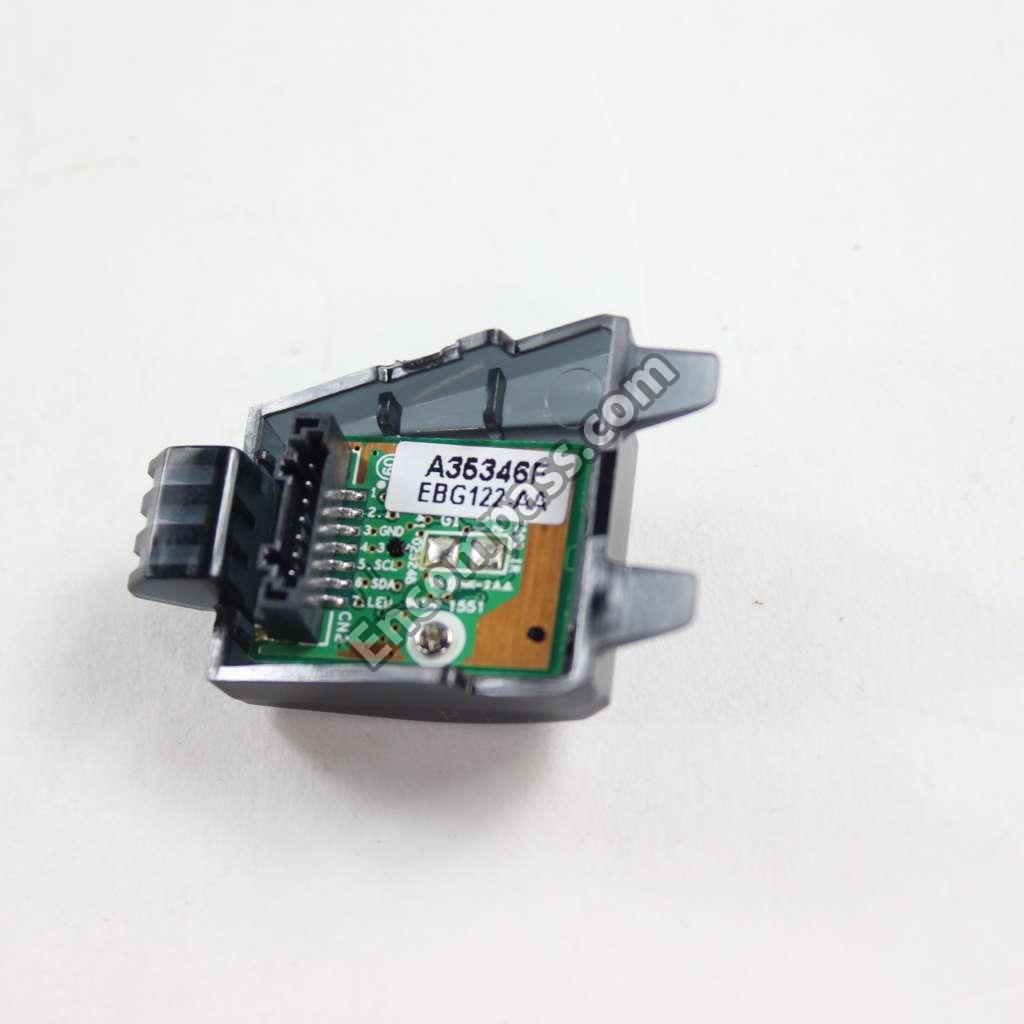

ASSEMBLY BOARD P-FUNCTION IR |
|
|
ASSEMBLY BOARD P-FUNCTION_SW |
|
|

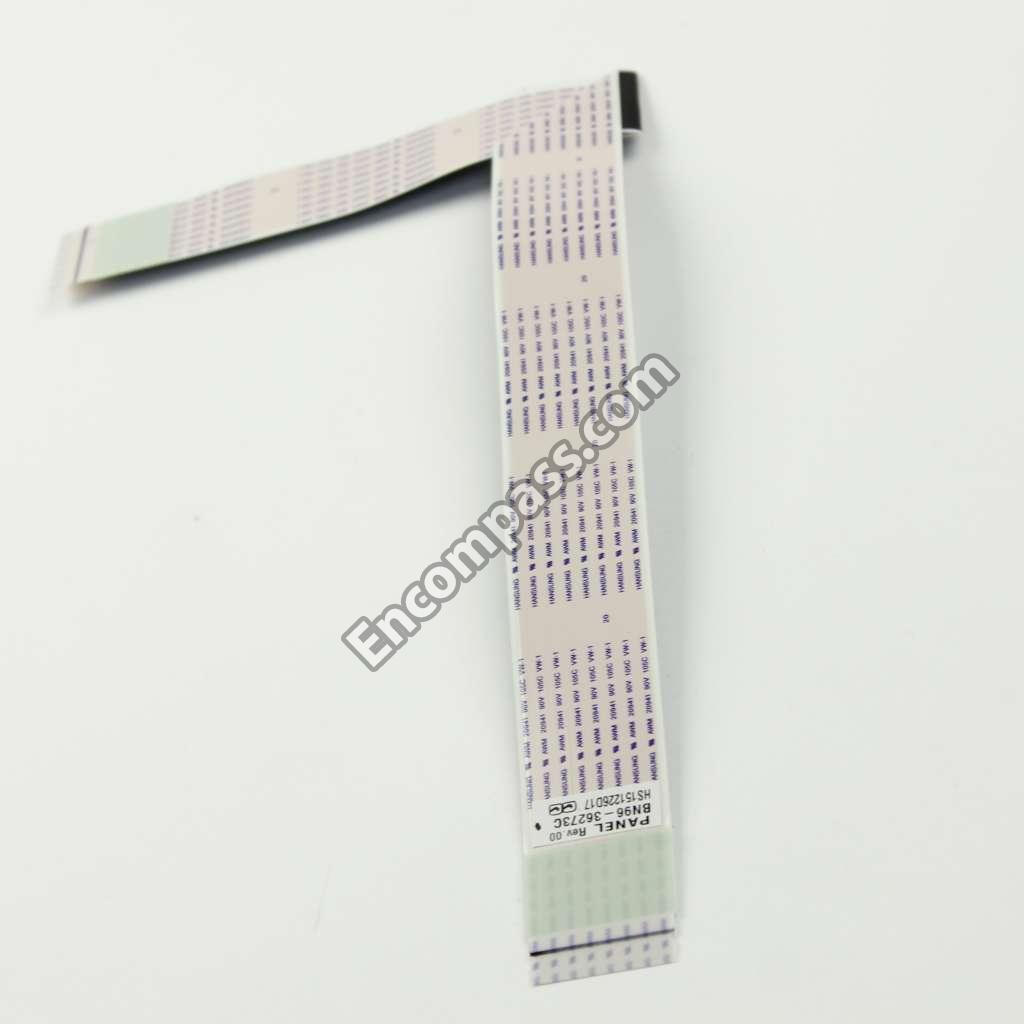

ASSEMBLY CABLE P |
| BN96-35783E | ASSEMBLY CHASSIS FRONT P |
| BN96-36253A | ASSEMBLY COVER P-REAR |
|
|

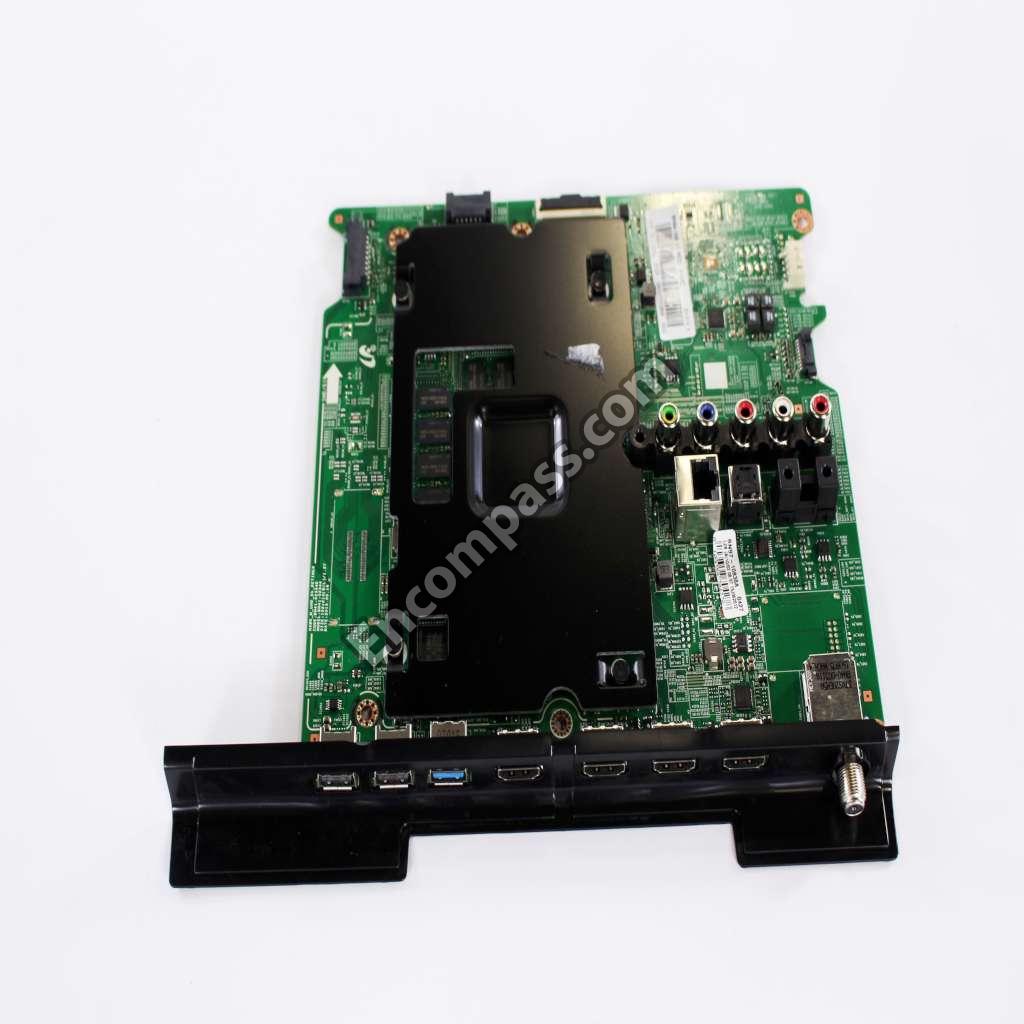

ASSEMBLY PCB MAIN |
|
|

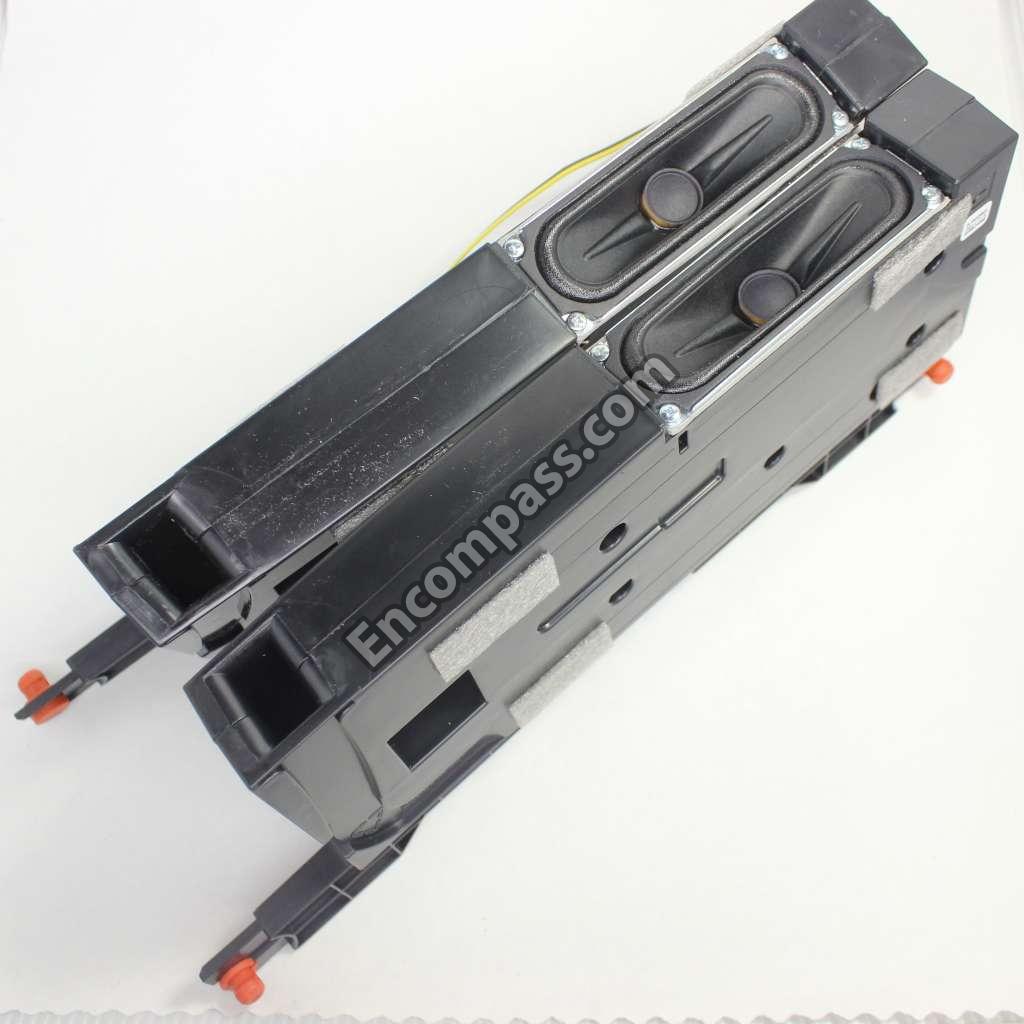

ASSEMBLY SPEAKER P |
|
|

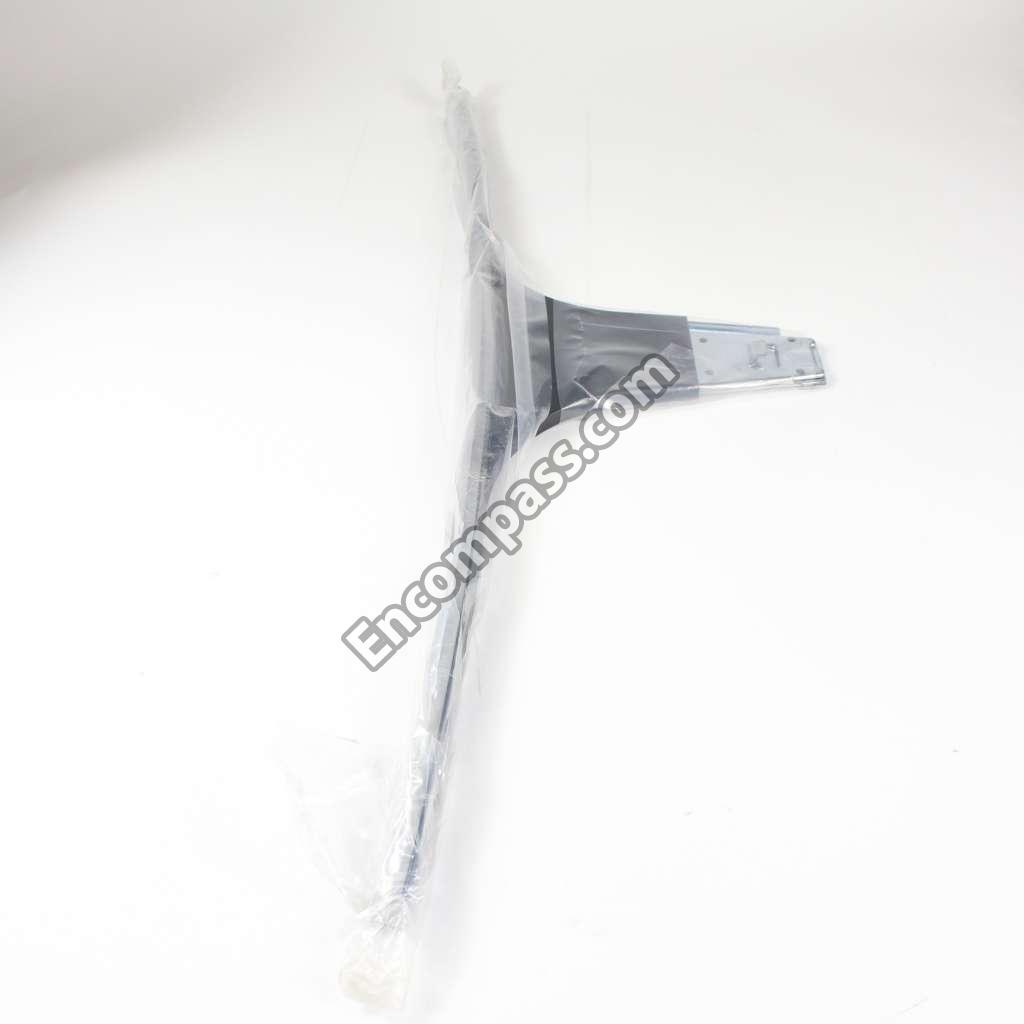

ASSEMBLY STAND P-BOTTOM |
|
|

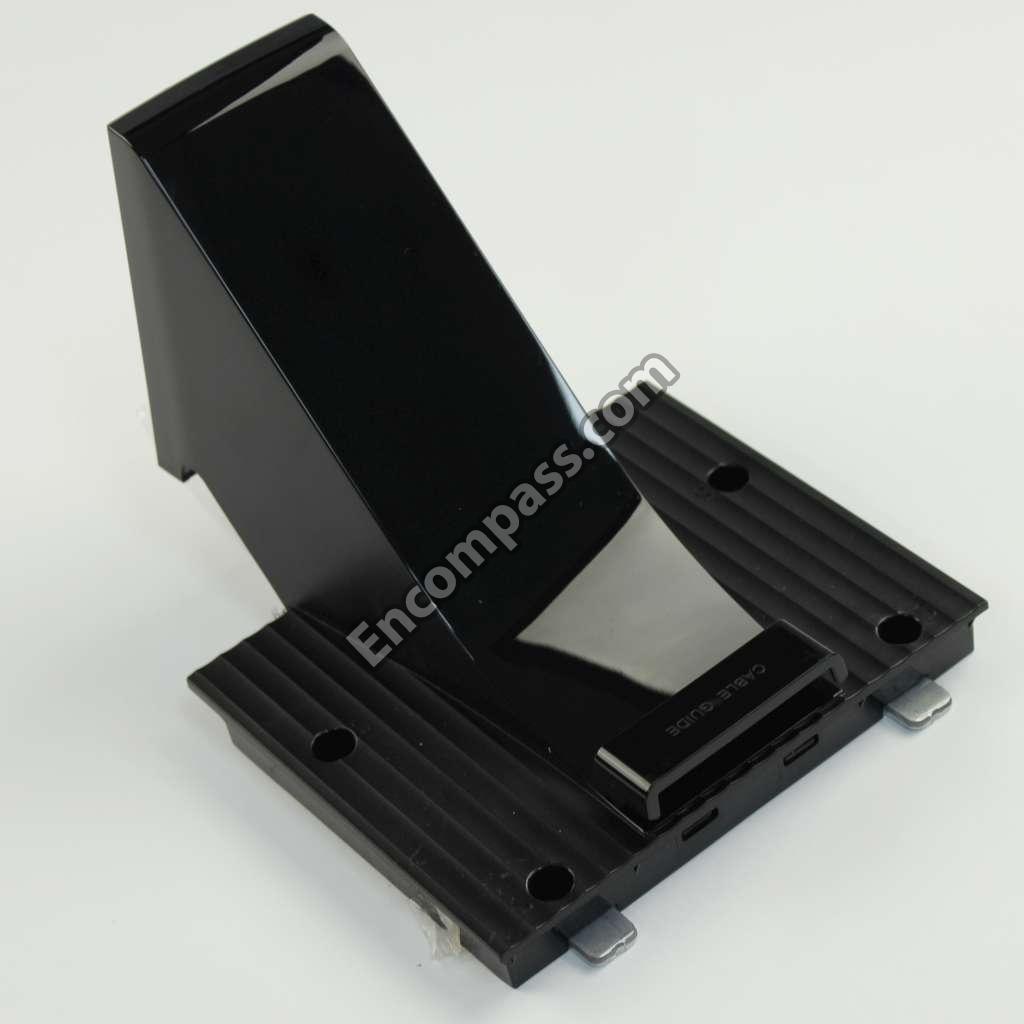

ASSEMBLY STAND P-NECK |
|
|

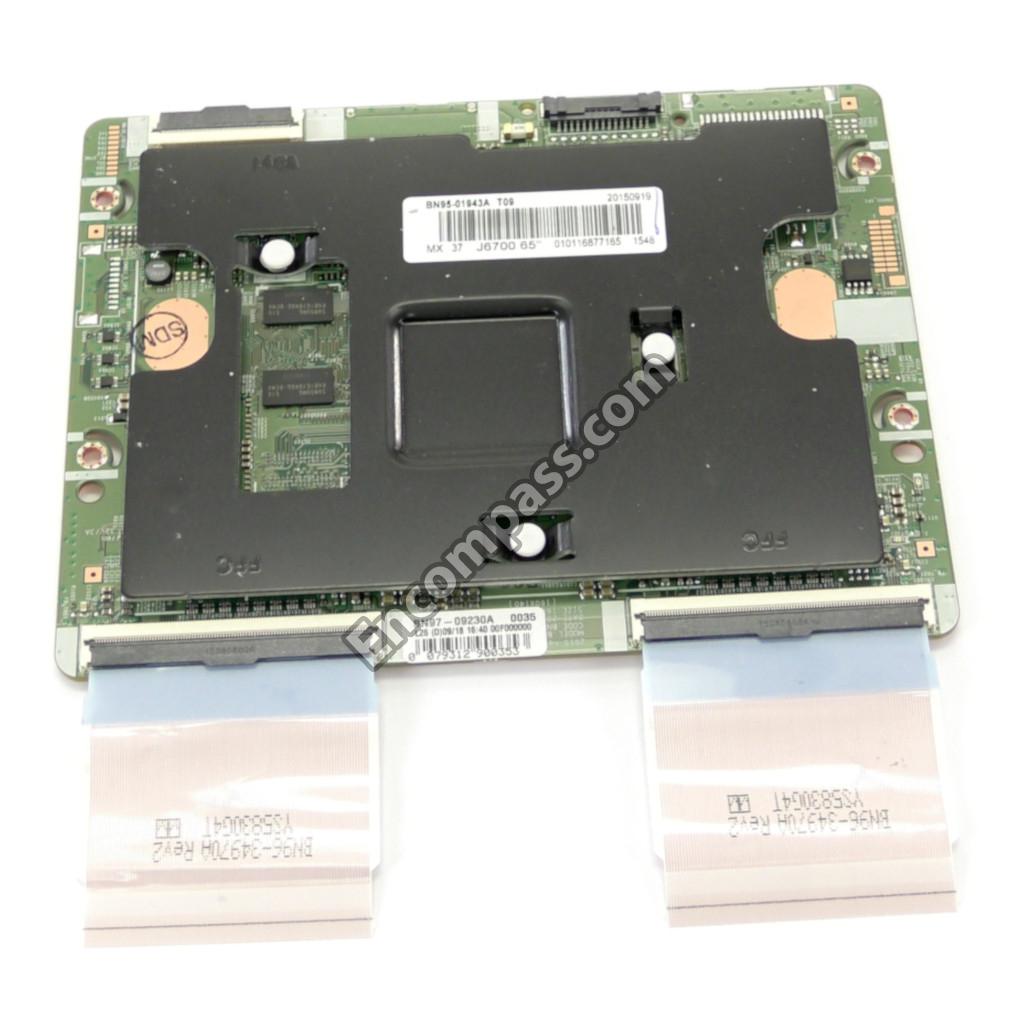

ASSEMBLY T CON |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000101 | BATTERY-ALKALINE |
|
|
BEAD-SMD |
| 3301-000314 | BEAD-SMD |
| BN61-04692A | BOSS-PRIMER |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007486 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007193 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006741 | C-CER,CHIP |
| 2203-006698 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-005918 | C-CER,CHIP |
| 2203-005344 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-002711 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-000715 | C-CER,CHIP |
| 2203-000627 | C-CER,CHIP |
| 2203-000491 | C-CER,CHIP |
| 2503-001051 | C-NETWORK |
| 2409-001338 | C-POLYMER ,CHIP |
|
|
CBF-POWER CORD |
| 3701-001861 | CONNECTOR-HDMI |
| 3711-007839 | CONNECTOR-HEADER |
| 3707-001106 | CONNECTOR-OPTICAL |
| 2801-005324 | CRYSTAL-SMD |
| 2801-004477 | CRYSTAL-SMD |
|
|

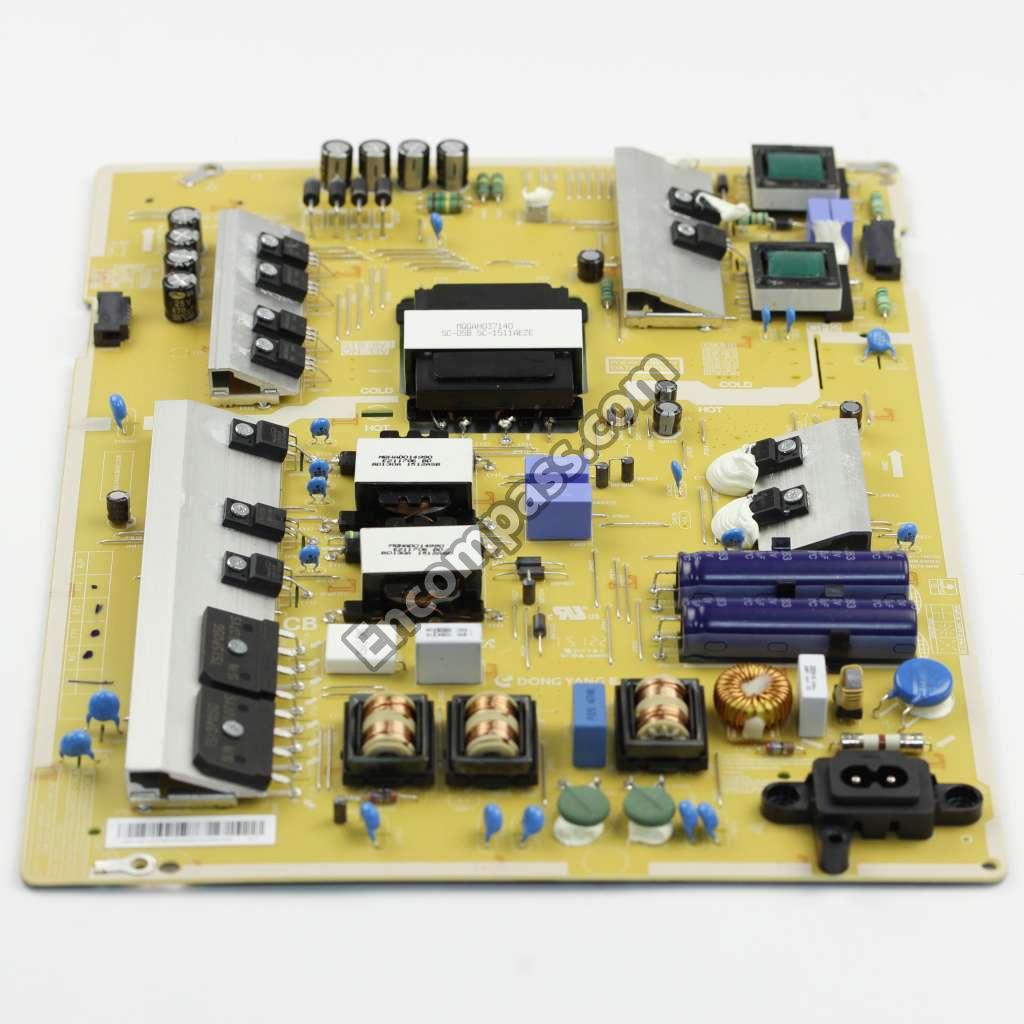

DC VSS-LED TV PD BD |
| 0404-001643 | DIODE-SCHOTTKY |
| 0404-001640 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001691 | DIODE-TVS |
| 0406-001689 | DIODE-TVS |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0403-001831 | DIODE-ZENER |
| 0403-001164 | DIODE-ZENER |
| 0505-003507 | FET-SILICON |
| 0505-003397 | FET-SILICON |
| 0505-003224 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-001844 | FET-SILICON |
|
|
FUSE-SURFACE MOUNT |
| 3711-008859 | HEADER-BOARD TO CABLE |
| 3711-008659 | HEADER-BOARD TO CABLE |
| 3711-008422 | HEADER-BOARD TO CABLE |
| 3711-008131 | HEADER-BOARD TO CABLE |
| AA61-20285C | HOLDER-BOX |
| 1201-003891 | IC-AUDIO AMP |
| 0801-003580 | IC-CMOS LOGIC |
| 1203-008454 | IC-DC/DC CONVERTER |
| 1203-008391 | IC-DC/DC CONVERTER |
| 1203-008183 | IC-DC/DC CONVERTER |
| 1203-008118 | IC-DC/DC CONVERTER |
| 1203-008082 | IC-DC/DC CONVERTER |
| 1203-007694 | IC-DC/DC CONVERTER |
| 1203-007018 | IC-DC/DC CONVERTER |
| 1203-008393 | IC-DDR TERMINATION REG. |
| 1105-002534 | IC-DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM |
| 1204-003660 | IC-DECODER |
| 1006-001576 | IC-DRIVER/RECEIVER |
| 1103-001564 | IC-EEPROM |
| 1107-002357 | IC-EMMC |
| 1107-002265 | IC-NOR FLASH |
| 1107-002226 | IC-NOR FLASH |
| 1201-000166 | IC-OP AMP |
| 1203-008112 | IC-POSI.ADJUST REG. |
| 1203-008023 | IC-POSI.ADJUST REG. |
| 1203-006130 | IC-POSI.FIXED REG. |
| 1205-005264 | IC-SWITCH |
| 1205-004983 | IC-SWITCH |
| 1204-003617 | IC-VIDEO PROCESS |
| 1203-008392 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 2703-005194 | INDUCTOR-SMD |
| 2703-005193 | INDUCTOR-SMD |
| 2703-004847 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-004589 | INDUCTOR-SMD |
| 2703-003937 | INDUCTOR-SMD |
| 2703-003862 | INDUCTOR-SMD |
| 2703-003747 | INDUCTOR-SMD |
| 2703-003713 | INDUCTOR-SMD |
| 2703-003135 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD |
| 3722-003229 | JACK-MODULAR |
| 3722-003617 | JACK-PHONE |
|
|
JACK-PIN |
| 3722-003837 | JACK-USB |
|
|
JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-02017C | LEAD CONNECTOR |
| BN39-02030C | LEAD CONNECTOR-BLU |
|
|
LEAD CONNECTOR-FUNCTION |
|
|
LEAD CONNECTOR-POWER |
|
|
NETWORK |
| BN41-02344D | PCB-MAIN |
|
|
PRODUCT LCD-SDC |
| 2007-009777 | R-CHIP |
| 2007-008779 | R-CHIP |
| 2007-008596 | R-CHIP |
| 2007-008332 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007768 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-007651 | R-CHIP |
| 2007-002437 | R-CHIP |
| 2007-001433 | R-CHIP |
| 2007-001153 | R-CHIP |
| 2007-001139 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-000999 | R-CHIP |
| 2007-000962 | R-CHIP |
| 2007-000939 | R-CHIP |
| 2007-000869 | R-CHIP |
| 2007-000857 | R-CHIP |
| 2007-000772 | R-CHIP |
| 2007-000708 | R-CHIP |
| 2007-000683 | R-CHIP |
| 2007-000651 | R-CHIP |
| 2007-000614 | R-CHIP |
| 2007-000516 | R-CHIP |
| 2007-000336 | R-CHIP |
| 2007-000287 | R-CHIP |
| 2007-000256 | R-CHIP |
| 2007-000239 | R-CHIP |
| 2007-000109 | R-CHIP |
| 2007-000084 | R-CHIP |
| 2007-000078 | R-CHIP |
| 2007-000074 | R-CHIP |
| 2007-000067 | R-CHIP |
| 2007-000052 | R-CHIP |
| 2007-000040 | R-CHIP |
| 2007-000039 | R-CHIP |
| 2011-001587 | R-NETWORK |
| 2011-001449 | R-NETWORK |
| 2011-001264 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| BN63-05199H | SHEET-COVER |
| 0504-000126 | TR-DIGITAL |
| 0502-001346 | TR-POWER |
| 0501-000465 | TR-SMALL SIGNAL |
| 0501-000445 | TR-SMALL SIGNAL |
|
|
TUNER |
| 1405-001381 | VARISTOR |
|
|
VARISTOR |
