Model Image
Manufacturer

Samsung

Model Number

UN65KS8000FXZC

Description

65-inch Ks8000f Flat Smart K Suhd Tv

Interactive Exploded View

Parts List

Part Number Description
BN96-39802C BN96-39802C ASSY BOARD P-FUNCTION TACT;KS7000/7500/K
BN96-39626A ASSY COVER P-DECORATION;65KS7000,PC+GF15
BN96-39683A BN96-39683A ASSY COVER P-REAR;65KS8000,PC+ABS+ED20%,
BN96-39921A BN96-39921A ASSY COVER P-STAND TOP LEFT;65KS7500,ALD
BN96-39924A BN96-39924A ASSY COVER P-STAND TOP RIGHT;65KS7500,AL
BN96-40472A ASSY COVER P-TERMINAL;65KS7000,PC+ABS,V-
BN91-17814W BN91-17814W ASSY FIXING-JACKPACK;Y16 OCM
BN96-39350B ASSY LED BAR P;65INCH_SDC_L,ALUMINUM
BN96-39351B ASSY LED BAR P;65INCH_SDC_R,ALUMINUM

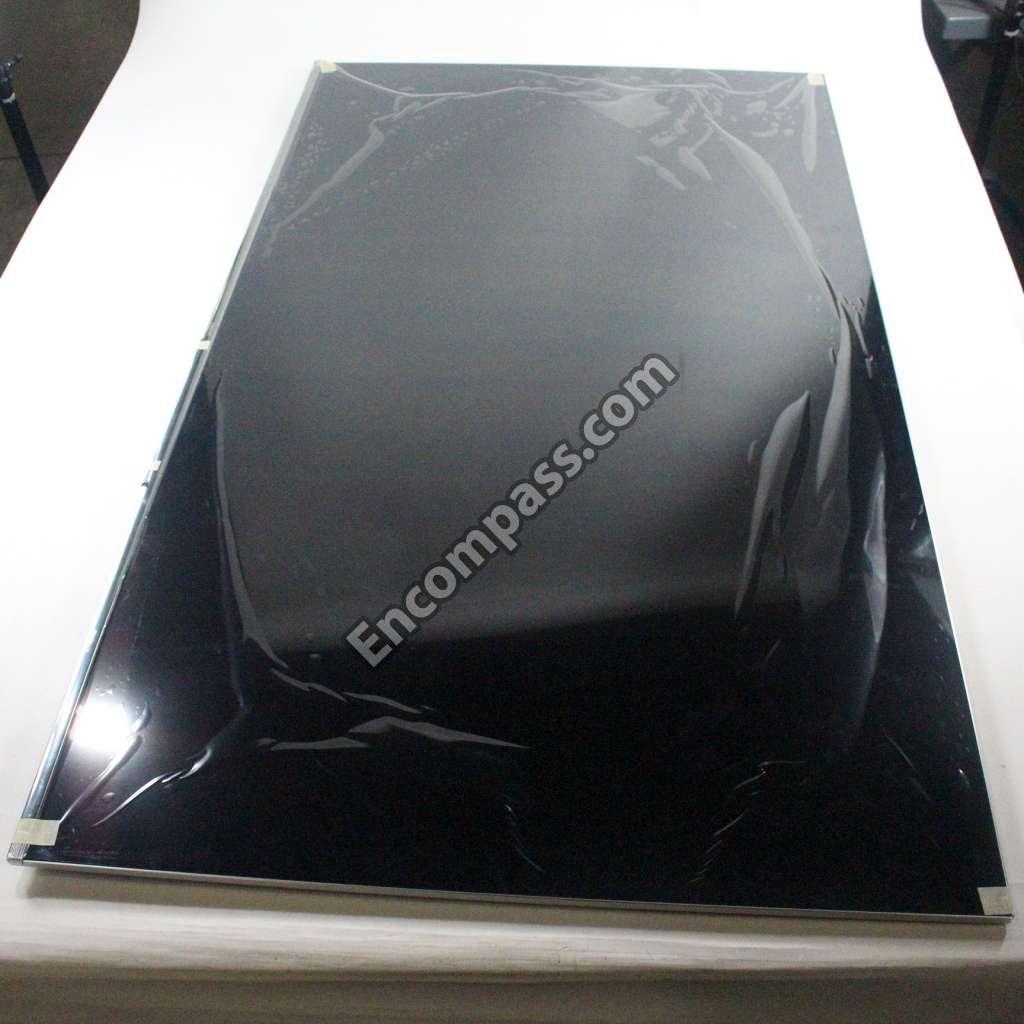

BN96-39216A ASSY OPEN CELL;SDC,65INCH,Y16 NEW MODEL(
BN94-10751C BN94-10751C ASSY PCB MAIN;7K
BN96-39888A BN96-39888A ASSY SPEAKER P-FRONT;TV-SPK,KS7000,6OHM,
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
BN61-13410A BRACKET-STAND LEFT;65KS7500,EGI-SECC,T1.
BN61-13411A BN61-13411A BRACKET-STAND RIGHT;65KS7500,EGI-SECC,T1
BN61-13557A BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L62
BN61-13557K BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-008315 C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,TP,1608
2203-006377 C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
2409-001338 C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6
3701-001949 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007975 3711-007975 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3711-007741 CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE,
3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A
3711-007587 CONNECTOR-HEADER;BOX,18P,2R,2MM,ANGLE,SN
3711-009106 CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN
3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF
3710-004144 CONNECTOR-SOCKET;44P,1R,0.5MM,SMD-A,AU,B
BN63-15074B BN63-15074B COVER-BOTTOM;55KS9000,PC+ABS,V-0,BK0008,
BN63-15050A COVER-TERMINAL SIDE;55KS7000,ABS,T2,HB,B
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
2801-005372 CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12 P
BN44-00880A BN44-00880A DC VSS-PD BOARD;L65E8N_KSM,AC/DC,237W,10
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1
0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-003264 FET-SILICON;AO4447AL,P,30V,-17A,7MOHM,3.
0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8
0505-003391 FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1.
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4
BN96-39820B BN96-39820B FFC CABLE;43KS7500,FOLD,L500,96P
BN96-39821B BN96-39821B FFC CABLE;49KS7500,FOLD,L350,96P
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN61-14022A HOLDER-CABLE;55KS7000,ABS,T1.5,BK0007,HB
BN61-13908A HOLDER-REAR;55KS9000,ABS,BK0007,HB
BN61-13518A BN61-13518A HOLDER-WALL RING;55KS7500,ABS,BK0007,HB
1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC
1201-004003 IC-AUDIO AMP;TAS880021,TSSOP,48P,12.5X6.
0801-003292 IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
0801-003604 IC-CMOS LOGIC;NL17SZ17DFT2G,SC-70,5P,TP,
0801-003598 IC-CMOS LOGIC;TC7SZ00FU,2-INPUT NAND GAT
1203-008733 IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4
1203-008735 IC-DC/DC CONVERTER;AOZ1267QI-02,QFN,23,4
1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L,
1203-008664 IC-DC/DC CONVERTER;RT6935BGQW,WQFN,56,7X
1203-008667 IC-DC/DC CONVERTER;RT6936A,WQFN,40,6X6MM
1203-008522 IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23,
1203-008732 IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3
1105-002704 IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-SDR
1204-003679 IC-DECODER;SDP1501,FCPBGAH,1230P,35*35MM
1204-003677 IC-DECODER;SDP1503,FCPBGAH,396P,18*18MM,
1006-001576 IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8,
1107-002362 IC-EMMC;KLM8G1GEND-B031,8GB,64GB MLC X 1
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-008345 IC-POSI.ADJUST REG.;S-13A1ADJ-E800X,HSOP
1205-005537 IC-REPEATER;TCA9517,VSSOP,8P,3.00X3.00MM
1205-005554 IC-REPEATER;TMDS181,VQFN,48P,7X7MM,PLAST
1209-002183 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM
1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937 INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003394 JACK-PHONE;AU,BLK,ANGLE,3.6PI,9X14X6MM
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN39-02208B BN39-02208B LEAD CONNECTOR-DIMMING;65KS7500,LEAD CON
BN39-02207B BN39-02207B LEAD CONNECTOR-POWER;65KS7500,LEAD CONNE
BN39-02211A BN39-02211A LEAD CONNECTOR-SUB ASSY;55KS9000,UL21451
BN39-02204D LEAD CONNECTOR-SUB ASSY;65KS7000,UL21016
BN59-01239A BN59-01239A NETWORK-WLAN CLIENT;WCK730B,USB 2.0,16P,
BN39-02210A BN39-02210A ONECONNECTMINI CABLE;KS7000~KS9000,44P,L
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-02610A BN95-02610A PRODUCT LCD-SDC;CY-QK065FLLV2V/H,KS7000,
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-008134 R-CHIP;12.4KOHM,1%,1/16W,TP,1005
2007-008167 R-CHIP;120KOHM,1%,1/16W,TP,1005
2007-000040 R-CHIP;150OHM,1%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-003015 R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-007520 R-CHIP;20OHM,1%,1/10W,TP,1608
2007-008067 R-CHIP;21KOHM,1%,1/10W,TP,1608
2007-007587 R-CHIP;3.6KOHM,1%,1/16W,TP,1005
2007-000736 R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000879 R-CHIP;4.7OHM,1%,1/10W,TP,1608
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000999 R-CHIP;510OHM,1%,1/10W,TP,1608
2007-008269 R-CHIP;51KOHM,1%,1/16W,TP,1005
2007-008391 R-CHIP;6.34KOHM,1%,1/16W,TP,1005
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-007868 R-CHIP;90.9OHM,1%,1/10W,TP,1608
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0
BN59-01266A BN59-01266A REMOCON-SMART CONTROL;2016 TV,SAMSUNG,14
6001-002912 SCREW-MACHINE;CH,M3,L3,ZPC(BLK),SWRCH1
6001-002759 6001-002759 SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1
6001-003016 6001-003016 SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00321A TUNER-DTV AIR CABLE;DTVS20EH6A,DTVS20EH6
1405-001381 VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
