Manufacturer
Samsung
Model Number
UN65KU630DFXZA
Description

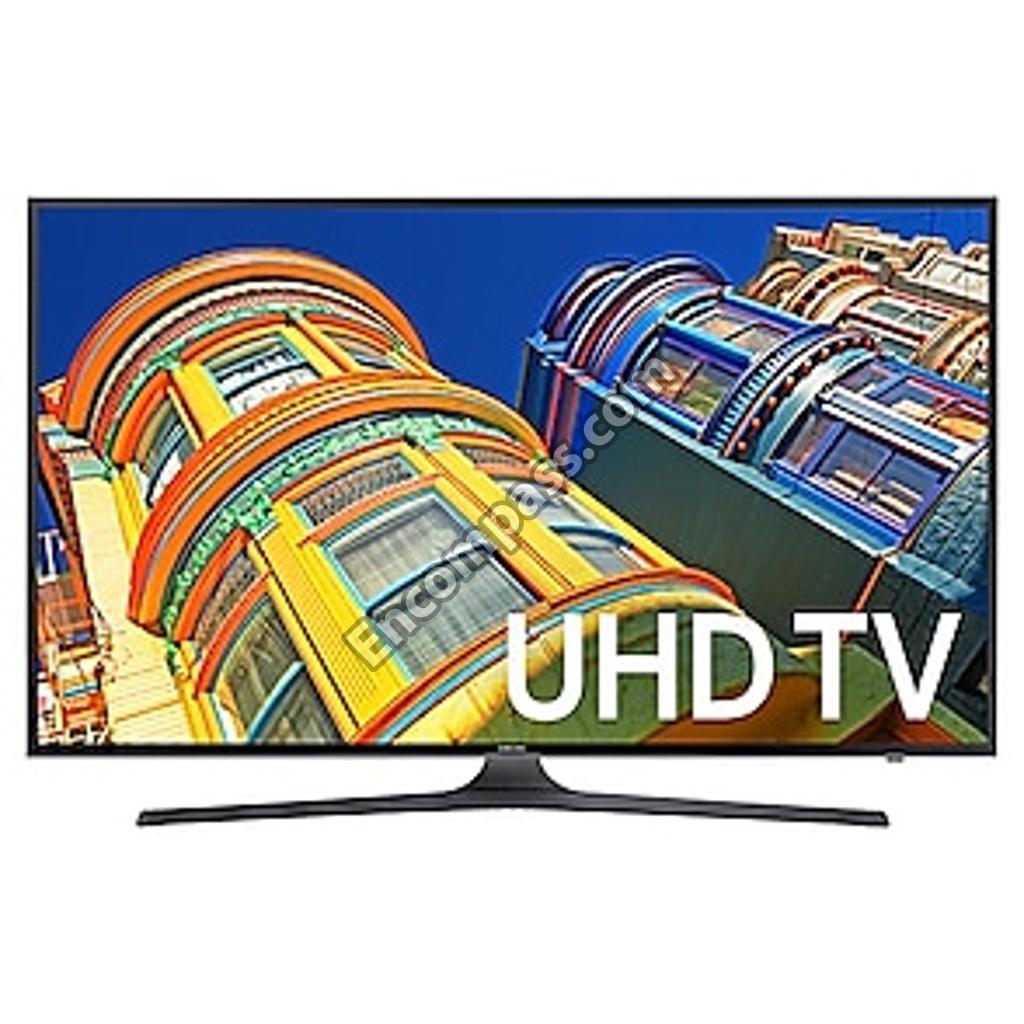

65-inch Class Ku630d 6-series 4k Uhd Tv (2016 Mode
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 |
|
|
ASSY BOARD P-IR FUNCTION;KU6000,IR ASSY_ |
| BN96-39866A | ASSY COVER P-REAR;65KU6000,PC+ABS GF15%, |
|
|
ASSY COVER STAND SMT;J6200,60,DARK TITAN |
|
|
ASSY GUIDE P-STAND;60JS6900,NORTH AMERIC |
|
|

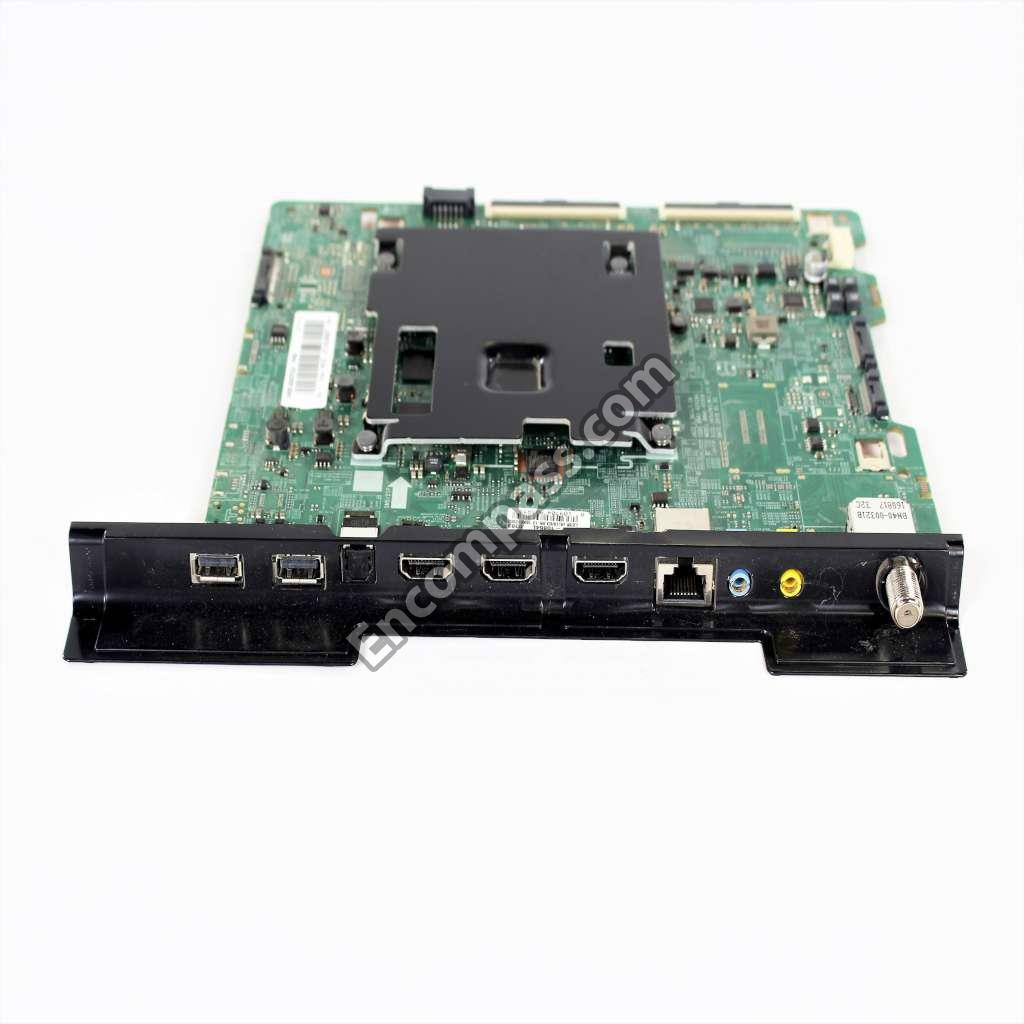

ASSY PCB MAIN;LEDTV 6K |
|
|
ASSY SPEAKER P-FRONT;TV-SPK,JU7000,6OHM, |
|
|
ASSY STAND P-BOTTOM;J6200 60",BN63-14511 |
| 6902-000341 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000101 | BATTERY-ALKALINE |
| 3301-001364 | BEAD-SMD;1000OHM,1608,TP,1085OHM/108MHZ, |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-008315 | C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1. |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
|
|
CBF-POWER CORD;DT,USA,ANGLE,2P(C7),125V, |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3707-001103 | CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-15236A | COVER-TERMINAL SIDE;55KU6000,HIPS,MOLD,H |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
|
|

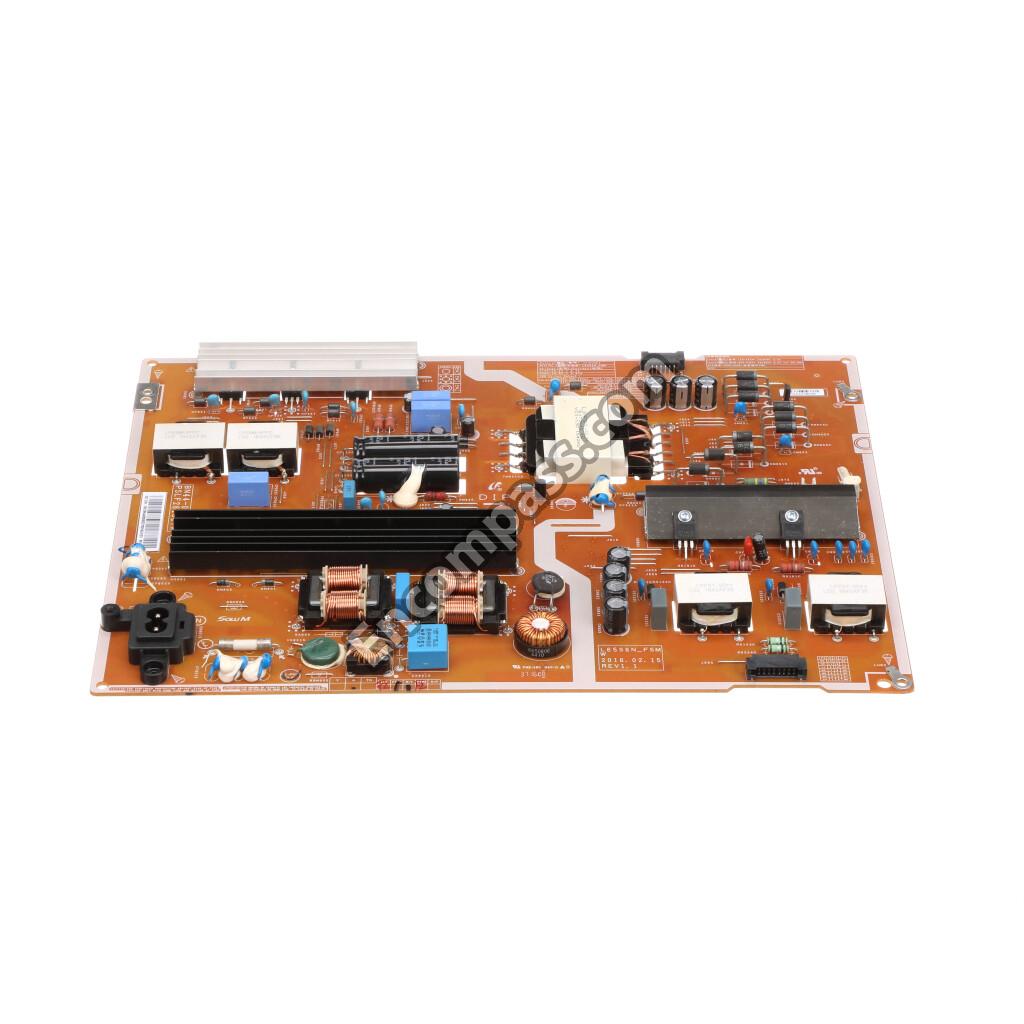

DC VSS-PD BOARD;L65S6N_FSM W,AC/DC,262W, |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001831 | DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1 |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 |
|
|

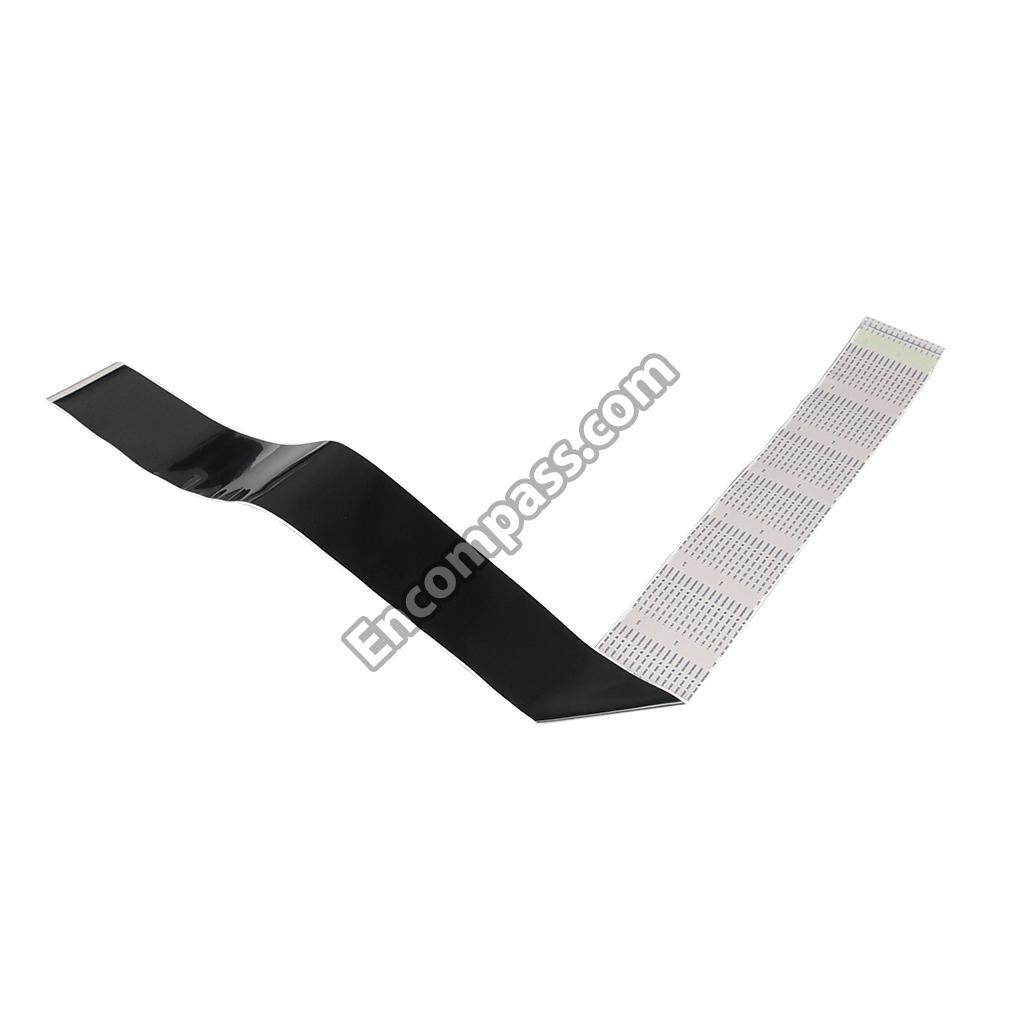

FFC CABLE;65KS7500,FOLD,L600,96P |
|
|
FFC CABLE;65KU6000,FOLD,L750,96P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| GL63-00004A | GASKET-EMI;SMT-H3010,CONDUCTIVE FABRIC,T |
|
|
GENDER CABLE;DC TO RCA CABLE,2P,L100,UL2 |
|
|
GENDER CABLE;DC TO RCA CABLE,3P,L100,UL2 |
| 3711-007803 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
|
|
HOLDER-BOLT;BH+,SWRCH18A,BLACK,PRESS,B T |
| BN61-09637A | HOLDER-WIFI;KU6000,ABS,BK0007,HB |
| 1001-001998 | IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 1203-008733 | IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4 |
| 1203-008391 | IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, |
| 1203-008655 | IC-DC/DC CONVERTER;BM81249MWW,QFN,56,7X7 |
| 1203-008732 | IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3 |
| 1203-008454 | IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 |
| 1105-002704 | IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-SDR |
| 1204-003697 | IC-DECODER;SDP1531,FCPBGA,1046P,31X31,GL |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002374 | IC-EMMC;KLM4G1FEPD-B031,4GBYTE,BGA,153P, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-004822 | IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,4.5,0.02OHM,5300M |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10X10.7MM,4.0T,0.0 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,4.5,0.024OHM,5100 |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,5.0T,0.0025OHM,66 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003873 | JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 |
| 3722-003814 | JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN68-00513A | LABEL-E, PASS |
|
|
LEAD CONNECTOR-BLU;BLU(75JU6400),UL21016 |
|
|
LEAD CONNECTOR-POWER;UN65KU6000,FLAT CON |
| BN39-02219B | LEAD CONNECTOR-SUB ASSY;49KU6400,UL21016 |
| BN39-02220D | LEAD CONNECTOR-SUB ASSY;65KU6300,UL21016 |
|
|
NETWORK-WLAN CLIENT;WCK730B,USB 2.0,16P, |
|
|
PRODUCT LCD-INX;CY-GK065HGNV1V/H,KU6000, |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-007847 | R-CHIP;16KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-007720 | R-CHIP;300KOHM,1%,1/10W,TP,1608 |
| 2007-000726 | R-CHIP;300OHM,1%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000999 | R-CHIP;510OHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005 |
| 2007-008391 | R-CHIP;6.34KOHM,1%,1/16W,TP,1005 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-007723 | R-CHIP;75KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|
REMOCON-SMART CONTROL;2016 TV,SAMSUNG,13 |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S |
| 6003-000003 | SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(BLK),S |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;FH,+,S,M4,L10,ZPC(BLK),SWR |
| BN63-05199H | SHEET-COVER |
| 0203-001602 | TAPE-OPP MASKING |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000002 | TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN40-00321B | TUNER-DTV AIR CABLE;GVTH-6A21,GVTH-6A21, |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8MM,TP,25V,5 |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2.0X1.25MM,TP, |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V, |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1.6X0.8MM,TP,19 |
