Manufacturer
Samsung
Model Number
UN65TU8200FXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-18851A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33 |
| BN96-50451D | ASSEMBLY CHASSIS FRONT P;65UTU8000H,PC+ABS+E |
| BN96-50449B | ASSEMBLY COVER P-DECORATION;65UTU8000H,PC+AB |
| BN96-50807M | ASSEMBLY COVER P-REAR;65UTU8000,PC+ABS+ED20% |
| BN96-50313A | ASSEMBLY LED BAR P;20Y 65TU8000,ALUMINUM,LEF |
| BN96-50314A | ASSEMBLY LED BAR P;20Y 65TU8000,ALUMINUM,RIG |
| BN96-50289A | ASSEMBLY OPEN CELL;CSOT,65INCH,Y20 NEW EBL,S |
|
|

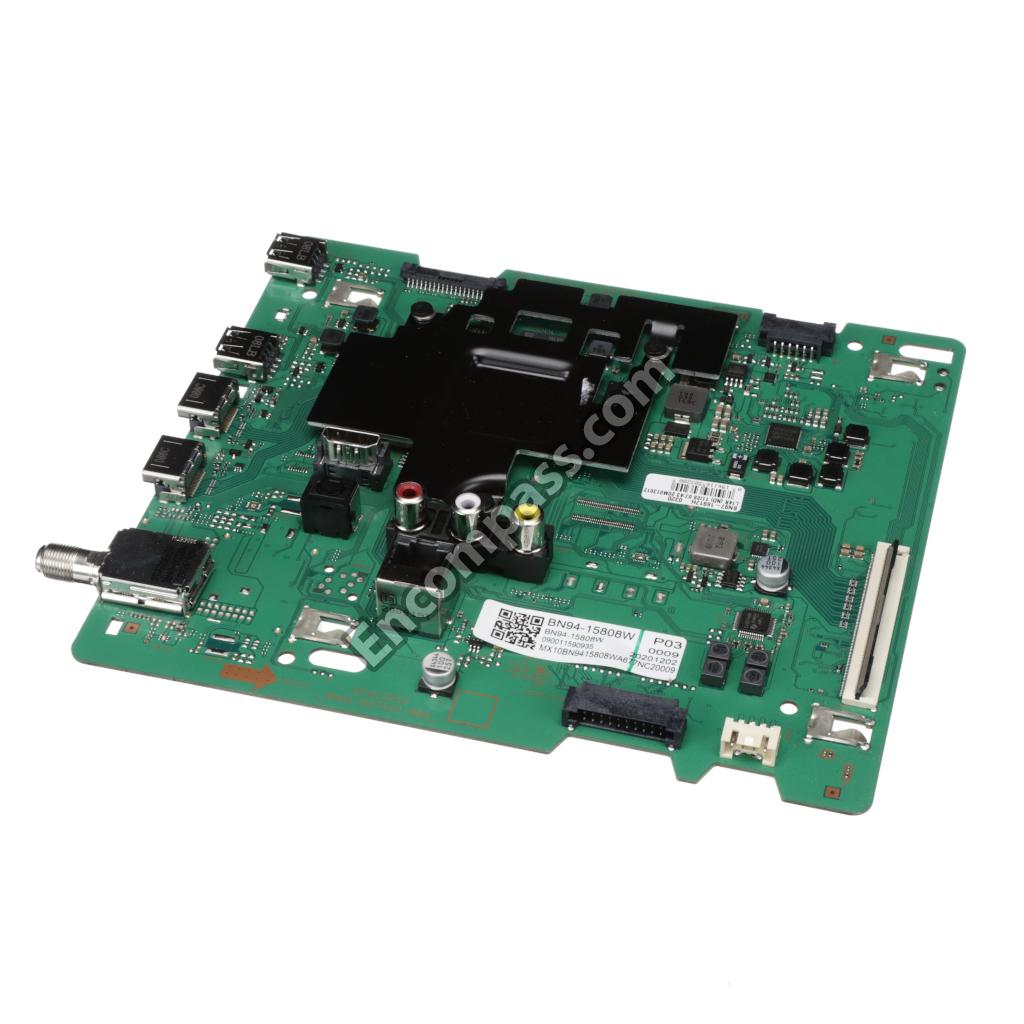

ASSEMBLY PCB MAIN;UTU8000H |
|
|
ASSEMBLY SPEAKER P-FRONT;TV-SPK,QET,2CH,6OHM |
|
|
ASSEMBLY STAND P-COVER TOP LEFT;65UTU8000H,P |
|
|
ASSEMBLY STAND P-COVER TOP RIGHT;65UTU8000H, |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557K | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001133 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| BN63-18718A | COVER-TERMINAL SIDE;65QTQ60F,PC+ABS,V-0, |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
|
|

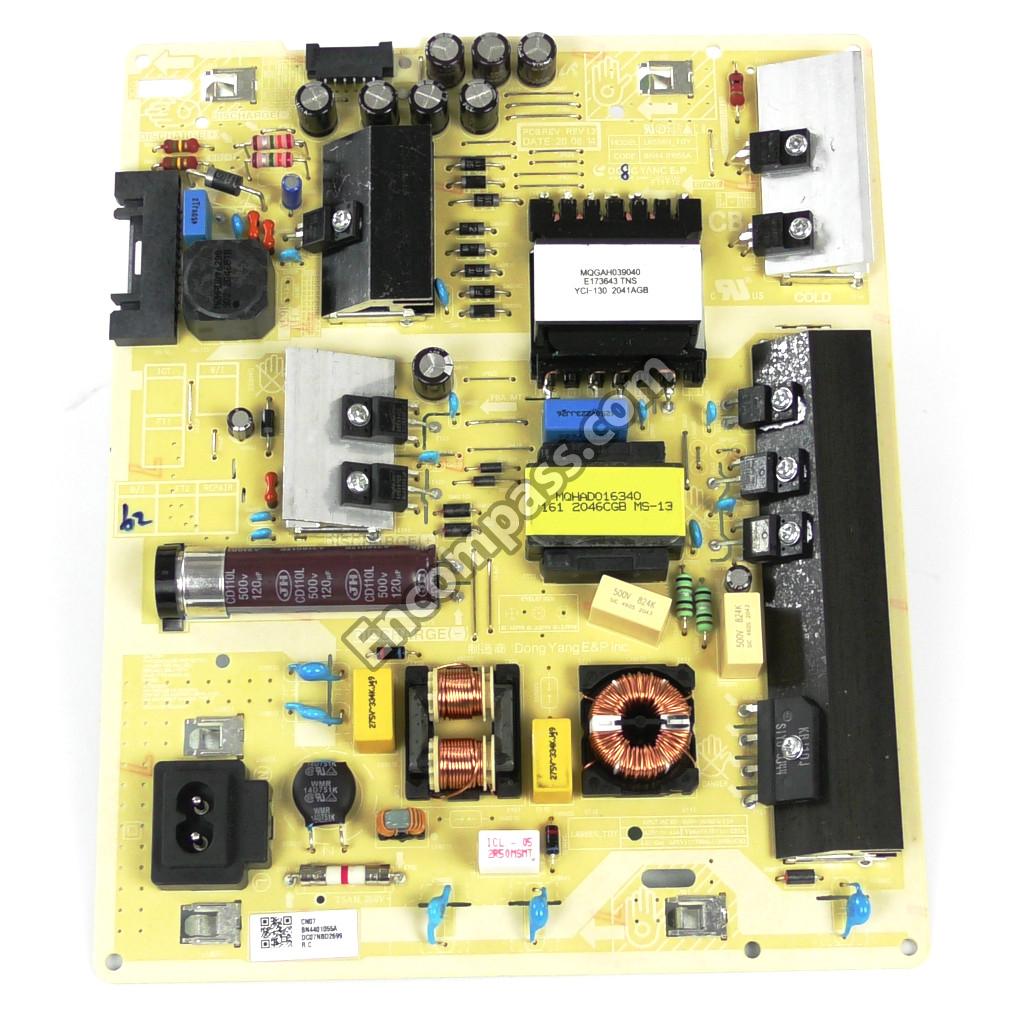

DC VSS-PD BOARD;L65S6N_TDY,AC/DC,192.5W, |
| BN61-16882A | DIFFUSER PLATE;20Y_TU7000_65INCH_DP,PS,T |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|
FFC;65/75NU8000,FOLD,L500,96P,- |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN62-00895A | HEAT SINK-PS;QN65Q60T,A1050,T1.5,W90,L10 |
| BN61-16080A | HOLDER-STAND CABLE;65QRQ60T,ABS,BK0007,H |
| 1201-004117 | IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU |
| 1203-009368 | IC-DC/DC CONVERTER;G5334DQT1U,QFN4X4-23, |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009196 | IC-DC/DC CONVERTER;TPS565201,SOT-23-THIN |
| 1203-009370 | IC-DC/DC CONVERTER;VPMS2SM,QFN,72P,8X8X0 |
| 1105-002853 | IC-DDR3 SDRAM;K4B4G1646E-BCNB,DDR3 2133, |
| 1105-002882 | IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR |
| 1204-003798 | IC-DECODER;SDP19403,FCPBGA,793P,27X27X1. |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004258 | IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-004195 | JACK-PIN;3P,NI/SN,RED/WHT/YEL,STRAIGHT |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02547A | LEAD CONNECTOR-BLU;65TU8000,UL21016,12P, |
| BN39-02217G | LEAD CONNECTOR-POWER;UN78KU6500,UL21016, |
|
|
LEAD CONNECTOR-SUB ASSEMBLY;UL21451,20P,L475 |
|
|

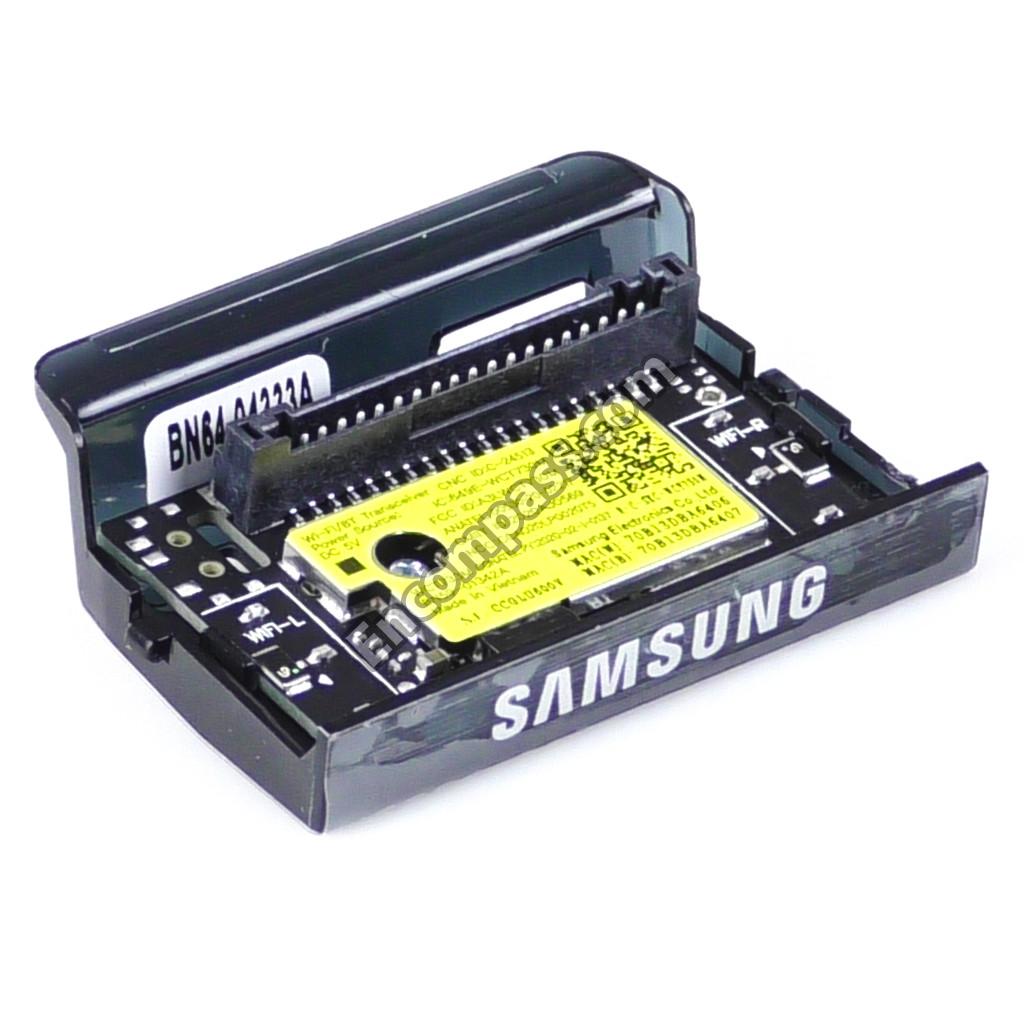

NETWORK-WLAN CLIENT;WCT733M,44.17X31.99X |
| BN61-16883A | OPTICAL SHEET-REFLECTOR;20Y_TU7000_65INC |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000101 | PRIMARY BATTERY ALKALINE;1.5V,1650MAH,LR |
| BN95-06378E | PRODUCT LCD-CSOT;CY-BT065HGHV3H/V,UTU800 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01330E | REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21 |
| 3601-001374 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-005057 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001288 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000744 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000168 | SMG PART |
| 2007-000146 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001200 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-007085 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 1103-001584 | SMG PART |
| 1107-002339 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005715 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-001962 | SMG PART |
| 6902-003068 | SMG PART |
| 6902-003269 | SMG PART |
| 6902-003299 | SMG PART |
| 6922-000013 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352A | SMG PART |
| BN02-00586C | SMG PART |
| BN02-00611A | SMG PART |
| BN41-02756C | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01158A | SMG PART |
| BN46-01178A | SMG PART |
| BN46-01182A | SMG PART |
| BN46-01240A | SMG PART |
| BN46-01256A | SMG PART |
| BN60-01656A | SMG PART |
| BN60-01661A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13520D | SMG PART |
| BN61-13557Q | SMG PART |
| BN61-16648B | SMG PART |
| BN61-16687A | SMG PART |
| BN61-16688A | SMG PART |
| BN61-16689A | SMG PART |
| BN61-16805A | SMG PART |
| BN61-16985A | SMG PART |
| BN61-17454A | SMG PART |
| BN63-17418A | SMG PART |
| BN63-17418G | SMG PART |
| BN63-18467C | SMG PART |
| BN63-18474B | SMG PART |
| BN63-18573A | SMG PART |
| BN63-18577A | SMG PART |
| BN63-18832A | SMG PART |
| BN63-19004A | SMG PART |
| BN64-04253A | SMG PART |
| BN64-04255B | SMG PART |
| BN64-04337A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-09371A | SMG PART |
| BN68-09932A | SMG PART |
| BN68-10517A | SMG PART |
| BN68-10628A | SMG PART |
| BN68-11235A | SMG PART |
| BN68-11264A | SMG PART |
| BN68-11282Q | SMG PART |
| BN68-11321A | SMG PART |
| BN68-11570A | SMG PART |
| BN69-17053Q | SMG PART |
| BN69-20258A | SMG PART |
| BN69-20259A | SMG PART |
| BN69-20260A | SMG PART |
| BN69-20586C | SMG PART |
| BN69-20587A | SMG PART |
| BN69-20641E | SMG PART |
| BN74-00053E | SMG PART |
| BN74-00053G | SMG PART |
| BN81-08159Z | SMG PART |
| BN81-17118T | SMG PART |
| BN81-18852A | SMG PART |
| BN81-18853A | SMG PART |
| BN81-18854A | SMG PART |
| BN81-18855A | SMG PART |
| BN81-18856A | SMG PART |
| BN90-11356A | SMG PART |
| BN90-11438A | SMG PART |
| BN90-11439E | SMG PART |
| BN90-11470C | SMG PART |
| BN91-00093H | SMG PART |
| BN91-22166D | SMG PART |
| BN92-27104T | SMG PART |
| BN92-27106P | SMG PART |
| BN92-27107W | SMG PART |
| BN92-27200W | SMG PART |
| BN96-49036X | SMG PART |
| BN96-49093C | SMG PART |
| BN96-49857A | SMG PART |
| BN96-50452A | SMG PART |
| BN96-50874E | SMG PART |
| BN96-51566A | SMG PART |
| BN96-51567A | SMG PART |
| BN97-16670A | SMG PART |
| BN97-16682A | SMG PART |
| BN97-16699A | SMG PART |
| BN97-16917H | SMG PART |
| BN97-17665A | SMG PART |
| BN97-17666A | SMG PART |
| BN02-00431B | TAPE SINGLE FACE;LFD OHD,PET,T0.05,W20,L |
| 0203-001598 | TAPE-SINGLE FACE;PP,T0.15,W12,N/A,CLEAR |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
