Model Image
Manufacturer

Samsung

Model Number

UN70TU7000BXZA

Description

70-inch Class Tu7000 Crystal Uhd 4k Smart Tv

Interactive Exploded View

Parts List

Part Number Description
BN81-21329A A/S OPEN CELL-A/S-POLARIZER-C/F;A/S-POLA
BN81-21330A A/S OPEN CELL-A/S-POLARIZER-TFT;A/S-POLA
BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC SPEC-C
BN81-19009T A/S PART SET-MECH W/I;UTU7000K,U70TM*
BN81-19626A A/S-ADHESIVE-A.C.F;ACF-SPCB SIDE,QCNC-00
BN81-22228A A/S-AL CAP_SVC;AL-CAP,SAMWHA, LQ1E477M10
BN81-19975A A/S-FPC (XL-XC-XR);FPC (XL-XC-XR),QPWBM0
BN81-21992A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,VH
BN81-19625A A/S-OPEN CELL-ADHESIVE ACF;OPEN CELL-ADH
BN96-51607T ASSY ACCESSORY MANUAL CABLE;UTU7000K
BN92-28383T ASSY ACCESSORY;UTU7000K
BN90-11351D ASSY BACK LIGHT UNIT;70UTU7000K
BN92-27563L ASSY BOX;UTU7000K
BN96-52091A ASSY CHASSIS REAR P;70UTU7000K,EGI-SECC,
BN91-22871D ASSY CHASSIS;UTU7000K
BN96-52085A ASSY COVER P-DECORATION;70UTU7000K,PC+AB
BN96-50853T ASSY COVER P-REAR;70UTU7000K,PC+ABS+ED20
BN90-11697V ASSY COVER REAR;UTU7000K
BN97-18305A ASSY DRM;KANT-SU2E BUILT-IN,ATSC,NAGSAM,
BN96-52092A ASSY FRAME P-MIDDLE BOTTOM;70UTU7000K,PC
BN96-52093A ASSY FRAME P-MIDDLE TOP;70UTU7000K,PC+GF
BN92-27377V ASSY LABEL;UTU7000K
BN96-52063A ASSY LED BAR P;20Y 70TU7000,ALUMINUM,LEF
BN96-52065A ASSY LED BAR P;20Y 70TU7000,ALUMINUM,RIG
BN97-18319A ASSY MICOM-KUEMICOM_INTV;KANT-SU2E BUILT
BN97-18341A ASSY MICOM-TCON DATA;COMMON,KANT-SU2E
BN97-18318A ASSY MICOM-TCON F/W;KANT-SU2E BUILT-IN,1
BN97-18992A ASSY MICOM;KLM8G1GETF-B041007,T-KTSU2EAK
BN96-53610A ASSY OPEN CELL;SDP,70INCH,Y21 EC,JE695R3
BN92-29661S ASSY P/MATERIAL;UTU6900T
BN96-55228A ASSY PACKING P-CUSHION SET;Y22
BN96-50874L ASSY PACKING P-PAD;70UTU7000K,PET,70" SD

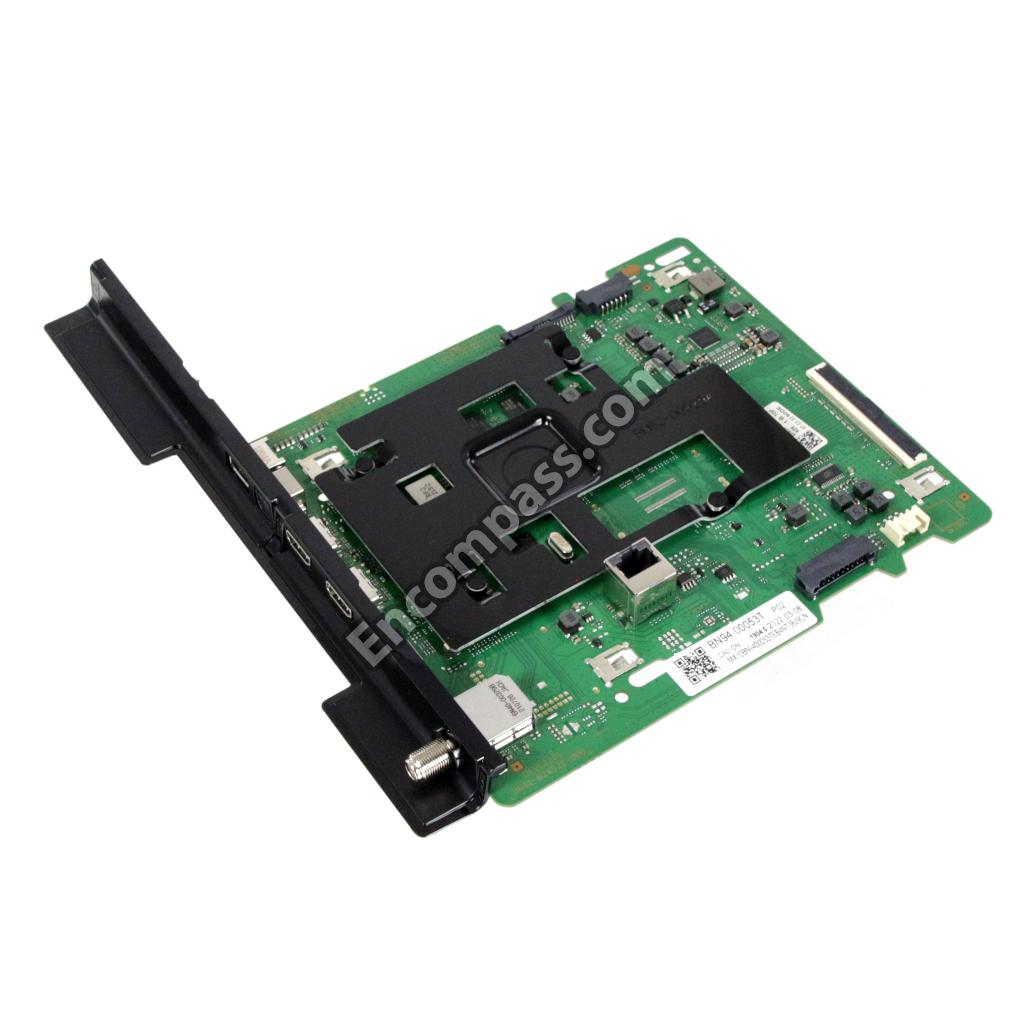

BN94-00053T BN94-00053T ASSY PCB MAIN;AU7000C
BN91-22500T ASSY SHIELD;UTU7000K
BN97-00068J ASSY SMD;AU7000C

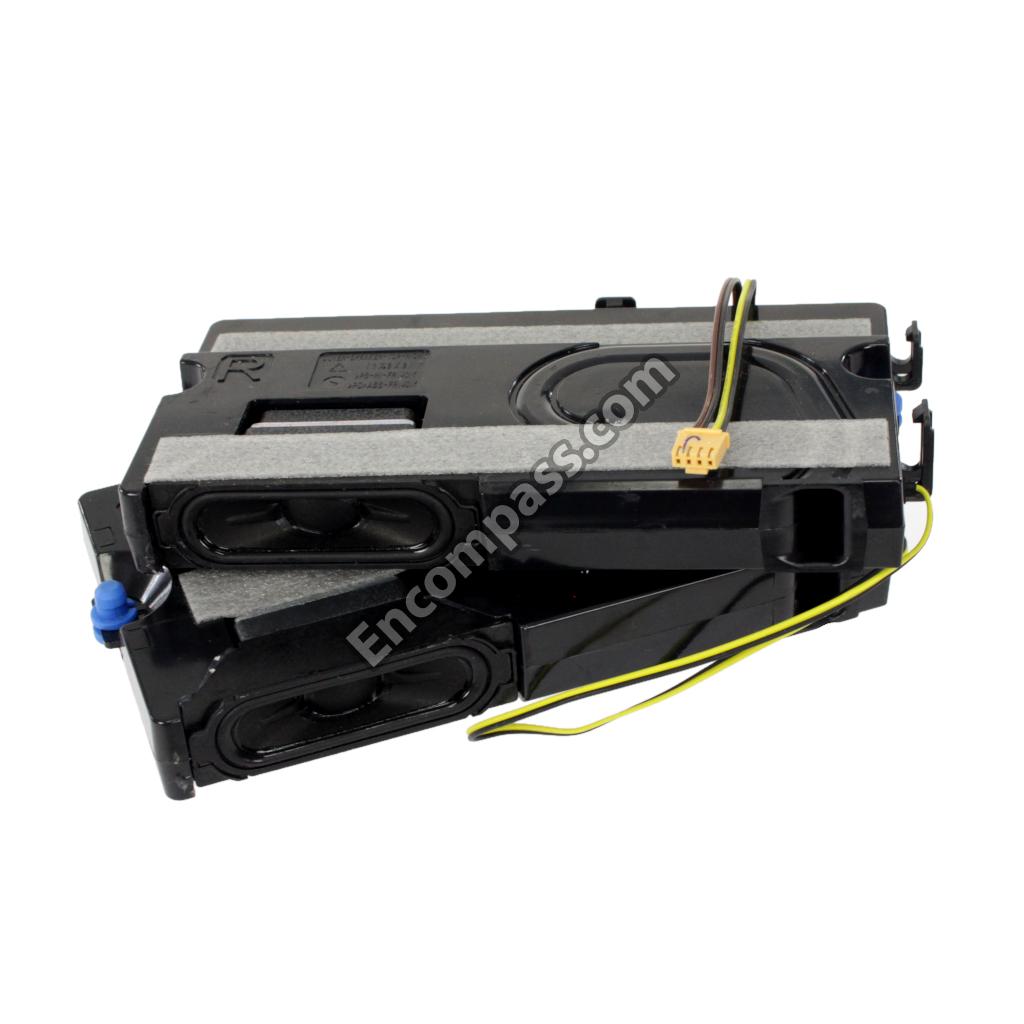

BN96-49998F BN96-49998F ASSY SPEAKER P-FRONT;TV-SPK,QET,2CH,6OHM
BN96-50860C ASSY STAND P-COVER TOP LEFT;75UTU6900T,P
BN96-50862A BN96-50862A ASSY STAND P-COVER TOP RIGHT;75UTU7000K,

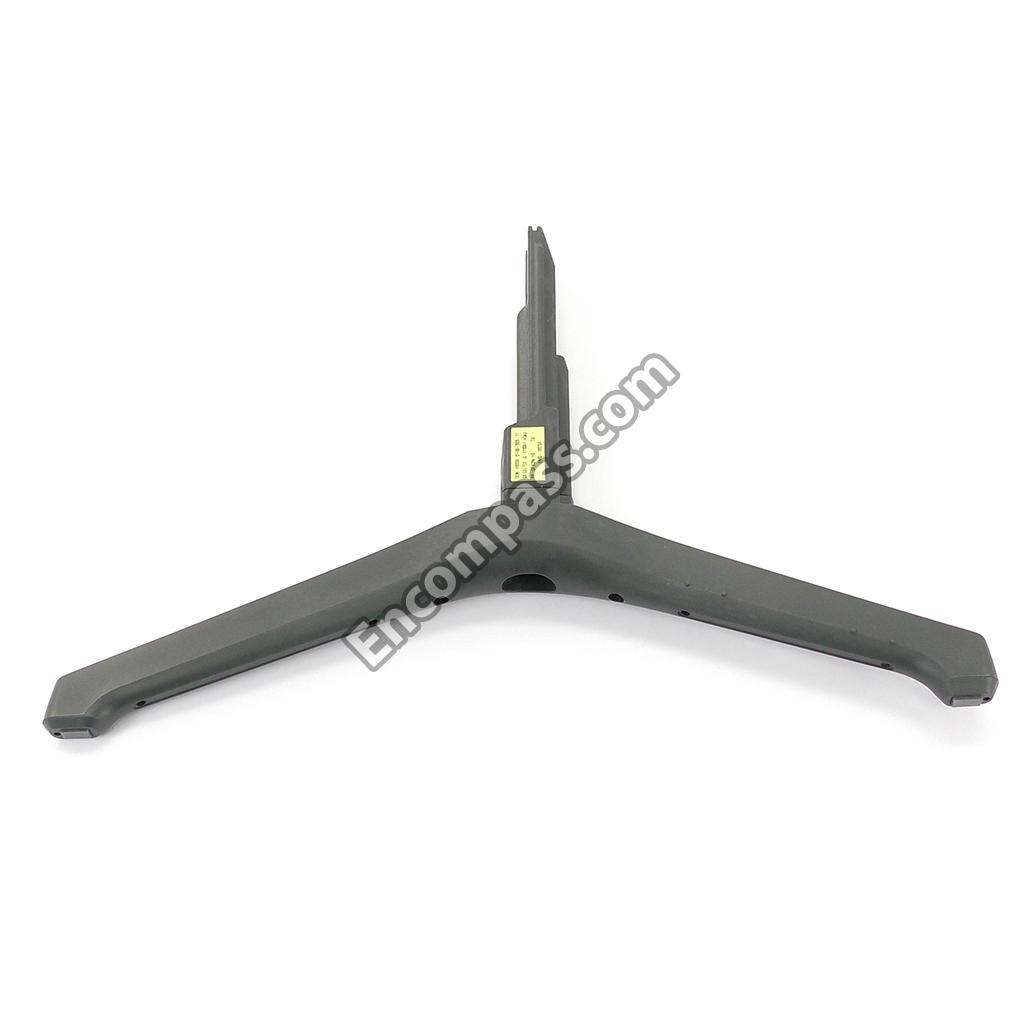

BN90-11522E ASSY STAND;UTU6900T
BN90-11425X ASSY W/I;UTU7000K
6902-003301 BAG ACCESSORY;LDPE,T0.06,W400,L320,TRP,R
6902-001962 BAG PE;LDPE,BIOBASED,T0.05,W400,L300,TRP
6902-003721 BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W1800,
6922-000421 BAND;PP,T0.8,W18,L2300,TRP,RECYCLED PIR_
6922-000001 BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50%
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
BN69-20754A BOX UNIT-IN;70UTU8000H,CB,DW1,C1,L2060,W
BN69-21781E BOX UNIT-OUT;UN70TU7000BXZA,CB,DW4,F3,L1
BN61-13312B BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3,
BN61-11982B BRACKET-WALL;65MU8000,CR-SPCC,NATURAL,M8
BN61-13557L BRACKET-WIRE;40KU6400,SW-C,T1,NATURAL,ZI
BN61-13557X BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L
BN61-13557P BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T
2203-007176 C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007423 C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-006460 C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,55
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-000627 C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5,
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-008412 C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1.
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343
BN64-04472A CHASSIS-FRONT;70UTU7000K,PC+ABS+ED18%,V-
BN64-04471A CHASSIS-REAR;70UTU7000K,EGI-SECC,T0.8,NA
3708-003241 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-009106 CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN
3707-001143 CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2
BN63-19205A COVER-DECORATION;70UTU7000K,PC+ABS+ED18%
BN63-19204A COVER-REAR;70UTU7000K,PC+ABS+ED20%,T2.5,
BN63-18878A COVER-STAND TOP LEFT;75UTU7000K,PP+GF40%
BN63-18879A COVER-STAND TOP RIGHT;75UTU7000K,PP+GF40
BN63-19472H COVER-TERMINAL SIDE;43AU7000C,PC+ABS,V-0
2801-003773 CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH
BN69-20802A CUSHION-SET FRONT;70UTU7000K,EPS,16.7G/L
BN69-23263A CUSHION-SET SIDE;70UTU7000,EPS,16.7G/L,W
BN69-23262A CUSHION-SET;70UTU7000,EPS,16.7G/L,WHITE
BN44-01056A BN44-01056A DC VSS-PD BOARD;L75S6N_THS,AC/DC,235W,AC
BN61-17401A DIFFUSER PLATE;20Y_70INCH_TU7000(SDP)_DP
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO
0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD
0403-001779 DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M
0403-001785 DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW
0403-002067 DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30
0204-006855 ETHANOL;CS-E-14,GRAVITY 0.8,DENSITY 1.59
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-003391 FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-003752 FET-SILICON;AONR21321,P,30V,50A,0.035OHM
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
BN96-39820H BN96-39820H FFC;65/75NU8000,FOLD,L500,96P,
2901-001506 FILTER-EMI SMD;5V,0.13A,0PF,2.0X1.0X0.5M
BN61-13520D FOOT-RUBBER;40K5500,SI,GRAY,T3
BN61-17381A FRAME-MIDDLE BOTTOM;70UTU7000K,PC+GF10%,
BN61-17382A FRAME-MIDDLE LEFT RIGHT;70UTU7000K,PC+GF
BN61-17380A FRAME-MIDDLE TOP;70UTU7000K,PC+GF10%,V-2
BN63-00520A GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L
6302-001376 GASKET-SMD;SMT GASKET,SI,T6,W4.5,L2.5,SI
3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN62-00925A HEAT SINK-PS;AU7000,A1050,T1.5,W140,L100
BN61-16648B HOLDER-SOURCE PCB;65UTU7000K,PC,T1,BLACK
1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
1201-004366 IC-AUDIO AMP;AD82120,TP,9.8X6.5X1.2MM,4
1203-008917 IC-DC/DC CONVERTER;G5334CQT1U,QFN4,23P,4
1203-009729 IC-DC/DC CONVERTER;JW5357M,6P,SOT23-6,TP
1203-009494 IC-DC/DC CONVERTER;VPMS3SM,72P,QFN,TP,8X
1105-003102 IC-DDR4 SDRAM
1204-003819 IC-DECODER;SDP20405,TR,22.8X22.5X1.49MM,
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP
1107-002590 IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1
1107-002768 IC-NOR FLASH;EN25Q40B-104HIP2X,SOP,8P,TP
1201-004368 IC-OP AMP;LV358G-S08-R,SOP-8,8P,TP,3.95X
1203-009643 IC-POSI.ADJUST REG.;ET5A0ADJY2B,6P,DFN6,
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1203-009590 IC-VOL. DETECTOR;G623AF11U,8P,TP,TP,4.9X
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-005192 INDUCTOR-SMD;4.7UH,20%,6060,T4.5,0.036OH
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
2703-005715 INDUCTOR-SMD;820NH,20%,11X10MM,T3.8,0.00
BN64-04570H INLAY-TERMINAL SIDE;65UTU7000K,PET,T0.12
BN63-18836A INSULATOR-SMPS;82TU8000,PC,BLACK,L290,W2
BN63-19004A INSULATOR-SOURCE PCB;65UTU7000K,PC,BLACK
3722-003229 JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL
BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2)
BN46-01516A KEY CODE;KANT-SU2E,NAGRA CSC DATA,T-KTSU
BH68-00697A LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9
BN68-04746A LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER,
BN68-05595A LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W
BN68-09932A LABEL WARNING;ALL MODEL,ART,W40,L74,90G,
BN68-02422B LABEL WARNING;ALL,ART,T0.05,W240,L100,WH
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W
BN68-11312A LABEL-ENERGY;UN70TU7000BXZA,ZA,PET,T0.1,
BN68-06708G LABEL-RATING;ALL,WW,PP,T0.1,W93,L73,DARK
BN68-11570A LABEL-STICKER;UF6P,ART,T0.08,W14,L27,WHI
BN68-05381A LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI
BN39-02546A LEAD CONNECTOR-BLU;70TU8000,UL21016,12P,
BN39-02217F BN39-02217F LEAD CONNECTOR-POWER;70KU6000,UL21016,12
BN39-02601A BN39-02601A LEAD CONNECTOR-SUB ASSY;UL21451,20P,L475
BN68-10310A LEAFLET-PROMOTION;QLED TV, TU8500, TU800
BN68-12980A LEAFLET-PROMOTION;Y21 SOUNDBAR (A,S SERI
BN68-11263G LEAFLET-QUICK SETUP GUIDE;UTU6900T(43-55
BN68-09371B LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-11320A LEAFLET-REMOTE CONTROL;TU7000,ZA,USA,MOJ
BN68-10628A LEAFLET-WARRANTY;QT/UT,ZA,MOJO,1 COLOR,1
BN68-11264A MANUAL USERS;UTU7000K TU6900F,ZA,USA,MOJ
BN59-01341B BN59-01341B NETWORK-WLAN CLIENT;WCT734M,44.17X31.99X
BN61-17399A OPTICAL SHEET-COMPLEX;20Y_70INCH_TU7000(
BN61-17400A OPTICAL SHEET-REFLECTOR;20Y_70INCH_TU700
BN69-17053D PACKING ANGLE;ALL,PAPER,T3,W2000,L50,YEL
BN69-20641N PAD-SHEET;70UTU7000,PET,T3.8,W70,L880,WH
BN41-02992A PCB-MAIN;AU7000(BU7000),FR-4,2L,T1.2,193
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-07681A PRODUCT LCD-SDP;CY-BT070HGSV4H/V,UTU7000
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-009853 R-CHIP;1.6KOHM,1%,1/16W,TP,1005
2007-000475 R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-000501 R-CHIP;2.2OHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-007520 R-CHIP;20OHM,1%,1/10W,TP,1608
2007-000614 R-CHIP;24KOHM,1%,1/10W,TP,1608
2007-000637 R-CHIP;270KOHM,5%,1/10W,TP,1608
2007-002437 R-CHIP;2OHM,5%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000946 R-CHIP;47OHM,1%,1/10W,TP,1608
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-008026 R-CHIP;56OHM,1%,1/16W,TP,1005,T0.35
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
BN59-01315J BN59-01315J REMOCON-TV;2020 TV,SAMSUNG,44KEY,3.0V,US
BN46-01592A S/W MICOM;COMMON,KANT-SU2E,AU7000
BN46-01758A S/W-MODEL;UTU7000_KA,KANT-SU2E,UTU7000K,
BN63-17418G SHEET-PROTECTION COVER;HW-NW700,PO,T0.05
BN63-17418A SHEET-PROTECTION COVER;Q7F,PO,T0.05,W6,L
BN63-17418N SHEET-PROTECTION COVER;QTQ60F,PO,T0.05,W
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
BN60-01655A SPACER-CONDUCTIVE;CONDUCTIVE FABRIC/PU F
BN60-01661A SPACER-FABRIC;CONDUCTIVE FABRIC,L20,GRAY
BN61-16805B STUD-PEM;65QAQ60G,SUM24L,L11.7,BLACK
BN61-16985A SUPPORT-PLATE;65TU8000,PC,V-2,CLEAR
BN02-00586C TAPE DOUBLE FACE;TU7000,ACRYL,T0.3,W3,L1
BN02-00431B TAPE SINGLE FACE;LFD OHD,PET,T0.05,W20,L
BN02-00611A TAPE-DOUBLE FACE;PU FOAM,T0.5,W3.2,N/A,B
BN02-00102K TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL
BN02-00319B TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE
BN02-00102B TAPE-SINGLE FACE;OPP,T0.15,W25,L100M,WHI
BN74-00053G TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10,
BN74-00053E TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W20,
BN02-00352B TAPE-SINGLE FACE;PET,T0.05,W30,L50M,BLAC
1404-001731 THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
BN40-00329B BN40-00329B TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4
1405-001452 VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
BH69-00418A WRAP;762,1828M,SAMEX FACTORY
Main Menu x
