Manufacturer
Samsung
Model Number
UN75AU8000BXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-18879A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33 |
| BN96-52849A | ASSEMBLY CHASSIS FRONT P-BOTTOM;75QAQ60G,PC+ |
| BN96-52780A | ASSEMBLY CHASSIS FRONT P;75QAQ60G,PC+ABS+ED1 |
| BN96-52842B | ASSEMBLY CHASSIS REAR P;75AU8000B,EGI-SECC,N |
| BN96-52862A | ASSEMBLY COVER P-DECORATION;75QAQ60G,PC+ABS+ |
| BN96-55430T | ASSEMBLY COVER P-REAR;75QAQ60G,PC+ABS+ED20%, |
| BN96-52594A | ASSEMBLY LED BAR P;21Y AU8500,ALUMINUM |
| BN96-50288A | ASSEMBLY OPEN CELL;CSOT,75INCH,Y20 NEW,ST746 |
|
|

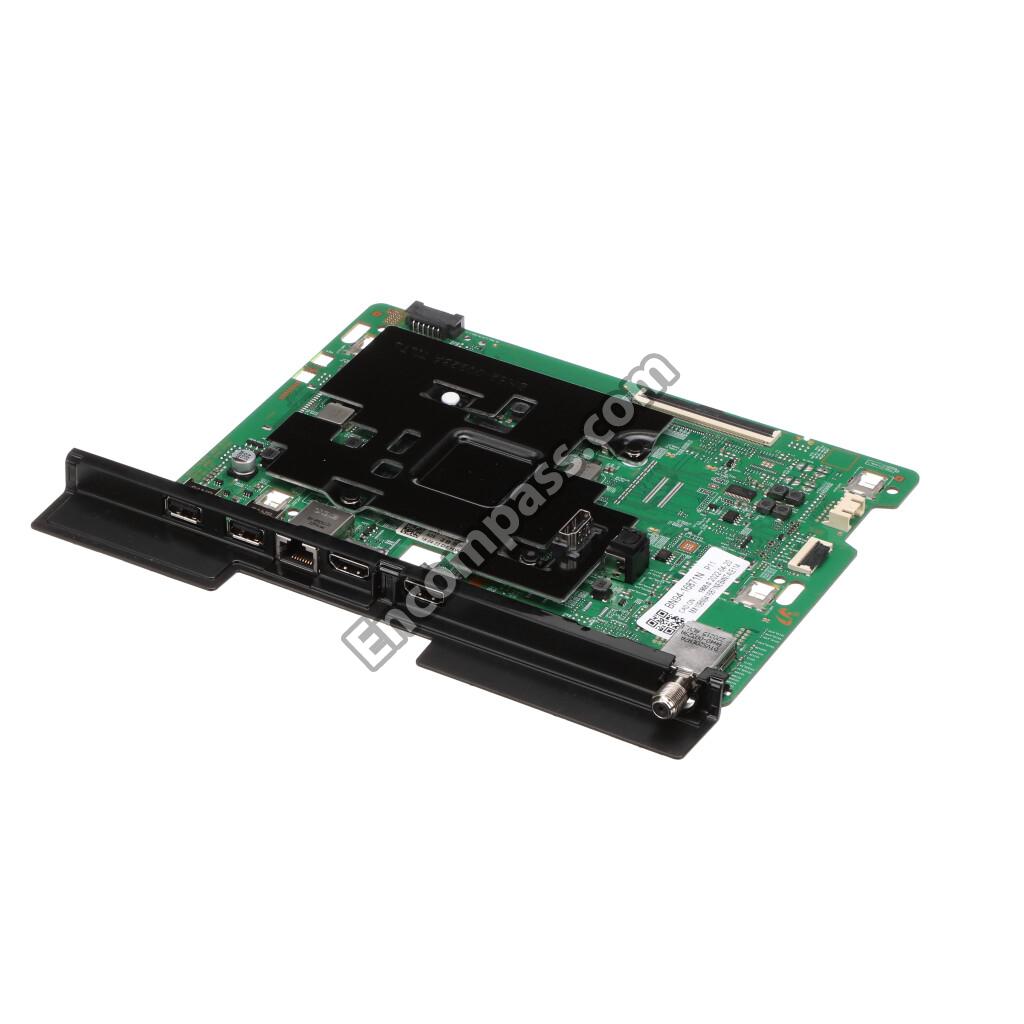

ASSEMBLY PCB MAIN;AU8000B |
|
|
ASSEMBLY SPEAKER P-FRONT;TV-SPK,75Q60A,2CH,6 |
| BN96-52713A | ASSEMBLY STAND P-COVER TOP;75AU8000B,PP+GF40 |
| 6902-003682 | BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W2000, |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557E | BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI |
| BN61-13557R | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L25 |
| BN61-13557M | BRACKET-WIRE;75QM7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3707-001133 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| BN63-19296A | COVER-TERMINAL SIDE;65QAQ60G,PC+ABS,V-0, |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
|
|

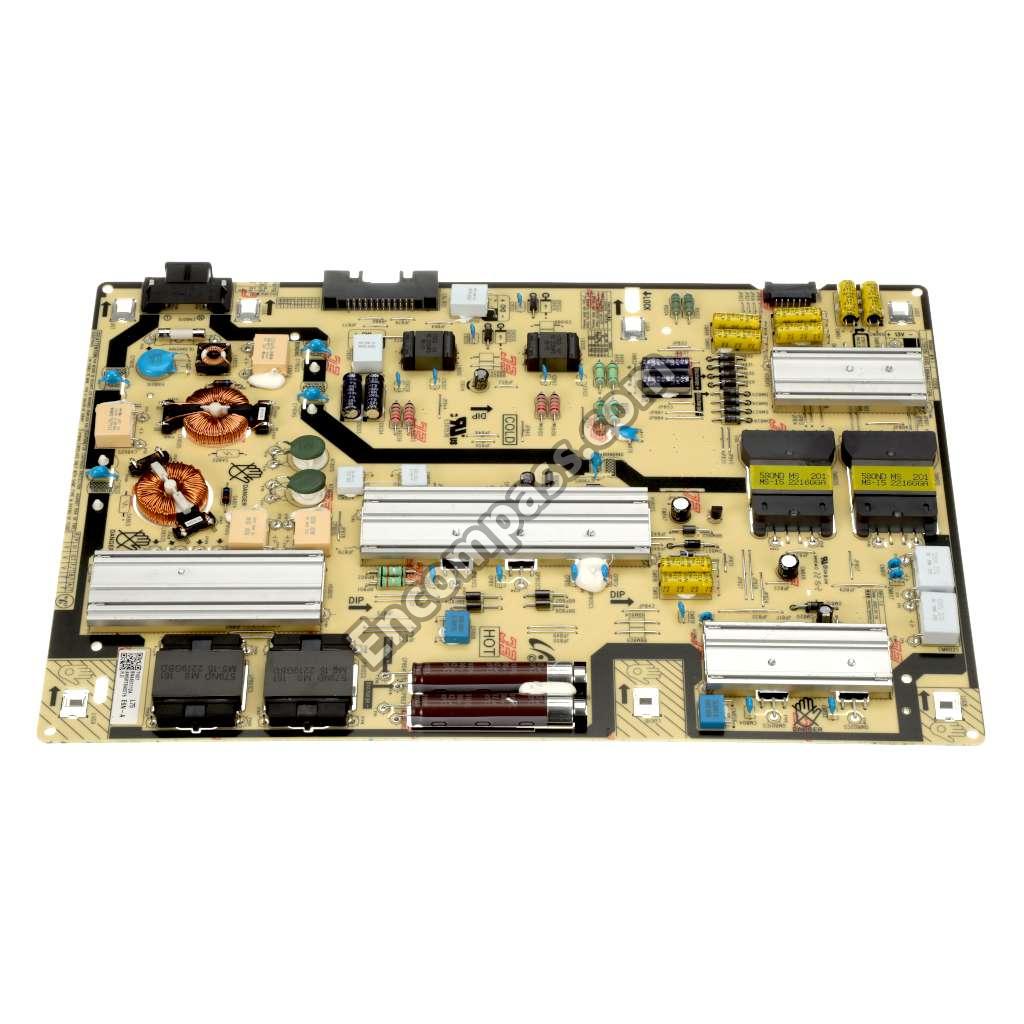

DC VSS-PD BOARD;L75E6N_AHS,AC/DC,256.6W, |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|

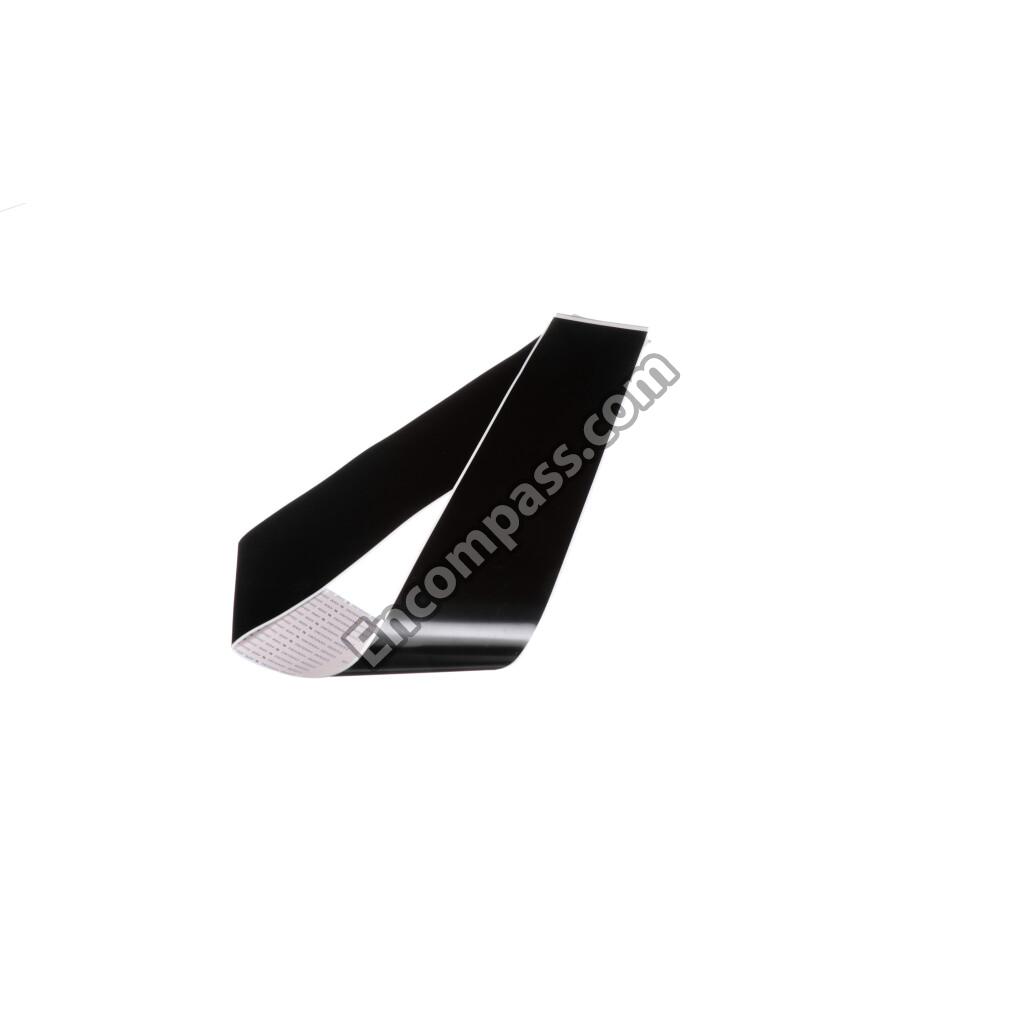

FFC;75Q60A,FOLD,L650,96P |
| BN96-52806A | FFC;75Q60A,FOLD,L750,24P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-17482A | HOLDER-SHEET;65QAQ60G,STS304,T0.2,NATURA |
| BN61-16080A | HOLDER-STAND CABLE;65QRQ60T,ABS,BK0007,H |
| 1201-004305 | IC-AUDIO AMP;TAS5807M,TP,9.7X4.4X1.2MM,- |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009502 | IC-DC/DC CONVERTER;TPS563202,6P,SOT563,T |
| 1203-009377 | IC-DC/DC CONVERTER;TPS56C230,VQFN,20P,3X |
| 1203-009495 | IC-DC/DC CONVERTER;VPMS3GM,72P,QFN,TP,8X |
| 1105-002993 | IC-DDR3 SDRAM;H5TQ4G63EFR-TEC,DDR3-SDRAM |
| 1105-002925 | IC-DDR4 SDRAM;H9HCNNN8KUMLHR,LPDDR4-SDRA |
| 1204-003818 | IC-DECODER;SDP19403,TR,27X27X1.78MM,-10T |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004258 | IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02676A | LEAD CONNECTOR-BLU;75Q60A,UL21016,12P,L1 |
|
|
LEAD CONNECTOR-POWER;70KU6000,UL21016,12 |
| BN61-17770A | LGP;Y21_AU8.5K8K_75INCH_LGP,PMMA,T2.5 |
|
|
NETWORK-WLAN CLIENT;WCA734M,90.83X20.94X |
| BN61-17768A | OPTICAL SHEET-COMPLEX;21Y_AU9K 8K_75INCH |
| BN61-17769A | OPTICAL SHEET-DIFFUSER;21Y_AU9K 8K_75INC |
| BN61-17760A | OPTICAL SHEET-REFLECTOR;Y21_AU9K8K_75INC |
| BN69-22276F | PAD-SHEET;75QAQ60G,PET,T3.2,W70,L936,WHI |
| 3903-001295 | POWER CORD-DT;USA,2P-F,125V,7A,BLK,L2400 |
| 4301-000103 | PRIMARY BATTERY ALKALINE;1.5V,750MAH,LR0 |
| BN95-07645A | PRODUCT LCD-CSOT;CY-SA075HGHV1H/V,AU8000 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01363M | REMOCON-SMART CONTROL;2021 TV,SAMSUNG,21 |
| 3601-001374 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000278 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000168 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-001085 | SMG PART |
| 0203-007086 | SMG PART |
| 0203-007142 | SMG PART |
| 0203-007235 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005715 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003068 | SMG PART |
| 6902-003524 | SMG PART |
| 6902-003537 | SMG PART |
| 6922-000421 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352A | SMG PART |
| BN41-02844A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01158A | SMG PART |
| BN46-01508A | SMG PART |
| BN46-01755A | SMG PART |
| BN60-00162X | SMG PART |
| BN60-01656A | SMG PART |
| BN60-01661A | SMG PART |
| BN60-01671C | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13520D | SMG PART |
| BN61-16805B | SMG PART |
| BN61-17485A | SMG PART |
| BN61-17487A | SMG PART |
| BN61-17488B | SMG PART |
| BN61-17489B | SMG PART |
| BN61-17496A | SMG PART |
| BN61-17564A | SMG PART |
| BN61-17922A | SMG PART |
| BN62-00923A | SMG PART |
| BN63-19280A | SMG PART |
| BN63-19290A | SMG PART |
| BN63-19340A | SMG PART |
| BN63-19568A | SMG PART |
| BN63-19568B | SMG PART |
| BN63-19568C | SMG PART |
| BN63-19570A | SMG PART |
| BN64-04499A | SMG PART |
| BN64-04504A | SMG PART |
| BN64-04516A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-09371B | SMG PART |
| BN68-09671G | SMG PART |
| BN68-10628A | SMG PART |
| BN68-11503D | SMG PART |
| BN68-11876A | SMG PART |
| BN68-12302A | SMG PART |
| BN68-12940A | SMG PART |
| BN69-17053P | SMG PART |
| BN69-21881B | SMG PART |
| BN69-21916A | SMG PART |
| BN69-21927A | SMG PART |
| BN69-22251S | SMG PART |
| BN69-22256A | SMG PART |
| BN74-00053G | SMG PART |
| BN81-08159Z | SMG PART |
| BN81-18880A | SMG PART |
| BN81-18881A | SMG PART |
| BN81-18882A | SMG PART |
| BN81-18883A | SMG PART |
| BN81-18884A | SMG PART |
| BN81-20468Y | SMG PART |
| BN90-00133M | SMG PART |
| BN90-12058H | SMG PART |
| BN90-12108R | SMG PART |
| BN90-12109A | SMG PART |
| BN91-23227X | SMG PART |
| BN91-23288X | SMG PART |
| BN92-30025K | SMG PART |
| BN92-30030C | SMG PART |
| BN92-30285J | SMG PART |
| BN92-30311G | SMG PART |
| BN96-49093C | SMG PART |
| BN96-49889U | SMG PART |
| BN96-51422Z | SMG PART |
| BN96-53189C | SMG PART |
| BN97-16699A | SMG PART |
| BN97-18139A | SMG PART |
| BN97-18177A | SMG PART |
| BN97-18186A | SMG PART |
| BN97-18264A | SMG PART |
| BN97-18849A | SMG PART |
| 0203-001598 | TAPE-SINGLE FACE;PP,T0.15,W12,N/A,CLEAR |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
