Manufacturer
Samsung
Model Number
UN75F6400AFXZA
Description

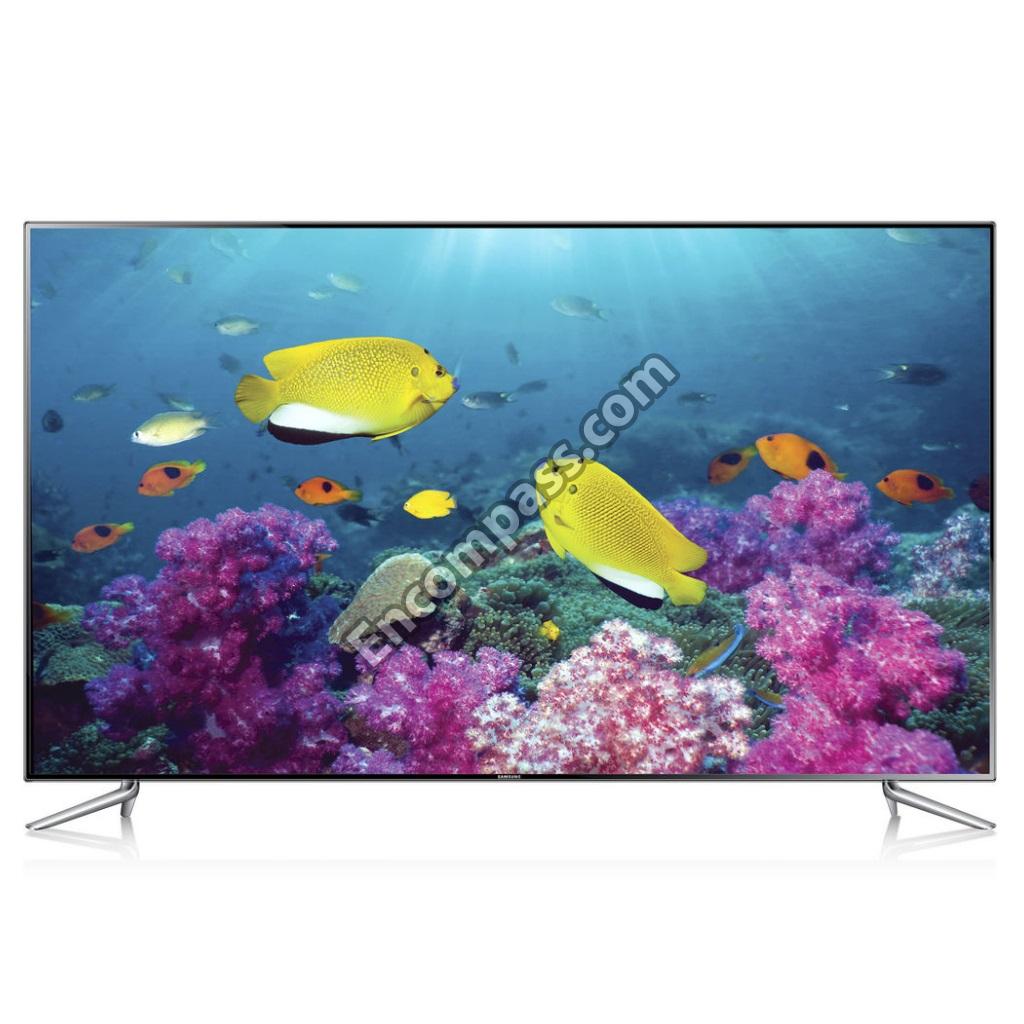

75-inch Full Hd Smart 3d Led Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY ACCESSORY-3D GLASSES;SSG-5150GB,IN |
|
|

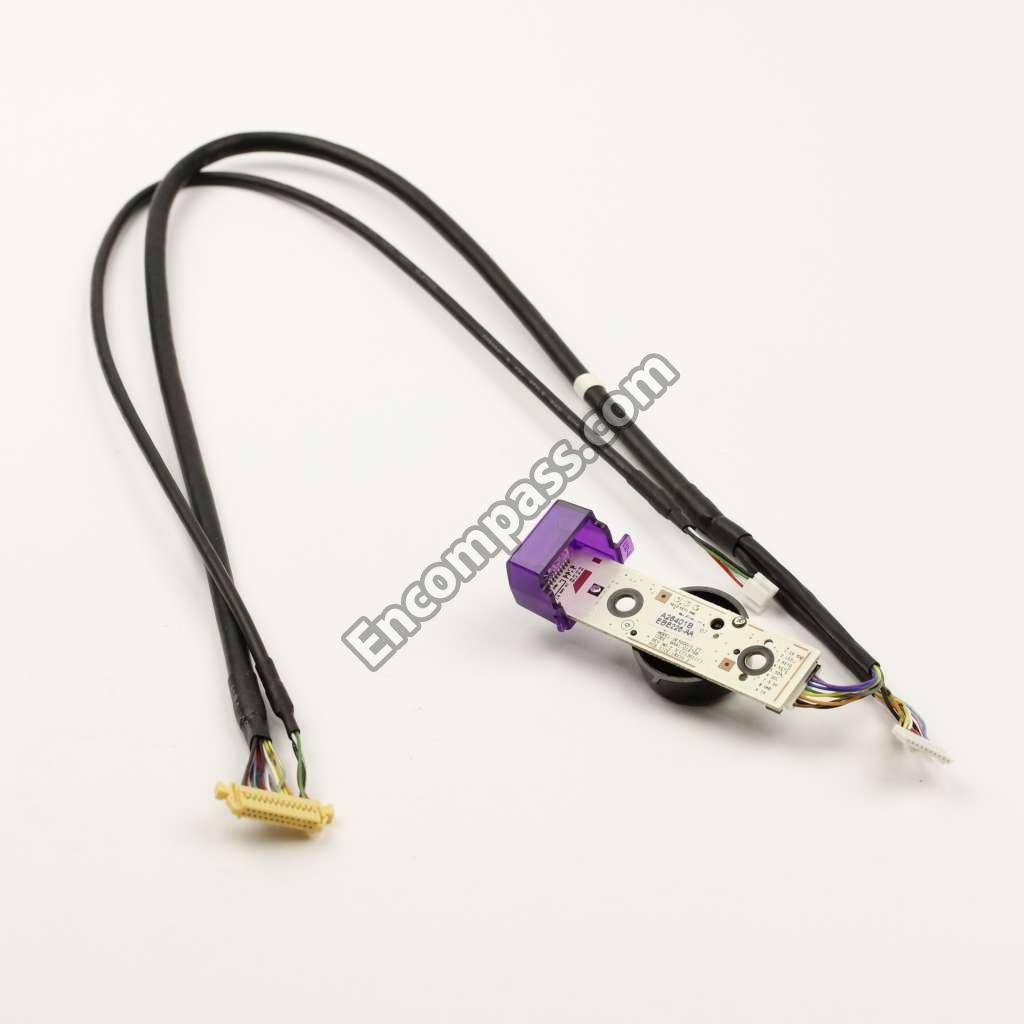

ASSY BOARD P-FUNCTION JOG;UN75F7200,1299 |
| BN96-24180C | ASSY CHASSIS FRONT P;Y13 VNB 75INCH,PC+A |
| BN96-27103B | ASSY COVER P-MIDDLE;UF6400 75,PC/PC+ABS, |
| BN96-27104G | ASSY COVER P-REAR;UF6400 75,PCM,0.4,BLAC |
|
|
ASSY HOLDER P-RING;11 LED-TV,ABS,BLACK,H |
| BN96-26413B | ASSY LED BAR P;75INCH SLIM DIR,CEM3,PKG6 |
| BN96-26413C | ASSY LED BAR P;75INCH SLIM DIR,CEM3,PKG9 |
| CALL_1-800-SAMSUNG | ASSY LED BAR P;75INCH SLIM DIR,CEM3,PKG9 |
| BN96-30030A | ASSY OPEN CELL;SDC,75INCH,Y2013 CHANGE M |
|
|

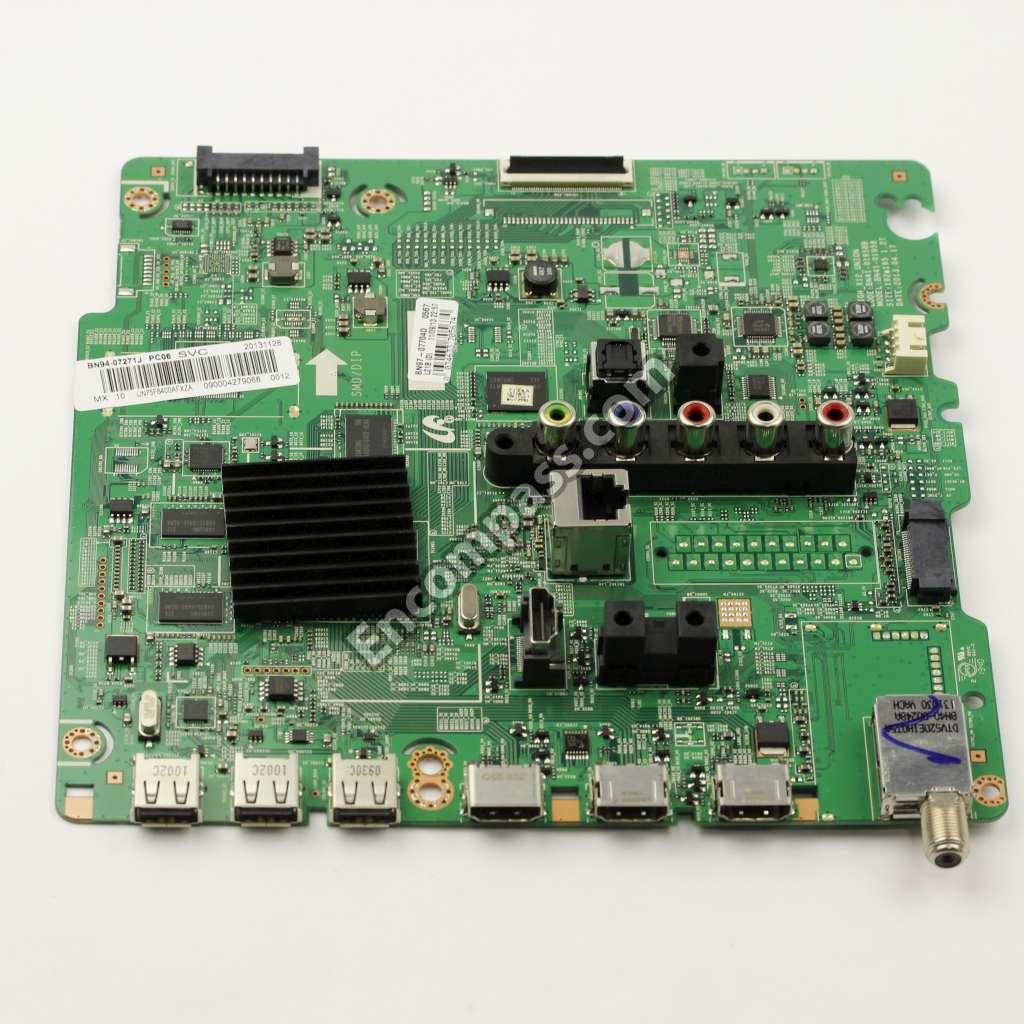

ASSY PCB MAIN;UN75F6400AFXZA |
|
|
ASSY SPEAKER P-FRONT;6OHM,15 |
|
|

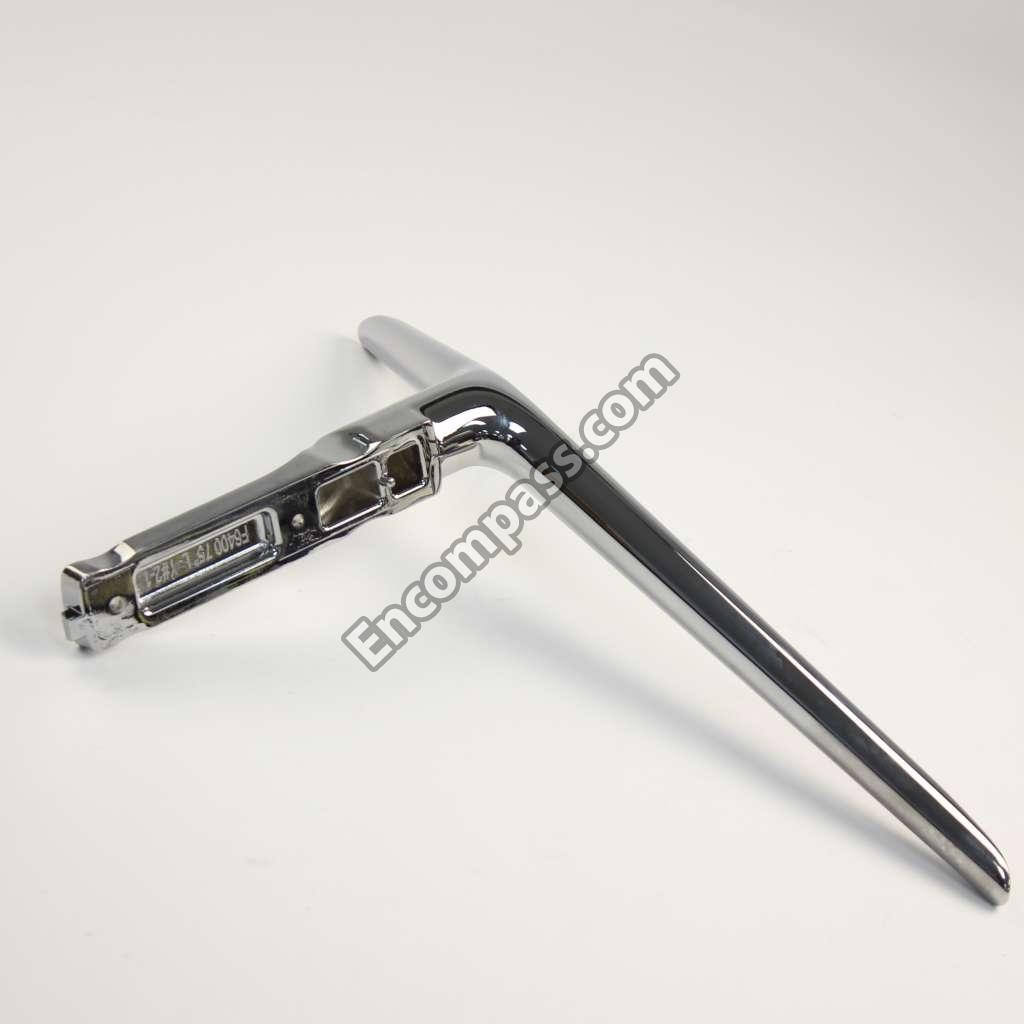

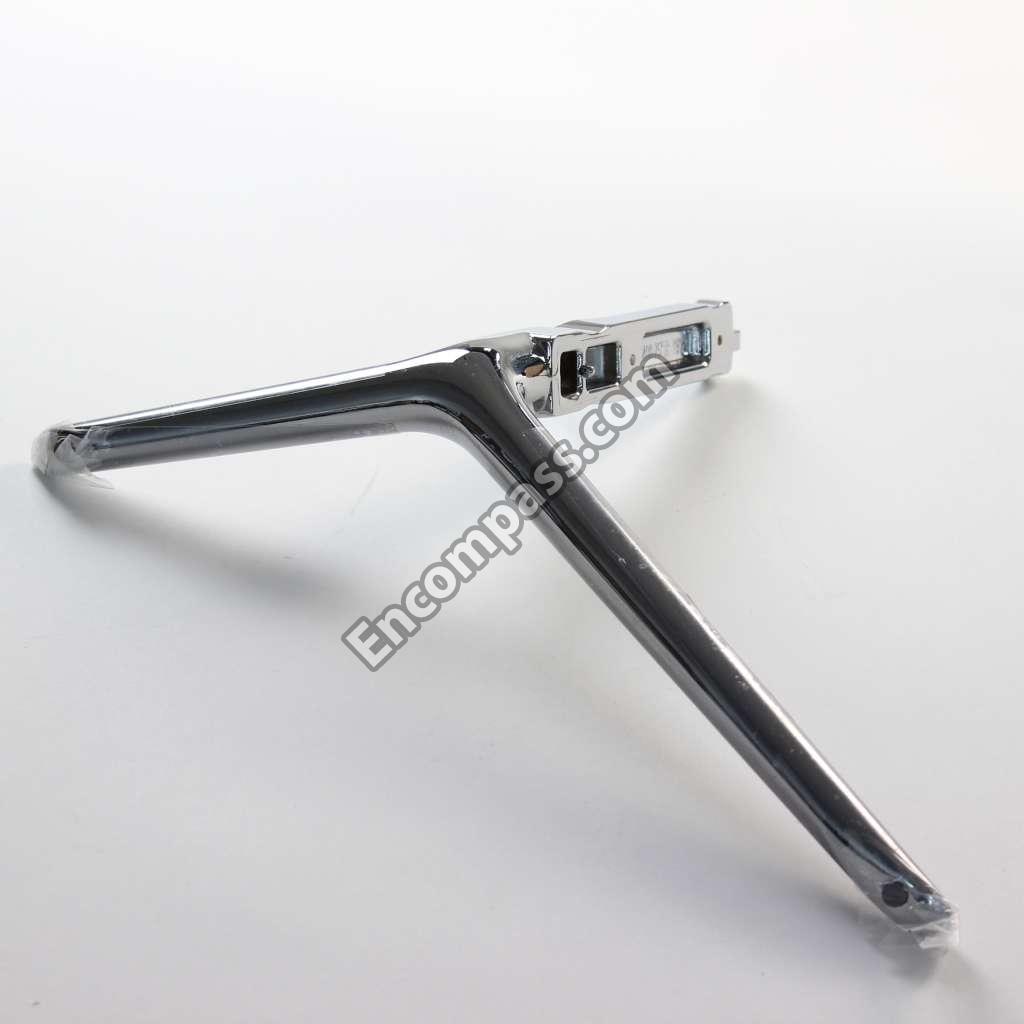

ASSY STAND P-COVER BOTTOM LEFT;UF6400 75 |
|
|
ASSY STAND P-COVER BOTTOM RIGHT;UF6400 7 |
|
|
ASSY STAND P-COVER BOTTOM;UF6400 75 |
|
|

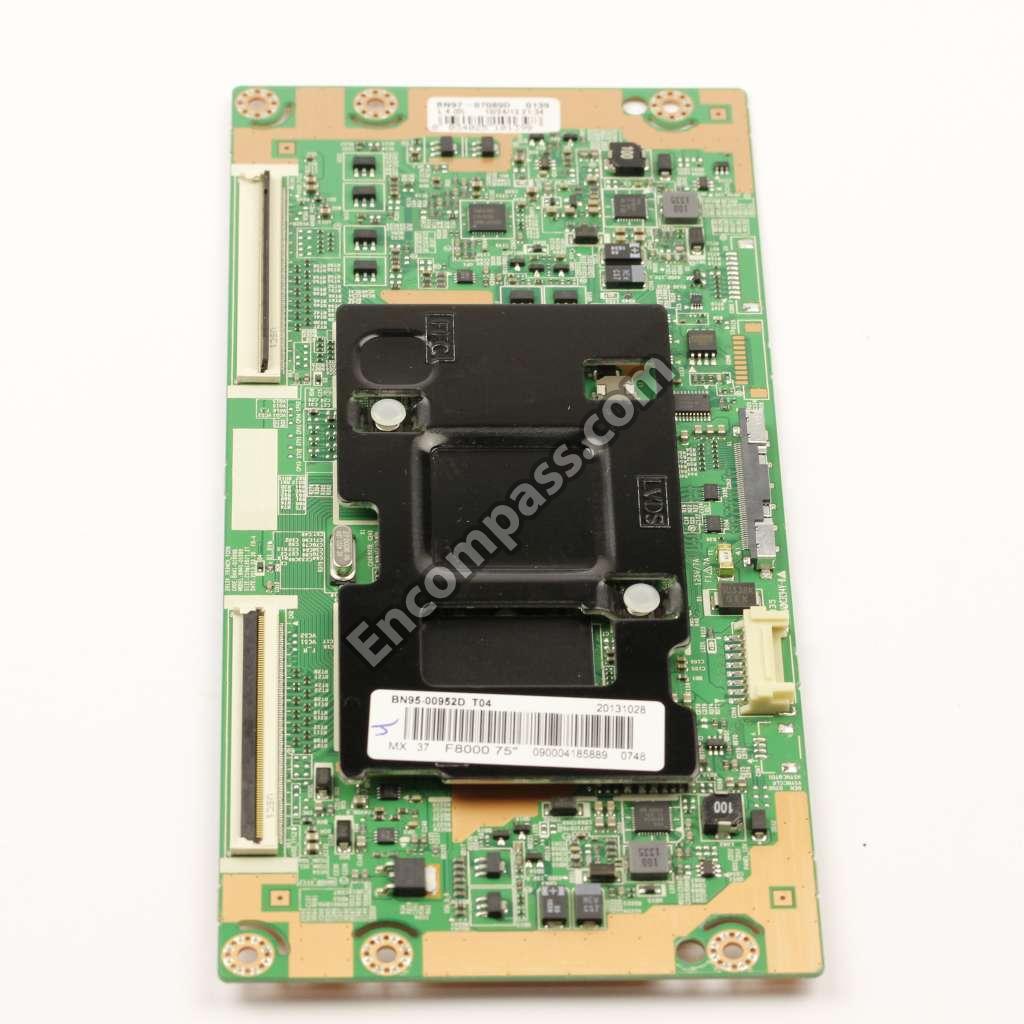

ASSY T CON;2013Y 75INCH,4-MASK |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-001851 | C-CER,CHIP;0.016NF,5%,50V,C0G,TP,1608 |
| 2203-001071 | C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608 |
| 2203-001697 | C-CER,CHIP;0.082NF,5%,50V,C0G,TP,1608 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0. |
| 2203-001408 | C-CER,CHIP;0.27NF,5%,50V,C0G,TP,1608 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T |
| 2203-006090 | C-CER,CHIP;10000NF,10%,6.3V,X5R,TP,2012 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0 |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0 |
| 2203-006960 | C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012 |
| 2203-005918 | C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-001414 | C-CER,CHIP;330NF,10%,50V,X7R,TP,2012 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1. |
| 2409-001118 | C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2 |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001861 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-003954 | CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH |
|
|

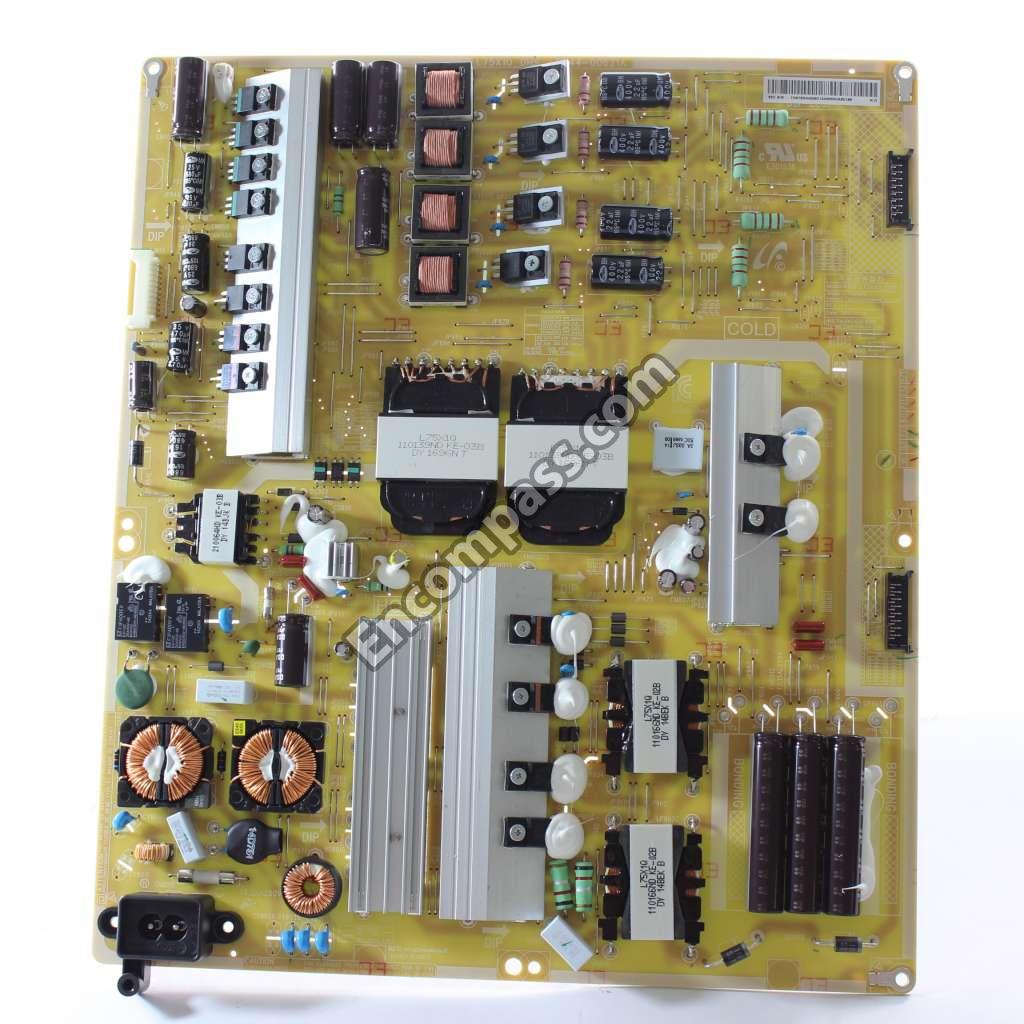

DC VSS-PD BOARD;L75X1Q_DHS,AC/DC,378W,10 |
| 0402-001883 | DIODE-RECTIFIER;B150,50V,1A,SMA,TP |
| 0404-001643 | DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0401-001192 | DIODE-SWITCHING;MMBD7000LT1,100V,200MA,S |
| 0406-001483 | DIODE-TVS;ESD5B5.0ST1G,5.8V,7.8V,1MAV,0. |
| 0406-001556 | DIODE-TVS;NUP4114UCW1,6V,1MAV,TP |
| 0406-001578 | DIODE-TVS;P4SMAJ40A,44.4V,51.1V,1MAV,64. |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6V,1MAV,5A,TR |
| 0406-001445 | DIODE-TVS;RCLAMP7512N,2.7V,2.8V,2.9V,0.5 |
| 0406-001438 | DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP |
| 0505-000110 | FET-SILICON;2N7002,N,60V,0.115A,7.5OHM,0 |
| 0505-003224 | FET-SILICON;AO6405,P,30V,5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH |
| 0505-003275 | FET-SILICON;SI3865DDV,N/P,10V,0.063OHM,T |
|
|

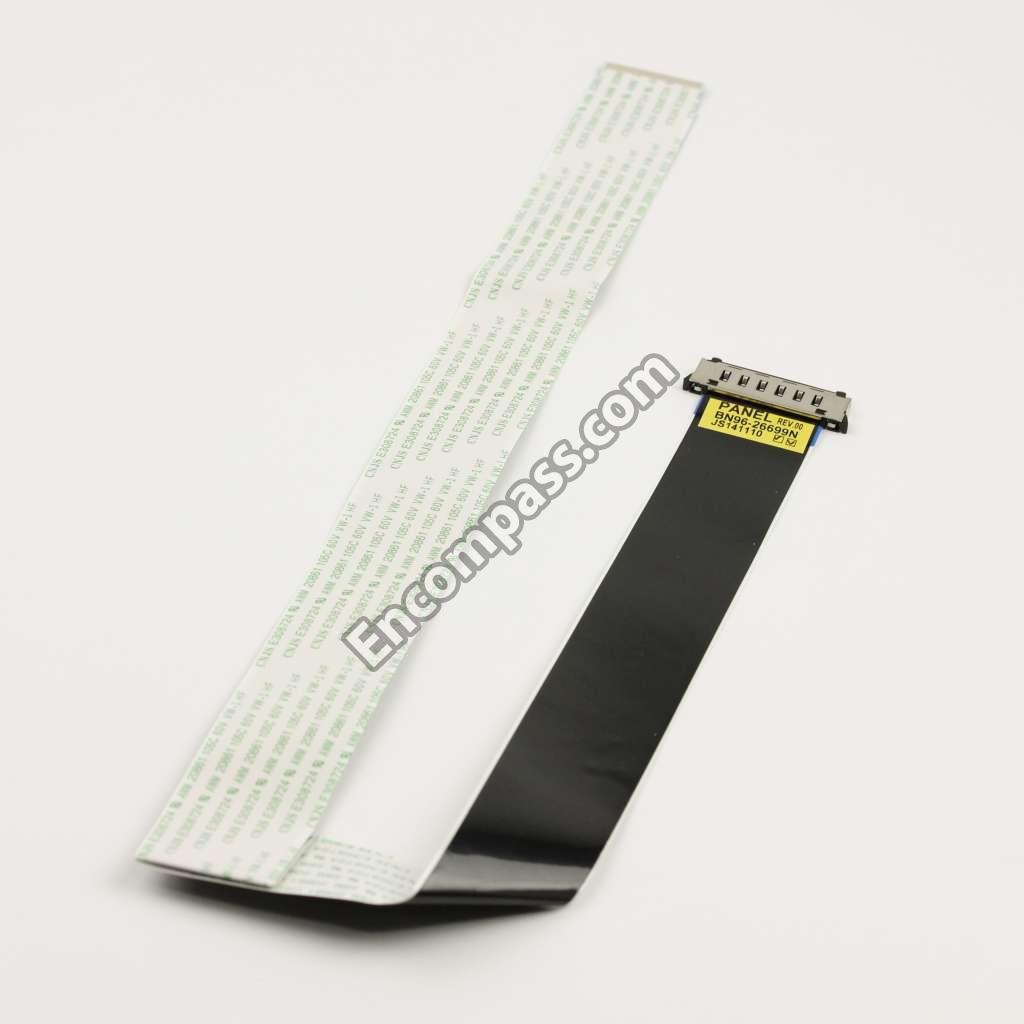

FFC CABLE;UN75F7200,FOLD,L607,51P |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005925 | HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| AA61-20285C | HOLDER-BOX;ALL,PP,BLACK,HB,HB,17.5G |
| BN61-07295A | HOLDER-WALL RING;40UD5500,ABS,BK0007,HB |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 0801-002701 | IC-CMOS LOGIC;74VHCT125A,BUFFER,TSSOP,14 |
| 0801-003292 | IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P |
| 0801-003330 | IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
| 1203-007502 | IC-DC/DC CONVERTER;AOZ3011PI,SO-8,8,4.96 |
| 1203-007695 | IC-DC/DC CONVERTER;AOZ3018,SO-8,8,4.96X3 |
| 1203-007552 | IC-DC/DC CONVERTER;TPS56921PWPR,HTSSOP,2 |
| 1203-004718 | IC-DC/DC CONVERTER;TPS65167A,QFN,40P,6X6 |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002534 | IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
| 1105-002338 | IC-DDR3 SDRAM;K4B4G1646B-HCMA,DDR3 1866, |
| 1204-003421 | IC-DECODER;SEMS30,PBGA,729Z30,21.6X21.6M |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 1107-002077 | IC-EMMC;KLM4G1FE3B-B001,4GBYTE,32GX1BIT, |
| 0903-001863 | IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-003130 | IC-OP AMP;IML2811SEC,TDFN-EP,TP,8P,3X3MM |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-005756 | IC-POSI.ADJUST REG.;AP7173-SP,SOP-8L-EP, |
| 1203-007242 | IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
| 1204-003406 | IC-VIDEO PROCESS;SDP1203,HSFCBGA,756Z30, |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-007728 | IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-003488 | INDUCTOR-SMD;10UH,20%,6965,0.071OHM,3500 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
|
|

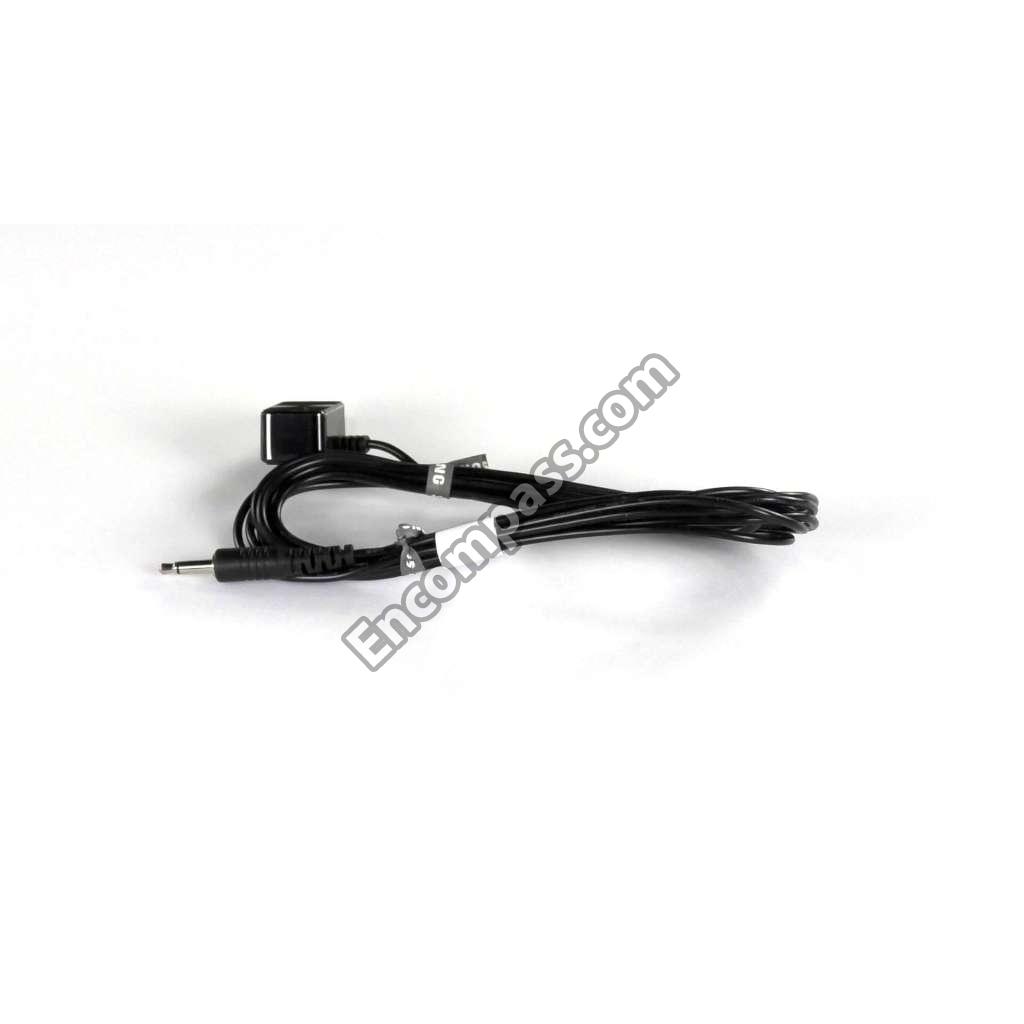

IRBLASTER CABLE;2P,L2500,UL1185,BLK,IR B |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-003226 | JACK-PHONE;1P/7C,SN,BLK,STRAIGHT,3.6PI,1 |
| 3722-003617 | JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI, |
|
|
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
|
|

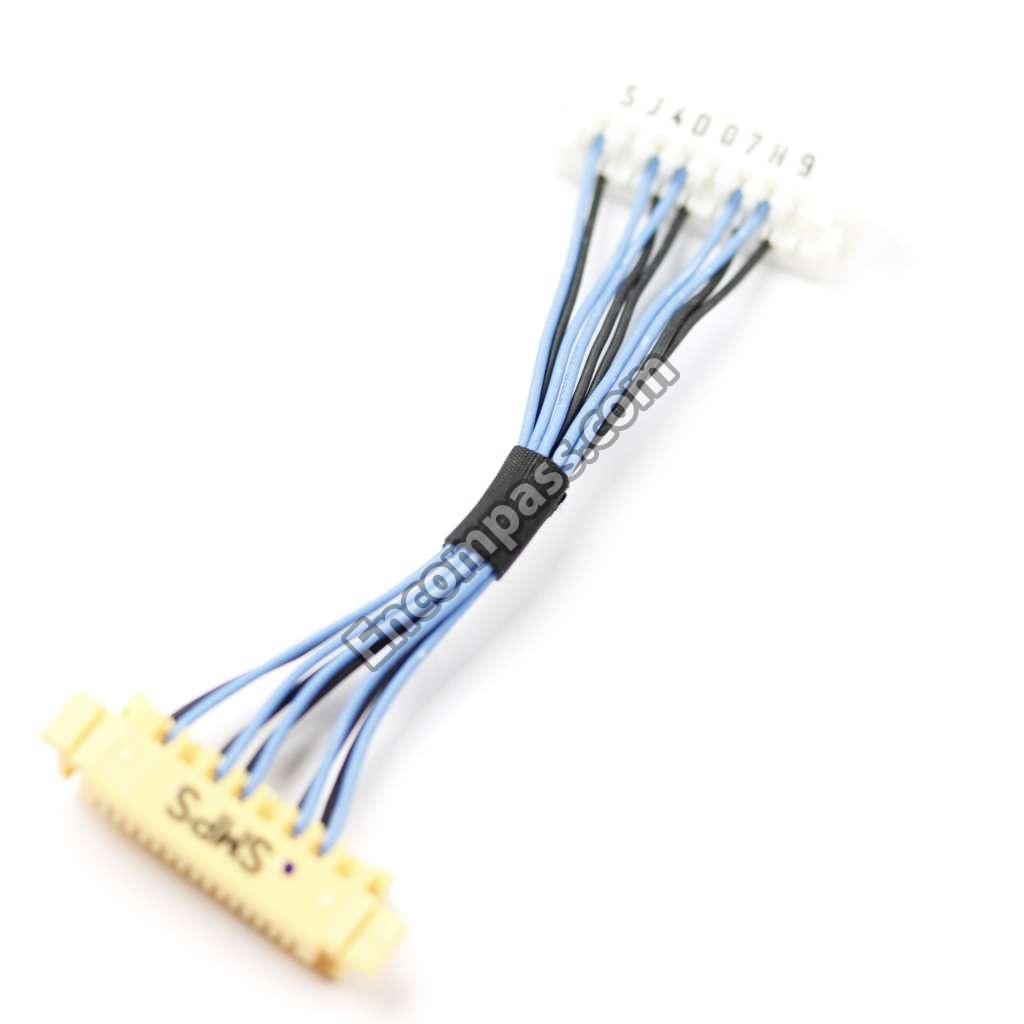

LEAD CONNECTOR-POWER;2D NNB,UL10368,16P, |
|
|

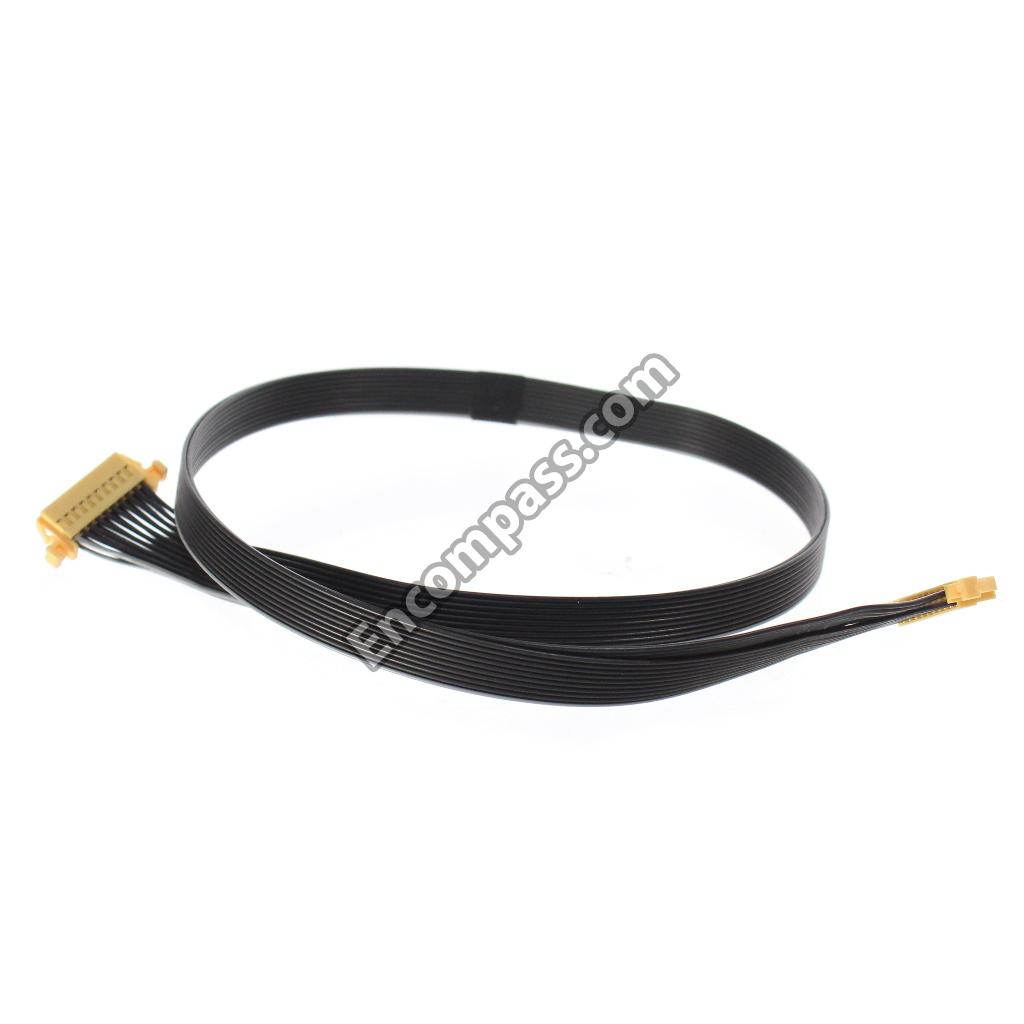

LEAD CONNECTOR-POWER;UN75F7200,UL21016,2 |
|
|
NETWORK-BLUETOOTH;WIBT40A,20.8X37X7.7MM |
|
|
NETWORK-WLAN CLIENT;WIDT30Q,58X31.45X8.5 |
|
|
POWER CORD-DT;UL/CSA,2P-F,125V,7A,BLK,L1 |
|
|
PRODUCT LCD-AMLCD;LSF750HL01,CY-GF750CSL |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-000219 | R-CHIP;1.2KOHM,1%,1/10W,TP,1608 |
| 2007-000231 | R-CHIP;1.3KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000256 | R-CHIP;1.6KOHM,1%,1/10W,TP,1608 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-001433 | R-CHIP;12KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000063 | R-CHIP;150KOHM,1%,1/10W,TP,1608 |
| 2007-000040 | R-CHIP;150OHM,1%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-000455 | R-CHIP;18KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000516 | R-CHIP;2.7KOHM,1%,1/10W,TP,1608 |
| 2007-009107 | R-CHIP;2.8KOHM,1%,1/10W,TP,1608 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45 |
|
|
R-CHIP;2KOHM,5%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-000701 | R-CHIP;3.6KOHM,1%,1/10W,TP,1608 |
| 2007-007720 | R-CHIP;300KOHM,1%,1/10W,TP,1608 |
| 2007-000726 | R-CHIP;300OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000803 | R-CHIP;36KOHM,1%,1/10W,TP,1608 |
| 2007-000857 | R-CHIP;4.3KOHM,1%,1/10W,TP,1608 |
| 2007-000869 | R-CHIP;4.7KOHM,1%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000962 | R-CHIP;5.1KOHM,1%,1/10W,TP,1608 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-001014 | R-CHIP;51OHM,5%,1/10W,TP,1608 |
| 2007-008807 | R-CHIP;53.6KOHM,1%,1/16W,TP,1005 |
| 2007-008133 | R-CHIP;56.2KOHM,1%,1/10W,TP,1608 |
| 2007-007721 | R-CHIP;560OHM,1%,1/10W,TP,1608 |
| 2007-001038 | R-CHIP;56KOHM,1%,1/10W,TP,1608 |
| 2007-001042 | R-CHIP;56OHM,1%,1/10W,TP,1608 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001153 | R-CHIP;750OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2007-007238 | R-CHIP;8.25KOHM,1%,1/10W,TP,1608 |
| 2007-007651 | R-CHIP;9.1KOHM,1%,1/10W,TP,1608 |
| 2007-007331 | R-CHIP;90.9KOHM,1%,1/10W,TP,1608 |
| 2007-007431 | R-CHIP;91KOHM,1%,1/10W,TP,1608,T0.45 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|

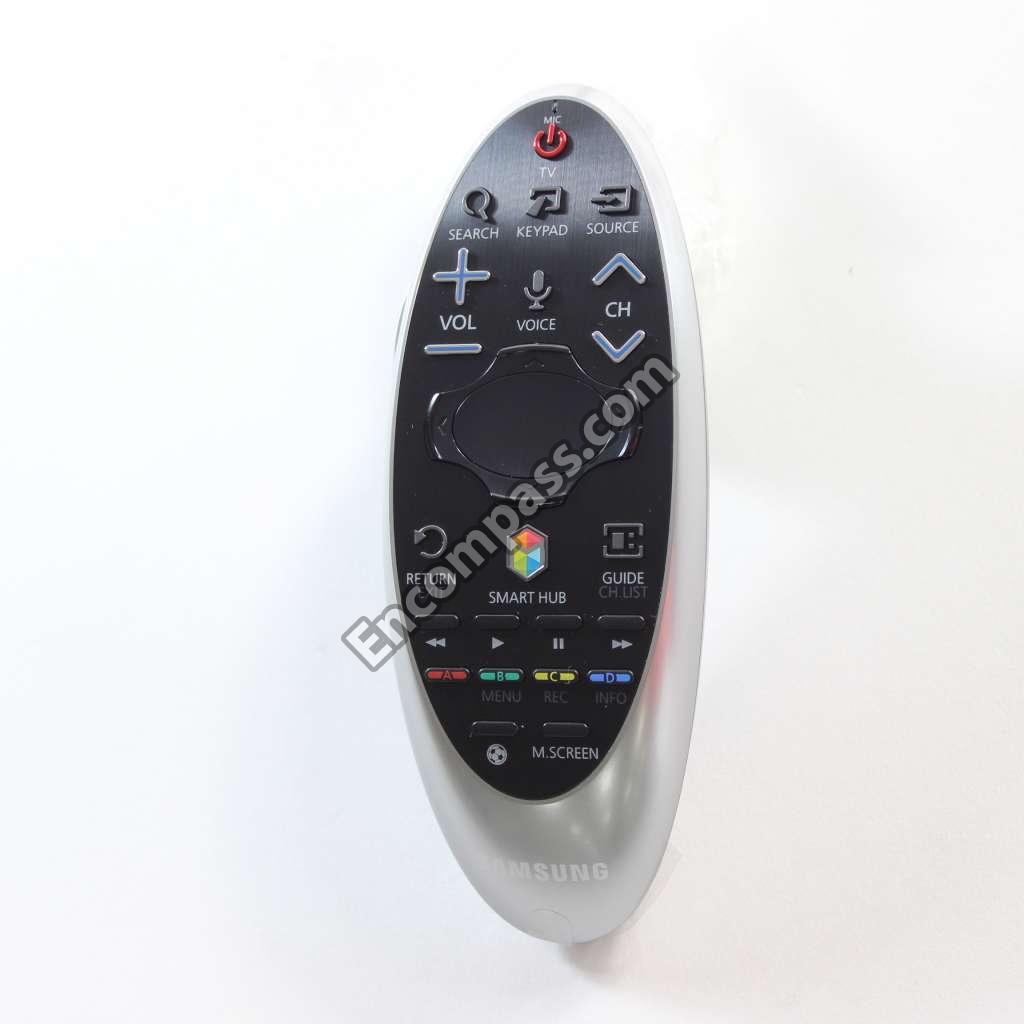

REMOCON-SMART TOUCH CONTROL;TM1360,14,80 |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
| 6001-003005 | SCREW-MACHINE;BH,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L12,NI PLT,SWRCH |
| 0502-001345 | TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900 |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0502-001331 | TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
|
|
TUNER-DTV AIR CABLE;DTVS20EIH035A,VSB HA |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
