Model Image
Manufacturer

Samsung

Model Number

UN75MU8000FXZA

Description

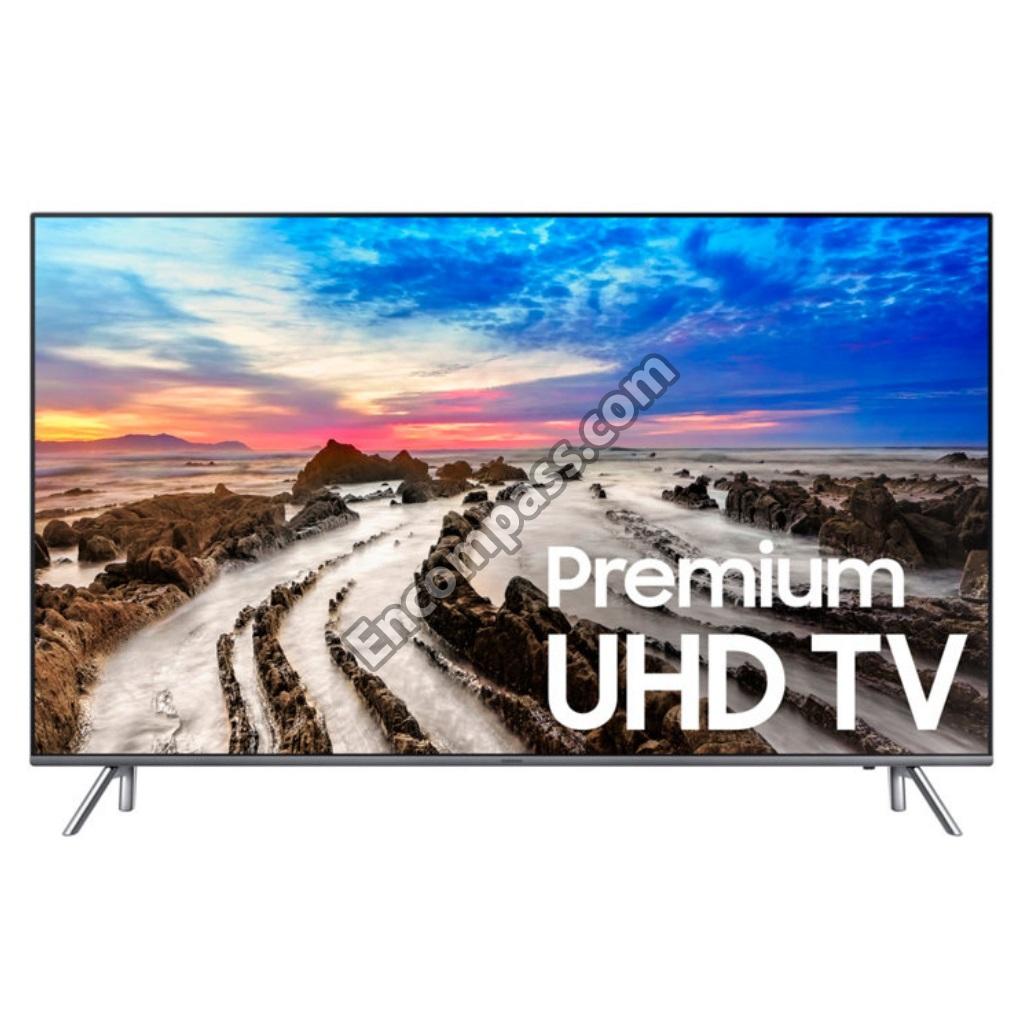

75-inch Led Smart - 4k Uhd Tv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
BN81-16866A Samsung A/S-PANEL KIT;P)5-03877H,M)4-12527B
BN96-39802C BN96-39802C Samsung ASSY BOARD P-FUNCTION TACT;KS7000/7500/K
BN96-42644B Samsung ASSY CHASSIS FRONT P;75MU7000,AL,MOON DA
BN96-43024A Samsung ASSY COVER P-CLEAN BACK AC INLET;75MU700
BN96-43018A Samsung ASSY COVER P-CLEAN BACK TERMINAL;75MU700
BN96-42646B Samsung ASSY COVER P-DECORATION;75MU7000,PC+ABS+
BN96-42161A Samsung ASSY COVER P-REAR;75MU7000,PC+ABS+ED20%,
BN96-43169A BN96-43169A Samsung ASSY HOLDER P-RING;65Q8C,ABS,BLACK,HB

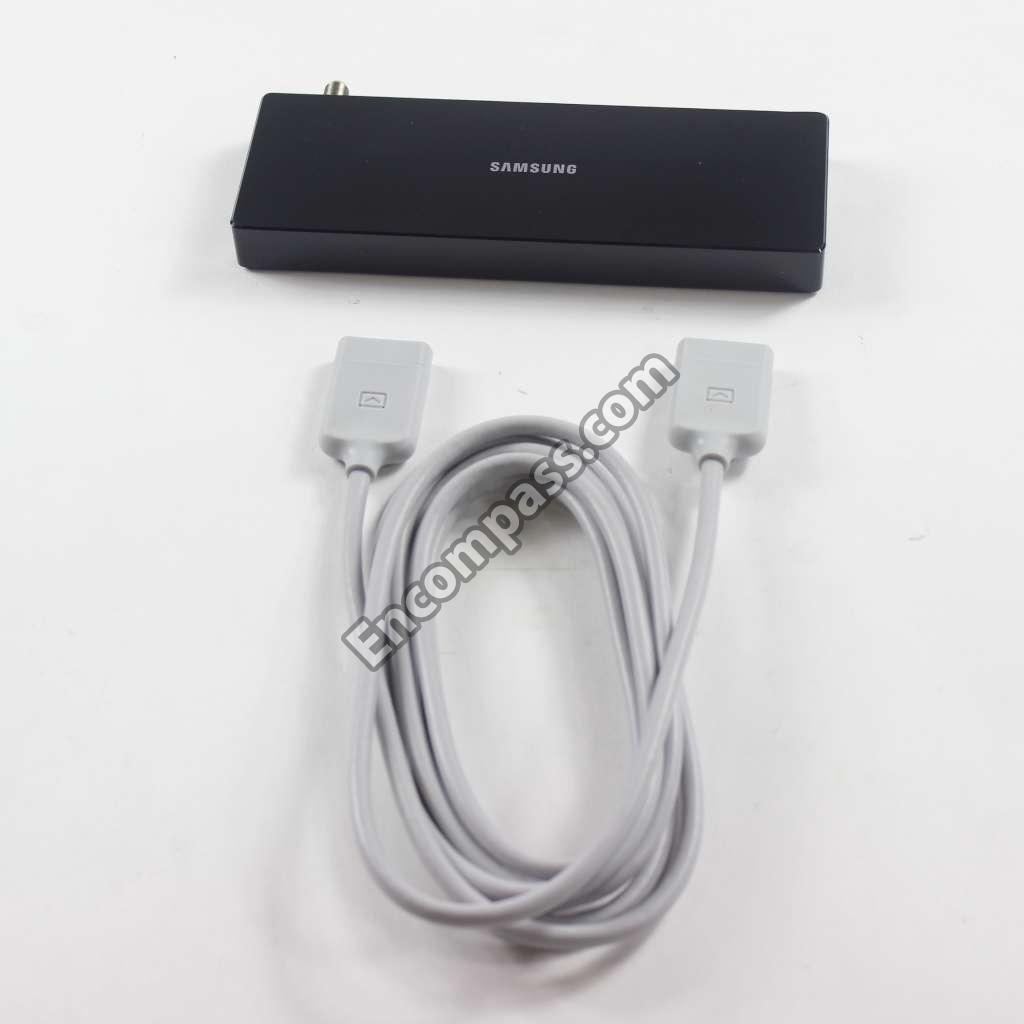

BN96-44183A BN96-44183A Samsung ASSY ONE CONNECT MINI;MU7000,55,BN91-187
BN96-40076A Samsung ASSY OPEN CELL;SDC,75INCH,POL
BN94-11976K Samsung ASSY PCB MAIN;75MU7000
BN94-12576C Samsung ASSY PCB MAIN;MU7/8/9K , PCB B VER.,GUID
BN96-44749G Samsung ASSY PCB P-TCON;BN95-03940A,FR-1,SDC 75"
BN96-42489A Samsung ASSY SPEAKER P-FRONT;TV-SPK,MU7000,6OHM,
BN96-42371A Samsung ASSY STAND P-COVER BOTTOM LEFT;70MU7000,
BN96-42375A Samsung ASSY STAND P-COVER BOTTOM RIGHT;70MU7000
6902-001048 Samsung BAG PE
BH69-00418A Samsung BAG PE-WRAPPING FILM
6922-000013 Samsung BAND PP
4301-000101 Samsung BATTERY-ALKALINE
3301-001364 Samsung BEAD-SMD
3301-002039 3301-002039 Samsung BEAD-SMD;26OHM,1608,TP
BN61-04692A Samsung BOSS-PRIMER
BN61-13557H Samsung BRACKET-WIRE;55KS7000,SW-C,T1,NATURAL,ZI
BN61-13557C Samsung BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557D Samsung BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
2203-006391 Samsung C-CER, CHIP
2203-001851 Samsung C-CER,CHIP;0.016NF,5%,50V,C0G,TP,1608
2203-005642 Samsung C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0.
2203-007513 Samsung C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T
2203-007176 Samsung C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T
2203-007306 Samsung C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T
2203-007423 Samsung C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216
2203-006348 Samsung C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0
2203-006698 Samsung C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0
2203-006399 Samsung C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005
2203-006048 Samsung C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 Samsung C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 Samsung C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285 Samsung C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000491 Samsung C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608
2203-005344 Samsung C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5
2203-006088 Samsung C-CER,CHIP;330NF,10%,10V,X7R,TP,1608
2203-005968 Samsung C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0.
2203-000888 Samsung C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1608
2203-006377 Samsung C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-006844 Samsung C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2203-006126 Samsung C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001240 Samsung C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
3708-003176 Samsung CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU
3701-001967 Samsung CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-009090 Samsung CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A
3711-009106 Samsung CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN
3707-001104 Samsung CONNECTOR-OPTICAL;ANGLE,SPDIF
3710-004144 Samsung CONNECTOR-SOCKET;44P,1R,0.5MM,SMD-A,AU,B
BN63-15074H Samsung COVER-OC BOTTOM;55MU7000,PC+ABS,V-0,BK00
BN63-16640A Samsung COVER-TERMINAL SIDE;55MU7000,HIPS,HB,BK0
2801-000102 Samsung CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-004021 Samsung CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
2801-005324 Samsung CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN

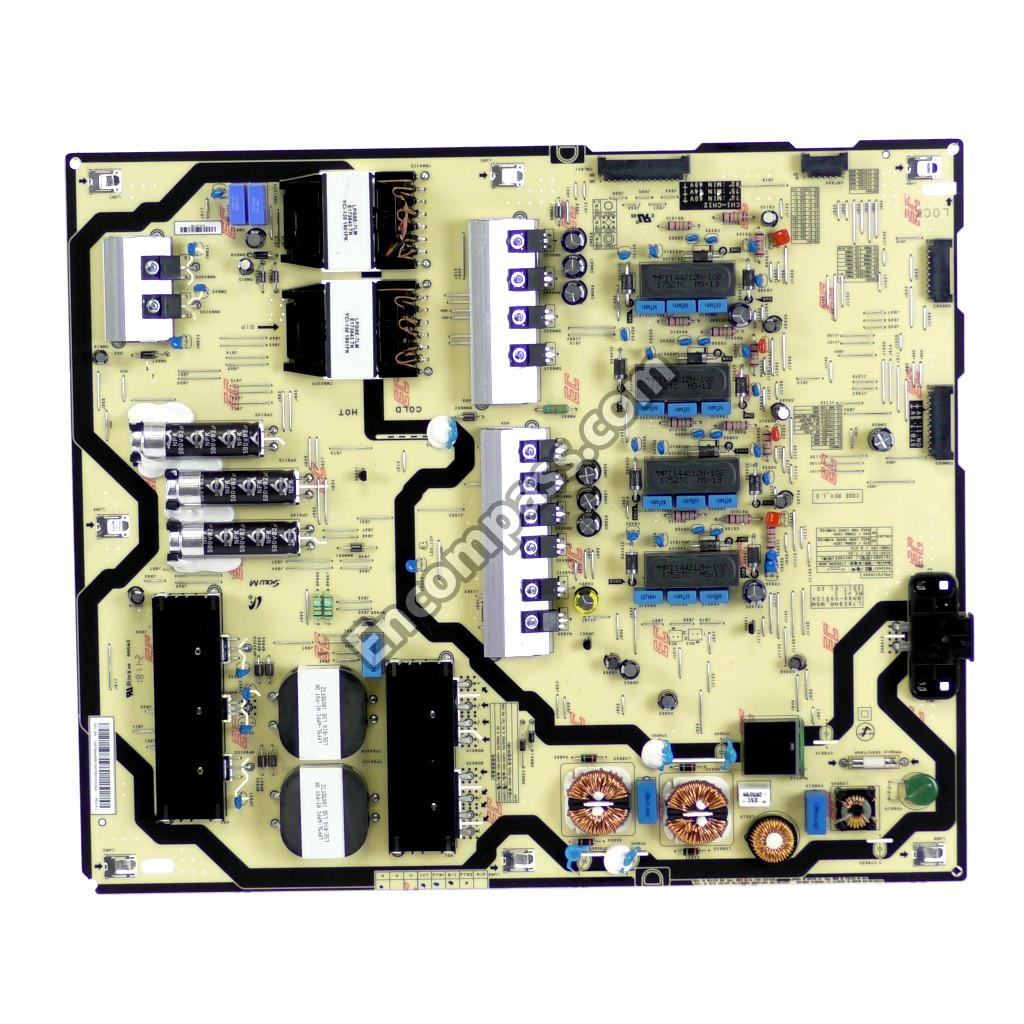

BN44-00913A BN44-00913A Samsung DC VSS-PD BOARD;L78E8NR_MSM,AC/DC,305W,A
0404-001404 Samsung DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 Samsung DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 Samsung DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881 Samsung DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0404-001307 Samsung DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056 Samsung DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001786 Samsung DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V
0406-001778 Samsung DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001691 Samsung DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5
0406-001438 Samsung DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP
0406-001635 Samsung DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001831 Samsung DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1
0403-000489 Samsung DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW
0403-001164 Samsung DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0505-003397 Samsung FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 Samsung FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002560 Samsung FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1
0505-003391 Samsung FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-002598 Samsung FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-003205 Samsung FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1.
0505-002660 Samsung FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
0505-001844 Samsung FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4

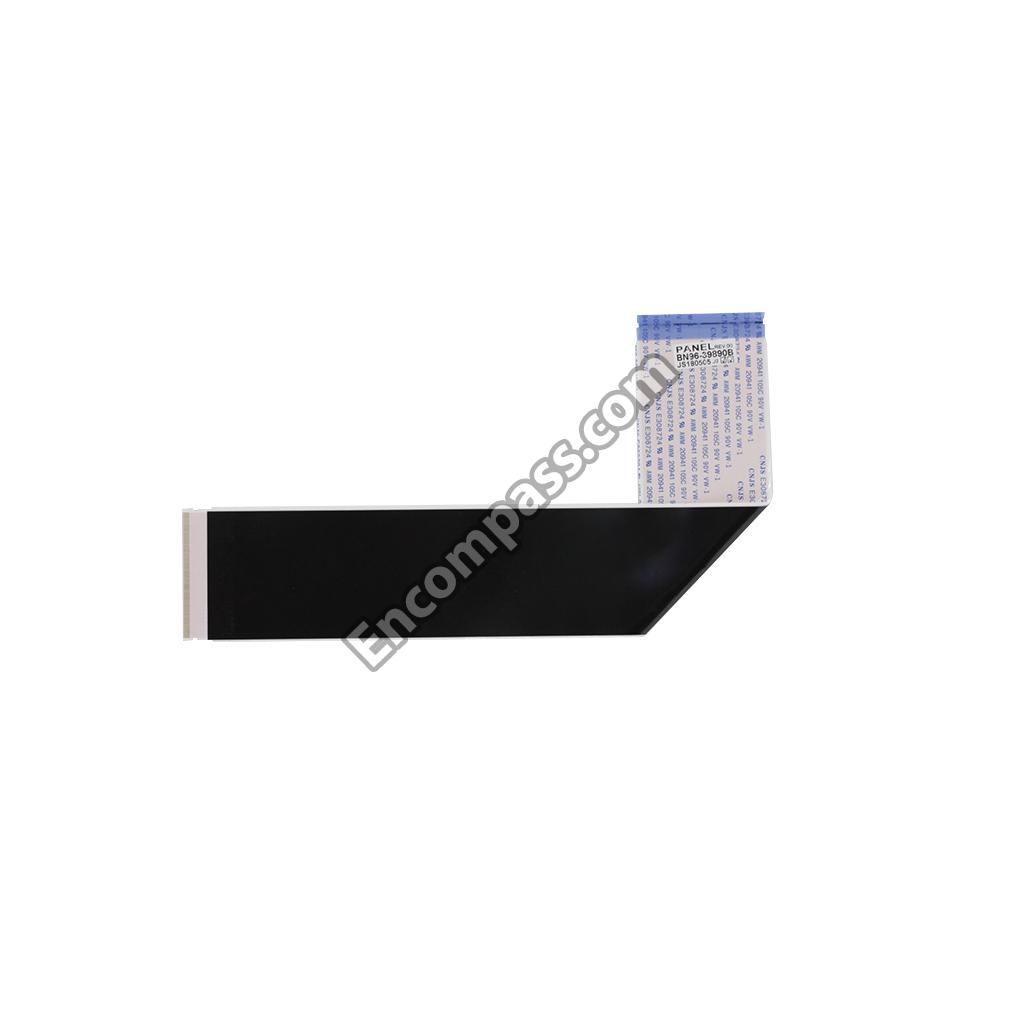

BN96-39890B BN96-39890B Samsung FFC CABLE;MU8/9,FOLD,L300,96P,-
2901-001362 Samsung FILTER-EMI/ESD
3601-001061 3601-001061 Samsung FUSE-SURFACE MOUNT;125V,10A,FAST-ACTING,
3601-001376 3601-001376 Samsung FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
3711-007803 Samsung HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM,
3711-008488 Samsung HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
3711-009033 Samsung HEADER-BOARD TO CABLE;BOX,16P,1R,2MM,SMD
3711-008453 Samsung HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG
BN62-00574A Samsung HEAT SINK-ES;F7000,A6063,W28,L14,BLACK,T
AA61-20285C Samsung HOLDER-BOX;ALL,PP,BLACK,HB,HB,17.5G
BN13-00070A Samsung IC ASIC;UEI1702,UEI1702,20P,3.3V,-20TO+7
1001-002047 Samsung IC-ANALOG MULTIPLEX;TS3USB3031,QFN,12P,1
1201-004003 Samsung IC-AUDIO AMP;TAS880021,TSSOP,48P,12.5X6.
0801-003604 Samsung IC-CMOS LOGIC;NL17SZ17DFT2G,SC-70,5P,TP,
0801-003580 Samsung IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3
1203-008746 Samsung IC-DC/DC CONVERTER;AOZ2264QI-11,QFN,23,4
1203-007695 Samsung IC-DC/DC CONVERTER;AOZ3018,SO-8,8,4.96X3
1203-008917 Samsung IC-DC/DC CONVERTER;G5334CQT1U,QFN4,23P,4
1203-008664 Samsung IC-DC/DC CONVERTER;RT6935BGQW,WQFN,56,7X
1203-008522 Samsung IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23,
1203-008920 Samsung IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2
1203-008082 Samsung IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8
1203-008777 Samsung IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1.
1105-002772 Samsung IC-DDR3 SDRAM;K4B1G1646I-BCMA,-,1GBIT,64
1105-002751 Samsung IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR
1105-002704 Samsung IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-SDR
1204-003740 Samsung IC-DECODER
1204-003743 Samsung IC-DECODER;SDP1602,FCBGA,319P,15.5X15.5X
1204-003742 Samsung IC-DECODER;SDP1603,FCBGA,1147P,31X31X2.2
1006-001595 Samsung IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1
1103-001564 Samsung IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8,
1107-002515 Samsung IC-EMMC;KLM8G1GEME-B041,8GBYTE,64GBX2,BG
1107-002223 Samsung IC-NOR FLASH;W25Q16DVSSIG,16MBIT,2MBITX8
1107-002226 Samsung IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-000166 Samsung IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-008933 Samsung IC-POSI.ADJUST REG.;G942F11U,SOP,8P,4.9X
1205-005706 Samsung IC-RECEIVER;SN65LVDS4,UQFN,10P,1.50X2.00
1205-005537 Samsung IC-REPEATER;TCA9517,VSSOP,8P,3.00X3.00MM
1209-002183 1209-002183 Samsung IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-005749 Samsung IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1205-004692 Samsung IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8
0904-002882 Samsung IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ,
1203-008392 Samsung IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23
1203-004363 Samsung IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-005191 Samsung INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-003713 Samsung INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM,
2703-005376 Samsung INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-003862 Samsung INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937 Samsung INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-005193 Samsung INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-003747 Samsung INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 Samsung INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-003803 Samsung INDUCTOR-SMD;4.7UH,20%,6060,0.031OHM,270
2703-004724 Samsung INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
3722-003199 Samsung JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003216 Samsung JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2
3722-003457 3722-003457 Samsung JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN68-00513A Samsung LABEL-E, PASS
BN39-02329A Samsung LEAD CONNECTOR-BLU;MU7K 75INCH,UL21016,2
BN39-02322B Samsung LEAD CONNECTOR-DIMMING;65MU7,UL21016,18P
BN39-02249D Samsung LEAD CONNECTOR-DIMMING;75MU7000,UL21016,
BN39-02207H Samsung LEAD CONNECTOR-POWER;65MU7,UL21016,20P,4
BN39-02231B Samsung LEAD CONNECTOR-SUB ASSY;65KU6500,UL21016
BN39-02211C Samsung LEAD CONNECTOR-SUB ASSY;88KS9800,UL21451
BN59-01264A BN59-01264A Samsung NETWORK-WLAN CLIENT;WCM730Q,78.3X29.3X7.

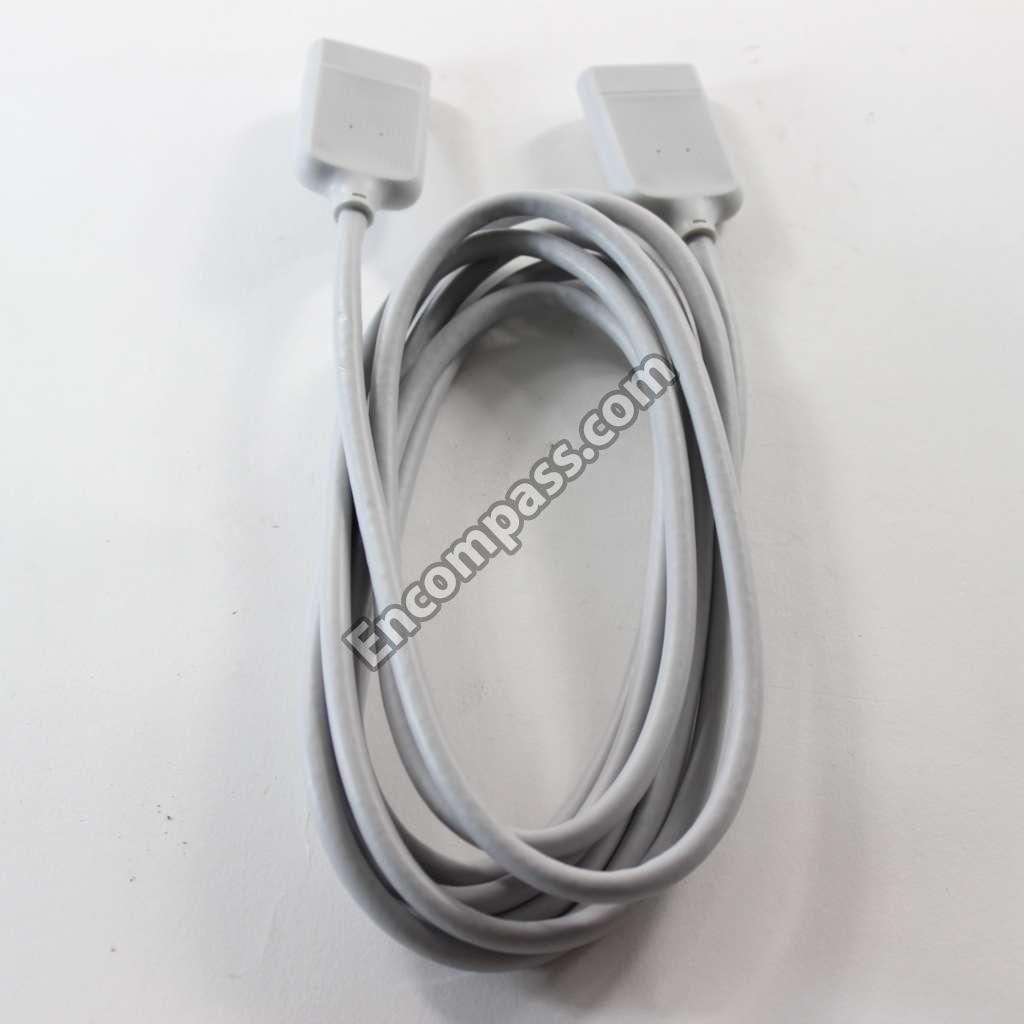

BN39-02210C BN39-02210C Samsung ONECONNECTMINI CABLE;MU9000~MU7000,44P,L
3903-001173 3903-001173 Samsung POWER CORD-DT;USA,2P-F,125V,7A,GRY,L3000
BN95-03925L BN95-03925L Samsung PRODUCT LCD-SDC;CY-KM075FLLVAV/H,MU7000,
2007-008295 Samsung R-CHIP
2007-008596 Samsung R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000219 Samsung R-CHIP;1.2KOHM,1%,1/10W,TP,1608
2007-009322 Samsung R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000287 Samsung R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000052 Samsung R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-010387 Samsung R-CHIP;10KOHM,1%,1/16W,TP,1005
2007-002899 Samsung R-CHIP;10OHM,1%,1/10W,TP,1608
2007-008134 Samsung R-CHIP;12.4KOHM,1%,1/16W,TP,1005
2007-007305 Samsung R-CHIP;120OHM,1%,1/16W,TP,1005
2007-000043 Samsung R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000109 Samsung R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-003015 Samsung R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-007767 Samsung R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 Samsung R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-007520 Samsung R-CHIP;20OHM,1%,1/10W,TP,1608
2007-008067 Samsung R-CHIP;21KOHM,1%,1/10W,TP,1608
2007-008563 Samsung R-CHIP;270OHM,1%,1/16W,TP,1005
2007-007650 Samsung R-CHIP;274OHM,1%,1/10W,TP,1608
2007-000683 Samsung R-CHIP;3.3KOHM,1%,1/10W,TP,1608
2007-008294 Samsung R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000828 Samsung R-CHIP;39KOHM,1%,1/10W,TP,1608
2007-000084 Samsung R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-009777 Samsung R-CHIP;4.99KOHM,1%,1/16W,TP,1005
2007-000939 Samsung R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-008298 Samsung R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-007736 Samsung R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-000999 Samsung R-CHIP;510OHM,1%,1/10W,TP,1608
2007-008269 Samsung R-CHIP;51KOHM,1%,1/16W,TP,1005
2007-001116 Samsung R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 Samsung R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 Samsung R-CHIP;75OHM,1%,1/16W,TP,1005
2011-001427 Samsung R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0
2011-001587 Samsung R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001448 Samsung R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0
2011-001264 Samsung R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001586 Samsung R-NETWORK;1KOHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001527 Samsung R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,

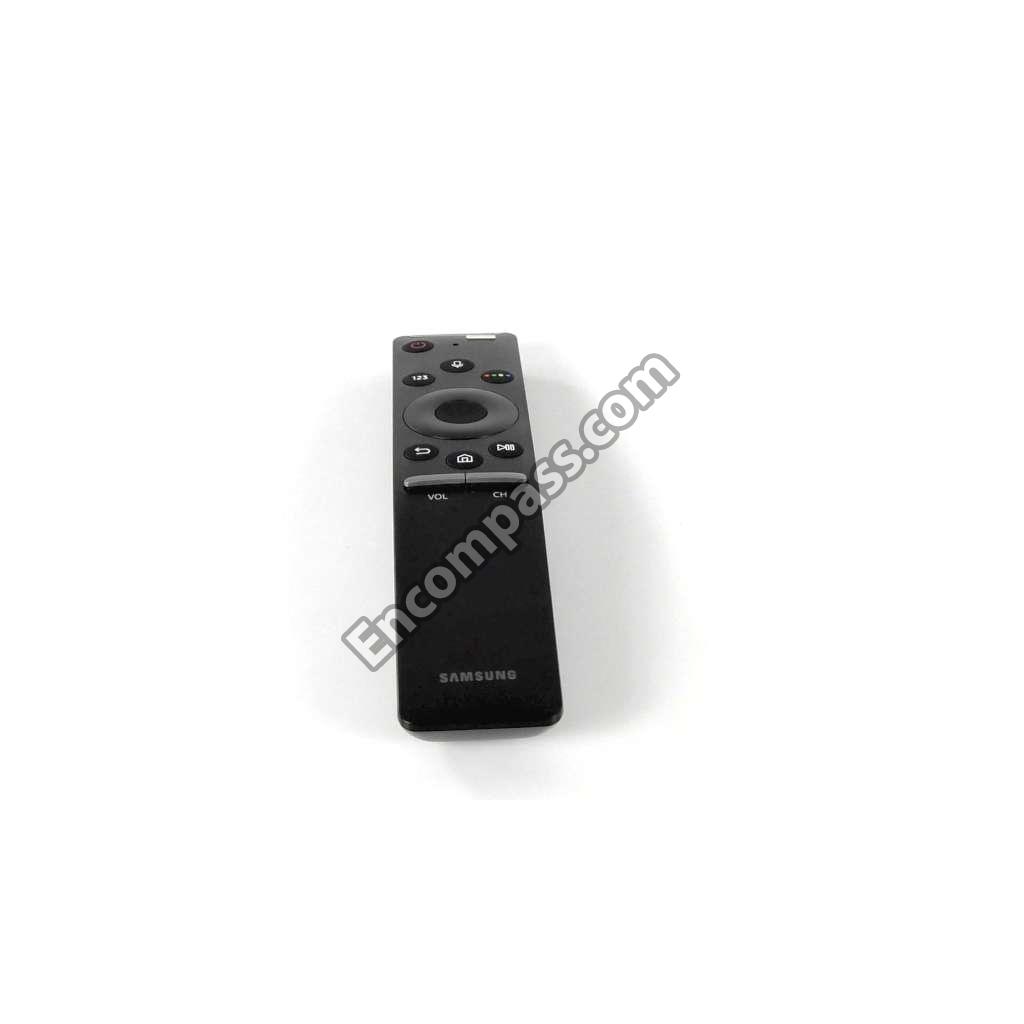

BN59-01274A BN59-01274A Samsung REMOCON-SMART CONTROL;2017 TV,SAMSUNG,14
6001-002755 6001-002755 Samsung SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1
6001-002912 Samsung SCREW-MACHINE;CH,M3,L3,ZPC(BLK),SWRCH1
6001-003016 6001-003016 Samsung SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR
6003-001010 6003-001010 Samsung SCREW-TAPTYPE;FH,B,M3,L6,ZPC(WHT),SWRC
BN59-01266A BN59-01266A Samsung SMART TOUCH REMOTE CONTROL
BN60-00162Y Samsung SPACER-FOAM
0203-001598 Samsung TAPE-SINGLE FACE
0504-000126 Samsung TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0502-001346 Samsung TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0501-002080 Samsung TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000002 Samsung TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
0501-000445 Samsung TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000465 Samsung TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
BN40-00329B BN40-00329B Samsung TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4
1405-001381 Samsung VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF
1405-001382 Samsung VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 Samsung VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001232 Samsung VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
Main Menu x
