Manufacturer
Samsung
Model Number
UN85CU7000BXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-22228A | A/S-AL CAP_SVC;AL-CAP,SAMWHA, LQ1E477M10 |
| BN96-50851B | ASSEMBLY CHASSIS FRONT P;85AU7000C,AL,CARBON |
| BN96-50852D | ASSEMBLY COVER P-DECORATION;85UTU8000H,PC+AB |
| BN96-53340J | ASSEMBLY COVER P-REAR;85AU7000C,PC+ABS+ED20% |
| BN96-51027A | ASSEMBLY LED BAR P;20Y 85TU8000,ALUMINUM,LEF |
| BN96-51025A | ASSEMBLY LED BAR P;20Y 85TU8000,ALUMINUM,MID |
| BN96-51026A | ASSEMBLY LED BAR P;20Y 85TU8000,ALUMINUM,RIG |
| BN94-18251C | ASSEMBLY PCB MAIN;CU7000C |
|
|
ASSEMBLY SPEAKER P-FRONT;TV-SPK,QET,2CH,6OHM |
| BN96-50833M | ASSEMBLY STAND P-COVER TOP LEFT;82AU7000C,AL |
| BN96-50834D | ASSEMBLY STAND P-COVER TOP RIGHT;85AU7000C,A |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557F | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557W | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001143 | CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2 |
| BN63-19472A | COVER-TERMINAL SIDE;65AU7000C,PC+ABS,V-0 |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
|
|
DC VSS-PD BOARD;L82S6N_THS,AC/DC,277W,AC |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|
FFC;65/75NU8000,FOLD,L500,96P,- |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2.0X1.0X0.5M |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-16318B | HOLDER-BOX;ALL,PP,BLACK,HB,RECYCLED PCR_ |
| BN61-16080A | HOLDER-STAND CABLE;65QRQ60T,ABS,BK0007,H |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-004366 | IC-AUDIO AMP;AD82120,TP,9.8X6.5X1.2MM,-4 |
| 1203-008917 | IC-DC/DC CONVERTER;G5334CQT1U,QFN4,23P,4 |
| 1203-009729 | IC-DC/DC CONVERTER;JW5357M,6P,SOT23-6,TP |
| 1203-009496 | IC-DC/DC CONVERTER;VPMS3RT,72P,QFN,TP,8X |
| 1204-003819 | IC-DECODER;SDP20405,TR,22.8X22.5X1.49MM, |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-005192 | INDUCTOR-SMD;4.7UH,20%,6060,T4.5,0.036OH |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |

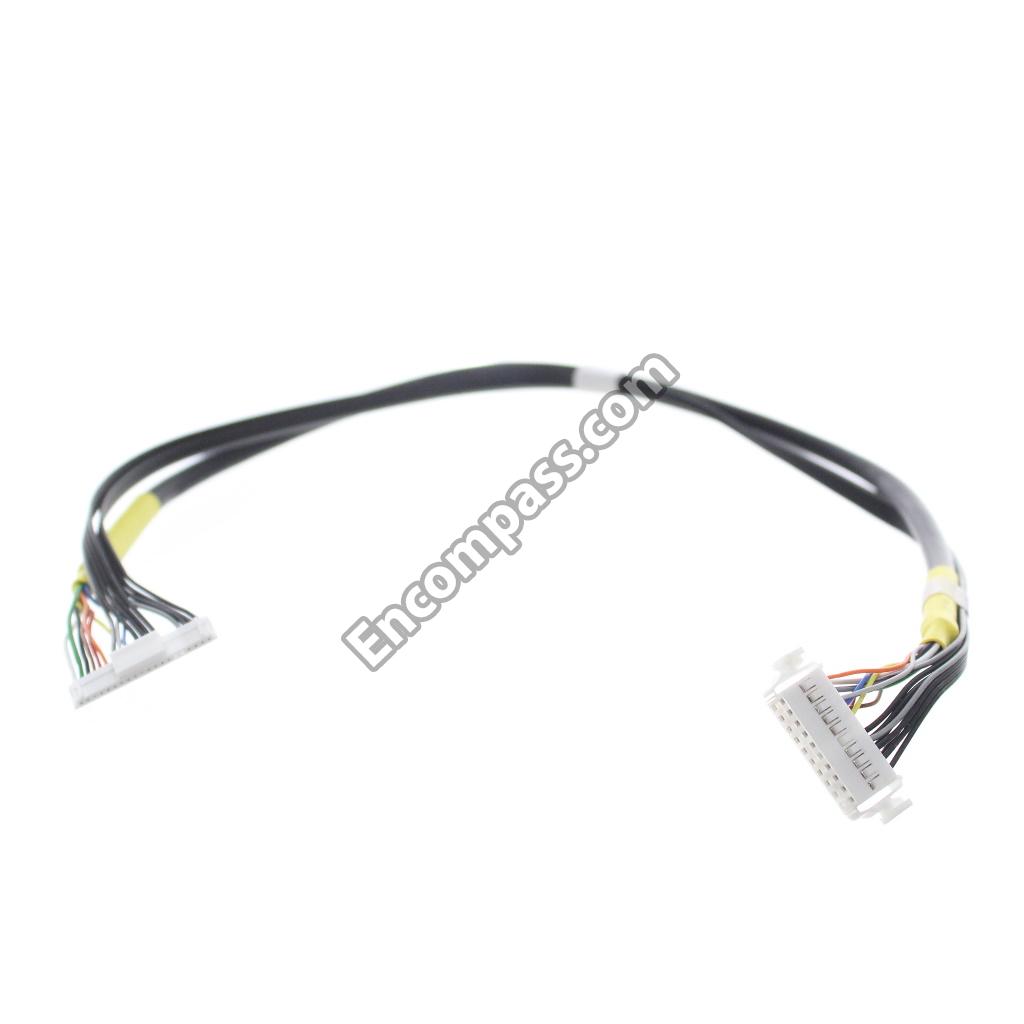

| BN68-09258D | LABEL ETC;ALL MODEL,PET,T0.05,W42,L30,RE |
| BN39-02562A | LEAD CONNECTOR-BLU;85TU8000,UL21016,12P, |
|
|
LEAD CONNECTOR-POWER;UL21016,12P,L700,BL |
|
|
LEAD CONNECTOR-SUB ASSEMBLY;VE TU7K,UL21451, |
| BN59-01371A | NETWORK-WLAN CLIENT;WCT733M,44.17X31.99X |
| 3903-001295 | POWER CORD-DT;USA,2P-F,125V,7A,BLK,L2400 |
| 4301-000103 | PRIMARY BATTERY ALKALINE;1.5V,750MAH,LR0 |
| BN95-10399B | PRODUCT LCD-BOE;CY-BC085HGEV2H/V,CU7000C |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-009853 | R-CHIP;1.6KOHM,1%,1/16W,TP,1005 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000637 | R-CHIP;270KOHM,5%,1/10W,TP,1608 |
| 2007-002437 | R-CHIP;2OHM,5%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000946 | R-CHIP;47OHM,1%,1/10W,TP,1608 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-008026 | R-CHIP;56OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01388A | REMOCON-TV;2022 SMART MONITOR,SAMSUNG,21 |
| 3601-001374 | SMG PART |
| 2703-003149 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-009733 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007425 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-001153 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000679 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000278 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-008136 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007488 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001320 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000160 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001976 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 1105-003102 | SMG PART |
| 1107-002768 | SMG PART |
| 1201-004368 | SMG PART |
| 1203-009590 | SMG PART |
| 1203-009643 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005715 | SMG PART |
| 6003-001912 | SMG PART |
| 6041-001068 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003537 | SMG PART |
| 6902-003623 | SMG PART |
| 6902-003723 | SMG PART |
| 6922-000421 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00074F | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00173C | SMG PART |
| BN02-00352A | SMG PART |
| BN02-00586A | SMG PART |
| BN02-00586C | SMG PART |
| BN02-00612A | SMG PART |
| BN41-02992A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01516A | SMG PART |
| BN46-01592C | SMG PART |
| BN46-01884E | SMG PART |
| BN60-01656C | SMG PART |
| BN60-01661A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13520G | SMG PART |
| BN61-14662A | SMG PART |
| BN61-16648B | SMG PART |
| BN61-16805B | SMG PART |
| BN61-16985B | SMG PART |
| BN61-17131A | SMG PART |
| BN61-17132A | SMG PART |
| BN61-17133A | SMG PART |
| BN61-17218A | SMG PART |
| BN61-17219A | SMG PART |
| BN61-17220A | SMG PART |
| BN61-17221A | SMG PART |
| BN62-00901A | SMG PART |
| BN62-00925A | SMG PART |
| BN63-17418D | SMG PART |
| BN63-17418N | SMG PART |
| BN63-18836A | SMG PART |
| BN63-18854B | SMG PART |
| BN63-18855B | SMG PART |
| BN63-18865H | SMG PART |
| BN63-18880A | SMG PART |
| BN64-04391B | SMG PART |
| BN64-04392A | SMG PART |
| BN64-04570A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-09371E | SMG PART |
| BN68-10628A | SMG PART |
| BN68-11235A | SMG PART |
| BN68-15704A | SMG PART |
| BN68-15740A | SMG PART |
| BN68-15880A | SMG PART |
| BN68-16282A | SMG PART |
| BN68-16825A | SMG PART |
| BN69-17053S | SMG PART |
| BN69-18993B | SMG PART |
| BN69-20761B | SMG PART |
| BN69-22276Q | SMG PART |
| BN69-23748A | SMG PART |
| BN69-24839J | SMG PART |
| BN69-24840J | SMG PART |
| BN69-25185A | SMG PART |
| BN69-25186A | SMG PART |
| BN74-00053E | SMG PART |
| BN81-23376A | SMG PART |
| BN81-23377A | SMG PART |
| BN81-23378A | SMG PART |
| BN81-23379A | SMG PART |
| BN90-11522J | SMG PART |
| BN90-12016M | SMG PART |
| BN90-12126W | SMG PART |
| BN91-24090B | SMG PART |
| BN91-24800M | SMG PART |
| BN92-31783R | SMG PART |
| BN92-31957Q | SMG PART |
| BN92-32004B | SMG PART |
| BN92-32053D | SMG PART |
| BN96-50849A | SMG PART |
| BN96-51320B | SMG PART |
| BN96-51558A | SMG PART |
| BN96-51560A | SMG PART |
| BN96-55354A | SMG PART |
| BN96-57007A | SMG PART |
| BN96-57145A | SMG PART |
| BN97-18305B | SMG PART |
| BN97-18310B | SMG PART |
| BN97-18318C | SMG PART |
| BN97-18319C | SMG PART |
| BN97-18341C | SMG PART |
| BN97-20933R | SMG PART |
| BN97-20979A | SMG PART |
| BN02-00431B | TAPE SINGLE FACE;LFD OHD,PET,T0.05,W20,L |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
