Manufacturer
Samsung
Model Number
WA54CG7150ADA4
Description
Wm : Washingmachine
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-002818 | ADHESIVE-HR;GB-288L,IVORY,16,000~20,000C |
| DC97-21503E | ASSEMBLY BASE;WA7150C,HIGH BASE,PUMP,36HS,LE |
| DC97-22349B | ASSEMBLY BASKET SPIN-MODULE;WA7150C,5.26CU.F |
|
|
ASSEMBLY BUTTON TACT |
| DC97-18313A | ASSEMBLY CAP V.W |
|
|
ASSEMBLY CLUTCH;FDDM,30F,MAX 800,5 |
| DC97-22219T | ASSEMBLY COVER BASE;WA7150C_US,HIGH BASE,36H |
| DC97-16350Q | ASSEMBLY DAMPER |

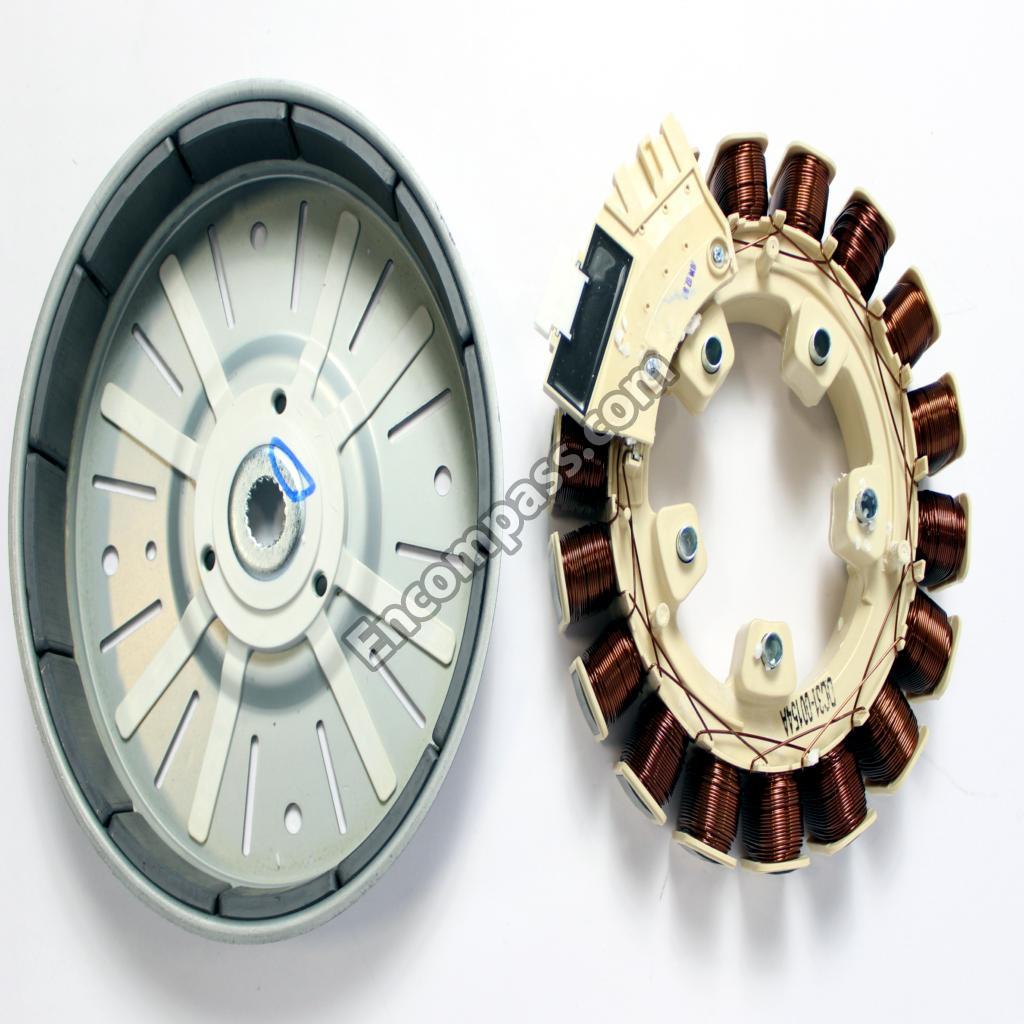

| DC93-00309C | ASSEMBLY DD BLDC MOTOR;HUDSON, |
| DC90-30941A | ASSEMBLY FRAME PARTS;WA7150C,,BRUSHED NAVY,H |
| DC97-23987A | ASSEMBLY GUIDE W.F;WA7150C PJT,PET CARE,GUID |
|
|
ASSEMBLY HINGE |
|
|

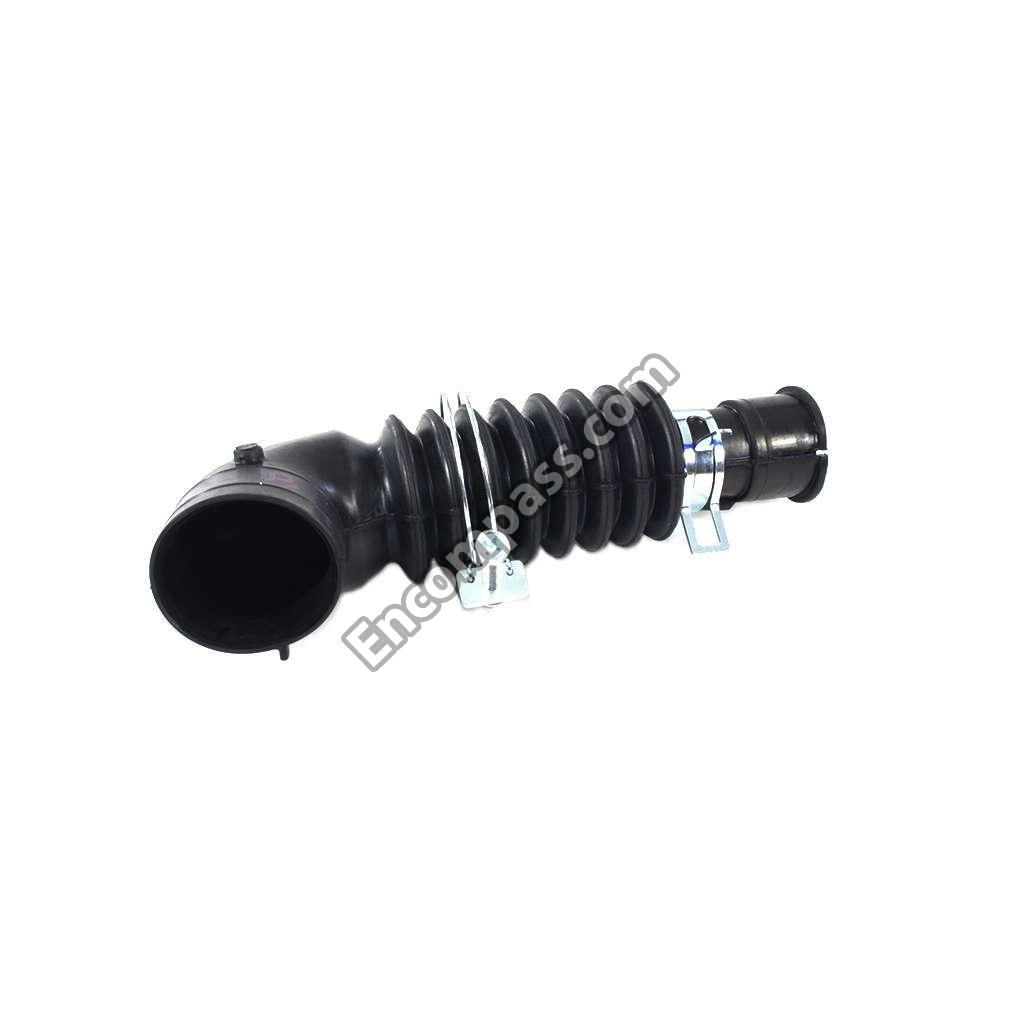

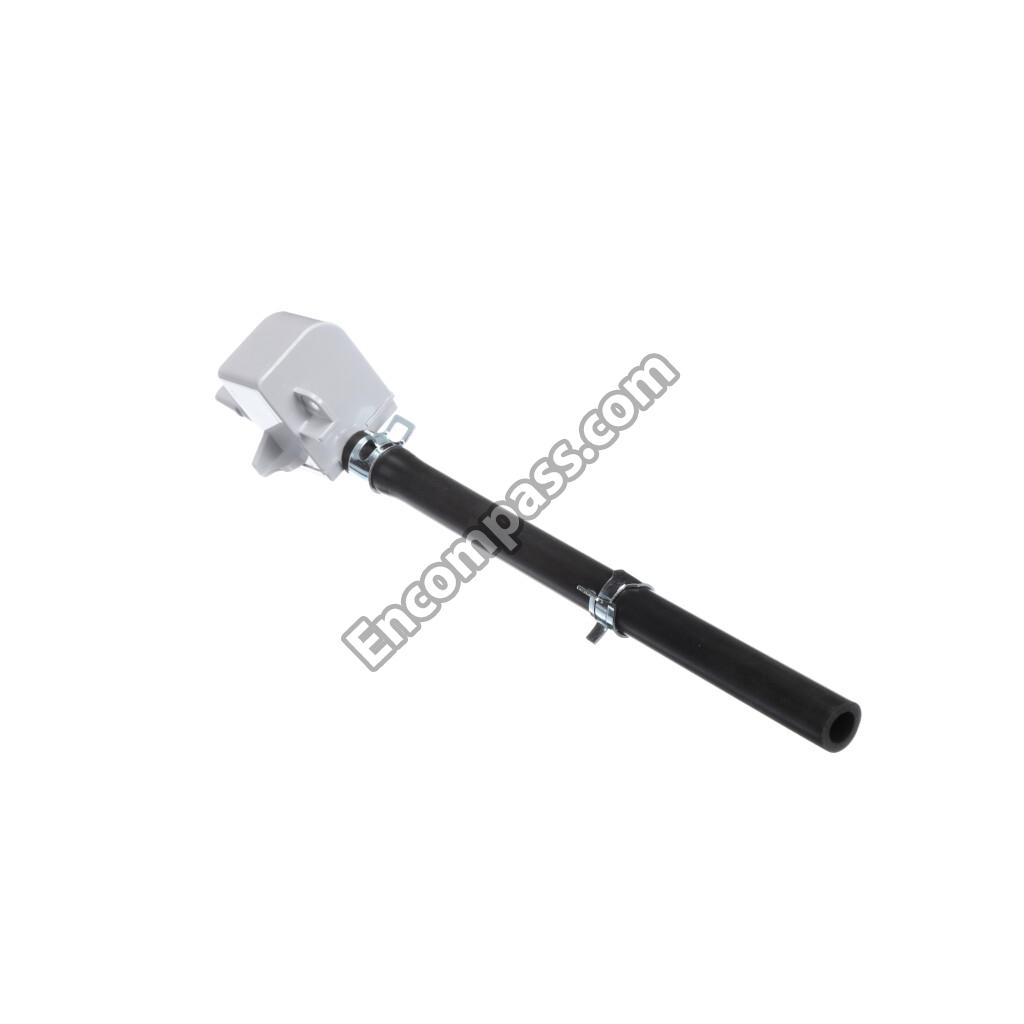

ASSEMBLY HOSE DRAIN |
|
|
ASSEMBLY HOSE DRAIN(I) |
| DC97-23693A | ASSEMBLY LID T.C-MODULE;WA7100C,HONED NAVY |
|
|
ASSEMBLY NOZZLE;WA7000R,WA54R7600A |
| DC97-23313C | ASSEMBLY PANEL CONTROL;WA7150C,HONED NAVY,WI |
| DC92-03760B | ASSEMBLY PBA MODULE;OWM_INV,WA7100C,PF02,ODM |
| DC94-16094G | ASSEMBLY PCB EEPROM;0004,WA7100C,54,120V,5.4 |
|
|
ASSEMBLY PULSATOR;A2-PJT,WA50R5200 |
|
|

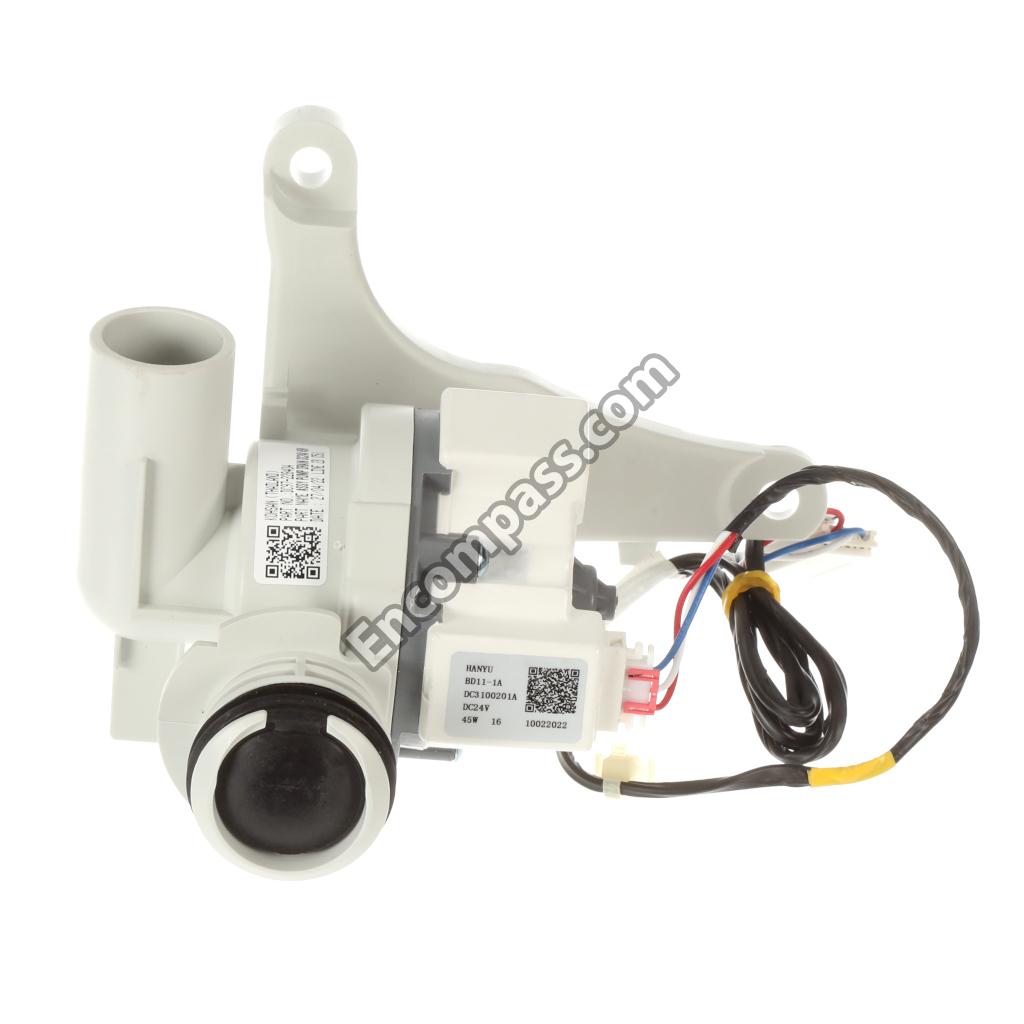

ASSEMBLY PUMP DRAIN |
| DC97-17430A | ASSEMBLY SCREW;F900A |
| DC97-23147G | ASSEMBLY SEMI COVER TOP;WA7150C,SECA,ABS,HON |
|
|
ASSEMBLY STATOR;SDM700 A,25,191.2 |
|
|

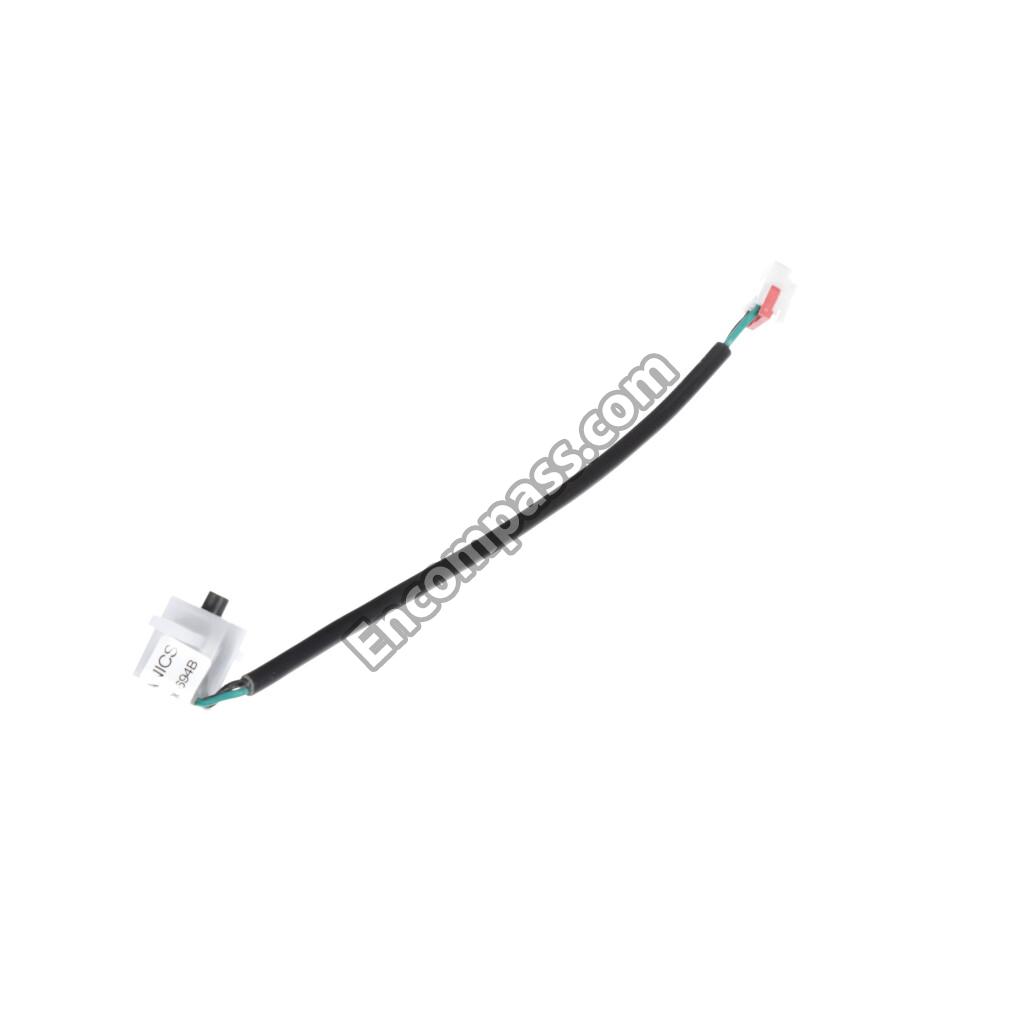

ASSEMBLY SWITCH-TACT;A2-PJT, D-ON, |
|
|

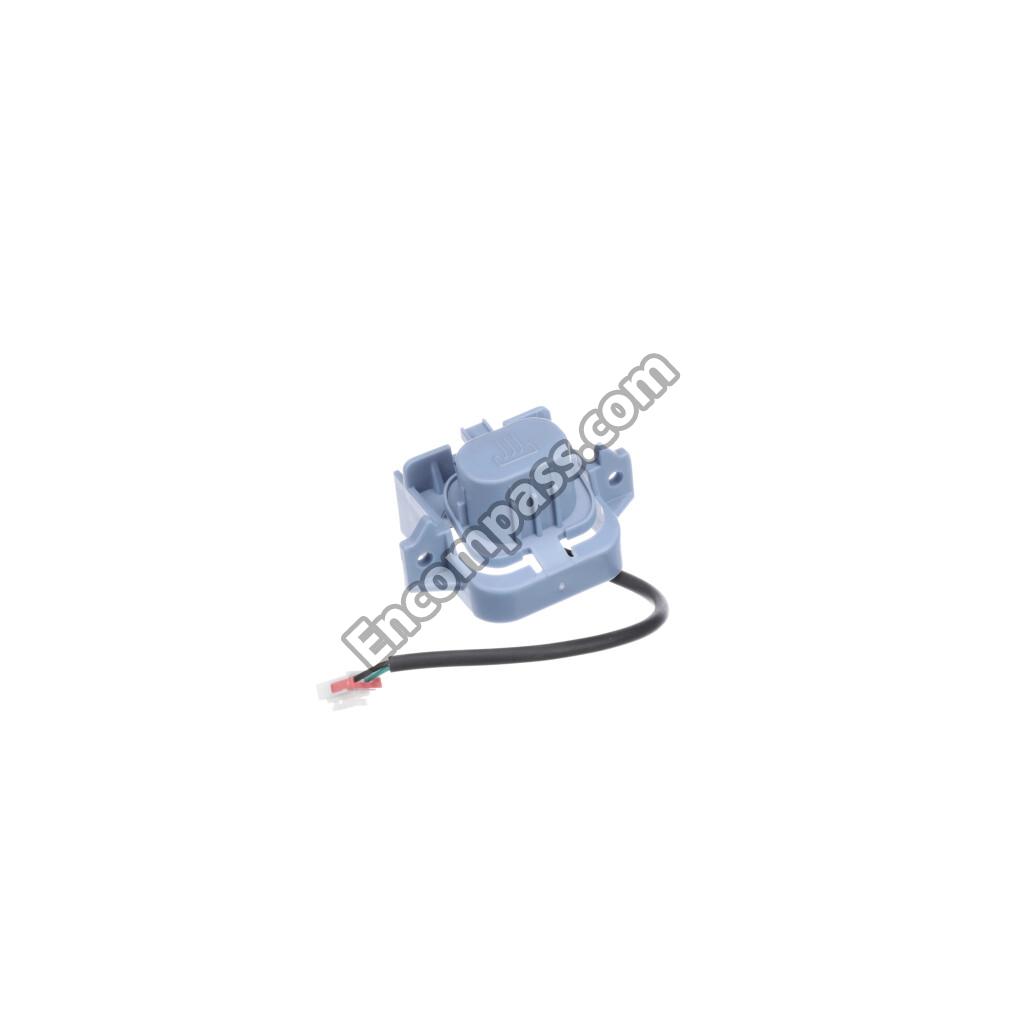

ASSEMBLY THERMISTOR |
| DC93-00398C | ASSEMBLY WIRE HARNESS-PBA |
| DC98-02985A | ASSY ACCESSORY;ATV-PJT,ALL MODEL |
| DC97-21552B | ASSY BALANCER;A2 PJT,WA7000R,LIQUID BALA |
| DC97-23931A | ASSY FILTER;WA7500C,PET CARE,ABS,DARK HO |
| DC97-22353C | ASSY FRAME PLATE-UP;WA5500D,GI-SGCC+PU F |
| DC92-02337B | ASSY MICOM;A1A2 PANEL R5F100LG (BASE 4J) |
| DC97-24129R | ASSY PANEL;WA7100C,5.4CU.FT,BRUSHED NAVY |
| DC97-21559B | ASSY TUB SUB;WA7000R,PP,NATURAL,F-DDM,NO |
| DC93-00921A | ASSY WIRE HARNESS-PUMP;AUTO,WA55A7300AV/ |
| 6902-000286 | BAG PE |
| 6902-000266 | BAG PE;LDPE,T0.03,W800,L900,TRP,RECYCLE+ |
| DC61-04711A | BALANCER-LOW;WA50P7250A*,WA50P7450A*,WA5 |
| DC61-04710A | BALANCER-UP;WA50P7250A*,WA50P7450A*,WA54 |
| DC61-05583A | BASE;25KG,PUMP,PP,BLACK,-,HB,P-002HB,H.H |
| DC61-04930B | BODY DRAWER;WA54R7600AV,ABS,CHARCOAL,H |
|
|
BOLT PULSATOR |
|
|
BOLT-ETC |
|
|

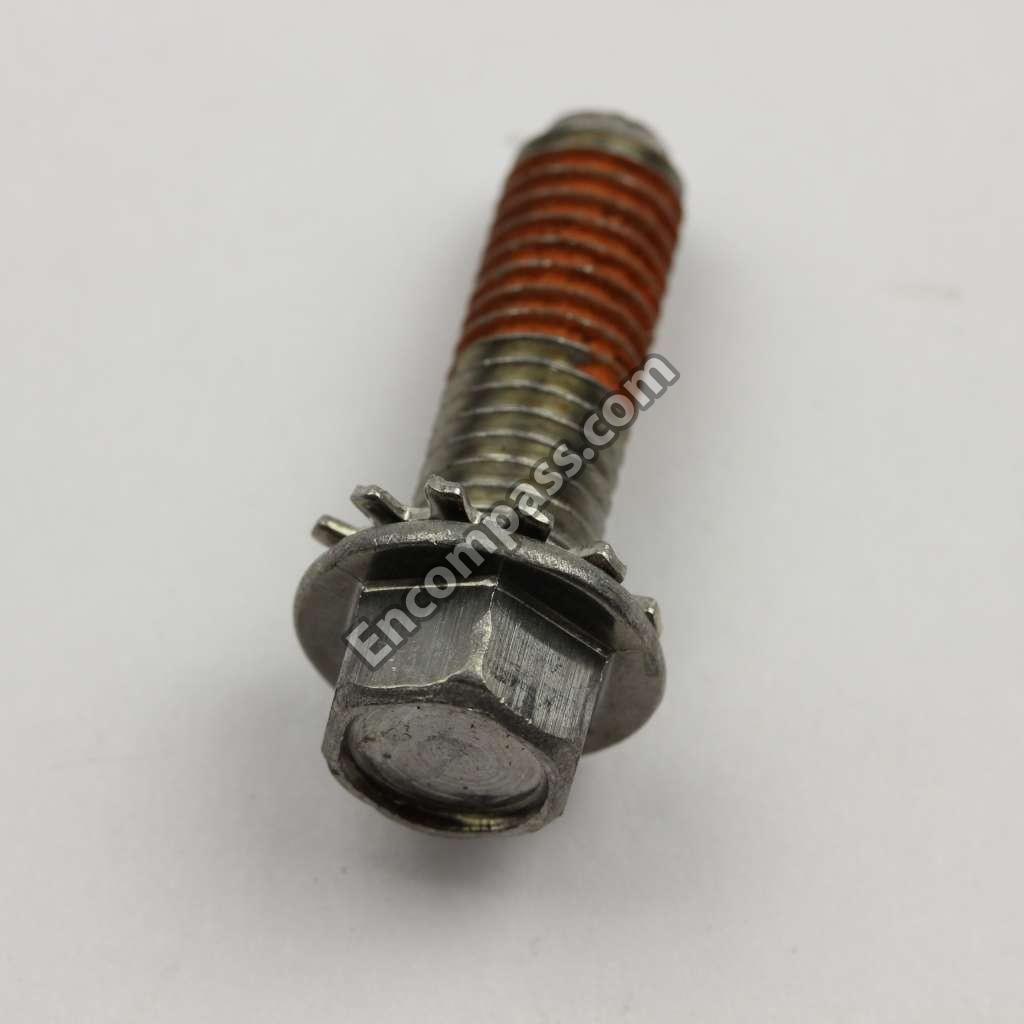

BOLT-HEX |
| 6009-001780 | BOLT-HEX |
| DC61-03946B | BUSH HOSE;WA50R5400,TPE,DARK HOLDER GRAY |
| DC66-20042A | BUSH-PULSATOR |
| DC64-04057C | BUTTON PUSH;WA7000A,PP+TD30%,HONESTY B |
| DC61-00553B | CABLE CLAMP |
| DC65-20010A | CABLE CLAMP |
| 6501-000121 | CABLE TIE |
| DC67-01156C | CAP DETERGENT;WA7000A,PP+TD30%,T1.6,PT |
| DC67-01157C | CAP RINSE;WA7000A,PP+TD30%,T1.6,PTN960 |
| DC67-01038A | CAP SCREW;WA54P7650AV,SI,EBONY BLACK,BK0 |
| DC67-00784A | CAP V.W;PP,T2,BJ750,BLACK |
| DC61-10533A | CAP-TRIP |
| DC61-05376A | CASE PUMP;A2(DC PUMP),PP+TD30%,KTL GRAY, |
|
|
CASE SWITCH DOOR;WA54P7650AV,PP,T2,INNER |
|
|
CHECK VALVE |
| DC02-10043A | CHEMICALS-COMM SALT |
| DC02-10024A | CHEMICALS-GREASE |
| DC02-10013A | CHEMICALS-S.GREASE |
| DC02-10042A | CHEMICALS-WATER |
| DC61-01136A | CLAMPER HOSE |
| DC65-00047A | CLAMPER HOSE |
| DC65-00038A | CLAMPER HOSE-FIX |
| DC65-00014C | CLAMPER HOSE-JOINT |
| DC61-00219P | CLAMPER HOSE;-,SK5,ID33,T1.2,ZPC |
| DC65-00051A | CLAMPER HOSE;A2-PJT,SK5 |
| DC65-00027D | CLAMPER HOSE;ATV,SK5,NATURAL,ZPC2 |
|
|
COVER ASSEMBLY BACK |
|
|

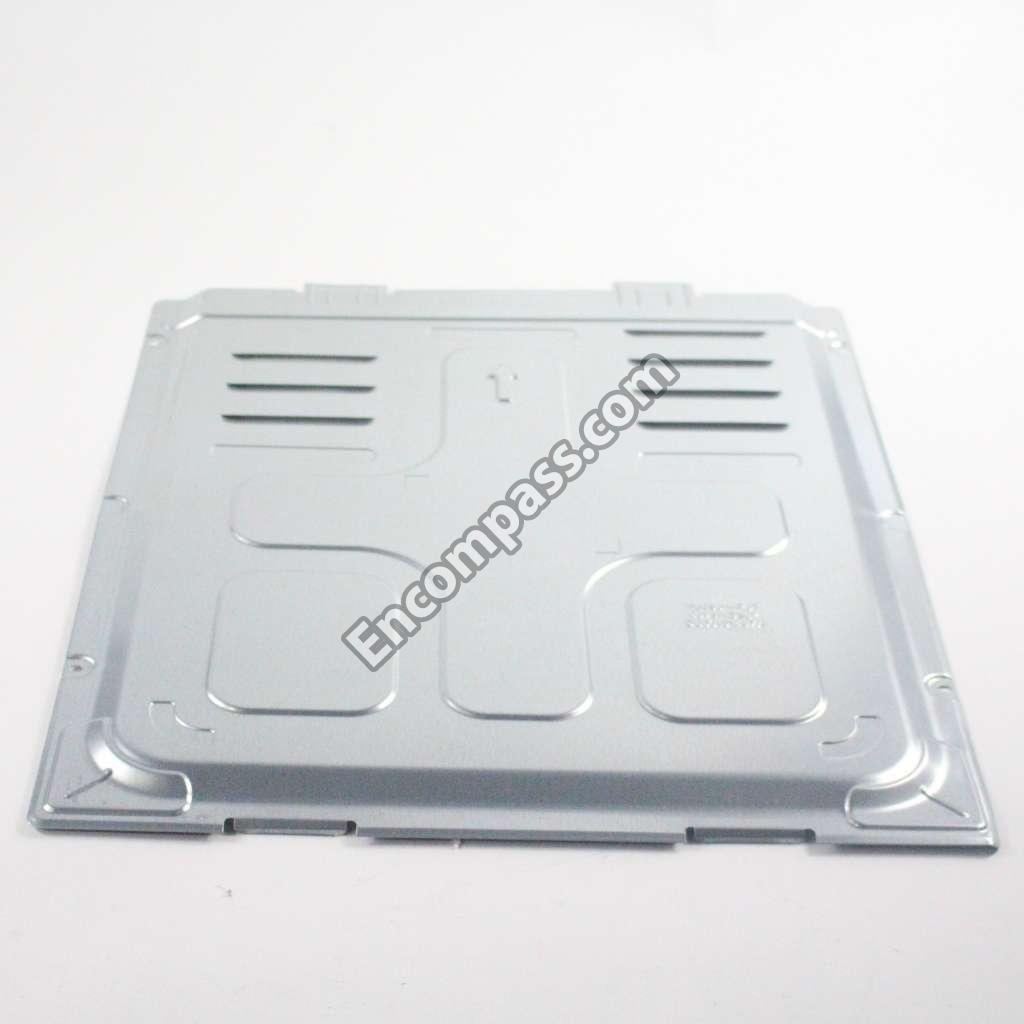

COVER BACK |
| DC63-02093C | COVER CONNECTOR |
| DC63-02117A | COVER CONNECTOR |
| DC63-01579C | COVER GUIDE WIRE;A2 PJT,PP,T2,BLACK, |
| DC63-02340A | COVER PBA-SUB;A2 PJT,ABS,T2.5,HB,NEAT WH |
| DC63-02444A | COVER PBA-SUB;A2 PJT,ABS,T2.5,NATURAL,GP |
| DC63-02788A | COVER TUB |
| DC69-02552A | CUSHION BALANCER;A2 PJT,EPS,W528,L294,H2 |
| DC69-01931B | CUSHION CORNER-FRONT;WA8700K,EPS,W226,L7 |
| DC69-01932C | CUSHION CORNER-REAR;WA8700K,EPS,W224,L77 |
| DC63-01577B | CUSHION LID |
| DC64-03823E | DOOR GLASS |
| DC64-03819A | DOOR LID COVER;WA7000R,PP+TD30%,T3,FC230 |
|
|
FASTENER-SPRING |
| DC63-03067A | FILTER GUIDE-FRONT;WA7500C,PP,T2,NATURAL |
| DC63-03066A | FILTER GUIDE-REAR;WA7500C,PP,T2,NATURAL, |
| DC60-00067C | FLANGE SHAFT |
| DC61-04967A | FRAME CORNER-FRONT LEFT;WA50R5400,GI-SGC |
| DC61-04968A | FRAME CORNER-FRONT RIGHT;WA50R5400,GI-SG |
| DC61-03294A | FRAME CORNER-REAR LEFT;HUDSON,GI-SGCC,T1 |
| DC61-03295A | FRAME CORNER-REAR RIGHT;HUDSON,GI-SGCC,T |
| DC66-00846A | GEAR INTERNAL;WA-9000HA,POM,12,NATURAL,1 |
| 0205-001245 | GREASE-SILICON |
| DC61-05396C | GUIDE DETERGENT;WA7000A,PP+TD30%,T2,PT |
| DC61-04875A | GUIDE ENCODER;A2 PJT,ABS,T2.5,HB,RM-0760 |
| DC61-03948C | GUIDE HOSE;ALL ATV,PP,T3,RM60C,BLACK |
| DC61-03947C | GUIDE HOSE;ATV,PP,T3,RM60C,BLACK |
| DC61-03853A | GUIDE RAIL-L;WA56H9000AP/A2;WA56H9000AW/ |
| DC61-03854A | GUIDE RAIL-R;WAH9000AW/A2;WAH9000AP/A2 W |
| DC61-05792A | GUIDE W.F;WA7500C,PP,-,HB,BJ750,KTL GRAY |
| DC61-04099A | GUIDE WATER;WA7700K,PP+TD30%,T1.6,HB,FC2 |
| DC61-00224C | HANGER CLAMPER;27" GLOBAL,PP,T1.5,BLACK, |
| DC61-04873A | HINGE DOOR;WA7000R,POM,T2,BLACK,K300, |
| DC61-04876A | HINGE-LEFT;WA54P7650A,POM,T3.2,BLACK,K30 |
| DC61-04872A | HINGE-RIGHT;WA54P7650A,POM,T3.2,BLACK,K3 |
| DC61-04353A | HOLDER HOSE;WA8700M,PP,T1.5,NATURAL,BJ75 |
| DC67-00684A | HOSE DRAIN-IN;F900A,EPDM,ID44.5,T2 |
| DC67-00808B | HOSE DRAIN;WA50R5400,PP,ID25,T0.7,LIGHT |
| DC67-00051Q | HOSE DRAWER |
| 0903-002197 | IC-MICROCONTROLLER;HART-I910Z,LQFP,64P,1 |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,MQFP,100P,2 |
| 0903-001966 | IC-MICROCONTROLLER;LQFP,64P,12X12MM,20,5 |
| 1205-005895 | IC-TOUCH;CY8C4124LQI,QFN,40P,6X6MM,PLAST |
|
|
JOG MODULE |
|
|
KNOB ENCODER |
| DC68-03512A | LABEL BAR CODE;ART,W70,L20 |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMINATE COATED |
| DC68-02977B | LABEL RATING;AMERICA,PET,W25,L106 |
| DC68-02173A | LABEL-PACKING |
| DC68-02298A | LABEL-POWER CORD |
|
|

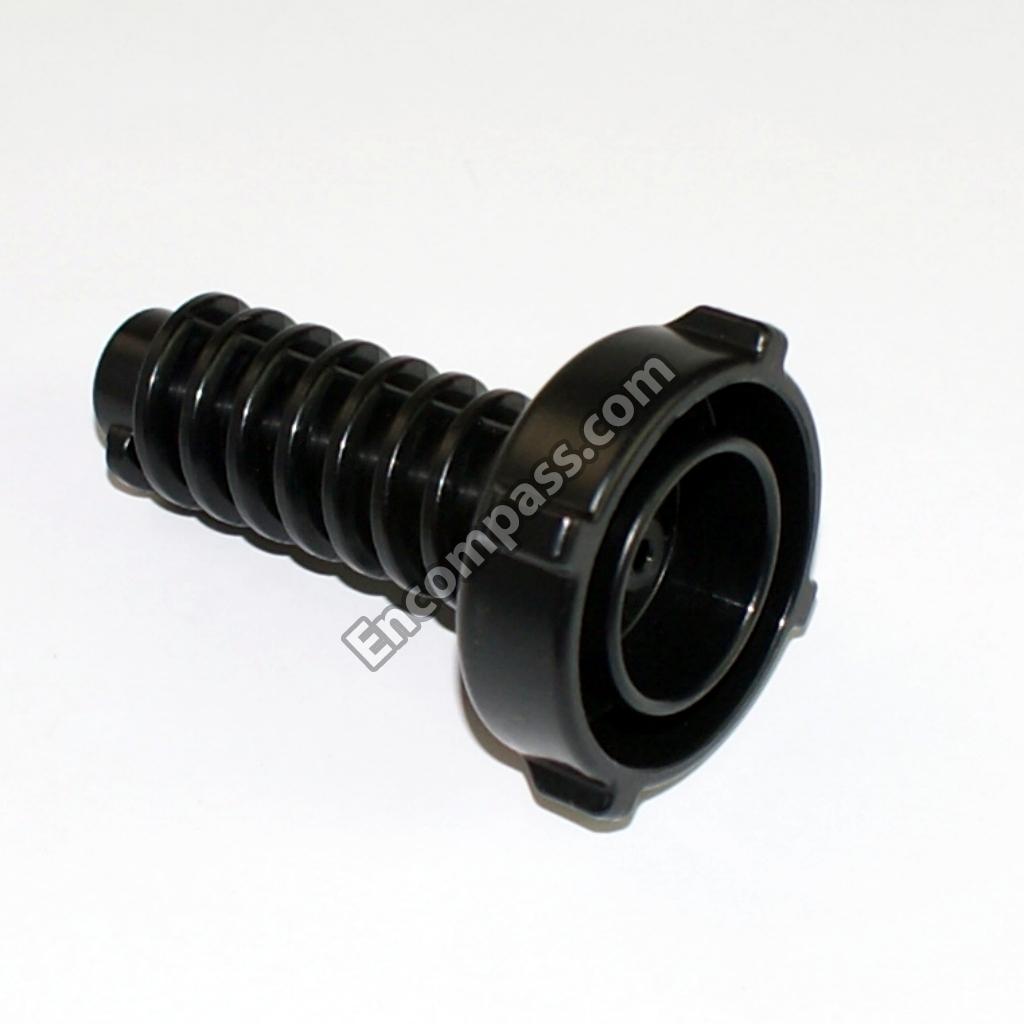

LEG ADJUST |
|
|

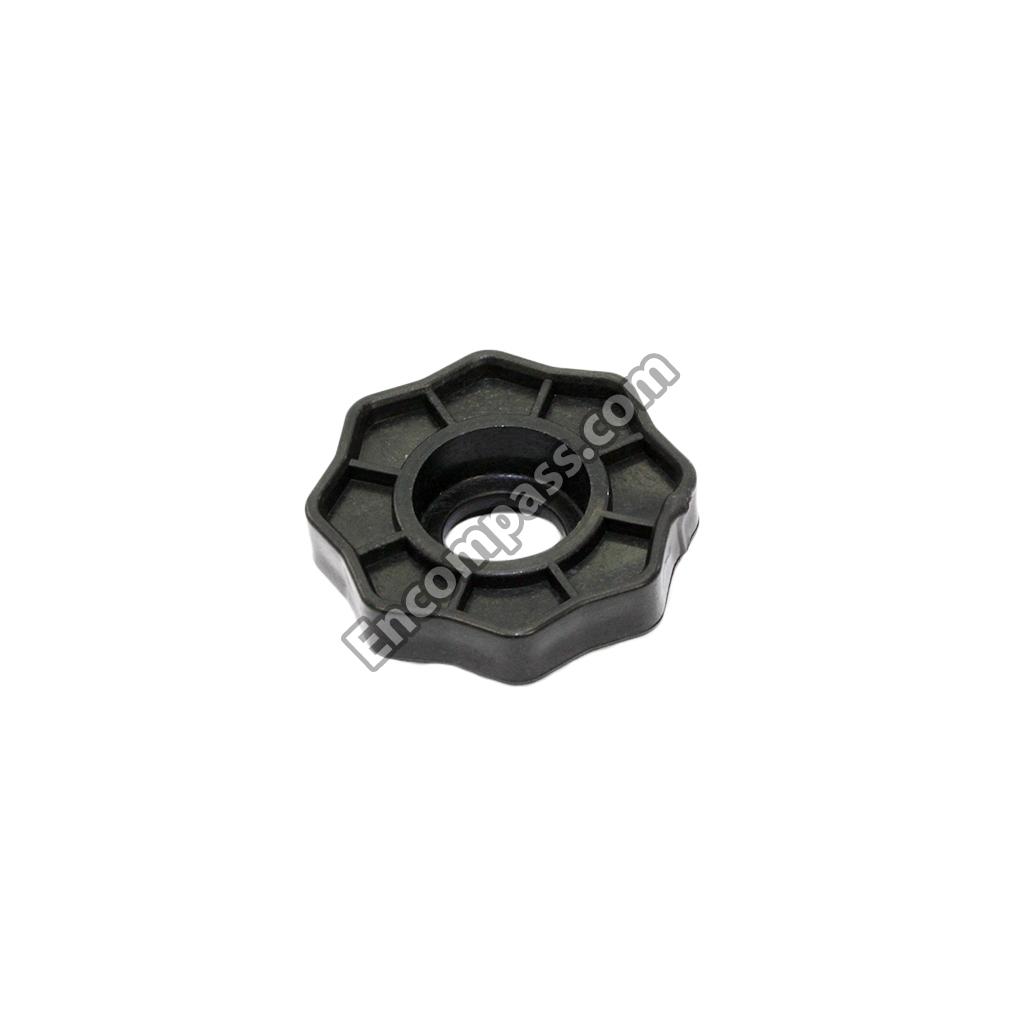

LEG RING |
|
|

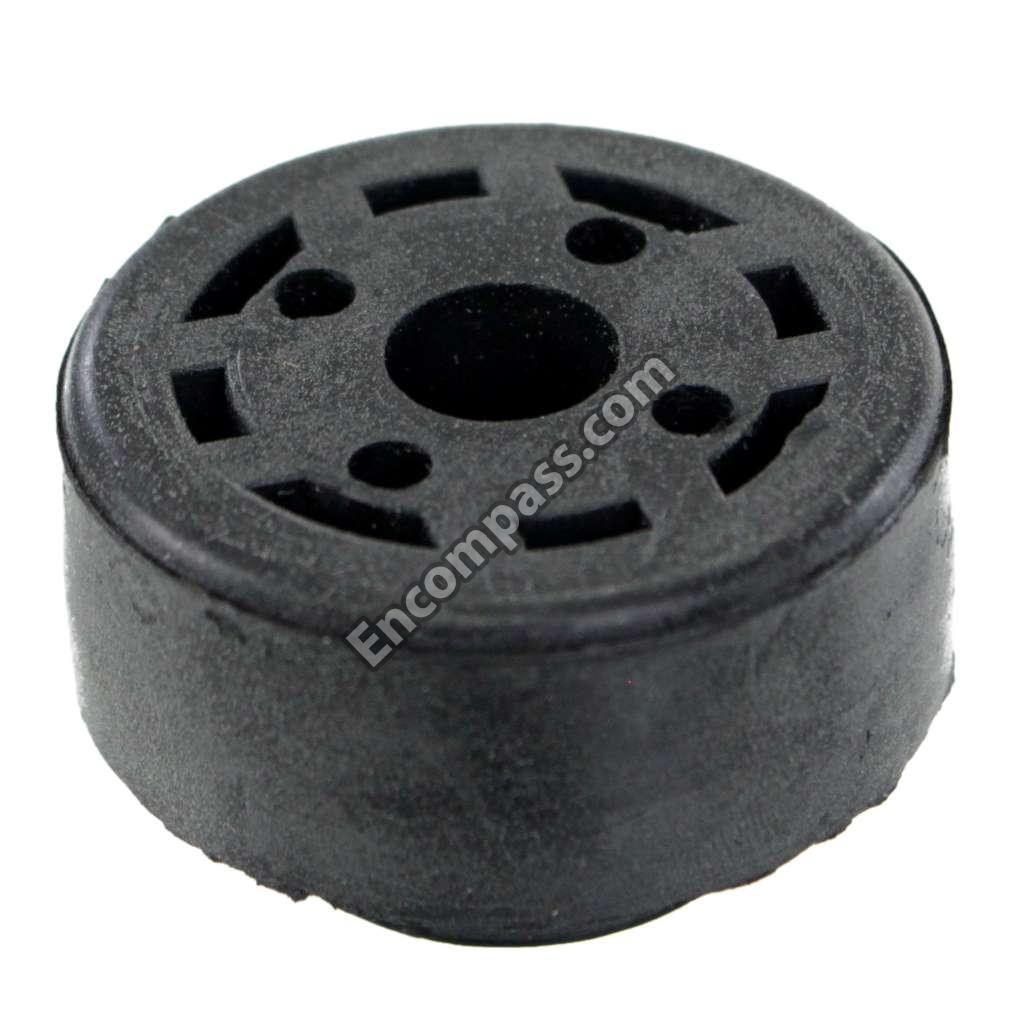

LEG RUBBER;WA3200T,IIR,BLACK,363 |
| DC66-00978A | LINK DRAIN;30F,PP,NATURAL |
|
|
MAGNET R.S |
|
|

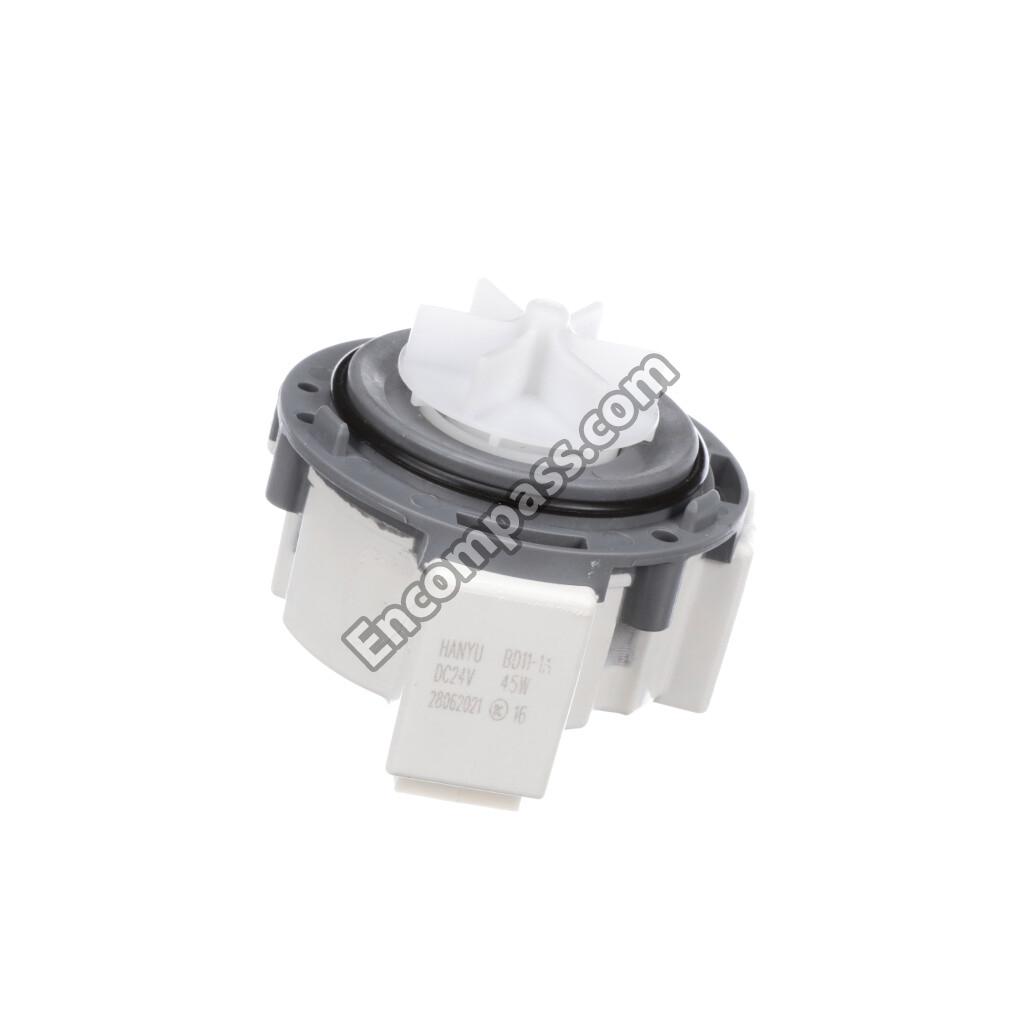

MOTOR BLDC PUMP |
|
|
MOTOR BLDC-ASSEMBLY ROTOR |
|
|
MOTOR DC-CLUTCH |
| DC62-00648A | NOZZLE-LOW;WA50R5400AV,ABS,PM GRAY,GY009 |
| DC62-00451C | NOZZLE-MIDDLE;WA8700J,ABS,PM GRAY,GY0096 |
| DC62-00801C | NOZZLE-UP |
|
|

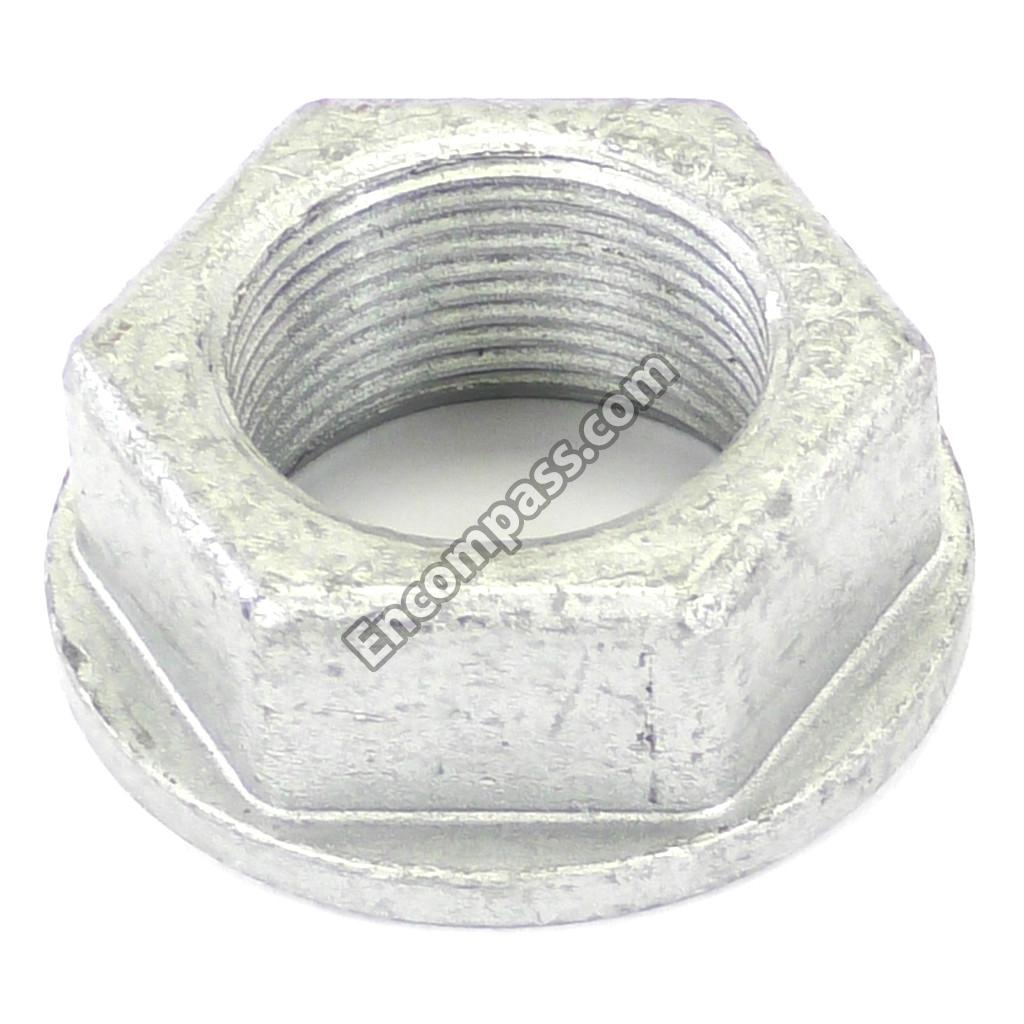

NUT-HEXAGON |
|
|
NUT-HEXAGON |
| DC69-01721A | PACKING CASE SHRINKAGE;OWM,LDPE,T0.07, |
| DC69-02178A | PACKING SUPPORT;LDPE,W20 |
| DC62-40097B | PACKING;-,NBR,SW-T65 |
| DC60-80169A | PIN LINK |
|
|
PLAIN WASHWER |
|
|
POWER CORD-AT |
|
|
PULSATOR CAP |
| DC66-01013A | PULSATOR;WA50R5200AW,PP+TD20%,KTL GRAY,G |
| DC60-70002B | RIVET-PIN |
|
|

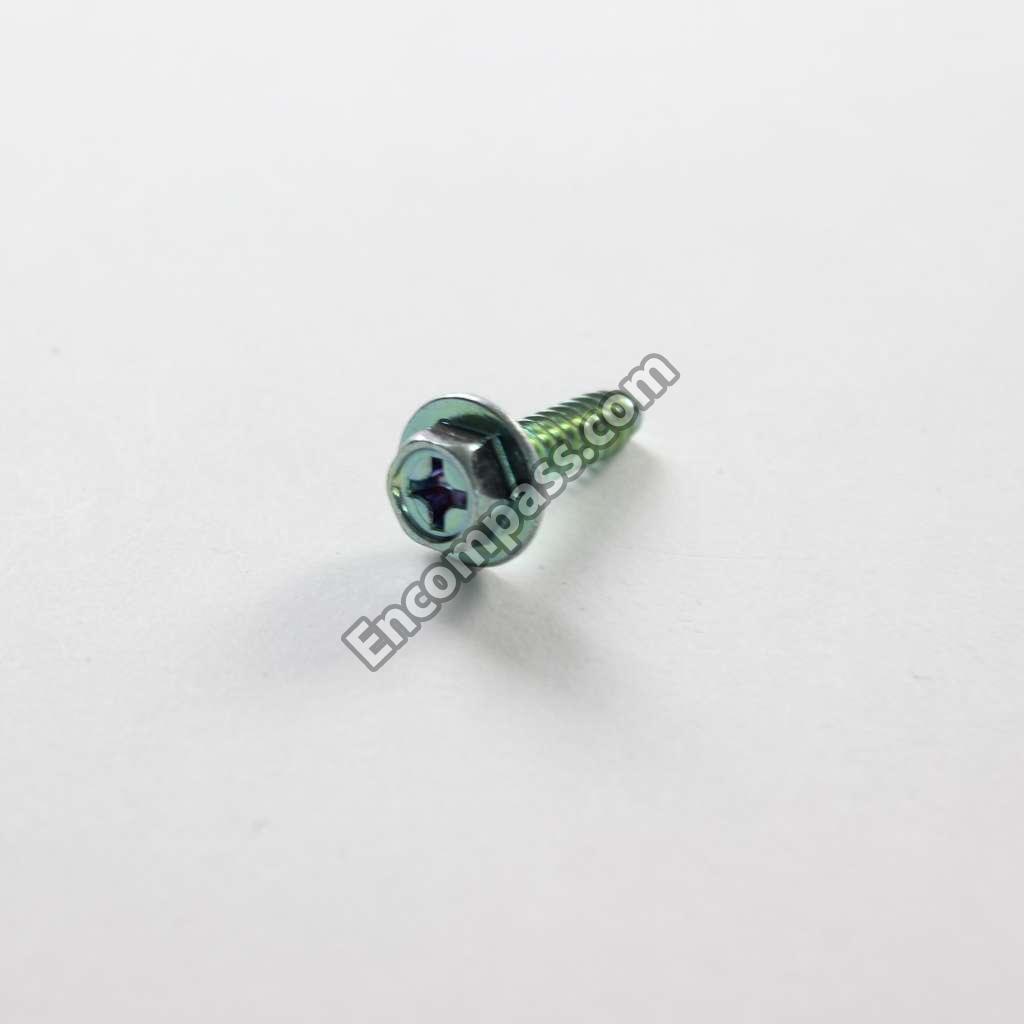

SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000548 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-001006 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPTYPE |
|
|
SENSOR PRESSURE;AIR,5V,L770,600MMH2O |
| DC66-00847B | SHAFT;ATV MODEL,CFRP,L207.5,OD3.0,BLACK |
| DC63-02449A | SHEET INSULATION;WA7000R,EVA,T7,W30,L11, |
| DC63-02119A | SHEET PE;AUTO,PP,NATURAL,OPP,T0.04 |
| 0203-007320 | SMG PART |
| 4709-003223 | SMG PART |
| DC01-00520K | SMG PART |
| DC61-04703L | SMG PART |
| DC61-04726B | SMG PART |
| DC61-04727B | SMG PART |
| DC61-04728B | SMG PART |
| DC61-04841B | SMG PART |
| DC61-05798A | SMG PART |
| DC62-00891A | SMG PART |
| DC63-02343M | SMG PART |
| DC63-02347V | SMG PART |
| DC63-03065A | SMG PART |
| DC63-03076A | SMG PART |
| DC64-03376X | SMG PART |
| DC64-03821F | SMG PART |
| DC64-04063E | SMG PART |
| DC68-03049A | SMG PART |
| DC68-03172F | SMG PART |
| DC68-03172G | SMG PART |
| DC68-04037S | SMG PART |
| DC68-04466D | SMG PART |
| DC68-04475A | SMG PART |
| DC69-02456C | SMG PART |
| DC69-02551C | SMG PART |
| DC69-02791B | SMG PART |
| DC69-02821B | SMG PART |
| DC69-02828G | SMG PART |
| DC90-30422M | SMG PART |
| DC90-30946A | SMG PART |
| DC92-02339J | SMG PART |
| DC92-03005E | SMG PART |
| DC97-21438B | SMG PART |
| DC97-21522Z | SMG PART |
| DC97-22521R | SMG PART |
| DC97-22827P | SMG PART |
| DC97-22835H | SMG PART |
| DC97-23430B | SMG PART |
| DC97-23690A | SMG PART |
| DC98-04024D | SMG PART |
| DC98-04025B | SMG PART |
| DC98-05060A | SMG PART |
| DC98-05101A | SMG PART |
| DC63-10002F | SPONGE-HARNESS |
| DC61-04129E | SPRING HINGE;WB7000R,SWPB,OD2.8,L511,Z |
| DC61-04129F | SPRING HINGE;WB7000R,SWPB,OD2.8,L511,Z |
| DC61-00498A | SPRING-PLATE FILTER |
| DC61-04962A | SUPPORT SADDLE;WA7450R,PP,T3,HB,P-002HB, |
|
|

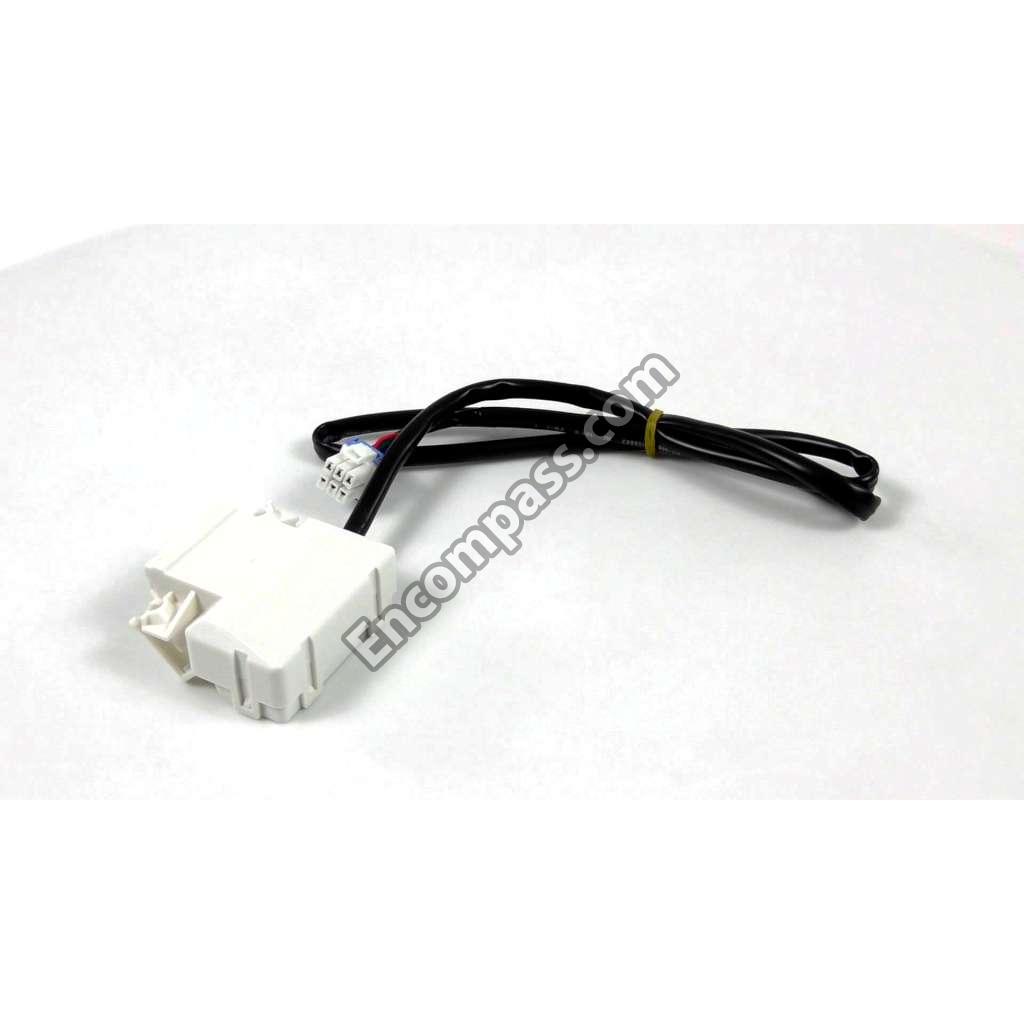

SWITCH DOOR LOCK;DC12V,0.3A,MOTOR, DOOR |
| 0203-001607 | TAPE-OPP MASKING |
| 0203-006625 | TAPE-OPP MASKING;OPP,T0.065,W75,L800M,CL |
| 0203-006796 | TAPE-POLY |
| 0203-007184 | TAPE-SINGLE FACE;PO,T0.07,W50,L100M,CLEA |
| DC61-04738A | TUB OUTER;WA54R7XXX / WA50R5XXX,PP,T4,NA |
|
|
VALVE WATER |
|
|
WASHER-WAVE |
| DC66-10003A | WIRE VINYL |
| DC61-04066C | |
| DC63-00004S | |
| DC64-04312E | |
| DC90-30160R | |
| DC90-30947M | |
| DC90-31881H | |
| DC92-02374C | |
| DC92-03846A | |
| DC93-01077B | |
| DC97-19312D | |
| DC97-24460B | |
| DC97-24461B |
