Manufacturer
VIZIO
Model Number
SV470XVT1A
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC INLET 0707-1-CN/VHR5P 1617 300MM 1015 115MM+TUB |
|
|
ACCESSARY BOX (300W*230D*50H) |
|
|
ACETATE CLOTH TAPE 20*45MM |
|
|
ACETATE CLOTH TAPE 27*75MM |
|
|
ACETATE CLOTH TAPE 40*80MM |
|
|
AUDIO BD ASS'Y (SV420) |
|
|
AUDIO_TX BD ASS'Y (SV42) |
|
|

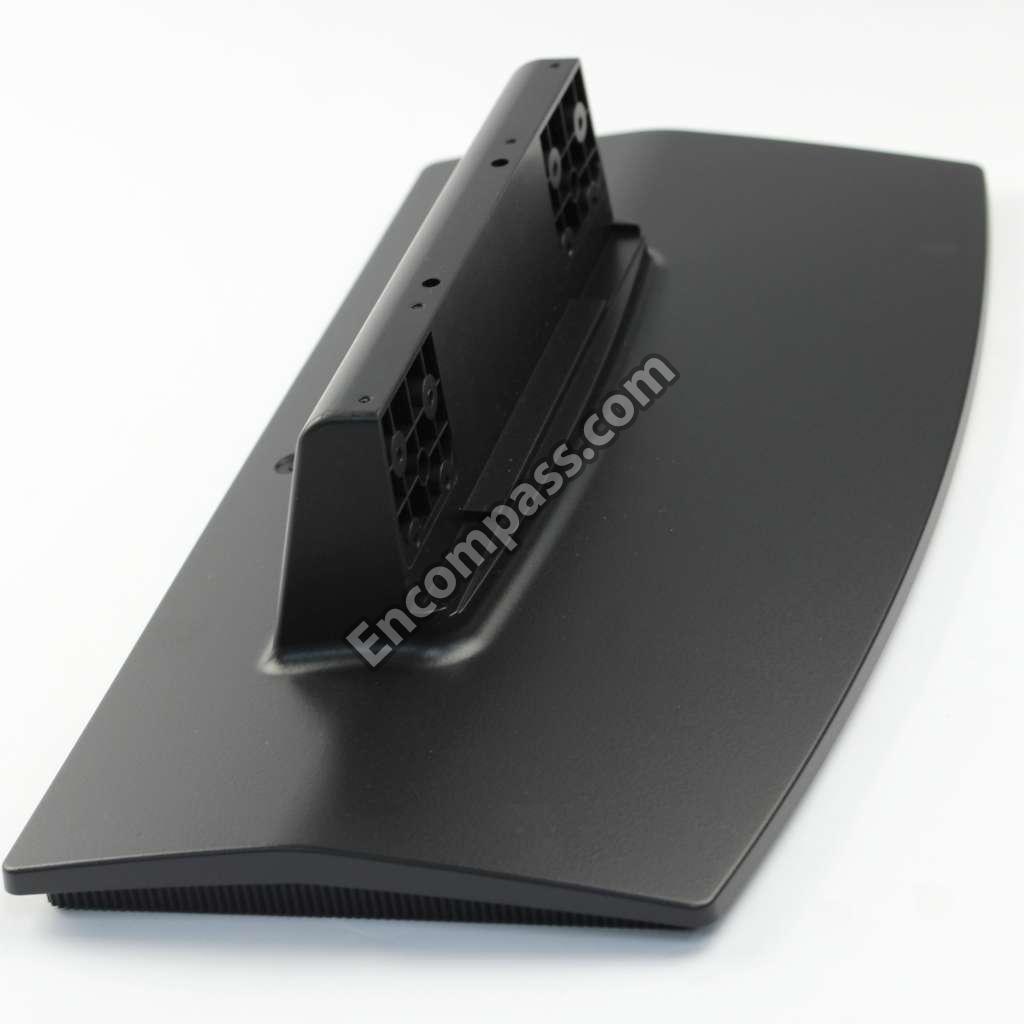

BASE (ABS 94HB,T52013)(SV47) |
|
|
BASE SUPPORT(SECC,SGLCC T=1.6)(SV47) |
|
|
BATTERY ALKALINE 1.5V AAA (LR03) MITSUBISHI LF |
|
|
BOX FOR M/B (VO47L20A_SKD) |
|
|
BUBBLE BAG (VS42L FHDTV10A,SKD) |
|
|
CABLE CLIP (VW42L HDTV10A) |
|
|
CARTON JOINT (TM-32V) |
|
|
CARTON PARTITION FOR M/B (VO47L20A_SKD) |
|
|
CARTON TRAY (VO47L120F1A) |
|
|
CARTON VIZIO SV470XVT1A(LGD_WUF) |
|
|
CONN SIDE JACK BD ASS'Y SV42(LGD_WUF) |
|
|
CR SPONGE(200*20 T=0.5MM)(GV42L FHDTV10A) |
|
|
D.SIZE POLISHING CLOTH VIZIO |
|
|
DAUGHTER BD ASS'Y (SV470XVT1A) |
|
|
DISPLAY BD ASS'Y (SV42) |
|
|
DISPLAY KEY(ABS 94-5V)(SV47) |
|
|
EPE FOAM FOR BASE(350L*120W*10T)(VP505 XVT1A) |
|
|
EPE FORM_TOP FOR M/B (VO47L FHDTV10A_SKD) |
|
|
EPS FOAM BOTTOM_L (VO47L30A) |
|
|
EPS FOAM BOTTOM_MIDDLE(VO47L30A) |
|
|
EPS FOAM BOTTOM_R (VO47L30A) |
|
|
EPS FOAM TOP_L (VO47L30A) |
|
|
EPS FOAM TOP_R (VO47L30A) |
|
|
FRONT BEZEL(TECHNOGY)(ABS 94-HB/T52013)(SV47) ASS'Y |
|
|
GASKET BLOCK (20.0*13.0*10.0) |
|
|
GLUE SUPER X 8008(CLEAR,135ML) |
|
|
HDMI CABLE 1800MM BLACK |
|
|
HDMI CABLE 1800MM BLACK (CLOSED) |
|
|
INSULATOR(D16*D10*T1.2)(TRANSPARENT) |
|
|
KNOB COVER(ABS 94-5V/T52013)(SV47) ASS'Y |
|
|
LD-PE BAG (1280*1050*0.07)(SV47) |
|
|
LED BACKLIGHT 16.72*56*1.5 (LYSL-4914WSY)700MM LF |
|
|
LED BACKLIGHT 16.72*56*1.5(LP1063-S603)700MM LF |
|
|
LED BACKLIGHT 18*34*3 800MM LP1013-S626-WW LF |
|
|
MAC SCREW-MB M4.0*8.0L,BLK_NI(NYLOK) |
|
|
MAC SCREW-MI M4.0*5.0L ,NI,NYLOK |
|
|
MAC. SCREEW BIHM3.0-0.5*4.0L,NI ? |
|
|
MAC. SCREW-MB M3.0*6.0L,NI |
|
|
MAC. SCREW-MB M4.0*4.0L,BLK_NI,NYLOK |
|
|
MAC. SCREW-MB M4.0*5.0L,NI |
|
|
MAC. SCREW-MBGW M4.0*6.0L, NI |
|
|
MAC. SCREW-MF M3.0*8.0L,BLK-NI |
|
|

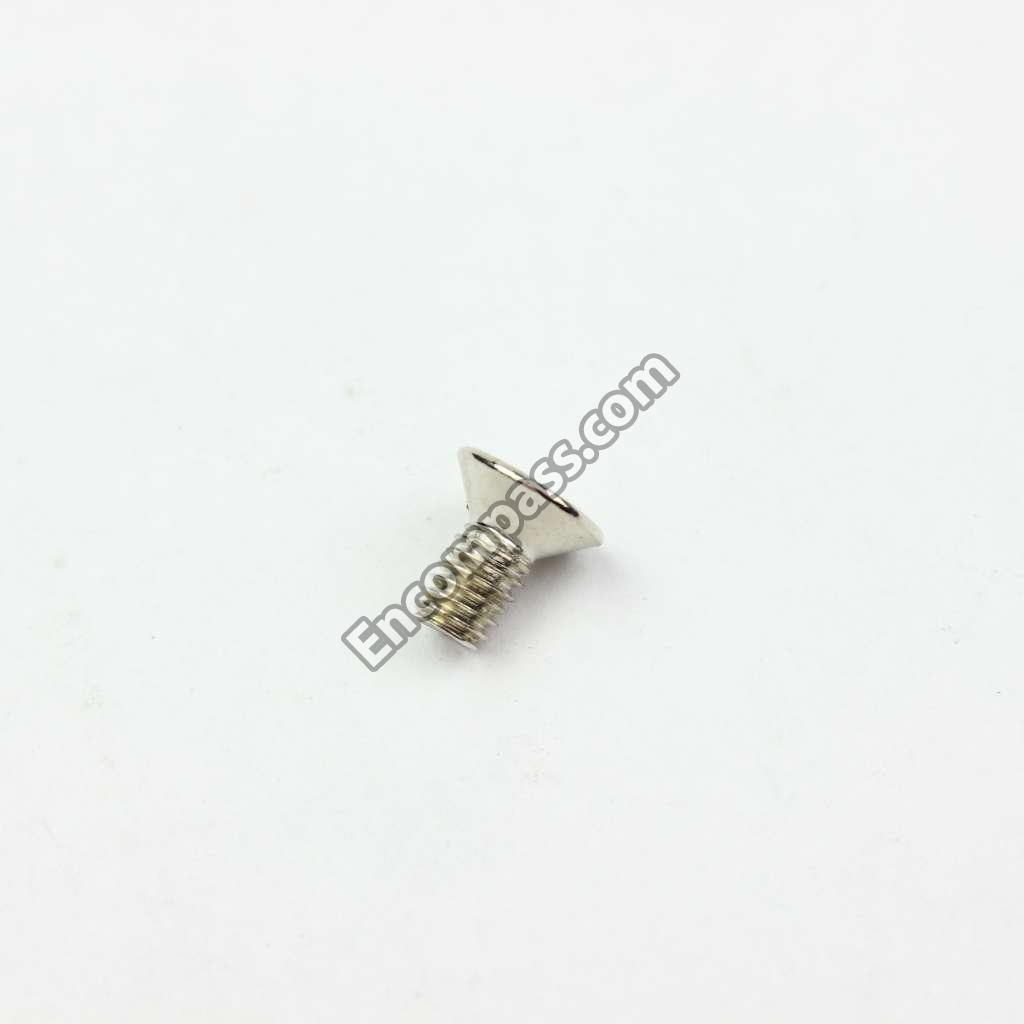

MAC. SCREW-MF M4.0*8.0L,NI |
|
|
MAC. SCREW-MHSW #4-40*8.0L,NI |
|
|
MAC. SCREW-MPSWF M4.0*6.0L,NI |
|
|
MAC. SCREW-MRF M3.0*6.0L, BLK-NI |
|
|
MAC. SCREW-SFW, M8.0*20.0L,BLK |
|
|
MAIN BD ASS'Y SV47 (LGD-WUF)(HDCP) |
|
|
MANUAL VIZIO SV470XVT1A WITH ENERGY STAR3.0 |
|
|
MYLAR (18.0*28.0*0.6T)(VX32L) |
|
|
NUT 3/8 -32(W12.5*2.0T,NI)(FOR TUNER) |
|
|
PE BAG (120.0*170.0*0.04T)(NO.#6) |
|
|
PE BAG (180W*290L*0.04T)(PE-LD)(ACC.-1) |
|
|
PE BAG 320*230*0.06T |
|
|
POWER CORD 110V UL/CSA 1800MM BLK N.M. (VINC) |
|
|
POWER/INVERTER ASS'Y BD B120-001 REV A LF |
|
|
QSG VIZIO SV470XVT1A |
|
|
REAR COVER(ABS 94-5V/T52013)(SV47) |
|
|
REAR PLATE VIZIO SV47 |
|
|
REGISTER CARD VIZIO SERIES |
|
|
SAFETY STRAP(VM60P HDTV10A) |
|
|
SCREW PHW M3-0.5*6.1 W=7.8 NYLOK |
|
|
SERIAL NO LBL FOR VIZIO VS42L FHDTV10A |
|
|
SERIAL NO.LBL BYD:SIGN |
|
|
SHIELDING AL. TAPE (50.0*40.0) |
|
|
SHIELDING AL. TAPE (50.0W*100.0L) |
|
|
SHIELDING AL.TAPE (50.0W*70.0L)(HP OBI WAN-24) |
|
|
SIDE JACK COVER(ABS 94-5V/T52013)(SV47) ASS'Y |
|
|
SPK 10W 8OHM(120*30*34) W/SPONGE+CORE 450MM LF |
|
|
SPK BOX 10W 6OHM(160*73*79) W/CORE 800/300MM LF |
|
|
TAP. SCREW-TB #3.0*15.0L,BLK-NI |
|
|

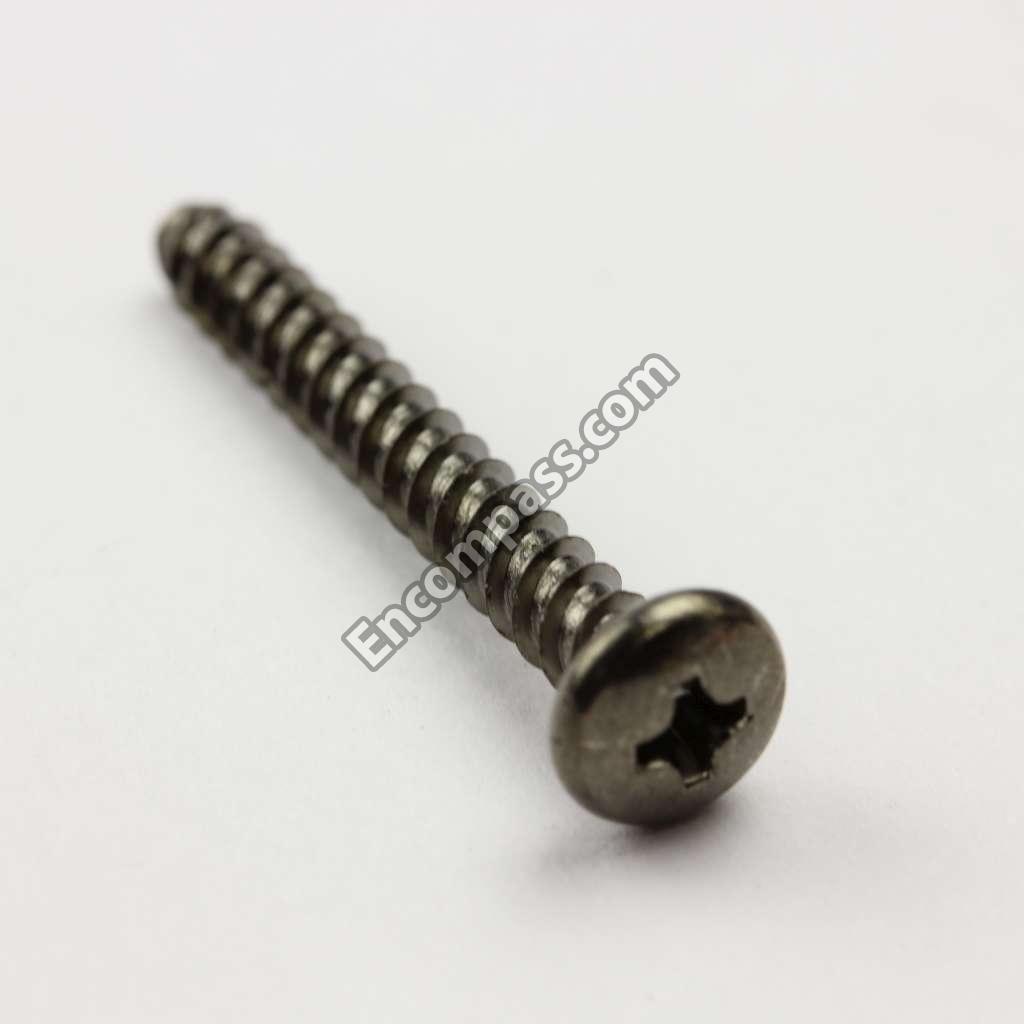

TAP. SCREW-TB #4.0*30.0L, BLK-NI |
|
|
TAP. SCREW-TB #4.0*8.0L, BLK-NI |
|
|

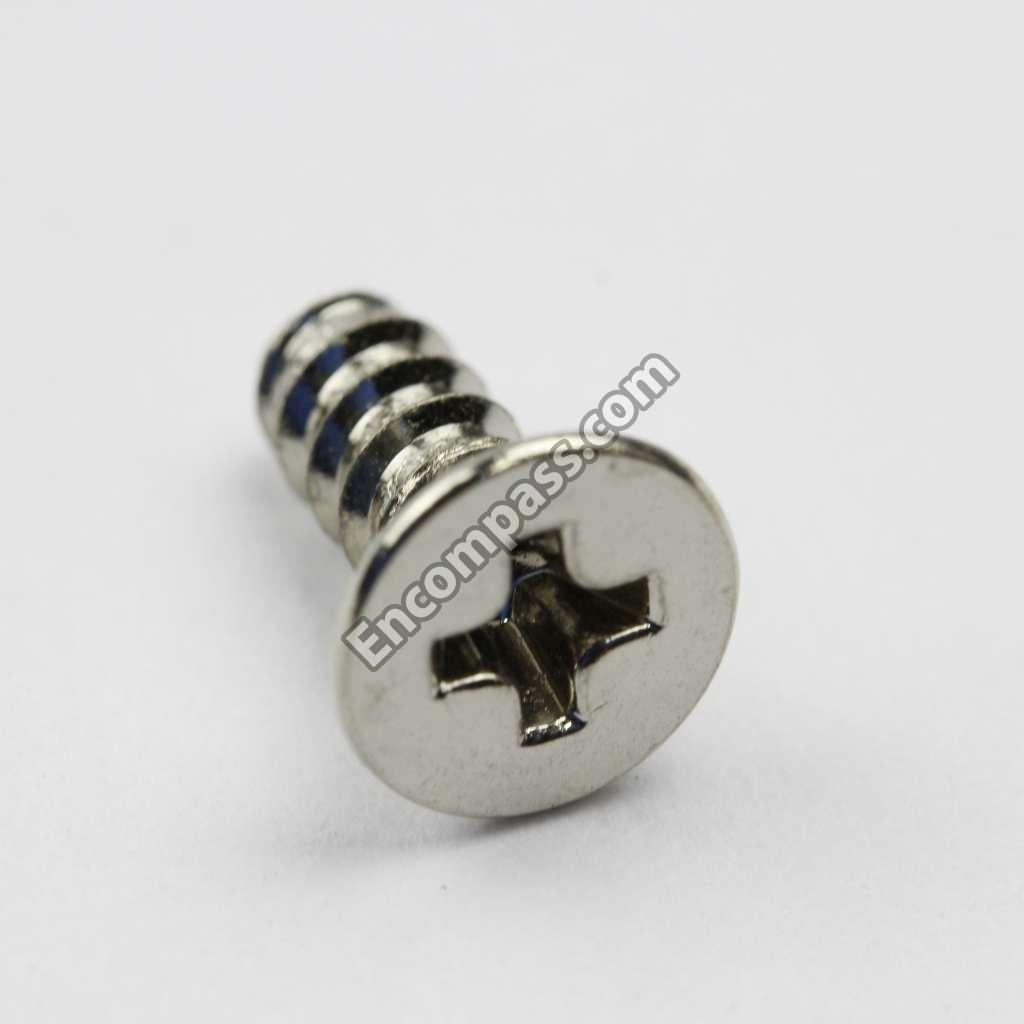

TAP. SCREW-TF #4.0*10.0L, NI |
|
|
TAP. SCREW-TF #M3.0X8.0L,BLK-NI |
|
|
TAP. SCREW-TP #3.0X8.0L, BLK-NI |
|
|
TAP. SCREW-TP #4.0*14.0L, BLK-NI |
|
|
TAP. SCREW-TP #4.0*8.0L,NI |
|
|
TAP. SCREW-TRF #3.0*12.0L,NI |
|
|
VIZIO WARRANTY & REPAIR SHEET (ENGLISH) |
|
|
WALL MOUNT SUPPORT(SECC,SGLCC T=1.0)(SV47) |
|
|
WH A1251-10P/A1251-10P 1571#28 650MM |
|
|
WH A1251-14/A1251-14 20276#28 250MM+CLAMP |
|
|
WH A1251-4/A1251-3 1571#28 600MM |
|
|
WH A2001-15/A2001-15 20276#30 400MM |
|
|
WH A2001-4/A2001-4 2547#28+1061#28 520MM+GND*1 |
|
|
WH A2001-6/A2001-6 1061#26 600MM |
|
|
WH A2001-7/A2001-7 2464#26+BRAID+GND*1 150MM |
|
|
WH A2001-8/A2001-8 1061#26 200MM |
|
|
WH A2501-4P/A2543-4P 1007#22 220MM |
|
|
WH A2543-15P/A2001-15P 1007#24 270MM |
|
|
WH FI-RE41HL/PD240315 20276#30 440MM+ABSORBER+CLAM |
|
|
WH FI-RE51HL/PD240320 20276 350MM |
|
|
WH PD240320/PD240320 20276#30 240MM+ABSORBER+CLAMP |
|
|
WH PKS24020P51/PD240320 20276 350MM |
|
|
WIRE SADDLE (CH-14) |
