Manufacturer
VIZIO
Model Number
VW32LHDTV40A
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC INLET +VHR5P 1617#22 500MM 1015#18 100MM +TUBE |
|
|
ACETATE CLOTH TAPE 20*45MM |
|
|
ACETATE CLOTH TAPE 27*75MM |
|
|
ACETATE CLOTH TAPE 40*80MM |
|
|
ACETATE CLOTH TAPE 60*45MM |
|
|
BATTERY ZN-CARBON 1.5V AA(R6KG) TOSHIBA LF |
|
|
BATTERY ZN-CARBON 1.5V AA(R6P/2S) MITSUBISHI |
|
|
BKT FOR SUPPORT (VX32L) |
|
|
CARTON VIZIO VW32L HDTV40A |
|
|
CHASSIS (VX32L HDTV20A) |
|
|
CLOTH BLACK L100*W8*T0.3MM (VW37L) |
|
|
CR SPONGE 17*8MM*3.0T (VX20L HDTV) |
|
|
DISPLAY BD ASS'Y VX32L HDTV20A |
|
|
EPE FOAM SIDE (100*100*45T) VO32L FHDTV10A |
|
|
EPS FORM-BL(VW32L HDTV40A) |
|
|
EPS FORM-BR(VW32L HDTV40A) |
|
|
EPS FORM-TL(VW32L HDTV40A) |
|
|
EPS FORM-TR(VW32L HDTV40A) |
|
|
FILAMENT TAPE (TIBON 25WIDE) |
|
|
FRONT BEZEL (VW32L 30A,TECHNOLOGY)(ABS,PIANO BLK) AS |
|
|
GASKET BLOCK (10.0W* 20.0L*17.0H)(HP OBI WAN-24) |
|
|
GASKET BLOCK (17*34*25MM) (773GT) |
|
|
GLUE SUPER X 8008(CLEAR,135ML) |
|
|
INSTRUCTION SHEET FOR DETACHABLE BASE |
|
|
INSULATOR(D16*D10*T1.2)(TRANSPARENT) |
|
|
IR BD ASS'Y VU32L,VU37L HDTV10A |
|
|
LED BACKLIGHT 18*50 LYSB-4916W/SY-E 400MM |
|
|
LED BACKLIGHT 18*50*2.7 LP1063-S557 400MM(BLK F)LF |
|
|
MAC. SCREW-MB M3.0*6.0L,NI |
|
|
MAC. SCREW-MB M4.0*10.0L, BLK-NI |
|
|
MAC. SCREW-MHSW #4-40*8.0L,NI |
|
|
MAC. SCREW-MPGW M4.0*8.0L,NI |
|
|
MAC. SCREW-MPSWF M4.0*6.0L,BLK-NI |
|
|
MAC. SCREW-MPSWF M4.0*8.0L,NI |
|
|
MAC.SCREW-MF M3.0*8.0L,NI |
|
|
MAC.SCREW-MPSWF M3.0*6.0L NI |
|
|

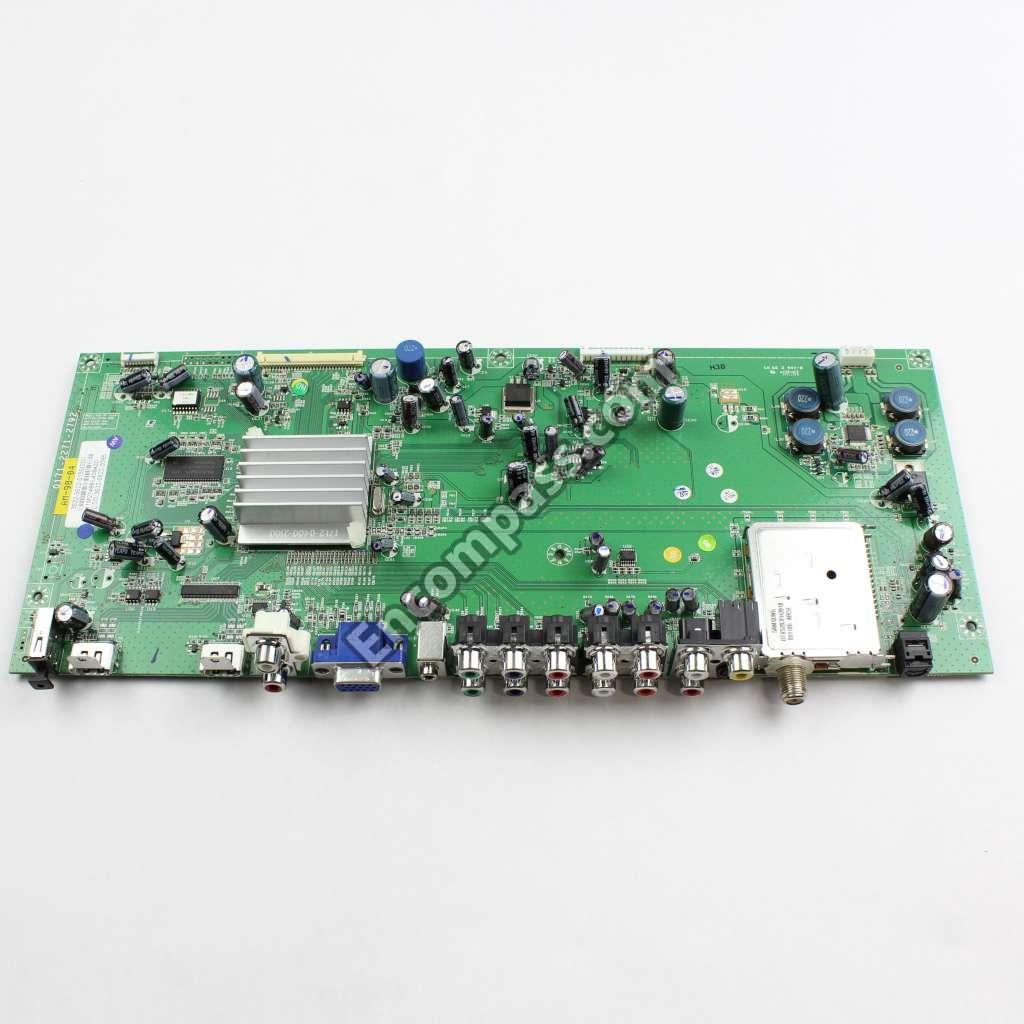

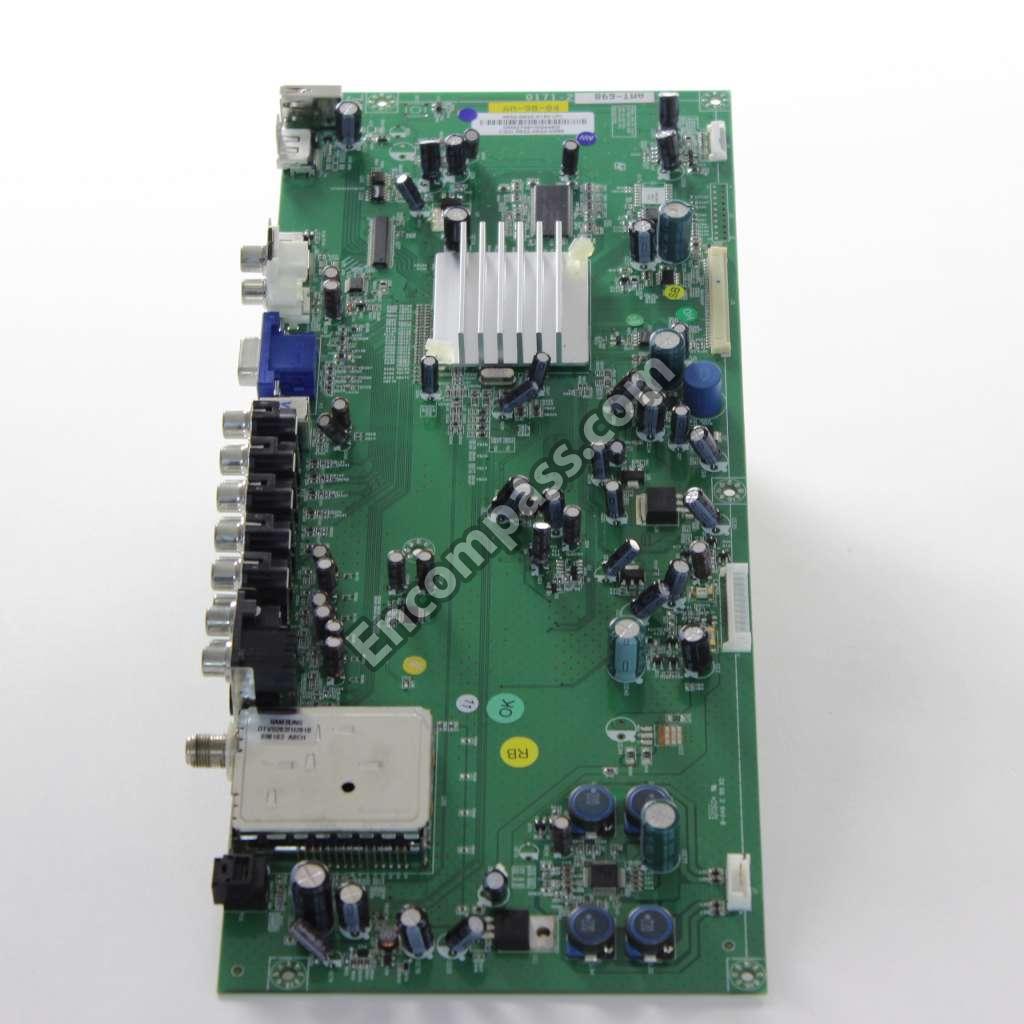

MAIN BD ASS'Y VW32L HDTV40A_LC320WXN-SAC2 (HDC |
|
|
MAIN BD ASS'Y VW32L HDTV40A_LC320WXN-SAC2 (HDC |
|
|
MANUAL VIZIO VW32L HDTV40A |
|
|
MYLAR (18.0*28.0*0.6T)(VX32L) |
|
|
NUT 3/8 -32(W12.5*2.0T,NI)(FOR TUNER) |
|
|
PANEL HOLDER_L (VX32L,VW32L)(FOR LPL_400NITS) |
|
|
PANEL HOLDER_R (VX32L,VW32L)(FOR LPL_400NITS) |
|
|
PAPER TAPE (FOUR PILLARS-CM-35 20.0 WIDE) |
|
|
PE BAG (480.0*350.0*0.06T)(VW32L HDTV40A) |
|
|
PE BAG (VX32L HDTV) |
|
|
PE BAG 340*230*0.08T (VOJ370) |
|
|
PE BAG 50*80*0.06T |
|
|
POWER BD ASS'Y DPS-172DP A LF |
|
|
POWER CORD 110V UL/CSA 1800MM BLK N.M. (VINC) |
|
|
QSG VIZIO VW32L HDTV40A |
|
|
REAR COVER (VW32L HDTV10A)(ABS,BLK) ASS'Y |
|
|
REAR PLATE VIZIO VW32L HDTV20A |
|
|
REGISTER CARD VIZIO SERIES |
|
|
RUBBER (35.0L*10.0W*8.0T) |
|
|
RUBBER PAD (23.0L*10.0W*12.5T) |
|
|
SERIAL NO.LBL BYD:SIGN |
|
|
SIDE JACK COVER (VW32L_SAMSUNG)(ABS,BLACK) |
|
|
SPACER SUPPORT (DCB-6.5) |
|
|
SPK BOX 10W 6OHM(155*56*55) 870/570MM LF |
|
|
SPK BOX 10W 6OHM(155*56*58) 870/570MM LF |
|
|
SPONGE (22.0L*55.0W*0.6T) |
|
|
TAP. SCREW-TB #3.0*8.0L,NI |
|
|
TAP. SCREW-TP #4.0*12.0L, BLK-NI |
|
|
TAP. SCREW-TP #4.0*16.0L, BLK-NI |
|
|
TAP. SCREW-TP #4.0*8.0L,NI |
|
|
TAP. SCREW-TRF #4.0*12.0L,NI |
|
|
WH A1251H02-10P/A1251H02-10P 1571#28 480MM |
|
|
WH A2001H02-14P/A2543H00-12P 1007#24 650MM |
|
|
WH A2543-13/A2001-13 1007#24 200MM |
|
|
WH PH4P-PH4P 1061#26 130MM LF |
|
|
WH PK2407P30/P240430 20276#30 300MM |
|
|
WIRE SADDLE (CH-14) |
