Manufacturer
Whirlpool
Model Number
ACC3660AS
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AMANA SURFACE UNIT-GAS |
|
|
ASSY, FAN/MOTOR |
|
|
ASSY, PLUG BLOCK |
|
|
ASSY, TUBE ORIFICE LEFT FRONT |
|
|
ASSY, TUBE ORIFICE LEFT REAR |
|
|
ASSY, TUBE ORIFICE RIGHT FRONT |
|
|
ASSY, TUBE ORIFICE RIGHT REAR |
|
|
BOWL- BURN |
|
|
BOX, JUNCTION-MOTOR |
|
|
BRACKET, CONDUIT |
|
|
BRKT, BURNER MTG. |
|
|
BRKT, CAPACITOR |
|
|
BRKT, CONTACT |
|
|
BRKT, ORIFICE MTG |
|
|
BRKT, PLUG BLOCK MTG |
|
|
BRKT, SPARK MODULE |
|
|
BRKT, VENTURI |
|
|
BRKT, VENTURI CLAMPING |
|
|
BURNER BOX-GAS |
|
|
BURNR-HEAD |
|
|
BUSHING, ANTI-SHORT |
|
|
CAP, BURNER 9K (MATTE BLK) |
|
|
CAP, CAPACITOR |
|
|
CAP-BURNER |
|
|
CASTING, CONTROL PANEL (BLK) |
|
|
CONDUIT, 3/8`` X 5 1/4`` |
|
|
CONNECTOR, STR 3/8 SNAP |
|
|
CONTROL, FAN SPEED VARIABLE |
|
|
COVER, CASTING VENT-GAS |
|
|
COVER, JUNCTION BOX |
|
|
ELECTRODE, BURNER IGN. 1O``WIRE |
|
|
ELECTRODE, BURNER IGN. 21``WIRE |
|
|
ELEMENT, CONTACT-MODULE TOP |
|
|
FILTER, EXHAUST (BLK) |
|
|
FITTING 1/4 NPT X 3/8 COMP |
|
|
FITTING, 90 DEG ELBOW |
|
|
GLASS, CONTROL PANEL (SS) |
|
|
GRATE-DOUBLE CAST(MATTE BLK)9K |
|
|
HARNESS, FAN CONTROL |
|
|
HARNESS, IGN-SW/IN |
|
|
IGNTR-SURF |
|
|
INSERT, CONTROL PANEL (SS) |
|
|
INSUL,CONTROL SHIELD 7`` |
|
|
INSULATION, BURNER BOX |
|
|
INSULATION, CONTROL SHIELD 16`` |
|
|
INSULATION, ESM |
|
|
KNOB, FAN (BLK) |
|
|

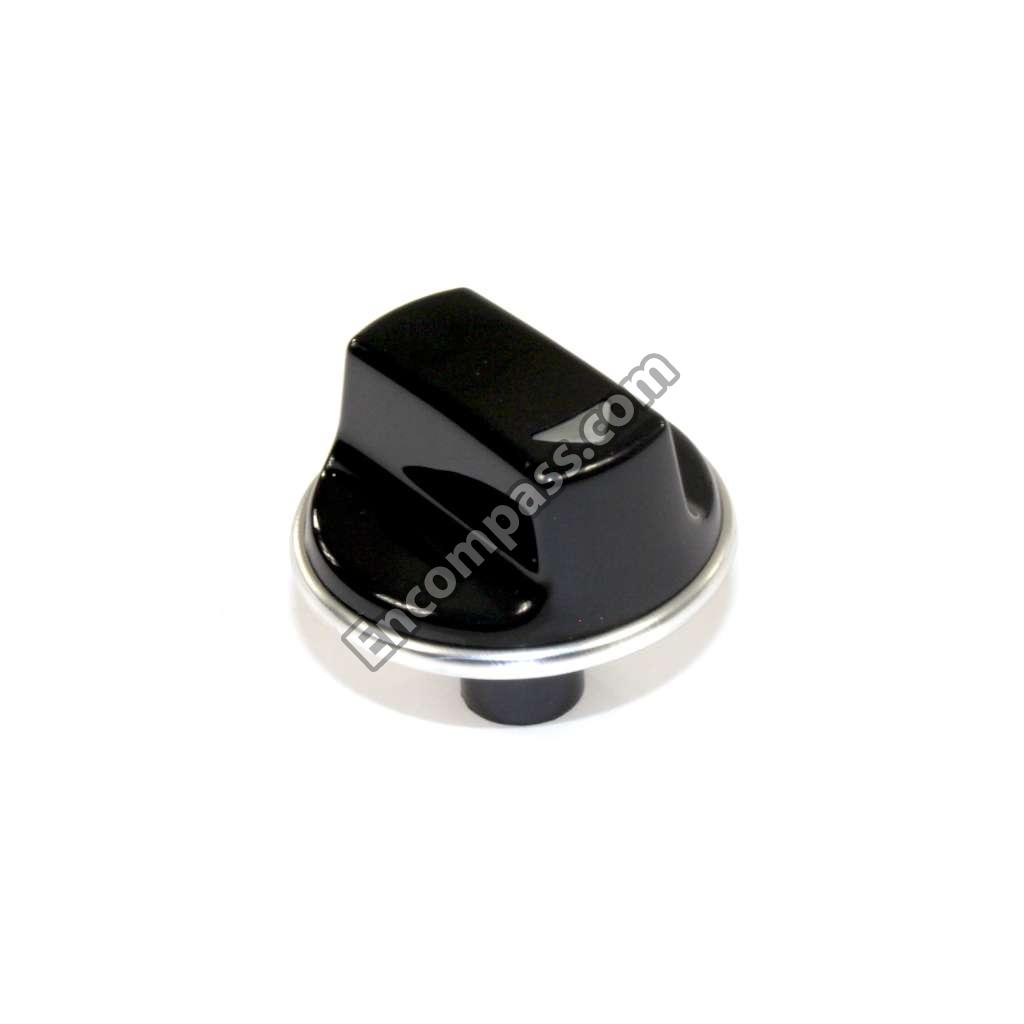

KNOB- TOP |
|
|
MAINTOP- 3 |
|
|
MANIFOLD, GAS |
|
|
MODULE PAN,GAS SEALED BRNR(BLA |
|
|
MOTOR CAPACITOR-FAN |
|
|
NUT, PAL 3/4-16 X 1.062 |
|
|
NUT, SPEED NO.4-40 (BLK) |
|
|
PANEL, ACCESS |
|
|
PIPE, MANIFOLD |
|
|
PLATE, BURNER BOX |
|
|
PLATE, ORIFICE MTG |
|
|
PLENUM, BOTTOM |
|
|
PLENUM, DUCT FILLER |
|
|
PLENUM, END |
|
|
PLENUM, FRONT |
|
|
PLENUM, REAR |
|
|
PLENUM, SIDE |
|
|
PLENUM, SIDE |
|
|
PLENUM, TOP |
|
|
PLUG BLOCK |
|
|
PRESSURE REGULATOR |
|
|
RANGE SPARK MODULE |
|
|
RELAY, BLOWER CUTOUT |
|
|
RIVET, POP |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW (PLAIN M4 METRIC .236) |
|
|
SCREW, ELECTRODE |
|
|
SCREW, NO.6-20 X .375 PAN HD |
|
|
SCREW, NO.6-32 X .250 PAN HD PH |
|
|
SCREW, NO.8-18 X 1/4 P TRS HD |
|
|
SCREW, NO.8-32 X1/2 NYL HEX HD |
|
|
SCREW, TT 23 4-40 X 5/8 |
|
|
SEAL, BURNER BOX (100``) |
|
|
SERVICE MAN REPLACES RS2410003 |
|
|
SHIELD, CONTROL & PLENUM |
|
|
SHIELD, FAN (ENAMELED) |
|
|
SHIELD, FRONT |
|
|
SHIELD, SWITCH |
|
|
SHIELD, SWITCH-VARIABLE |
|
|
SNAP BUSHING |
|
|
STRIKE, GRILLE PAN |
|
|
SWITCH, HI-TEMP MICRO |
|
|
SWITCH, SPARK (270 DEG) |
|
|
SWITCH, SPARK/FAN |
|
|
TERM BLK EO&GO 1M-2.5M-5M-10M |
|
|
TERMINAL, INSULATOR |
|
|
TOP BURNER |
|
|
TOP, MODULE-SEALED BURNER (SS) |
|
|
TUBE-GAS INLET |
|
|
VALVE, GAS 270 DEG RF 9.7K3100 |
|
|
VALVE, GAS 270 DEG RR 7.6K 280 |
|
|
VALVE, GAS 270DEG LR 9.7K 2800 |
|
|
VALVE, GAS LF 270DEG 12K 3100 |
|
|
VENTURI, FRONT BURNER-HW |
|
|
VENTURI, REAR BURNER-HW |
|
|
WASHER, LOCK 5/32 X 9/32 O.D. |
|
|
WIRE, IGNITION JUMPER |
|
|
WIRING INFORMATION |
