Manufacturer

Whirlpool

Model Number

AKT3040E

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
7920P230-60 7920P230-60 ASSY, FRAME&GLASS(AKH3040)
0316074 0316074 BAFFLE, HEATER BOX
31913701 31913701 BRACKET, CONTROL MTG.
31911601 31911601 BRACKET, ELEMENT MTG.
M0327601 M0327601 BUSHING, CONDUIT
WPY700630 WPY700630 CAMERA LENS, INDICATOR LIGHT
Y0307456 Y0307456 CLAMP, TUBE (1/2``)
M0321505 M0321505 CONNECTOR, CONDUIT
Y0316069 Y0316069 END, HEATER BOX
31939501 31939501 HARNESS, CONDUIT
31750124 31750124 HEX NUT (NKL)

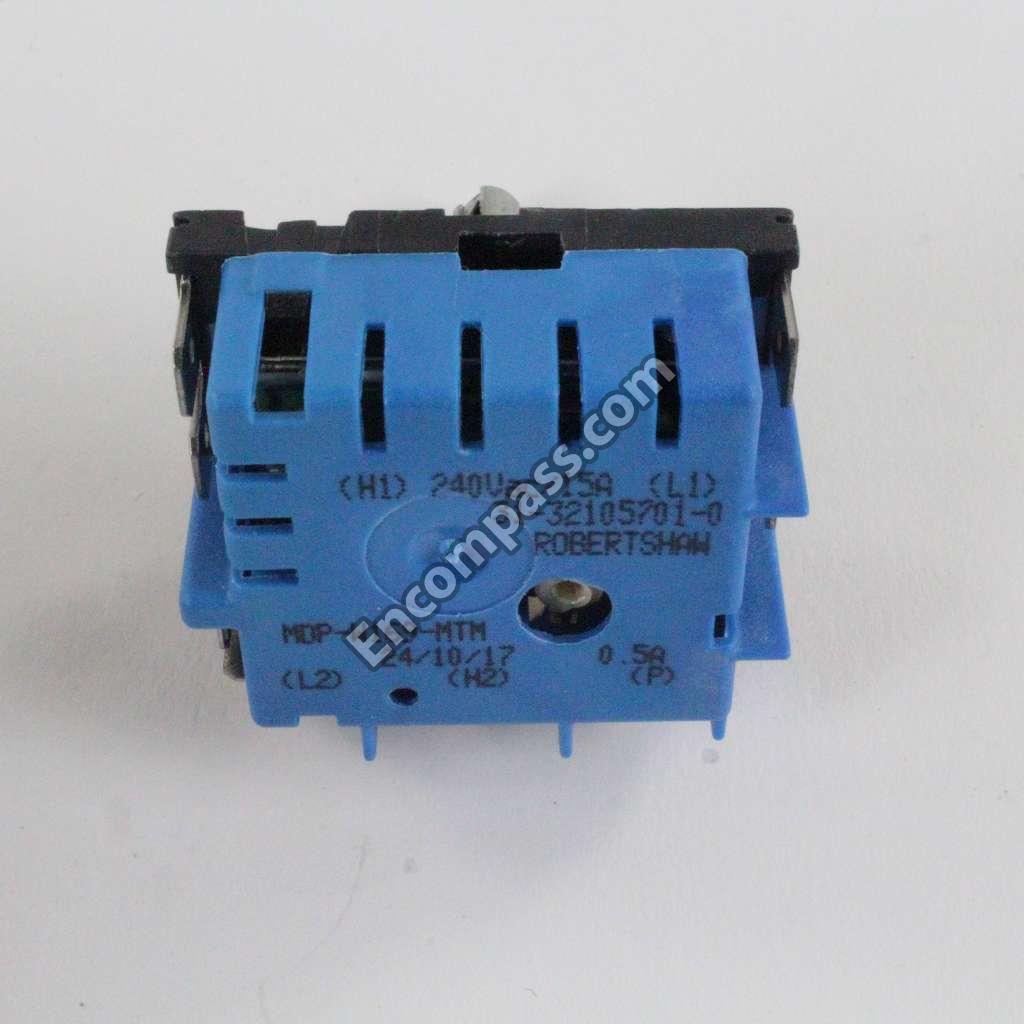

12002422 12002422 INFINITE CONTROL SWITCH
0307444 0307444 INSULATION, IND. LIGHT
31974401 31974401 INSULATION,BOT BURNER BOX
32060001 32060001 INSULATION,BURNER BOX-30``
74008211 74008211 KNOB, GROMMET
31926603B 31926603B KNOB,DUAL INFINITE(BLACK)
7737P212-60 7737P212-60 KNOB,INFINITE(BLACK)
Y0307442 Y0307442 LIGHT, INDICATOR
31933901 31933901 LIGHT, INDICATOR
0316689 0316689 LIMITER-DUAL
M0272803 M0272803 LOCK WASHER
WP7103P070-60 WP7103P070-60 NUT
Y0316649 Y0316649 PANEL, ACCESS
Y0307451 Y0307451 PLATE, CONDUIT
Y0307447 Y0307447 POP RIVET K
WP3388228 WP3388228 SCREW
74009538 74009538 SCREW
W11245710 W11245710 SCREW
WP488234 WP488234 SCREW
M0227520 M0227520 SCREW
31750523 31750523 SCREW, GRD NO.10-32 X 1/2 PANHD
31750425 31750425 SCREW, NO.8-18 X 3/8 PPH
31750715 31750715 SCREW, SHOULDER AB 6-20 X .825
Y0308941 Y0308941 SEAL, INLET
Y0316070 Y0316070 SIDE, HEATER BOX
Y0316071 Y0316071 SIDE, HEATER BOX
Y0306683 Y0306683 SPRING, ELEMENT
W10823726 W10823726 SURFACE ELEMENT
W10823699 W10823699 SURFACE ELEMENT
WP32082801 WP32082801 SURFACE ELEMENT
W10823710 W10823710 SURFACE ELEMENT
WP74011243 WP74011243 SWITCH- IN
74007878 74007878 TAPE, INCH
