Model Image
Manufacturer

Whirlpool

Model Number

SB520TW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
10176602 10176602 AIR DUCT, WAXED
Y10901401 Y10901401 ARM, I.M. SHUT-OFF
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
10883317 10883317 ASSY SHELF
10883408 10883408 ASSY, COND/PAN E-CT
10882809 10882809 ASSY, CRISP FRAME
10882801Q 10882801Q ASSY, CRISPER FRAME
12023401Q 12023401Q ASSY, FILL TUBE
D7846025 D7846025 ASSY, FRZ BACK
12452602Q 12452602Q ASSY, ROLLER BRACKET
10883316 10883316 ASSY, SPLIT GLIDE SHELF
12321807Q 12321807Q ASSY, TOE GRILLE (WHITE)
WPR0170055 WPR0170055 ASSY,LOW SIDE
D7788914 D7788914 ASSY,MC BACK
10881104W 10881104W ASS`Y, FRZ DOOR(WHITE)
10881003W 10881003W ASS`Y, REF DOOR(WHITE)
12021201 12021201 BAFFLE, AIR
10882701 10882701 BAND, CRISPER
10882702 10882702 BAND-CRISPER
10986402 10986402 BAND-DELI
12011901 12011901 BASKET, 11`` FREEZER
12011701 12011701 BASKET, 3`` FREEZER
12011801 12011801 BASKET, 7`` FREEZER
WP627985 WP627985 BIMETL-DEF
WP10520405 WP10520405 BIN CONTROL LEVER
10518703 10518703 BLADE-FAN
WP12059901 WP12059901 BLADE-FAN
10629601 10629601 BLOCK, AIR COIL (LEFT)
10629001 10629001 BLOCK, AIR COIL (RIGHT)
C8969204 C8969204 BLOCK, TERM
D7822406 D7822406 BOX, CONTROL BTM
D7868606 D7868606 BOX, CONTROL TOP
WPD7701602 WPD7701602 BRACKET
WP2256087 WP2256087 BRACKET
WP10909401 WP10909401 BRACKET
12414701 12414701 BRKT, CONT COVER
C8982102 C8982102 BRKT,COND. MTR
12146901 12146901 BRKT-ADJ HINGE
WP10656102 WP10656102 BRKT-MTR MT/UP
WP67004975 WP67004975 BUSHING, DOOR (WHT)
12147602 12147602 CAM-HINGE ADJ
10871205 10871205 CAP, REF HANDLE BOT(BLACK)
10871105 10871105 CAP, REF HANDLE TOP(BLK)
10871206 10871206 CAP- E FZ HNDL BOT.
10871106 10871106 CAP-E FZ HNDL TOP
A1781112 A1781112 CAP-VINYL TUBE
WP8183098 WP8183098 CAPACITOR
M0102303 M0102303 CLAMP
C8977301 C8977301 CLAMP
C8976201 C8976201 CLAMP
B5794201 B5794201 CLAMP
W10833902 W10833902 CLAMP
M0108001 M0108001 CLAMP, TUBE
B5720301 B5720301 CLIP
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
WPM0117303 WPM0117303 CLIP
WPM0104106 WPM0104106 CLIP
10426801 10426801 CLIP, AIR TUNNEL
M0104102 M0104102 CLIP, CORD
10063102 10063102 CLIP, DOOR DIKE
10547001 10547001 CLIP, DRIER
10527401 10527401 CLIP, EVAP
10623003 10623003 CLIP, EVAPORATOR
10202001 10202001 CLIP, RETAINER
M0110505 M0110505 CLIP-CABLE
10874601 10874601 CLIP-COND.
M0104003 M0104003 CLIP-SPEED
10165101 10165101 CLIP-TUBULAR
W10309997 W10309997 COMPRESSOR
10845505 10845505 COND. FN SHRD
WP10423131 WP10423131 CONTAINER
10164702 10164702 CONTROL-AIR
R9900109 R9900109 CONTROL-DAMPER
R0161094 R0161094 CONTROL-TEMP
B5669027 B5669027 CORD, POWER
M1200004 M1200004 COTTER PIN K
10244902 10244902 COUPLING
10178505 10178505 COVER - WIRE
10849403 10849403 COVER E HINGE
10504218 10504218 COVER HINGE
D7820401 D7820401 COVER IM
10862703 10862703 COVER, CONTROL
D7827402 D7827402 COVER, FILL TUBE
10493302 10493302 COVER, FRZ LIGHT
D7297604 D7297604 COVER, LIGHT SW
10178406 10178406 COVER, O.C.BACK
10493202 10493202 COVER, REF. LIGHT
D7838302 D7838302 COVER, SUPPLY AIR
Y10270101 Y10270101 COVER-LIGHT
4344043 4344043 COVER-TERM
WP628356 WP628356 CUP-FILL
10519208 10519208 DOOR, CHILLER
12103001 12103001 DOOR-DAIRY
R0195042 R0195042 DOUBLE BACKED TAPE 6FT ROLL
WPB2150504 WPB2150504 DRIER
D7850202 D7850202 DRIP TRAY PNT.
10655902 10655902 EVAP COVER- E CT
10890202 10890202 EVAP FAN SHROUD

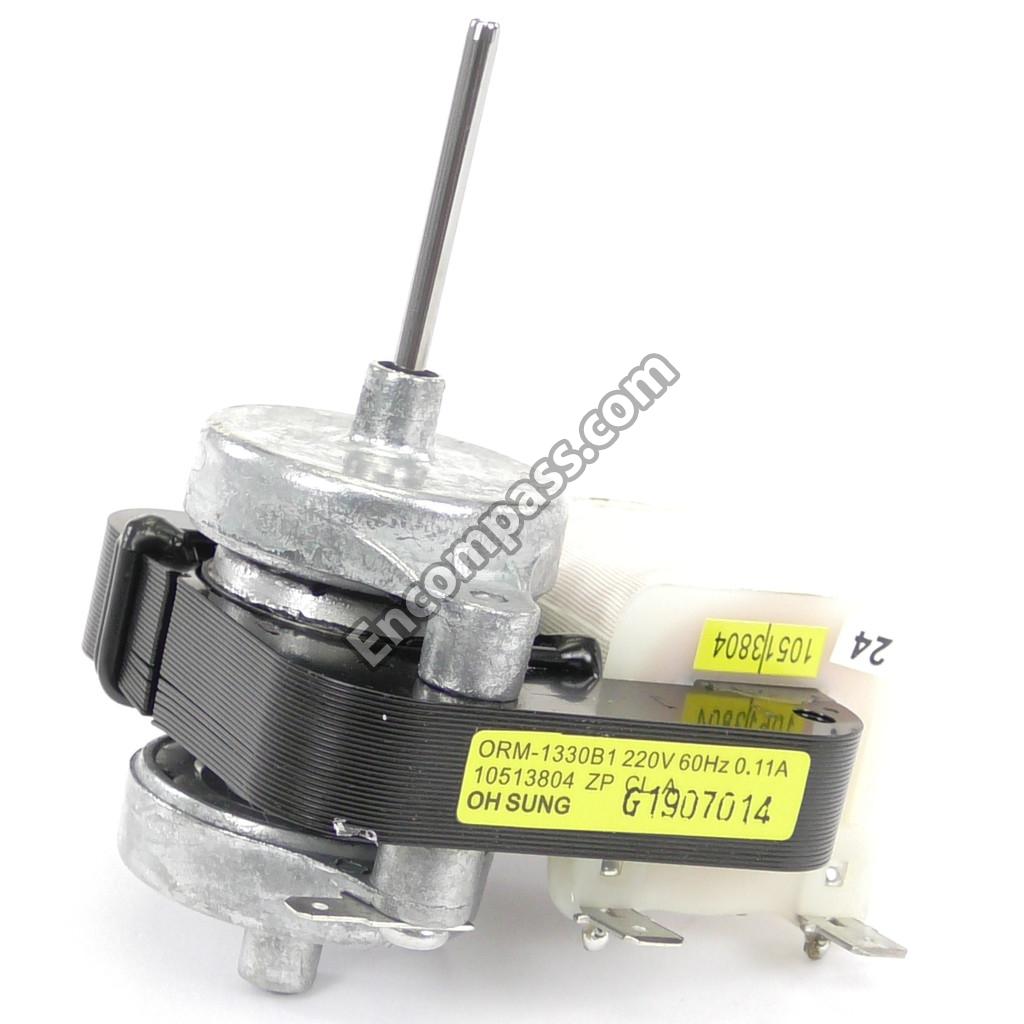

WP10513804 WP10513804 EVAPORATOR MOTOR
10979201 10979201 EXT, FZ DR (WHT)
A3127412 A3127412 EXT. FILL TUBE
10979101 10979101 EXTEN. W REF DOOR
10873801 10873801 EXTRN.-REAR DELI
10783702 10783702 FRAME, DELI
10519004 10519004 FRAME-CHILLER
10782902 10782902 FRAME-CRIS
10783001 10783001 FRAME-CRISPER
W10815413 W10815413 FUNNEL
A3030359 A3030359 GASKET
A3189346 A3189346 GASKET
A3030361 A3030361 GASKET
B8386608 B8386608 GASKET
B8386602 B8386602 GASKET
A3189337 A3189337 GASKET
10839713 10839713 GASKET (1=1FT.)
10839803 10839803 GASKET (FT.)
WP10359709Q WP10359709Q GASKET W
C8976102 C8976102 GASKET, AIR BLOCK
10177901 10177901 GASKET, AIR DUCT
10383201 10383201 GASKET, DAMPER
WPB8345401 WPB8345401 GASKET, DAMPER
10872701 10872701 GASKET, DELI
A3189364 A3189364 GASKET, FOAM
B5759645 B5759645 GASKET, SEALING
WPB8381501 WPB8381501 GASKET- DR
WP10359708Q WP10359708Q GASKET-DR
A3189367 A3189367 GASKET-FOAM
Y10370065 Y10370065 GLASS-SHELF
10162101 10162101 GLIDE-IGLOO DOOR
10164808 10164808 GRILLE, CONTROL
D7785402 D7785402 GRILLE-RTN AIR
WP2264462 WP2264462 GROMMET
M0580002 M0580002 GROMMET A
67003493 67003493 GROMMET, COMPRESSOR
10281002 10281002 GROMMET, SCREW
M0581001 M0581001 GROMMET, SCREW
M0580007 M0580007 GROMMET, SCREW
A3049001 A3049001 GUSSET-BEZEL
10277024 10277024 H V BOX-E CT
10845302 10845302 H.V. BOX SHELF-E CT
12139306 12139306 HANDLE, DOOR (BLACK)
12106205 12106205 HANDLE, FRZ DR (EBONY)
12106204 12106204 HANDLE, REF DR (EBONY)
12002026 12002026 HARNESS EVAP HEATER
10893703 10893703 HARNESS, CABINET
D7879601 D7879601 HARNESS, I/M
10959304 10959304 HARNESS, MC
12138402 12138402 HARNESS-REF LIGHT
WP10428406 WP10428406 HEATER- EV
12077315 12077315 HINGE, TOP L (E-CT)
12077314 12077314 HINGE, TOP R (E-CT)
10504217 10504217 HINGE- COVER LH GRAY
D7863903 D7863903 HOUSING FREEZER LIGHT
10270202 10270202 HOUSING LIGHT
WP2195914 WP2195914 HOUSING-IM
D7716410 D7716410 HOUSING-REF LIGHT
WPW10190972 WPW10190972 ICEMAKER
C8902601 C8902601 INSERT, CONTROL
C8986107 C8986107 INSERT, JUICE RACK
10953116 10953116 INSERT, TRIM (BLACK)
10953115 10953115 INSERT, TRIM (BLACK)
WPA3223101 WPA3223101 INSERT- PL
10945907 10945907 INSERT-E HANDLE
B0523590 B0523590 INSUL., BATT
10906506 10906506 INSUL., OC BOT
D7788201 D7788201 INSULATION
B0523563 B0523563 INSULATION FT. K
10906503 10906503 INSULATION, L.FOOT
10906501 10906501 INSULATION, R FOOT
10377602 10377602 INSULATION, TERM BLOCK
10786301 10786301 JUMPER, POWER CORD
R0161089 R0161089 KIT, DEFROST THERMOSTAT
R0168029 R0168029 KIT, DEFROST TIMER (230 VAC)
R0131553 R0131553 KIT, TOE GRILLE (BLK)
R0181181 R0181181 KIT,DR CLOSURE
10496104 10496104 KIT,HINGE LH BTM(B)
10496112 10496112 KIT,HINGE RH BTM(B)
R9800056 R9800056 KIT- E BOT
R0000213 R0000213 KIT- MACHI
D7795826 D7795826 KNOB, CONTROL (WHT)
D7795828 D7795828 KNOB, WH CONTROL (RED)
A3036901 A3036901 LABEL WARRANTY
10549601 10549601 LABEL, CAUTION (ICE MAKER)
D7789809 D7789809 LADDER, CANTILEVER
D7789808 D7789808 LADDER, CANTILEVER
10436404 10436404 LID, UTILITY
59002071 59002071 LIGHT BULB
10534901 10534901 LINER, FRZ. DOOR
10861502 10861502 LINER-REF DR
10872601 10872601 MANIFOLD, DELI
10527008 10527008 MNL, USE & CARE I/M
WPD7846903 WPD7846903 MOTOR-CONDENSER (230 VAC,50/60
WP627018 WP627018 NUT
M0286708 M0286708 NUT, SPEED
10377019 10377019 OVERLOAD- 4TM
M0051701 M0051701 PAD-BUMPER
10783301 10783301 PAN, CRISPER
10845602 10845602 PAN, DRAIN
D7806209 D7806209 PAN, ICE
D7806201 D7806201 PAN, ICE
10783204 10783204 PAN,CRISPER
10784101 10784101 PAN,DELI
10096943 10096943 PANEL-BLACK
10096944 10096944 PANEL-BLACK
10096939 10096939 PANEL-WHITE
10096940 10096940 PANEL-WHITE
M1200202 M1200202 PIN K
M0311301 M0311301 PLUG BUTTON
C8994001 C8994001 PLUG BUTTON
M0310319 M0310319 PLUG BUTTON
WPA3076901 WPA3076901 PLUG, BUTTON
A3080001 A3080001 PLUG, BUTTON (BLK)
M0310305 M0310305 PLUG, BUTTON (WHT)
A4539626 A4539626 POP RIVET
12013901 12013901 RACK, FREEZER
D7839701 D7839701 RACK, JUICE V
10809915 10809915 RAIL, L BLANK SIDE
12012901 12012901 RAIL, L. DBL SHELF
12012801 12012801 RAIL, L. SHELF
10809916 10809916 RAIL, R BLANK SIDE
10991601 10991601 RAIL- R DOUBLE
10991401 10991401 RAIL- R SHELF
WP10097206 WP10097206 RELAY
10063206 10063206 REM DIKE I & W LOWER
D7828601 D7828601 RETAINER, DOOR LINER
C8982801 C8982801 RETAINER, DOOR LINER
10237602 10237602 RETAINER, PACKAGE
10098801 10098801 RIVET
WPM1205302 WPM1205302 RIVET
B5642901 B5642901 RIVET, POP (WHT)
12102801 12102801 ROD-RETAINER
WP10450603 WP10450603 ROLLER
10481001 10481001 ROLLER, PAN
W10856125 W10856125 SCREW
67006692 67006692 SCREW
WP489349 WP489349 SCREW
12992301 12992301 SCREW
WP489128 WP489128 SCREW
M0253916 M0253916 SCREW
WPM0223816 WPM0223816 SCREW
M0216705 M0216705 SCREW
R0186040 R0186040 SCREW
R0186041 R0186041 SCREW
M0202514 M0202514 SCREW
WPM0219730 WPM0219730 SCREW
WP98165 WP98165 SCREW
WP67006715 WP67006715 SCREW
W11233072 W11233072 SCREW
M0216539 M0216539 SCREW
M0217224 M0217224 SCREW
M0217225 M0217225 SCREW
WP90767 WP90767 SCREW
WP489399 WP489399 SCREW
M0219758 M0219758 SCREW
WP489474 WP489474 SCREW
WP489464 WP489464 SCREW
WP489069 WP489069 SCREW
67006425 67006425 SCREW (3)
M0213517 M0213517 SCREW K
681390 681390 SCREW, 8-32 X 3/8
12991101 12991101 SCREW, HANDLE (BLACK)
M0206313 M0206313 SCREW, MACH
M0221523 M0221523 SCREW, SHLDR
M0226705 M0226705 SCREW, SHOULDER
M0211357 M0211357 SCREW, SM
M0227217 M0227217 SCREW, SM
W10005070 W10005070 SCREW, TC
M0238846 M0238846 SCREW-SM
M0238636 M0238636 SCREW-SM
WPM0500703 WPM0500703 SEAL- O RI
10968801 10968801 SEAL-CRISP FRONT
M0500706 M0500706 SEAL-O RING
Y00000000 Y00000000 SEE NOTE W VT MULL-PNT
10809520 10809520 SHELF FULL GLIDE
10883801 10883801 SHELF, DAIRY
12012101 12012101 SHELF, FREEZER WIRE
10525511 10525511 SHELF, FRZ DR
10809523 10809523 SHELF, FULL GLIDE
10870802 10870802 SHELF, ICE CREAM
12013801 12013801 SHELF, STAT. FREEZER
67003701 67003701 SHELF- DOO
10809720 10809720 SHELF-SPLIT GLIDE
10783108 10783108 SHELF-TOP CRISPER
10893803 10893803 SHIELD, EVAP
10014716 10014716 SHIELD, LIGHT
10014715 10014715 SHIELD, LIGHT
10361804 10361804 SHIM, DR BUSHING
B8389007 B8389007 SHIM, TOP HINGE
WP67005716 WP67005716 SHIM- CLOS
12146702 12146702 SHIM-BOT HINGE
12146701 12146701 SHIM-BOT HINGE
12146802 12146802 SHIM-LH BOT HINGE
10783902 10783902 SLEEVE,DELI
10852501 10852501 SLIDE, CRISPER/DELI
A4554813 A4554813 SNAP BUSHING
10169004 10169004 SNUGGER, SHELF
D7844803 D7844803 SOCKET SHIELD
D7845103 D7845103 SOCKET, LIGHT
4210531 4210531 SOLENOID VALVE
10234612 10234612 SPACER
A3044208 A3044208 SPACER DAMPER
12146801 12146801 SPACER, BTM HINGE
10234611 10234611 SPACER-REF
WPA1055105 WPA1055105 SPRING
12636401B 12636401B STOP, DOOR (BLK)
10875101 10875101 STOP, SHELF
Y10203701 Y10203701 STRAIN RELIEF
12146602 12146602 STRIP-LH BOT HINGE
12146601 12146601 STRIP-RH BOT HINGE
M0560005 M0560005 SUPPORT
10494606 10494606 SUPPORT REF TRIM (BTM)
10494604 10494604 SUPPORT, FZ TRIM
10941202 10941202 SUPPORT, L SHELF
C8913701 C8913701 SUPPORT, MC
WP10941102 WP10941102 SUPPORT- S
W11384469 W11384469 SWITCH
R0195037 R0195037 TAPE KIT
M0275163 M0275163 TAPE PER ROLL
M0320905 M0320905 TERMINAL GROUND A
WPM0322202 WPM0322202 TIE WIRE
WPW10339879 WPW10339879 TIE-WIRE
10276906 10276906 TOP, HV BOX
12102908 12102908 TRACK, DAIRY DOOR
WP841180A WP841180A TRAY
67004412A 67004412A TRAY, BUTTER
10436506 10436506 TRAY, EGG
10810512 10810512 TRIM, BOTTOM DOOR E
10810511 10810511 TRIM, BOTTOM DOOR EBONY
10602505 10602505 TRIM, FRZ DOOR (BOTTOM)
10765207 10765207 TRIM, REF DR TOP
10602605 10602605 TRIM, REFRIG DOOR (BOTTOM)
10810403 10810403 TRIM- E CTR DR
10810603 10810603 TRIM- E CTR I&W DR
12113003 12113003 TRIM-CRISPER FR
10765208 10765208 TRIM-E FZ DR TOP
10810311 10810311 TRIM-E TOP FZ DR
10810312 10810312 TRIM-E TOP REF DR
10494518 10494518 TRIM-E VERTICAL
10112409 10112409 TRIM-OC
10112410 10112410 TRIM-OC
10112408 10112408 TRIM-OC
10112405 10112405 TRIM-OC
10112411 10112411 TRIM-OC
10112406 10112406 TRIM-OC
10112404 10112404 TRIM-OC
10112412 10112412 TRIM-OC
10112407 10112407 TRIM-OC
WPB5705307 WPB5705307 TUBE
12142001 12142001 TUBE-DRAIN
10187601 10187601 TUNNEL WIRE
10187501 10187501 TUNNEL WIRE
C8971902 C8971902 TUNNEL, HEAT EX.
10923101 10923101 TUNNEL, RETAINER
12033201 12033201 TUNNEL-AIR
M0270519 M0270519 WASHER
M0274067 M0274067 WASHER, NYLON
D7383435 D7383435 WIRE JUMPER
Main Menu x
