Model Image
Manufacturer

LG

Model Number

27BL450YB

Description

27-inch Led Lcd Monitor

Interactive Exploded View

Parts List

Part Number Description

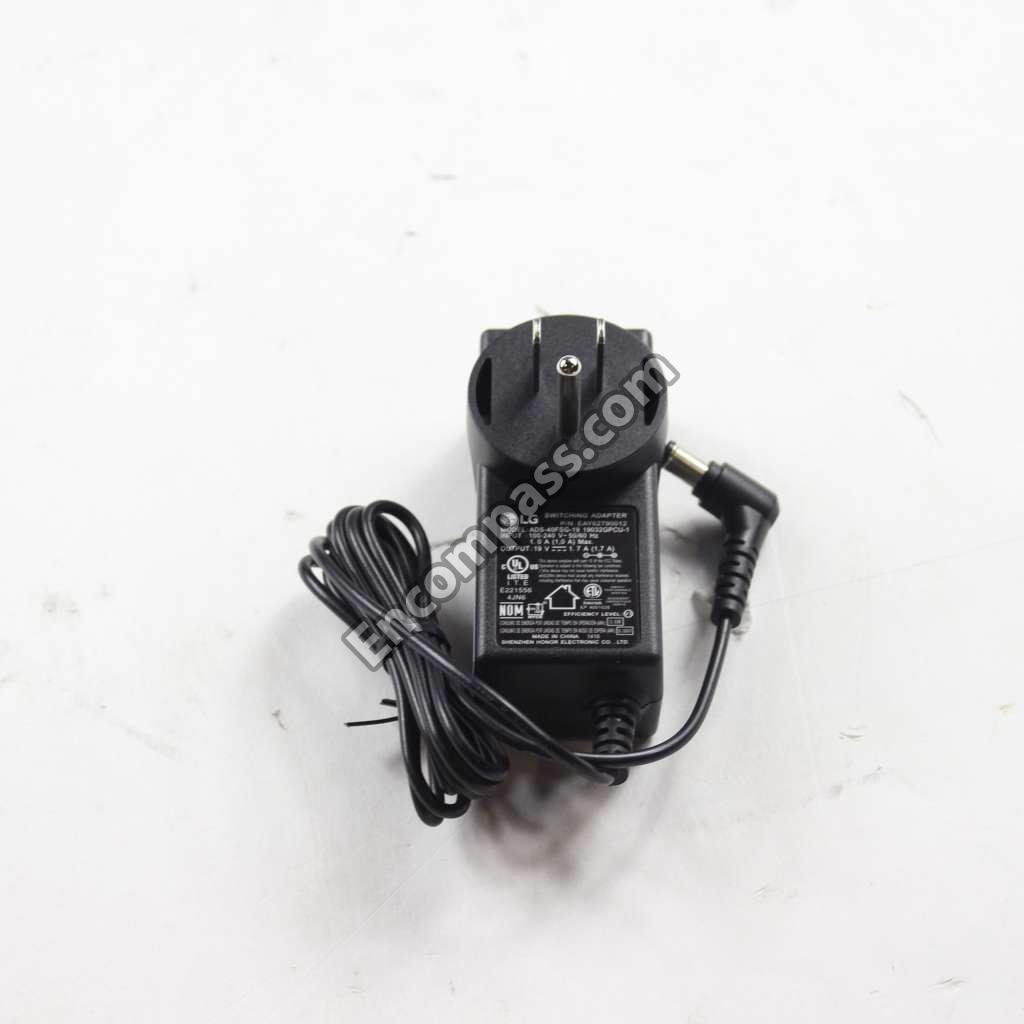

EAY62790012 EAY62790012 ADAPTERS
AAN75909014 AAN75909014 BASE ASSEMBLY
AAN75908929 AAN75908929 BASE ASSEMBLY
EBU65708004 EBU65708004 BPR TOTAL ASSEMBLY
ABJ76007310 ABJ76007310 CABINET ASSEMBLY
EAD65185303 EAD65185303 CABLE,ASSEMBLY
EAD62111306 EAD62111306 CABLE,ASSEMBLY
EAD65145016 EAD65145016 CABLE,FFC
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CH
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CH
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CH
0CK680BK4DA 0CK680BK4DA CAPACITOR,CERAMIC,CH
0CZZB00061A 0CZZB00061A CAPACITOR,CERAMIC,CH
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CH
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CH
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CH
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CK475DD56A 0CK475DD56A CAPACITOR,FIXED CERA
0CK106CC67A 0CK106CC67A CAPACITOR,FIXED CERA
0CK102BK56A 0CK102BK56A CAPACITOR,FIXED CERA
0CK105CK56A 0CK105CK56A CAPACITOR,FIXED CERA
0CK105CD56A 0CK105CD56A CAPACITOR,FIXED CERA
0CK104CK56A 0CK104CK56A CAPACITOR,FIXED CERA
3840TWL001S 3840TWL001S CARD
3840TRL039A 3840TRL039A CARD
6602T20009C 6602T20009C CONNECTOR (CIRC),WAF
EAG38153601 EAG38153601 CONNECTOR,FFC/FPC/PI
6630SK00804 6630SK00804 CONNECTOR,USB
6630V90141E 6630V90141E CONNECTOR,WAFER
EAG62172203 EAG62172203 CONNECTOR,WAFER
ACQ91390001 ACQ91390001 COVER ASSEMBLY,REAR
0DTKE00018A 0DTKE00018A DIODE,TVS
0DZ560009DA 0DZ560009DA DIODE,ZENER
ADV77725603 ADV77725603 FRAME ASSEMBLY
6612TAH003A 6612TAH003A JACK,AC/DC POWER
EAJ65649601 EAJ65649601 LCD,MODULE-TFT
AGF78482201 AGF78482201 PACKAGE ASSEMBLY
EBR85378904 EBR85378904 PCB ASSEMBLY,SUB
0RJ5600C678 0RJ5600C678 RESISTOR,CHIP
0RH9101D422 0RH9101D422 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
0RJ6800E472 0RJ6800E472 RESISTOR,CHIP
0RJ7502C478 0RJ7502C478 RESISTOR,CHIP
0RJ2003C478 0RJ2003C478 RESISTOR,CHIP
EBC00892202 EBC00892202 RESISTOR,CHIP
0RJ5102C678 0RJ5102C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ2402C678 0RJ2402C678 RESISTOR,CHIP
0RJ8200C478 0RJ8200C478 RESISTOR,CHIP
0RJ3902C478 0RJ3902C478 RESISTOR,CHIP
0RJ2700C478 0RJ2700C478 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ2003C678 0RJ2003C678 RESISTOR,CHIP
0RJ0100J488 0RJ0100J488 RESISTOR,CHIP
0RJ3901C478 0RJ3901C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ0221C678 0RJ0221C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ2001C678 0RJ2001C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1004C678 0RJ1004C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,METAL GLAZE
0RJ1003D677 0RJ1003D677 RESISTOR,METAL GLAZE
0RJ2002C478 0RJ2002C478 RESISTOR,METAL GLAZE
EAB51749310 EAB51749310 SPEAKER ASSEMBLY
6600AR9458Q 6600AR9458Q SWITCH,POLY
0TRDI80002A 0TRDI80002A TRANSISTOR,BIPOLARS
6602T20009E 6602T20009E WAFER
