Model Image
Manufacturer

LG

Model Number

32LB9D

Description

32 Lcd Hdtv

Interactive Exploded View

Parts List

Part Number Description
38809P0013S 38809P0013S BAG [0]
38809P0013G 38809P0013G BAG [0]
AAN74592401 AAN74592401 BASE ASSEMBLY [430]
3890TKD002P 3890TKD002P BOX [0]
ABA32985001 ABA32985001 BRACKET ASSEMBLY [A7]
MAZ37056201 MAZ37056201 BRACKET [0]
MAZ37058601 MAZ37058601 BRACKET [0]
ABJ32936003 ABJ32936003 CABINET ASSEMBLY [300]
68509A0004E 68509A0004E CABLE,ASSEMBLY [0]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY [A6]
0CE107SF6DC 0CE107SF6DC CAPACITOR,AL,CHIP [C103]
0CE226WF6DC 0CE226WF6DC CAPACITOR,AL,CHIP [C2152]
EAE30840301 EAE30840301 CAPACITOR,AL,CHIP [C2153]
0CE106WFKDC 0CE106WFKDC CAPACITOR,AL,CHIP [C242]
0CE336WD6D8 0CE336WD6D8 CAPACITOR,AL,CHIP [C302]
0CE476WF6DC 0CE476WF6DC CAPACITOR,AL,CHIP [C303]
0CE335WK6D8 0CE335WK6D8 CAPACITOR,AL,CHIP [C5018]
0CE475WK6DC 0CE475WK6DC CAPACITOR,AL,CHIP [C5050]
0CE337WJ6D8 0CE337WJ6D8 CAPACITOR,AL,CHIP [C556]
0CE105WK6DC 0CE105WK6DC CAPACITOR,AL,CHIP [C670]
0CE225WK6DC 0CE225WK6DC CAPACITOR,AL,CHIP [C711]
EAE32720101 EAE32720101 CAPACITOR,AL,CHIP [C724]
EAE30840401 EAE30840401 CAPACITOR,AL,CHIP [C727]
0CE337WH6DC 0CE337WH6DC CAPACITOR,AL,CHIP [C737]
0CH4471K416 0CH4471K416 CAPACITOR,CERAMIC,CHIP [C101]
0CH4101K416 0CH4101K416 CAPACITOR,CERAMIC,CHIP [C102]
0CK226FF67A 0CK226FF67A CAPACITOR,CERAMIC,CHIP [C107]
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP [C200]
EAE33970001 EAE33970001 CAPACITOR,CERAMIC,CHIP [C201]
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP [C2124]
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP [C2126]
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP [C2128]
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP [C312]
0CC221BKFAA 0CC221BKFAA CAPACITOR,CERAMIC,CHIP [C313]
0CK106DC67A 0CK106DC67A CAPACITOR,CERAMIC,CHIP [C321]
0CK105EJ56A 0CK105EJ56A CAPACITOR,CERAMIC,CHIP [C329]
0CK332CK56A 0CK332CK56A CAPACITOR,CERAMIC,CHIP [C337]
0CK471BK56A 0CK471BK56A CAPACITOR,CERAMIC,CHIP [C339]
0CH2334F566 0CH2334F566 CAPACITOR,CERAMIC,CHIP [C340]
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP [C342]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C347]
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP [C351]
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP [C361]
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP [C402]
0CK473CH56A 0CK473CH56A CAPACITOR,CERAMIC,CHIP [C412]
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP [C418]
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP [C469]
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP [C5007]
0CC020CK01A 0CC020CK01A CAPACITOR,CERAMIC,CHIP [C5013]
0CC560CK41A 0CC560CK41A CAPACITOR,CERAMIC,CHIP [C5016]
0CK474CH94A 0CK474CH94A CAPACITOR,CERAMIC,CHIP [C5021]
0CK222CK56A 0CK222CK56A CAPACITOR,CERAMIC,CHIP [C5022]
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP [C5039]
0CC471CK41A 0CC471CK41A CAPACITOR,CERAMIC,CHIP [C5044]
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP [C547]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C581]
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP [C589]
0CK103BH56A 0CK103BH56A CAPACITOR,CERAMIC,CHIP [C6025]
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP [C605]
EAE30281301 EAE30281301 CAPACITOR,CERAMIC,CHIP [C686]
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP [C744]
0CK225DH94A 0CK225DH94A CAPACITOR,CERAMIC,CHIP [C8004]
0CK4R7CKFDA 0CK4R7CKFDA CAPACITOR,CERAMIC,CHIP [C874]
0CK105DF64A 0CK105DF64A CAPACITOR,CERAMIC,CHIP [C877]
6630G00001C 6630G00001C CONNECTOR,DSUB [J300]
6630TGA004K 6630TGA004K CONNECTOR,DSUB [J405]
6630SK00604 6630SK00604 CONNECTOR,USB [P103]
6630V90142A 6630V90142A CONNECTOR,WAFER [0]
6602T20008N 6602T20008N CONNECTOR,WAFER [P102]
6602T20009C 6602T20009C CONNECTOR,WAFER [P102]
6602T20009L 6602T20009L CONNECTOR,WAFER [P103]
6602T25008B 6602T25008B CONNECTOR,WAFER [P104]
6602T20008D 6602T20008D CONNECTOR,WAFER [P105]
6602T25008C 6602T25008C CONNECTOR,WAFER [P501]
6630V93270A 6630V93270A CONNECTOR,WAFER [P600]
6602T25008M 6602T25008M CONNECTOR,WAFER [P701]
6602T25008J 6602T25008J CONNECTOR,WAFER [P702]
6602T20008L 6602T20008L CONNECTOR,WAFER [P703]
ACQ32936404 ACQ32936404 COVER ASSEMBLY,REAR [400]
EAW30352304 EAW30352304 CRYSTAL [X100]
6202VDT002B 6202VDT002B CRYSTAL [X400]
6202VDT002H 6202VDT002H CRYSTAL [X500]
6212AB2872A 6212AB2872A CRYSTAL [X601]
6202VDT002E 6202VDT002E CRYSTAL [X800]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D303]
0DSGD00038A 0DSGD00038A DIODE,SWITCHING [D300]
0DRSE00038A 0DRSE00038A DIODE,TVS [D301]
0DZ330009GB 0DZ330009GB DIODE,ZENER [ZD300]
0DZ360009EB 0DZ360009EB DIODE,ZENER [ZD405]
0DZ560009DA 0DZ560009DA DIODE,ZENER [ZD407]
0DZRM00248A 0DZRM00248A DIODE,ZENER [ZD502]
EBK32756101 EBK32756101 FET [Q300]
0TFDI80001B 0TFDI80001B FET [Q316]
EBK32753101 EBK32753101 FET [Q606]
0TFVI80067A 0TFVI80067A FET [Q702]
0LCML00003B 0LCML00003B FILTER,BEAD [B101]
EAM32500502 EAM32500502 FILTER,BEAD [L101]
6210VC0006A 6210VC0006A FILTER,BEAD [L101]
EAM32500503 EAM32500503 FILTER,BEAD [L200]
6200J00005N 6200J00005N FILTER,BEAD [L300]
EAM32500902 EAM32500902 FILTER,BEAD [L302]
EAM32500203 EAM32500203 FILTER,BEAD [L311]
6210TCE001S 6210TCE001S FILTER,BEAD [L723]
EAM37574201 EAM37574201 FILTER,LCR [L705]
EAM37276902 EAM37276902 FILTER,LCR [L748]
EAD36548801 EAD36548801 HARNESS,SINGLE [0]
6631T20033K 6631T20033K HARNESS,SINGLE [0]
6631T20032H 6631T20032H HARNESS,SINGLE [0]
6631900133E 6631900133E HARNESS,SINGLE [0]
6631900049A 6631900049A HARNESS,SINGLE [0]
EAD35522202 EAD35522202 HARNESS,SINGLE [0]
6631900018C 6631900018C HARNESS,SINGLE [0]
6631900015R 6631900015R HARNESS,SINGLE [0]
5240VE0001T 5240VE0001T HARNESS,SINGLE [0]
EAD30301901 EAD30301901 HARNESS,SINGLE [P501]
6631900102A 6631900102A HARNESS,SINGLE [P502]
6631900027C 6631900027C HARNESS,SINGLE [P701]
6631900012E 6631900012E HARNESS,SINGLE [P702]
6631900010M 6631900010M HARNESS,SINGLE [P703]
0IPRP00696C 0IPRP00696C IC,A/D CONVERTER [IC402]
EAN32724701 EAN32724701 IC,ANALOG SWITCH [IC403]
EAN35942401 EAN35942401 IC,ANALOG SWITCH [IC409]
EAN32404602 EAN32404602 IC,AUDIO AMPLIFIER [IC505]
EAN33913401 EAN33913401 IC,CLOCK GENERATOR [IC807]
EAN33931901 EAN33931901 IC,CMOS [IC201]
0ISTLPH026A 0ISTLPH026A IC,CMOS [IC305]
0ICTMLG019A 0ICTMLG019A IC,DATA CONTROLLER [IC604]
EAN32013101 EAN32013101 IC,DC,DC CONVERTER [IC712]
EAN34140301 EAN34140301 IC,DDR SDRAM [IC801]
EAN33624401 EAN33624401 IC,DDR2 SDRAM [IC200]
0IMCRAL021A 0IMCRAL021A IC,EEPROM [IC207]
0IMCRAL006A 0IMCRAL006A IC,EEPROM [IC310]
0IMMRCS012B 0IMMRCS012B IC,EEPROM [IC404]
0IMMRAL014D 0IMMRAL014D IC,EEPROM [IC405]
0IMCRSJ001B 0IMCRSJ001B IC,LDO VOLTAGE REGULATOR [IC301]
0IPMG00049A 0IPMG00049A IC,LDO VOLTAGE REGULATOR [IC302]
0IPMGA0010A 0IPMGA0010A IC,LDO VOLTAGE REGULATOR [IC308]
0IPMGKE030A 0IPMGKE030A IC,LDO VOLTAGE REGULATOR [IC600]
0IPMGS1012A 0IPMGS1012A IC,LDO VOLTAGE REGULATOR [IC803]
0IPMGS1006B 0IPMGS1006B IC,LDO VOLTAGE REGULATOR [IC804]
EAN34140401 EAN34140401 IC,LDO VOLTAGE REGULATOR [IC805]
0IPMG00027A 0IPMG00027A IC,LDO VOLTAGE REGULATOR [IC806]
EAN30399001 EAN30399001 IC,NOR FLASH MEMORY [IC205]
EAN33573001 EAN33573001 IC,PWM CONTROLLER [IC304]
0IPRPCI017A 0IPRPCI017A IC,RECEIVER [IC501]
0IMCRMN028C 0IMCRMN028C IC,SOUND/AUDIO PROCESSOR [IC508]
0IPRP00009A 0IPRP00009A IC,TX/RX [IC306]
EAN32174001 EAN32174001 IC,TX/RX [IC601]
EAN32808701 EAN32808701 IC,VIDEO PROCESSORS [IC101]
EAN32354202 EAN32354202 IC,VIDEO PROCESSORS [IC800]
0IPMGSH019A 0IPMGSH019A IC,VOLTAGE REGULATOR [IC602]
EAN32662801 EAN32662801 IC,VOLTAGE REGULATOR [IC700]
0IPMG78391A 0IPMG78391A IC,VOLTAGE REGULATOR [IC802]
MES36332301 MES36332301 INDICATOR [591]
0LCML00020B 0LCML00020B INDUCTOR,MULTILAYER,CHIP [L501]
0LC2232101A 0LC2232101A INDUCTOR,MULTILAYER,CHIP [L520]
0LC2220101A 0LC2220101A INDUCTOR,MULTILAYER,CHIP [L700]
EAP32632801 EAP32632801 INDUCTOR,WIRE WOUND,CHIP [L100]
EAP32842801 EAP32842801 INDUCTOR,WIRE WOUND,CHIP [L314]
EAP32842805 EAP32842805 INDUCTOR,WIRE WOUND,CHIP [L510]
EAY48909201 EAY48909201 INVERTER ASSEMBLY [200N]
6612J10024A 6612J10024A JACK,COMPLEX [J600]
6612J00062H 6612J00062H JACK,COMPLEX [J705]
6612B00015B 6612B00015B JACK,DIN [J402]
EAG32151101 EAG32151101 JACK,FIBER OPTIC [0]
6612F00099A 6612F00099A JACK,PHONE [J702]
6612J10003X 6612J10003X JACK,RCA [J101]
6612J10031A 6612J10031A JACK,RCA [J400]
EAG35542202 EAG35542202 JACK,RCA [J501]
6612J10043A 6612J10043A JACK,RCA [J704]
MEY37163001 MEY37163001 KNOB [0]
0DLBE0138AA 0DLBE0138AA LED,DIP [LED1]
CRB30418501 CRB30418501 MAIN TOTAL ASSEMBLY [520]
MFZ37187101 MFZ37187101 PACKING [0]
3918TKK038S 3918TKK038S PACKING [0]
3918TKK040B 3918TKK040B PACKING [0]
3918TKK040A 3918TKK040A PACKING [0]
3918TKK038J 3918TKK038J PACKING [0]
EBR36873401 EBR36873401 PCB ASSEMBLY,MAIN [600]
AGF33694501 AGF33694501 PCB ASSEMBLY,SUB [530]
EBR37577301 EBR37577301 PCB ASSEMBLY,SUB [581]
AGF33694401 AGF33694401 PCB ASSEMBLY,SUB [590]
6871VSMFA8A 6871VSMFA8A PCB ASSEMBLY,SUB [P500]
49519K0002A 49519K0002A PLATE ASSEMBLY [A5]
MGJ32973601 MGJ32973601 PLATE [206]
MGJ32918103 MGJ32918103 PLATE,SHIELD [521]
6410TUW008A 6410TUW008A POWER CORD [A3]
6712000013A 6712000013A RECEIVER MODULE [PA101]

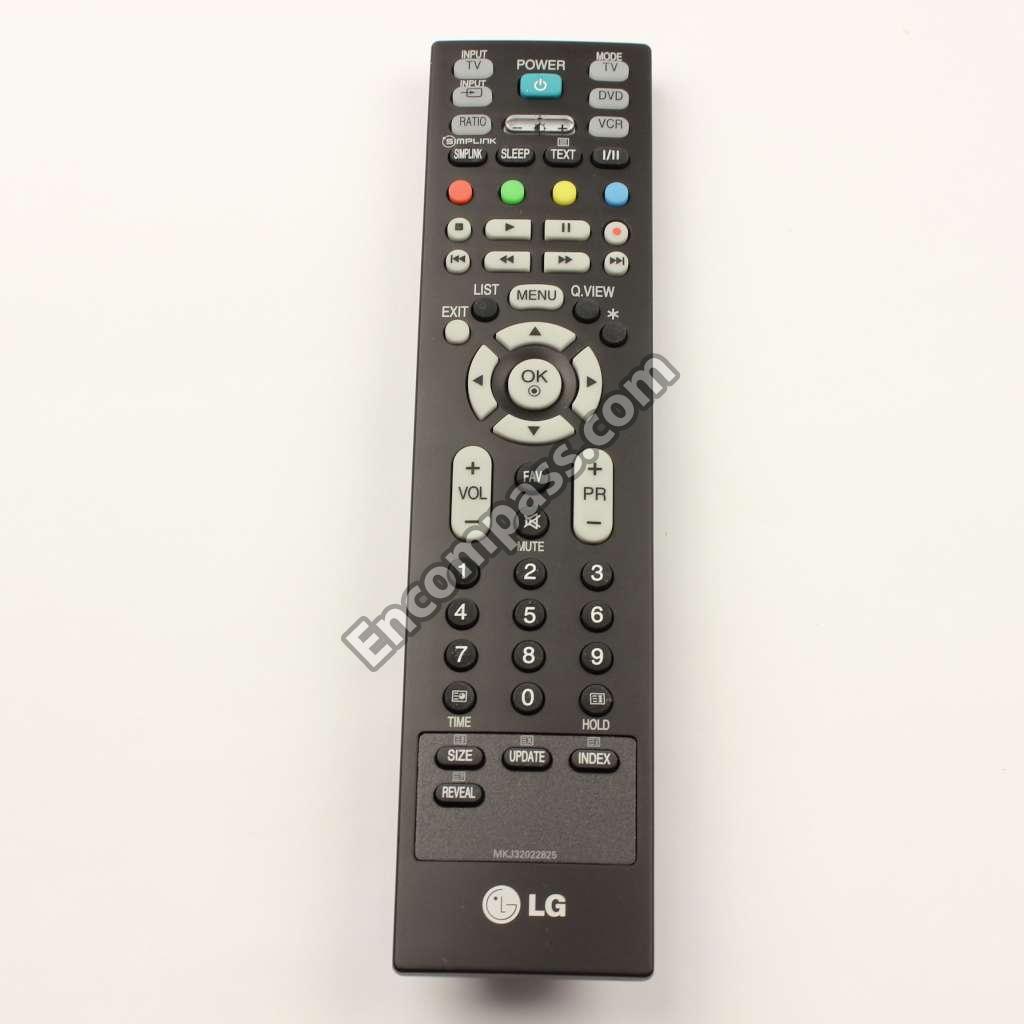

MKJ32022825 MKJ32022825 REMOTE CONTROLLER [0]
AKB73575301 AKB73575301 REMOTE CONTROLLER [1]
EBC32260901 EBC32260901 RESISTOR,ARRAY [AR100]
EBC33751901 EBC33751901 RESISTOR,ARRAY [AR200]
EBC32260601 EBC32260601 RESISTOR,ARRAY [AR431]
0RJ0222C687 0RJ0222C687 RESISTOR,ARRAY [AR651]
0RJ0512C687 0RJ0512C687 RESISTOR,ARRAY [AR808]
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP [R1013]
0RH2702D622 0RH2702D622 RESISTOR,CHIP [R101]
0RH0000D622 0RH0000D622 RESISTOR,CHIP [R101]
0RH1002D622 0RH1002D622 RESISTOR,CHIP [R101]
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP [R1029]
0RH8201D622 0RH8201D622 RESISTOR,CHIP [R102]
0RH2701D622 0RH2701D622 RESISTOR,CHIP [R103]
0RH9100D622 0RH9100D622 RESISTOR,CHIP [R104]
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP [R109]
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP [R114]
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP [R126]
0RJ0182C478 0RJ0182C478 RESISTOR,CHIP [R129]
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP [R132]
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP [R133]
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP [R139]
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP [R142]
EBC33834501 EBC33834501 RESISTOR,CHIP [R148]
0RJ0471C678 0RJ0471C678 RESISTOR,CHIP [R149]
EBC33834701 EBC33834701 RESISTOR,CHIP [R163]
0RJ3001C678 0RJ3001C678 RESISTOR,CHIP [R192]
0RJ1500C678 0RJ1500C678 RESISTOR,CHIP [R215]
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP [R3000]
0RJ3300C678 0RJ3300C678 RESISTOR,CHIP [R300]
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP [R301]
0RJ6802C678 0RJ6802C678 RESISTOR,CHIP [R3027]
0RJ4302D677 0RJ4302D677 RESISTOR,CHIP [R302]
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP [R3042]
0RJ6801C678 0RJ6801C678 RESISTOR,CHIP [R305]
0RJ2001E472 0RJ2001E472 RESISTOR,CHIP [R307]
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP [R308]
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP [R309]
0RJ0511D677 0RJ0511D677 RESISTOR,CHIP [R312]
0RJ4700C678 0RJ4700C678 RESISTOR,CHIP [R318]
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP [R319]
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP [R321]
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP [R323]
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP [R345]
0RJ2000C678 0RJ2000C678 RESISTOR,CHIP [R350]
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP [R356]
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP [R368]
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP [R386]
0RJ5101C678 0RJ5101C678 RESISTOR,CHIP [R4016]
0RJ3900C678 0RJ3900C678 RESISTOR,CHIP [R405]
0RJ2702D677 0RJ2702D677 RESISTOR,CHIP [R4060]
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP [R410]
0RJ0752C678 0RJ0752C678 RESISTOR,CHIP [R4140]
0RJ9101D477 0RJ9101D477 RESISTOR,CHIP [R422]
0RJ1800C678 0RJ1800C678 RESISTOR,CHIP [R423]
0RJ1002D677 0RJ1002D677 RESISTOR,CHIP [R434]
0RJ0332C478 0RJ0332C478 RESISTOR,CHIP [R449]
0RJ2001C678 0RJ2001C678 RESISTOR,CHIP [R5004]
0RJ0471D677 0RJ0471D677 RESISTOR,CHIP [R5014]
0RJ1000D677 0RJ1000D677 RESISTOR,CHIP [R5031]
0RJ0222D677 0RJ0222D677 RESISTOR,CHIP [R5032]
0RJ0392D677 0RJ0392D677 RESISTOR,CHIP [R5035]
0RJ2200D677 0RJ2200D677 RESISTOR,CHIP [R5039]
0RJ1001D677 0RJ1001D677 RESISTOR,CHIP [R5041]
0RJ2201D677 0RJ2201D677 RESISTOR,CHIP [R5070]
0RJ4703D677 0RJ4703D677 RESISTOR,CHIP [R5076]
0RJ2001D677 0RJ2001D677 RESISTOR,CHIP [R5077]
0RJ1501D677 0RJ1501D677 RESISTOR,CHIP [R5080]
0RJ1200C678 0RJ1200C678 RESISTOR,CHIP [R523]
0RJ1100D677 0RJ1100D677 RESISTOR,CHIP [R525]
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP [R540]
0RJ0331D677 0RJ0331D677 RESISTOR,CHIP [R559]
0RJ1004D477 0RJ1004D477 RESISTOR,CHIP [R668]
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP [R670]
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP [R748]
0RJ2203D677 0RJ2203D677 RESISTOR,CHIP [R771]
0RJ2002D677 0RJ2002D677 RESISTOR,CHIP [R777]
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP [R8005]
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP [R8007]
0RJ0512C678 0RJ0512C678 RESISTOR,CHIP [R8028]
SAA30722107 SAA30722107 S/W,FIRMWARE [IC205]
SAA30643714 SAA30643714 S/W,FIRMWARE [IC309]
FAB30016415 FAB30016415 SCREW ASSEMBLY [A8]
FAB30006504 FAB30006504 SCREW,MACHINE [0]
FAB30021301 FAB30021301 SCREW,TAPPING [A9]
FAB30013210 FAB30013210 SCREW,TAPTITE [0]
6500VR0003E 6500VR0003E SENSOR,AMBIENT LIGHT [700]
EAY33058502 EAY33058502 SMPS,AC/DC [580]
EAB37526301 EAB37526301 SPEAKER,FULL RANGE [120]
MJH32520504 MJH32520504 SUPPORTER [201]
MJH32520609 MJH32520609 SUPPORTER [202]
MJH37025103 MJH37025103 SUPPORTER [204]
MJH37056403 MJH37056403 SUPPORTER [205]
140-313B 140-313B SWITCH,TACT [SW101]
EAT48910801 EAT48910801 TIME CONTROL [200T]
0TRIY80001A 0TRIY80001A TR,BIPOLAR [Q101]
0TR104009AF 0TR104009AF TR,BIPOLAR [Q401]
EBK58172301 EBK58172301 TR,BIPOLAR [Q508]
0TR102009AM 0TR102009AM TR,BIPOLAR [Q513]
EBL34917003 EBL34917003 TUNER,ANALOG/DIGITAL [TU600]
6102W5V016A 6102W5V016A VARISTOR [VR400]
Main Menu x
